AutoChimp™ Reverse Camera Kit for Toyota Hilux (2020–2025) | Plug & Play | 48V Hybrid Compatible
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
Make: Toyota
Model: Hilux
Series: N80
Year: 2020–2025
48v Model Vehicles Compatible, Petrol Model Vehicles Compatible, Diesel Model Vehicles Compatible, and Auto & Manual Transmission Compatible
✅ Factory Screen Check: This product is designed to work with your vehicle's original factory screen. Running an aftermarket head unit or stereo? This listing isn't the right fit — check our universal camera range instead, or contact us and we'll point you to the correct setup.
AutoChimp™ Reverse Camera Kit for Toyota Hilux (2020–2025) | 48V Compatible
SKU: AC-TOY-RC6
Fits: Toyota Hilux 2020–2025 (N80) with the factory 26-pin camera port — Workmate, SR, SR5 and other variants, auto or manual, 12V or 48V electrical systems.
Which Hilux Kit Do I Need?
Go by the front of the vehicle, not the plate — Toyota changed the Hilux over during 2015. A wide chrome grille bar with separate upright headlights is the N70; a deep one-piece grille with swept-back headlights is the N80.
| Build Years | Generation | Kit |
| 2006–2013 | N70 Early & Facelift — non-touchscreen stereo | AC-TOY-RC1 |
| 2006–2013 | N70 Early & Facelift — touchscreen stereo | AC-TOY-RC2 |
| 2014–2015 | N70 Late | AC-TOY-RC3 |
| 2016–2020 | N80 | AC-TOY-RC4 |
| 2020–2025 | N80 Facelift — also 48V hybrid | AC-TOY-RC6 — this kit |

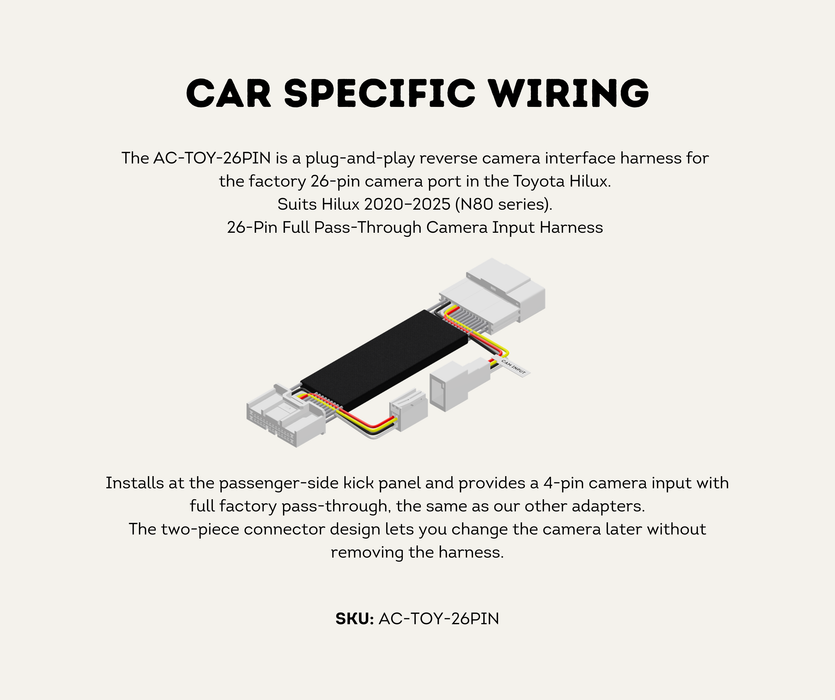

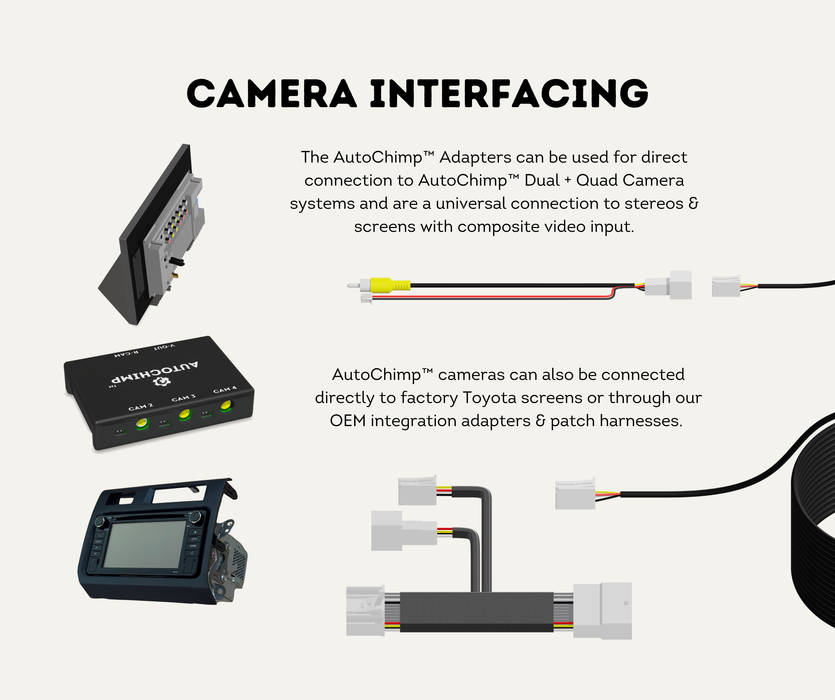

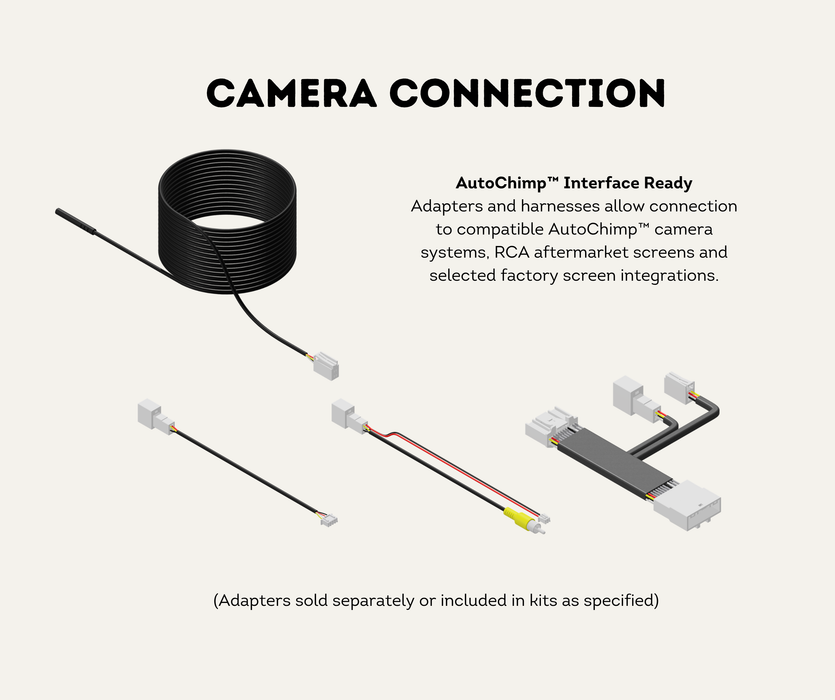

The AutoChimp™ Reverse Camera Kit for Toyota Hilux adds a reverse camera to your factory screen with no cutting, splicing or dealer coding. The included AC-TOY-26PIN interface harness plugs into the factory 26-pin camera port behind the passenger-side kick panel and carries the camera video straight through to the OEM display.
Every one of the 26 factory pins passes through the harness, so nothing else in the vehicle changes. Unplug it and the Hilux is back to standard.
Key Features
- Plug & Play Factory Integration – Connects to the factory 26-pin camera port at the passenger kick panel. No cutting, no splicing, no coding.

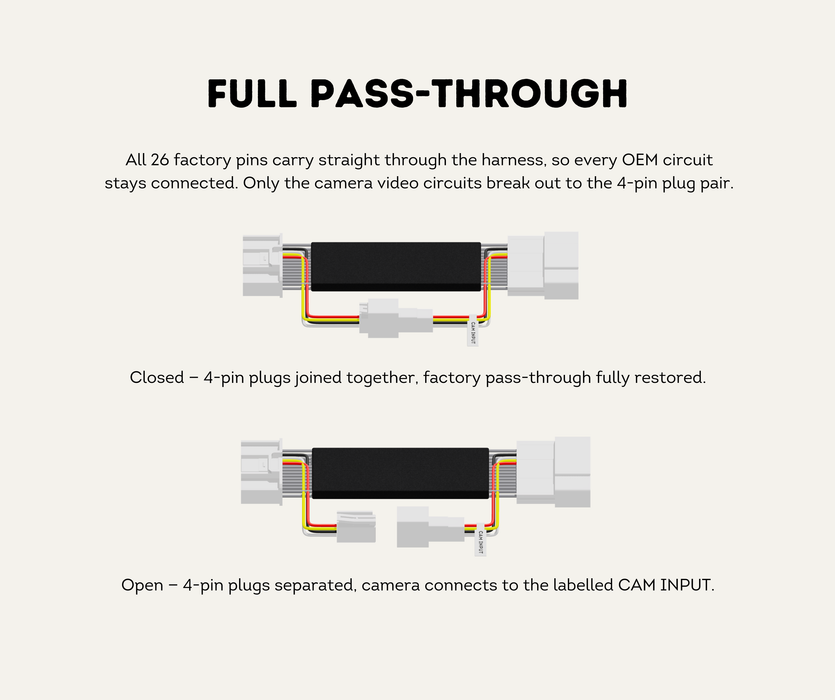

- Full Factory Pass-Through – All 26 OEM pins carry straight through the harness; only the camera video circuits break out to the 4-pin plug pair.
- 48V Compatible – Suits Hilux variants with either 12V or 48V electrical systems.

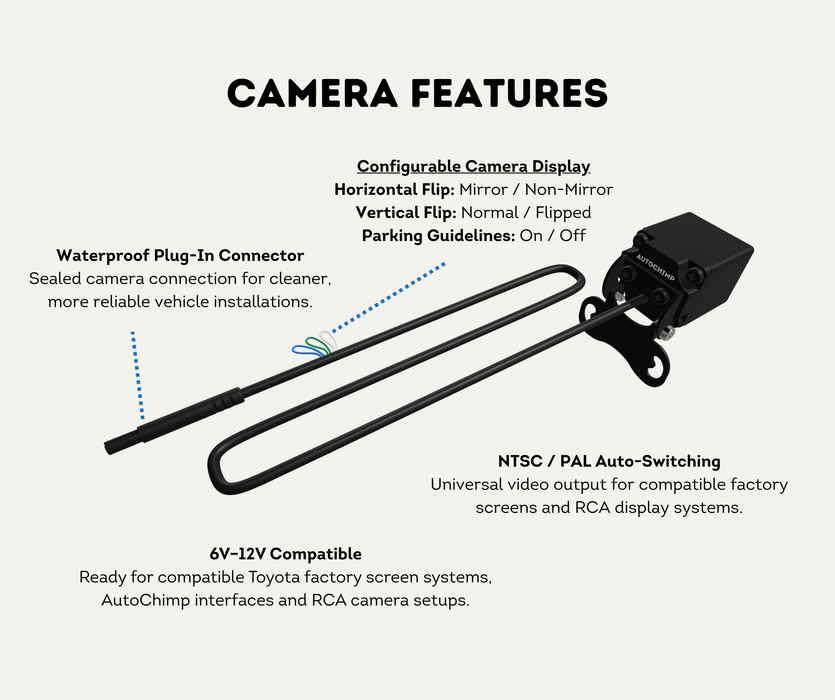

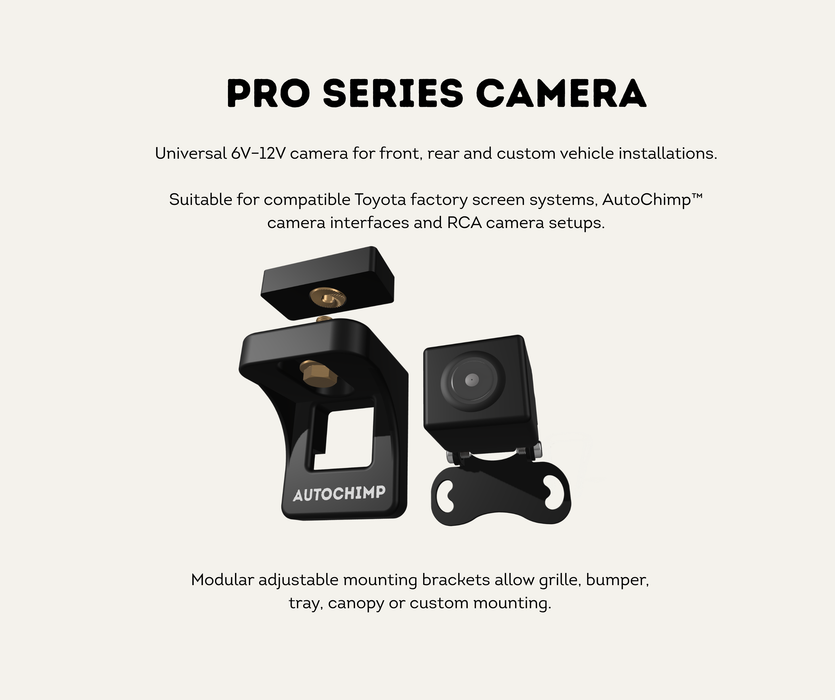

- Pro HD Camera – Compact metal-housed camera with a sealed waterproof plug-in connector for a cleaner, more reliable install.
- Configurable Image – Horizontal flip (mirror / non-mirror), vertical flip (normal / flipped) and parking guidelines on or off.
- NTSC / PAL Auto-Switching – Universal video output for compatible factory screens and RCA display systems.

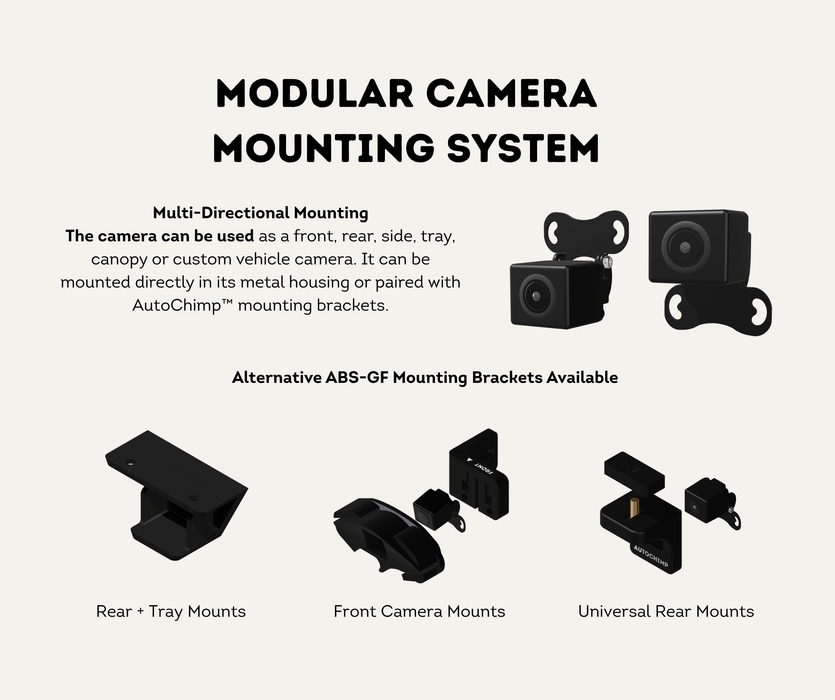

- Modular Mounting – Mount the camera in its metal housing directly, or pair it with AutoChimp™ rear, tray, front or universal brackets.
- DIY Friendly – Step-by-step installation video plus PDF instructions via the QR code on the pack.
- Built for Australian Conditions – IP67 waterproof and dustproof, rated -30°C to +80°C.
- Fully Reversible – Rejoin the 4-pin plugs and factory pass-through is fully restored.

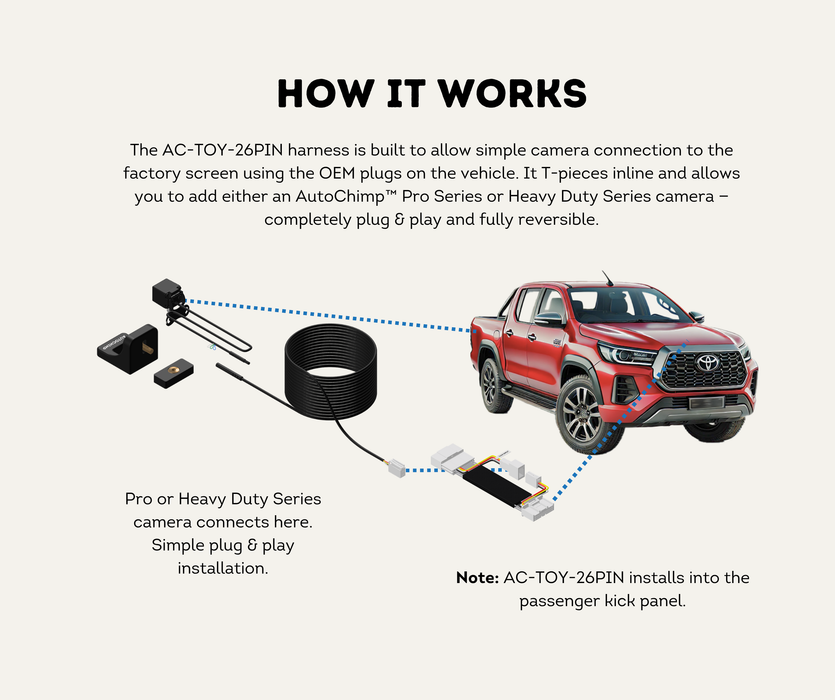

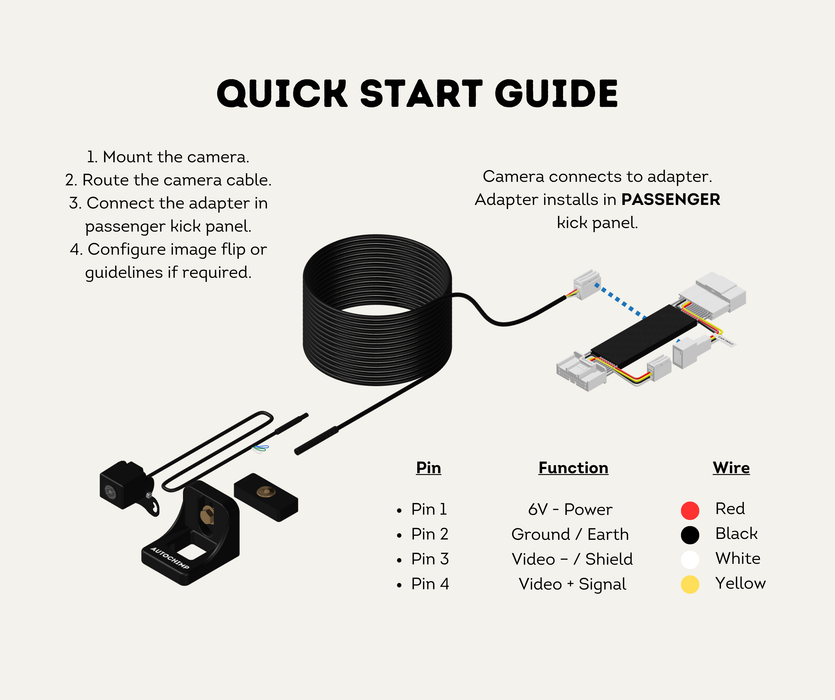

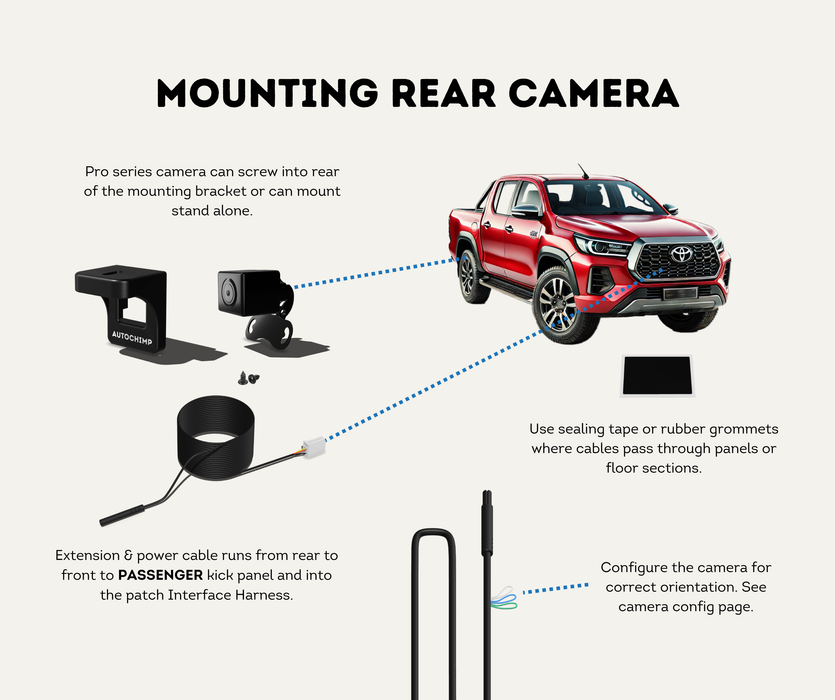

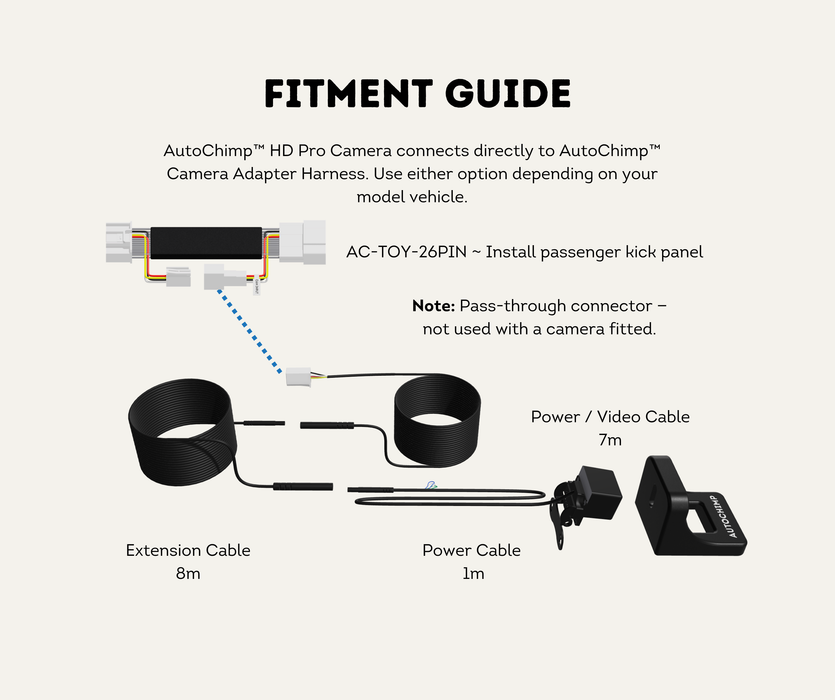

How It Works

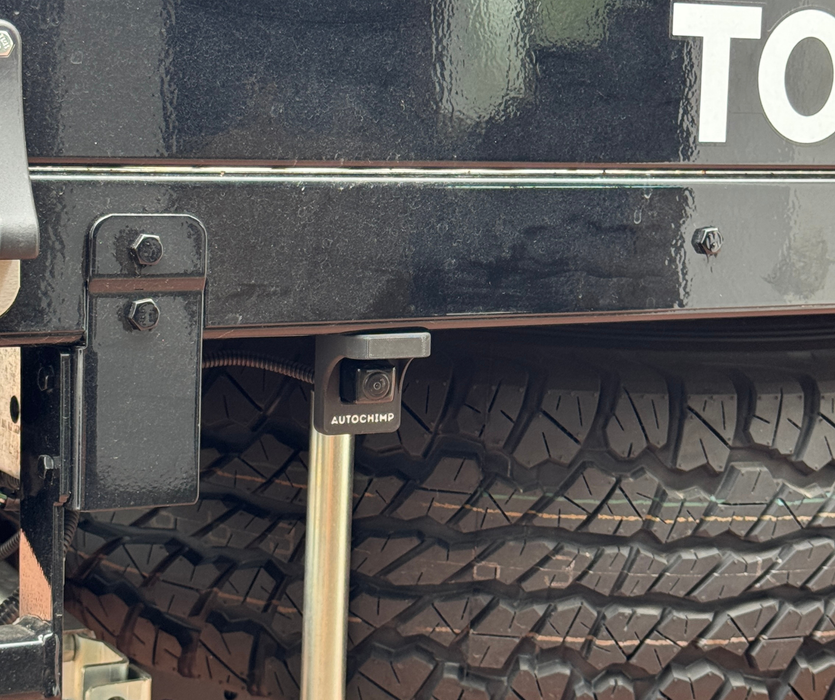

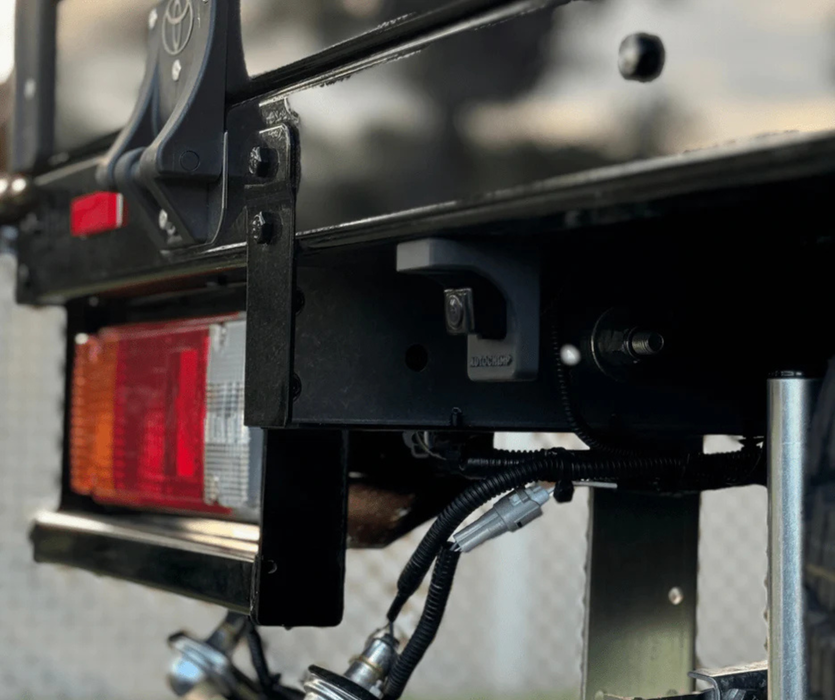

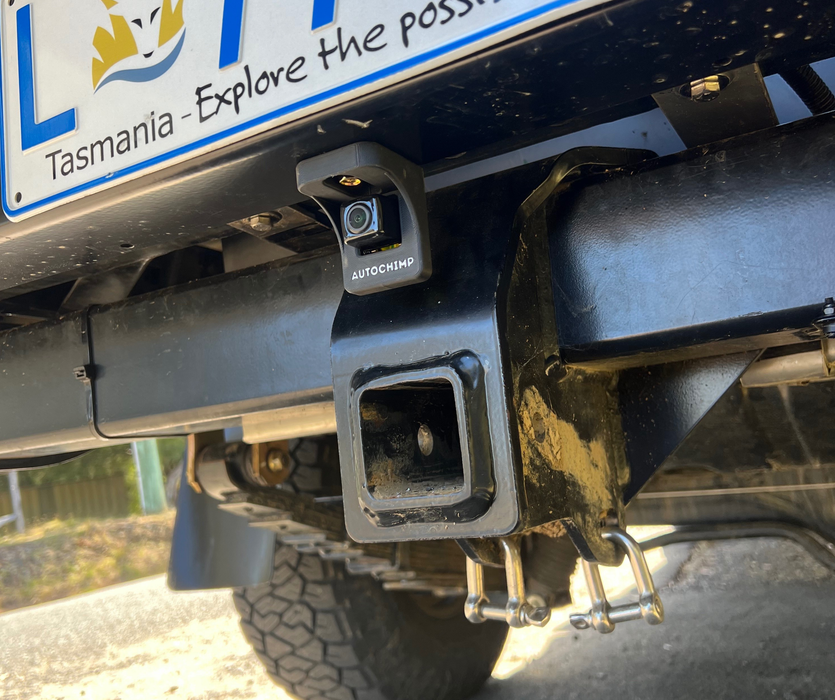

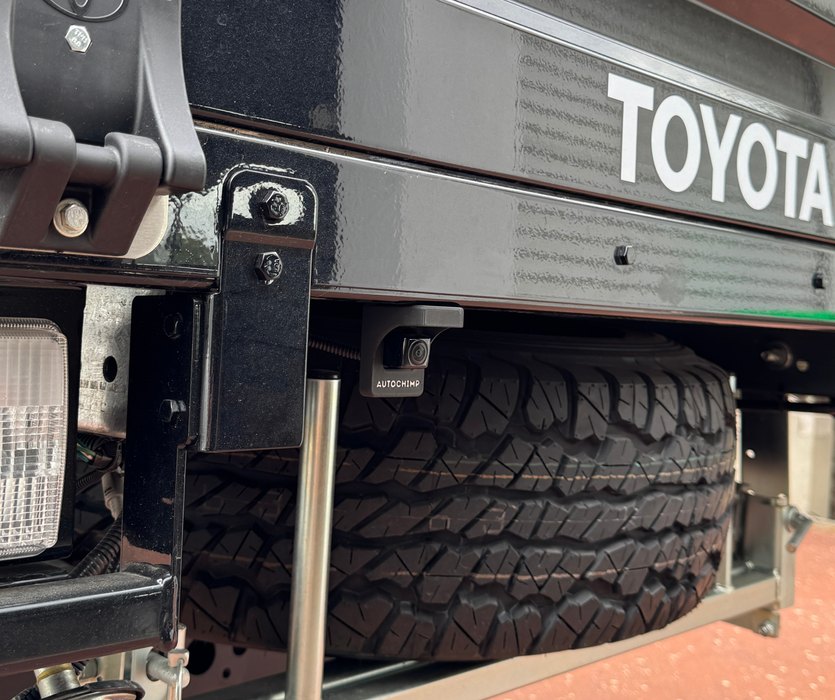

- Mount the camera on the tray, tub, bar or bracket of your choice.
- Route the 7m power and video cable from the rear of the vehicle forward to the passenger kick panel.

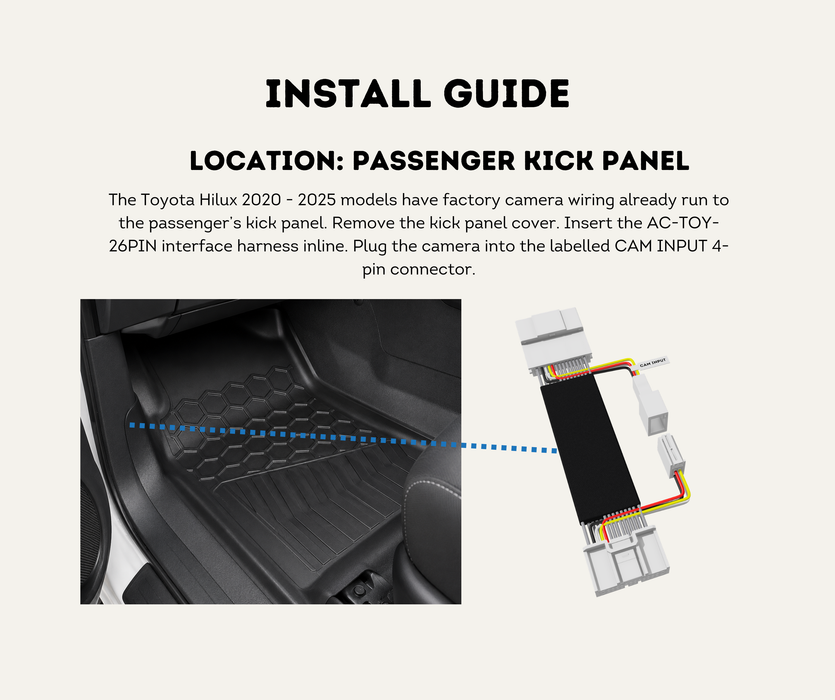

- Remove the kick panel cover and insert the AC-TOY-26PIN harness inline with the factory 26-pin plug.
- Plug the camera into the labelled CAM INPUT 4-pin connector.

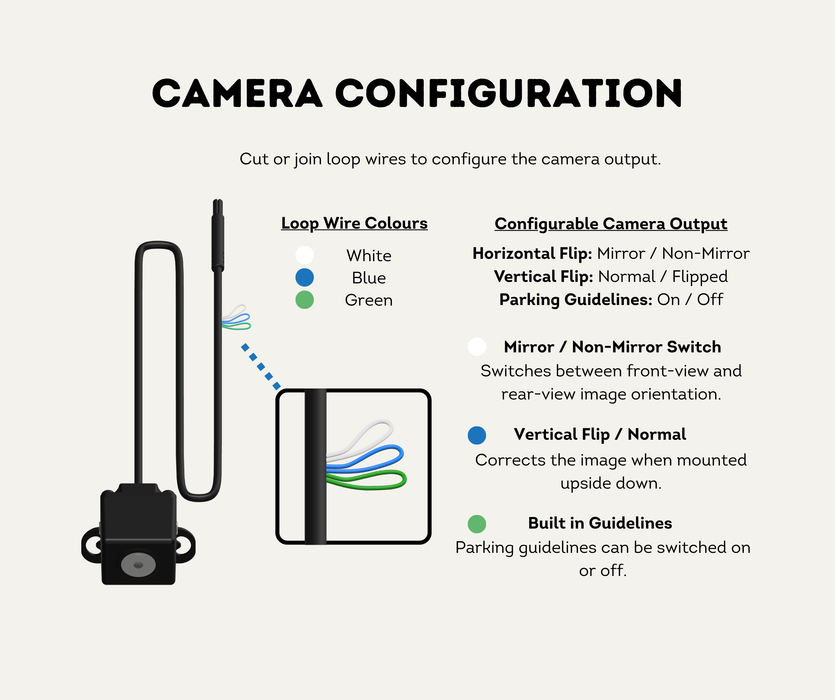

- Set image flip or guidelines if required using the camera's loop wires.
Compatibility
- Toyota Hilux 2020–2025 (N80 series) with the factory 26-pin camera port
- Workmate, SR, SR5 and other variants
- Automatic and manual transmission
- 12V and 48V electrical systems

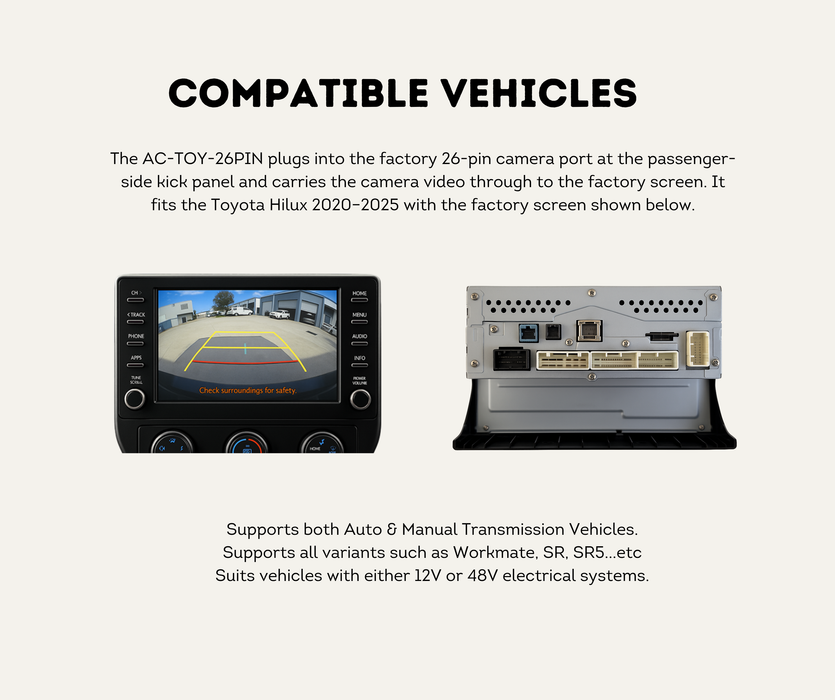

- Factory touchscreen head units — see the Compatible Vehicles image for the screen shown

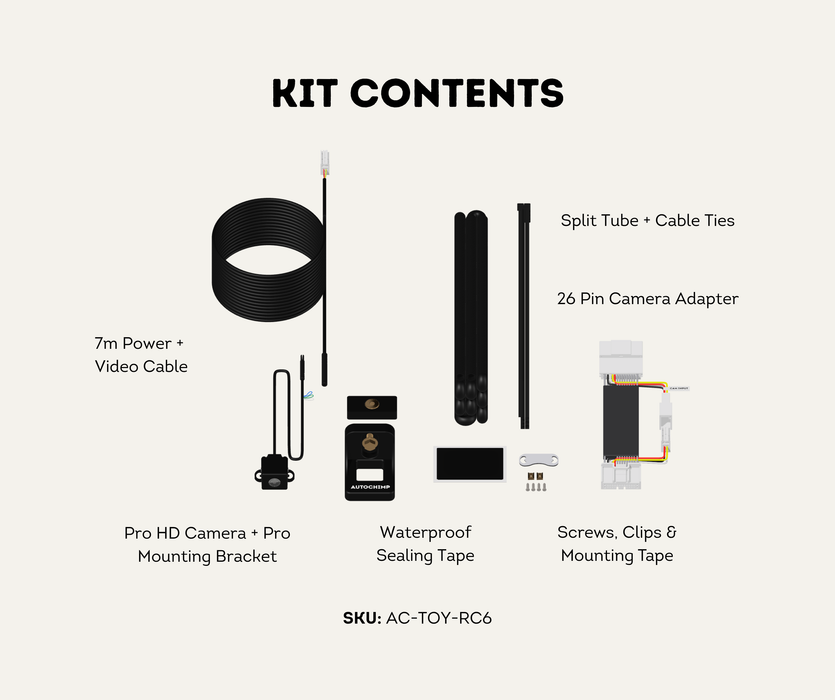

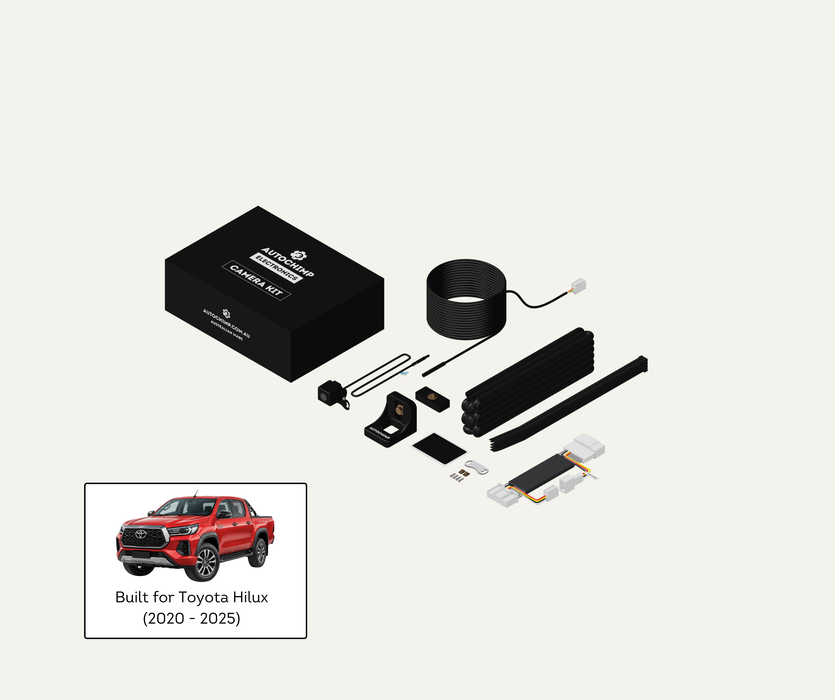

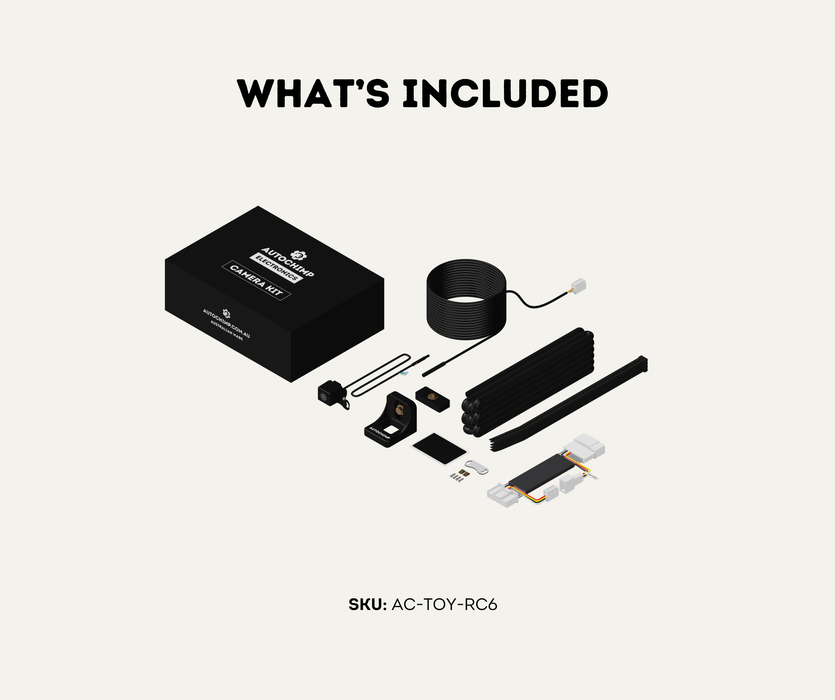

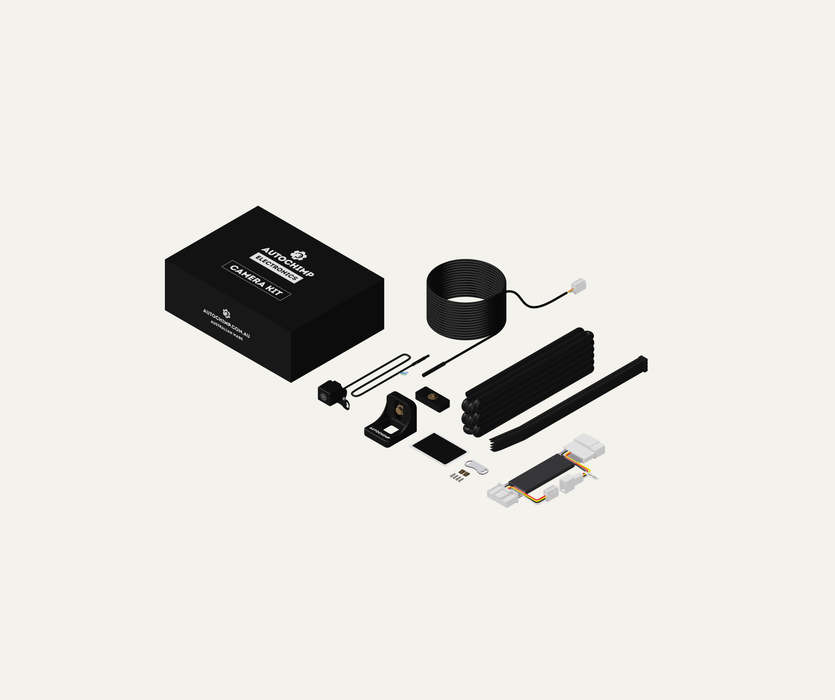

What's Included
- 1x AutoChimp™ Pro HD Camera (1m integrated lead) + Pro Mounting Bracket
- 1x 7m Power + Video Cable
- 1x 26-Pin Camera Adapter Harness (AC-TOY-26PIN)
- Waterproof sealing tape
- Split tube and cable ties
- Screws, clips and mounting tape
Technical Specifications
| Vehicle Fitment | Toyota Hilux 2020–2025 (N80), factory 26-pin camera port |
| Install Location | Passenger-side kick panel |
| Harness Type | 26-pin full pass-through, two-piece connector design |
| Camera Power | 6V — supplied by the factory stereo through the 26-pin camera port. The camera itself is 6V–12V capable. |
| Vehicle Systems | 12V and 48V compatible |

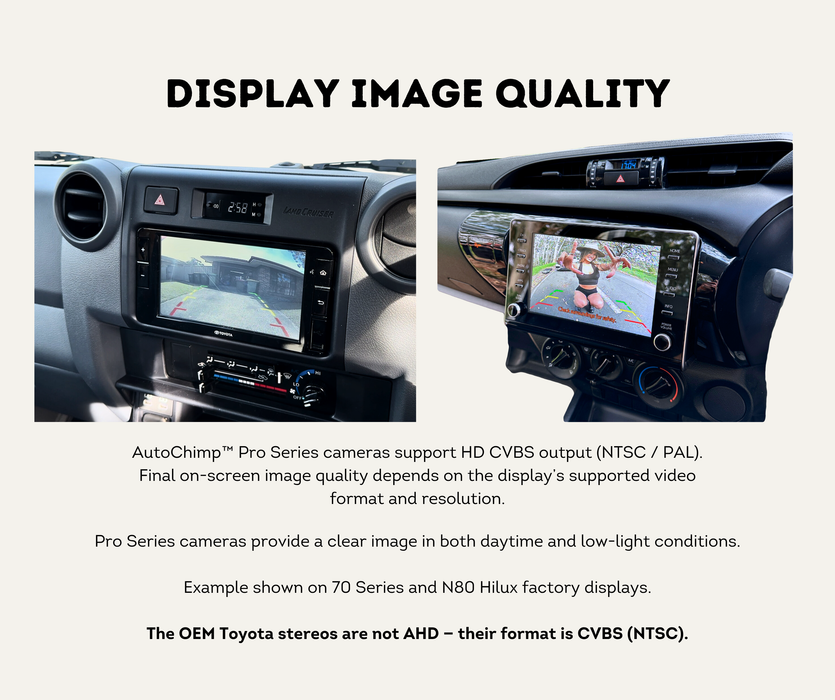

| Video Format | CVBS (NTSC / PAL auto-switching) — OEM Toyota stereos are CVBS, not AHD |
| Image Sensor | Advanced Super CMOS 1/3" |
| Resolution | 800 TV lines (976 × 592 pixels) |
| Viewing Angles | 170° diagonal · 120° horizontal · 90° vertical |
| IP Rating | IP67 waterproof & dustproof |
| Operating Temperature | -30°C to +80°C |

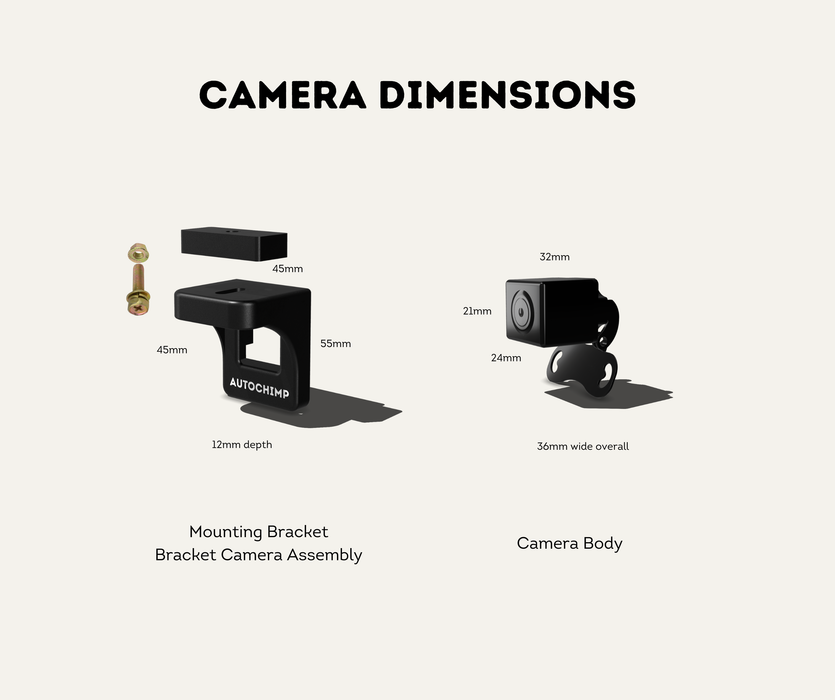

| Camera Body | 32mm W · 21mm H · 24mm D · 36mm wide overall |
| Camera Lead | 1m, integrated on the camera |
| Power + Video Cable | 7m |
| Total Cable Reach | 8m (7m cable + 1m camera lead) |

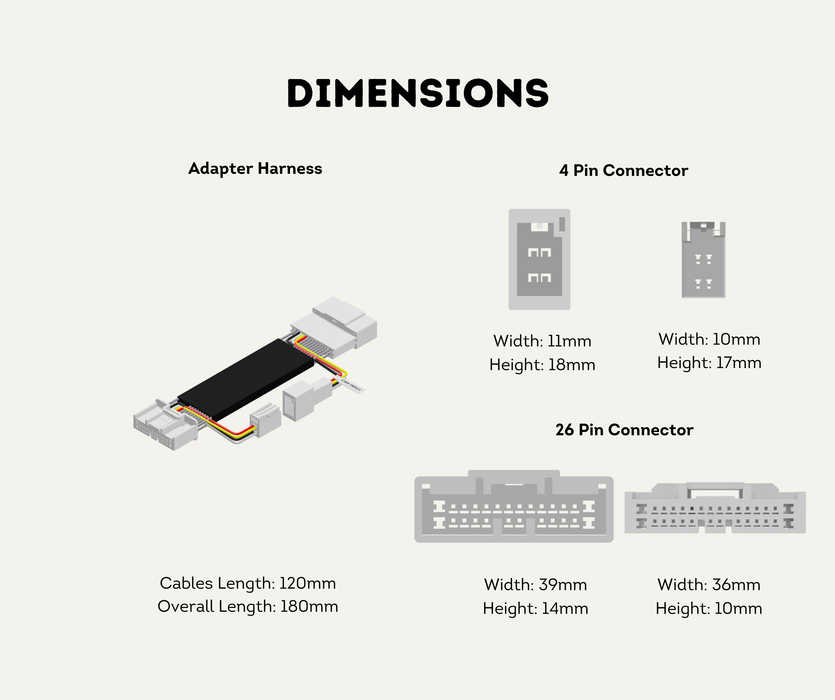

| Harness Cable Length | 120mm |
| Harness Overall Length | 180mm |
| 26-Pin Connector | 39mm W × 14mm H and 36mm W × 10mm H |
| 4-Pin Connector | 11mm W × 18mm H and 10mm W × 17mm H |

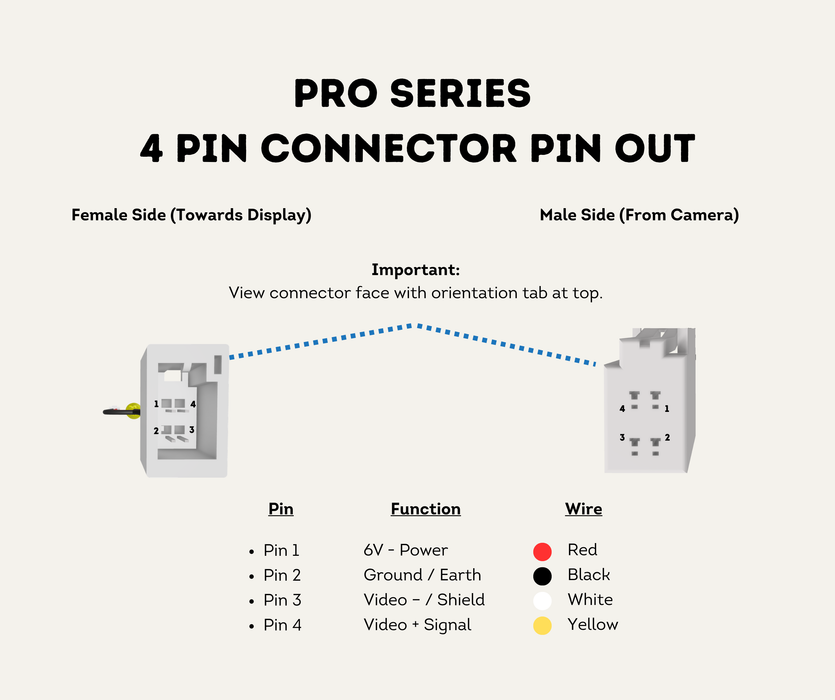

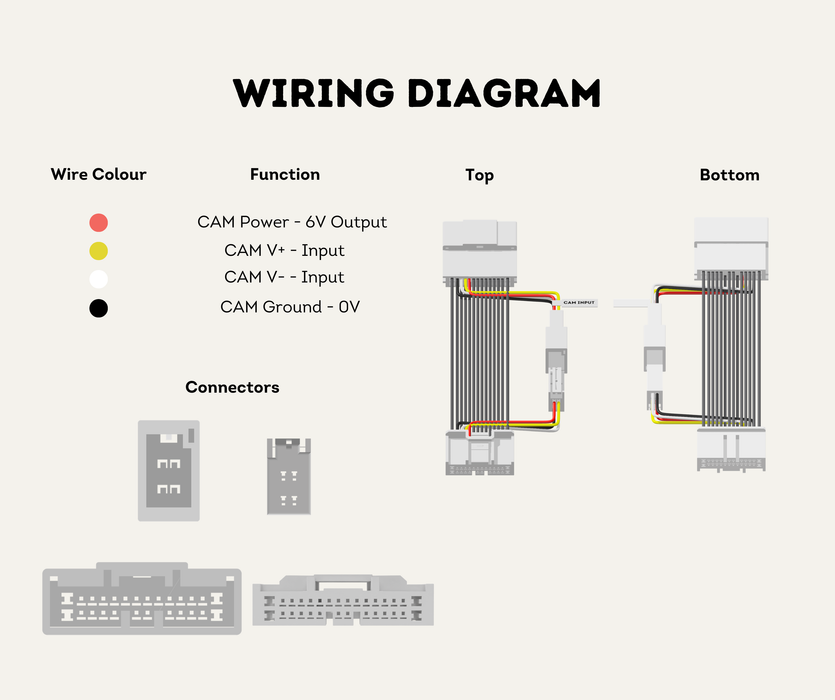

| Pin 1 | Camera Power — Red |
| Pin 2 | Ground / Earth — Black |
| Pin 3 | Video – / Shield — White |
| Pin 4 | Video + Signal — Yellow |
| Image Adjustment | Horizontal flip, vertical flip, parking guidelines on/off |
| Connector Sealing | Waterproof plug-in camera connector |
| Orientation Note | View the connector face with the orientation tab at the top when identifying pins |

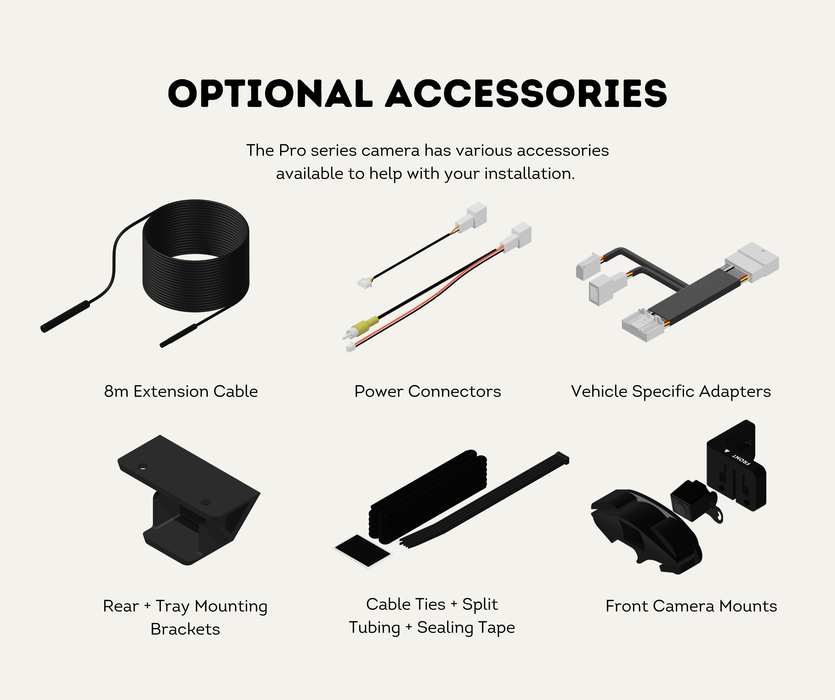

Optional Accessories
- 8m Pro Series extension cable
- Power connectors

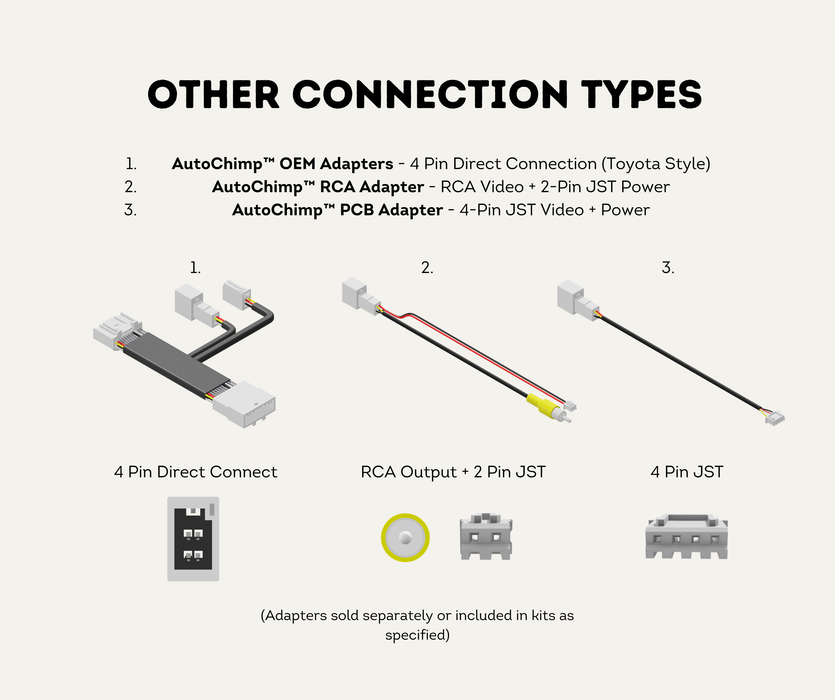

- Vehicle-specific adapters
- Rear and tray mounting brackets
- Front camera mounts
- Cable ties, split tubing and sealing tape
Why Choose AutoChimp™
- Vehicle-specific harness — no splicing, cutting or coding
- Full factory pass-through, completely reversible
- Two-piece connector lets you change the camera later without removing the harness
- Designed and supported in Australia
- Fitment help before you buy — send us a photo of your factory screen
