AutoChimp™ Reverse Camera Kit for Toyota Hilux N80 (2016–2020) | Plug & Play
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
✅ Factory Screen Check: This product is designed to work with your vehicle's original factory screen. Running an aftermarket head unit or stereo? This listing isn't the right fit — check our universal camera range instead, or contact us and we'll point you to the correct setup.
AutoChimp™ Reverse Camera Kit for Toyota Hilux N80 (2016–2020)
SKU: AC-TOY-RC4
Fits: Toyota Hilux N80 — the eighth-generation truck, build years 2016 through 2020 (pre-facelift). Workmate, SR, SR5, Rogue and TRD, single cab, extra cab and dual cab, automatic or manual, petrol or diesel.
Which Hilux Kit Do I Need?
Go by the front of the vehicle, not the plate — Toyota changed the Hilux over during 2015. A wide chrome grille bar with separate upright headlights is the N70; a deep one-piece grille with swept-back headlights is the N80.
| Build Years | Generation | Kit |
| 2006–2013 | N70 Early & Facelift — non-touchscreen stereo | AC-TOY-RC1 |
| 2006–2013 | N70 Early & Facelift — touchscreen stereo | AC-TOY-RC2 |
| 2014–2015 | N70 Late | AC-TOY-RC3 |
| 2016–2020 | N80 | AC-TOY-RC4 — this kit |
| 2020–2025 | N80 Facelift — also 48V hybrid | AC-TOY-RC6 |
Installing on an N80

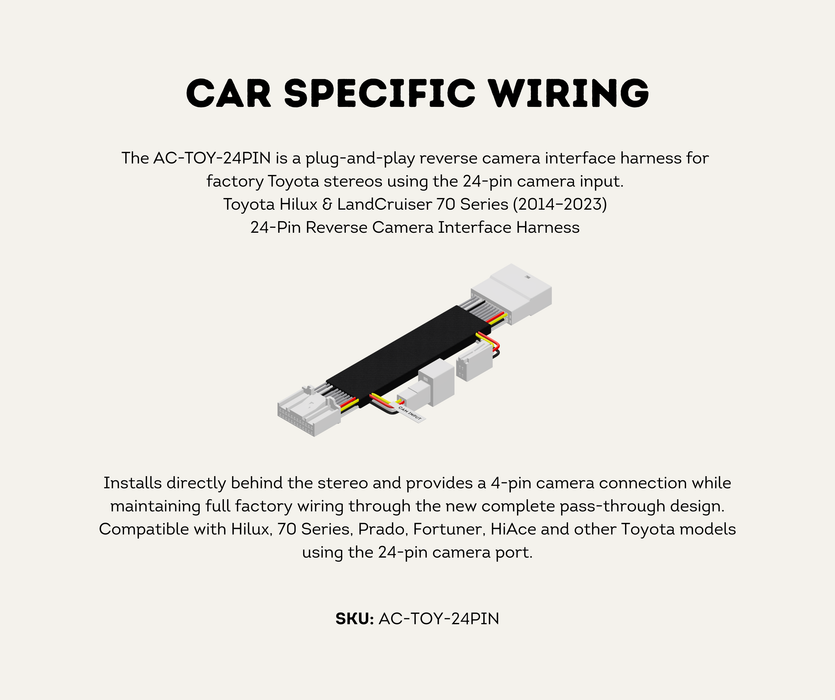

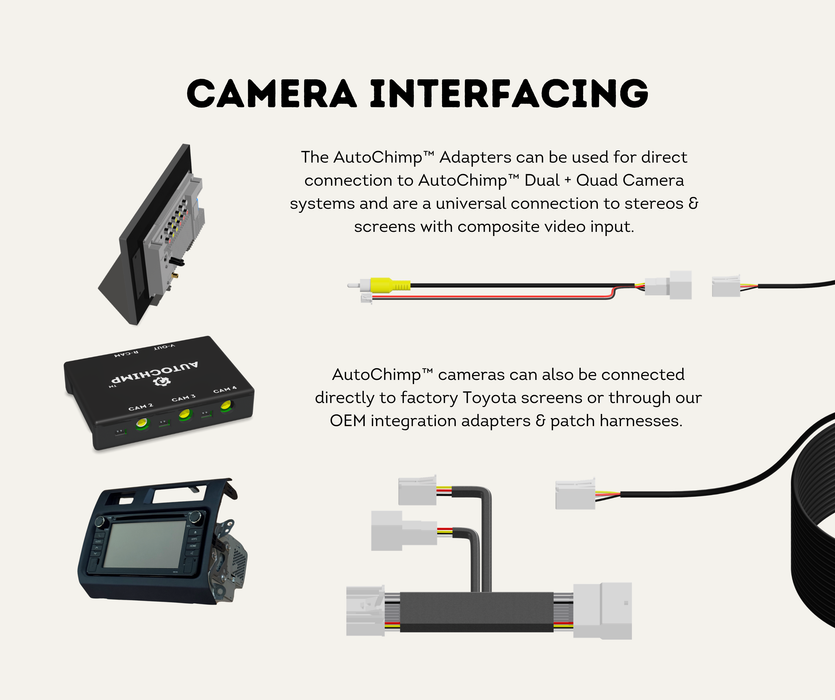

The AutoChimp™ Reverse Camera Kit adds a reverse camera to your factory screen with no cutting, no splicing and no dealer coding. The included AC-TOY-24PIN interface harness installs inline behind the factory stereo and carries the camera video straight through to the OEM display.
Every one of the 24 factory pins passes through the harness — CAN, speed, illumination, data and audio all stay intact — so nothing else in the vehicle changes. Steering wheel controls, Bluetooth and the display itself behave exactly as they did before.
The N80 already carries its reverse trigger on the factory 24-pin plug, so there is no separate trigger harness to buy and no signal to tap. The camera comes on when you select reverse and goes off when you leave it.
Key Features
- Plug & Play Factory Integration – Installs inline behind the factory stereo using the OEM 24-pin plug. No cutting, no splicing, no coding.

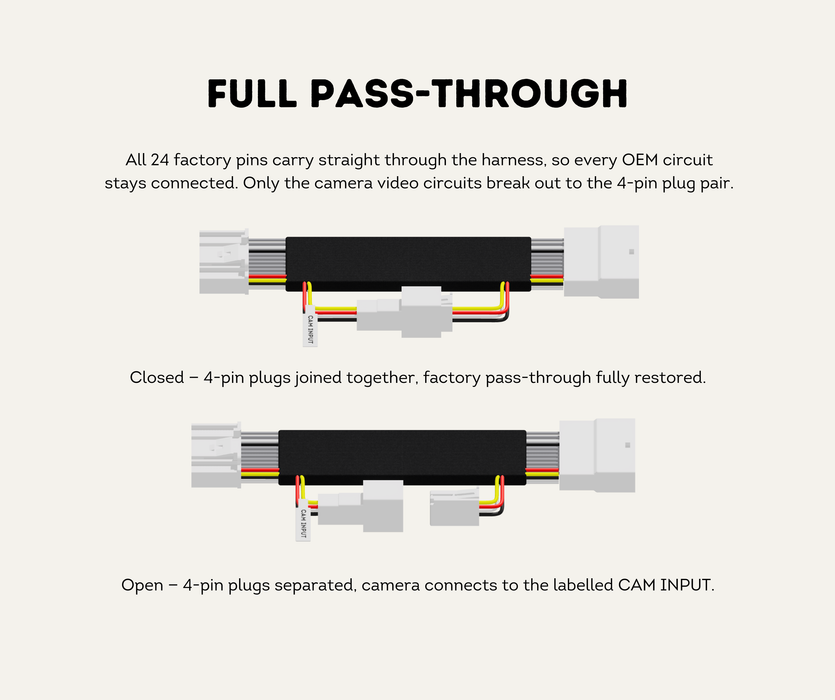

- Full Factory Pass-Through – All 24 OEM pins carry straight through the harness; only the camera video circuits break out to the 4-pin plug pair.
- No Extra Trigger Harness Needed – On the N80 the factory reverse trigger circuit is already present, so the camera switches on automatically in reverse with nothing further to add.

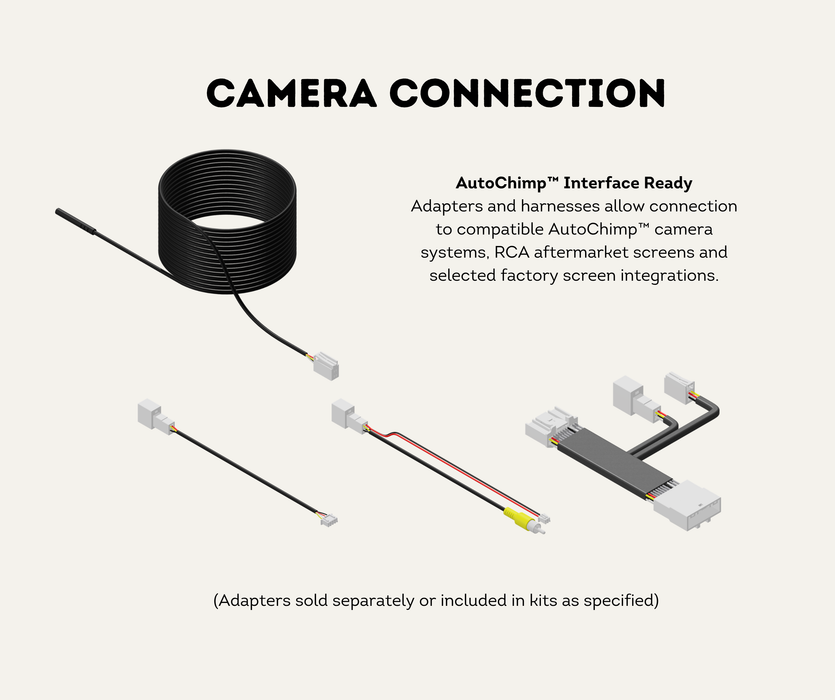

- Two-Piece Connector Design – Swap the camera later without removing the harness.

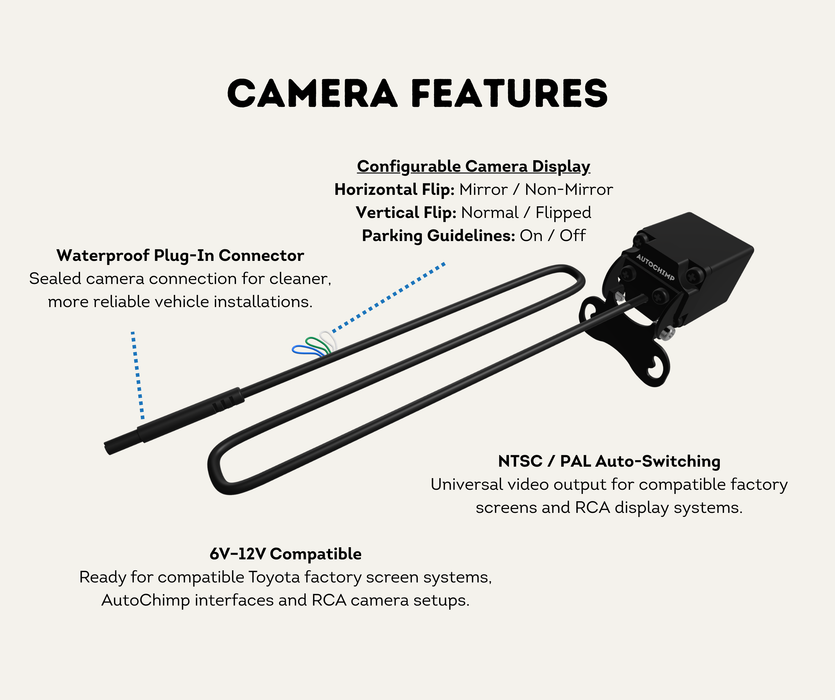

- Pro HD Camera – Compact metal-housed camera with a sealed waterproof plug-in connector for a cleaner, more reliable install.
- Configurable Image – Horizontal flip (mirror / non-mirror), vertical flip (normal / flipped) and parking guidelines on or off.
- NTSC / PAL Auto-Switching – Universal video output for compatible factory screens and RCA display systems.

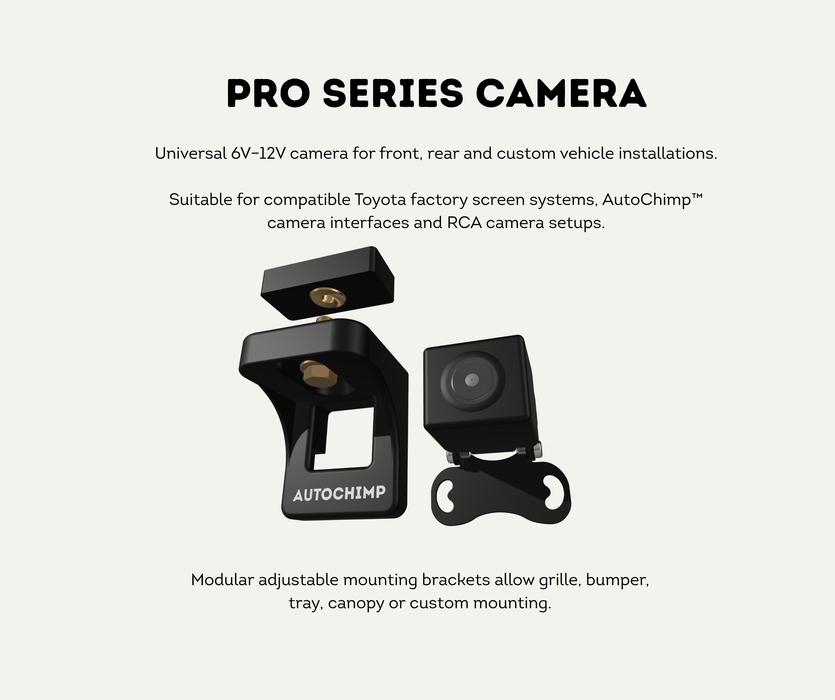

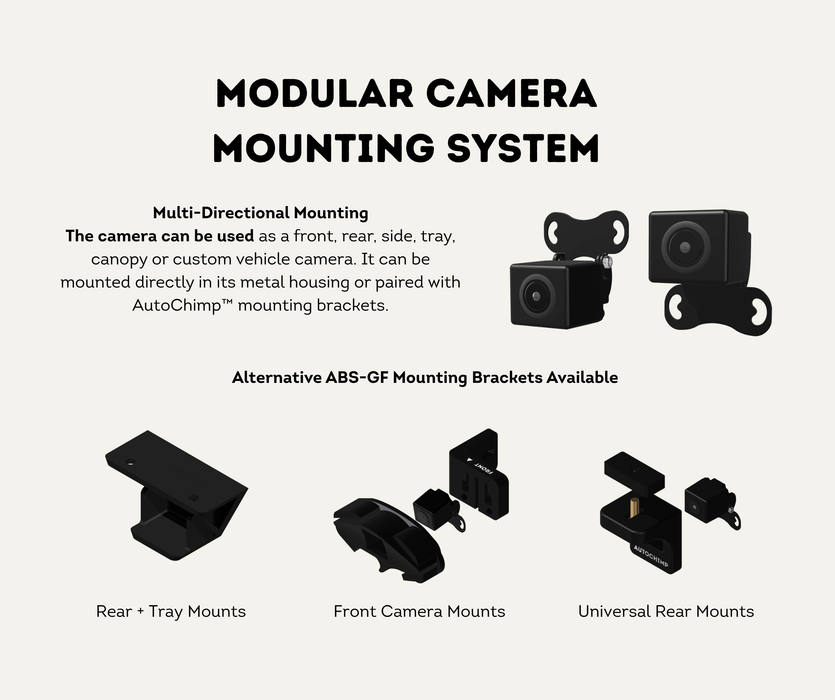

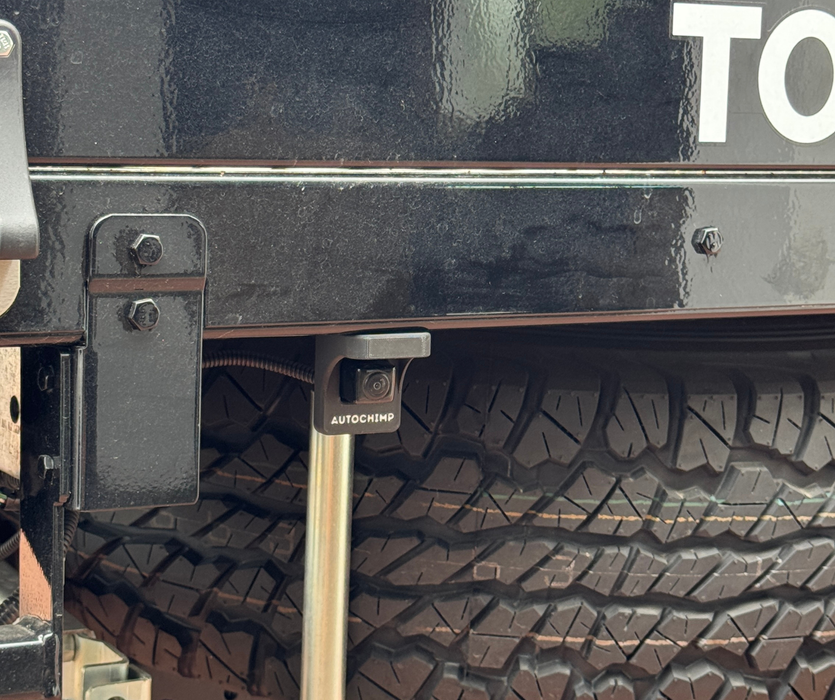

- Modular Mounting – Mount the camera in its metal housing directly, or pair it with AutoChimp™ rear, tray, front or universal brackets.
- Also Suits Heavy Duty Series – The harness accepts an AutoChimp™ Pro Series or Heavy Duty Series camera.
- DIY Friendly – Step-by-step installation video plus PDF instructions via the QR code on the pack.
- Built for Australian Conditions – IP67 waterproof and dustproof, rated -30°C to +80°C.
- Fully Reversible – Rejoin the 4-pin plugs and factory pass-through is fully restored.

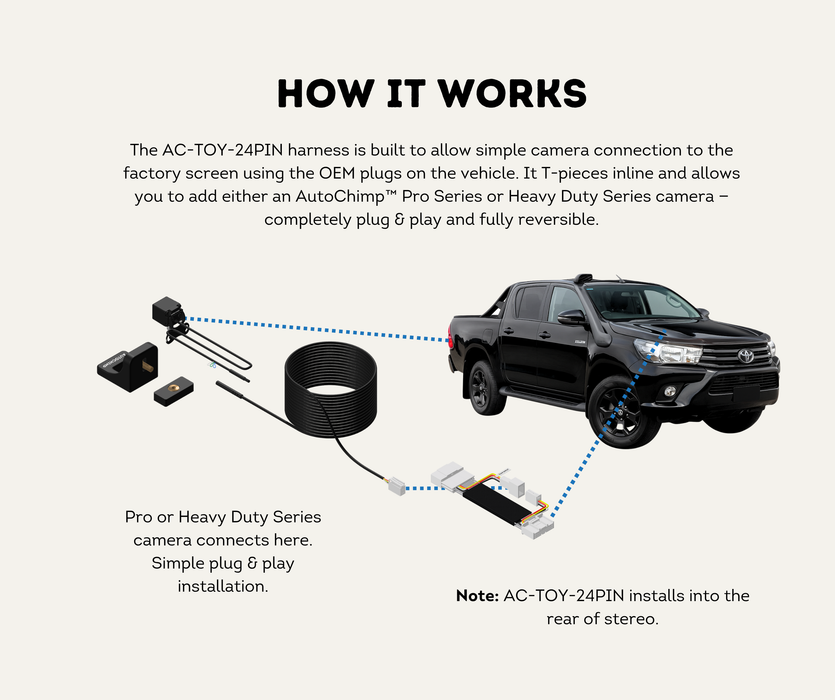

How It Works

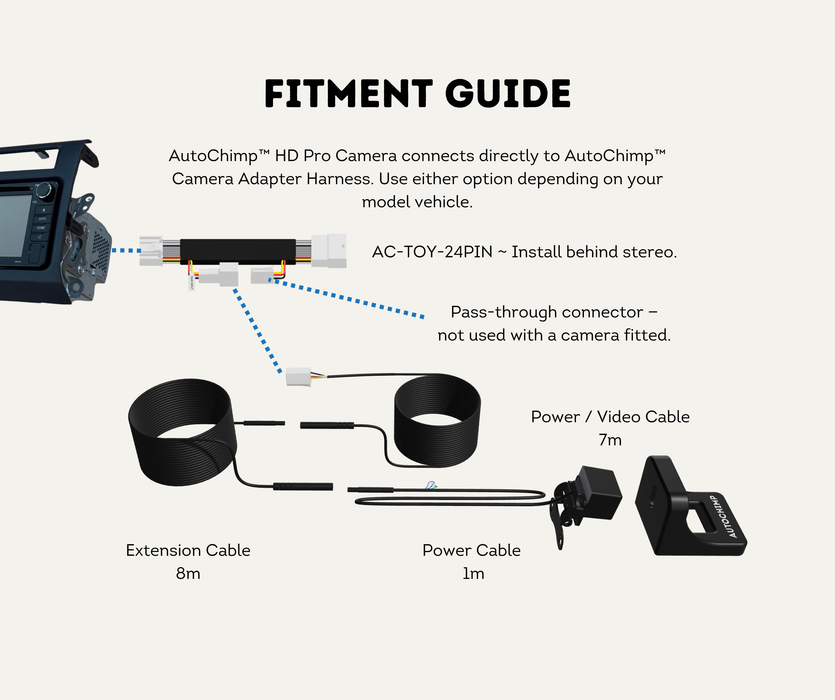

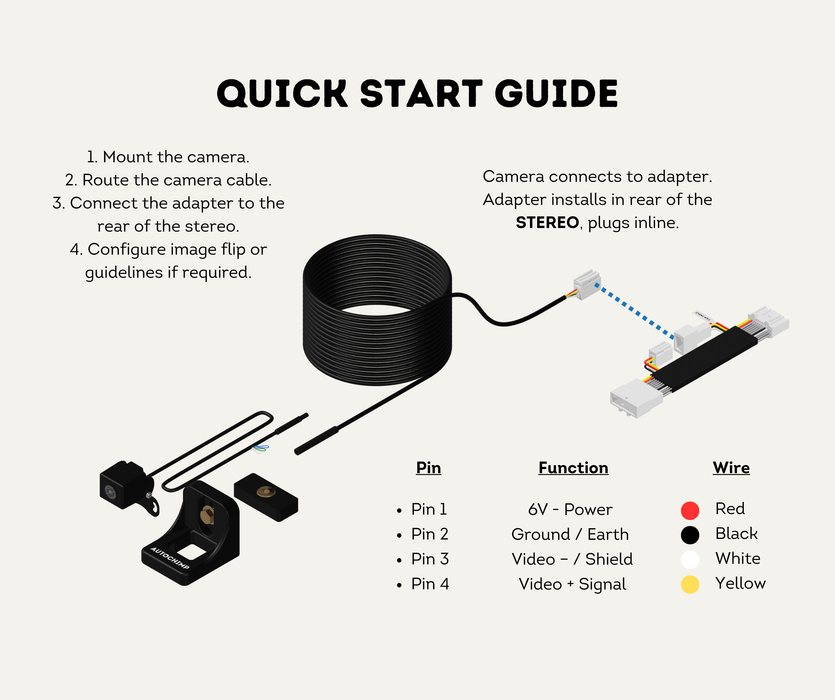

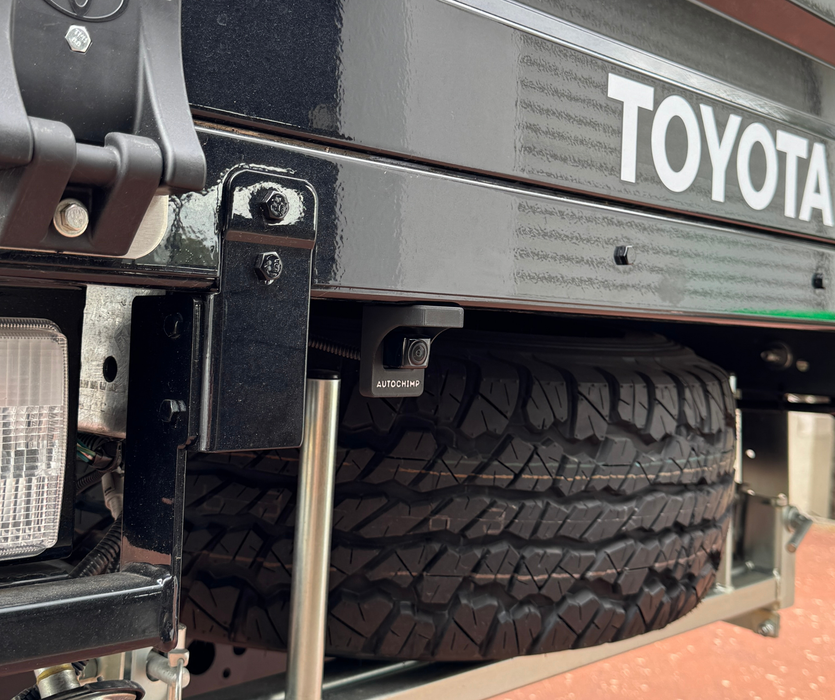

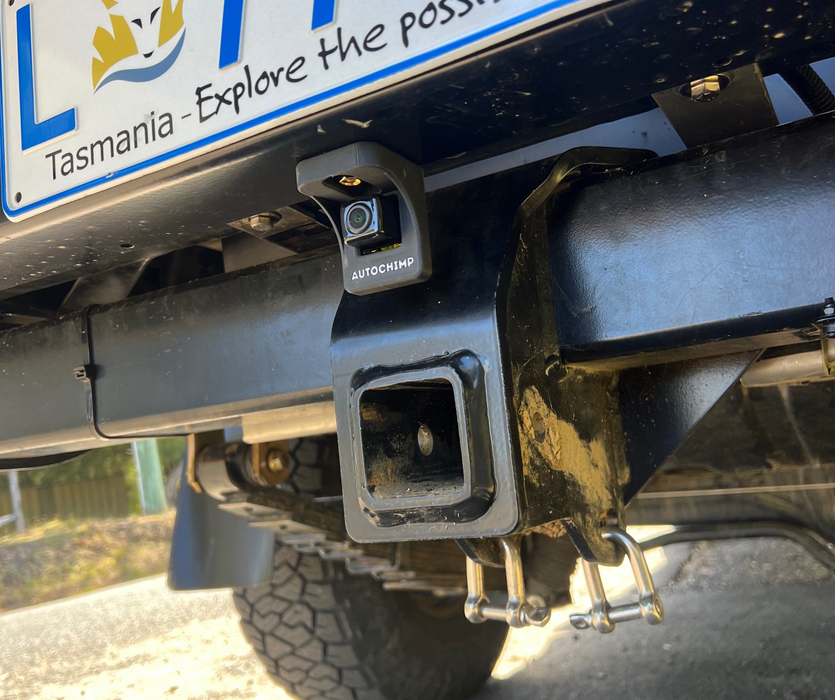

- Mount the camera on the tray, tub, bar or bracket of your choice.

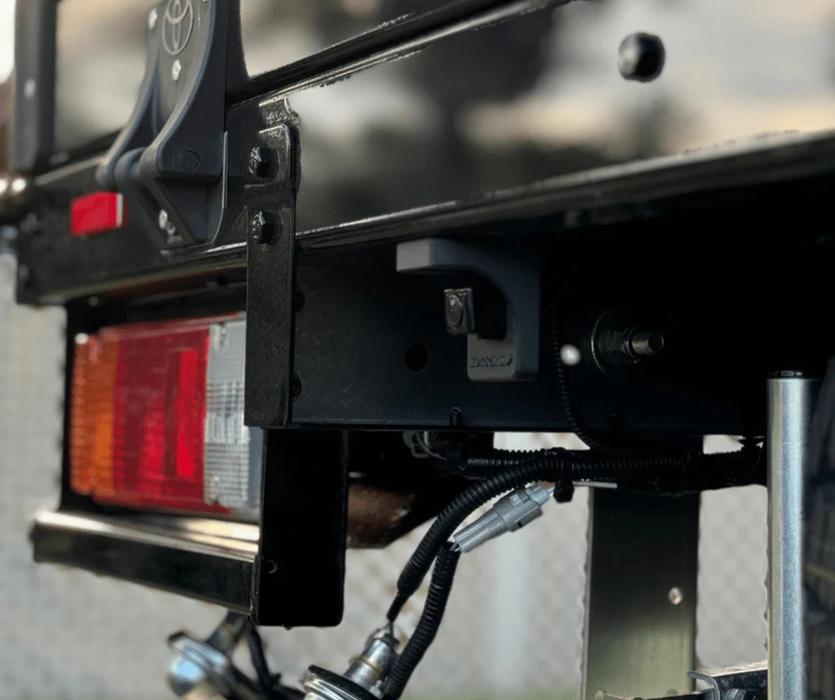

- Route the 7m power and video cable from the rear of the vehicle forward to the stereo.
- Remove the factory head unit and insert the AC-TOY-24PIN harness inline with the factory 24-pin plug.
- Plug the camera into the labelled CAM INPUT 4-pin connector.

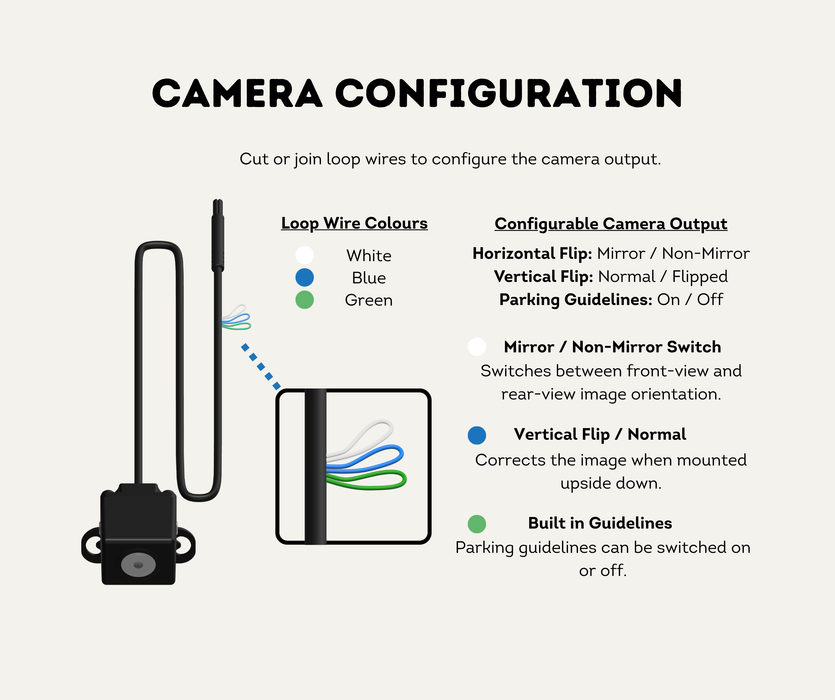

- Set image flip or guidelines if required using the camera's loop wires.
Compatibility
- Toyota Hilux N80 — 2016 to 2020 build years, pre-facelift
- Workmate, SR, SR5, Rogue and TRD variants
- Single cab, extra cab and dual cab
- Automatic and manual transmission
- All engine types — petrol and diesel

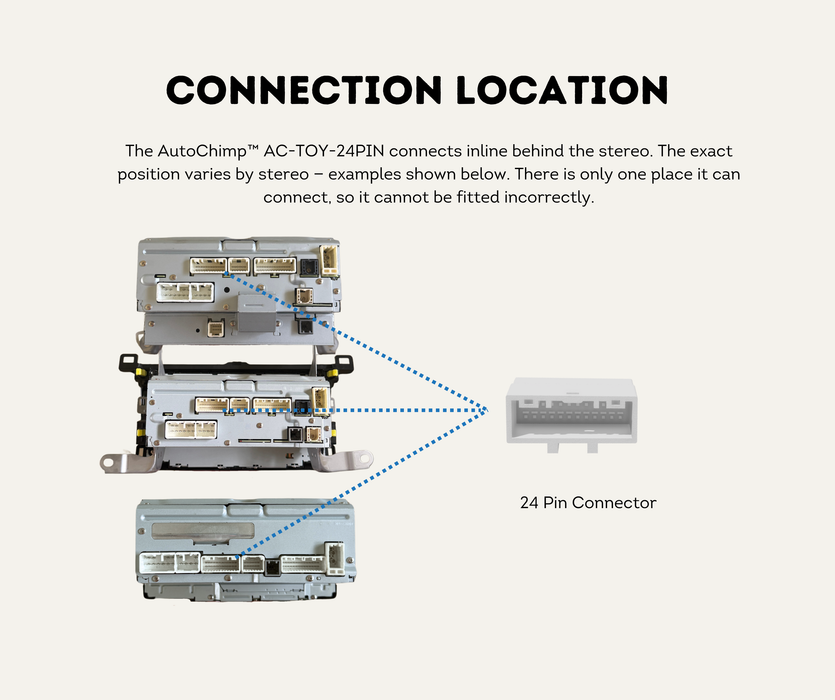

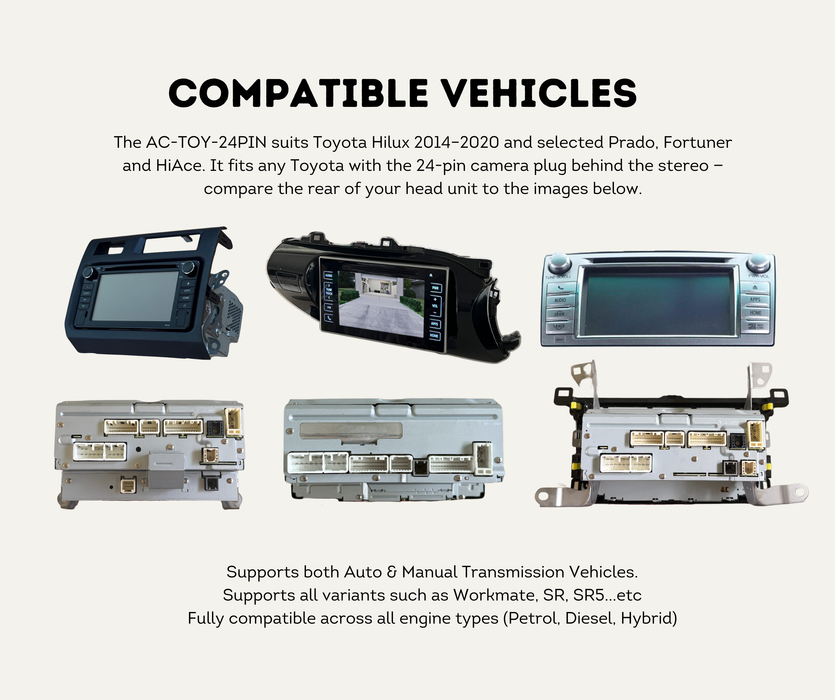

- Touchscreen and non-touchscreen factory stereos — see the Compatible Stereos image for examples

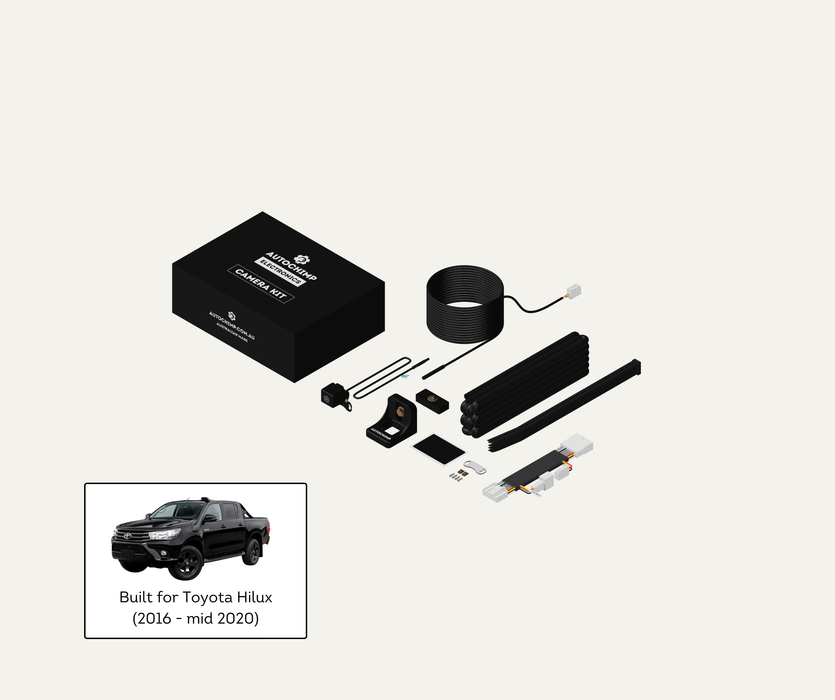

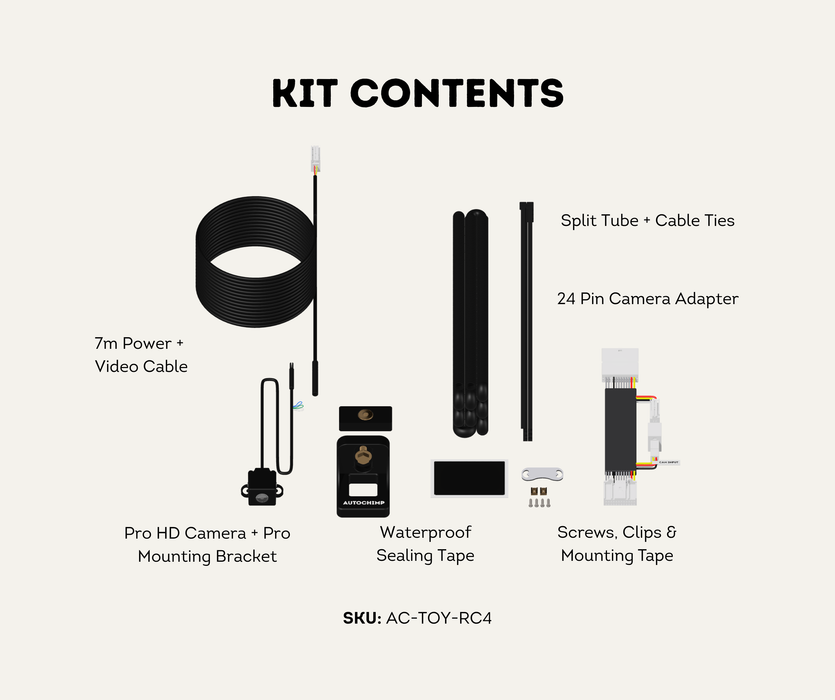

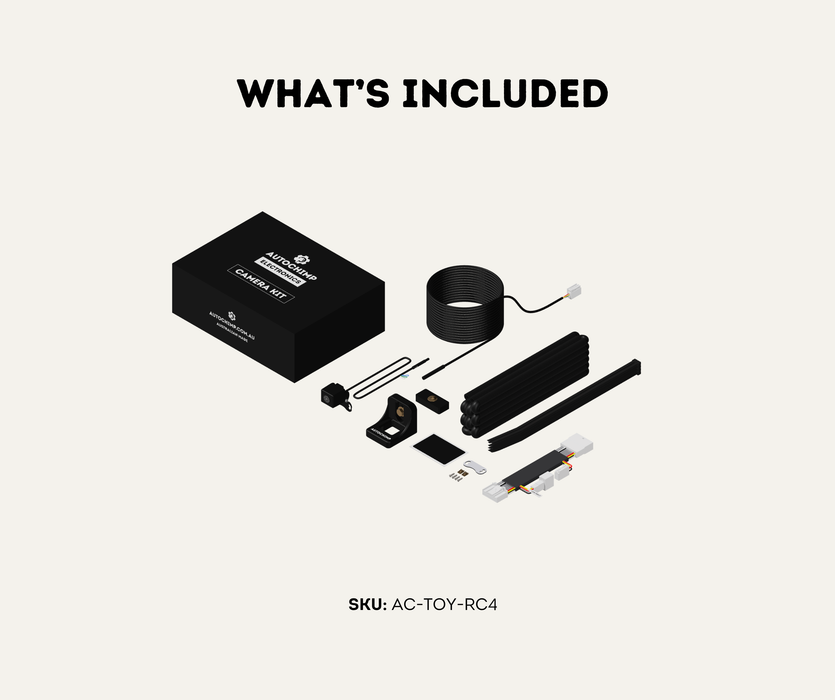

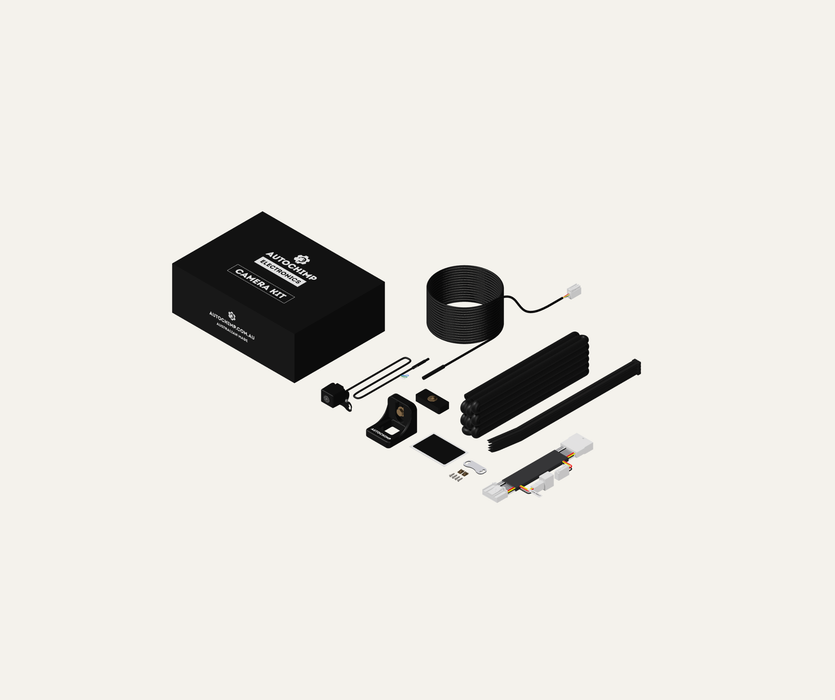

What's Included
- 1x AutoChimp™ Pro HD Camera (1m integrated lead) + Pro Mounting Bracket
- 1x 7m Power + Video Cable
- 1x 24-Pin Camera Adapter Harness (AC-TOY-24PIN)
- Waterproof sealing tape
- Split tube and cable ties
- Screws, clips and mounting tape
Technical Specifications
| Vehicle Fitment | Toyota Hilux N80 (2016–2020), factory 24-pin camera input |
| Install Location | Inline behind the factory stereo |
| Harness Type | 24-pin full pass-through, two-piece connector design |
| Camera Power | 6V — supplied by the factory stereo through the 24-pin camera input. The camera itself is 6V–12V capable. |

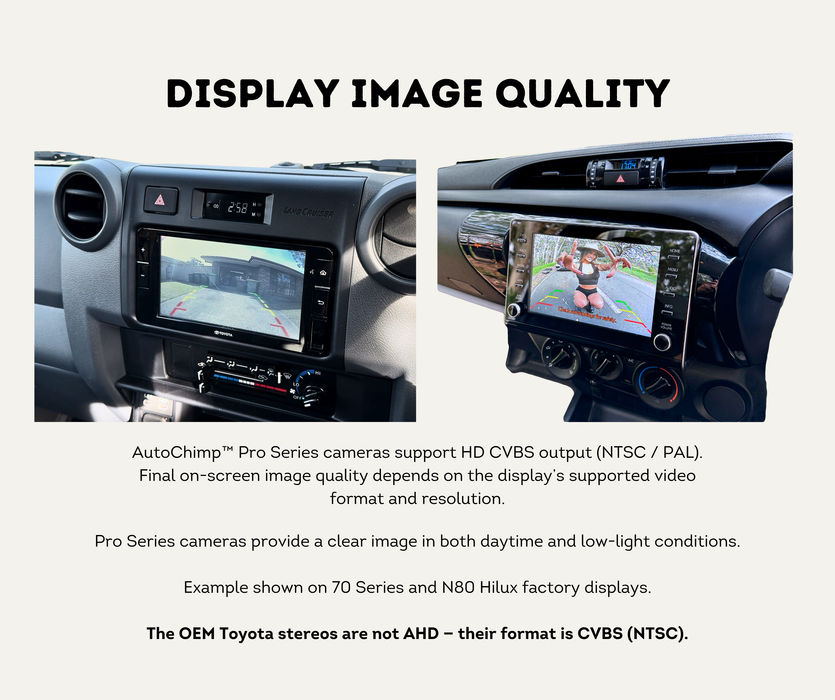

| Video Format | CVBS (NTSC / PAL auto-switching) — OEM Toyota stereos are CVBS, not AHD |
| Image Sensor | Advanced Super CMOS 1/3" |
| Resolution | 800 TV lines (976 × 592 pixels) |
| Viewing Angles | 170° diagonal · 120° horizontal · 90° vertical |
| IP Rating | IP67 waterproof & dustproof |
| Operating Temperature | -30°C to +80°C |

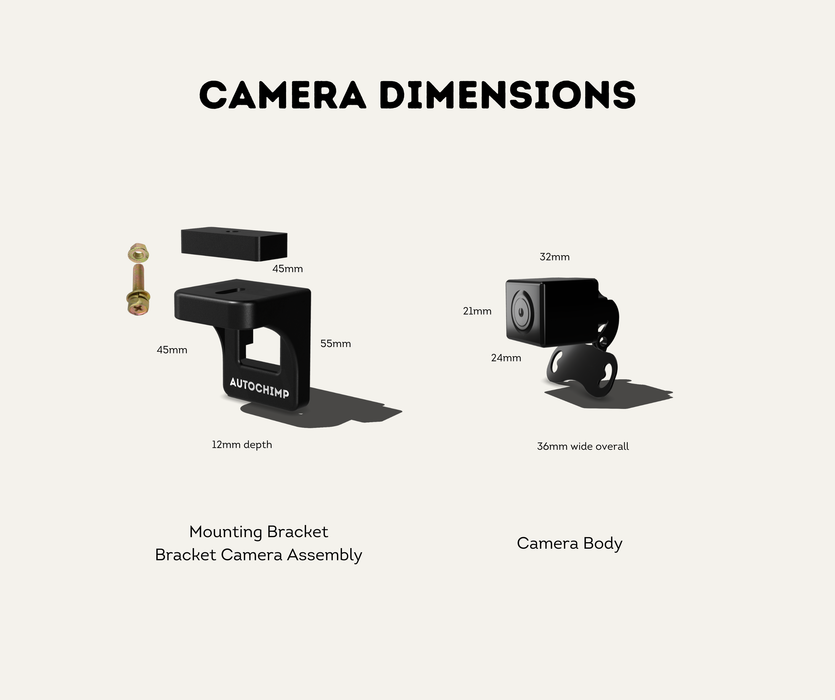

| Camera Body | 32mm W · 21mm H · 24mm D · 36mm wide overall |
| Mounting Bracket | 55mm W · 45mm H · 12mm depth |
| Camera Lead | 1m, integrated on the camera |
| Power + Video Cable | 7m |
| Total Cable Reach | 8m (7m cable + 1m camera lead) |

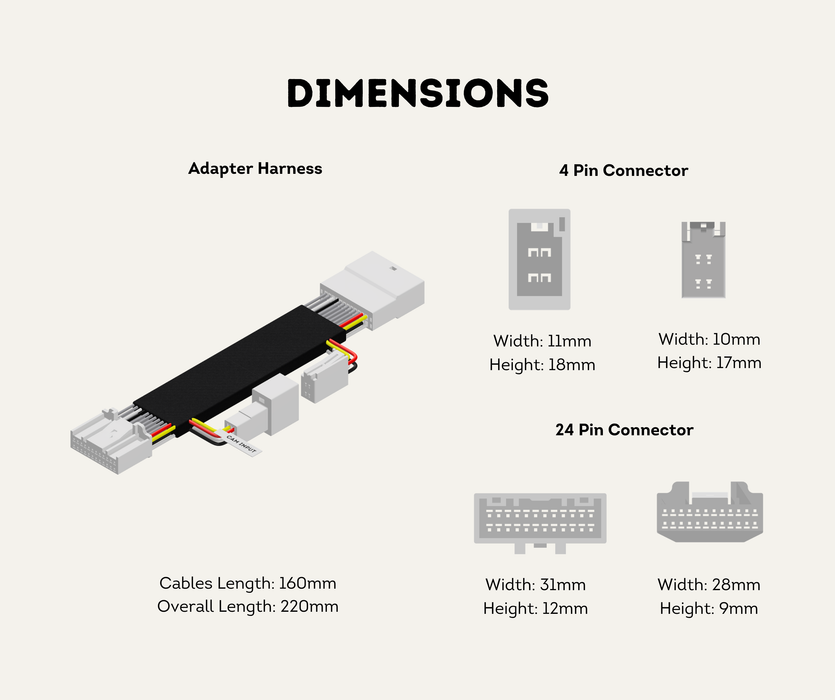

| Harness Overall Length | 220mm |
| Harness Camera Branch | 160mm |

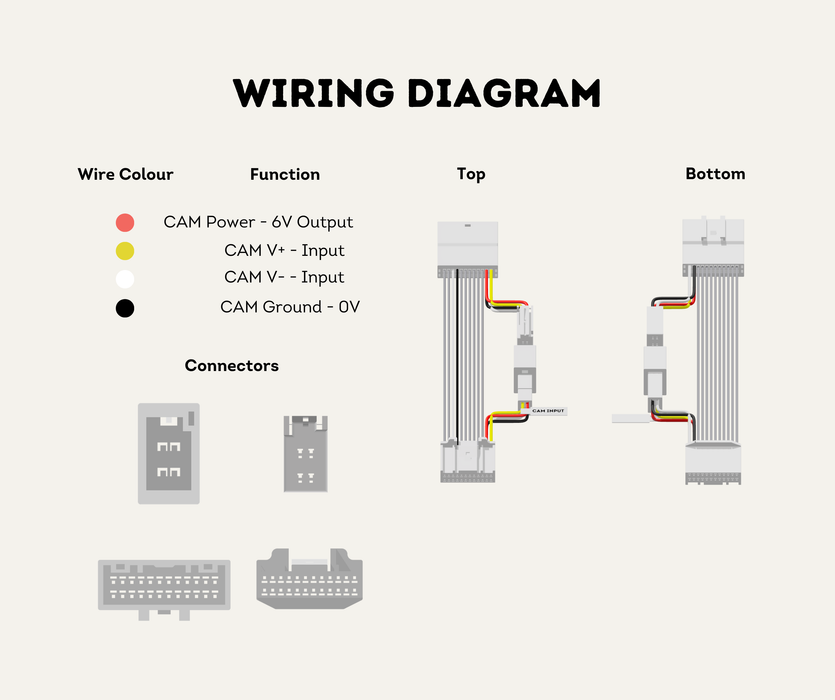

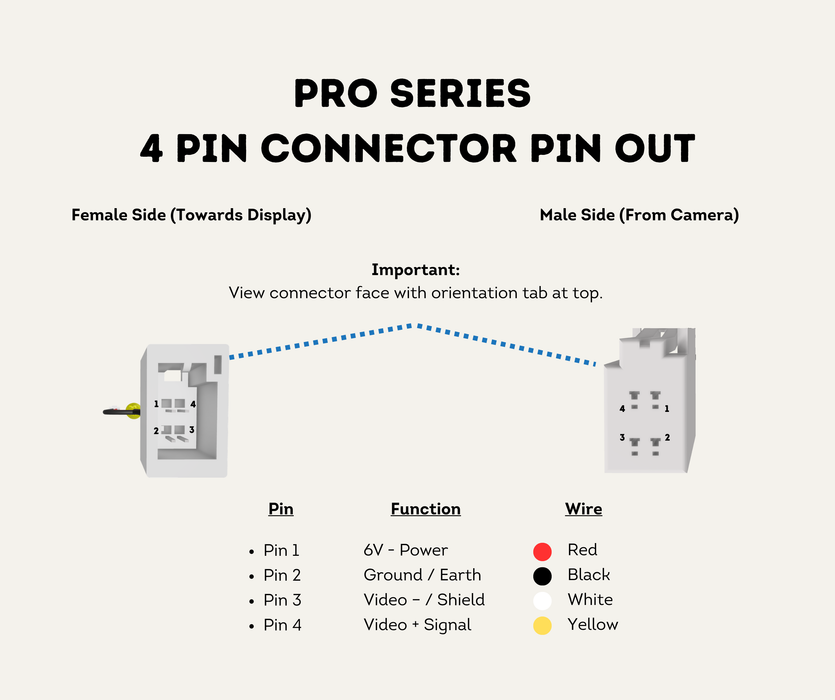

| Camera Connector | 4-pin — CAM Power (6V out) · CAM V+ · CAM V− · CAM Ground (0V) |
| Image Adjustment | Horizontal flip, vertical flip, parking guidelines on/off |
| Connector Sealing | Waterproof plug-in camera connector |
Other Vehicles

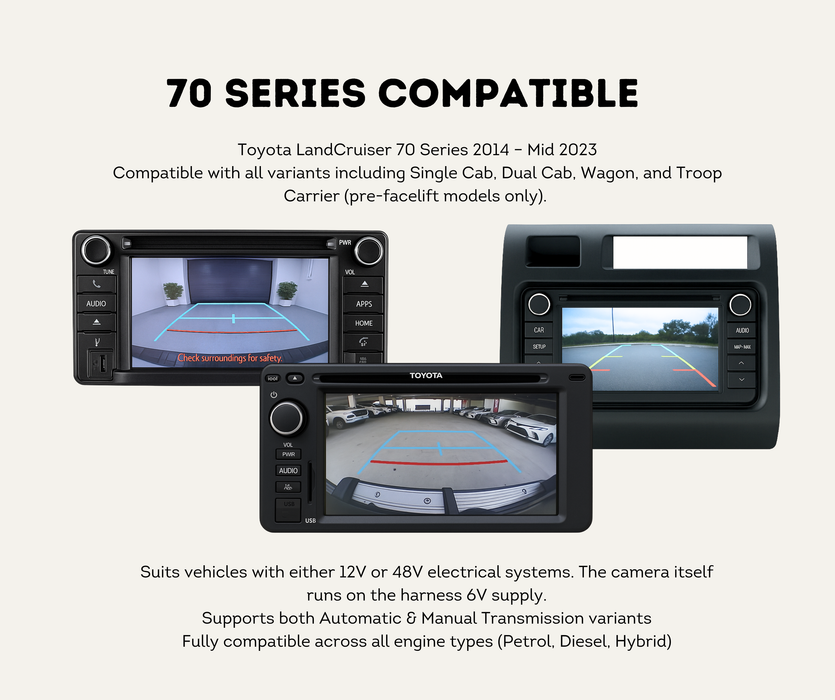

The same AC-TOY-24PIN harness also suits the LandCruiser 70 Series and selected Prado, Fortuner and HiAce models, but those vehicles need a reverse trigger harness as well — that is supplied in the kit built for them. See the AutoChimp™ kit listed for your vehicle rather than fitting this one.

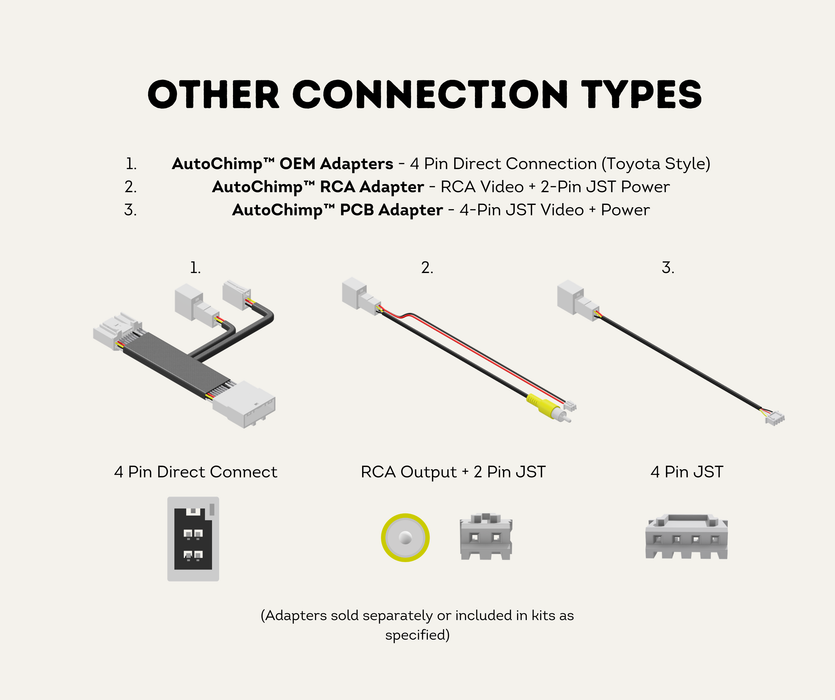

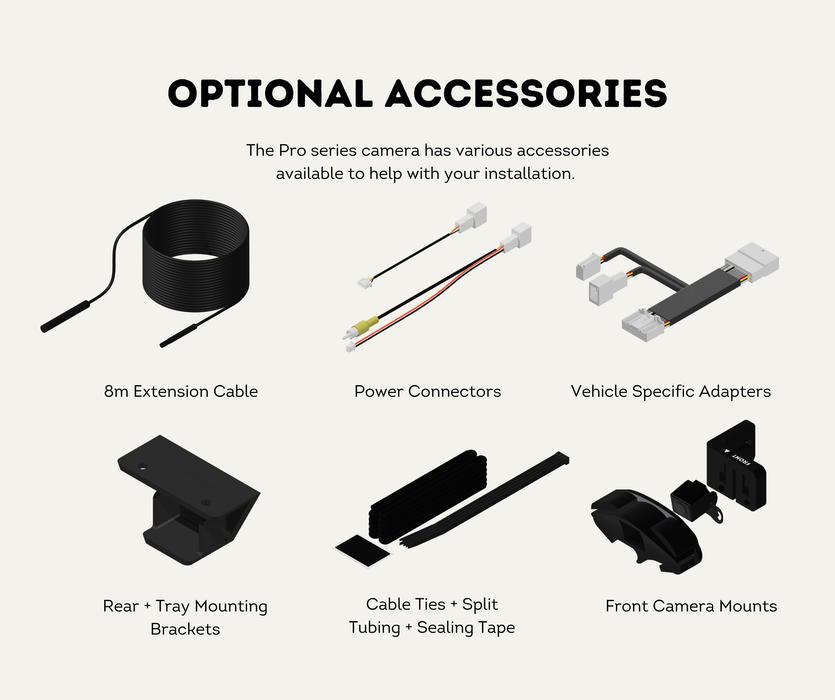

Optional Accessories
