AutoChimp™ Reverse Camera Kit for Toyota Hilux (2006–2013) | for Non-Touchscreen Stereo Models
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
Make: Toyota
Model: Hilux
Series: N70
Year: 2006–2013
Suits factory Toyota stereos. Non-Touchscreen models with the two dials in top corners.
✅ Factory Screen Check: This product is designed to work with your vehicle's original factory screen. Running an aftermarket head unit or stereo? This listing isn't the right fit — check our universal camera range instead, or contact us and we'll point you to the correct setup.
AutoChimp™ Reverse Camera Kit for Toyota Hilux (2006–2013)
SKU: AC-TOY-RC1
Fits: Toyota Hilux N70 with a non-touchscreen factory stereo — the head unit with TUNE/FILE and PWR/VOL dials and a 3.5" screen. Build years 2006 through 2013. Workmate, SR and SR5, single cab, extra cab and dual cab, automatic or manual, petrol or diesel.

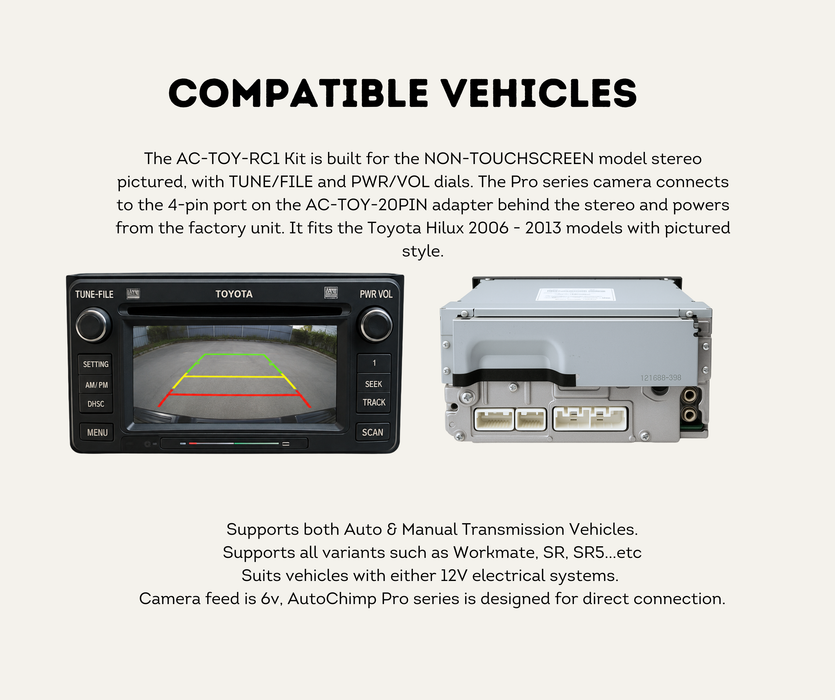

If your Hilux has a factory touchscreen instead, you need AC-TOY-RC2. Check the Compatible Vehicles image against your dash before ordering.
Which Hilux Kit Do I Need?
Go by the front of the vehicle, not the plate — Toyota changed the Hilux over during 2015. A wide chrome grille bar with separate upright headlights is the N70; a deep one-piece grille with swept-back headlights is the N80.
| Build Years | Generation | Kit |
| 2006–2013 | N70 Early & Facelift — non-touchscreen stereo | AC-TOY-RC1 — this kit |
| 2006–2013 | N70 Early & Facelift — touchscreen stereo | AC-TOY-RC2 |
| 2014–2015 | N70 Late | AC-TOY-RC3 |
| 2016–2020 | N80 | AC-TOY-RC4 |
| 2020–2025 | N80 Facelift — also 48V hybrid | AC-TOY-RC6 |

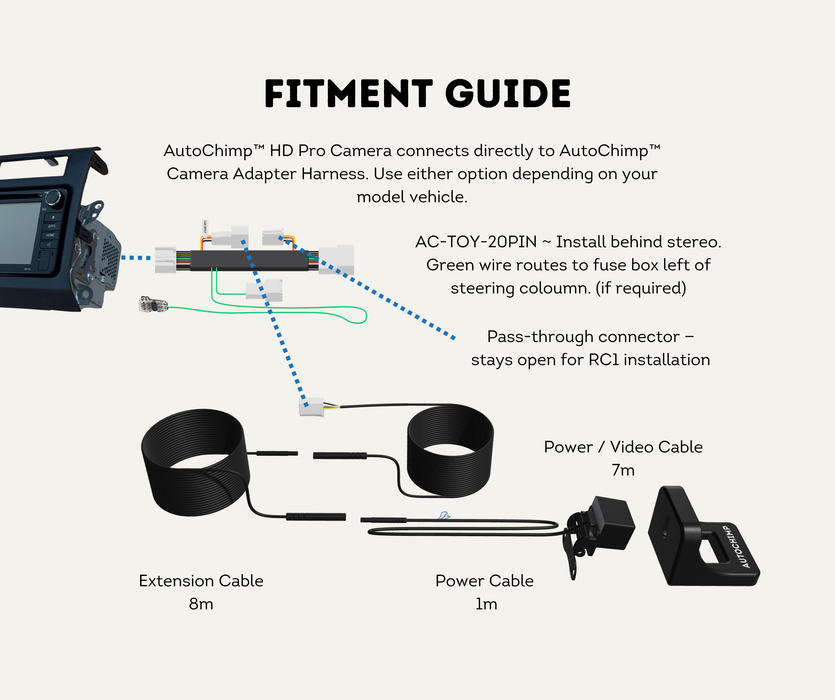

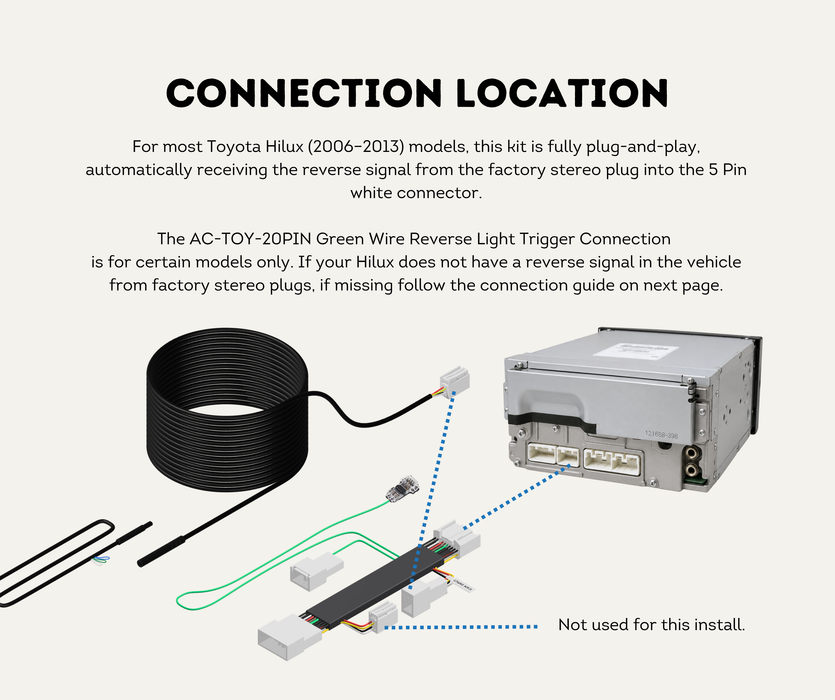

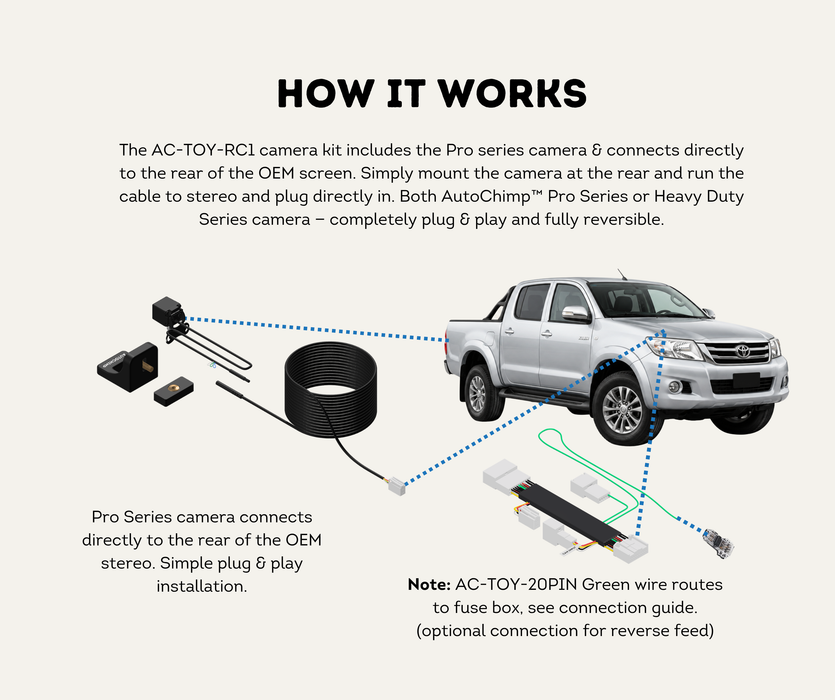

How It Installs

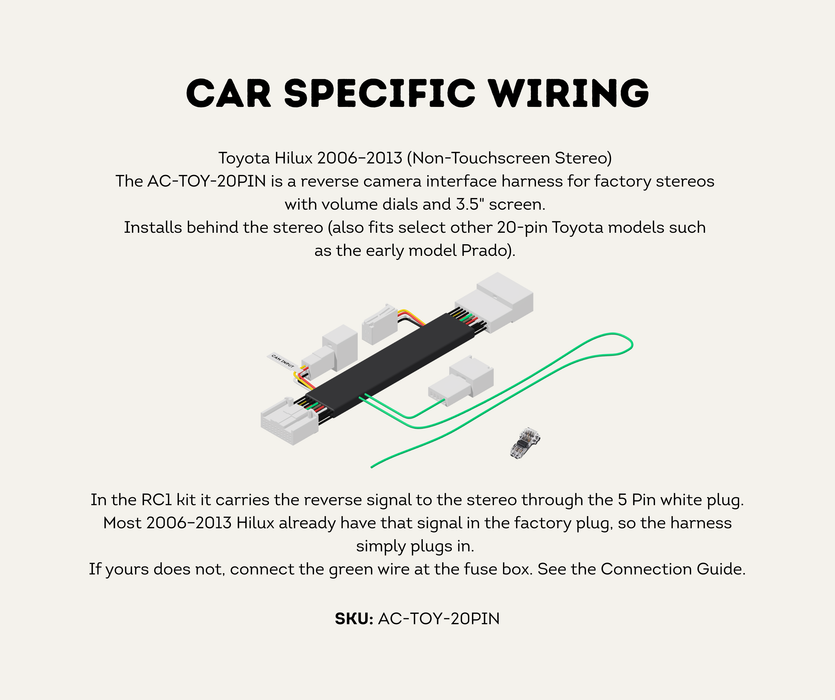

The AutoChimp™ Reverse Camera Kit adds a reverse camera to your factory screen with no cutting, no splicing and no dealer coding. The included AC-TOY-20PIN interface harness installs inline behind the stereo on the factory 20-pin plug.
The camera does not plug into the stereo directly. It connects to the 4-pin camera port on the AC-TOY-20PIN adapter, and the adapter carries the video through to the rear of the head unit. Camera power is 6V, supplied by the factory unit through the harness.
Most 2006–2013 Hilux already carry the reverse signal in the factory plug and pick it up through the 5-pin white connector, so the harness simply plugs in. If your vehicle does not have that signal, the harness includes a green trigger wire and a SnapTap connector — see the Connection Guide.

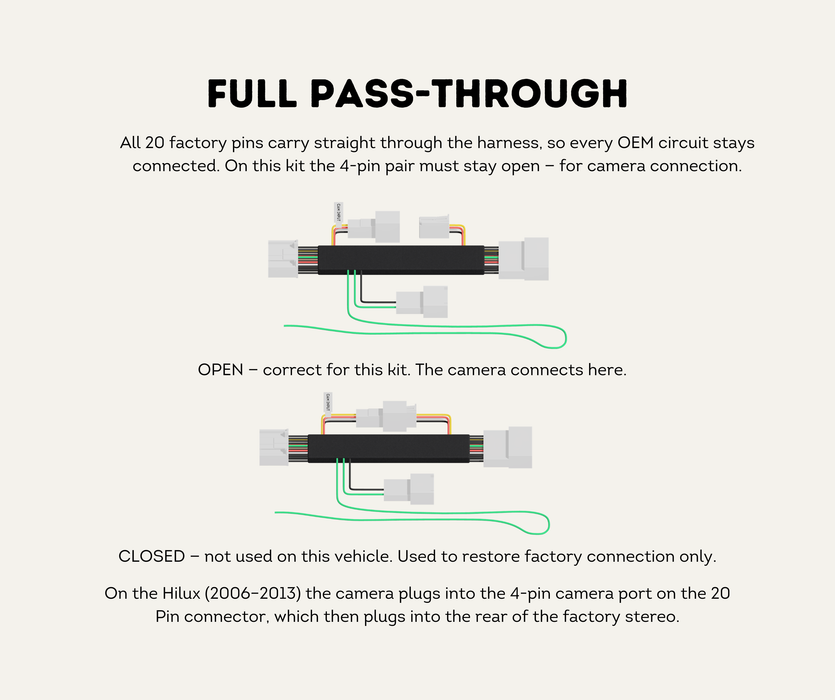

The Pass-Through Stays Open
All 20 factory pins carry straight through the harness, so every OEM circuit stays connected. On this kit the 4-pin pair stays open — that is where the camera plugs in. Closing it is only for restoring the factory connection.
Key Features
- Built for the Dial-Type Factory Stereo – Suits the non-touchscreen Toyota head unit with TUNE/FILE and PWR/VOL dials. Reverse view appears in the centre screen when you select reverse.
- Full 20-Pin Pass-Through – Every OEM circuit carries straight through the interface harness, so the stereo behaves exactly as it did before.
- Reverse Trigger Included – Green trigger wire and SnapTap supplied for the vehicles that do not carry the signal in the factory plug.
- Alternate Reverse Input – The harness 5-pin connector takes the factory reverse plug directly where the vehicle has one.

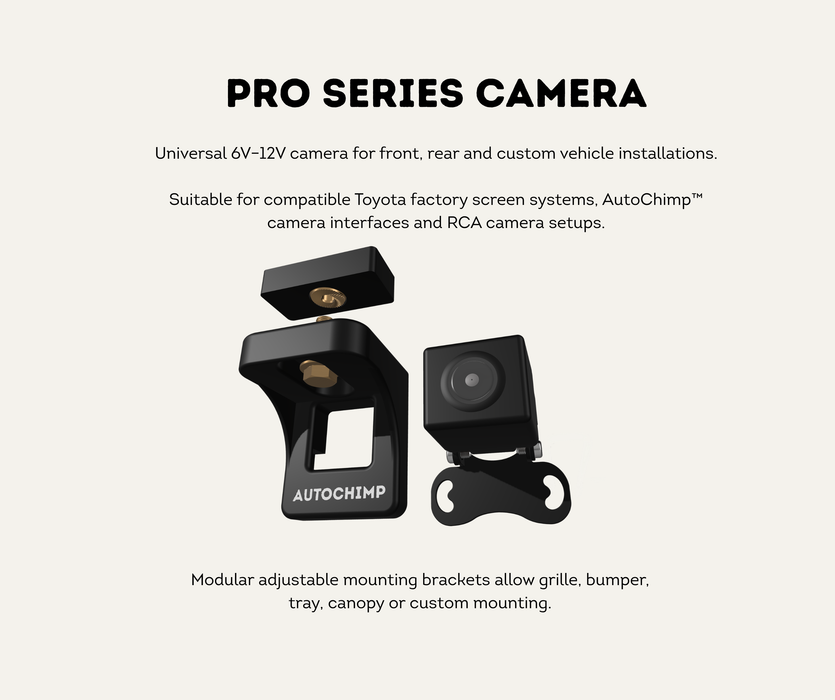

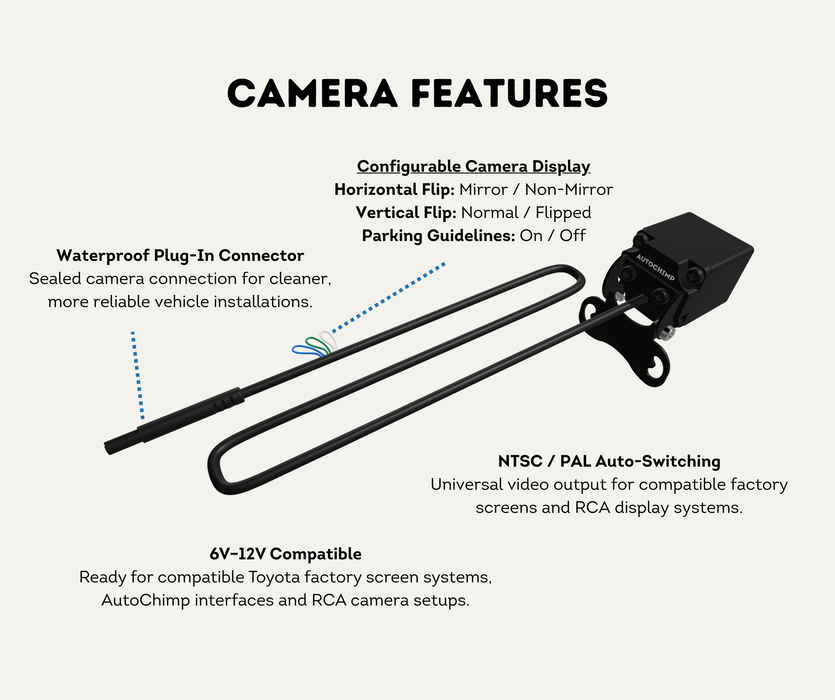

- Pro HD Camera – Compact metal-housed camera with a sealed waterproof plug-in connector for a cleaner, more reliable install.

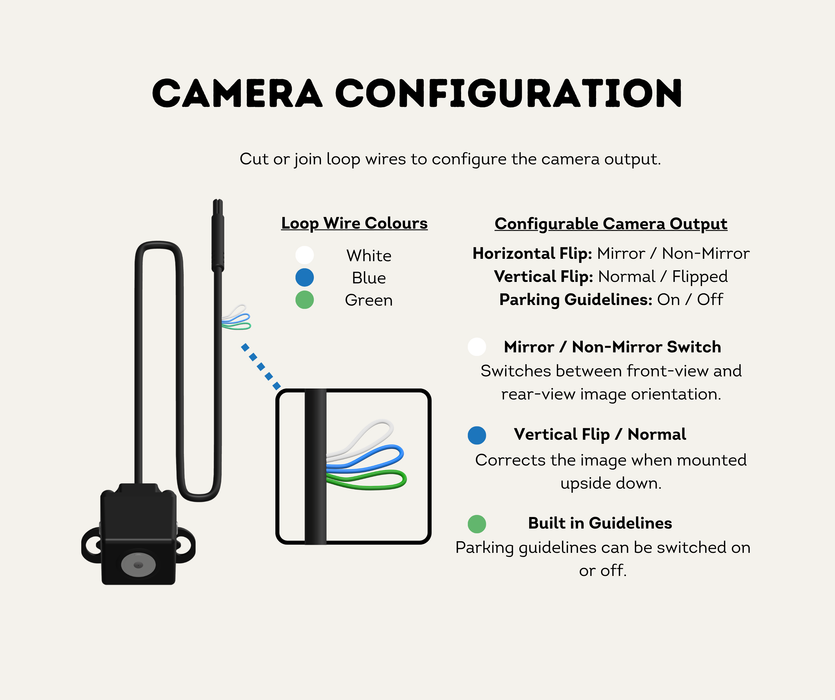

- Configurable Image – Horizontal flip (mirror / non-mirror), vertical flip (normal / flipped) and parking guidelines on or off, set with the camera's white, blue and green loop wires.
- NTSC / PAL Auto-Switching – Universal video output for compatible factory screens and RCA display systems.

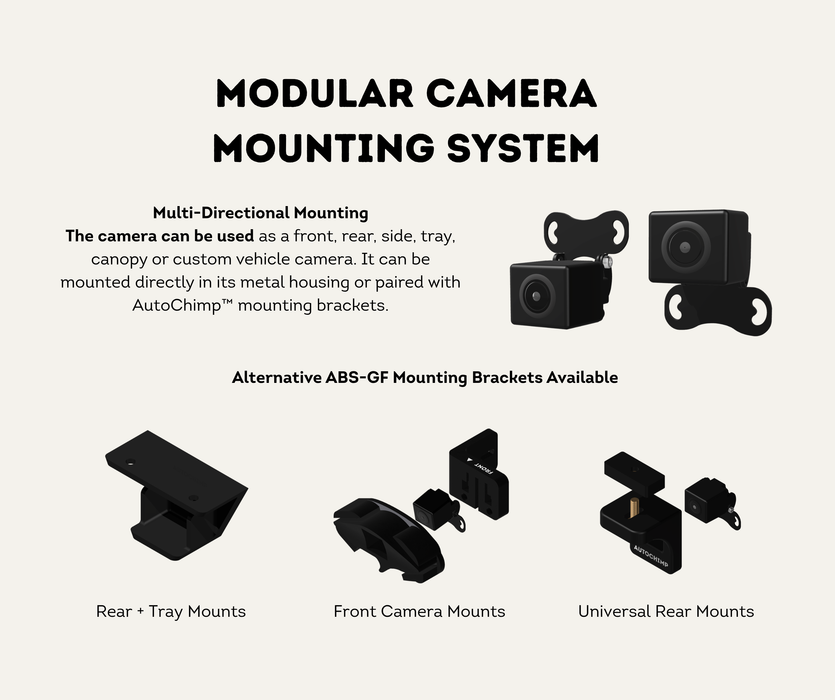

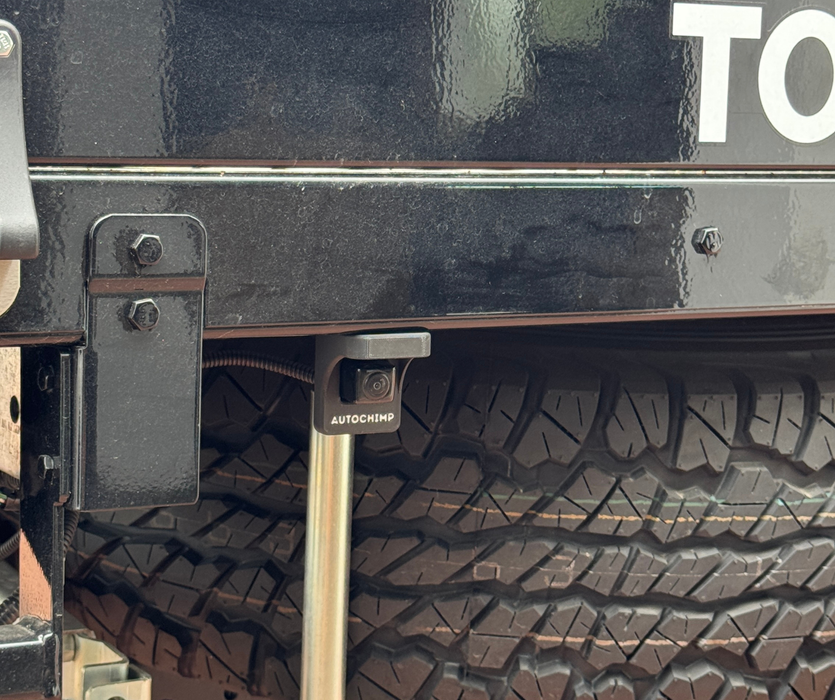

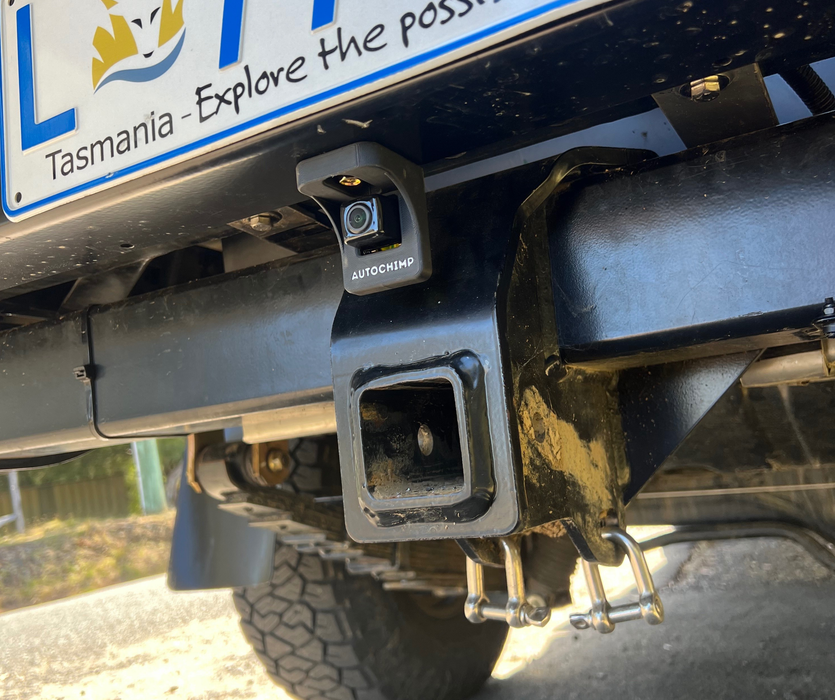

- Modular Mounting – Mount the camera in its metal housing directly, or pair it with AutoChimp™ rear, tray, front or universal brackets.

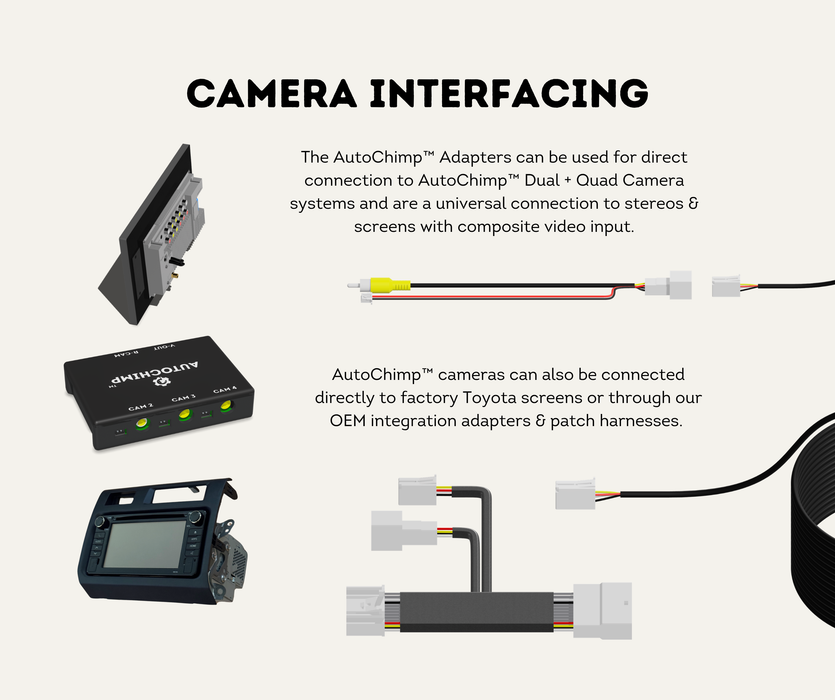

- Multi-Camera Ready – Works with AutoChimp™ Dual and Quad camera systems through our adapters.
- DIY Friendly – Step-by-step PDF instructions via the QR code on the pack.
- Built for Australian Conditions – IP67 waterproof and dustproof, rated -30°C to +80°C.
- Fully Reversible – Unplug the harness and the vehicle is back to standard.

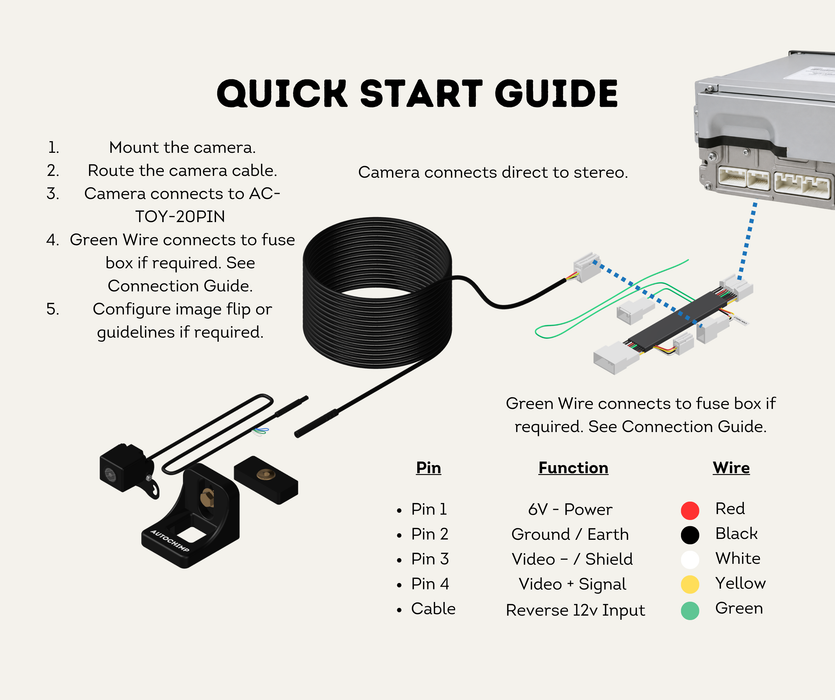

Quick Start

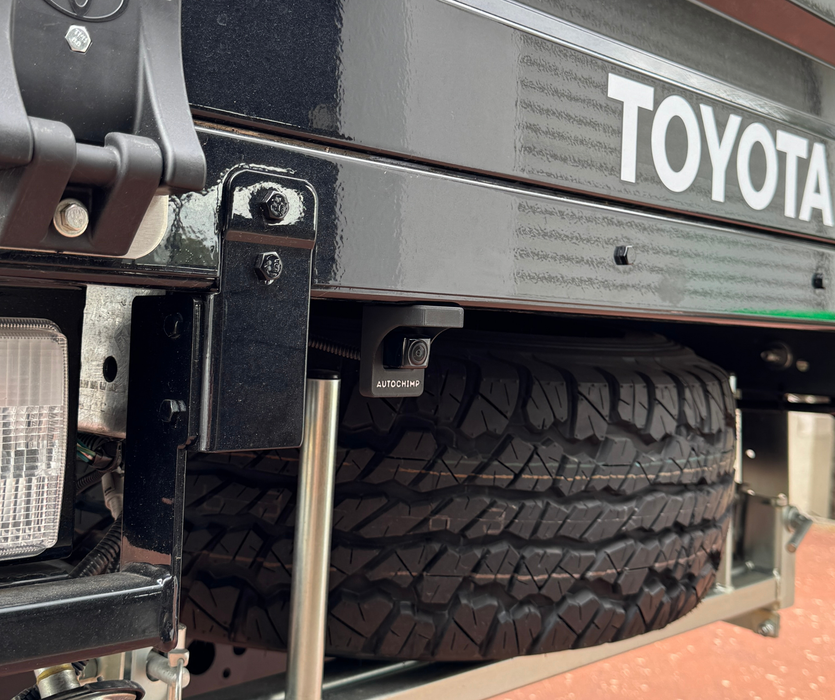

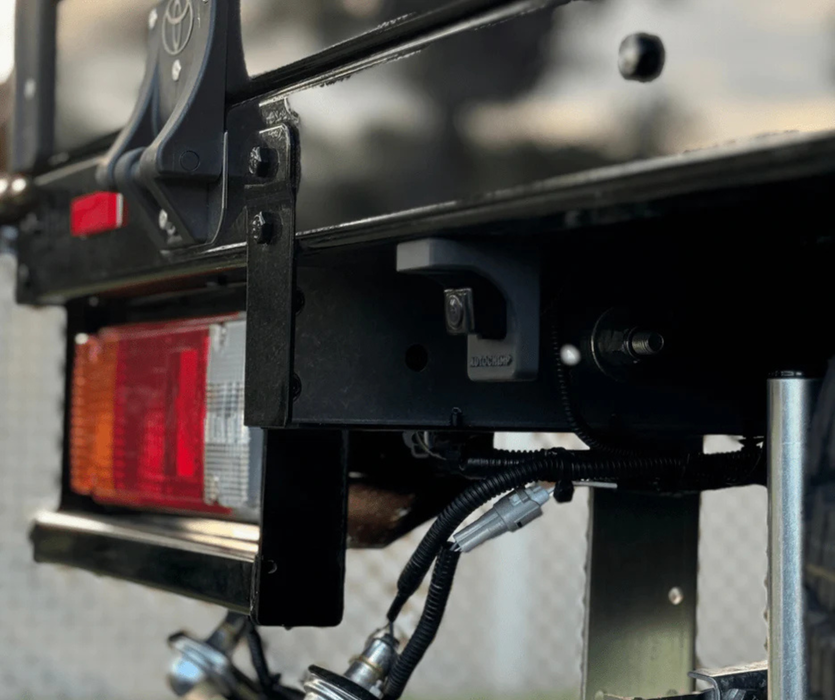

- Mount the camera on the tray, tub, bar or bracket of your choice.
- Route the 7m power and video cable from the rear of the vehicle forward to the stereo.
- Plug the camera into the 4-pin camera port on the AC-TOY-20PIN adapter.
- Fit the adapter inline on the factory 20-pin plug behind the stereo.
- Connect the green wire at the fuse box only if your vehicle has no reverse signal in the factory plug.
- Set image flip or guidelines if required using the camera's loop wires.

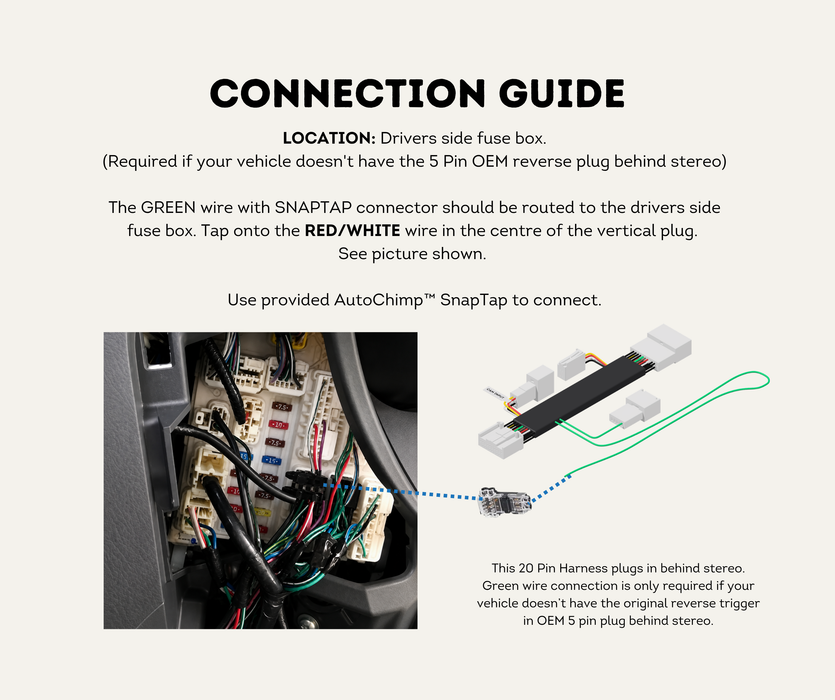

Reverse Trigger Connection (certain models only)
Only needed if your Hilux has no reverse signal in the OEM 5-pin plug behind the stereo.
- Location: driver's side fuse box, left of the steering column.
- Find the small vertical connector in the centre of the fuse box.
- Tap the red/white wire in that connector — this is the 12V reverse light signal.

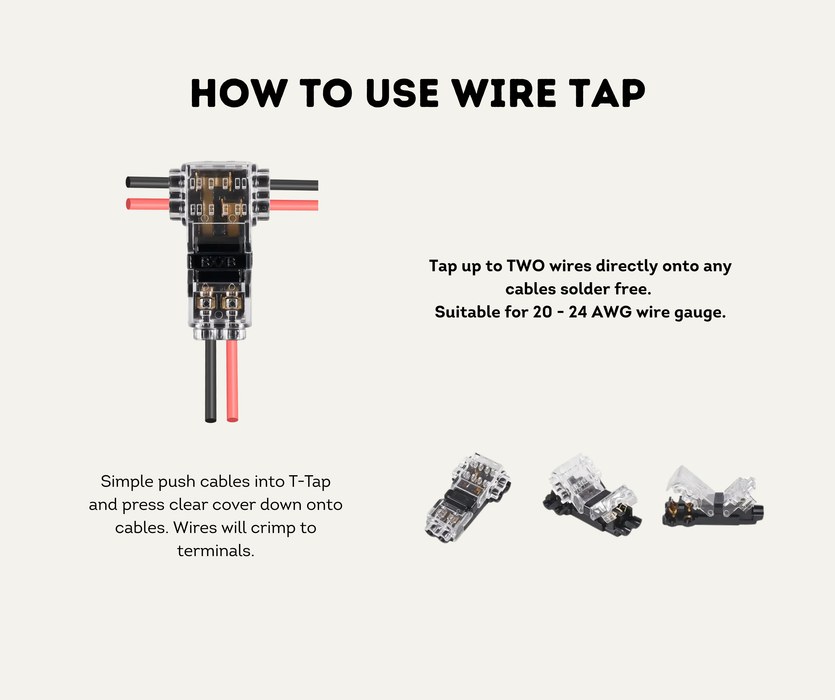

- Join the harness green wire to it using the supplied AutoChimp™ SnapTap.
Compatibility
- Toyota Hilux 2006 to 2013 build years, non-touchscreen factory stereo only
- Workmate, SR and SR5 variants
- Single cab, extra cab and dual cab
- Automatic and manual transmission
- All engine types — petrol and diesel
- 12V vehicle electrical systems

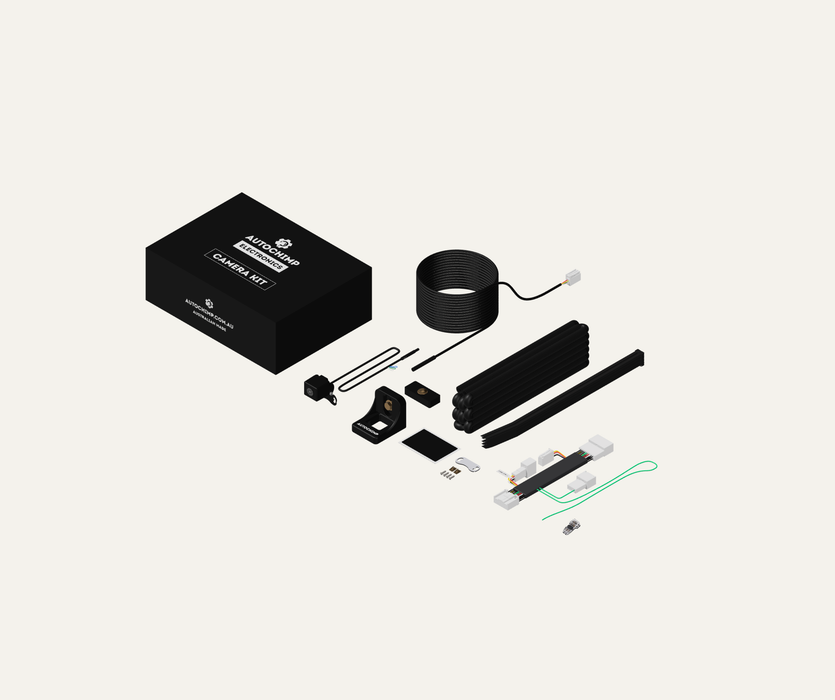

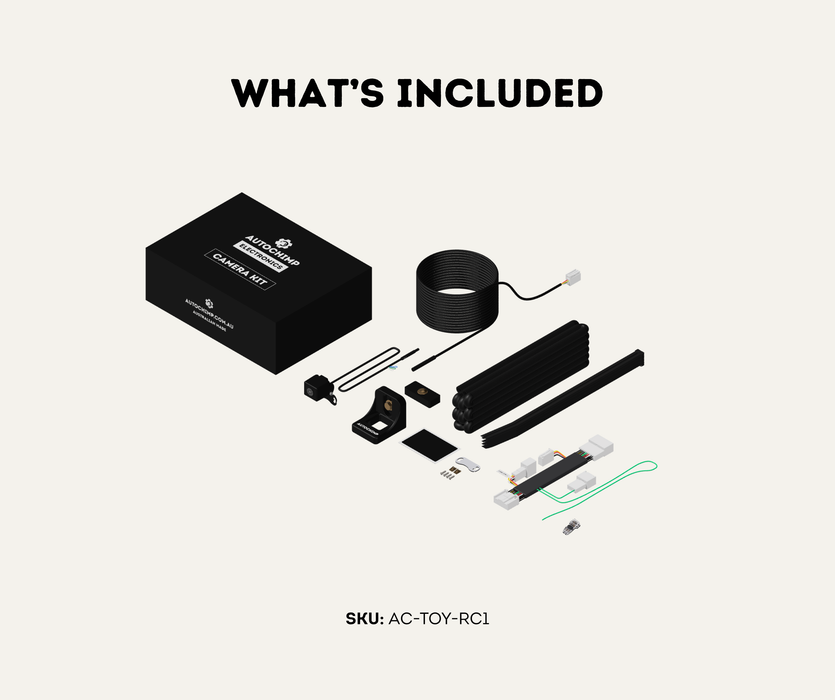

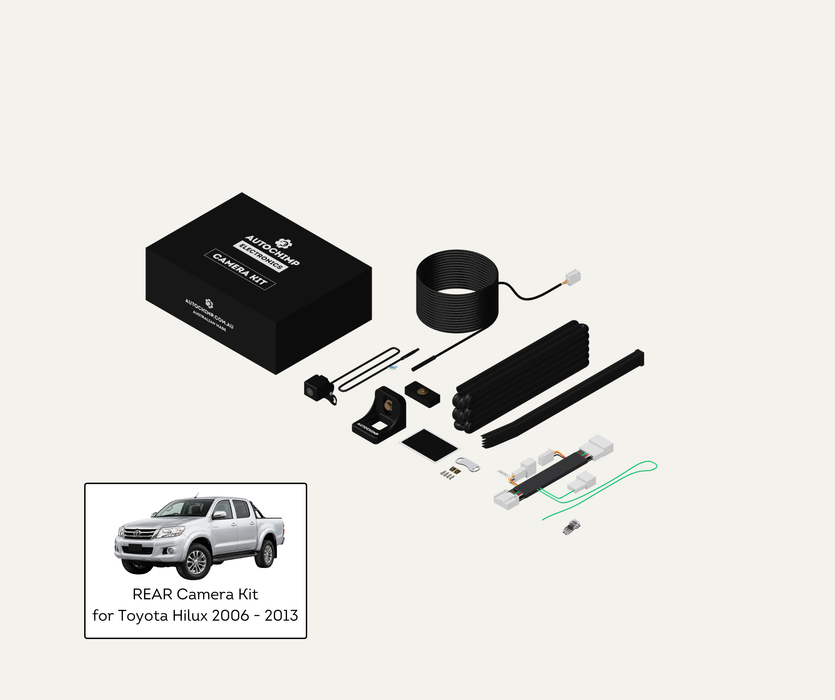

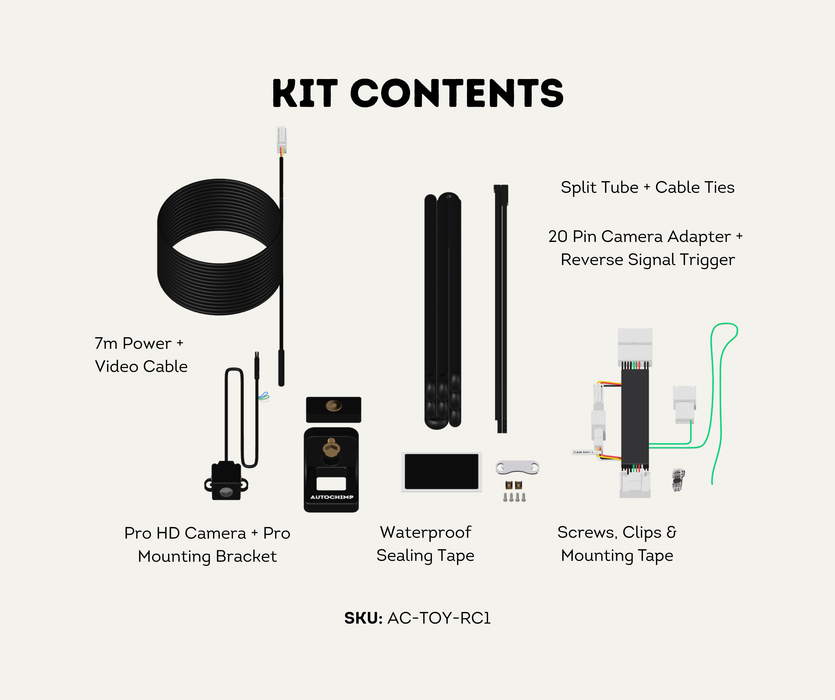

What's Included
- 1x AutoChimp™ Pro HD Camera (1m integrated lead) + Pro Mounting Bracket
- 1x 7m Power + Video Cable
- 1x 20-Pin Camera Adapter + Reverse Signal Trigger Harness (AC-TOY-20PIN)
- 1x AutoChimp™ SnapTap connector
- Waterproof sealing tape
- Split tube and cable ties
- Screws, clips and mounting tape
Technical Specifications
| Vehicle Fitment | Toyota Hilux (2006–2013), non-touchscreen factory stereo with 20-pin plug |
| Install Location | Inline behind the factory stereo |
| Harness Type | 20-pin full pass-through with reverse trigger wire |
| Camera Connection | 4-pin camera port on the AC-TOY-20PIN adapter (pass-through pair stays open) |
| Camera Power | 6V — supplied by the factory stereo through the harness. The camera itself is 6V–12V capable. |
| Reverse Trigger | Taken from the factory plug via the 5-pin white connector where present; otherwise 12V from the fuse box red/white wire |

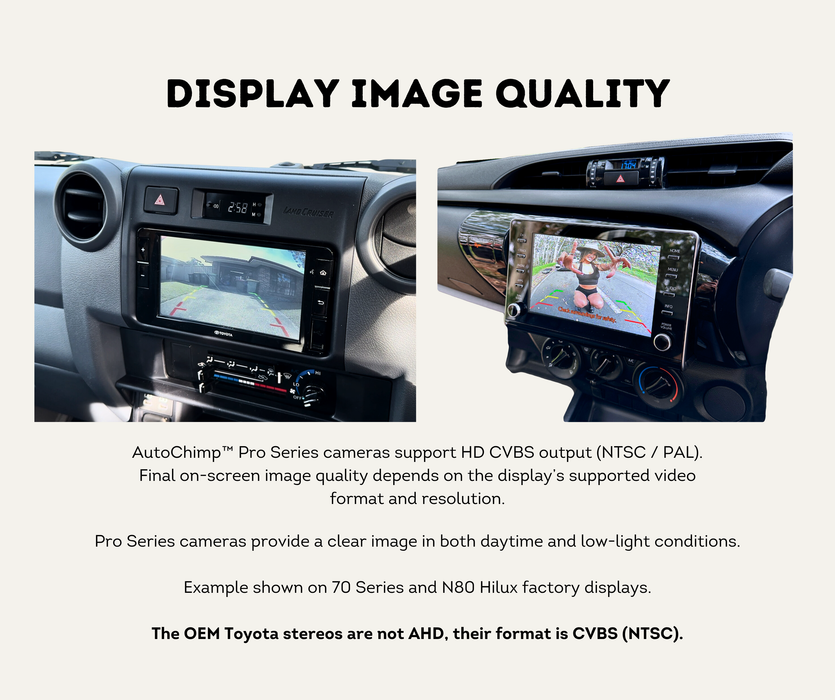

| Video Format | CVBS (NTSC / PAL auto-switching) — OEM Toyota stereos are CVBS, not AHD |
| Image Sensor | Advanced Super CMOS 1/3" |
| Resolution | 800 TV lines (976 × 592 pixels) |
| Viewing Angles | 170° diagonal · 120° horizontal · 90° vertical |
| IP Rating | IP67 waterproof & dustproof |
| Operating Temperature | -30°C to +80°C |

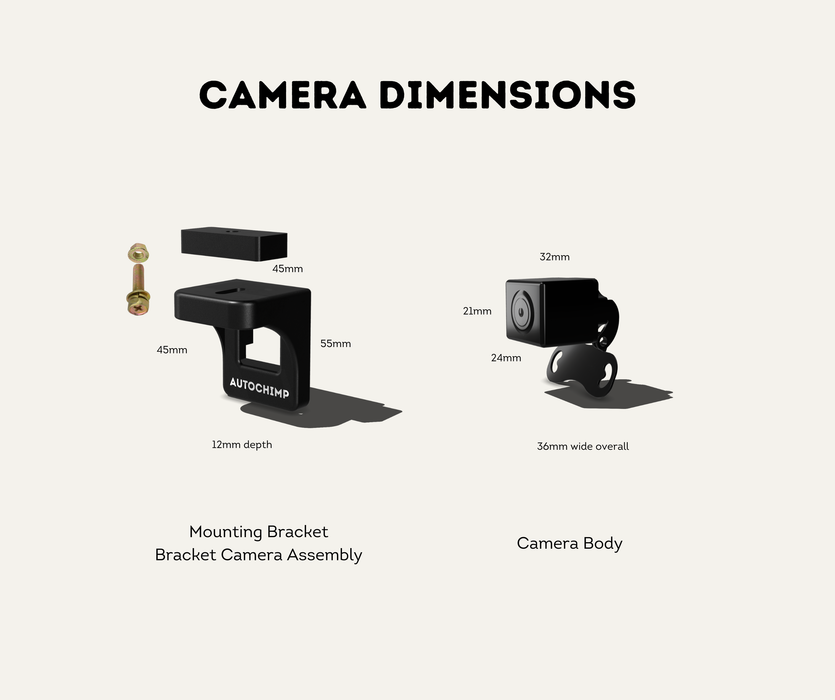

| Camera Body | 32mm W · 21mm H · 24mm D · 36mm wide overall |
| Mounting Bracket | 55mm W · 45mm H · 12mm depth |
| Camera Lead | 1m, integrated on the camera |
| Power + Video Cable | 7m |
| Total Cable Reach | 8m (7m cable + 1m camera lead) |

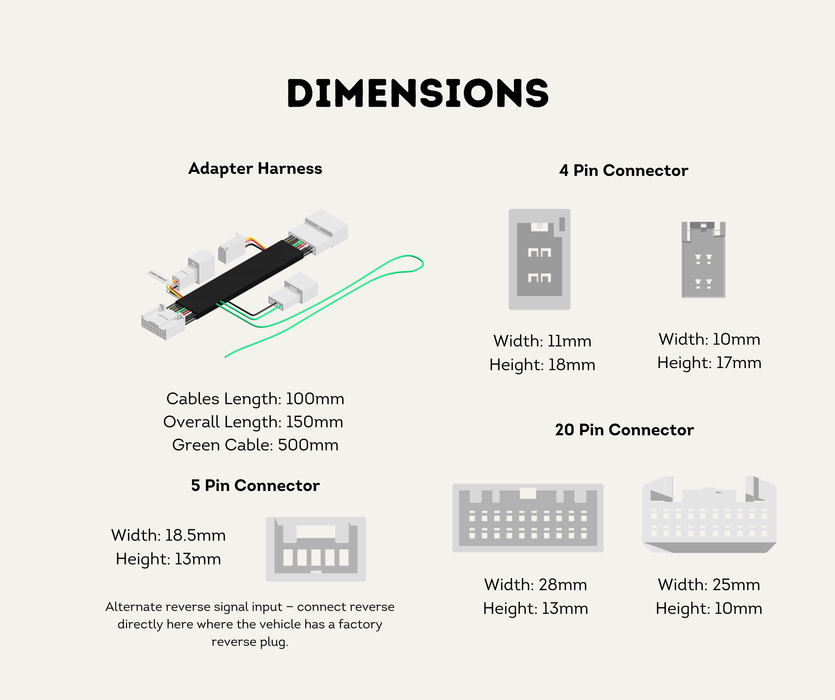

| Harness Overall Length | 150mm |
| Harness Cable Length | 100mm |
| Green Trigger Wire | 500mm |
| 4-Pin Connector | 11mm W × 18mm H (female) · 10mm W × 17mm H (male) |
| 20-Pin Connector | 28mm W × 13mm H · 25mm W × 10mm H |
| 5-Pin Connector | 18.5mm W × 13mm H |

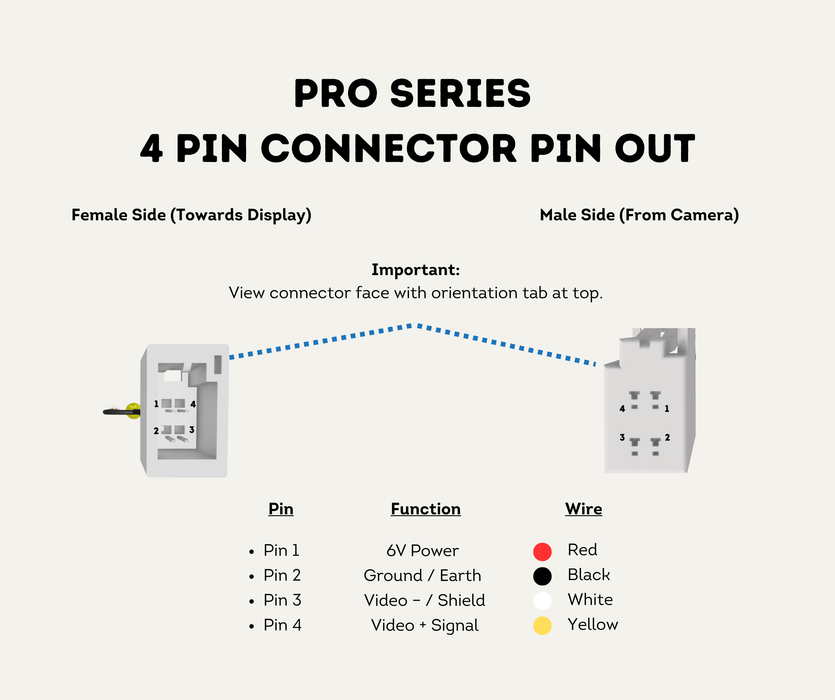

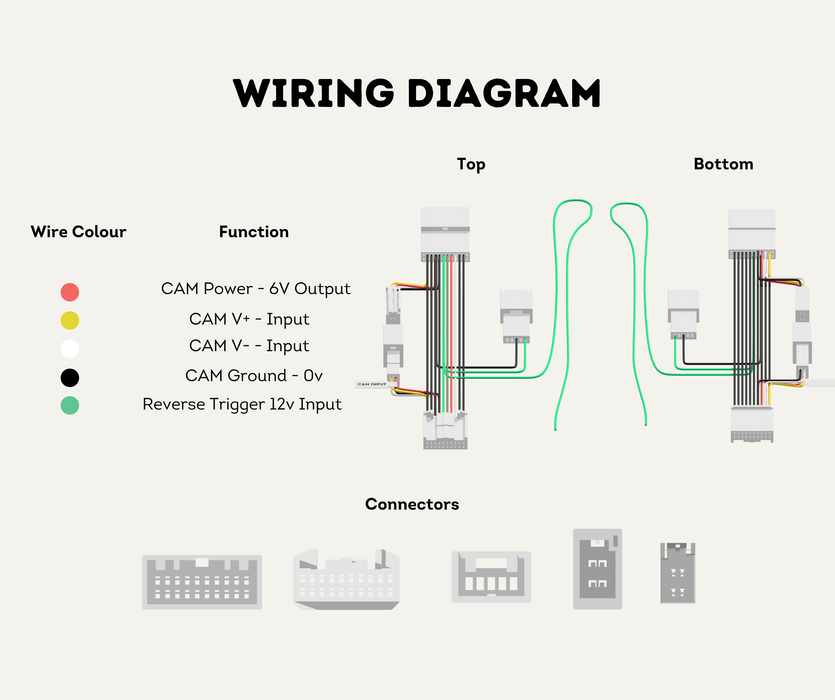

| Camera Pin Out | Pin 1 6V Power (Red) · Pin 2 Ground / Earth (Black) · Pin 3 Video − / Shield (White) · Pin 4 Video + Signal (Yellow) · Cable Reverse 12V Input (Green) |
| Image Adjustment | Horizontal flip, vertical flip, parking guidelines on/off |
| Connector Sealing | Waterproof plug-in camera connector |
Other Vehicles

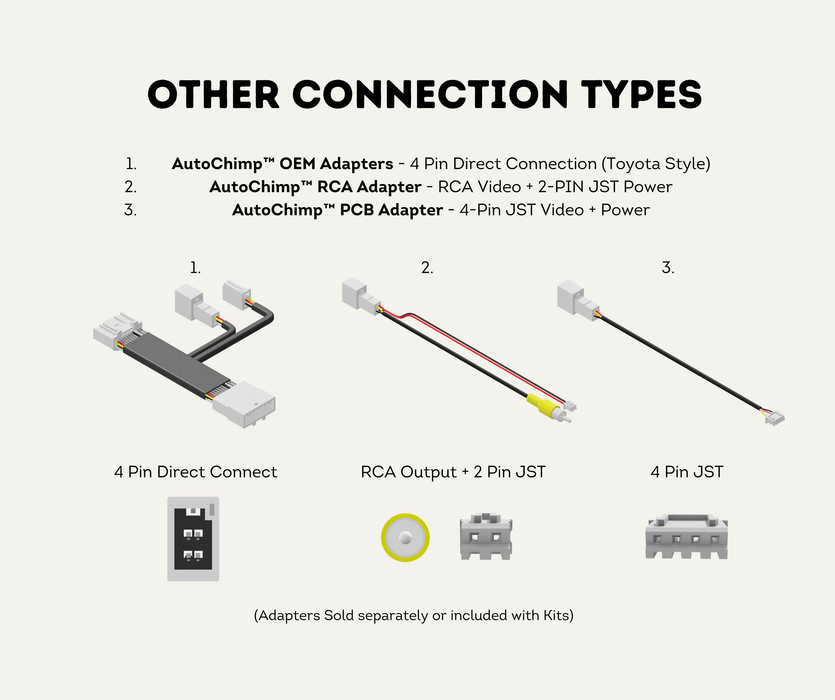

The same AC-TOY-20PIN harness also suits selected other 20-pin Toyota models, such as the early model Prado. Those vehicles may need a different trigger arrangement — see the AutoChimp™ kit listed for your vehicle rather than fitting this one.

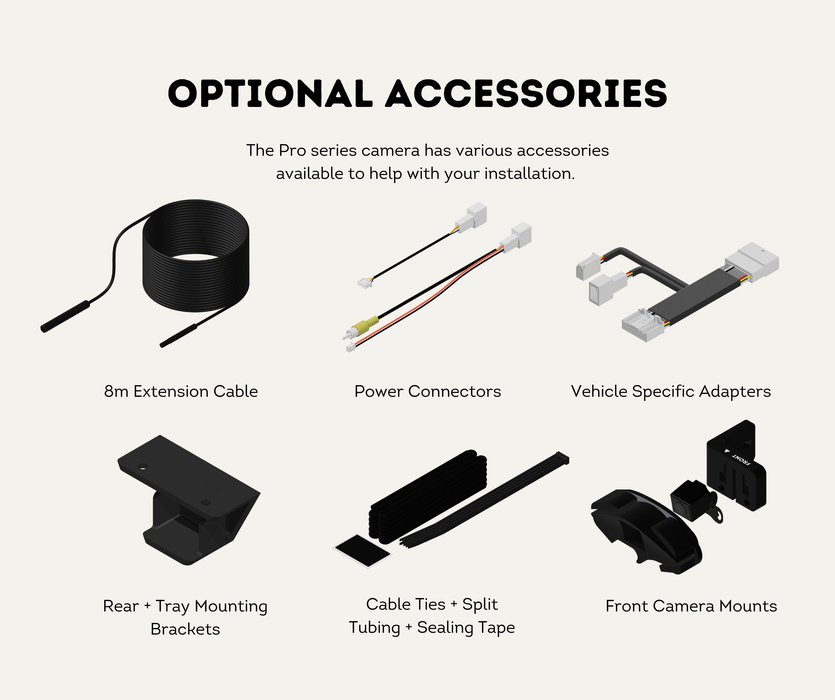

Optional Accessories
- 8m Pro Series extension cable
- Power connectors
- Vehicle-specific adapters
- Rear and tray mounting brackets
- Front camera mounts
- Cable ties, split tubing and sealing tape
