AutoChimp™ Quad Camera Kit for Toyota Hilux (2014–2020) | Plug & Play 4-Camera Integration

SKU: AC-QUAD-HILUX-2014
Compatible With: AutoChimp™ QuadCam System | Factory Stereo Integration

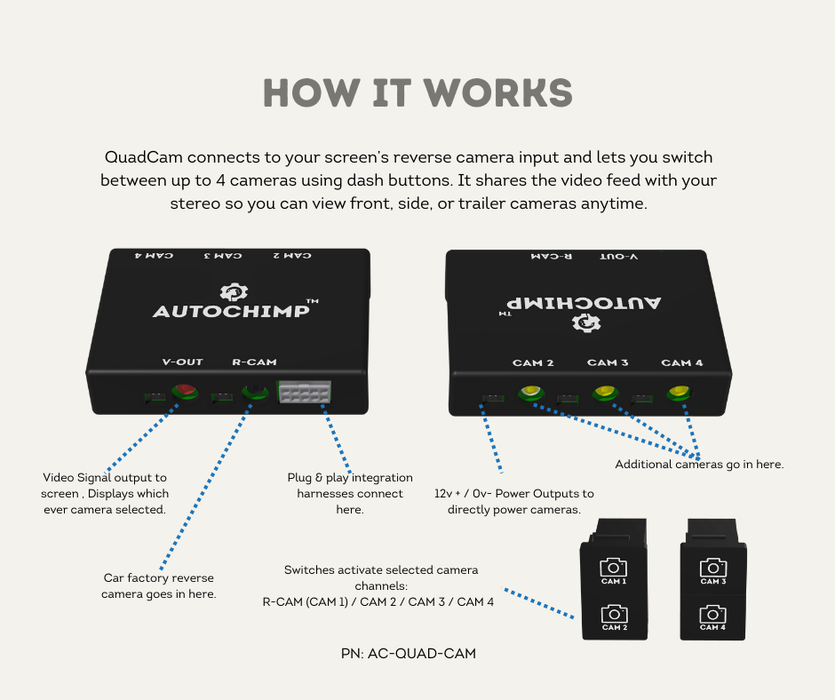

Upgrade your 2014–2020 Toyota Hilux with the AutoChimp™ Quad Camera Kit — a complete plug & play system that enables switching between up to four RCA cameras via your factory stereo screen. Powered by the advanced AutoChimp™ QuadCam PRO+, this kit includes everything needed to control front, rear, trailer, and side cameras using factory-style dash switches with blue LED backlighting and green activation indicators.

This system uses a Hilux-specific harness setup including the AutoChimp™ Toyota 2014 QuadCam Harness, a 24-pin to 4-pin stereo adapter, and a 4-pin RCA breakout, making installation seamless and fully reversible. With built-in camera power outputs, SnapLocks, and 2-pin JST power cables included, the setup is clean, reliable, and built for Aussie conditions.

Key Features

• Control up to 4 cameras from your Hilux’s factory stereo screen

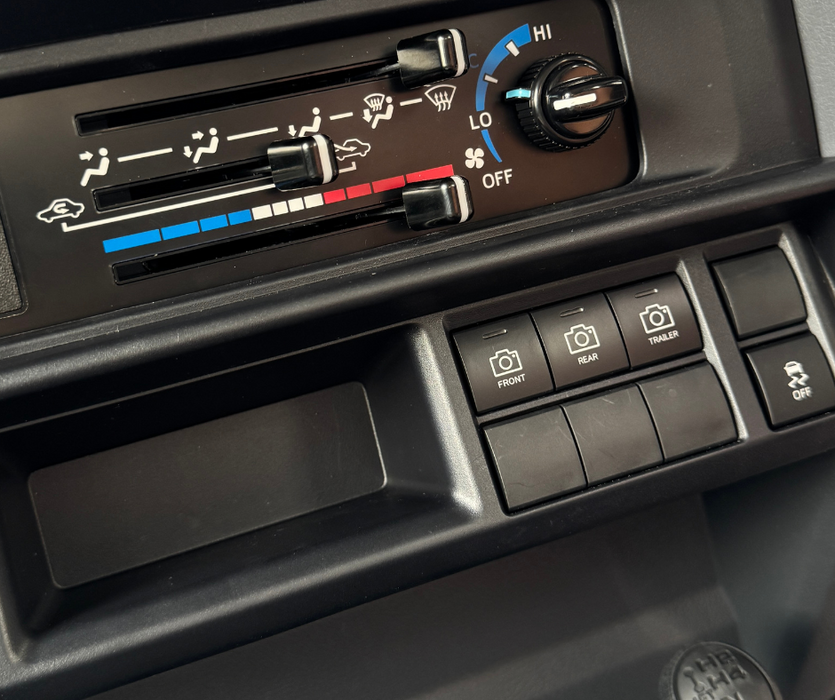

• Dual factory-style switches included: CAM 1/2 & CAM 3/4

• Switches feature blue LED dash illumination + green active indicators

• Includes JST 2-Pin Power Outputs – Delivers clean 12V camera power (2A max/channel)

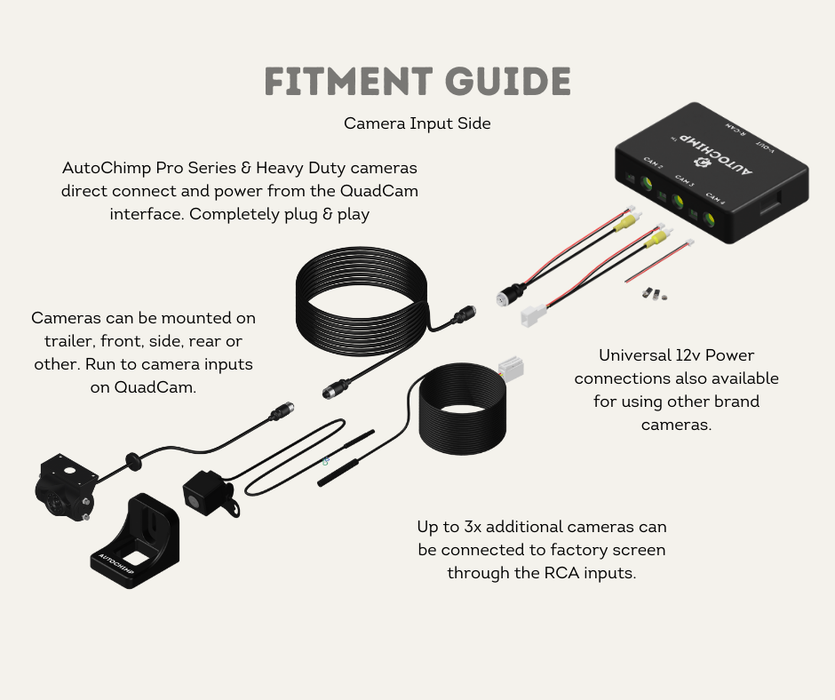

• Compatible with AutoChimp Pro HD, Heavy Duty, Safety Dave, or OEM cameras

• No coding, cutting, or dealer tools required

• Vehicle-specific harnesses for fast, tidy install

• Fully expandable and upgrade-ready

Vehicle Compatibility

• Toyota Hilux (2014–2020)

• Compatible with SR, SR5, Workmate, Rogue

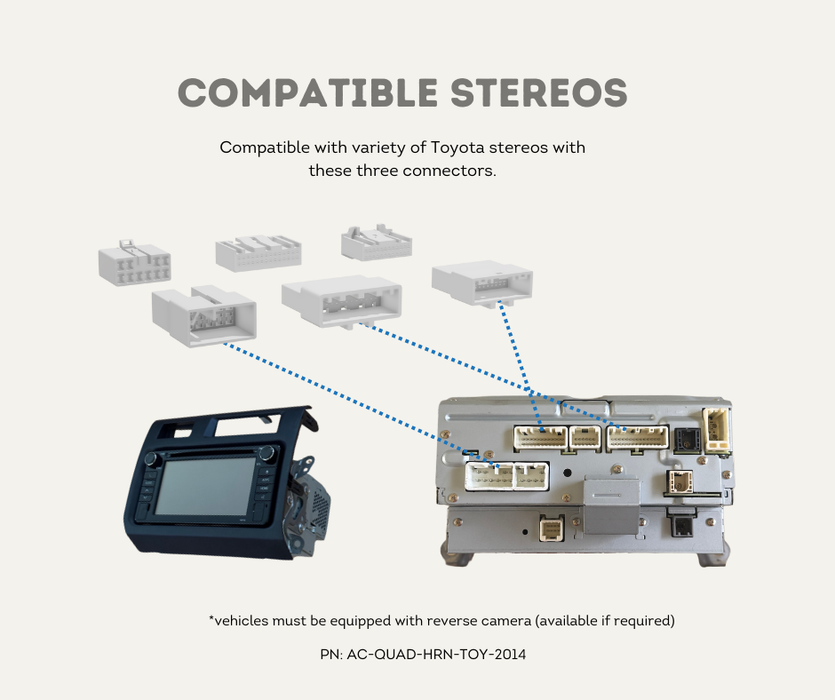

• Factory stereo and reverse camera required

• Not suitable for factory 360° camera-equipped models

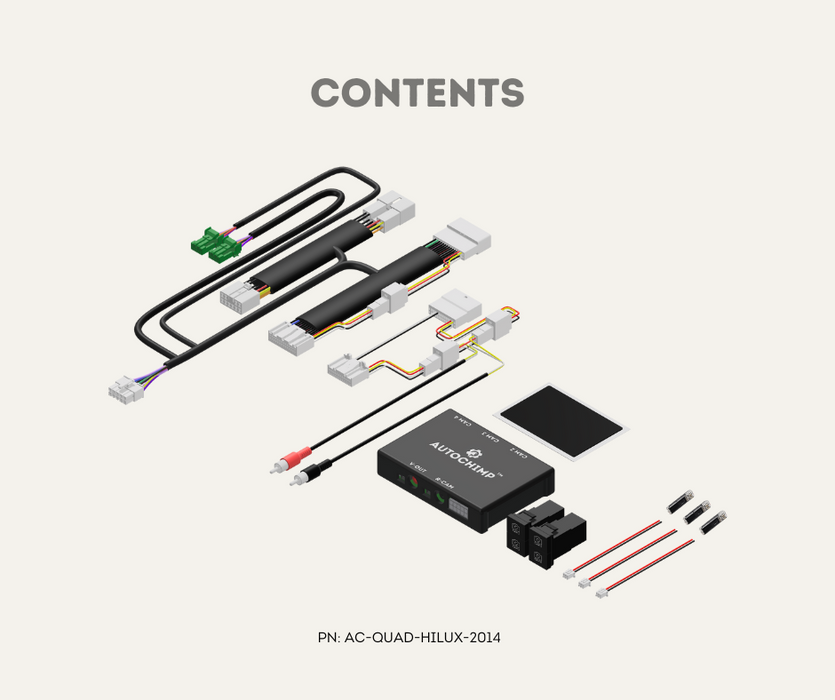

What’s Included

• 1x AutoChimp™ QuadCam PRO+ Switching Module

• 1x AutoChimp™ QuadCam Harness – Toyota 2014 (AC-QUAD-HRN-TOY-2014)

• 1x Toyota 24-Pin to 4-Pin Adapter (AC-TOY-24PIN-4PIN)

• 1x RCA Breakout Adapter (4-pin to RCAM IN & V-OUT)

• 2x Dual-Button Switches – CAM 1/2 + CAM 3/4 (Blue backlight, green activation indicators)

• 3x AutoChimp™ JST 2-Pin Power Cables (AC-JST-2PIN-M, 100mm)

• 3x SnapLock™ Wire Tap Connectors

• 1x PDF Installation Guide

• All necessary mounting accessories

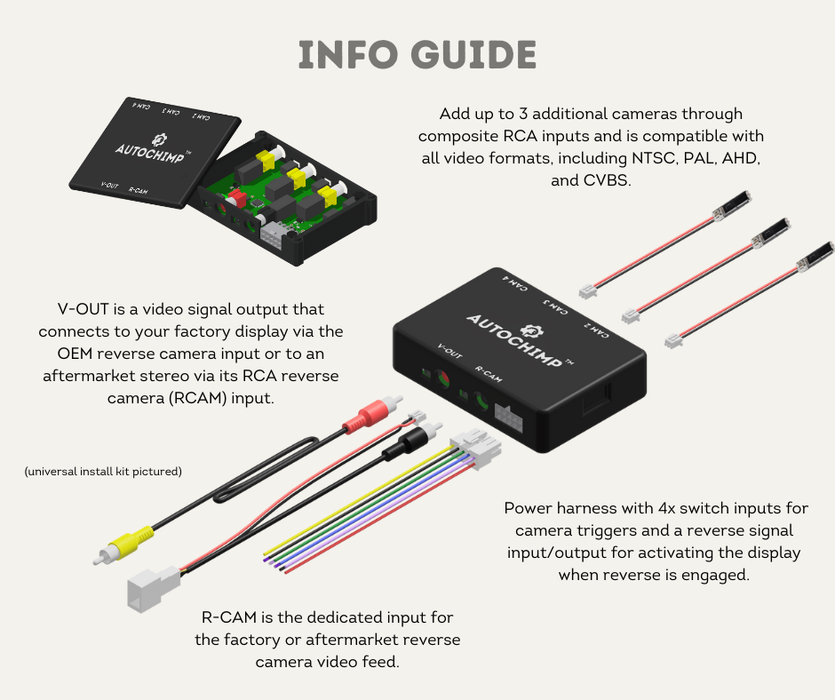

Technical Specifications

• Video Input: RCA composite – NTSC, PAL, AHD, CVBS

• Camera Power Output: 12V regulated, 2A max per channel via JST

• Switch Type: Factory-style, momentary, dual-button

• Wiring Harness: Plug & play into Toyota 28/30-pin with breakout

• Mounting: Concealed behind dash, 32mm switch cutouts

• Bracket Material (Optional Mounts): ABS-GF reinforced

• Operating Temperature: -30°C to +80°C

Why Choose AutoChimp™?

• Designed specifically for Hilux 2014–2020 dash & stereo integration

• QuadCam PRO+ gives full camera control without changing screens

• Camera power and switching built-in — no extra modules needed

• Reliable, field-tested components for harsh environments

• Expandable & upgrade-ready for off-roaders, tradies, and fleet users
