AutoChimp™ Pro HD Rear Camera Kit | Universal 6V–12V Reverse Camera System

SKU: AC-PRO-CAM-KIT-REAR

The AutoChimp™ Pro HD Rear Camera Kit is a high-definition universal camera system designed for seamless integration with factory vehicle stereos, aftermarket head units, and AutoChimp QuadCam systems. With a high-resolution Super CMOS sensor, IP67-rated waterproof housing, and excellent low-light performance, this system enhances safety and visibility in all conditions.

Key Features

• High-Definition Imaging – Super CMOS sensor with 976 x 592 resolution for sharp, detailed visuals

• 6V–12V Power Compatibility – Broad voltage support for integration with various factory or aftermarket systems

• Plug & Play RCA Output – Includes AC-PRO-CAM-RCA-YELLOW adapter for easy connection to RCA-based systems

• Low-Light Performance – Enhanced image clarity in dark conditions for safer reversing

• IP67 Waterproof & Dustproof – Weather-sealed to withstand harsh environments and off-road use

• Selectable Image Flip & Guidelines – Flip the view horizontally or vertically, and toggle guidelines on/off

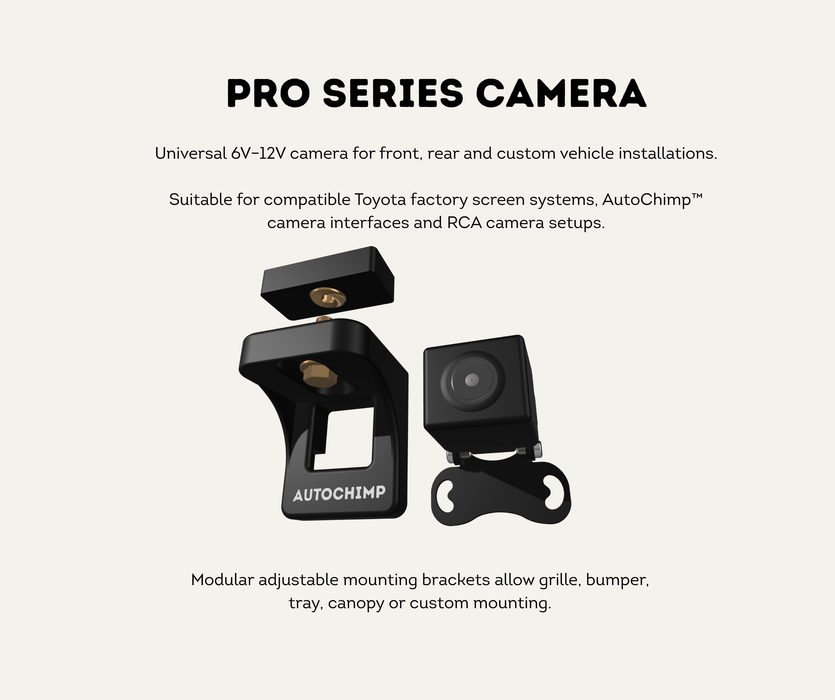

• Adjustable Steel Mount – Multi-directional bracket with anti-vibration locking system for secure installation

What’s Included

• 1x AutoChimp™ Pro HD Rear Camera with 1m Fixed Cable

• 1x 4-Pin to RCA Adapter (for QuadCam systems or aftermarket stereos)

• 1x 8m Extension Cable

• 1x Adjustable Steel Bracket

• 1x Waterproof Sealing Tape

• Mounting Hardware: Screws, Cable Ties, Split Loom

Specifications

• Resolution: 800 TV lines (976 x 592 pixels)

• Viewing Angles: 170° Diagonal, 120° Horizontal, 90° Vertical

• Power Supply: 6V–12V DC

• IP Rating: IP67 Waterproof & Dustproof

• Operating Temperature: -30°C to +70°C

• Bracket Material: Powder-coated steel with anti-vibration design

• Video Signal: PAL / NTSC Auto Switching

Expandable Options

• Extension Cables: 8m extensions available separately

• Optional Terminals:

  • 4-Pin Aviation Connector – For AutoChimp heavy-duty camera systems

  • 4-Pin Connector Ready for Toyota – For direct integration with compatible Toyota factory displays

Why Choose AutoChimp™?

• Designed to integrate easily with factory or aftermarket screens

• Compatible with AutoChimp QuadCam and RCA-based systems

• No splicing or programming required for standard installations

• Built for rugged conditions, ideal for off-road or commercial use

• Delivers sharp rear visibility for safer reversing at all times
