AutoChimp™ Heavy Duty Camera | IR + IR Cut Night Vision | AHD / CVBS | 6V–24V

SKU: AC-HEAVY-CAM

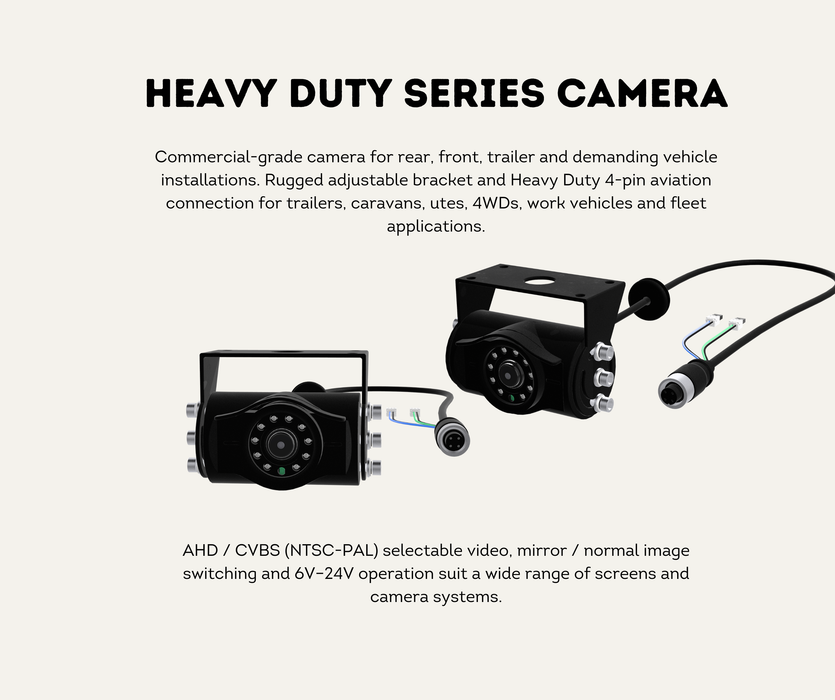

The AutoChimp™ Heavy Duty Camera is our updated commercial-grade camera platform, built for trailers, fleet vehicles, work utes, towing setups, 4WD touring, and harsh Australian conditions.

This upgraded standalone camera features IR + IR Cut night vision, selectable AHD or CVBS video output, mirror or normal image switching, a 6V–24V operating range, and a tougher matte black electro-coated housing. It is designed to give installers broader screen compatibility, stronger mounting security, and cleaner image performance day or night.

Each camera includes a fixed 0.5m lead. Optional adapter leads are available separately for RCA aftermarket stereos or 4-pin aviation / AutoChimp™ multi-camera systems.

Key Features

• Commercial-Grade Heavy Duty Camera – built for towing, trade vehicles, off-road use, trailers, rural vehicles, and fleet applications.
• 6V–24V Operating Voltage – compatible across a broad range of factory-style and aftermarket camera power systems.
• IR + IR Cut Night Vision – clearer low-light performance with better day/night colour transition.
• AHD / CVBS Output – blue jumper lets you switch video format to suit more displays.
• NTSC / PAL Auto Switching in CVBS Mode – broader compatibility across factory and aftermarket screens.
• Mirror / Normal Image Switching – green jumper allows the camera to be configured for reverse or front-camera use.
• Labelled Jumpers – cable jumpers are clearly marked for simple setup.
• Reduced Lens Glare – revised lens staging helps cut glare and improve image clarity.
• Matte Black Electro-Coated Housing – upgraded finish for durability and a cleaner OEM-style appearance.
• Stronger Camera-to-Bracket Mounting – camera secures with 6x stainless hex fixers for improved strength and vibration resistance.
• Bracket Mounting Hardware Included – includes 6x self-tapping screws for installation.

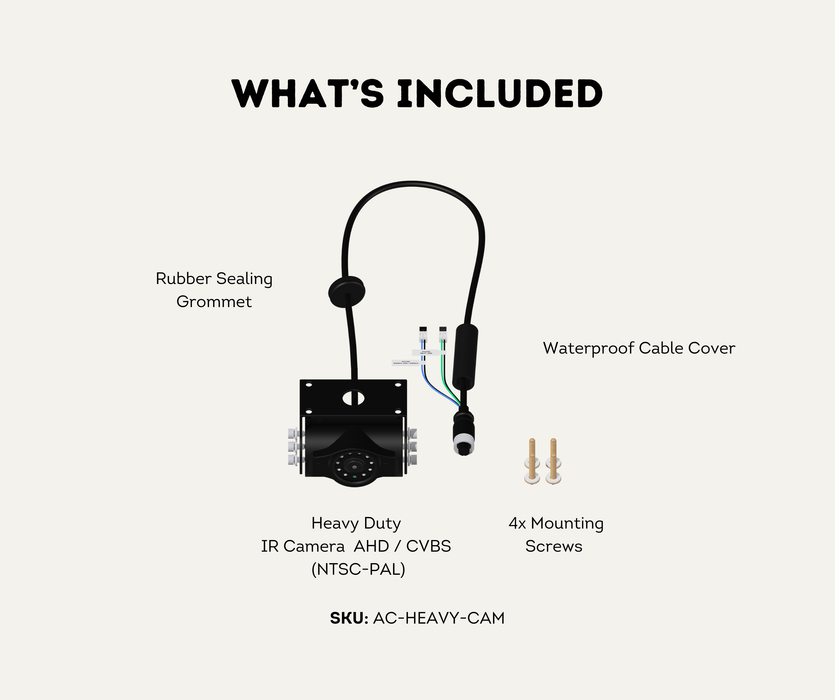

What’s Included

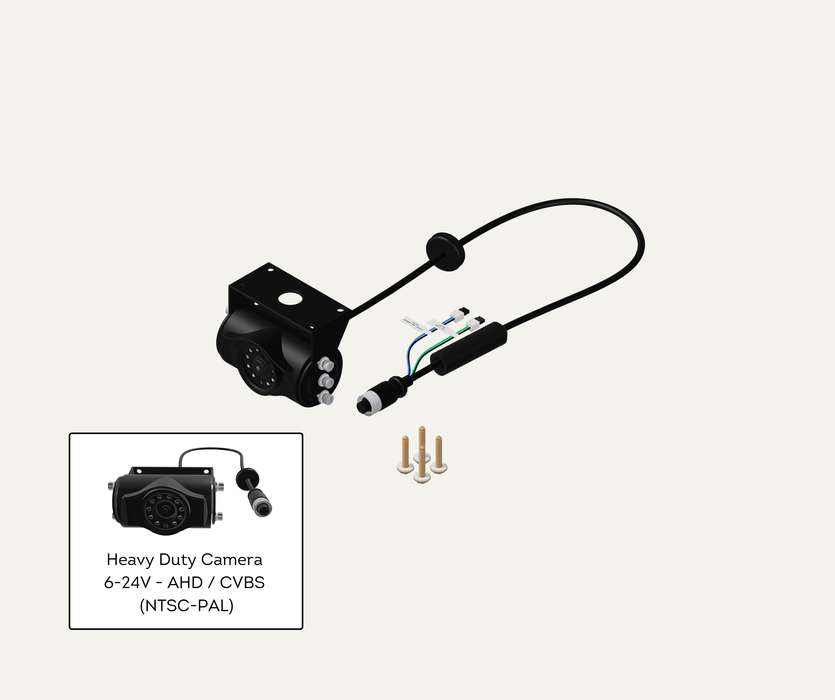

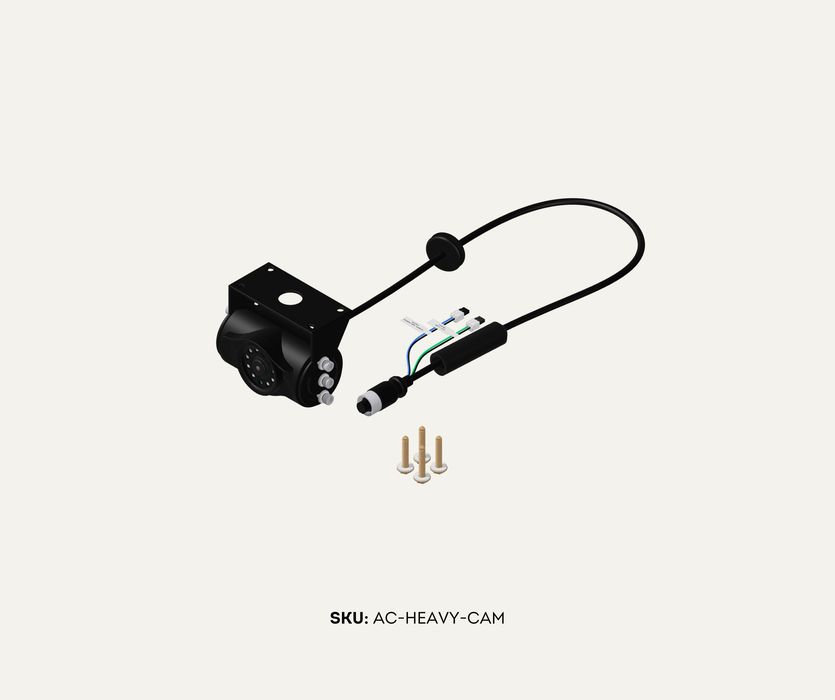

• 1x AutoChimp™ Heavy Duty Camera with fixed 0.5m lead
• 1x Heavy Duty Adjustable Mounting Bracket
• 6x Stainless Hex Fixers (camera to bracket)
• 6x Self-Tapping Screws (bracket mounting)

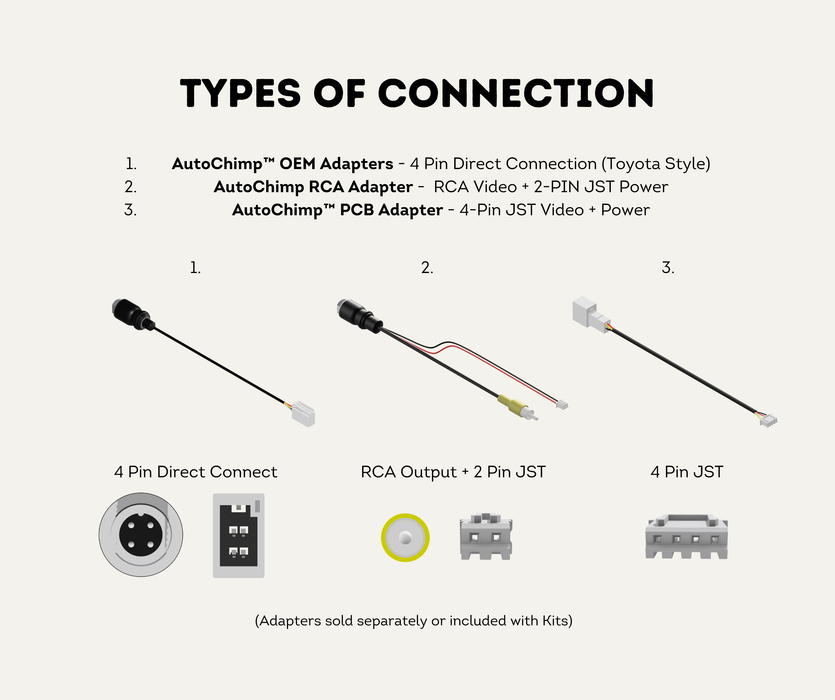

Compatible Accessories (Sold Separately)

• AC-HEAVY-CAM-RCA – adapter lead for aftermarket RCA stereos and compatible screens

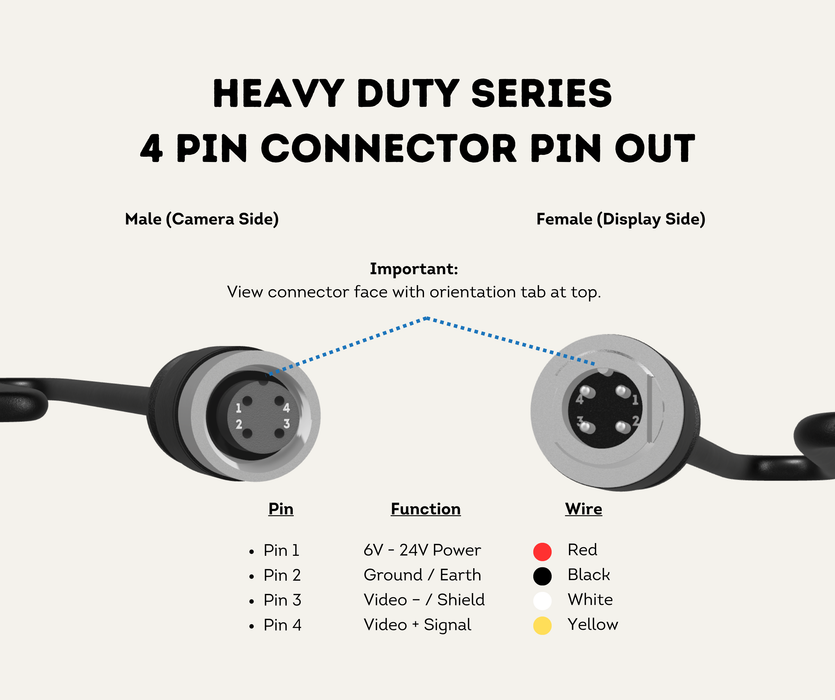

• AC-HEAVY-CAM-4PIN – adapter lead for 4-pin aviation camera systems, heavy-duty monitors, and AutoChimp™ multi-camera platforms

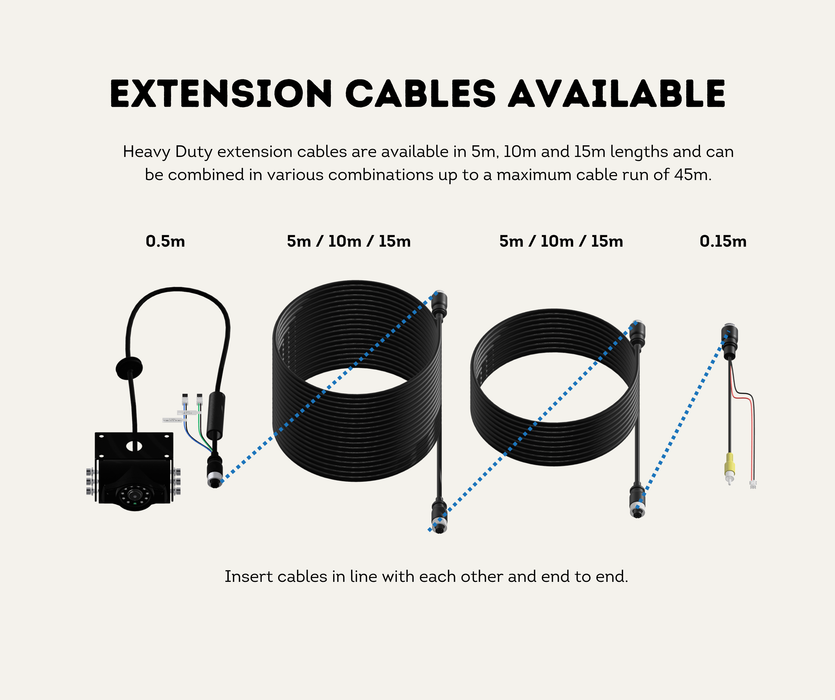

• Extension leads available separately for custom vehicle setups

Camera Specifications

• Operating Voltage: 6V–24V DC
• Night Vision: IR LEDs + IR Cut
• Video Output: AHD / CVBS jumper selectable
• CVBS Standard: NTSC / PAL auto switching
• Image Orientation: Mirror / Normal selectable via green jumper
• Housing Finish: Matte Black Electro-Coated
• Lens Design: Forward-staged lens for reduced glare
• Mounting Hardware: 6x stainless hex fixers + 6x self-tapping screws included
• Cable: Fixed 0.5m lead

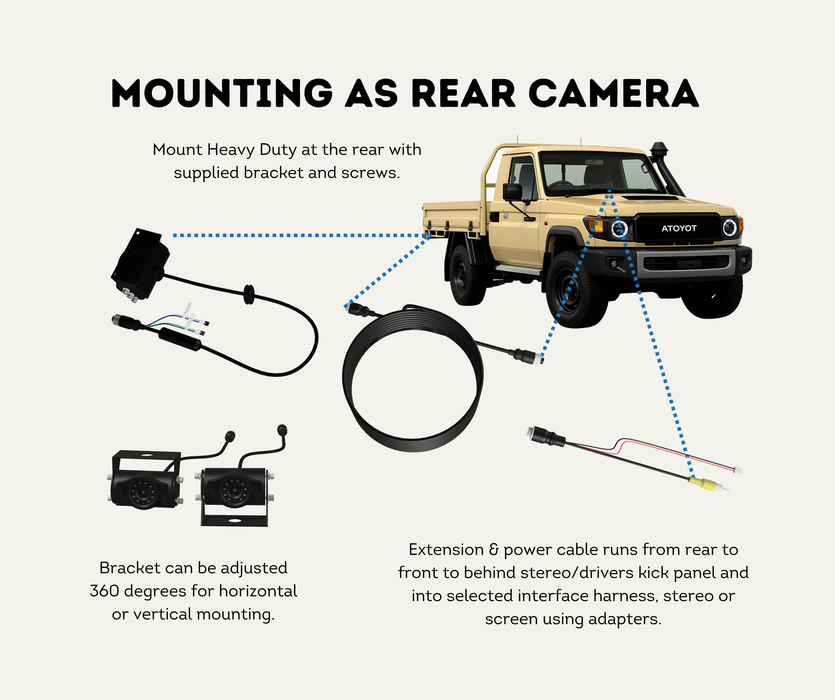

• Application: Reverse camera or front camera configuration

Why Choose AutoChimp™ Heavy Duty?

This updated Heavy Duty camera is designed for customers who need more than a standard universal camera. With wider voltage support, better video-format flexibility, selectable image mode, stronger mounting hardware, and improved day/night performance, it is built for real-world vehicle installations where reliability matters.

Ideal for trailers, fleet vehicles, work vehicles, towing setups, 4WD touring, agricultural vehicles, and custom multi-camera systems.
