AutoChimp™ Universal Wiring Kit | QuadCam Integration for Any Vehicle

SKU: AC-QUAD-HRN-UNIV

The AutoChimp™ Universal Wiring Kit is the ideal solution for installing the QuadCam System into vehicles that don’t have a plug & play harness or are using an aftermarket stereo. Designed for both professionals and DIY installers, this kit enables full QuadCam functionality — including camera power, trigger control, and RCA video output — using flexible wiring that adapts to any vehicle setup.

Whether you're working on a custom build, retrofitting an older vehicle, or integrating into an RCA-compatible stereo, this kit delivers a clean and reliable install without compromise.

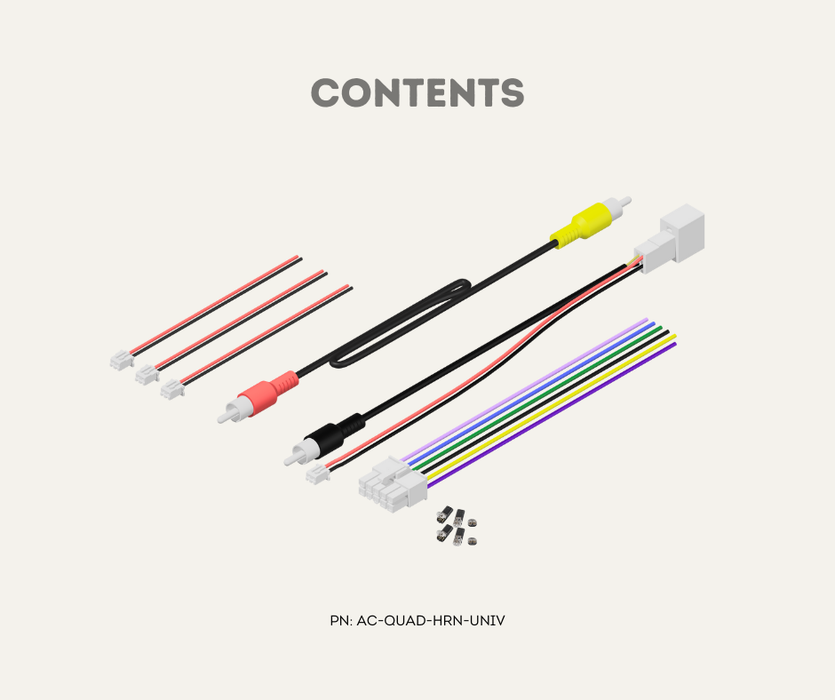

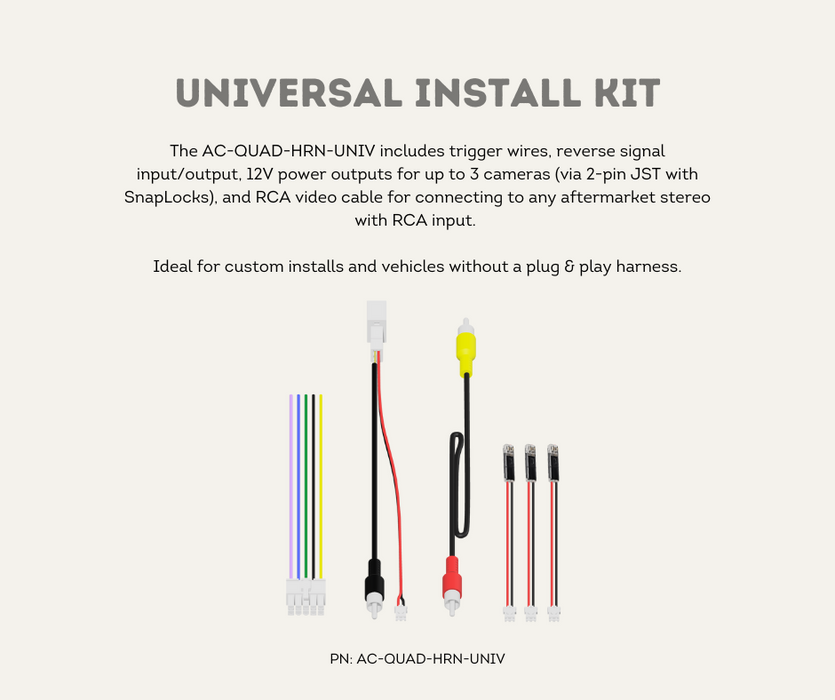

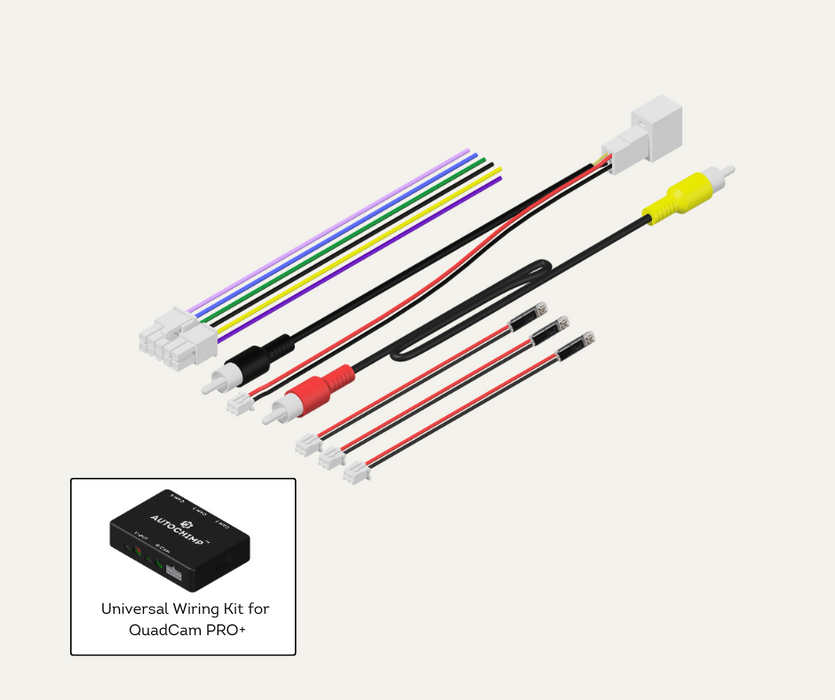

Contents:

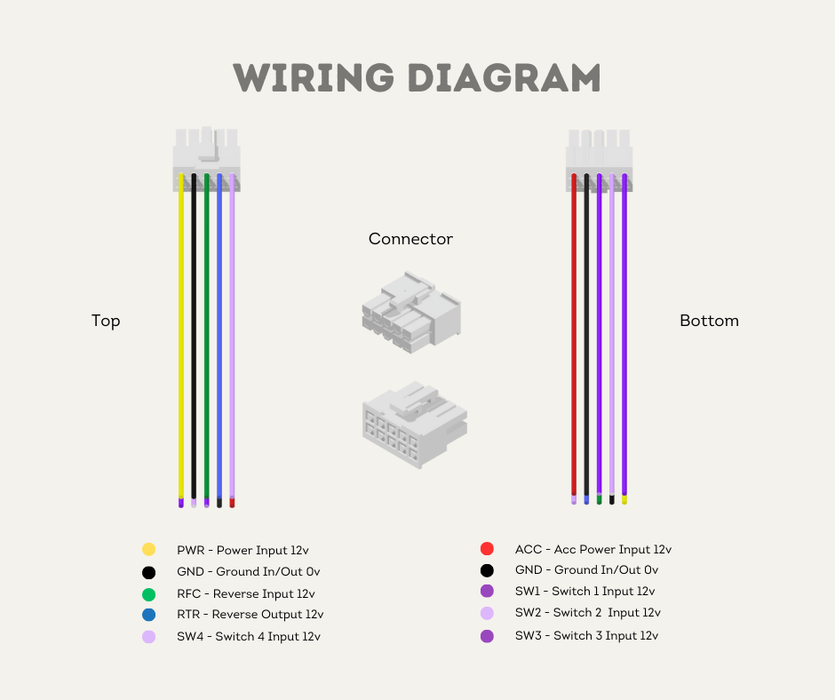

• 1x Power Harness with integrated:

  • 12V Accessory Input

  • Ground Connection

  • Reverse Trigger Input

  • 4x Switch Trigger Inputs

• 3x JST 2-Pin Power Output Leads (powers up to 3 cameras)

• 1x Male-to-Male RCA Cable (Red to Yellow)

  • Connects QuadCam V-OUT to aftermarket stereo R-CAM input

• 1x R-CAM input harness for dedicated reverse camera input.

  • Power & Signal for Reverse Camera Input

Key Features:

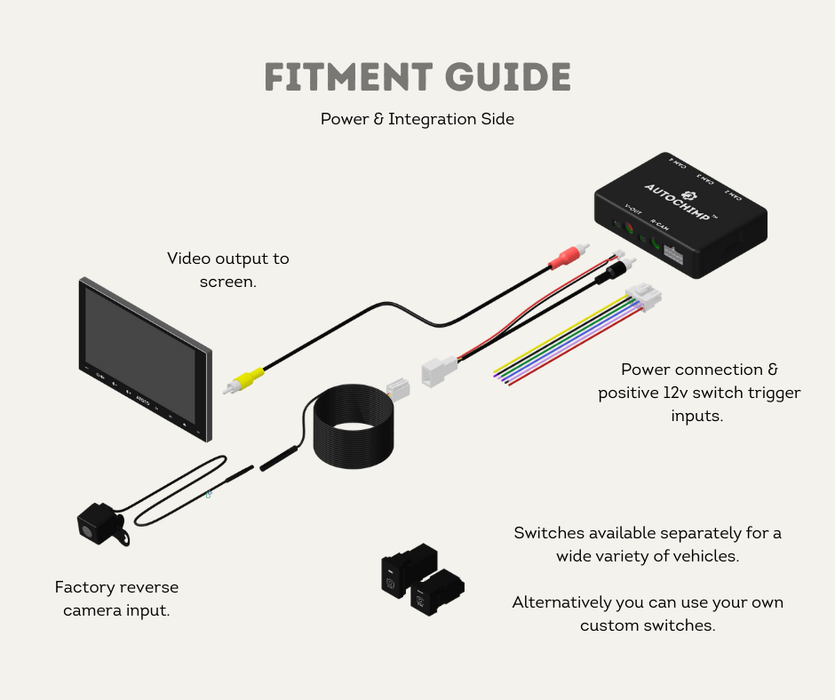

• Enables full QuadCam System installation in any vehicle

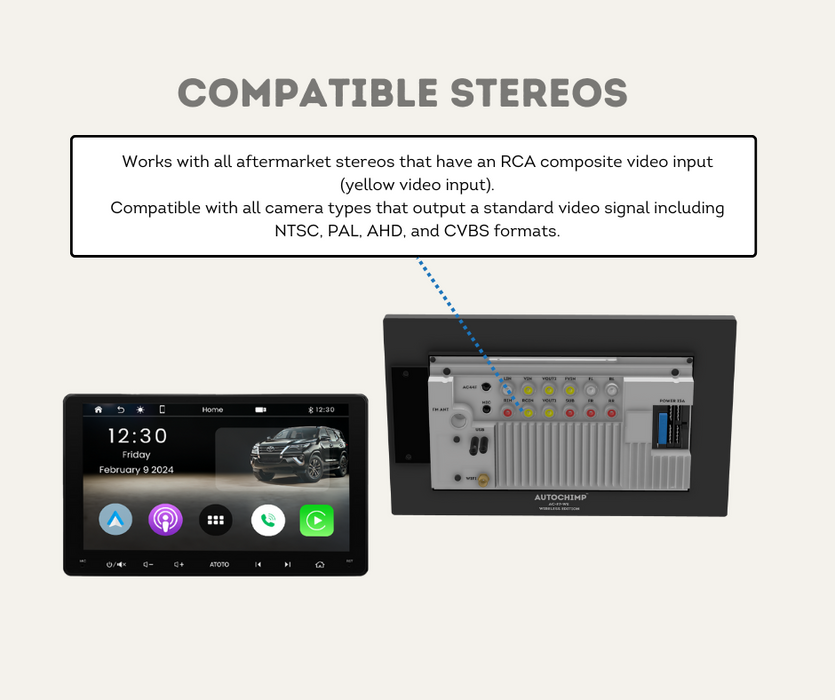

• Compatible with aftermarket stereos that have RCA video input

• Provides 12V accessory power and ground for the QuadCam module

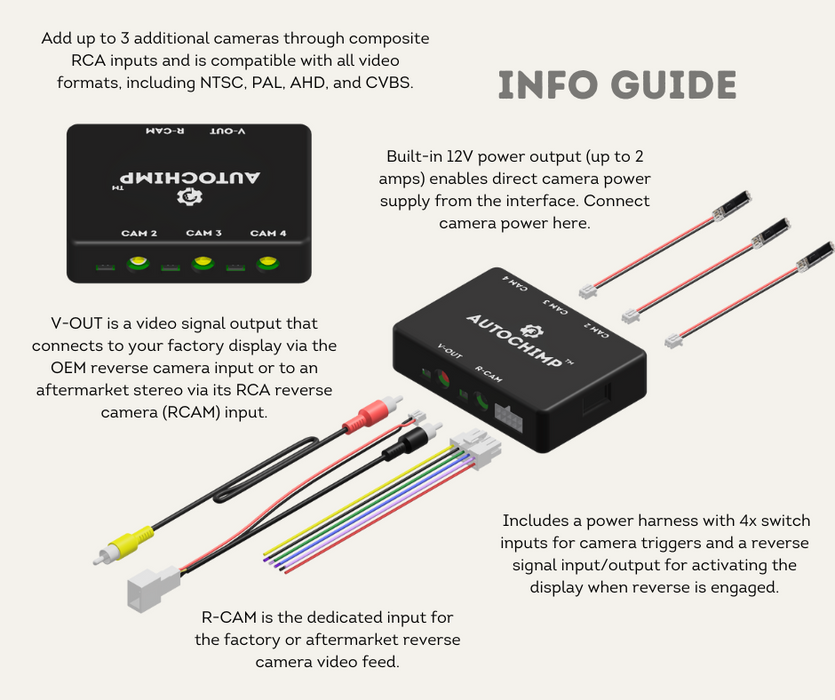

• Includes reverse signal input and 4x switch inputs for full camera selection control

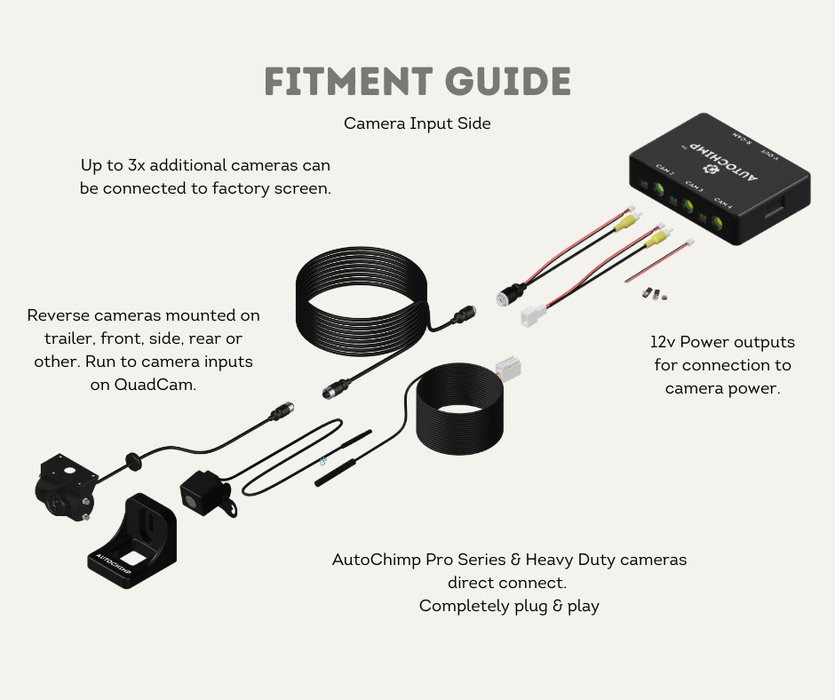

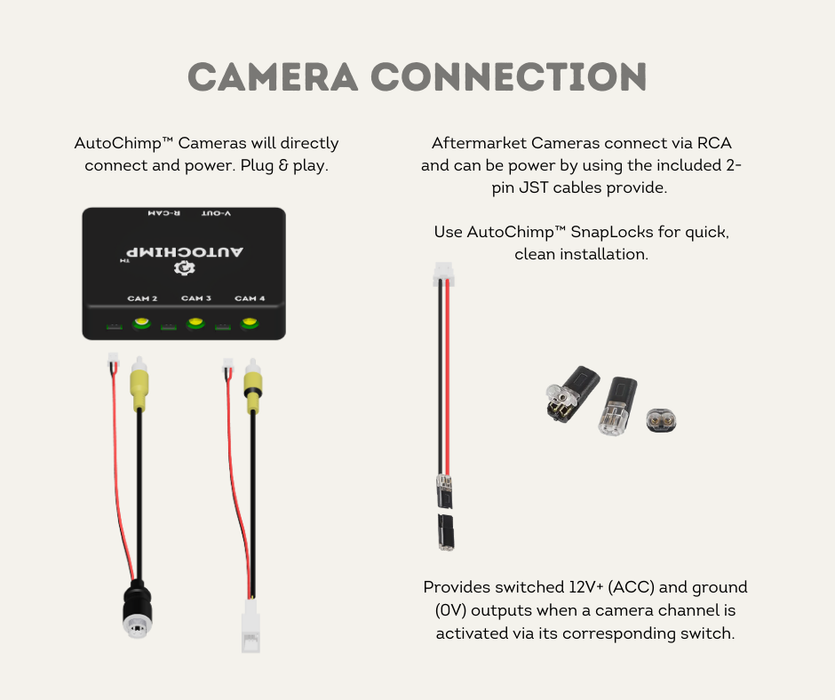

• JST power outputs let you run up to 3 cameras directly from the module

• RCA cable included for connecting V-OUT to R-CAM input on the screen

• Built for clean installs in custom, retrofit, or workshop environments

Use Cases:

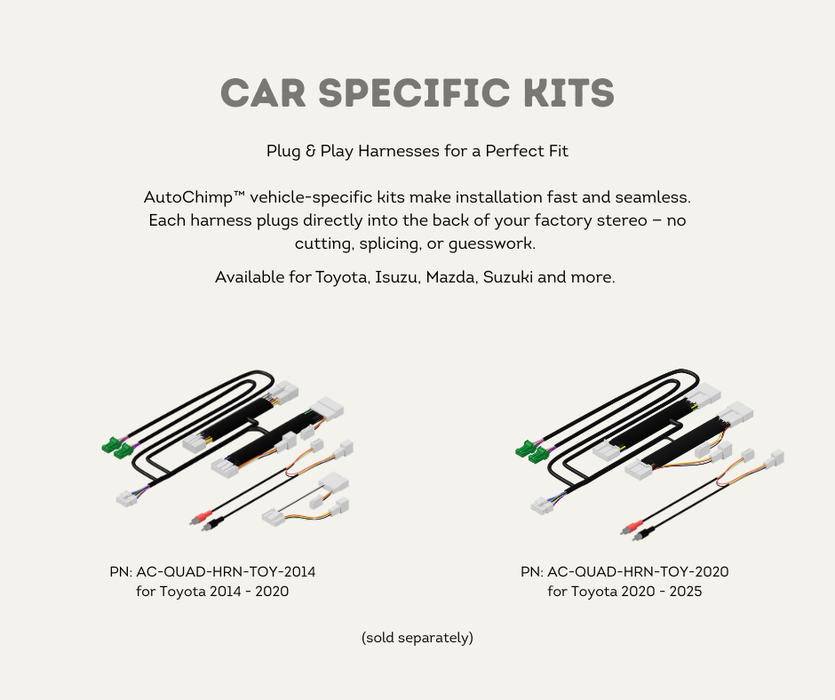

• Installing the QuadCam System into vehicles without a plug & play harness

• Integrating with aftermarket stereos (RCA-compatible)

• Retrofitting older vehicles, custom 4x4 builds, and trailers

• Professional installers working with a wide variety of vehicle platforms

Specifications:

• Voltage: 12V DC

• Camera Power Out: JST 2-pin, 12V regulated (compatible with AutoChimp™ cameras)

• RCA Cable: Red to Yellow, Male-to-Male (V-OUT to R-CAM link)

• Wire Compatibility: 20–22 AWG automotive wire

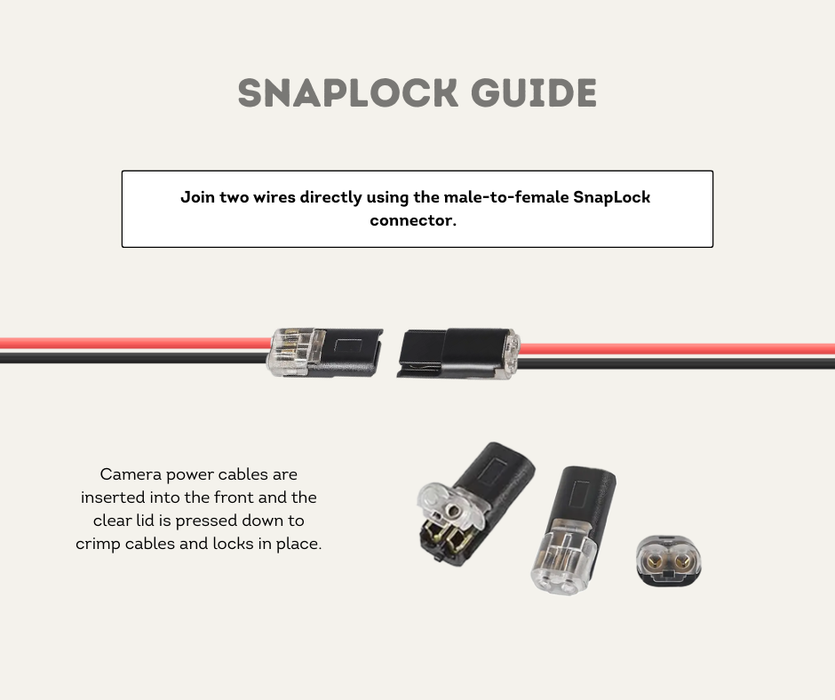

• Connector Types: Pre-crimped spade, tinned leads, and JST connectors

Compatible With:

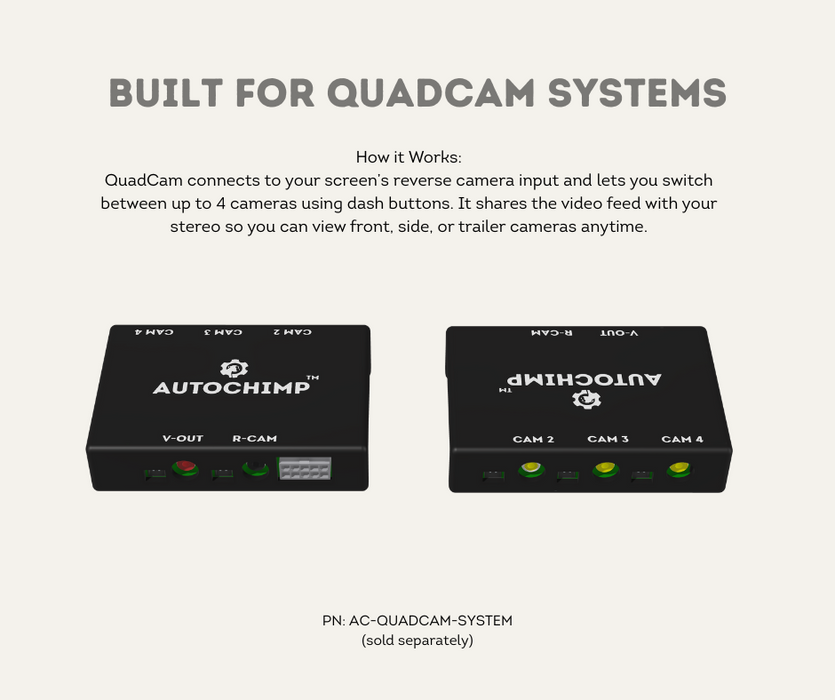

• AutoChimp™ QuadCam System

• Any aftermarket stereo with RCA reverse camera input

• Any 12V vehicle with an ACC power source

Conclusion:

The AutoChimp™ Universal Wiring Kit brings the full functionality of the QuadCam System to virtually any vehicle. Whether you're running an aftermarket head unit, building a 4x4 from the ground up, or managing fleet installs, this kit gives you everything needed for a streamlined, professional-grade camera integration.
