AutoChimp™ QuadCam System | 4-Camera Integration for Factory & Aftermarket Stereos | Quad Camera Module

SKU: AC-QUADCAM-SYSTEM

Upgrade your vehicle with up to four cameras without changing your factory stereo. The AutoChimp™ QuadCam System connects directly to your existing display — whether it's a factory screen or an aftermarket unit — and gives you full control over trailer, front, or side camera views using simple dash-mounted switches.

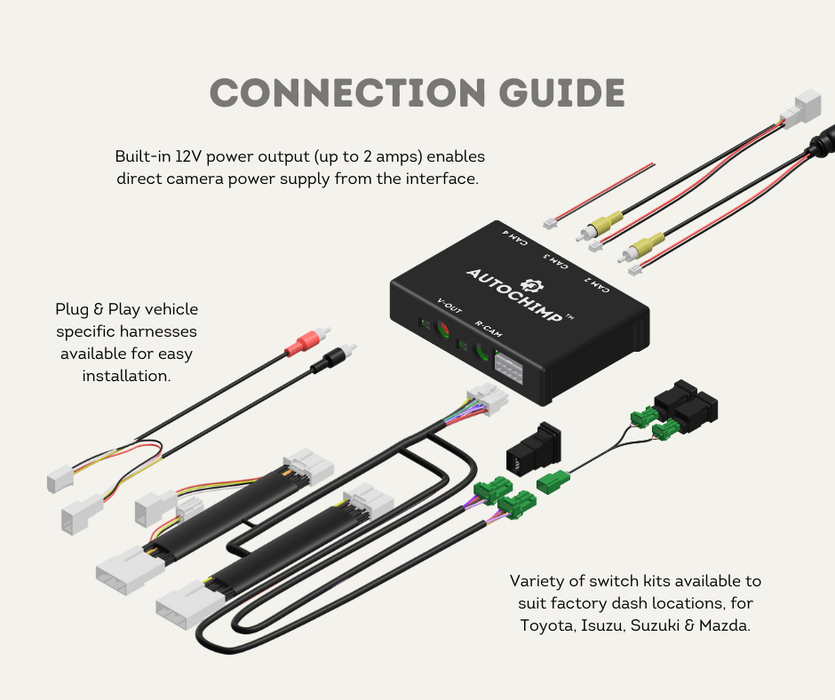

The system uses standard RCA camera inputs and comes with two install options:

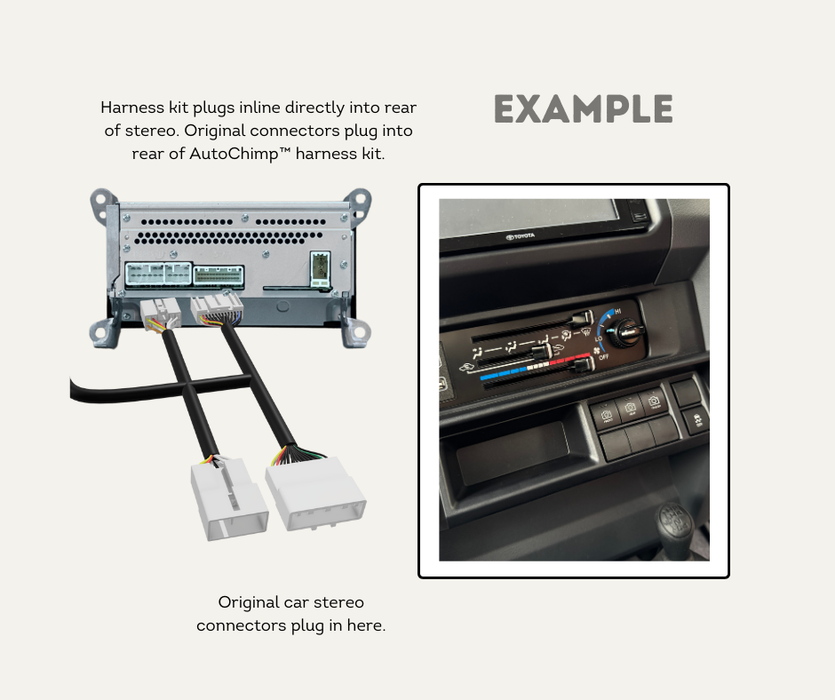

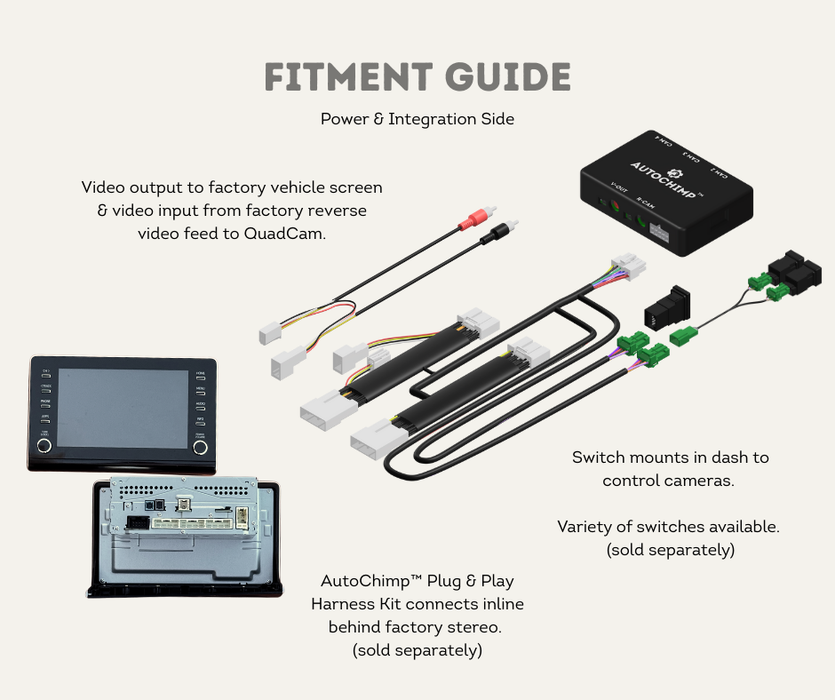

• Plug & play vehicle-specific harnesses (Toyota, Isuzu, Mazda, Suzuki, etc.)

• Or the new Universal Harness Kit for custom and aftermarket stereo setups.

No screen replacement. No dealer tools. No coding.

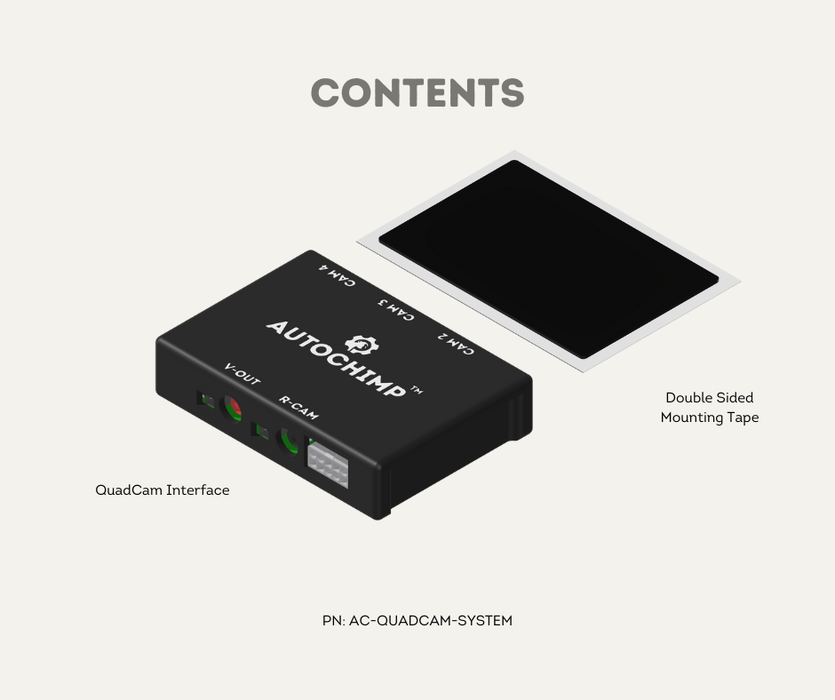

What’s Included

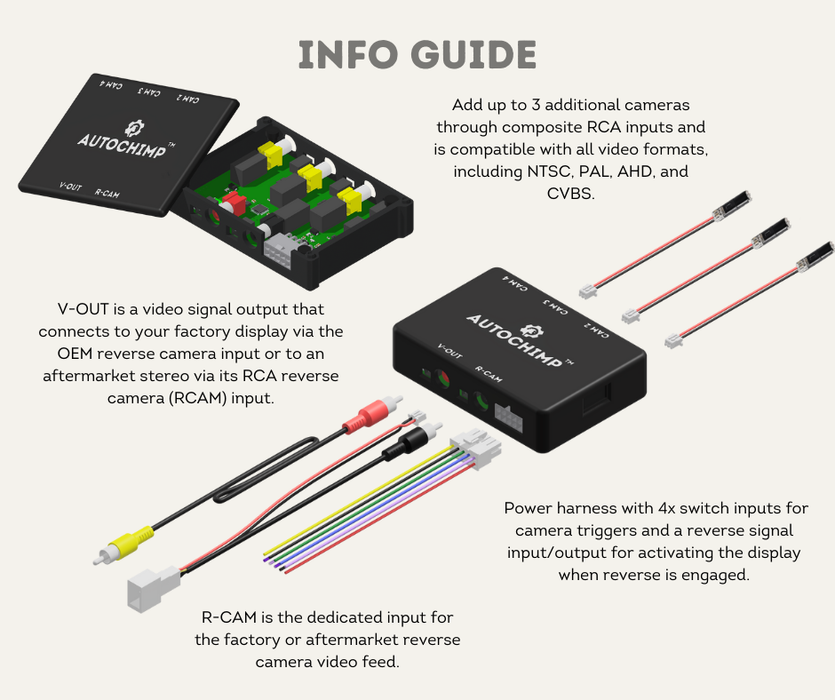

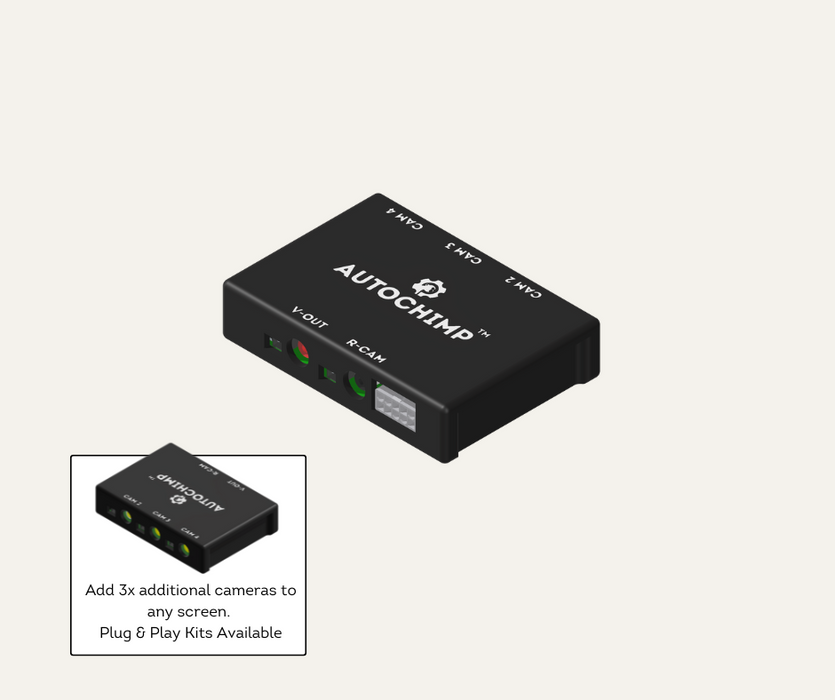

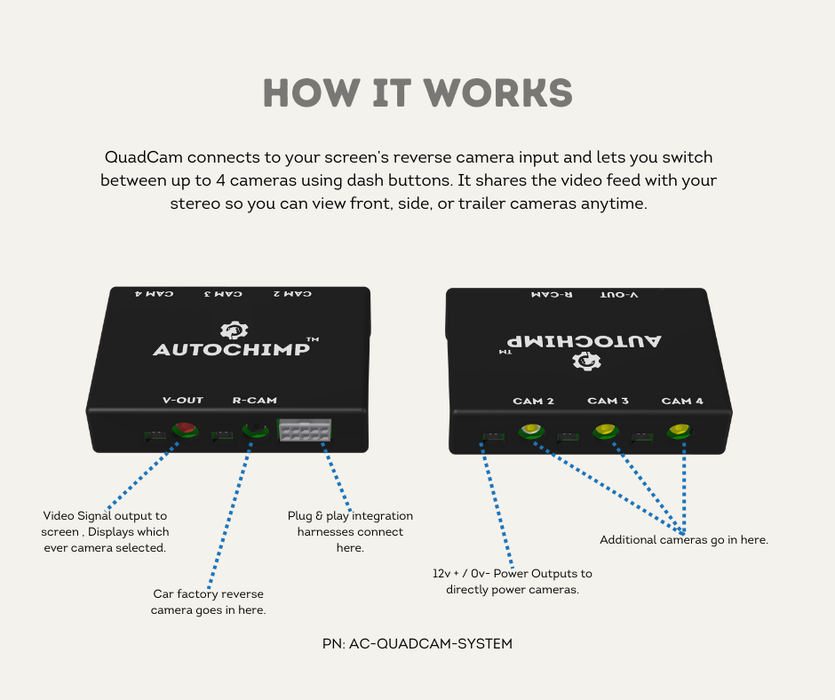

• 1x AutoChimp™ QuadCam Switching Module

• 1x RCA Input Board

  • Blue: R-CAM (reverse camera input)

  • Red: V-OUT (video output to screen)

  • Yellow: CAM2–4 (front, side, trailer)

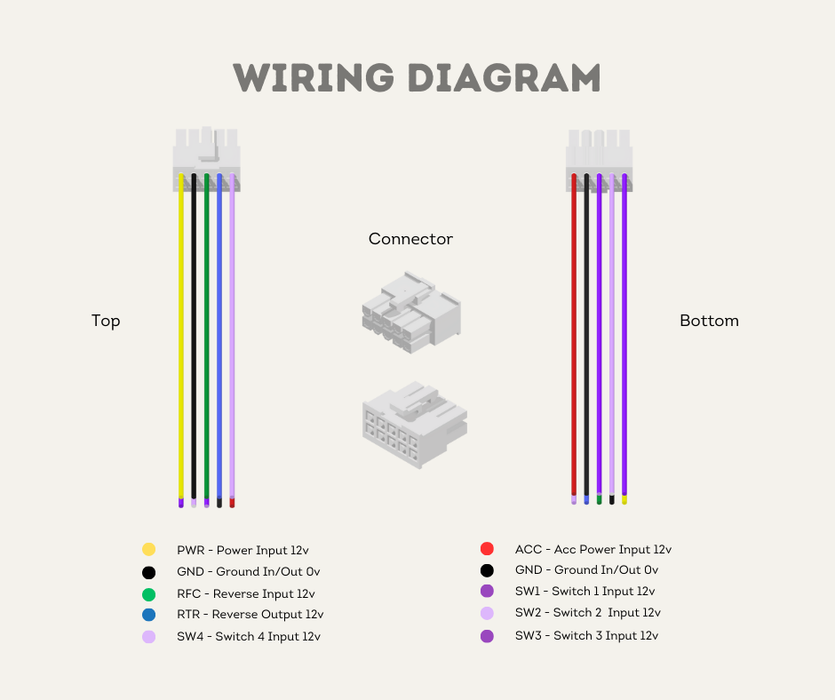

• 1x Power Harness with 4x switch inputs and reverse signal I/O

• 1x Digital PDF Installation Guide

Vehicle-specific harnesses, cameras, and switches sold separately.

Key Features

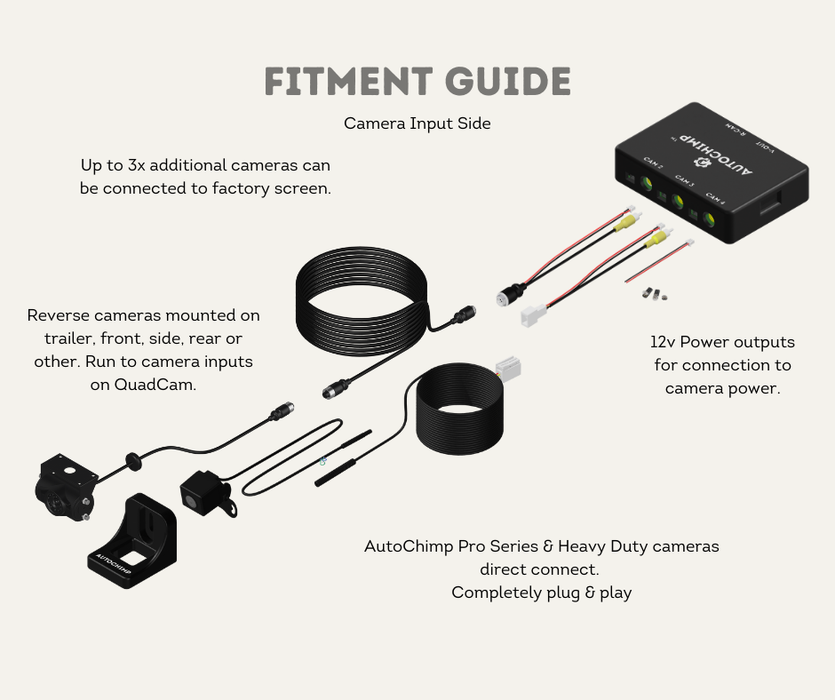

• Add up to 3 additional cameras (trailer, front, side) to your existing screen

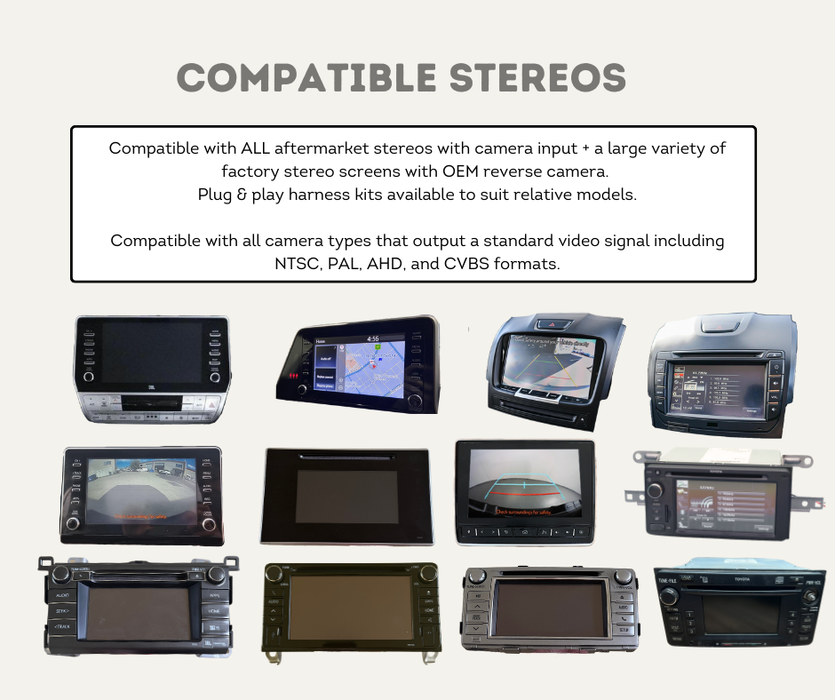

• Compatible with both factory and aftermarket stereos

• Works with any camera format: NTSC, PAL, AHD, CVBS

• Factory reverse camera retained with automatic activation

• Trigger camera views anytime via momentary dash switches

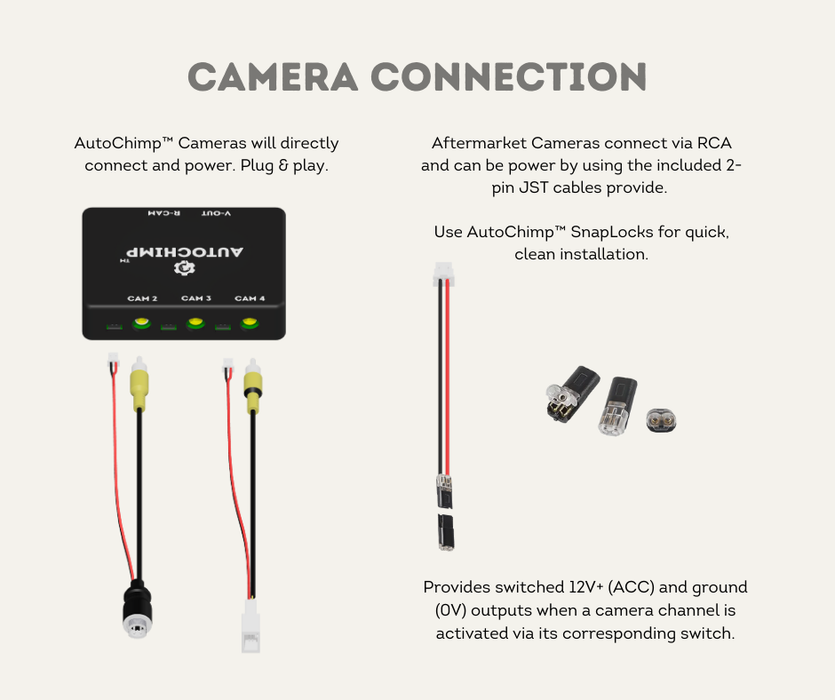

• Powers up to 3 cameras directly via onboard 12V outputs (2A max)

• Reverse input/output built-in for screen activation logic

• No coding, cutting, or screen replacement required

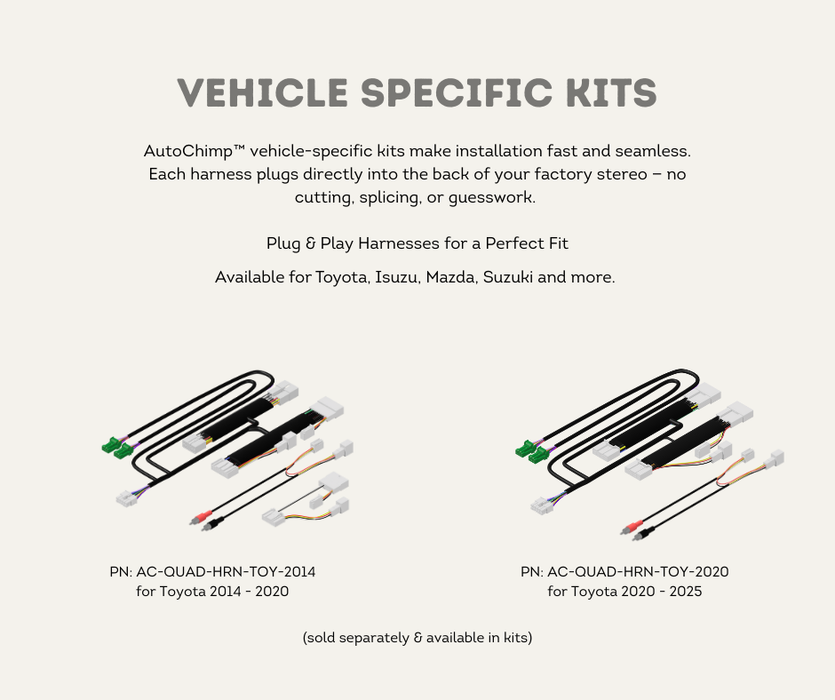

Compatible Vehicles (Plug & Play Harnesses)

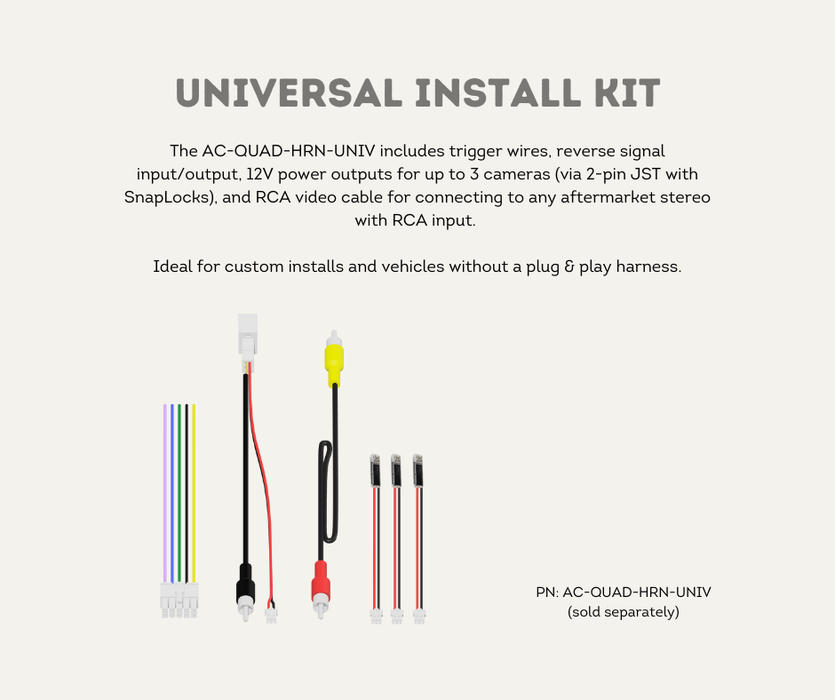

Universal Harness Option (for any vehicle or stereo)

SKU: AC-QUAD-HRN-UNIV

• For vehicles without plug & play support

• Includes: Power/trigger harness, 3x 2-pin JST power leads, and RCA cable for connection to aftermarket stereos

• Compatible with any stereo that has RCA video input

Switch Compatibility

• Single-button switches: CAM 1, CAM 2, CAM 3, CAM 4, FRONT, REAR, TRAILER

• Dual-button switches: CAM 1/CAM 2, CAM 3/CAM 4, FRONT/REAR, TRAILER/CAM 1

• Green LED indicator shows which camera is active
  Switches sold separately.

Technical Specifications

• Video Inputs: 3x RCA composite inputs

• Video Output: 1x RCA (V-OUT)

• Camera Formats Supported: NTSC, PAL, AHD, CVBS

• Power Outputs: 12V+, up to 2A per channel

• Switch Trigger Inputs: 4x

• Reverse Signal I/O: Yes

• Mounting: Concealed behind dash (100mm x 80mm)

• Operating Temp: -30°C to +70°C

Why Choose AutoChimp™ QuadCam

• Keep your factory stereo and screen

• Compatible with factory and aftermarket cameras

• Expand your visibility and safety

• Professional-grade quality, built for 4x4 environments

• Backed by AutoChimp™ — trusted in automotive integration
