AutoChimp™ Pro HD Front Camera Kit | 6V–12V Universal RCA System
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
AutoChimp™ Pro HD Front Camera Kit | 6V–12V Universal RCA System
SKU: AC-PRO-CAM-KIT-FRONT
170° viewing angle gives the Pro Series camera a wide view for front or rear camera installations.

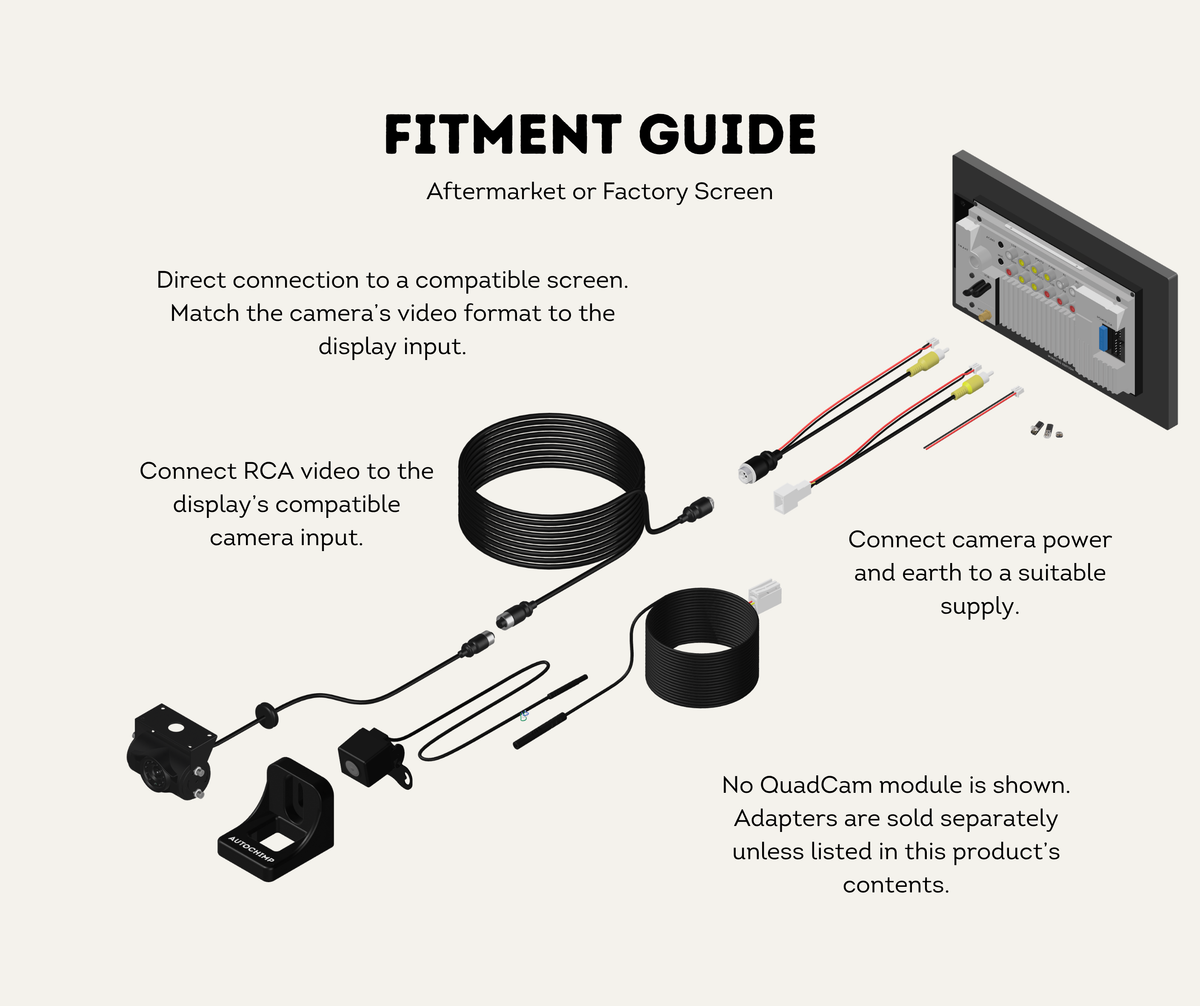

The AutoChimp™ Pro HD front camera kit uses a configurable 6V–12V Pro Series camera with a 7m power and video cable plus the camera’s attached 1m lead. The supplied RCA adapter connects to a compatible camera input; connect camera power and earth as required by the selected screen or interface.
Key features
- CVBS video output with NTSC / PAL auto switching

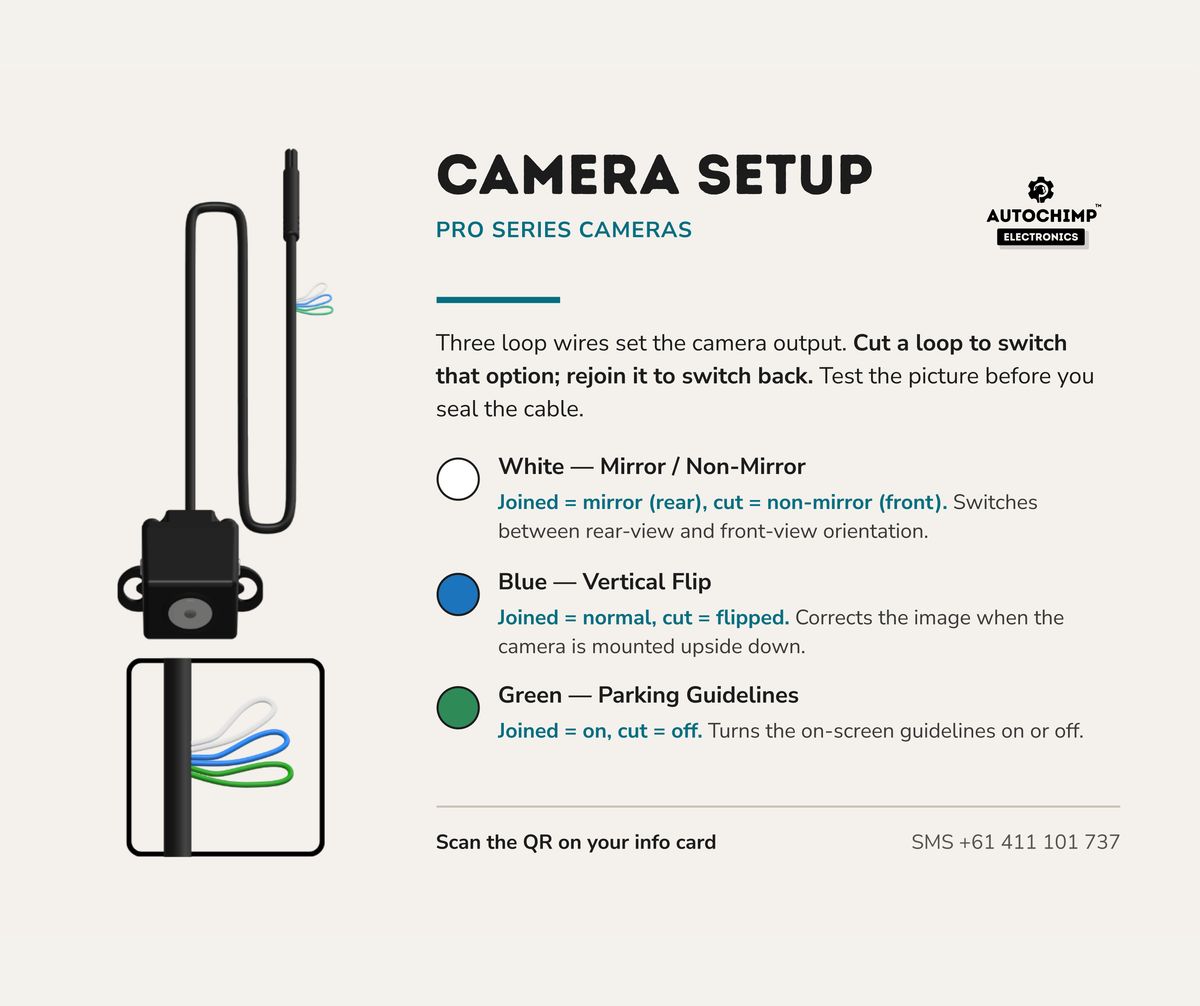

- Configurable mirror / non-mirror image, vertical flip and parking guidelines
- Super CMOS sensor, 976 × 592 pixels / 800 TV lines
- Low-light optimisation without infrared LEDs
- IP67 camera housing
- Adjustable camera mounting with the supplied AC-PRO-MOUNTING kit
What’s included
- 1x Pro HD camera with attached 1m camera lead
- 1x 7m Pro Series power and video cable (supplied with AC-PRO-CAM)
- 1x AC-PRO-MOUNTING adjustable ABS-GF mounting kit

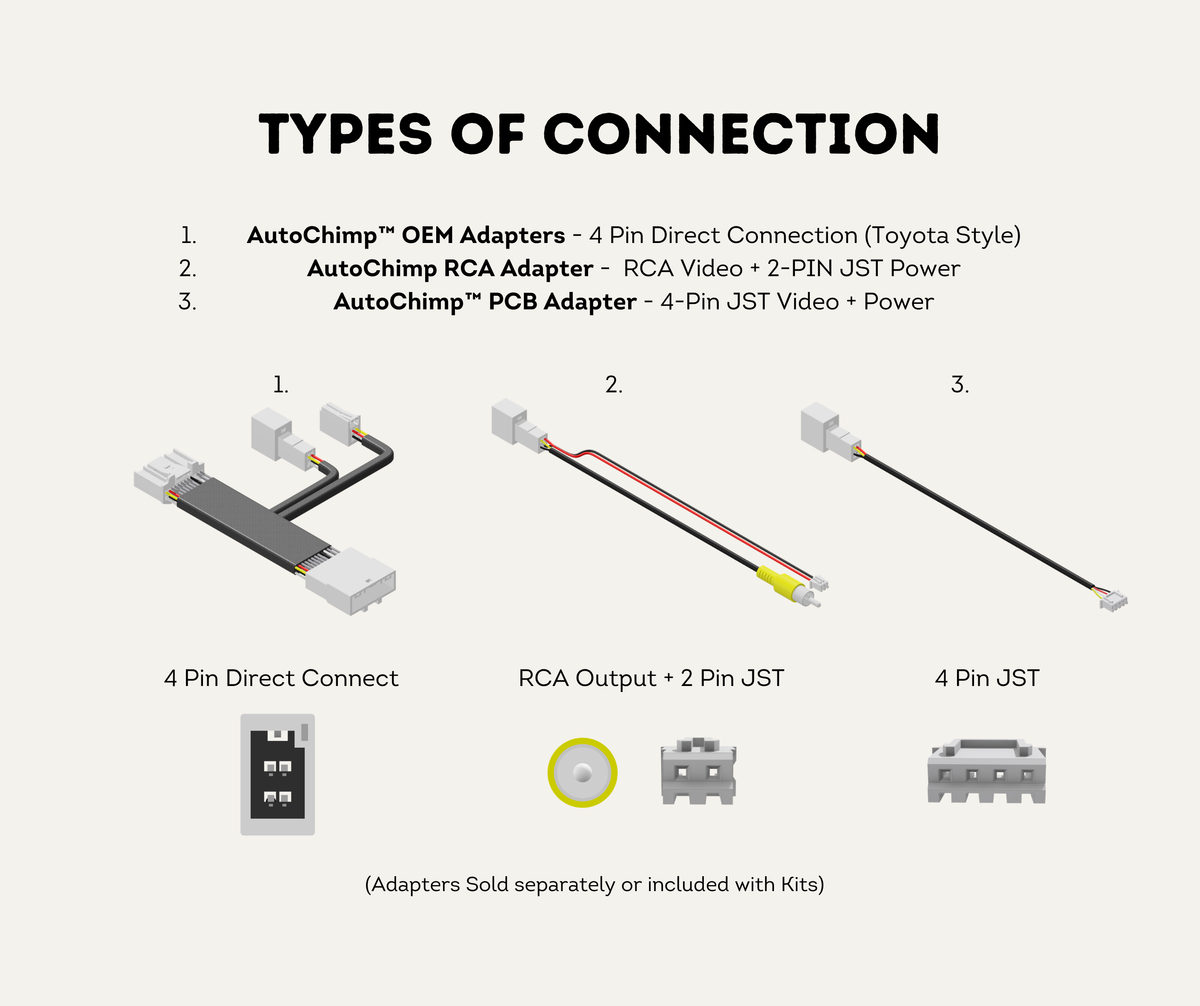

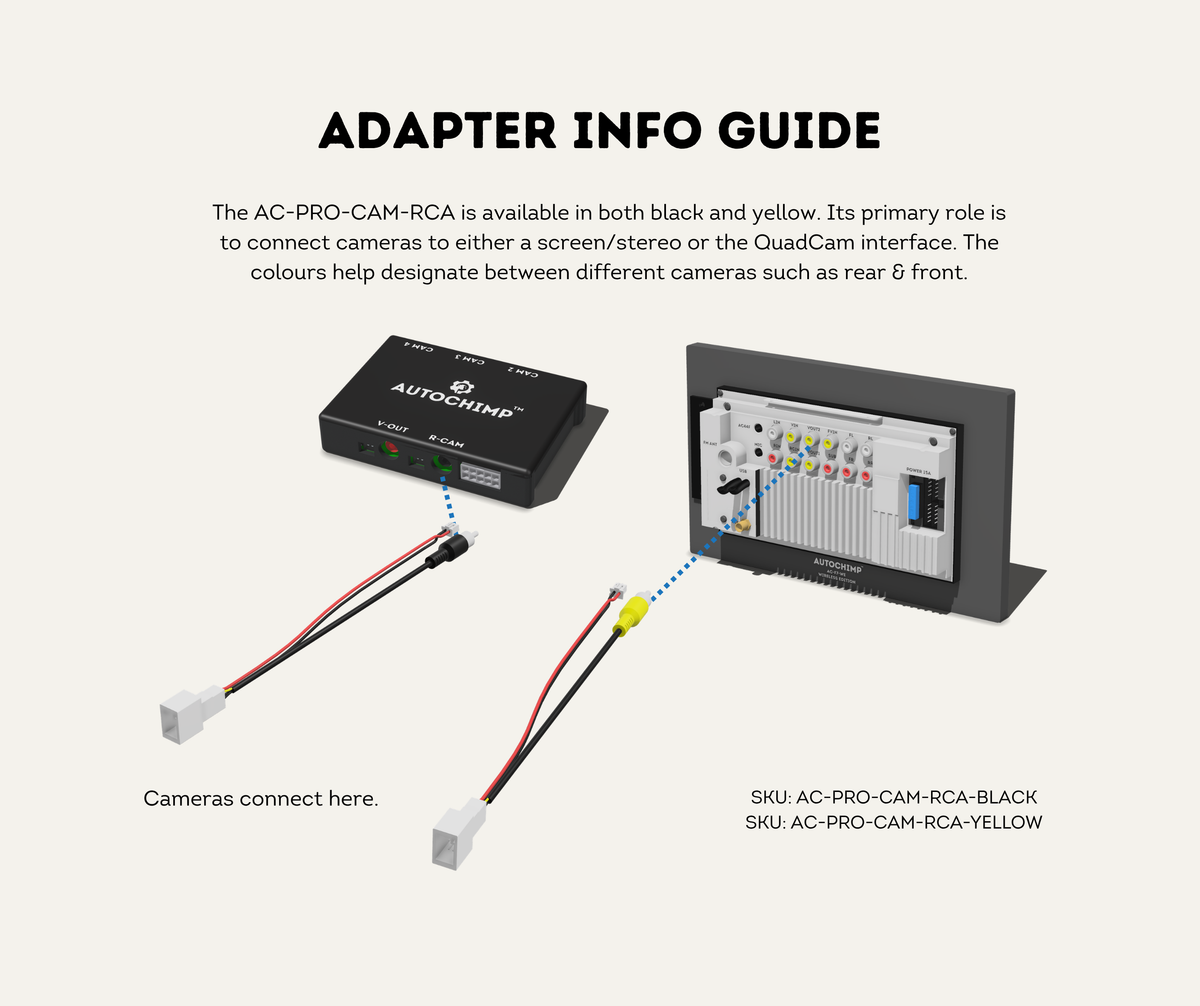

- 1x AC-PRO-CAM-RCA-YELLOW RCA video and power adapter
- Cable ties, split conduit, waterproof sealing tape and wire loom tool
- Mounting hardware and Pro Series information card
Specifications
- Camera supply: 6V–12V DC
- Viewing angles: 170° diagonal, 120° horizontal, 90° vertical
- Video: CVBS, NTSC / PAL auto switching
- Operating temperature: −30°C to +70°C
- Mounting kit: matte black ABS-GF (glass-fibre reinforced plastic)
Compatibility and installation

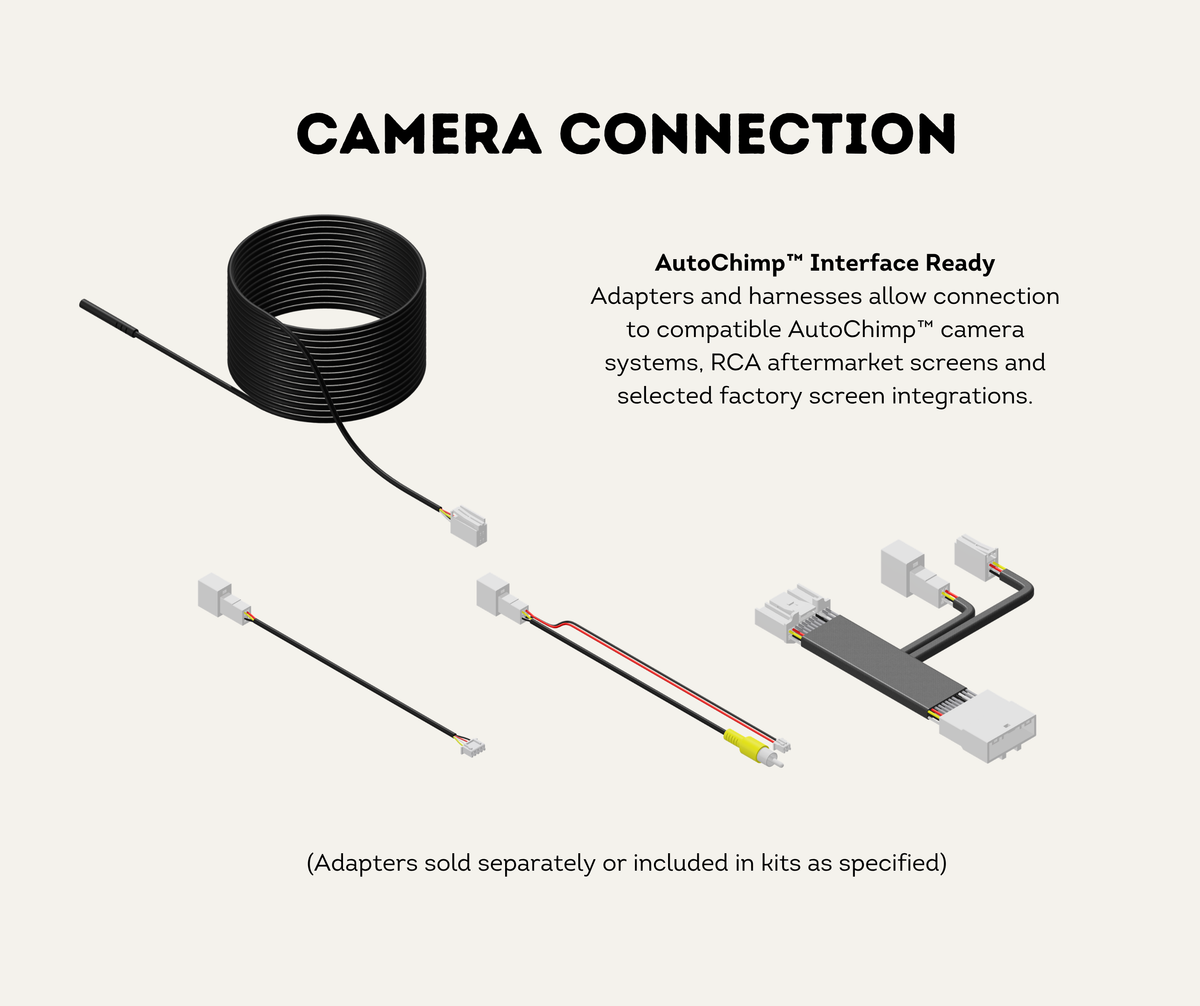

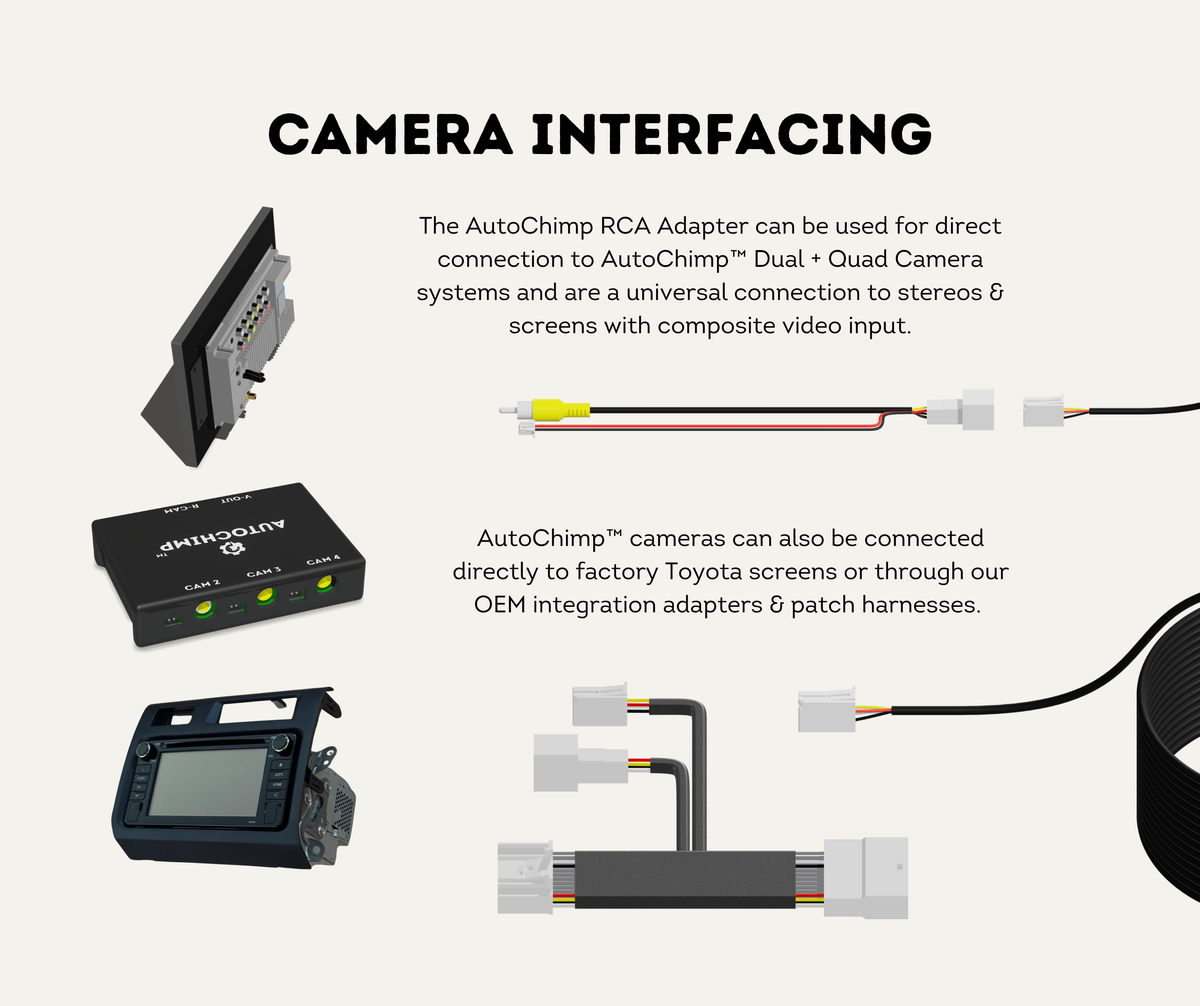

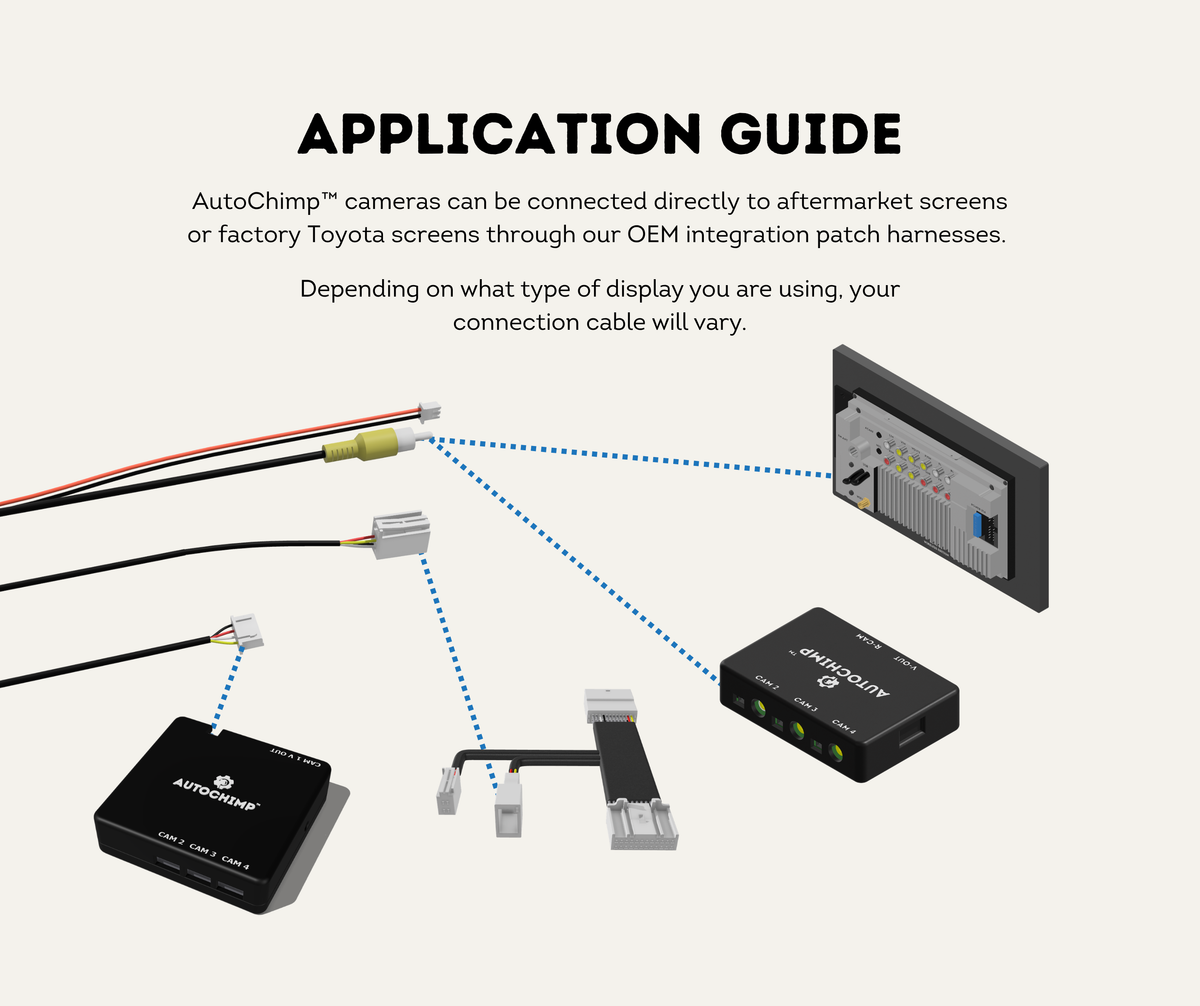

Suitable for compatible RCA camera inputs and AutoChimp™ camera systems. Factory Toyota screen integration requires the correct vehicle-specific harness or interface, sold separately. Match the camera video format and power supply to the connected system. RCA colour identifies the cable and does not convert the video format.

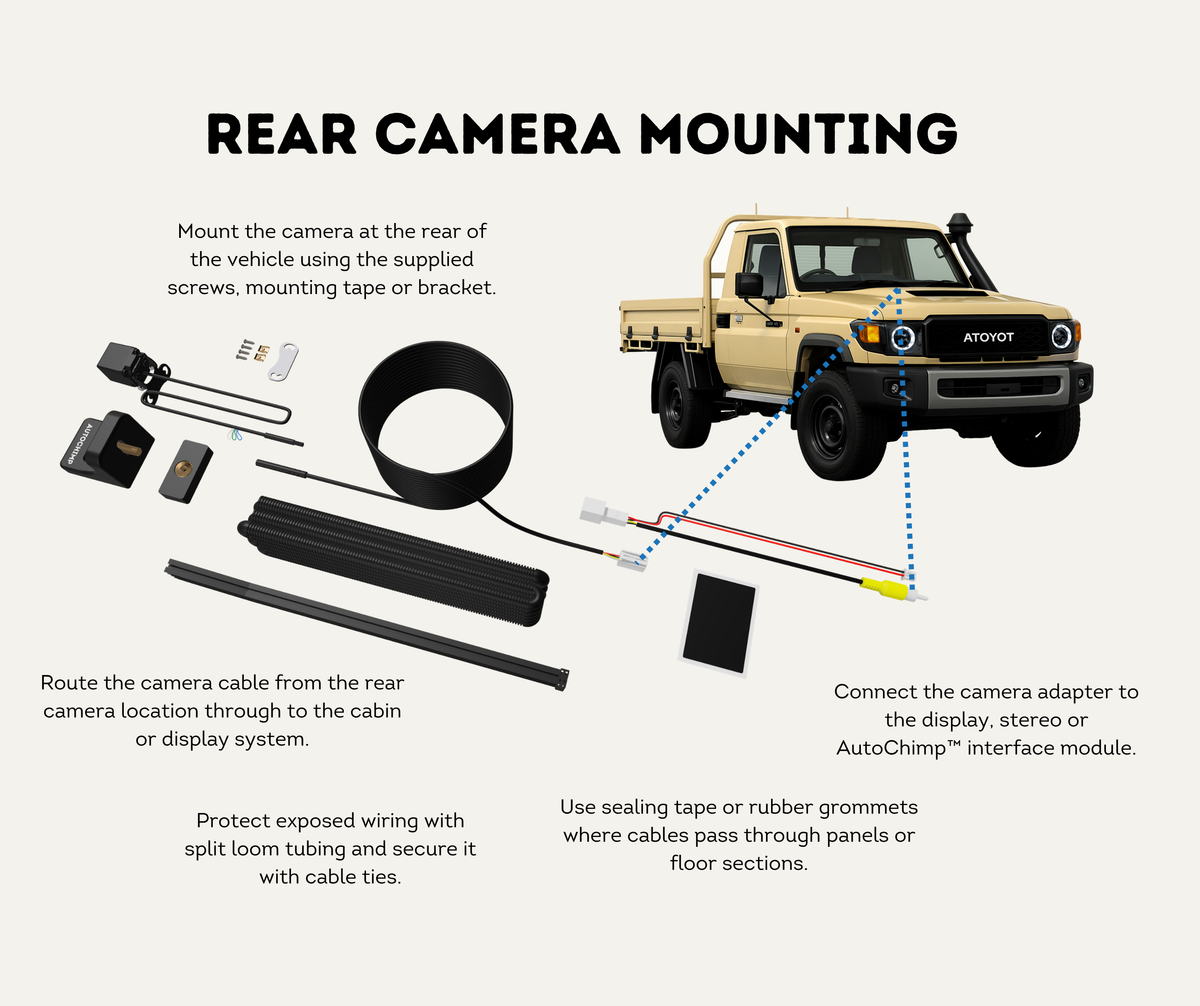

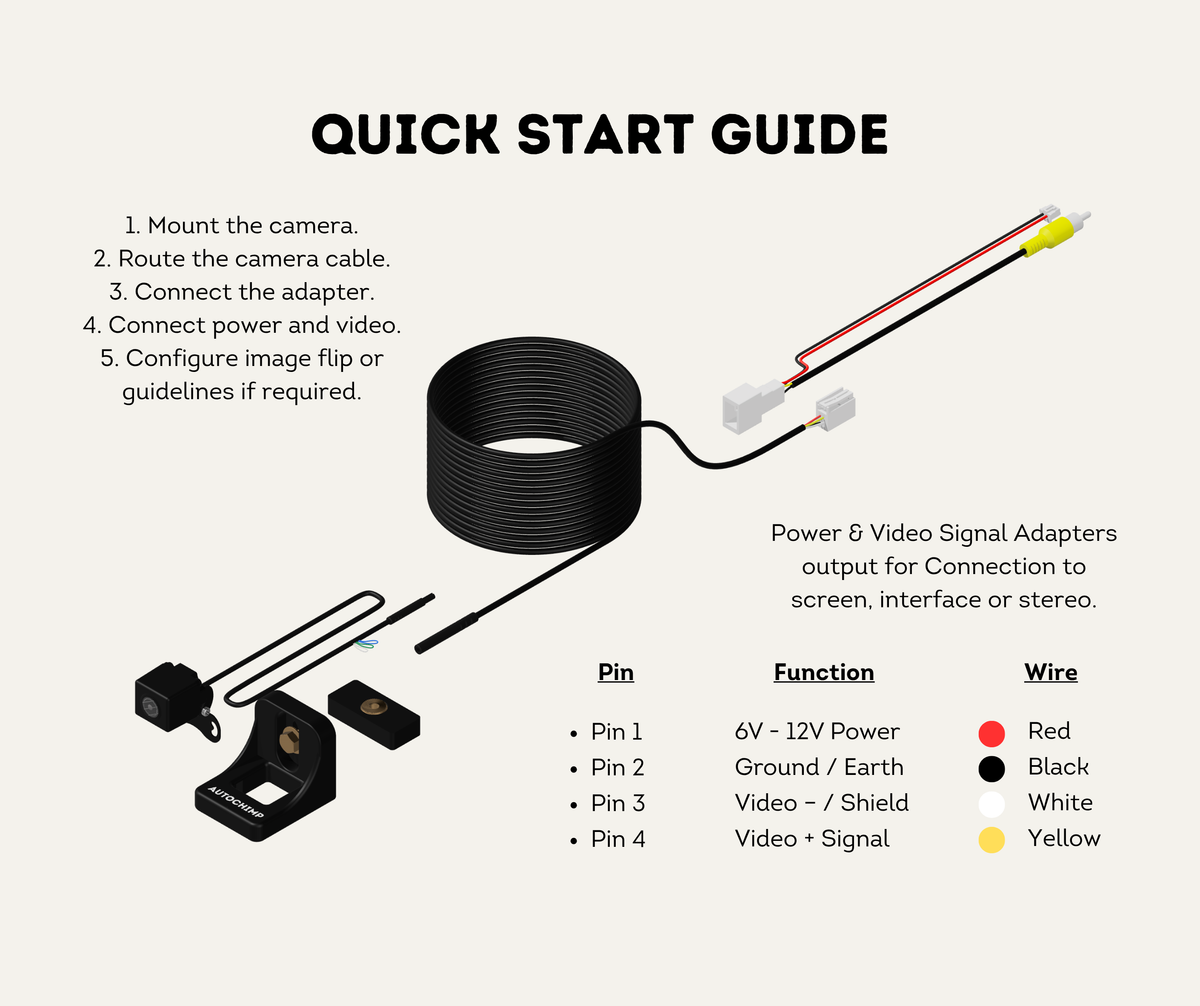

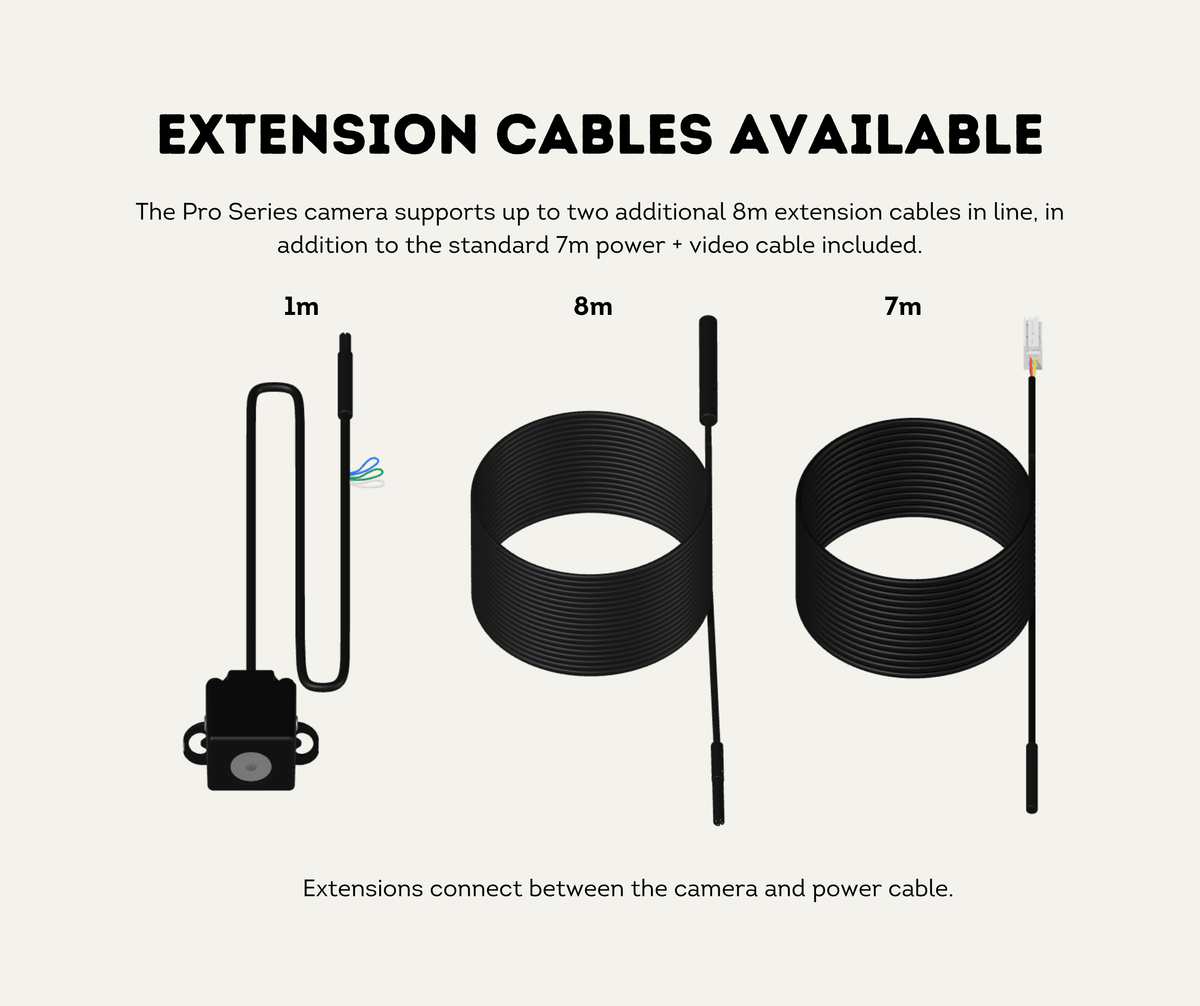

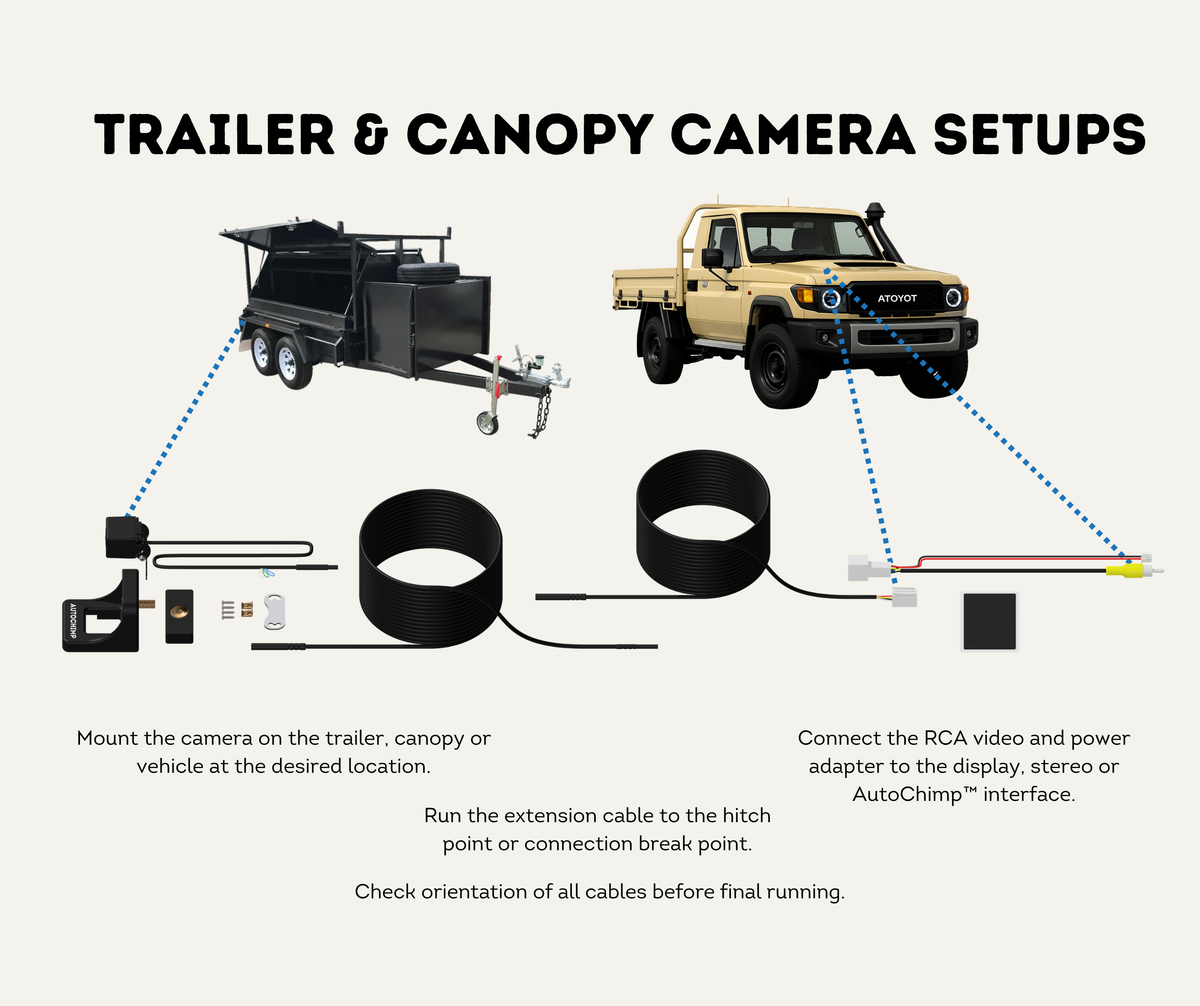

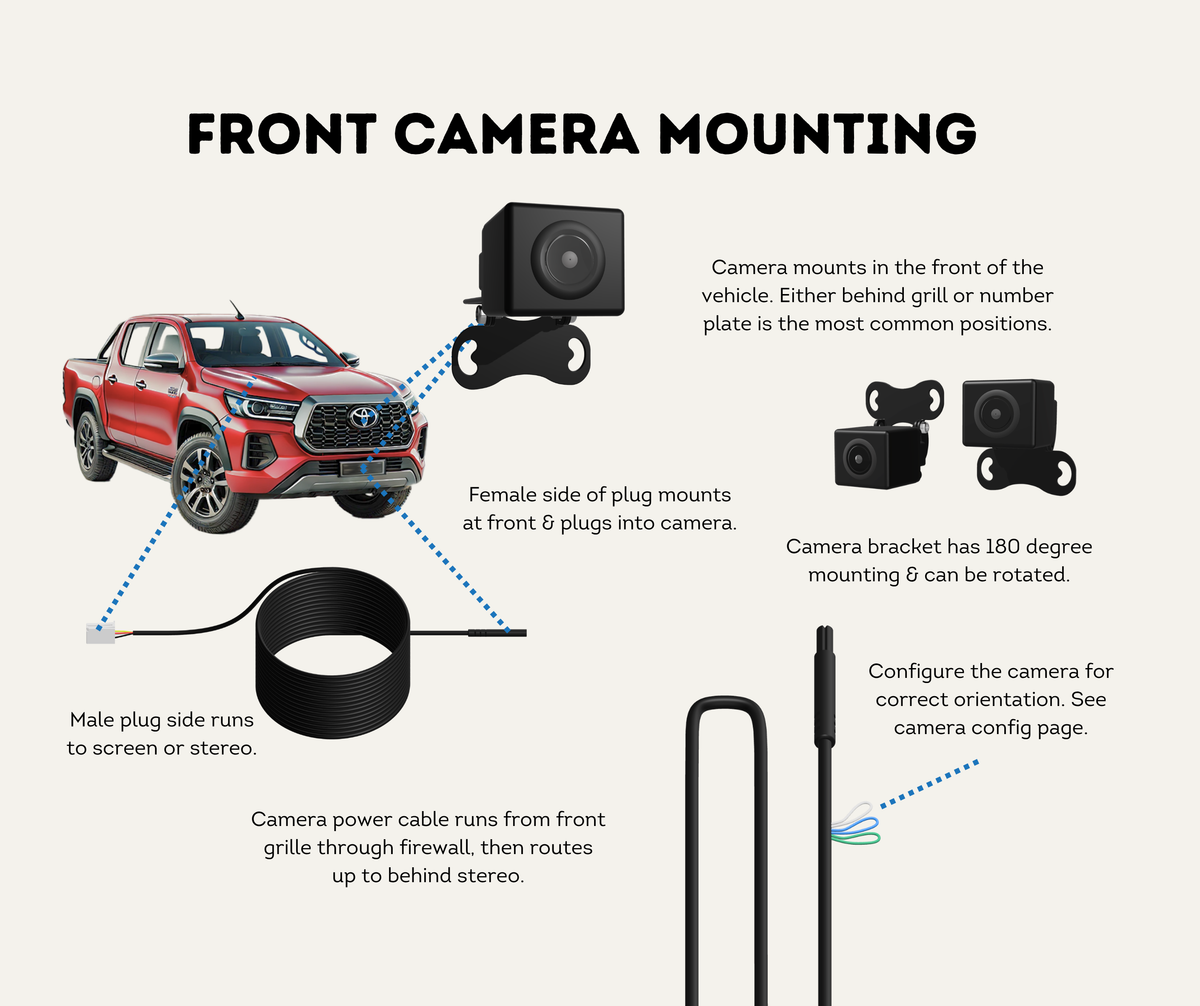

Mount the camera, route and protect the cabling, connect the appropriate adapter, then test image orientation and guidelines before securing the installation. For longer cable runs, the Pro Series system supports up to two additional 8m extension cables in line with the main power cable.
Camera power cables, adapters and mounting parts included in this kit are listed above. Screens, QuadCam modules, vehicle-specific harnesses and other optional accessories are sold separately.
