AutoChimp™ QuadCam Power Cable | Universal Power Connection Kit for QuadCam PRO+ | 10-Pin Harness

SKU: AC-QUADCAM-10PIN-PWR

The AutoChimp™ QuadCam Power Cable is a purpose-built 10-pin harness designed for professional-grade installations of the QuadCam PRO+ multi-camera interface. Featuring clearly labelled and colour-coded wires, this universal power connection kit ensures a reliable and clean setup, offering seamless connection of all trigger, power, and ground signals for the QuadCam PRO+ system.

Ideal for automotive installers and advanced DIY users, this cable harness simplifies integration with aftermarket or OEM camera systems using QuadCam PRO+.

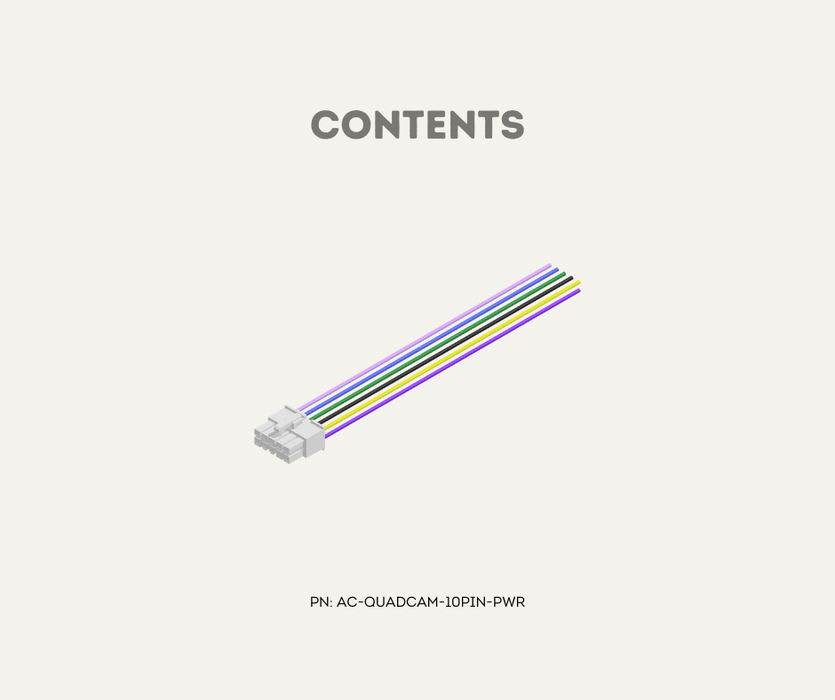

Contents:

• 1x AutoChimp™ 10-Pin Power Cable Harness

• SKU: AC-QUADCAM-10PIN-PWR

Key Features:

• 10-Pin Connector: Full power and trigger management via a single harness connection.

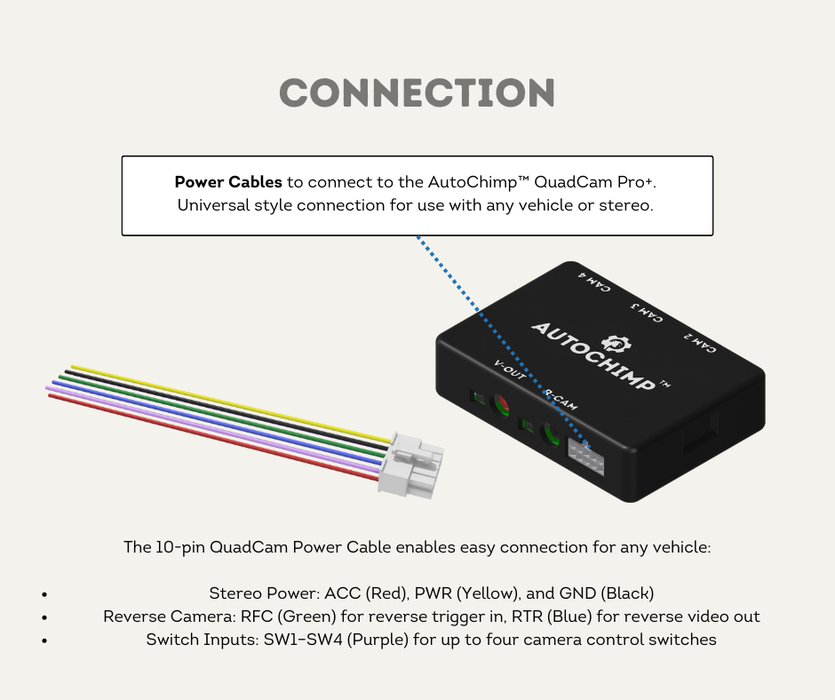

• Colour-Coded Wiring: Ensures intuitive and error-free installation with matching colours:

  • ACC (Red): Accessory Power Input 12V

  • GND (Black): Ground 0V (In/Out)

  • SW1 (Purple): Switch 1 Input 12V

  • SW2 (Violet): Switch 2 Input 12V

  • SW3 (Light Violet): Switch 3 Input 12V

  • SW4 (Light Violet): Switch 4 Input 12V

  • RFC (Green): Reverse Trigger Input 12V

  • RTR (Blue): Reverse Camera Output 12V

  • PWR (Yellow): Main Power Input 12V

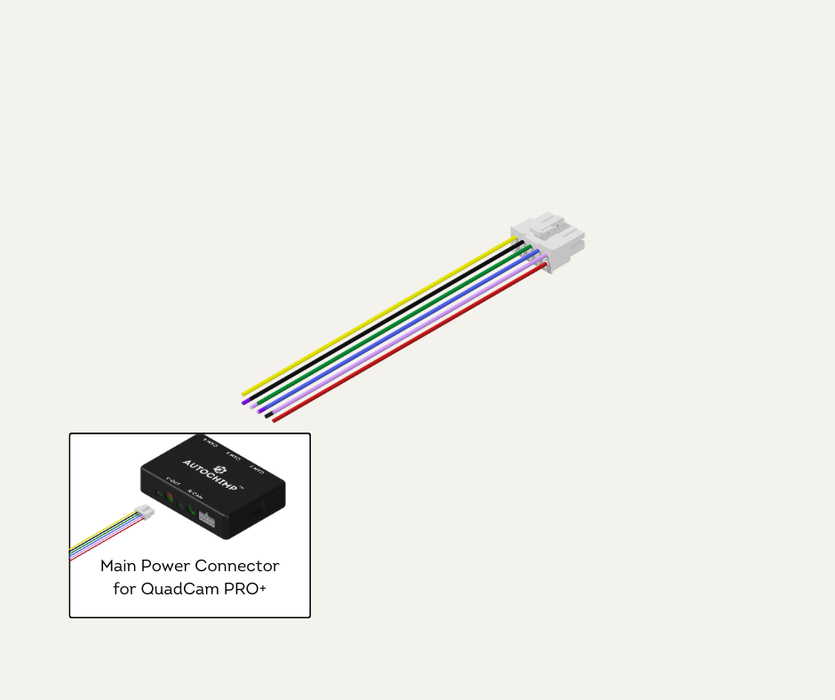

• OEM-Style Connectors: Designed to plug directly into the QuadCam PRO+ unit.

• Automotive-Grade Construction: Built to endure temperature changes, vibrations, and long-term use in vehicle environments.

• Simplified Integration: Everything you need in one harness — perfect for efficient wiring of trigger buttons, reverse feeds, and stereo inputs.

Specifications:

• Connector Type: 10-Pin Molex-style automotive connector

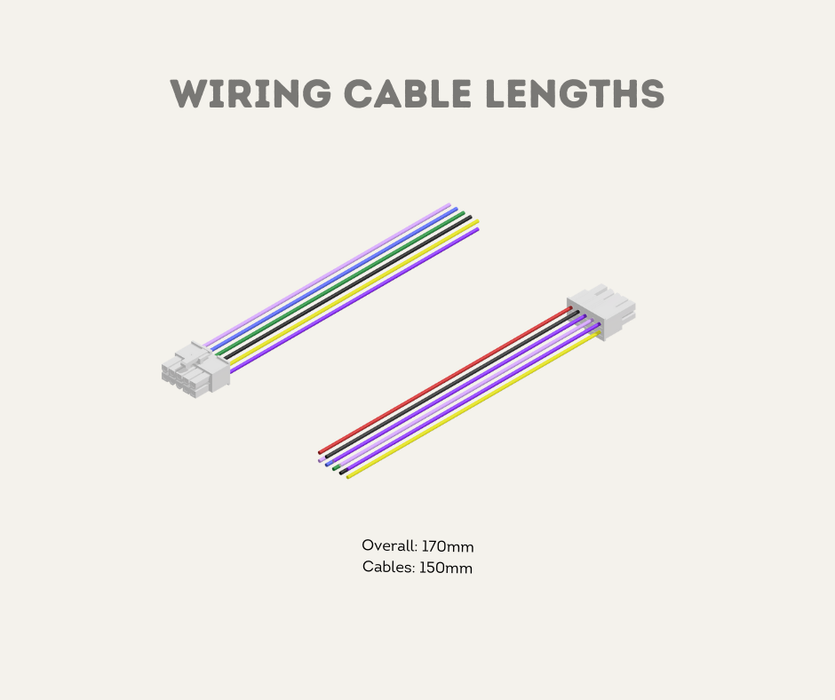

• Wire Length: Approx. 300mm per lead

• Operating Voltage: 12V DC

• Wire Gauge: Automotive standard

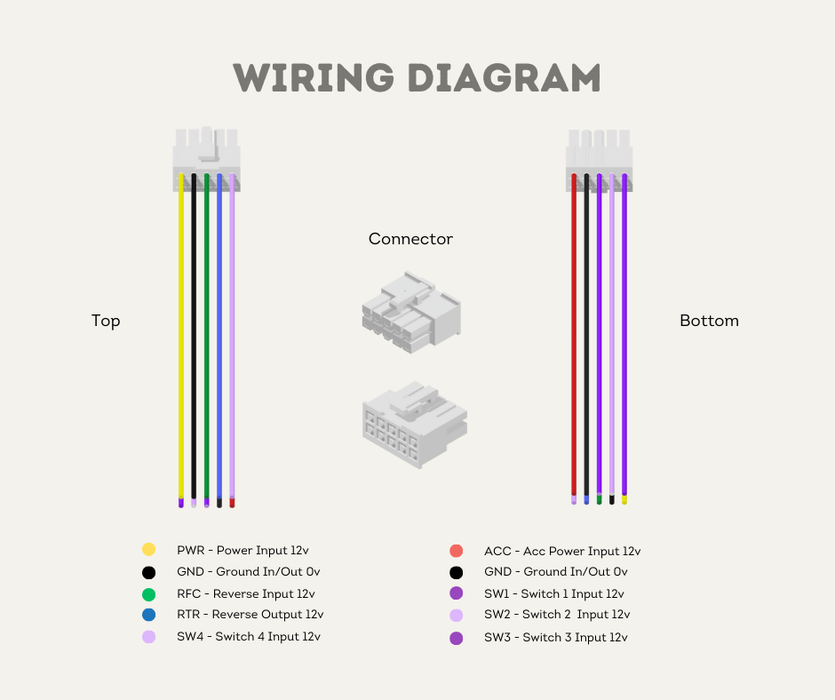

• Harness Layout:

  • PWR – Power Input 12V (Yellow)

  • GND – Ground In/Out 0V (Black)

  • RFC – Reverse Input 12V (Green)

  • RTR – Reverse Output 12V (Blue)

  • SW1–SW4 – Switch Inputs 12V (Various Purples)

  • ACC – Accessory Input 12V (Red)

The AutoChimp™ QuadCam 10-Pin Power Cable provides a complete solution for powering and triggering your QuadCam PRO+ system. With clearly labelled connections, professional-grade durability, and universal 12V compatibility, this is the go-to cable for any clean and reliable multi-camera setup.
