SKU: AC-TOY-RC7-HEAVY

Fits: The pre-facelift Toyota LandCruiser 70 Series with a factory stereo — 2014 to early 2023. Single Cab, Double Cab, Wagon and Troop Carrier, in Workmate, GX and GXL variants. Automatic and manual.

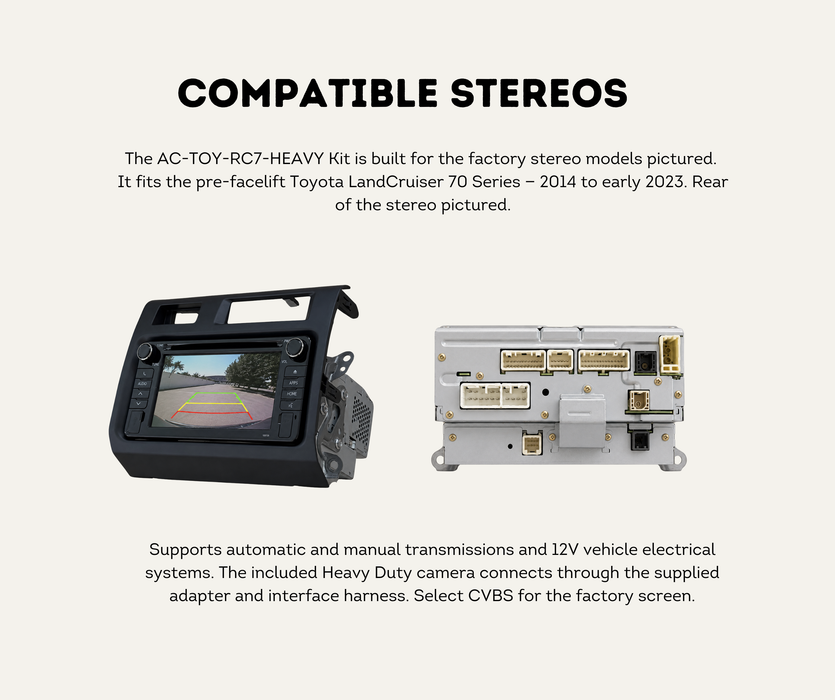

Check the Compatible Stereos and Compatible Vehicles images against your dash before ordering. If your 70 Series is the facelift — mid-2023 onwards — you need AC-TOY-RC8-RC9-HEAVY instead.

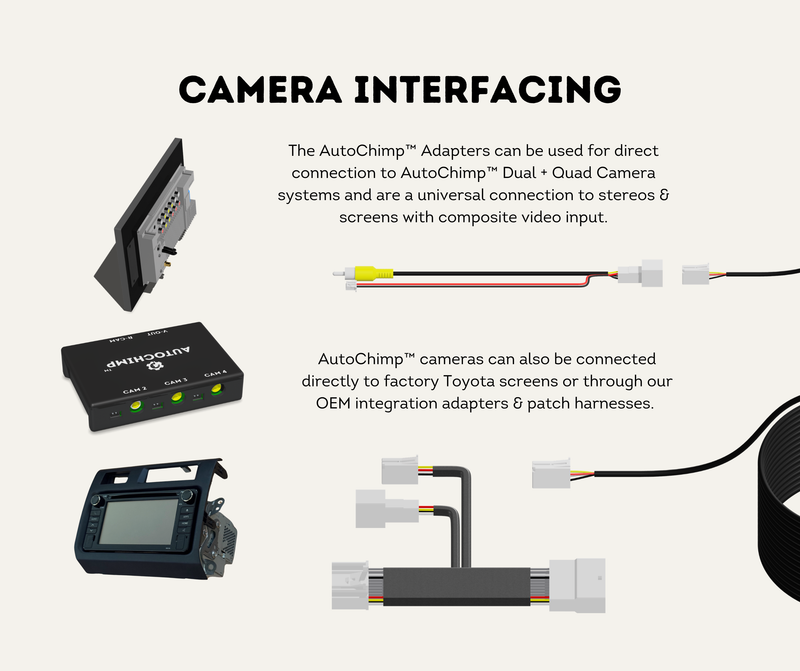

How It Works

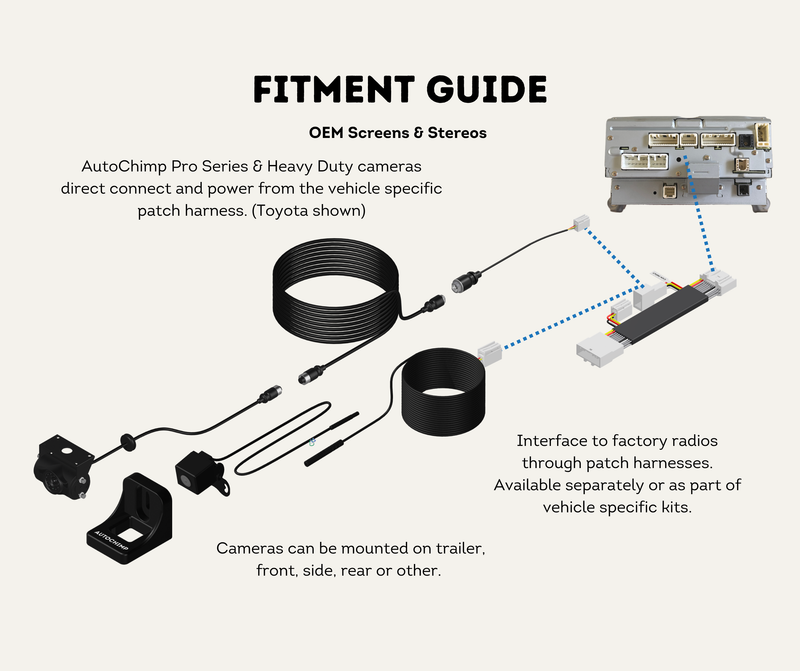

Includes the AutoChimp™ Heavy Duty camera, ready to fit. The camera plugs into the interface harness, the harness connects behind the factory stereo, and selecting reverse brings the camera up on your factory screen automatically.

Plug & play — no cutting, no splicing, and fully reversible.

Which 70 Series Kit Do I Need?

Go by the build date, not the plate — Toyota's 70 Series facelift reached Australia mid-2023 and sells as a 2024 model year onwards.

Every kit comes in two camera grades. Pro Series is the standard camera. Heavy Duty is the commercial-grade upgrade for trays, canopies and hard-worked vehicles — same harnesses, same installation.

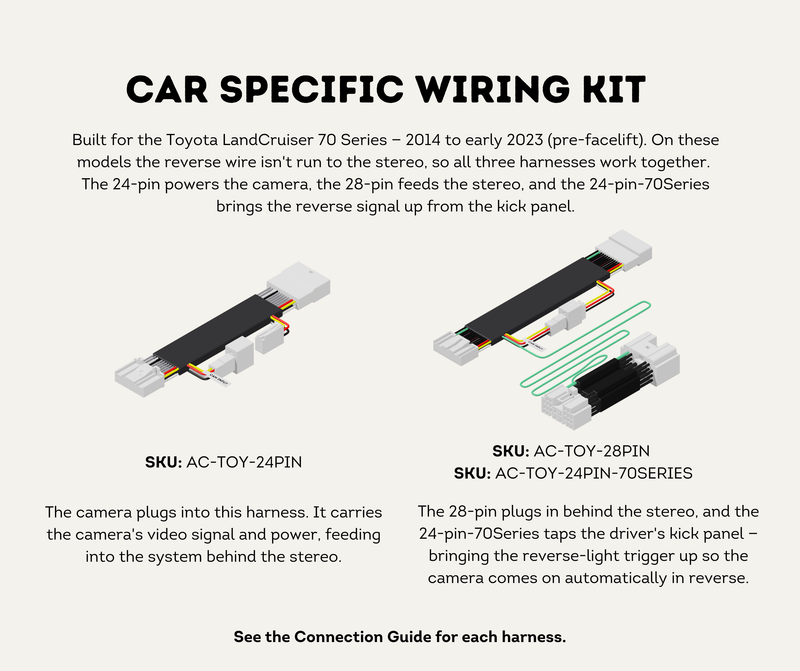

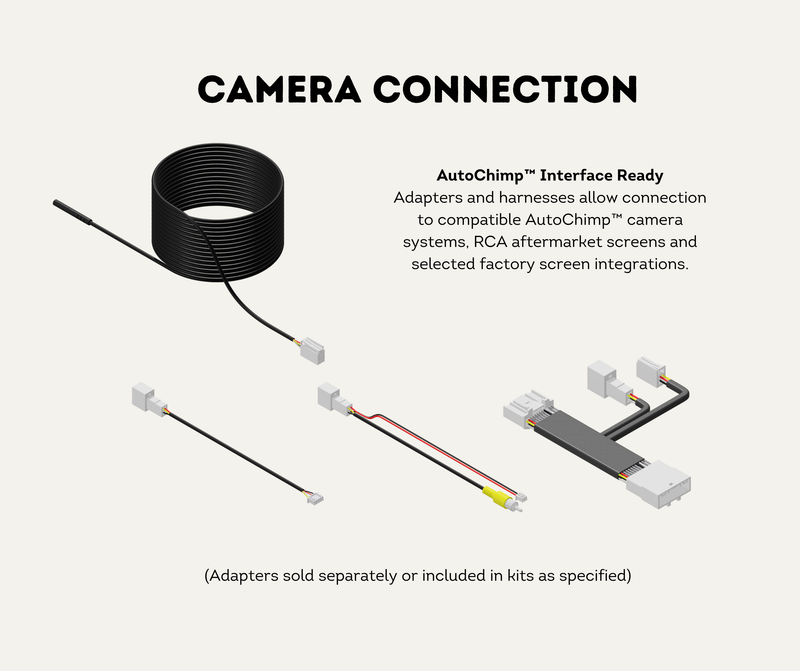

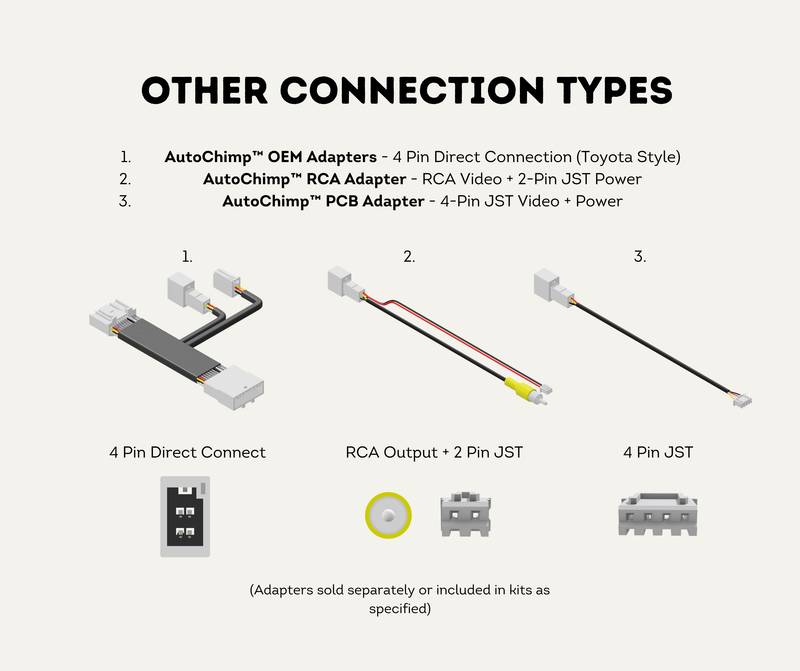

Car Specific Wiring Kit

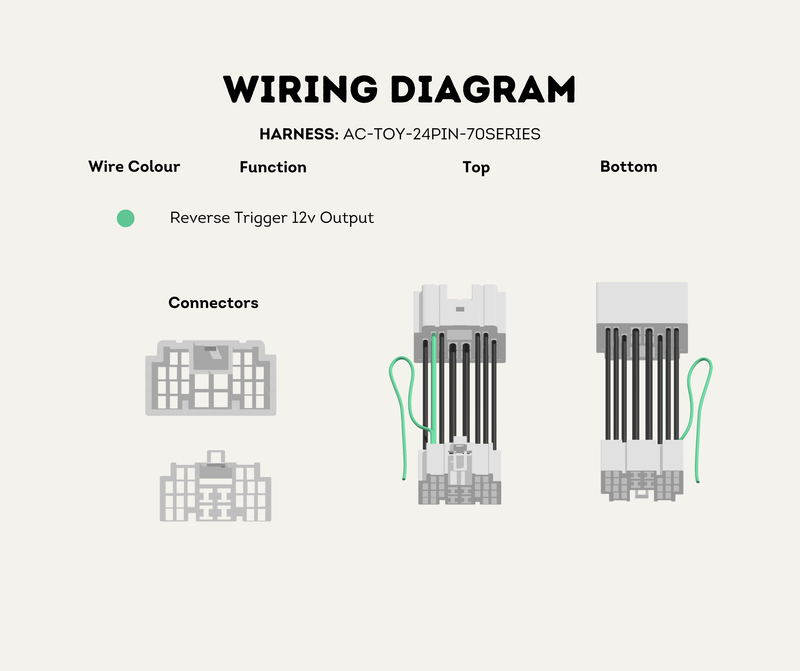

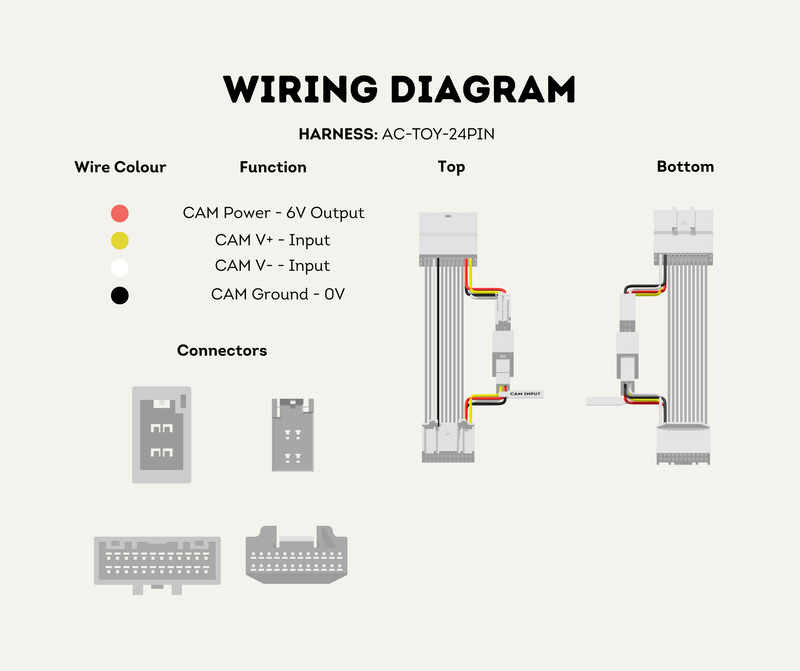

Built for the Toyota LandCruiser 70 Series — 2014 to early 2023 (pre-facelift). On these models the reverse wire isn't run to the stereo, so all three harnesses work together. The 24-pin powers the camera, the 28-pin feeds the stereo, and the 24-pin-70Series brings the reverse signal up from the kick panel.

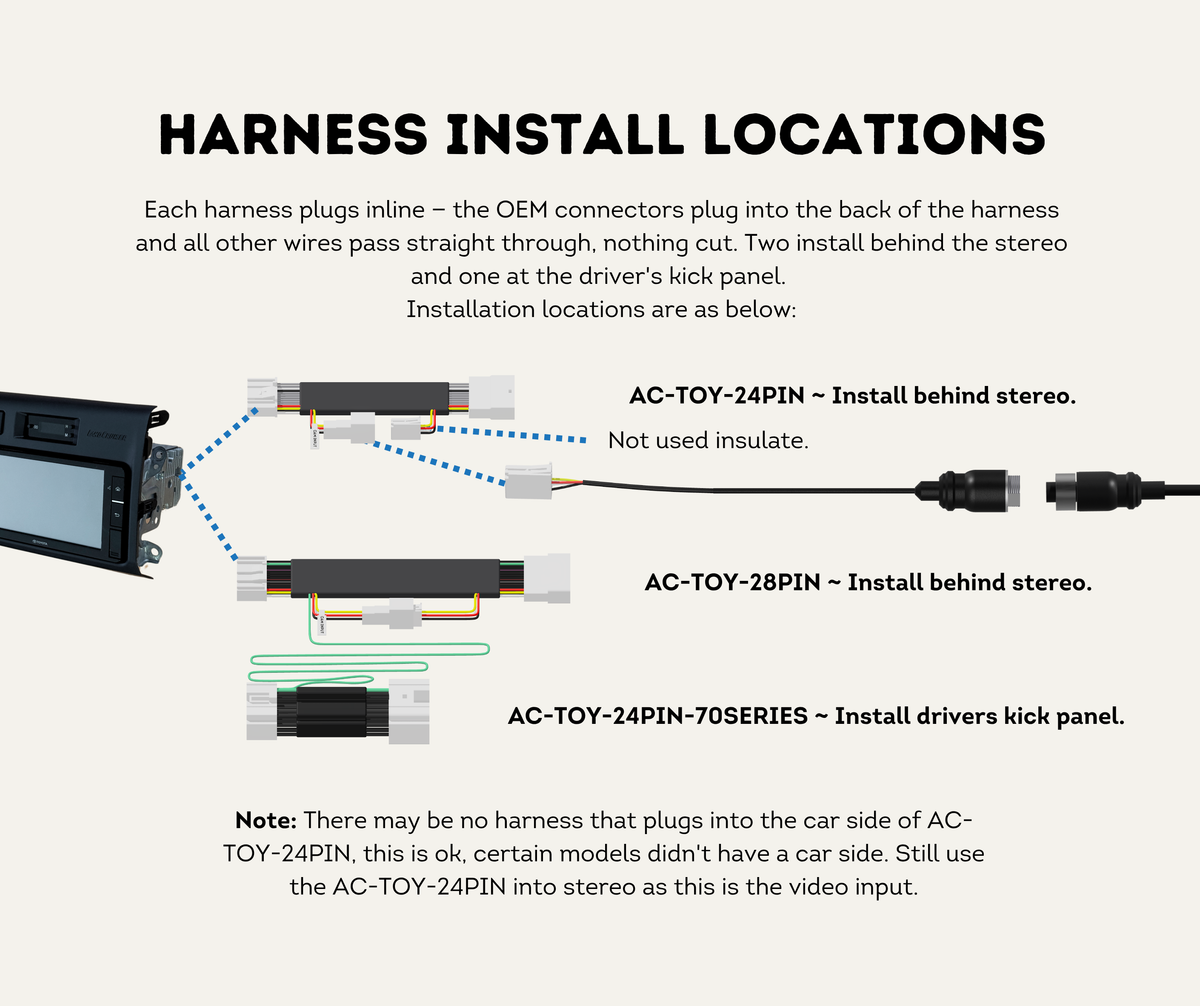

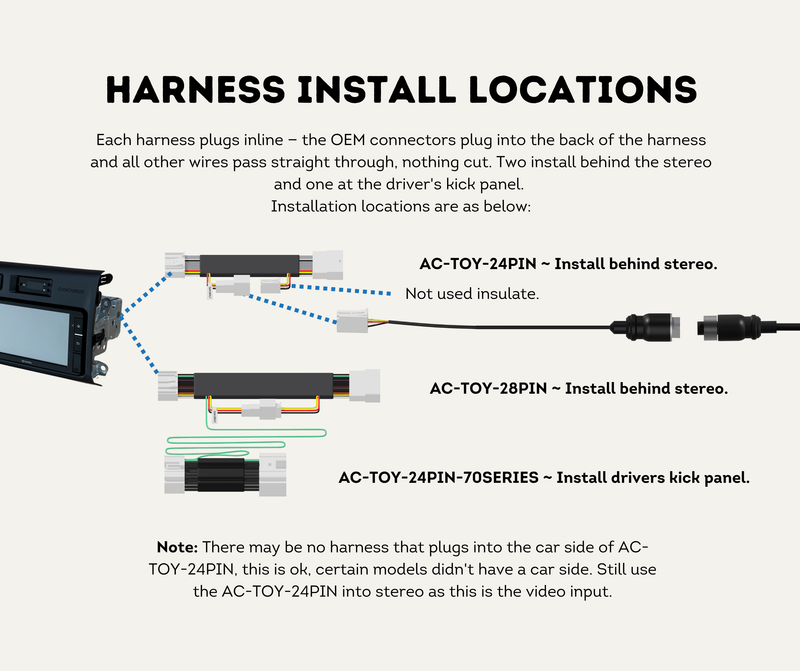

Harness Install Locations

Each harness plugs inline — the OEM connectors plug into the back of the harness and all other wires pass straight through, nothing cut. Two install behind the stereo and one at the driver's kick panel.

Note: There may be no harness that plugs into the car side of the AC-TOY-24PIN. This is fine — certain models didn't have a car side. Still fit the AC-TOY-24PIN into the stereo, as this is the video input.

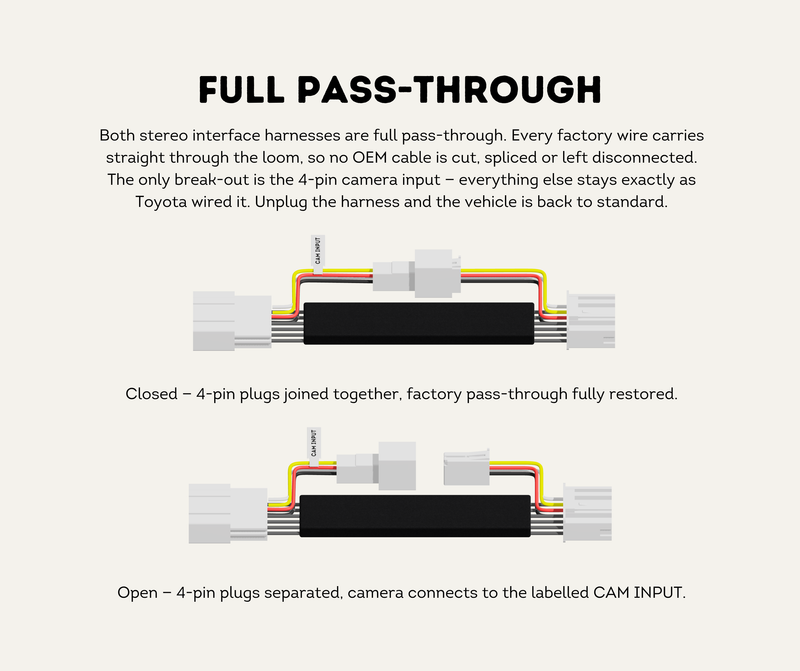

Full Pass-Through

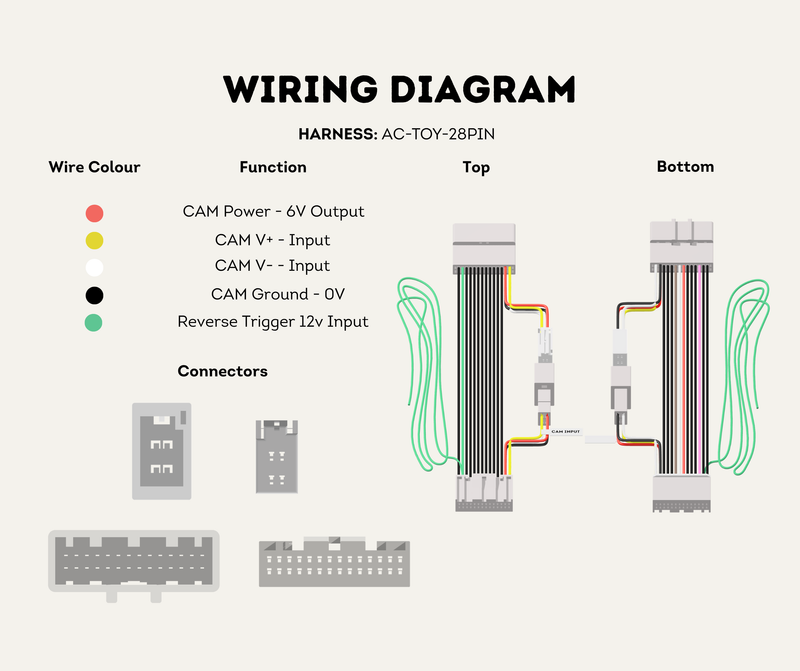

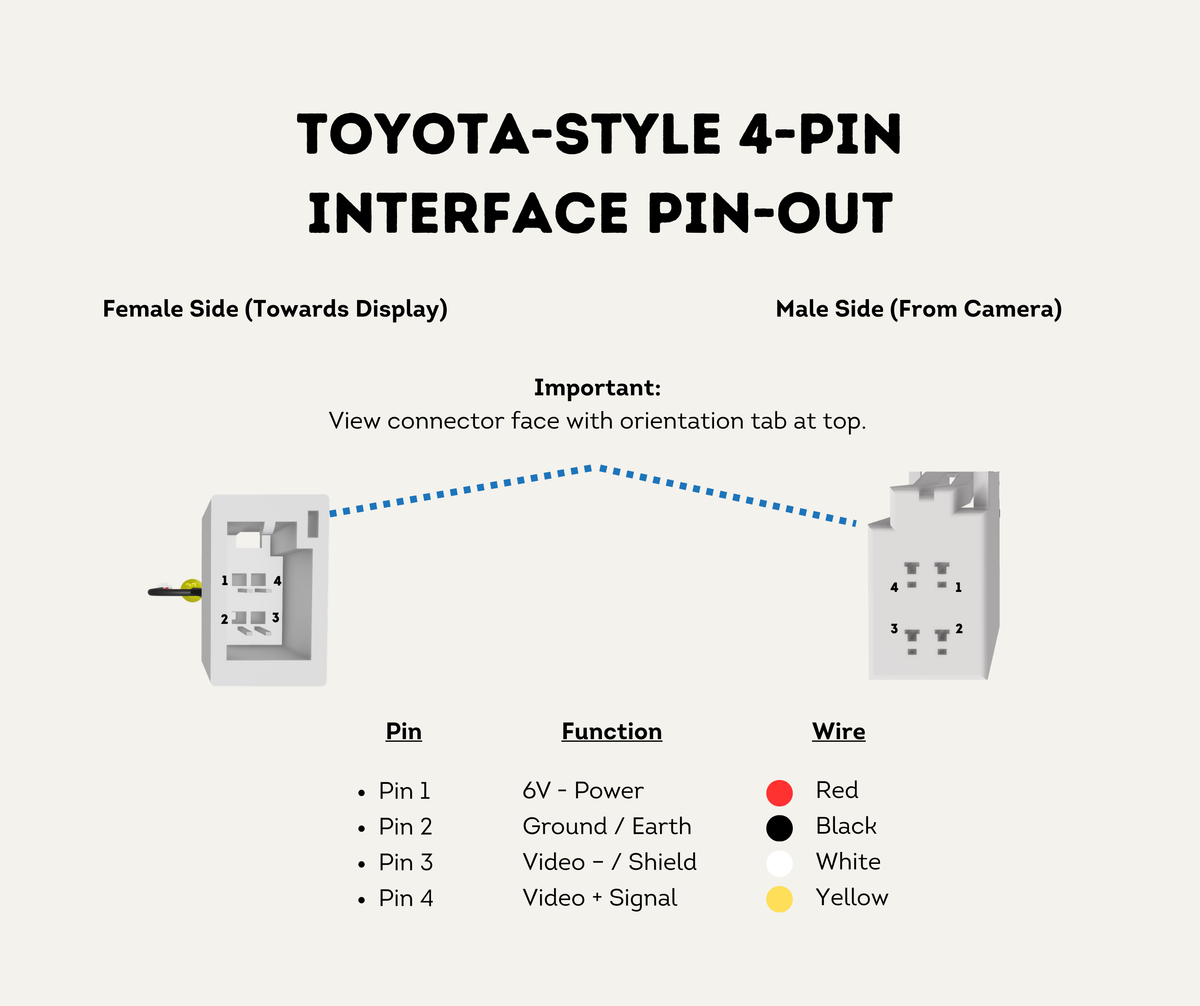

Both stereo interface harnesses are full pass-through. Every factory wire carries straight through the loom, so no OEM cable is cut, spliced or left disconnected. The only break-out is the 4-pin camera input — everything else stays exactly as Toyota wired it. Unplug the harnesses and the vehicle is back to standard.

Key Features

• Heavy Duty 4-Pin Aviation Connector – Screw-locked and sealed instead of a moulded plug, so it stays connected and can be serviced in the field.
• Sealed Cable Entry – Rubber sealing grommet and a dust and water cover on the camera lead.
• 360° Mounting Bracket – Six stainless steel screws on the camera, aimed and locked off wherever the camera lands on a tray, canopy or bar.
• Infrared Night Vision with IR Cut – The filter lifts in daylight so colour stays true, and drops at night for usable low-light vision.
• 10m Extension Cable Included – Reaches the back of a tray or a long wheelbase without a second purchase.
• All Three Harnesses Included – AC-TOY-24PIN, AC-TOY-28PIN and AC-TOY-24PIN-70SERIES supplied together. Nothing else to buy.
• Wide 6V–24V Range – Works across factory and aftermarket camera power systems.
• Clear View, No Guidelines – The camera draws no parking lines and the factory Toyota stereo doesn't add them, so the picture stays unobstructed. If you want guidelines, use the Pro Series kit.

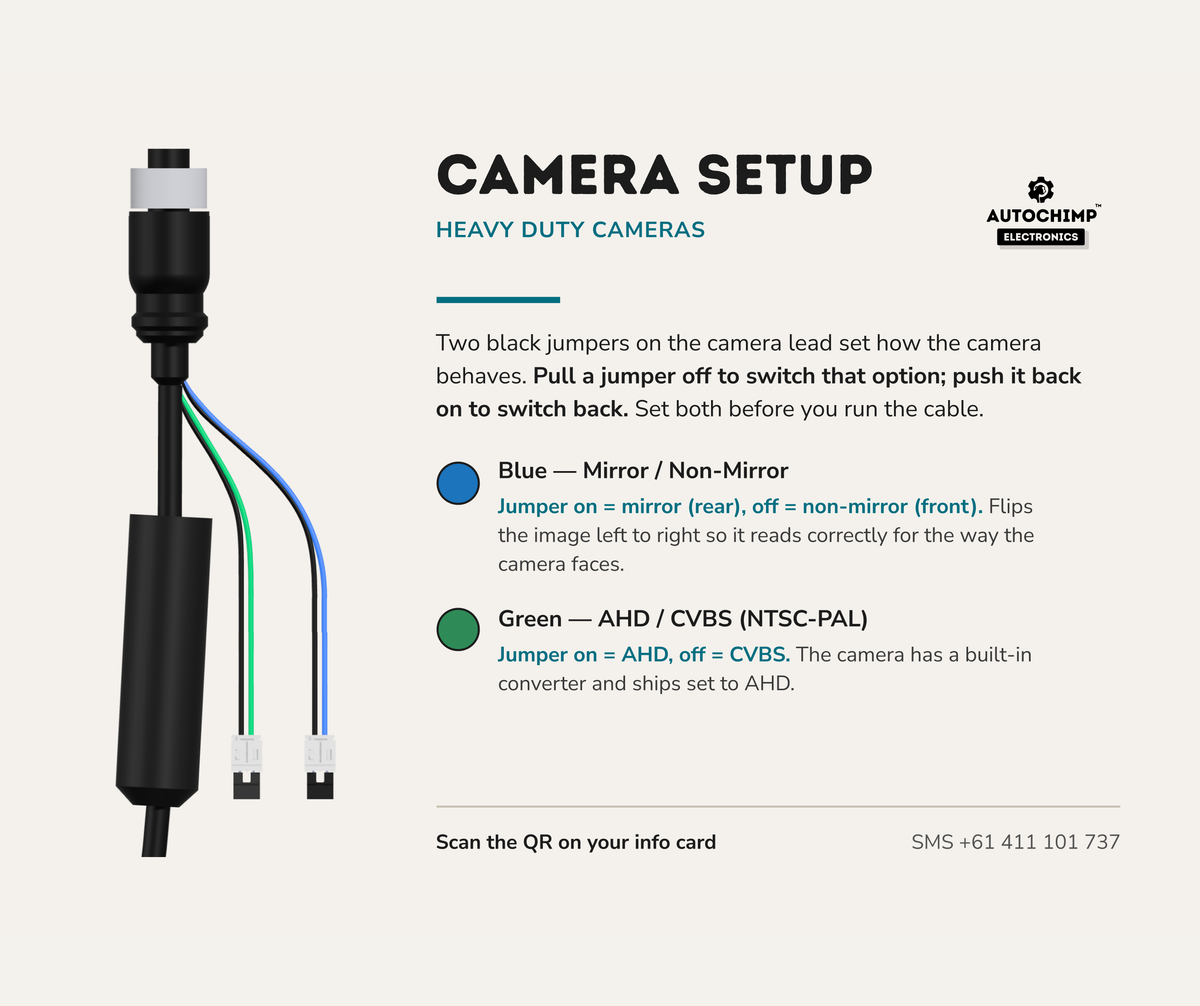

Camera Setup

Two labelled jumpers on the camera lead set it up for your screen.

• Video Select – For the factory Toyota screen, select CVBS before testing. Remove the Video Select jumper to change the camera from AHD to CVBS (NTSC/PAL). Set Image Flip to Mirror for reversing.
• Image Flip – Mirror or Non-Mirror. Mirror is correct for reversing; Non-Mirror lets the same camera run as a front camera.

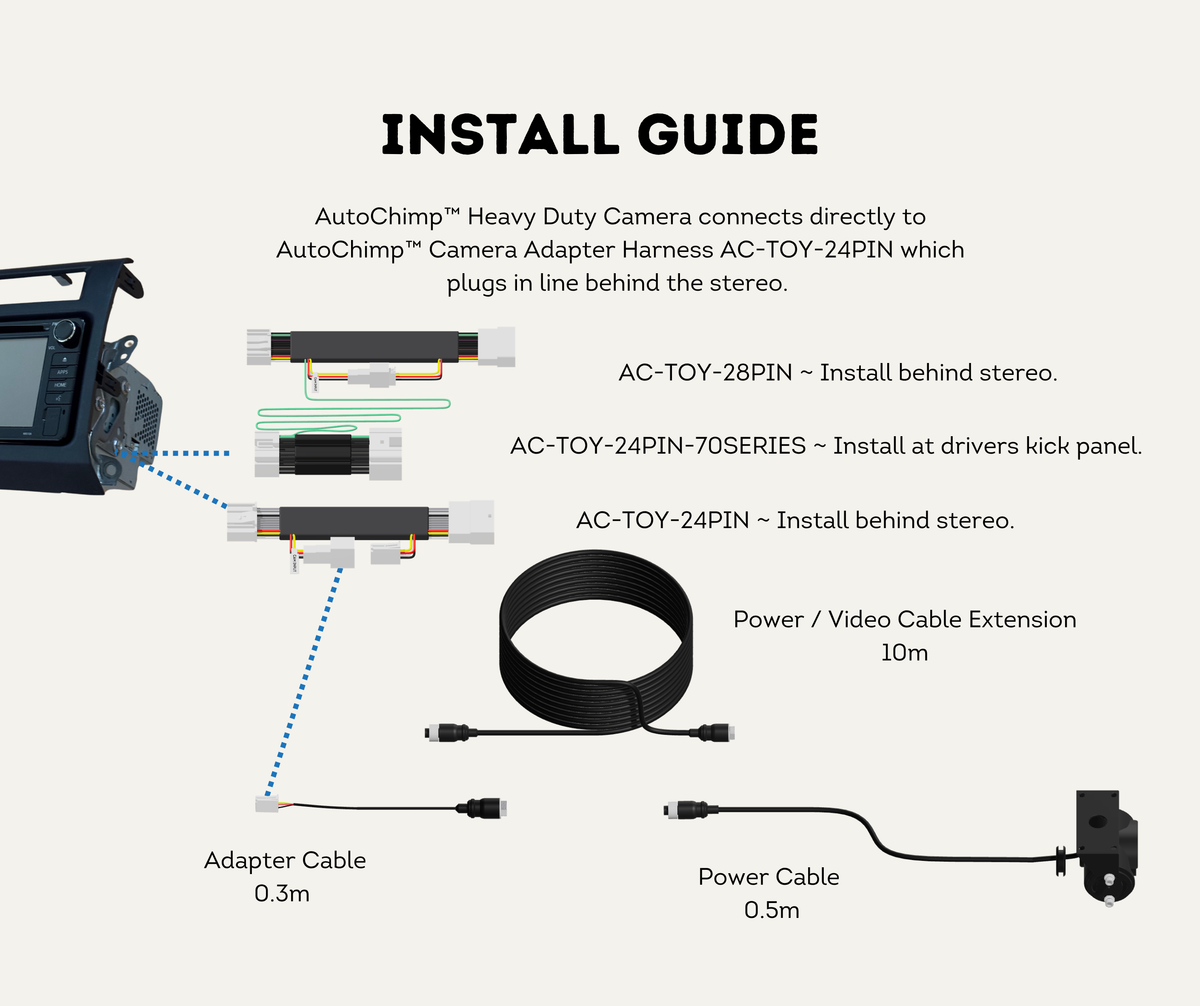

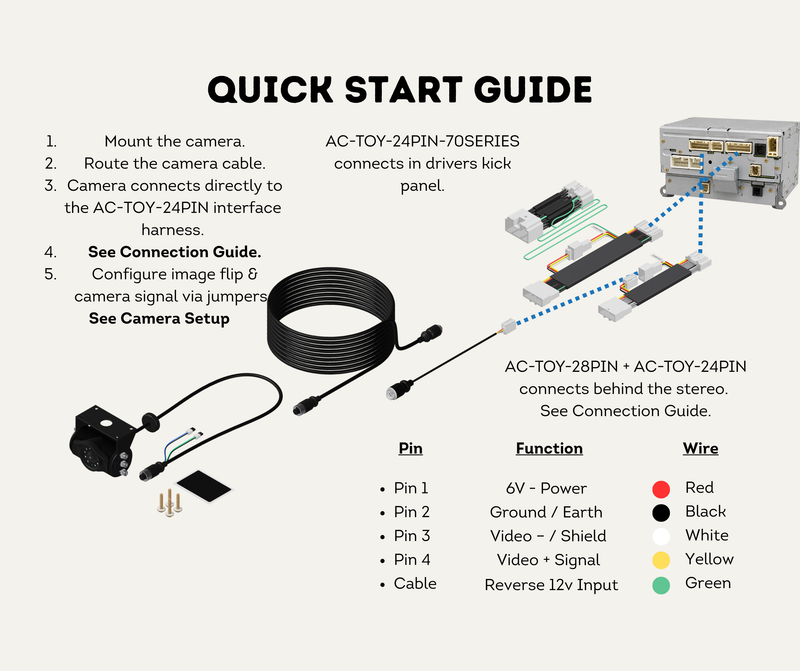

Quick Start Guide

1. Mount the camera and aim it using the 360° bracket.
2. Run the 10m extension forward to the stereo.

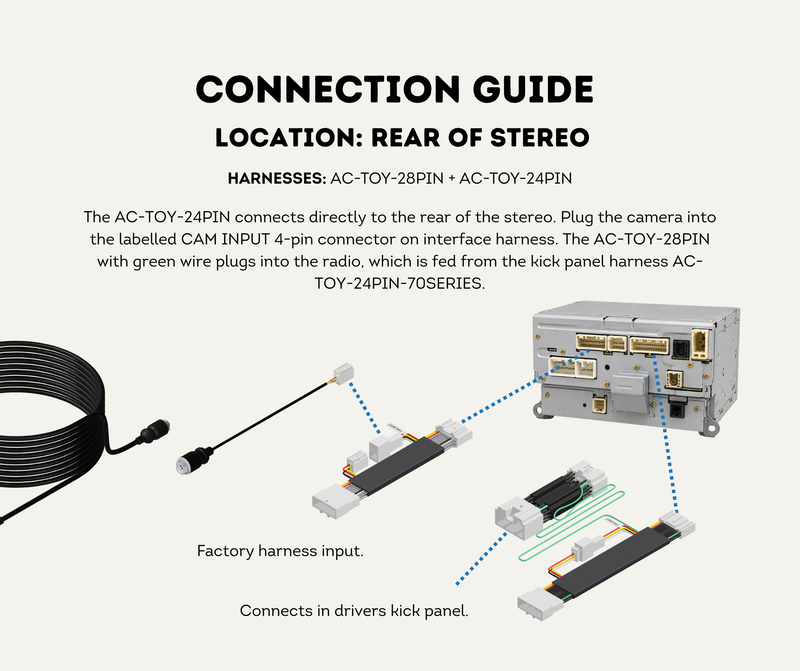

3. Plug the camera into the AC-TOY-24PIN harness behind the stereo.
4. Plug the AC-TOY-28PIN inline on the factory stereo connector.

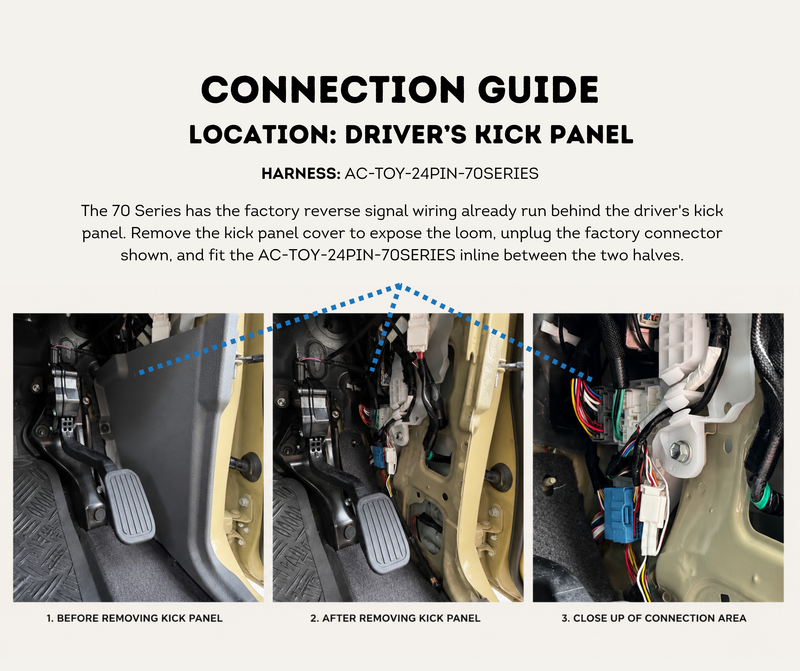

5. Fit the AC-TOY-24PIN-70SERIES at the driver's kick panel for the reverse trigger.
6. Select CVBS using the Video Select jumper and set Image Flip to Mirror.
7. Select reverse. The camera comes up on the factory screen automatically.

Compatibility

• Toyota LandCruiser 70 Series, 2014 to early 2023 (pre-facelift)
• Single Cab, Double Cab, Wagon and Troop Carrier
• Workmate, GX and GXL variants
• All engine models, automatic and manual
• Vehicles with the factory touchscreen stereo shown in the images

Kit Contents

• 1x Heavy Duty Camera with IR & IR Cut — P/N: AC-HEAVY-CAM
• 1x 10m Extension Cable
• 3x Camera & Reverse Signal Interface Harnesses
• 1x Camera Adapter + Cable Ties
• 4x Self-Tapping Bolts + Waterproof Sealing Tape

Technical Specifications

• Viewing Angle: 120°
• Operating Voltage: 6V–24V DC
• Night Vision: Infrared LEDs with IR Cut filter
• Video Output: AHD / CVBS, jumper selectable
• CVBS Standard: NTSC / PAL auto switching
• Image Orientation: Mirror / Non-Mirror, jumper selectable
• Connector: Heavy Duty 4-Pin Aviation
• Sealing: Cable sealing rubber grommet, rubber dust and water cover
• Mounting: 360° bracket with 6x stainless steel screws
• Camera Body: 75mm wide × 65mm deep × 60mm high (45mm camera)
• Camera Cable Length: 500mm

Optional Accessories

• Heavy Duty Extension Cables — 5m, 10m or 15m for longer runs

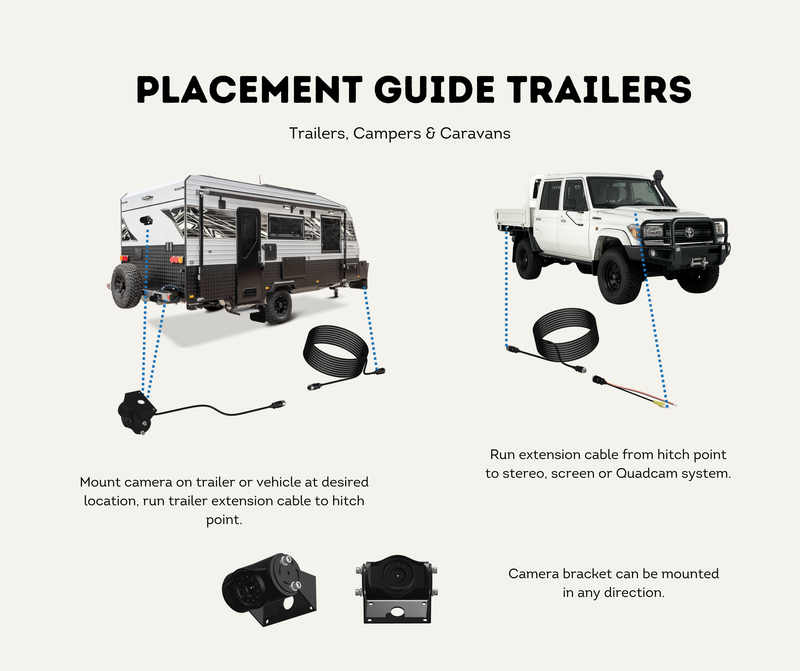

• Suzi Coil Camera Connection Kit — for trailers and caravans
• Install Tool Kit — trim tools, screwdrivers and sockets
• Cloth Loom Tape — factory-style fleece tape for tidy runs
