AutoChimp™ Heavy Duty Camera Kit | IR + IR Cut Night Vision | AHD / CVBS | Selectable Cable Length

AutoChimp Heavy Duty Camera Kit | IR + IR Cut | AHD / CVBS | 5m, 10m, 15m

Variant SKUs

• AC-HEAVY-CAM-KIT-5M
• AC-HEAVY-CAM-KIT-10M
• AC-HEAVY-CAM-KIT-15M

The AutoChimp™ Heavy Duty Camera Kit is our updated commercial-grade camera solution for trailers, utes, 4WDs, towing setups, work vehicles, fleet applications, and harsh Australian conditions.

120° viewing angle provides a wide view for reversing, towing and monitoring around your vehicle.

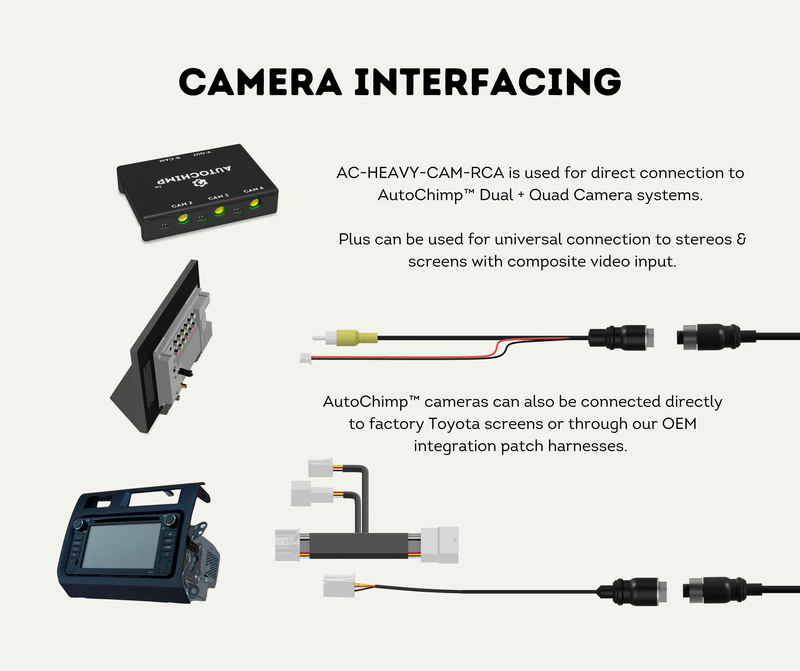

This kit combines the updated AC-HEAVY-CAM camera with your selected extension cable length and the included AC-HEAVY-CAM-RCA adapter for clean integration into RCA-based screens, stereos, and AutoChimp™ Dual / Quad camera systems.

With IR + IR Cut night vision, AHD / CVBS selectable output, mirror / normal image switching, 6V–24V operation, and a rugged heavy-duty bracket, it is built for customers who need stronger real-world durability and broader display compatibility than a standard universal reverse camera.

Key Features

• Commercial-grade Heavy Duty camera kit
• Updated camera platform with IR + IR Cut for improved day / night performance
• AHD / CVBS selectable output to suit more display types
• Clear-View Design (No Camera-Generated Guidelines) – parking lines will only appear if supplied by the connected stereo or display.
• Mirror / normal image switching for rear or front camera use
• 6V–24V DC operating range
• 120° viewing angle
• Heavy Duty 4-pin aviation camera connector
• Included AC-HEAVY-CAM-RCA adapter for RCA-based screens and AutoChimp camera systems
• Selectable cable length: 5m, 10m, or 15m
• Matte black electro-coated housing and rugged mounting bracket
• Built for towing, off-road, trade, trailer, rural, and commercial use

What’s Included

• 1x AutoChimp™ Heavy Duty Camera with mounting bracket and fixed 0.5m lead

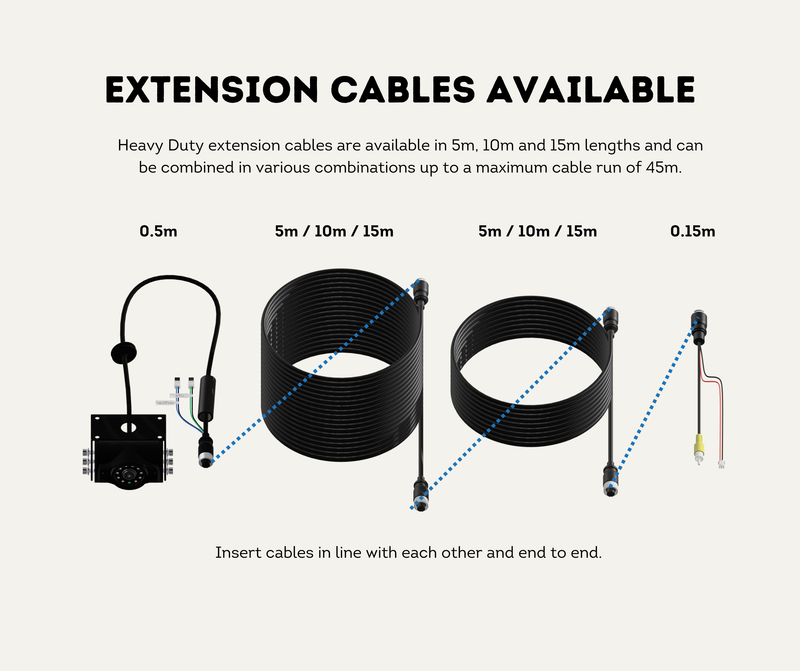

• 1x Heavy Duty extension cable in selected length: 5m, 10m, or 15m
• 1x AutoChimp™ Heavy Duty RCA Adapter (AC-HEAVY-CAM-RCA)
• 1x Rubber grommet
• 1x Waterproof cable cover
• Waterproof sealing tape
• Cable ties
• Mounting hardware

Compatibility

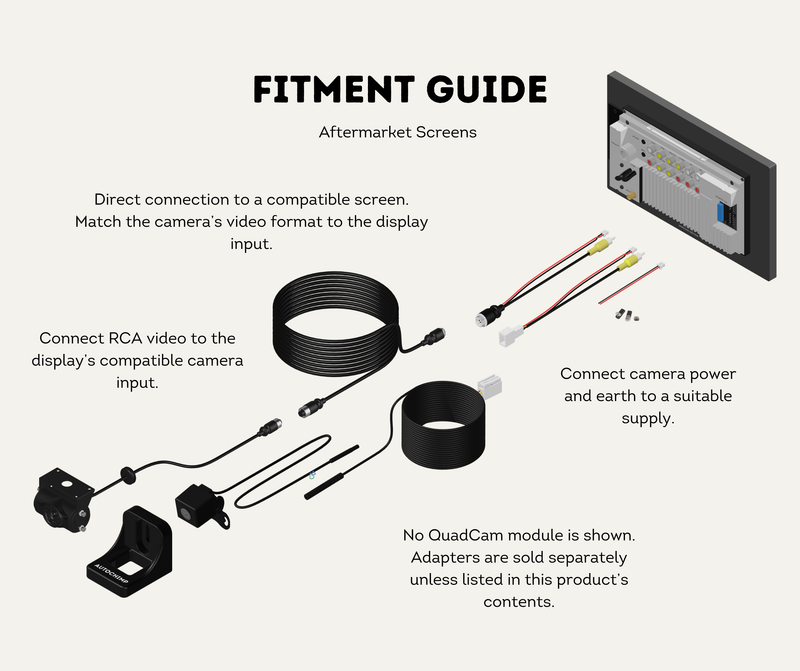

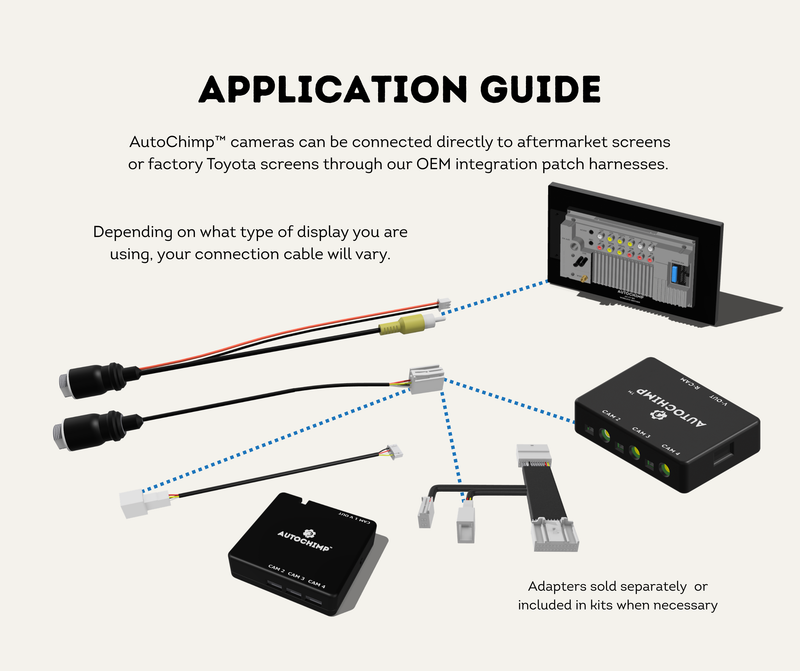

• RCA-input aftermarket stereos, screens, and monitors

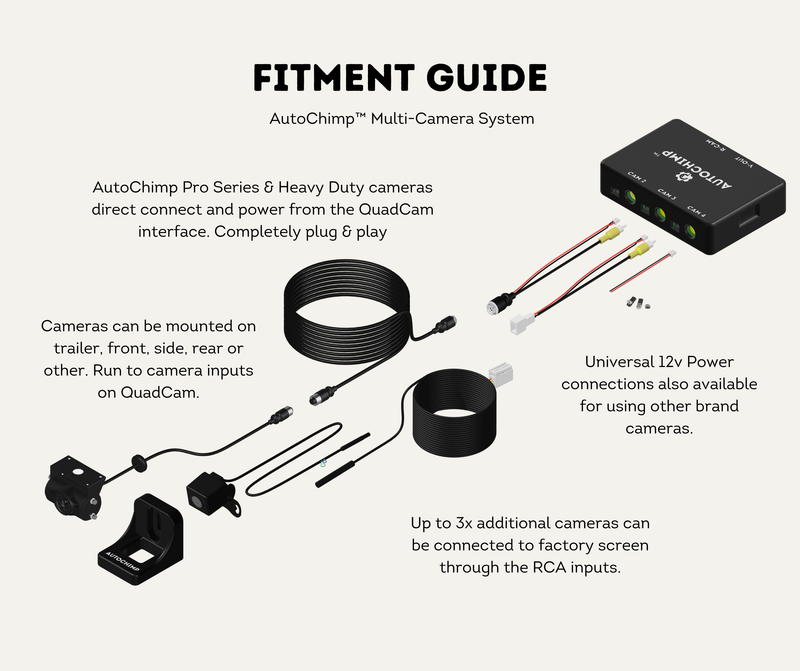

• AutoChimp™ Dual and Quad camera systems using the included RCA adapter

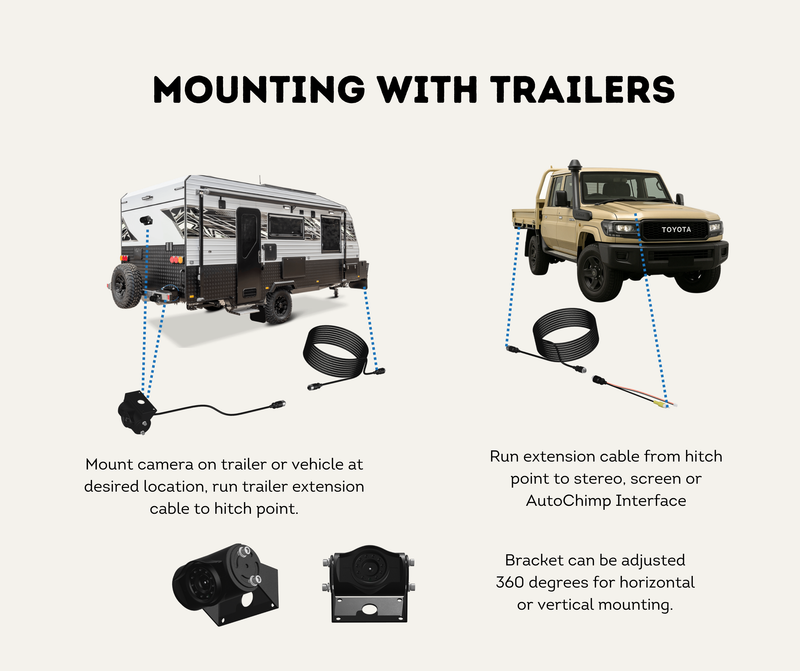

• Trailers, caravans, utes, trucks, 4WDs, work vehicles, and fleet installs

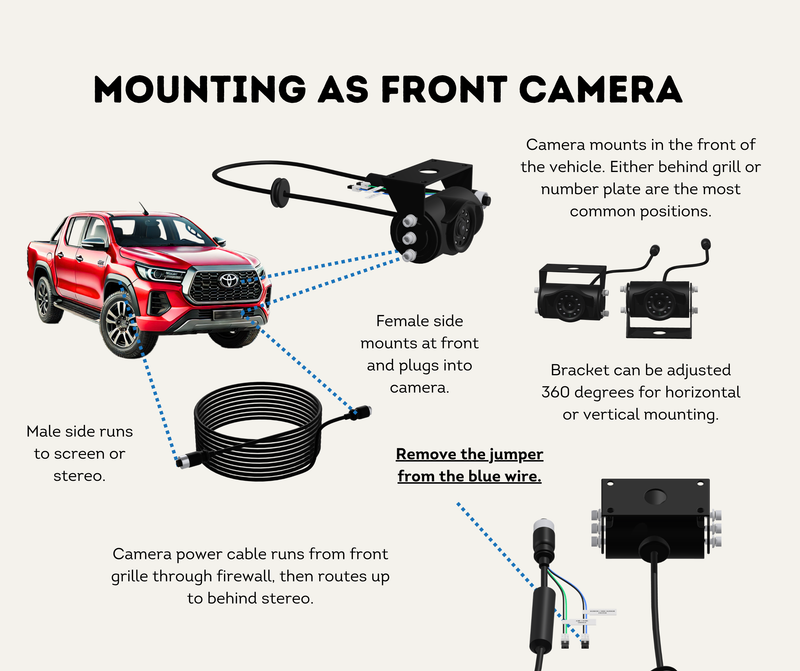

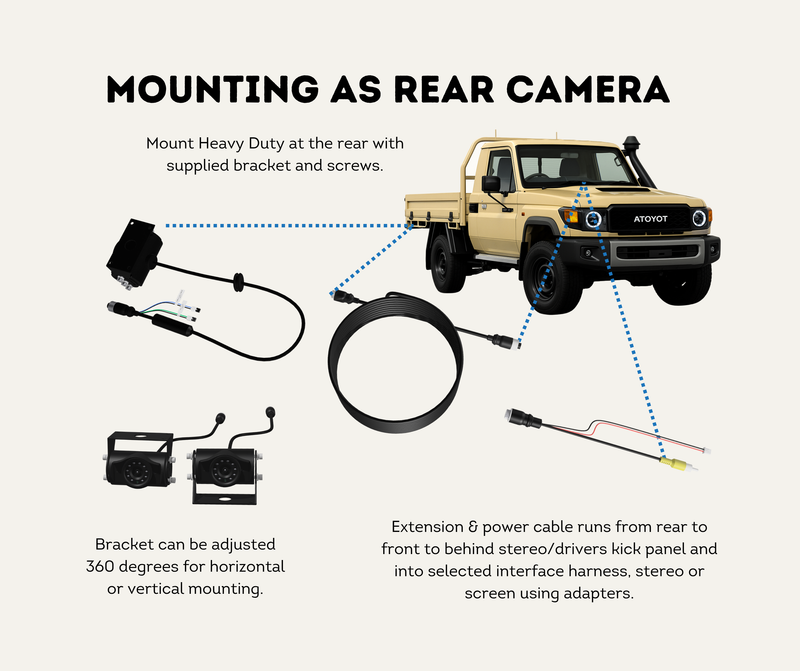

• Front or rear camera applications

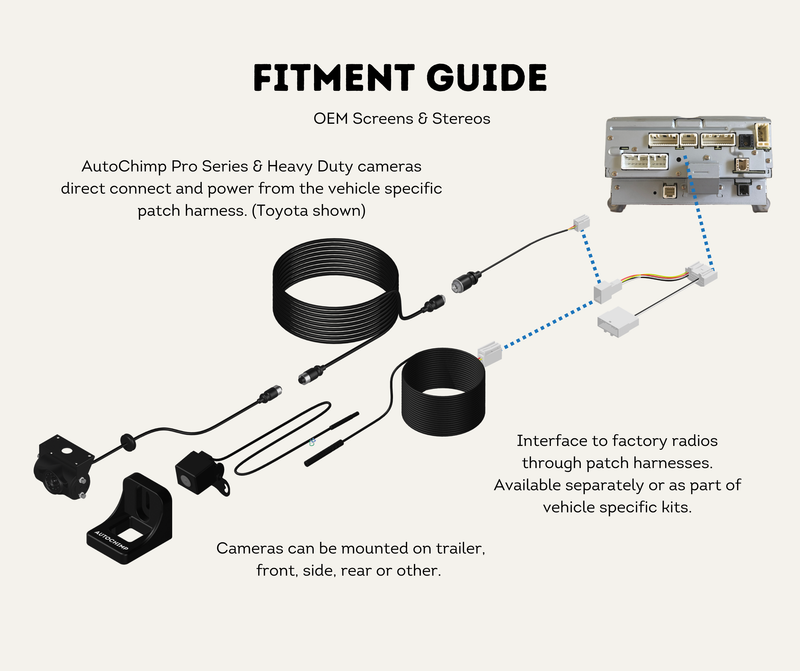

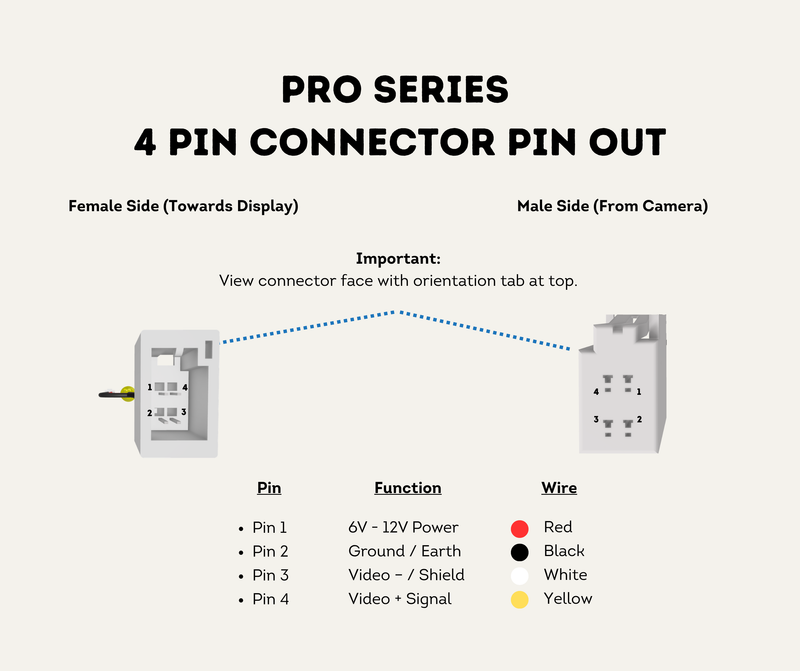

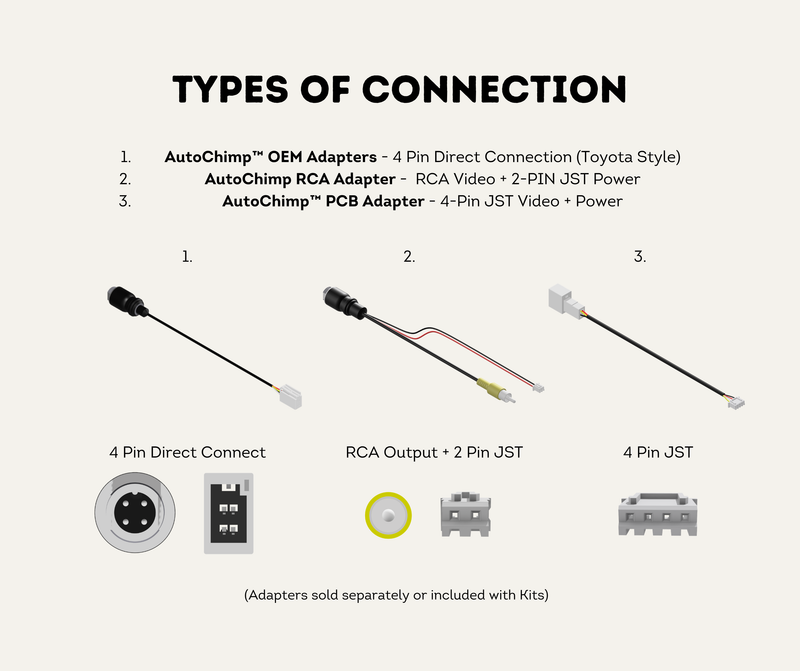

Optional adapter sold separately: AC-HEAVY-CAM-4PIN for AutoChimp Toyota-style / Pro Series 4-pin integrations.

Important Notes

• This kit includes the RCA adapter only
• The AC-HEAVY-CAM-4PIN adapter is sold separately
• Video format must match the connected display

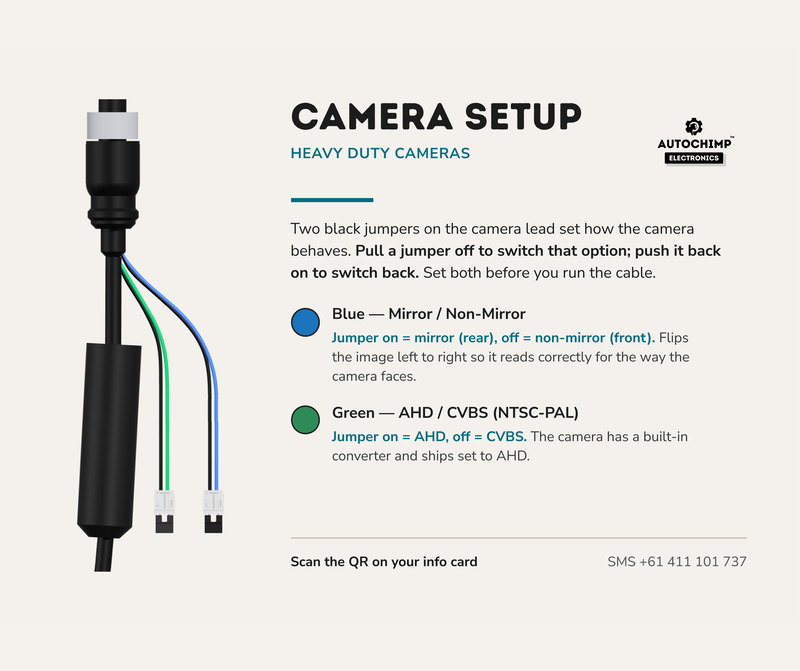

• The camera supports both AHD and CVBS output via jumper selection
• Image orientation can be switched between mirror and normal for rear or front camera use

Camera Specifications

• Sensor: 1/2.9" CMOS
• Resolution: 2000 TVL / 1920 × 1080p
• Frame Rate: 30 fps
• Viewing Angle: 120°
• Night Vision: IR LEDs + IR Cut
• Operating Voltage: 6V–24V DC
• Video Output: AHD / CVBS selectable
• CVBS Standard: PAL / NTSC auto switching
• Image Orientation: Mirror / normal selectable

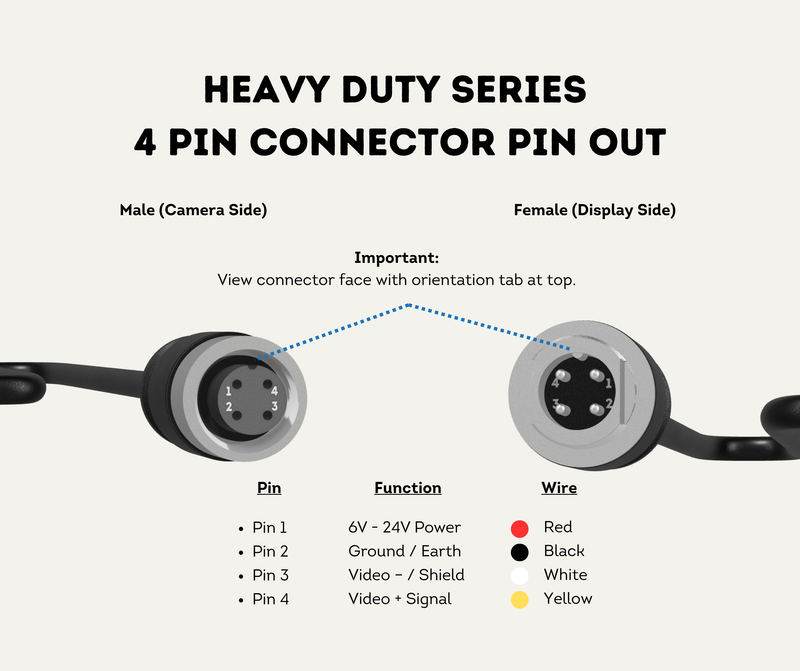

• Connector: Heavy Duty 4-pin aviation
• Cable Length: 500mm fixed camera lead
• Dimensions: 75mm width / 65mm depth / 60mm overall height
• IP Rating: IP67 waterproof and dustproof
• Operating Temperature: -30°C to +70°C
• Housing Finish: Matte black electro-coated
• Bracket: Heavy Duty adjustable bracket

Why Choose AutoChimp™ Heavy Duty Camera Kits?

This updated Heavy Duty kit is designed for installs where reliability matters. It gives you a tougher camera platform, broader voltage support, selectable video compatibility, improved day / night imaging, and a cleaner path into RCA-based screens or AutoChimp multi-camera systems.

Ideal for towing setups, trailers, caravans, off-road vehicles, trade vehicles, fleet builds, rural applications, and commercial installs.
