AutoChimp™ Heavy Duty Camera | IR + IR Cut Night Vision | AHD / CVBS | 6V–24V
Heavy Duty cameras give a clear picture with no parking guidelines. They're built for trailers, caravans, interiors, front mounts and anywhere on the vehicle. Need guidelines when reversing? See the Pro Series option.
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
AutoChimp™ Heavy Duty Camera | IR + IR Cut Night Vision | AHD / CVBS | 6V–24V
SKU: AC-HEAVY-CAM
120° viewing angle provides a wide view for reversing, towing and monitoring around your vehicle.
The AutoChimp™ Heavy Duty Camera is our updated commercial-grade camera platform, built for trailers, fleet vehicles, work utes, towing setups, 4WD touring, and harsh Australian conditions.
This upgraded standalone camera features IR + IR Cut night vision, selectable AHD or CVBS video output, mirror or normal image switching, a 6V–24V operating range, and a tougher matte black electro-coated housing. It is designed to give installers broader screen compatibility, stronger mounting security, and cleaner image performance day or night.
Each camera includes a fixed 0.5m lead. Optional adapter leads are available separately for RCA aftermarket stereos or 4-pin aviation / AutoChimp™ multi-camera systems.
Key Features
- Commercial-Grade Heavy Duty Camera – built for towing, trade vehicles, off-road use, trailers, rural vehicles, and fleet applications.
- 6V–24V Operating Voltage – compatible across a broad range of factory-style and aftermarket camera power systems.
- IR + IR Cut Night Vision – clearer low-light performance with better day/night colour transition.
- AHD / CVBS Output – blue jumper lets you switch video format to suit more displays.
- NTSC / PAL Auto Switching in CVBS Mode – broader compatibility across factory and aftermarket screens.
- Mirror / Normal Image Switching – green jumper allows the camera to be configured for reverse or front-camera use.
- Labelled Jumpers – cable jumpers are clearly marked for simple setup.
- Reduced Lens Glare – revised lens staging helps cut glare and improve image clarity.
- Matte Black Electro-Coated Housing – upgraded finish for durability and a cleaner OEM-style appearance.
- Stronger Camera-to-Bracket Mounting – camera secures with 6x stainless hex fixers for improved strength and vibration resistance.
- Bracket Mounting Hardware Included – includes 4x self-tapping screws for installation.
What’s Included
- 1x AutoChimp™ Heavy Duty Camera with fixed 0.5m lead
- 1x Heavy Duty Adjustable Mounting Bracket
- 6x Stainless Hex Fixers (camera to bracket)
- 4x Self-Tapping Screws (bracket mounting)

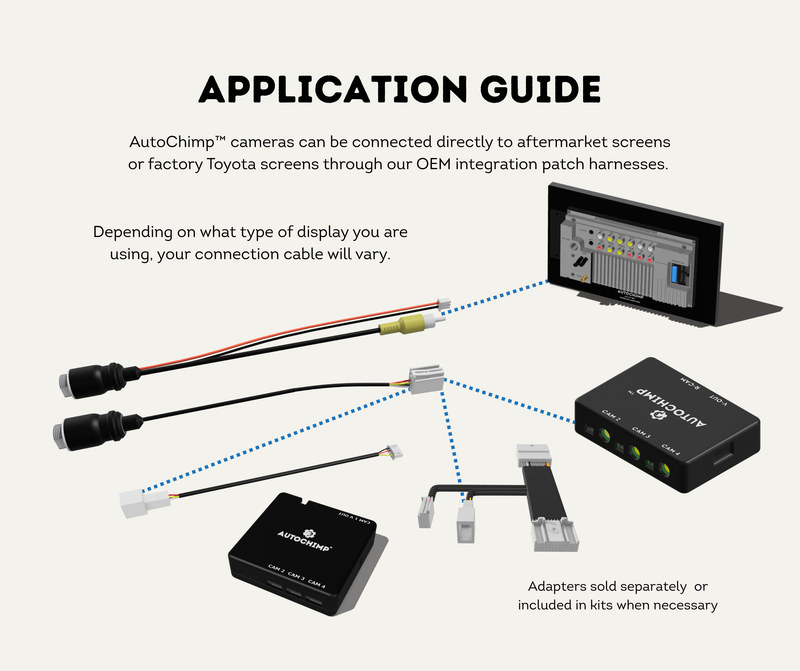

Compatible Accessories (Sold Separately)

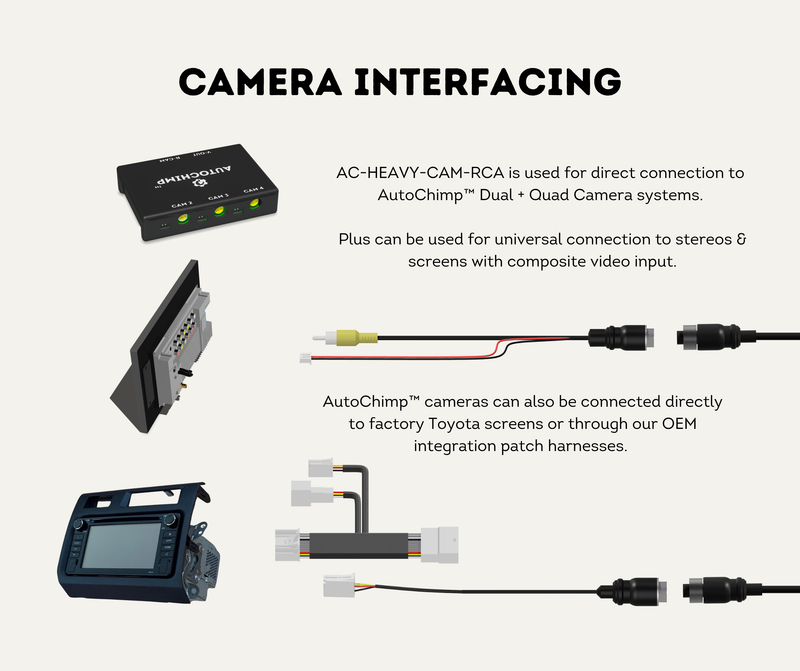

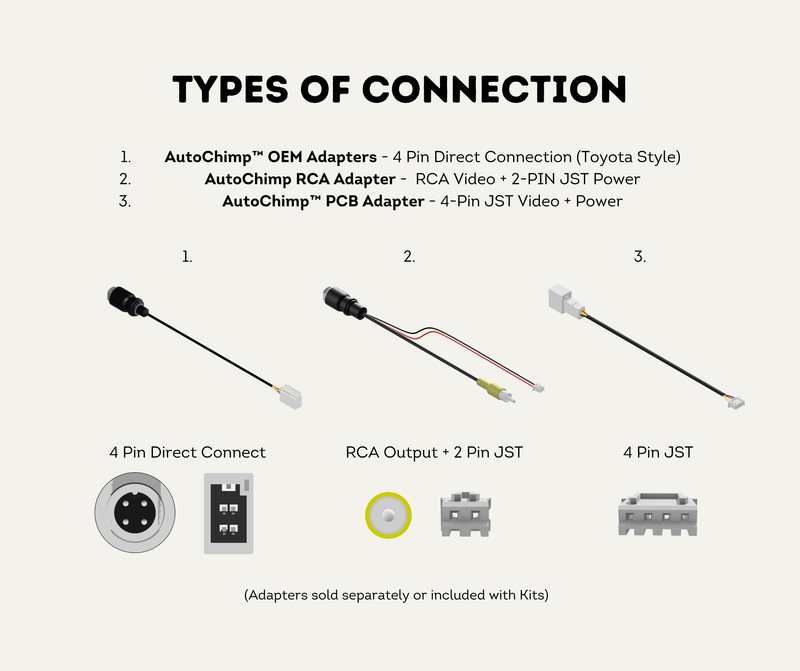

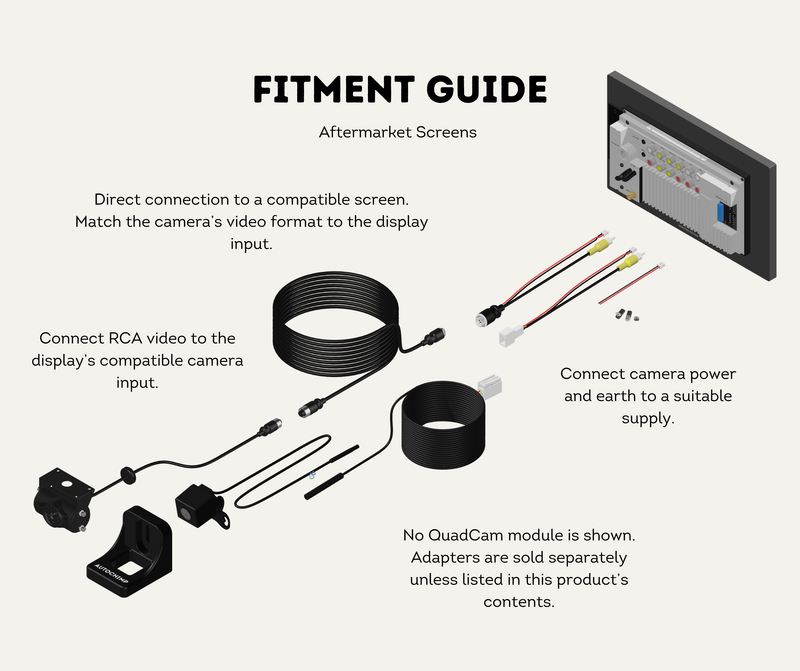

- AC-HEAVY-CAM-RCA – adapter lead for aftermarket RCA stereos and compatible screens

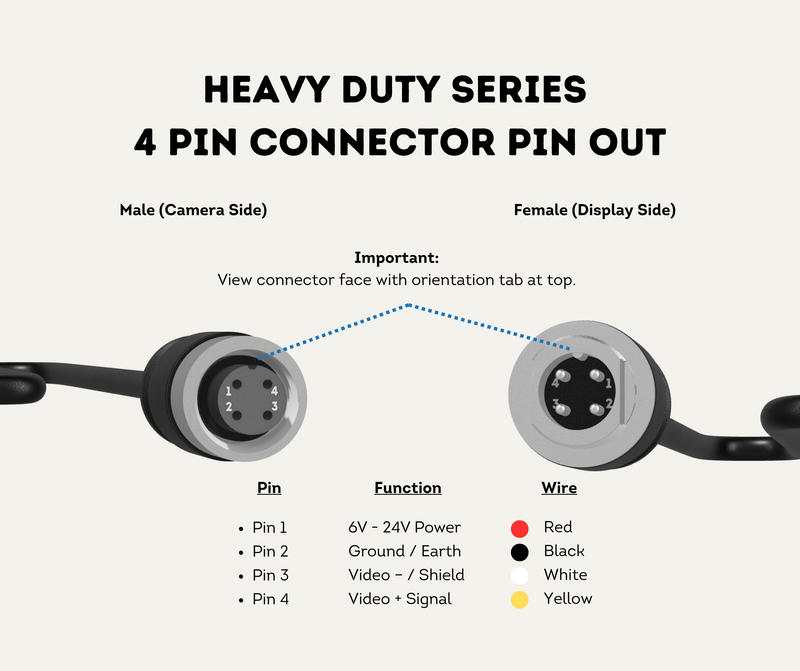

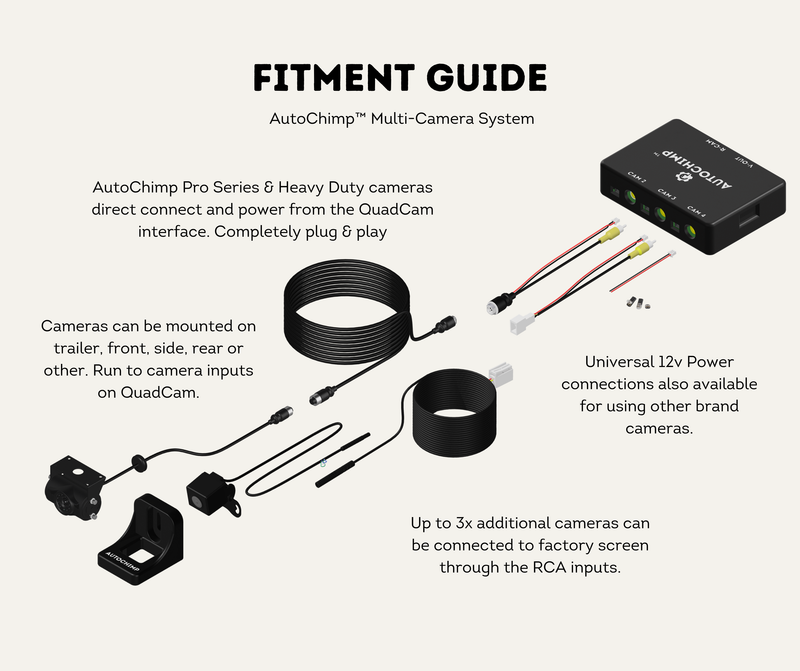

- AC-HEAVY-CAM-4PIN – adapter lead for 4-pin aviation camera systems, heavy-duty monitors, and AutoChimp™ multi-camera platforms

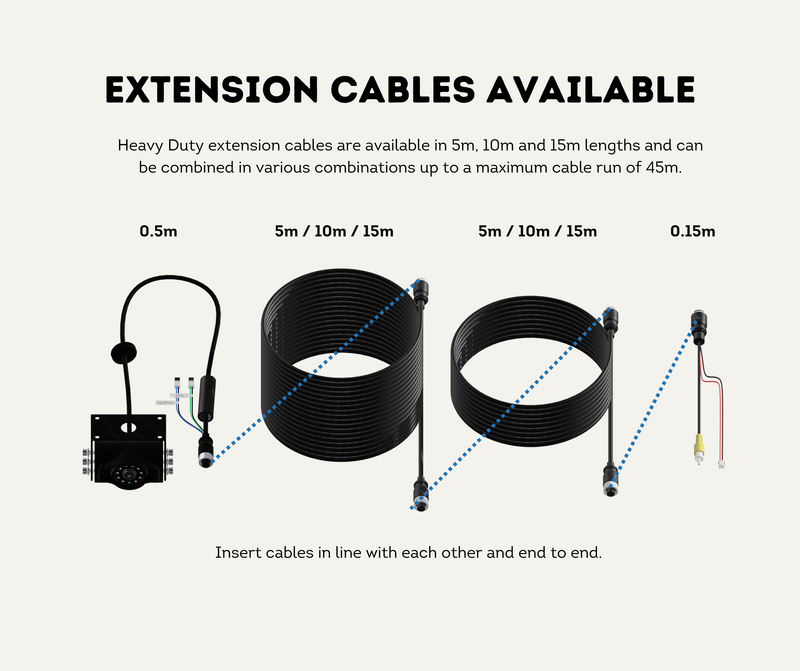

- Extension leads available separately for custom vehicle setups
Camera Specifications

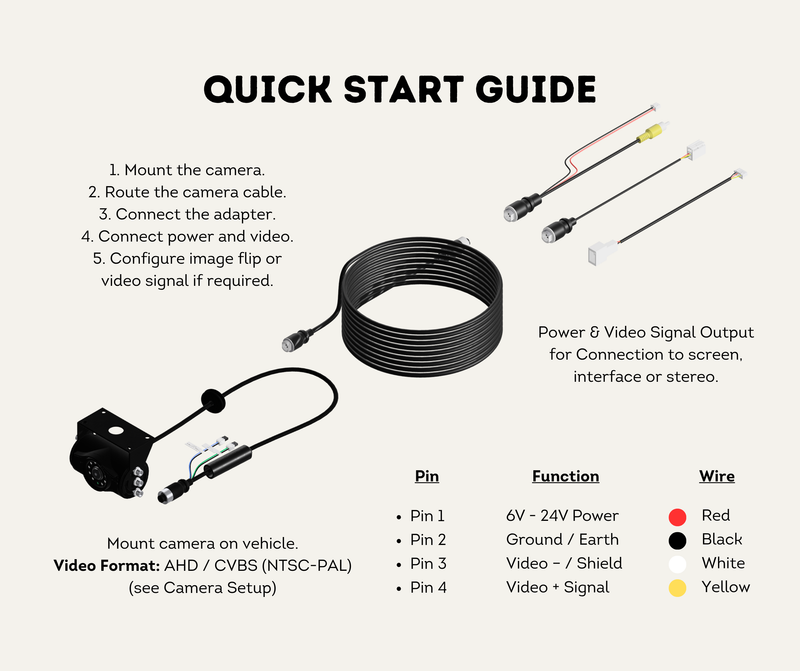

- Operating Voltage: 6V–24V DC
- Night Vision: IR LEDs + IR Cut
- Video Output: AHD / CVBS jumper selectable
- CVBS Standard: NTSC / PAL auto switching
- Image Orientation: Mirror / Normal selectable via green jumper
- Housing Finish: Matte Black Electro-Coated
- Lens Design: Forward-staged lens for reduced glare
- Mounting Hardware: 6x stainless hex fixers + 4x self-tapping screws included
- Cable: Fixed 0.5m lead

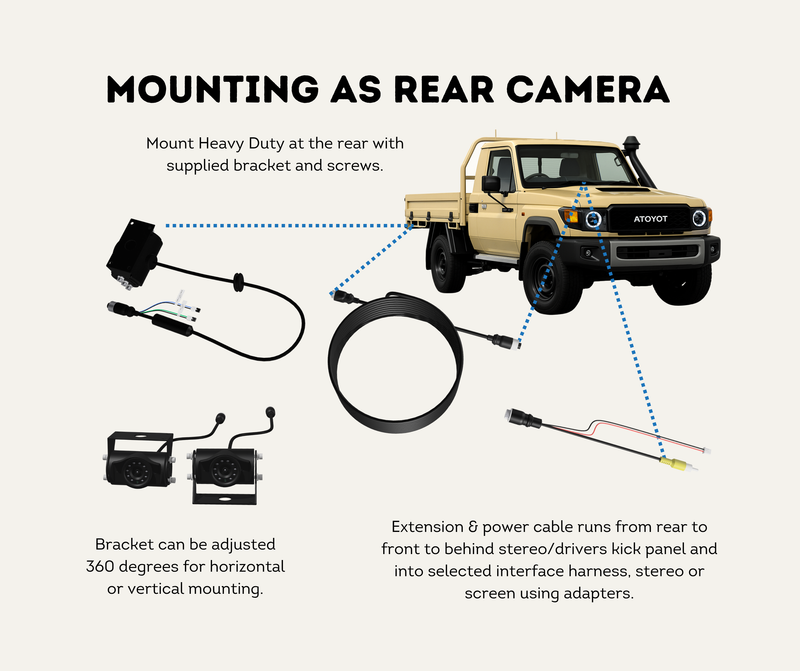

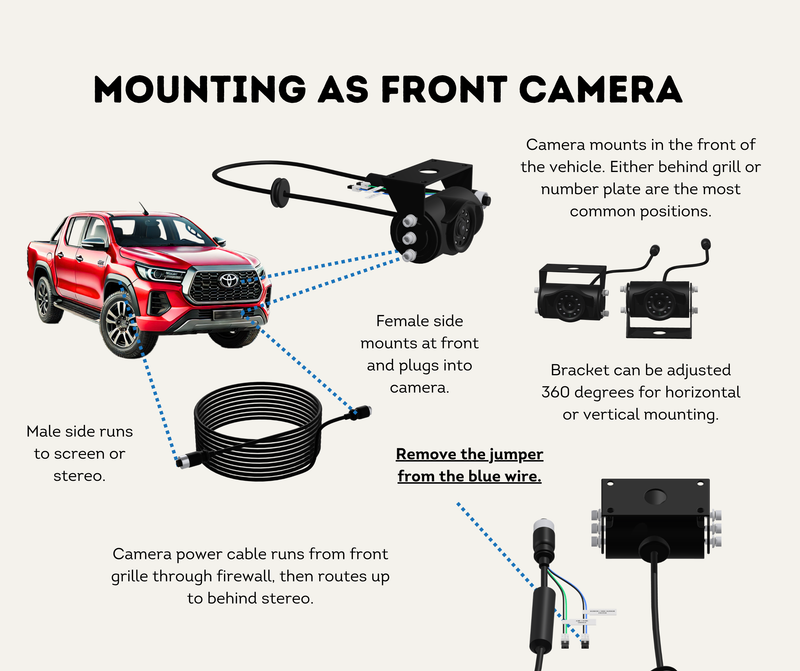

- Application: Reverse camera or front camera configuration
Why Choose AutoChimp™ Heavy Duty?
This updated Heavy Duty camera is designed for customers who need more than a standard universal camera. With wider voltage support, better video-format flexibility, selectable image mode, stronger mounting hardware, and improved day/night performance, it is built for real-world vehicle installations where reliability matters.

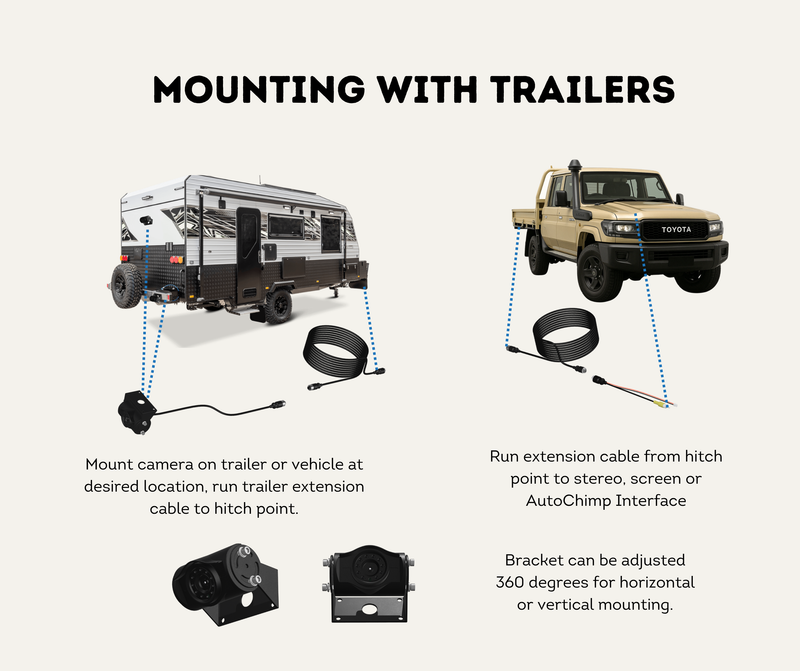

Ideal for trailers, fleet vehicles, work vehicles, towing setups, 4WD touring, agricultural vehicles, and custom multi-camera systems.
