AutoChimp™ Reverse Camera Kit for Toyota LandCruiser 70 Series (2014–2023)

SKU: AC-TOY-RC7

Fits: The pre-facelift Toyota LandCruiser 70 Series with a factory stereo — 2014 to early 2023. Single Cab, Double Cab, Wagon and Troop Carrier, in Workmate, GX and GXL variants. Automatic and manual.

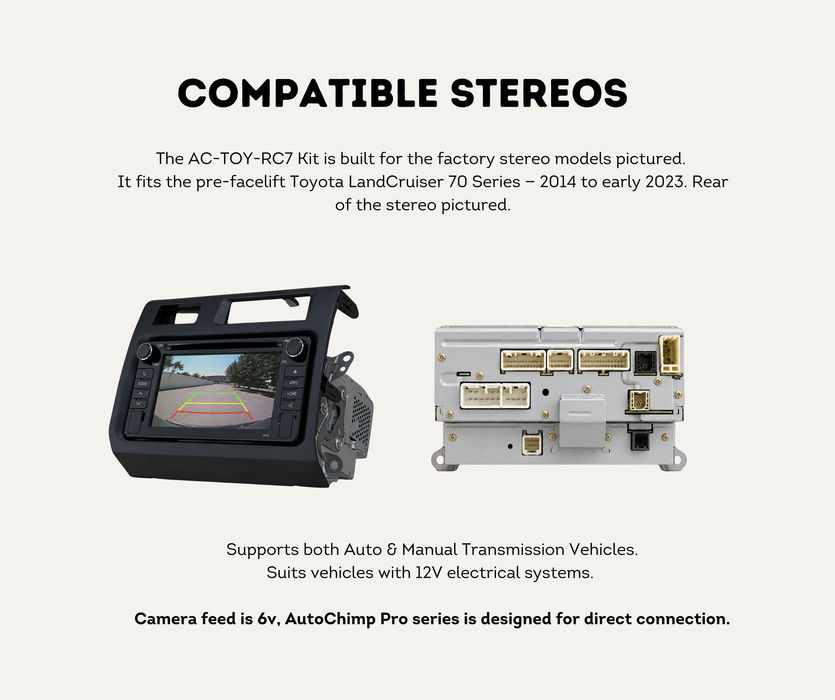

Check the Compatible Stereos and Compatible Vehicles images against your dash before ordering. If your 70 Series is the facelift — mid-2023 onwards — you need AC-TOY-RC8-RC9 instead.

Which 70 Series Kit Do I Need?

Go by the build date, not the plate — Toyota's 70 Series facelift reached Australia mid-2023 and sells as a 2024 model year onwards.

Every kit comes in two camera grades. Pro Series is the standard camera. Heavy Duty is the commercial-grade upgrade for trays, canopies and hard-worked vehicles — same harnesses, same installation.

How It Works

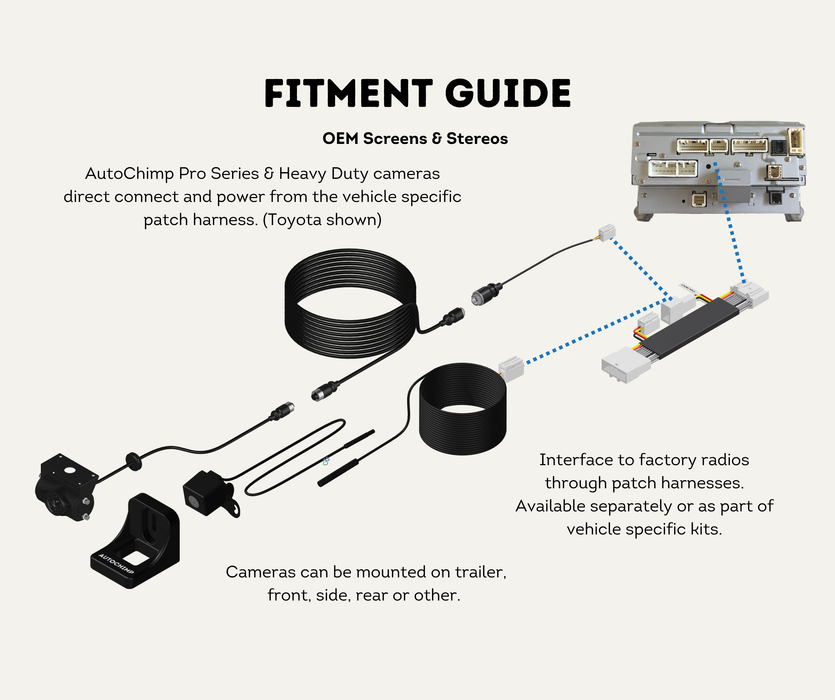

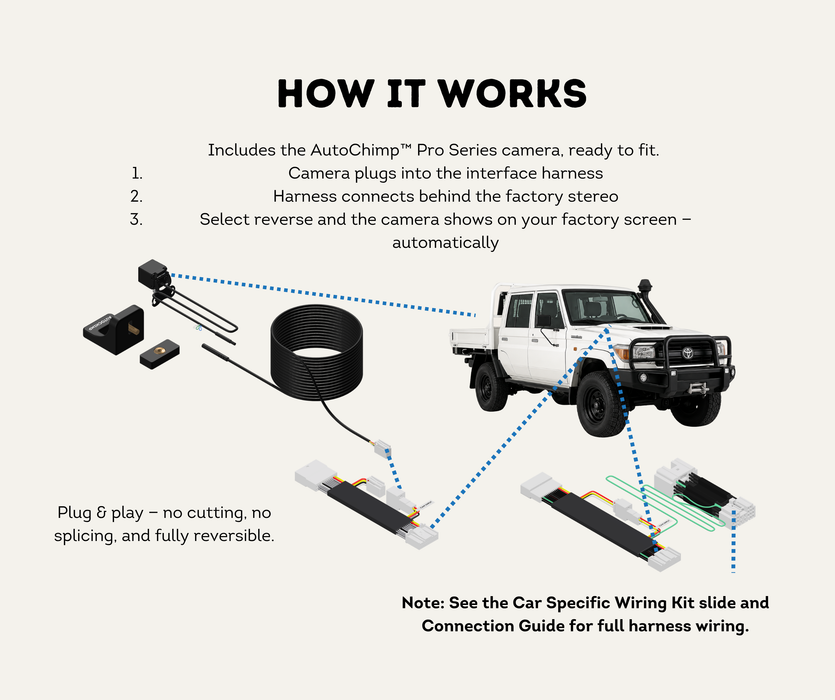

Includes the AutoChimp™ Pro Series camera, ready to fit. The camera plugs into the interface harness, the harness connects behind the factory stereo, and selecting reverse brings the camera up on your factory screen automatically.

Plug & play — no cutting, no splicing, and fully reversible.

Car Specific Wiring Kit

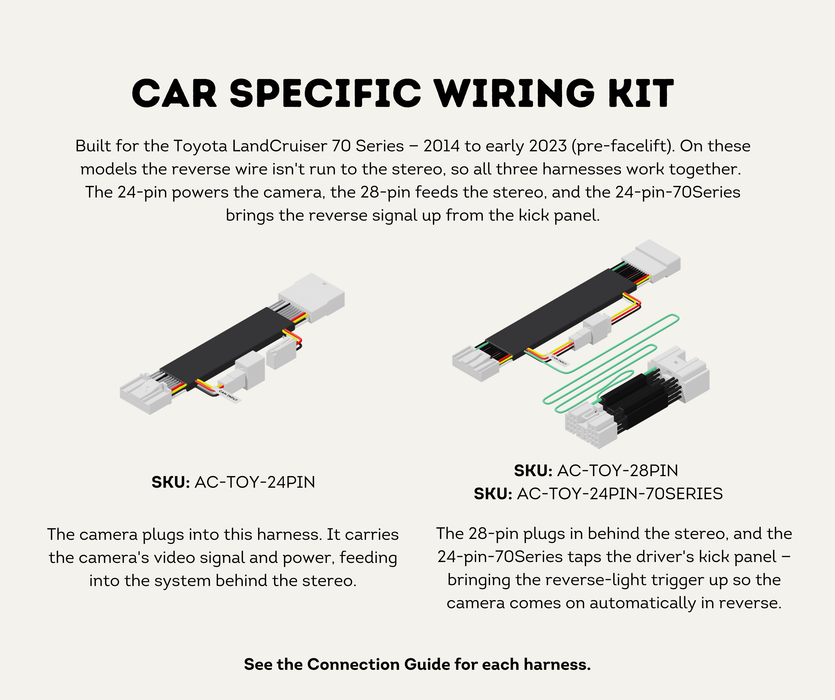

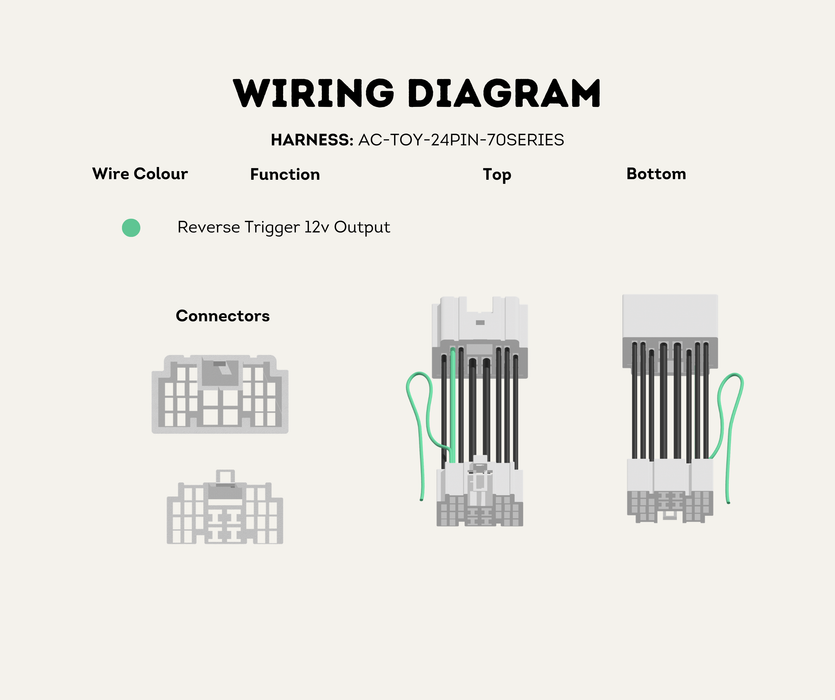

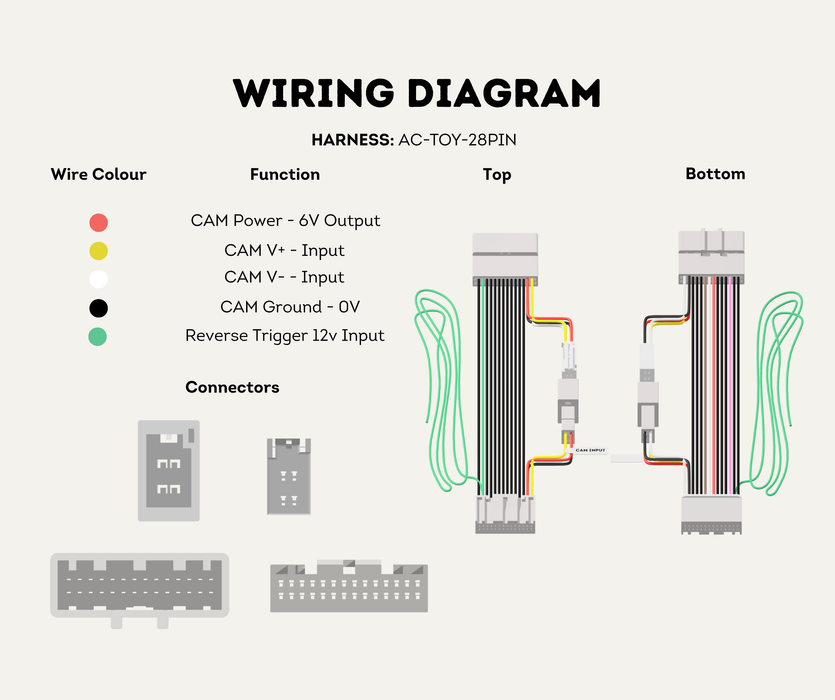

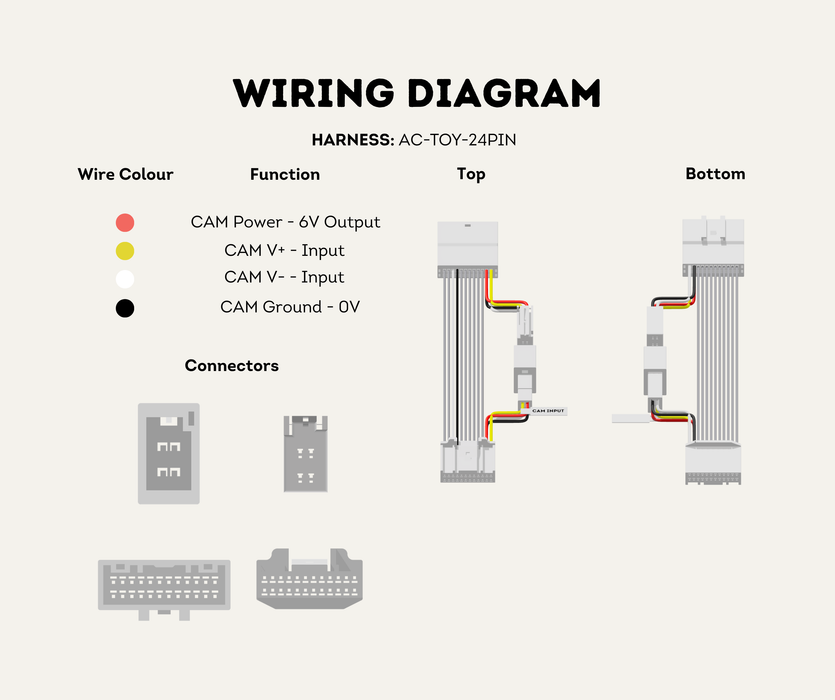

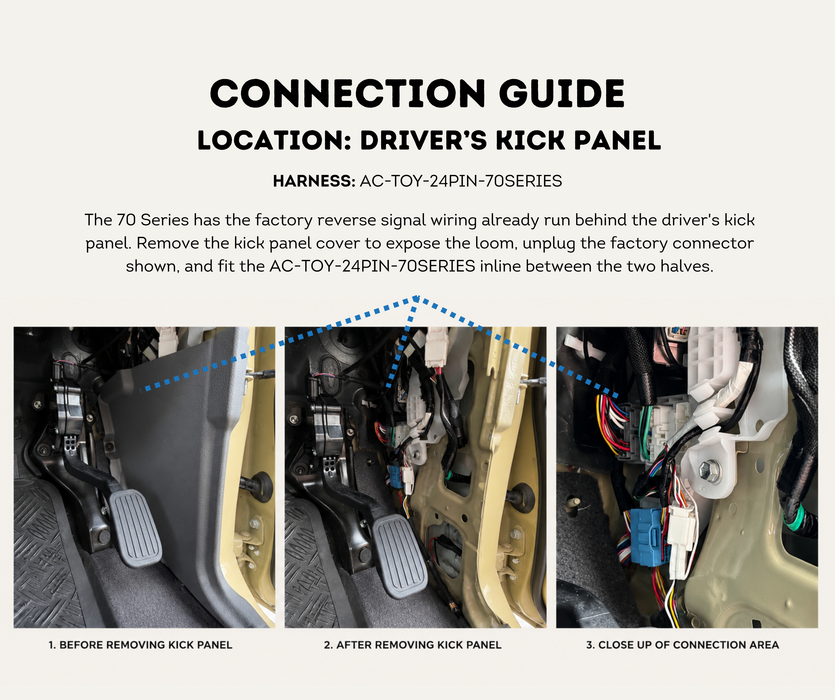

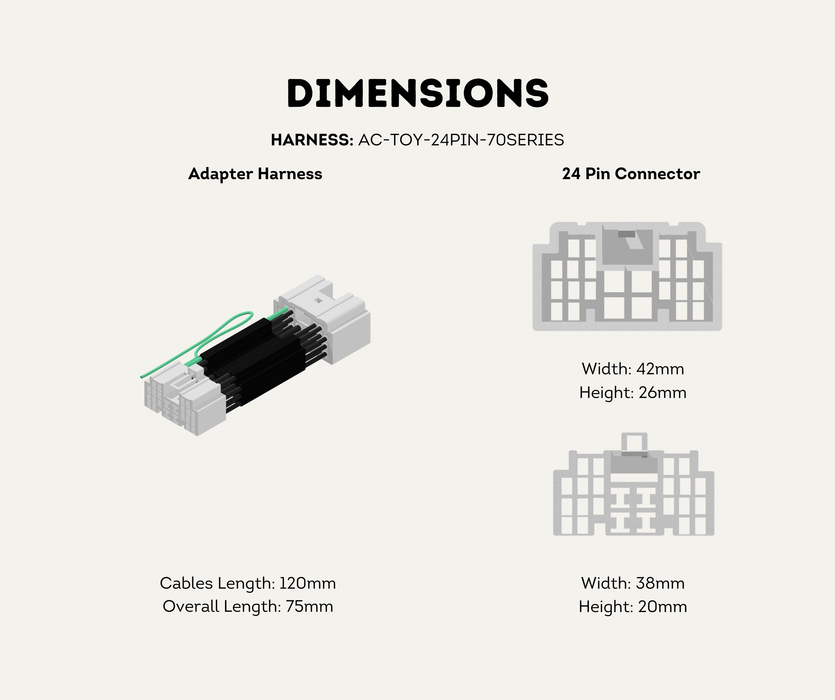

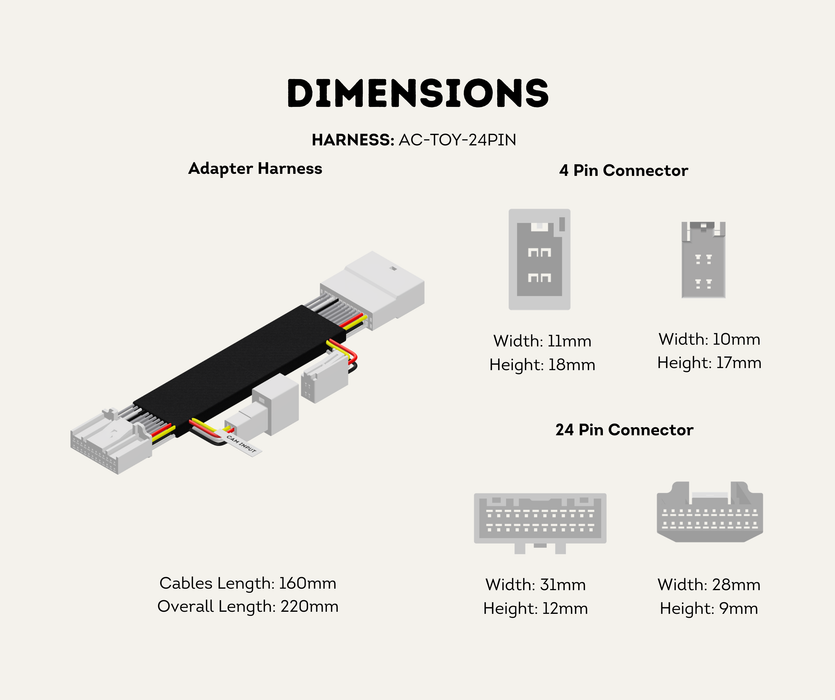

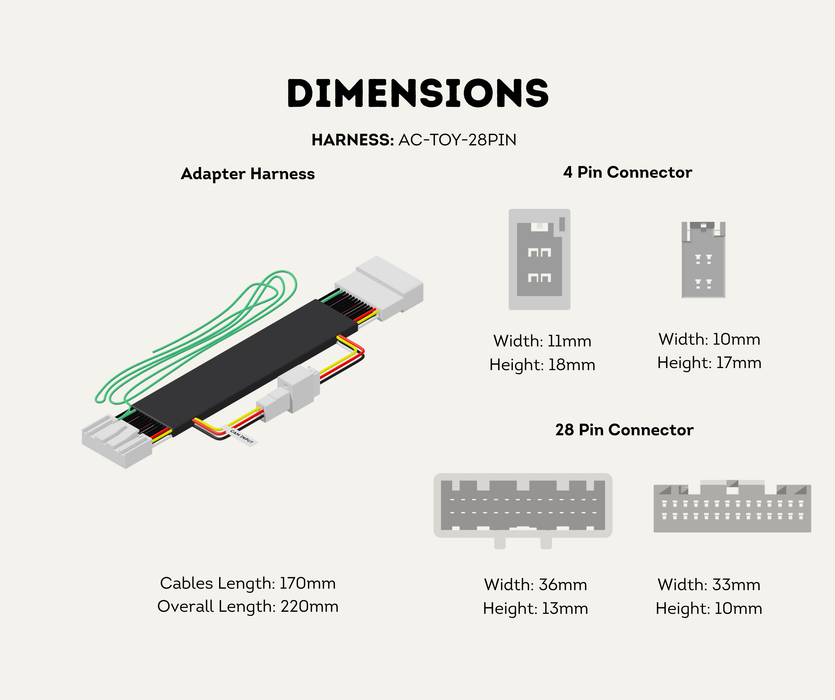

Built for the Toyota LandCruiser 70 Series — 2014 to early 2023 (pre-facelift). On these models the reverse wire isn't run to the stereo, so all three harnesses work together. The 24-pin powers the camera, the 28-pin feeds the stereo, and the 24-pin-70Series brings the reverse signal up from the kick panel.

Harness Install Locations

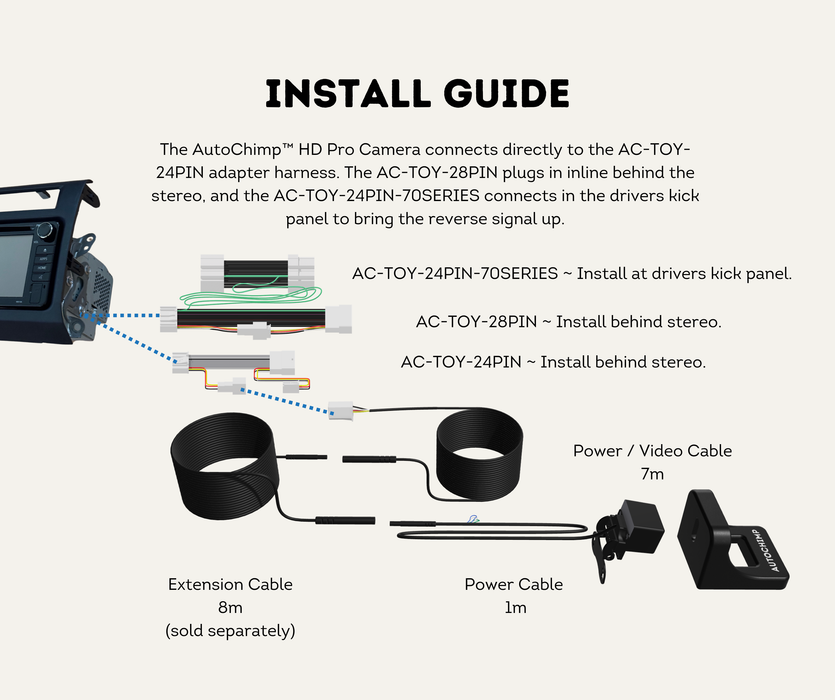

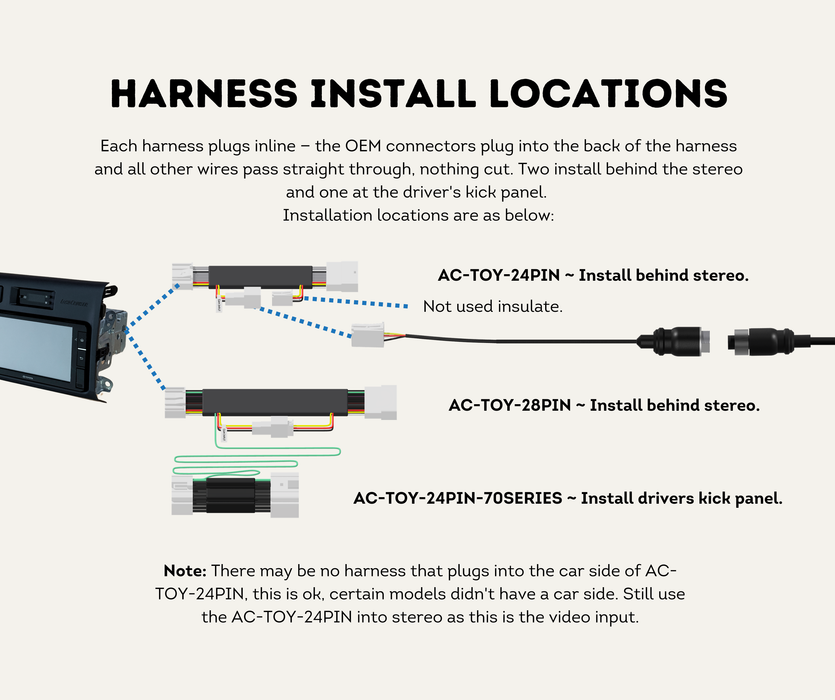

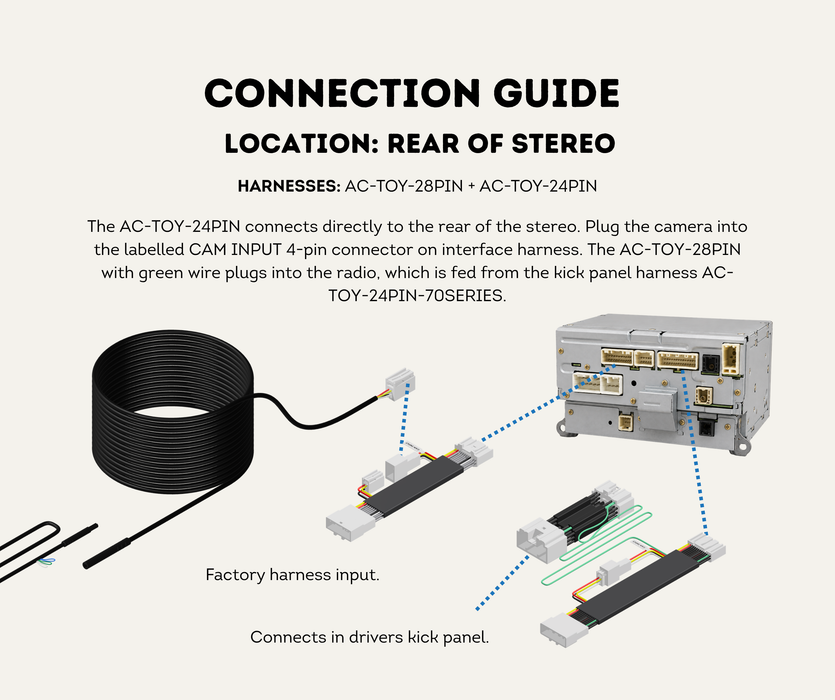

Each harness plugs inline — the OEM connectors plug into the back of the harness and all other wires pass straight through, nothing cut. Two install behind the stereo and one at the driver's kick panel.

Note: There may be no harness that plugs into the car side of the AC-TOY-24PIN. This is fine — certain models didn't have a car side. Still fit the AC-TOY-24PIN into the stereo, as this is the video input.

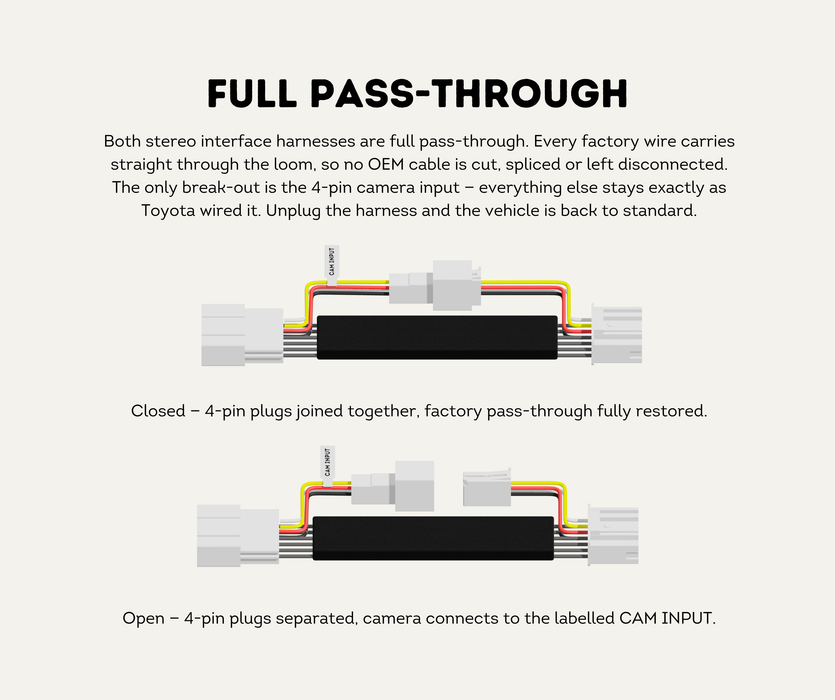

Full Pass-Through

Both stereo interface harnesses are full pass-through. Every factory wire carries straight through the loom, so no OEM cable is cut, spliced or left disconnected. The only break-out is the 4-pin camera input — everything else stays exactly as Toyota wired it. Unplug the harnesses and the vehicle is back to standard.

Key Features

• All Three Harnesses Included – AC-TOY-24PIN, AC-TOY-28PIN and AC-TOY-24PIN-70SERIES supplied together. Nothing else to buy.
• Plug & Play Factory Integration – No cutting, no splicing, no dealer programming. The camera switches on automatically when you select reverse.
• Full Pass-Through Design – Every OEM circuit carries straight through the interface harnesses, so the vehicle behaves exactly as it did before.

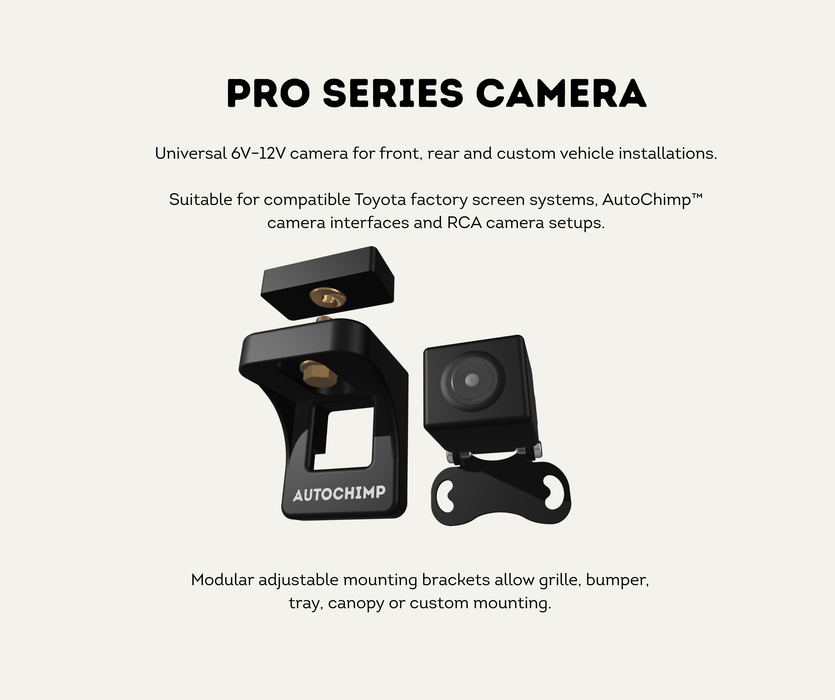

• Pro HD Camera – Compact metal-housed camera with a sealed waterproof plug-in connector for a cleaner, more reliable install.

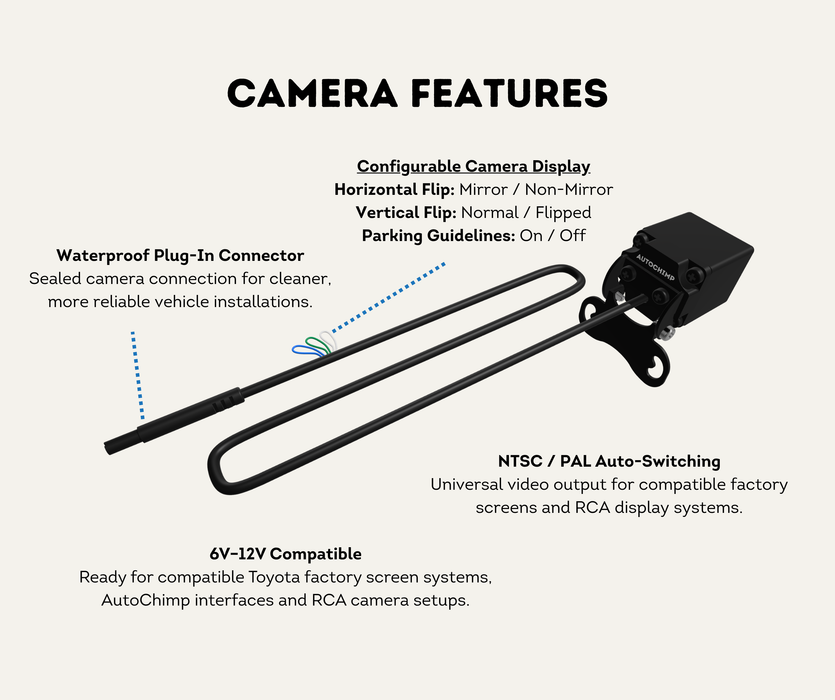

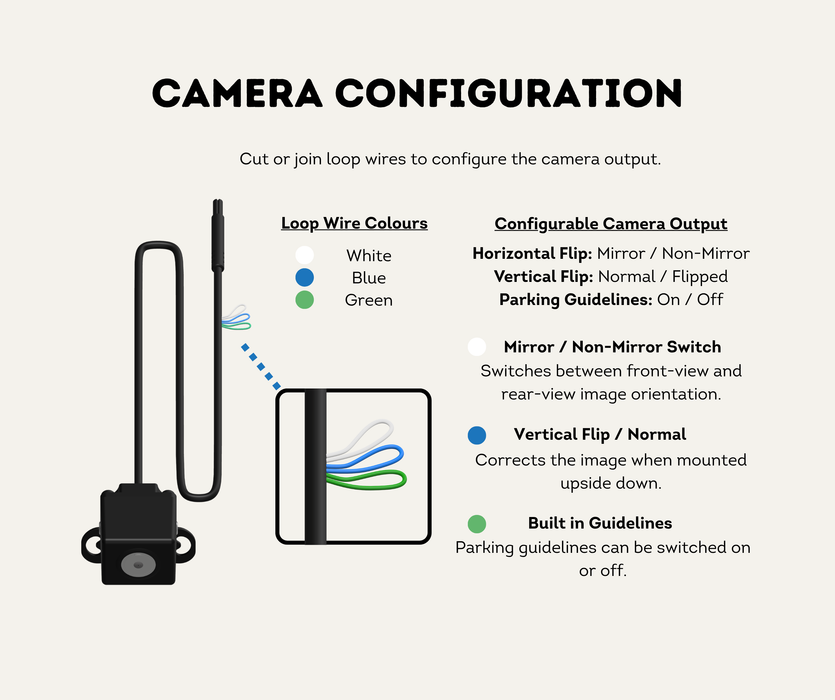

• Configurable Camera Output – Horizontal flip (mirror / non-mirror), vertical flip (normal / flipped) and parking guidelines on or off, set with the camera's loop wires.

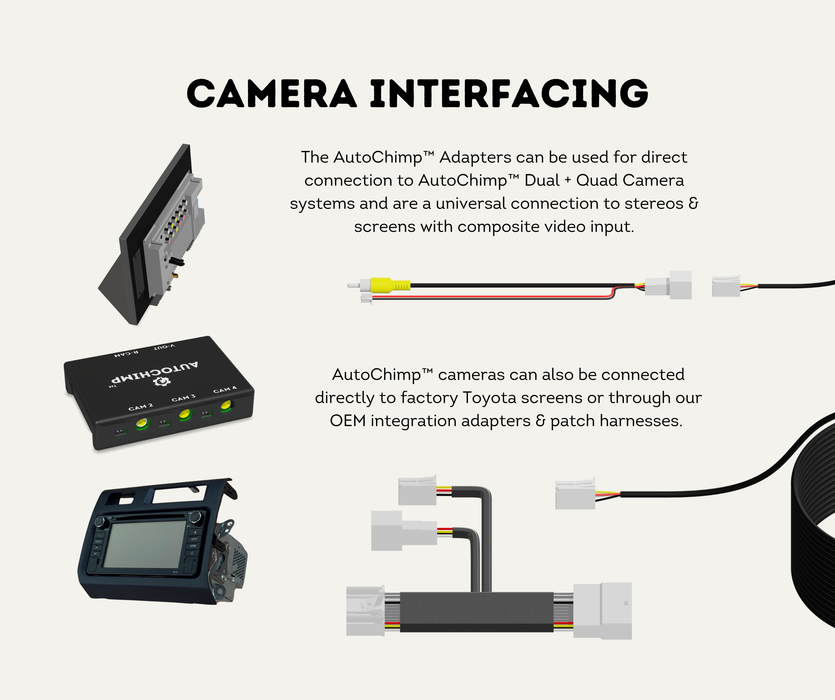

• NTSC / PAL Auto-Switching – Universal video output for compatible factory screens and RCA display systems.

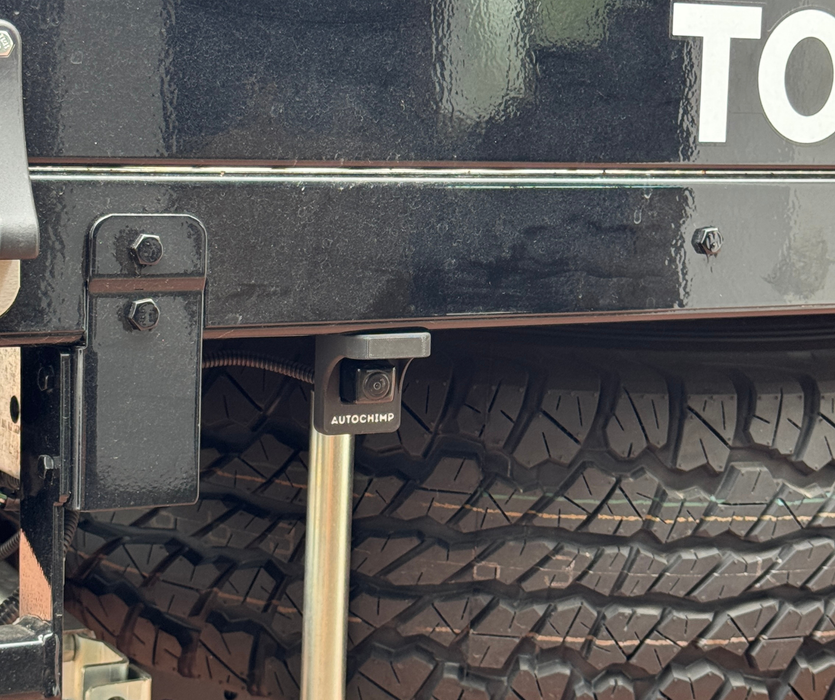

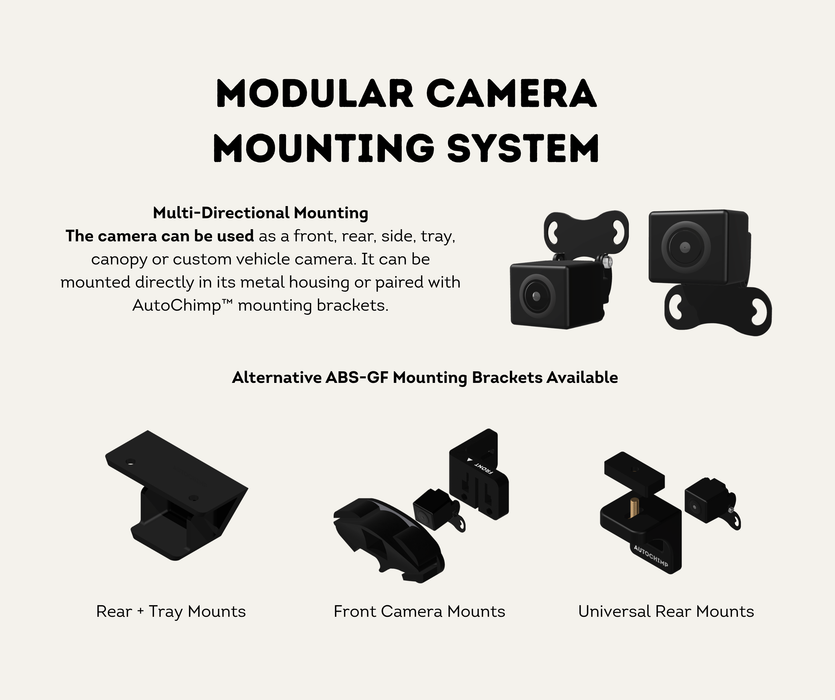

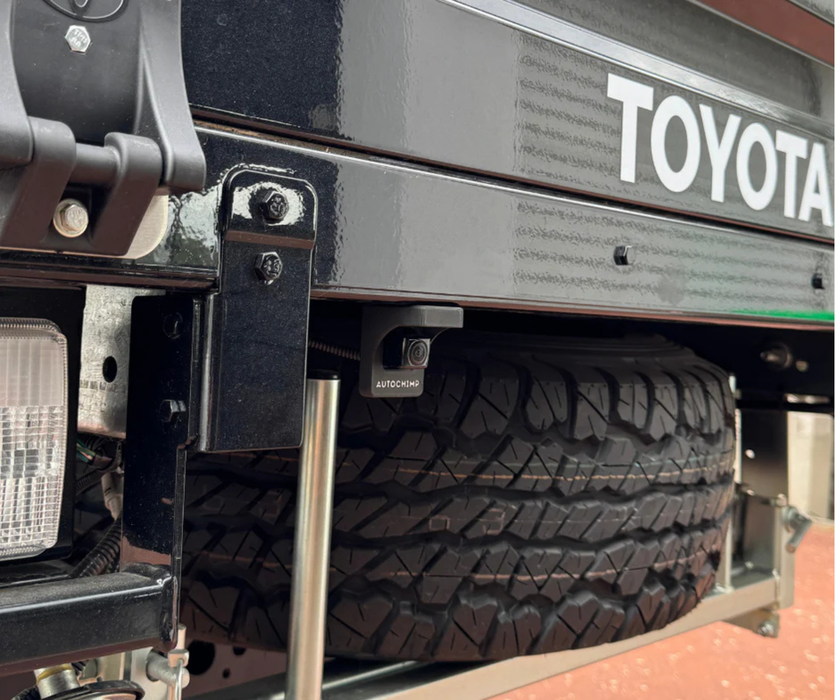

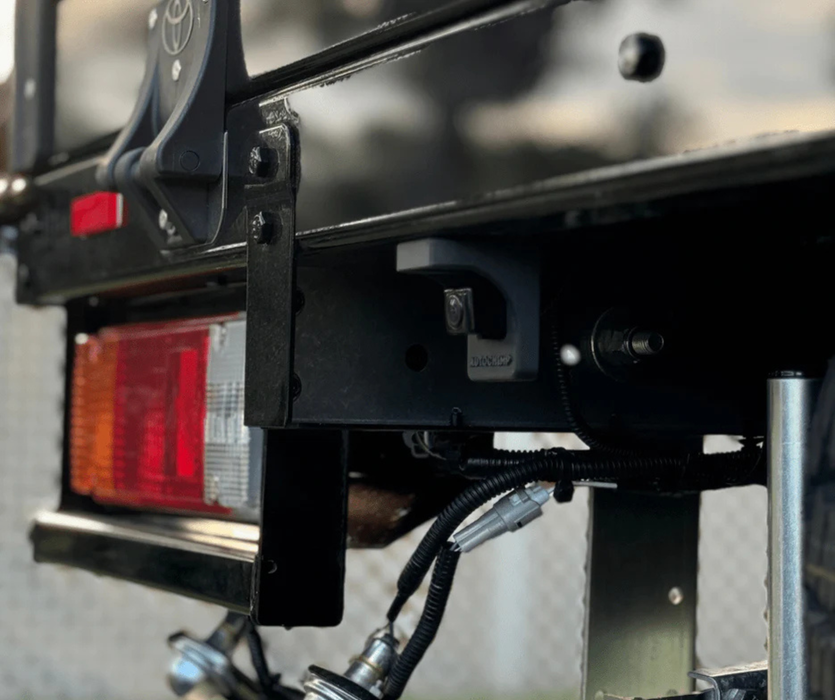

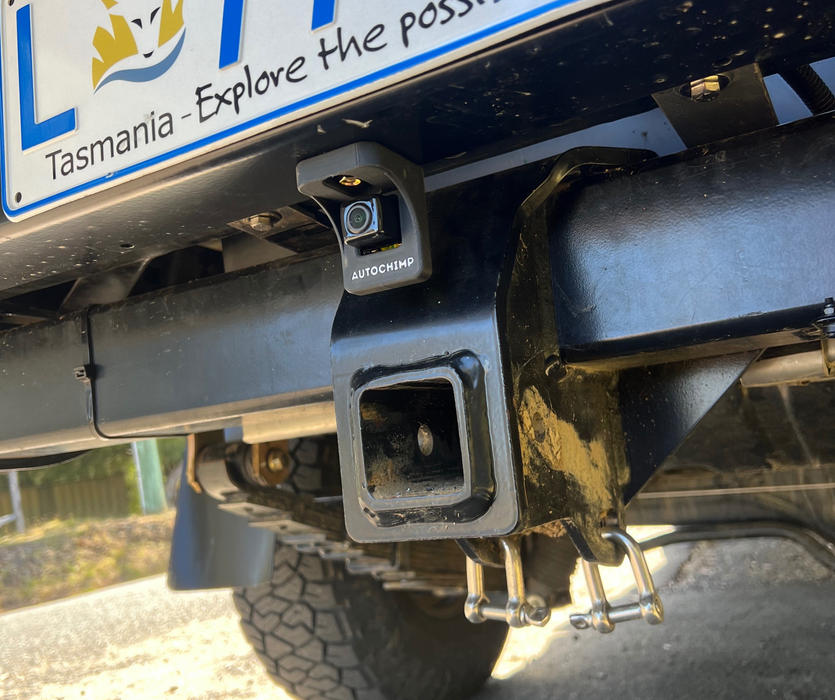

• Modular Camera Mounting System – Mount the camera in its metal housing directly, or pair it with AutoChimp™ rear, tray, front or universal brackets.
• DIY Friendly – Step-by-step PDF instructions via the QR code on the pack.
• Built for Australian Conditions – IP67 waterproof and dustproof, rated -30°C to +80°C.
• Fully Reversible – Unplug the harnesses and the vehicle is back to standard.

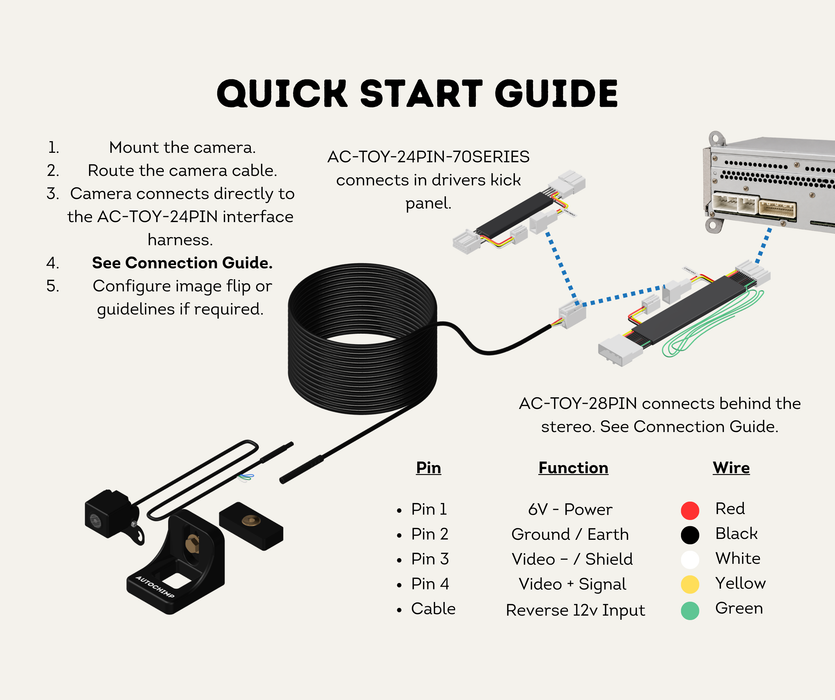

Quick Start Guide

• Mount the camera.
• Route the camera cable.

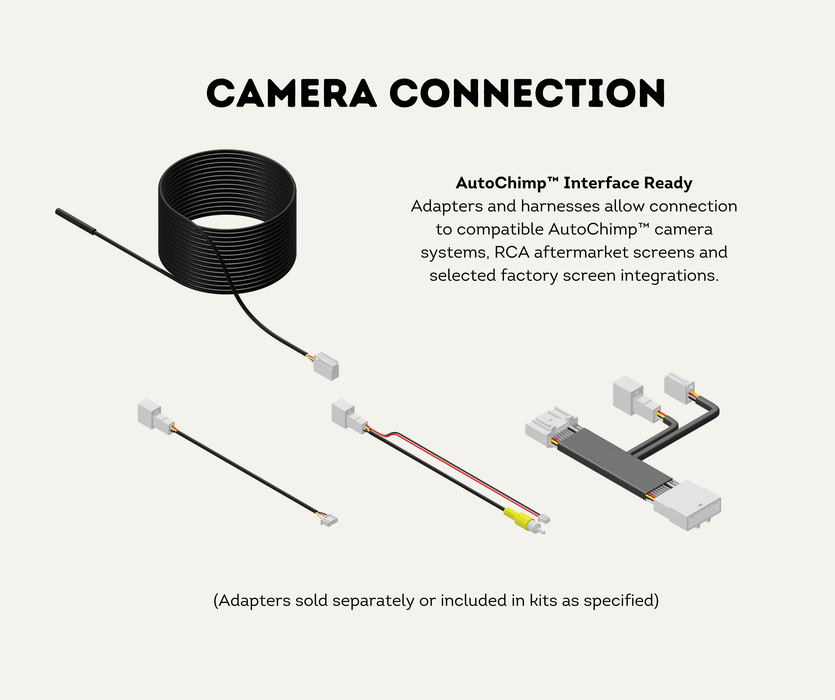

• Camera connects directly to the AC-TOY-24PIN interface harness.

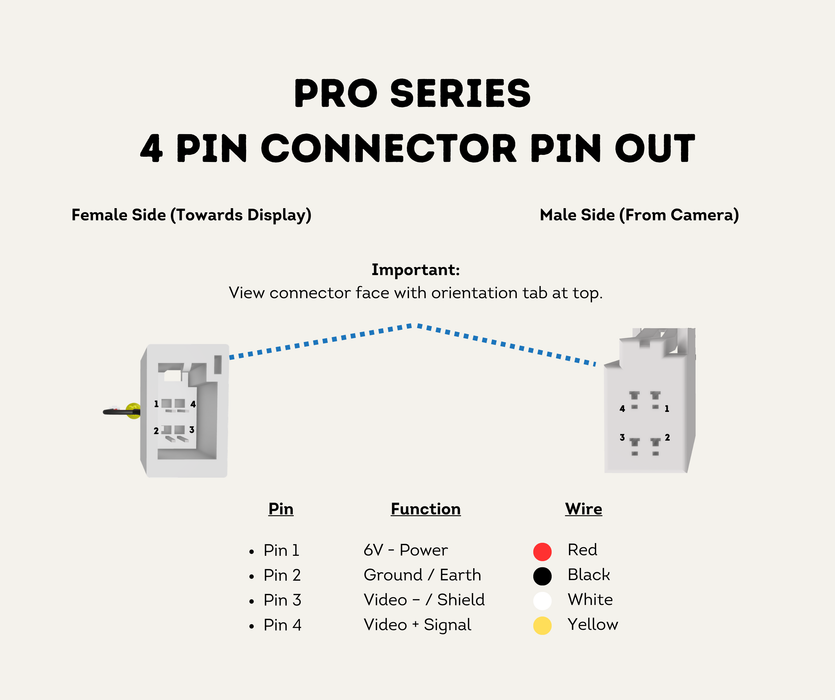

• See Connection Guide.
• Configure image flip or guidelines if required.

Compatibility

• Toyota LandCruiser 70 Series pre-facelift — 2014 to early 2023
• Single Cab, Double Cab, Wagon and Troop Carrier
• Workmate, GX and GXL variants
• Supports both automatic and manual transmission vehicles
• Suits vehicles with 12V electrical systems
• Factory stereo required

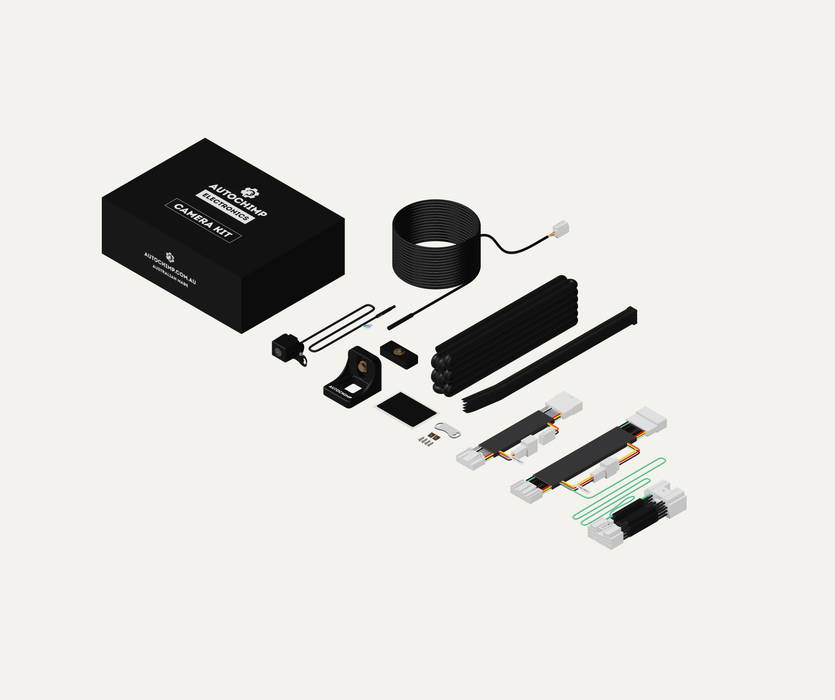

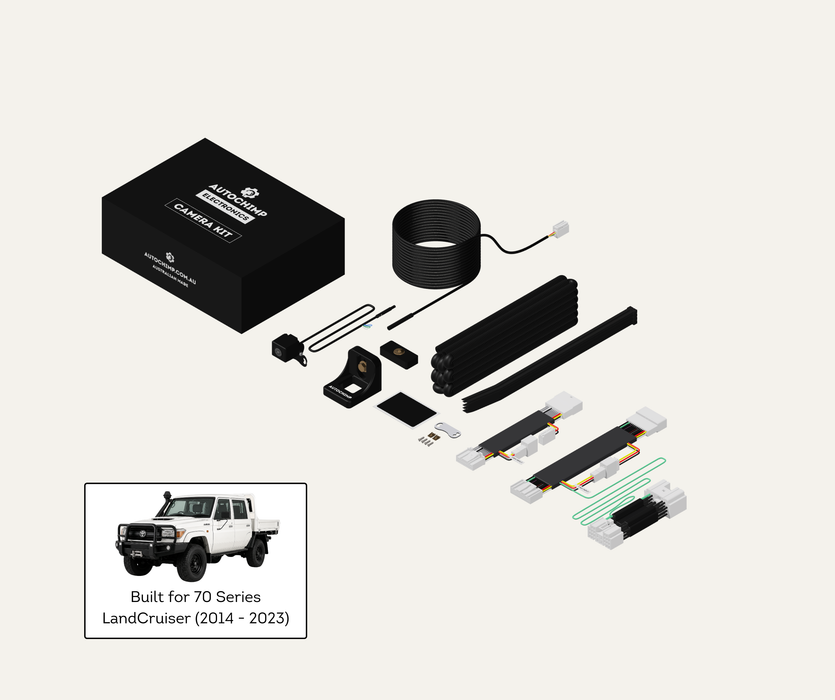

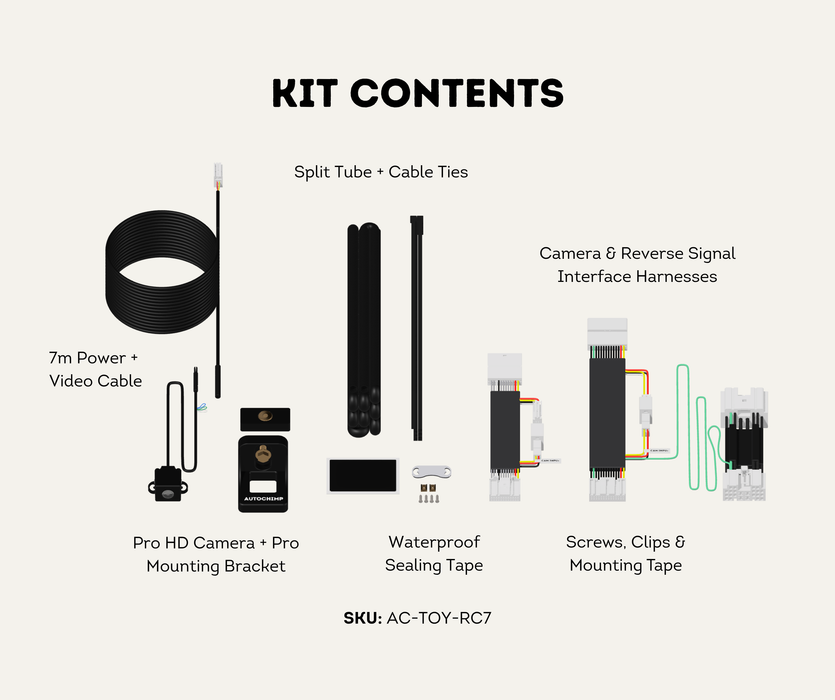

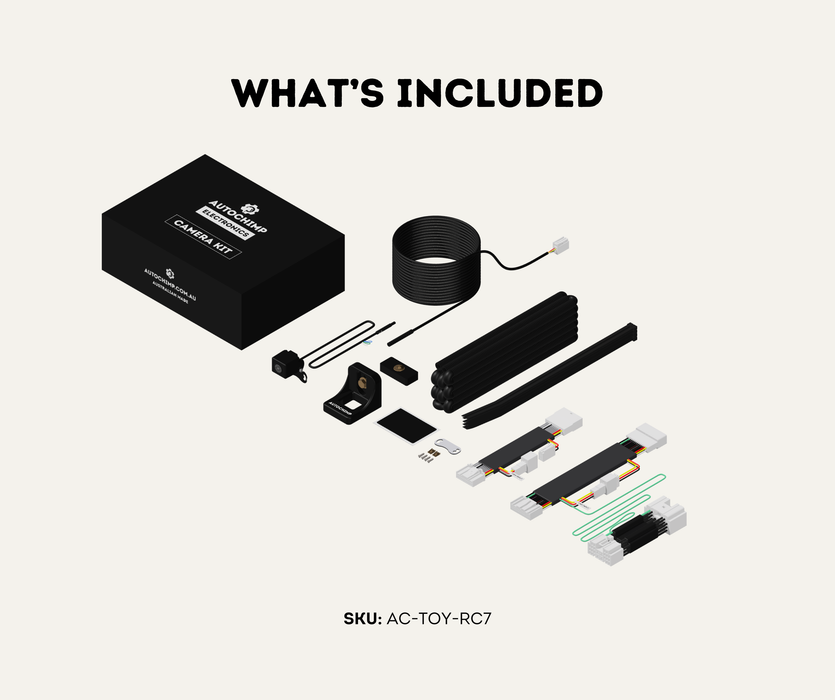

Kit Contents

• Pro HD Camera + Pro Mounting Bracket
• 7m Power + Video Cable
• Camera & Reverse Signal Interface Harnesses (AC-TOY-24PIN, AC-TOY-28PIN, AC-TOY-24PIN-70SERIES)
• Waterproof Sealing Tape
• Split Tube + Cable Ties
• Screws, Clips & Mounting Tape

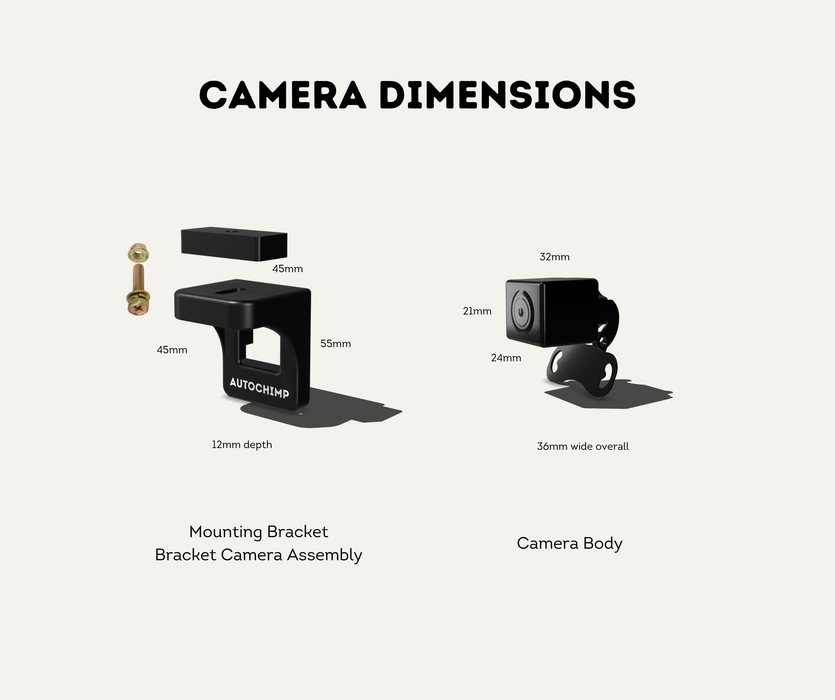

Technical Specifications

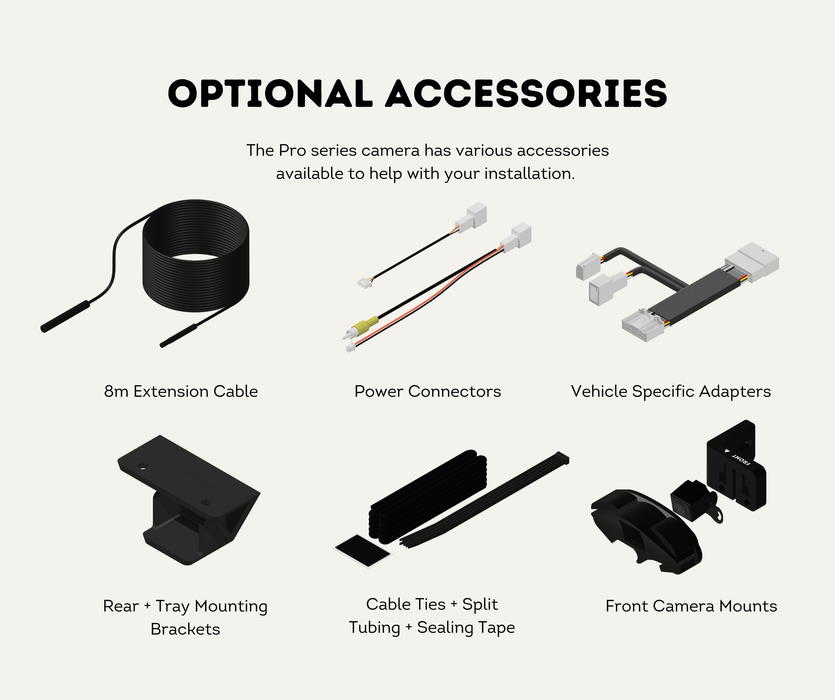

Optional Accessories

• 8m Extension Cable
• Power Connectors

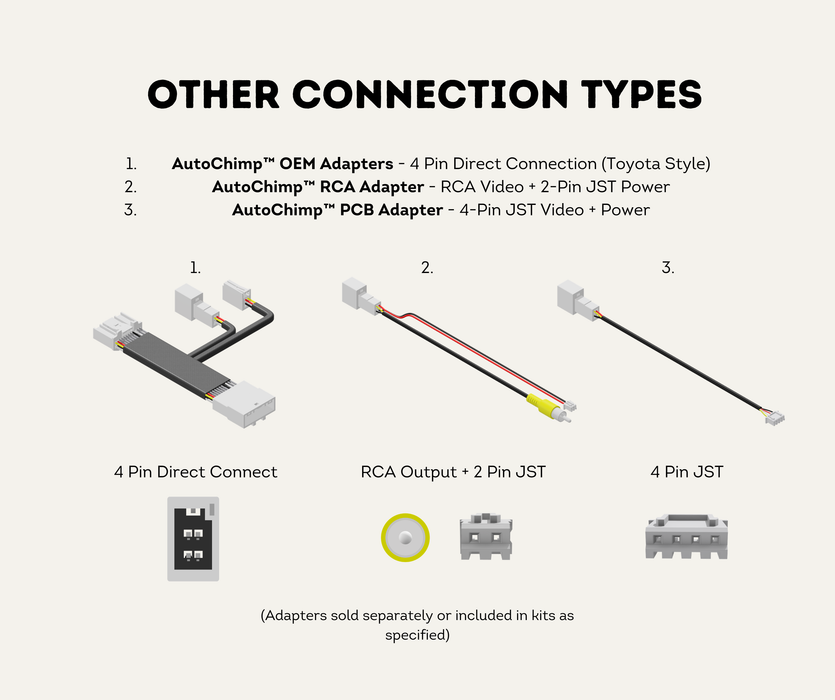

• Vehicle Specific Adapters
• Rear + Tray Mounting Brackets
• Front Camera Mounts
• Cable Ties + Split Tubing + Sealing Tape
• AutoChimp™ Tool Kit — recommended for DIY installation
• AutoChimp™ Cloth Tape — for a professional wiring finish
