AutoChimp™ Quad Camera Kit for Toyota Hilux (2020–2025) | Plug & Play 4-Camera Integration
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
✅ Factory Screen Check: This product is designed to work with your vehicle's original factory screen. Running an aftermarket head unit or stereo? This listing isn't the right fit — check our universal camera range instead, or contact us and we'll point you to the correct setup.
AutoChimp™ Quad Camera Kit for Toyota Hilux (2020–2025) | Full System with Dual Switch Control
SKU: AC-QUAD-HILUX-2020
Compatible With: AutoChimp™ QuadCam System | Factory Stereo Integration

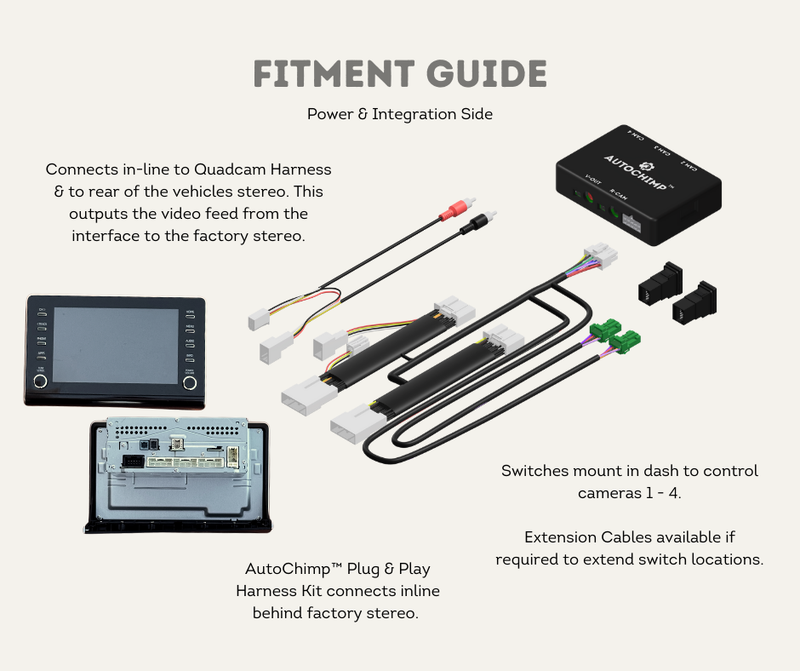

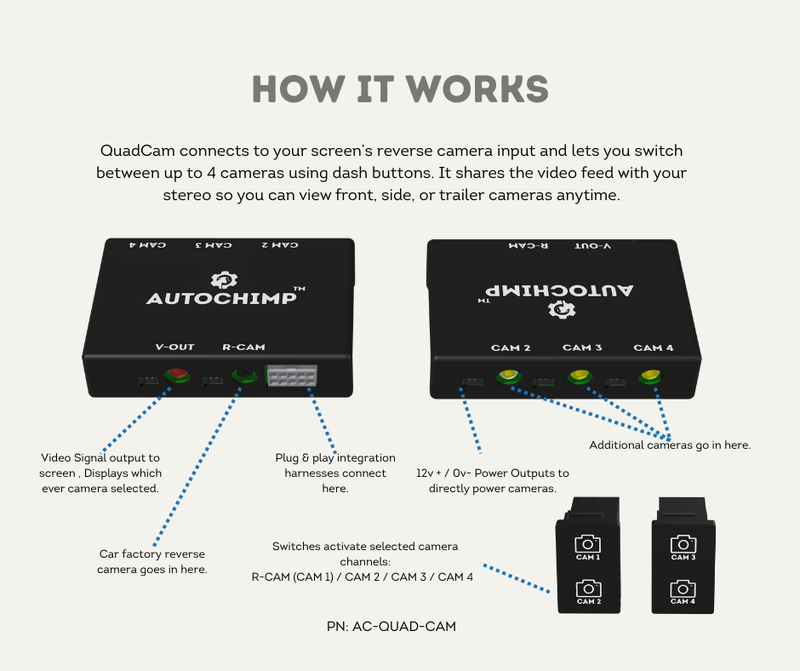

The AutoChimp™ Quad Camera Kit for Toyota Hilux (2020–2024) is a complete plug & play solution for adding up to four selectable cameras to your factory stereo. Powered by the AutoChimp™ QuadCam system, this kit enables seamless switching between front, rear, trailer, and side cameras via factory-style dual-button switches mounted in the dashboard.

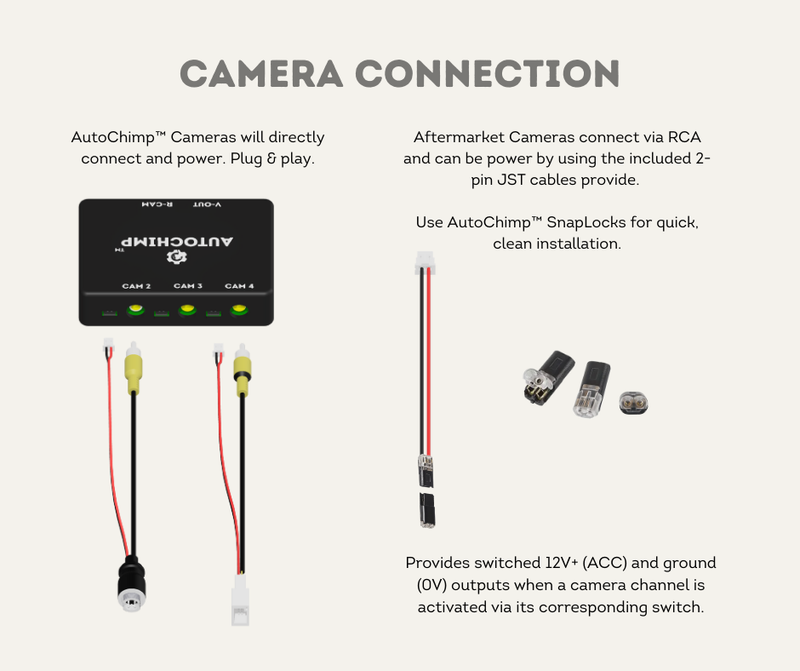

This updated kit includes 3x JST 2-Pin Male power cables for clean 12V power delivery to your cameras, as well as 3x SnapLock™ tap connectors to make installation fast, secure, and solder-free. It’s the perfect solution for 4x4 drivers, tourers, and tradies looking to upgrade safety and visibility — with zero coding, cutting, or dealer tools required.
Key Features
-

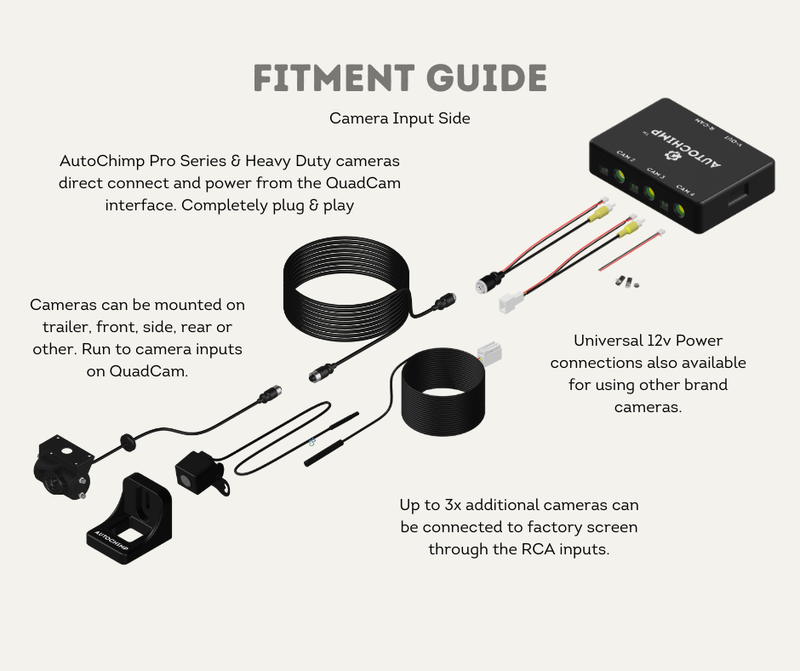

Add up to Four Cameras – Front, rear, trailer, or side views
-

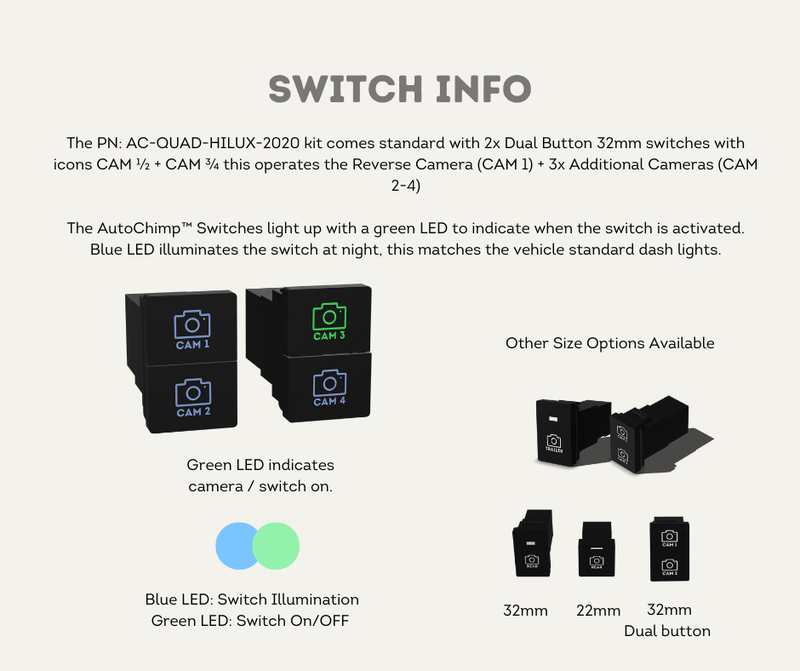

Dual Button Switch Control – Two factory-style switches: CAM 1/2 and CAM 3/4
-
LED Switches – Blue LED backlight with green indicators to show active camera
-
Built-in Camera Power Output – 12V regulated camera feeds via JST 2-pin
-

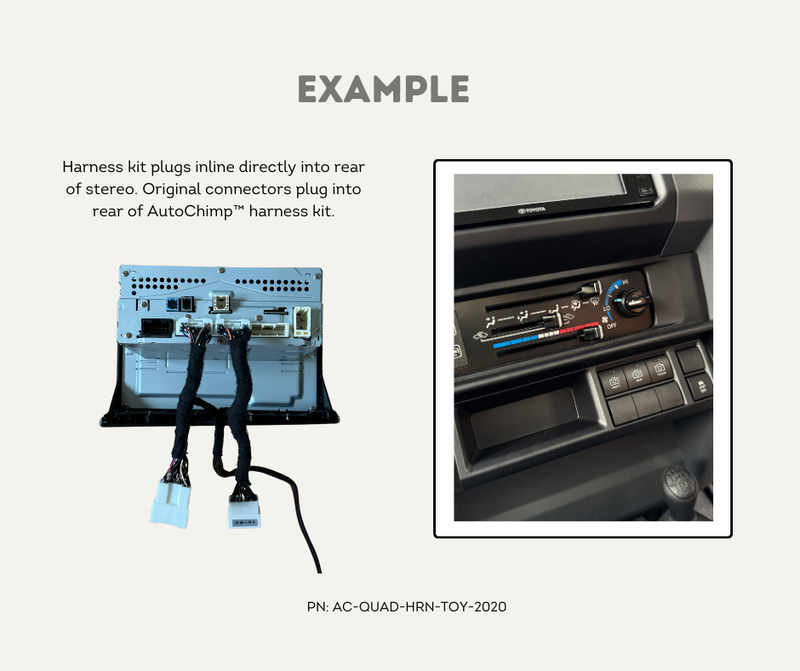

Plug & Play Vehicle-Specific Harness – No cutting, no coding, 100% reversible
-
Works with Any RCA Camera – Compatible with AutoChimp Pro HD, Heavy Duty, Safety Dave, and OEM
-
No App or Bluetooth Required – Wired reliability with selectable control
Vehicle Compatibility
-
Toyota Hilux (2020–2024)
-
SR, SR5, Rogue, Rugged X
-
Factory stereo with reverse camera required
-
Not compatible with 360° camera-equipped models

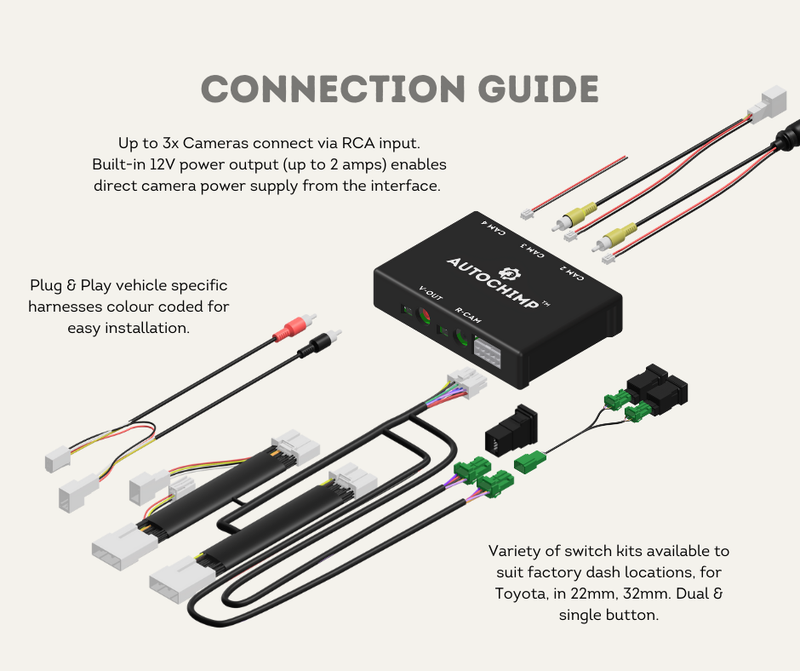

What’s Included
-

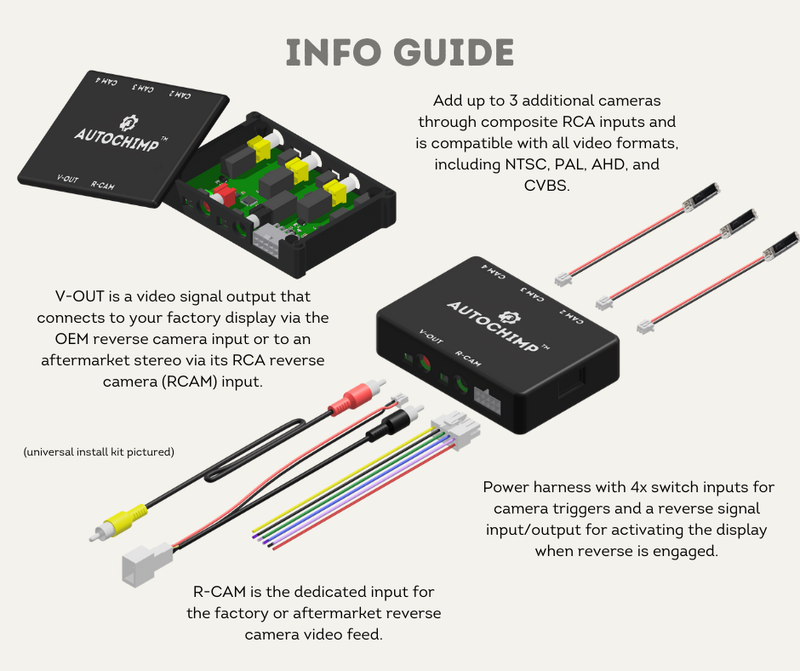

1x AutoChimp™ QuadCam PRO+ Switching Module
-

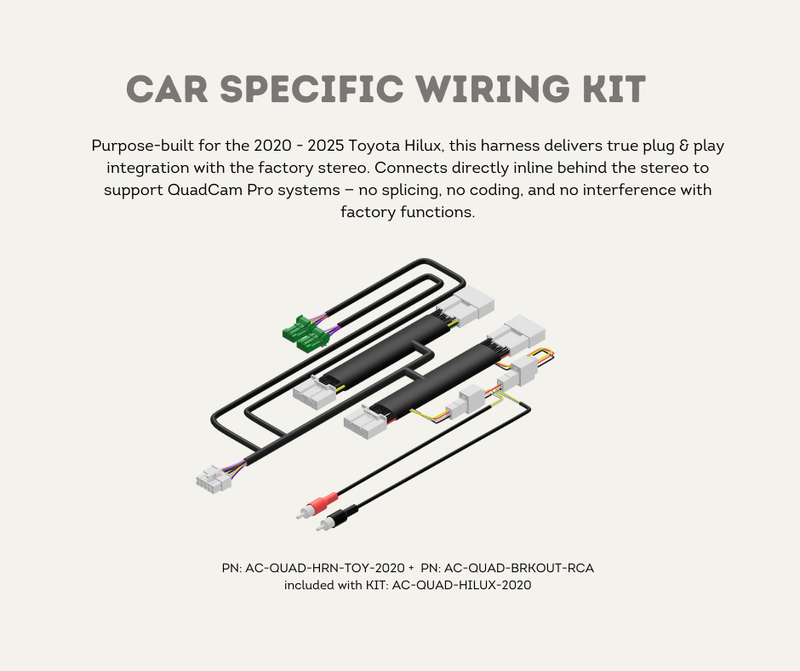

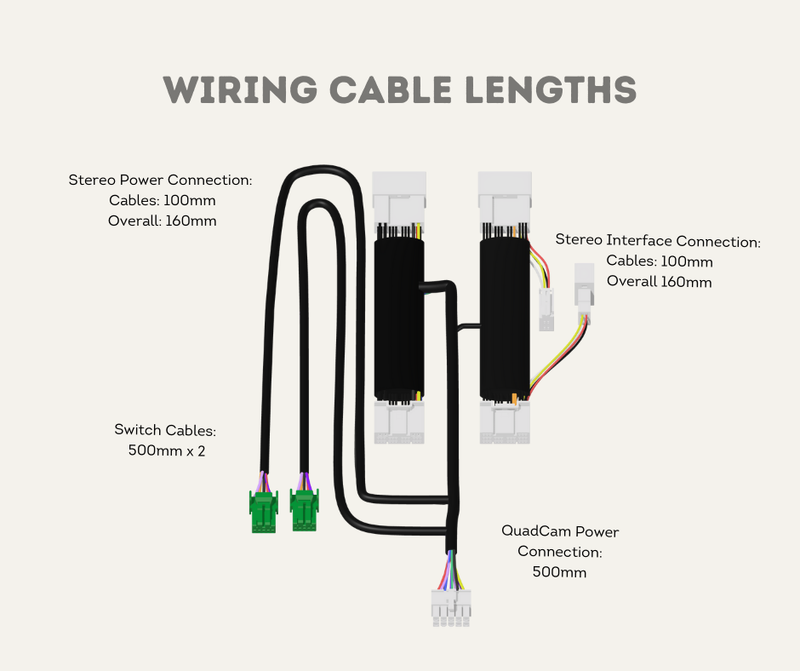

1x Vehicle-Specific Plug & Play Harness (AC-QUAD-HRN-TOY-2020)
-
1x RCA Breakout Adapter (RCAM IN / V-OUT)
-
2x Factory-Style Dual-Button Switches (CAM 1/2 & CAM 3/4 – Blue LED with green indicators)
-
3x AutoChimp™ 2-Pin JST Power Cables – 100mm (AC-JST-2PIN-M)
-
3x SnapLock™ Wire Tap Connectors
-
1x Digital Installation Guide
-
Mounting accessories as required
Technical Specifications
-
Video Format Support: NTSC, PAL, AHD, CVBS
-
Camera Power: 12V regulated output (2A max/channel)
-
Switches: Dual-button momentary, 32mm, blue backlight, green activation LED
-
JST Wire Gauge: 0.5 gauge (approx. 1.5mm thick)
-
System Power Input: 12V accessory-fed
-

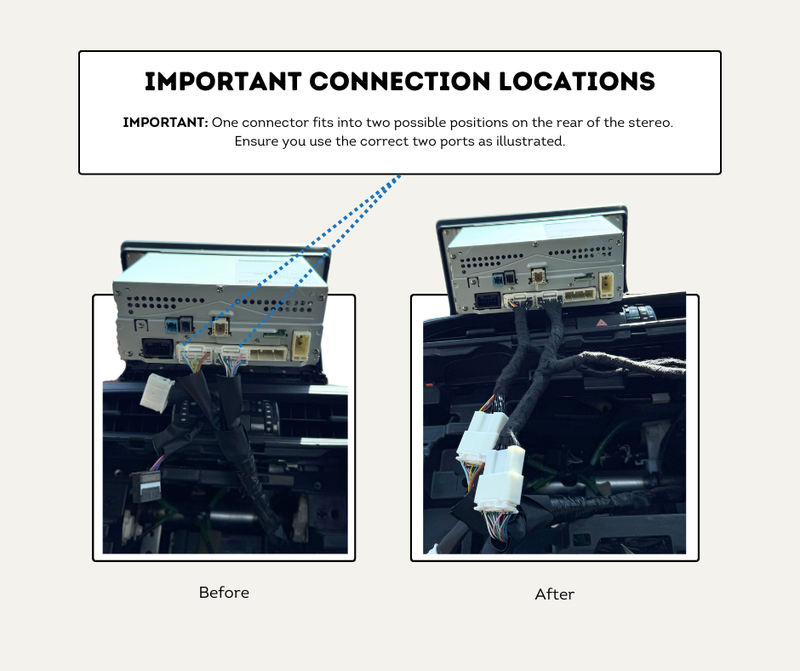

Mounting Location: Behind dash and stereo
-
Operating Temp: -30°C to +80°C
Why Choose AutoChimp™?
-
Engineered for the Hilux — fits factory dash locations
-
Expandable up to 4x cameras with independent control
-
Clean 12V camera power included — no extra wiring needed
-
Built for harsh Australian driving conditions
-
Fully reversible with no permanent modifications
