AutoChimp™ Front Camera Kit for Toyota LandCruiser 70 Series (2024–2026) | Plug & Play Grille-Mount System
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
✅ Factory Screen Check: This product is designed to work with your vehicle's original factory screen. Running an aftermarket head unit or stereo? This listing isn't the right fit — check our universal camera range instead, or contact us and we'll point you to the correct setup.
AutoChimp™ Front Camera Kit for Toyota LandCruiser 70 Series (2024–2025) | Plug & Play Grille-Mount System
SKU: AC-FRONT-70SERIES
The AutoChimp™ Front Camera Kit for Toyota LandCruiser 70 Series (2024–2025) is a complete plug & play solution for adding a front-facing camera to your vehicle without modifying the factory setup. Designed specifically for the updated 70 Series, this kit uses a press-fit grille mount for no-drill installation and includes a dash-mounted factory-style switch with white LED backlighting that matches the Toyota interior.
Powered by the AutoChimp™ QuadCam System, it integrates seamlessly with your factory reverse camera and screen, while also providing clean, selectable camera control — all upgradeable to a 4-camera setup if needed.
Key Features
• Easy Front Camera Installation – Press-fit grille mount, no drilling required
• Factory-Style Switch with White LED Illumination – Matches Toyota dash lighting
• Retains Factory Reverse Camera – No interference with OEM operation or warranty
• Fully Adjustable Mounting Bracket – Tilt, angle, and rotate for optimal view
• QuadCam System Inside – Supports up to 4 cameras, camera power, and clean signal switching
• Compatible with All Camera Types – NTSC, PAL, AHD, CVBS (OEM, AutoChimp, Safety Dave, etc.)
Vehicle Compatibility
• Toyota LandCruiser 70 Series (2024–2025 models)
• Requires factory stereo with reverse camera installed

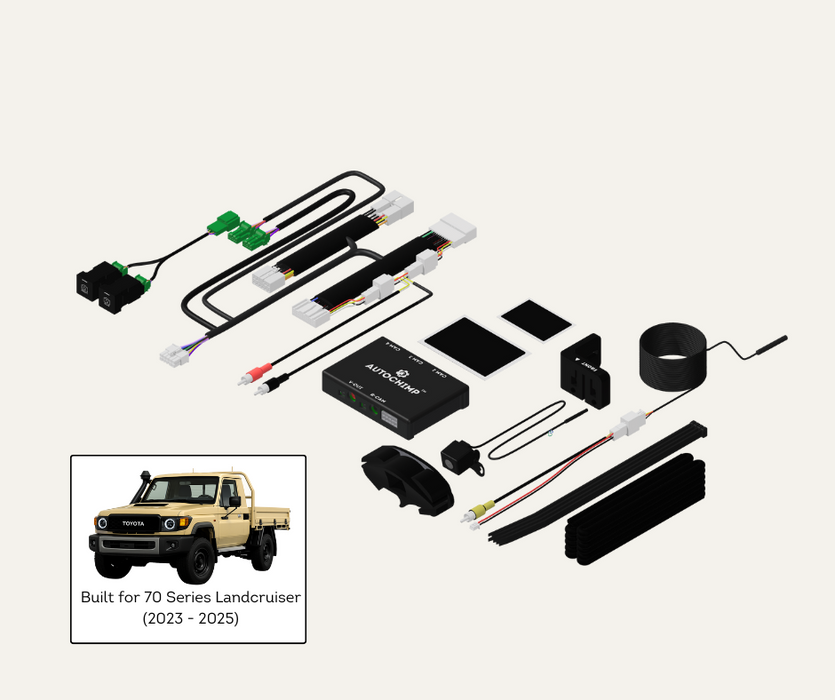

What’s Included
• 1x AutoChimp™ QuadCam Switching Module
• 1x Plug & Play Harness for 70 Series (2024+)
• 1x Front Camera with RCA output
• 1x No-Drill, Press-Fit Adjustable Grille Mount
• 1x Dash Switch – Front Camera (White backlight, momentary type)
• 1x Dash Switch – Rear Camera (White backlight, momentary type)
• 1x RCA Breakout Adapter (4-pin to V-OUT/RCAM)
• 1x Installation Guide (PDF format)
Optional Add-Ons
• Trailer Camera Kit – Add a third view with additional switch
• Full Quad Camera Expansion – Support up to four cameras total
• Install Tool Kit – 10mm socket, pry tools, driver set
• Cloth Tape – For a clean OEM-style install finish
Technical Specifications
• Front Camera Viewing Angle: 170° (Pro Series)
• Video Format Support: NTSC, PAL, AHD, CVBS
• Switch Type: Factory-style momentary switch with white LED backlight
• Camera Power Output: 12V regulated via JST 2-pin (2A max per channel)
• Bracket Material: PLA-CF (Carbon fibre blend), matte black
• System Power: 12V accessory-fed, plug & play harness
• Mount Location: Behind dash and grille
Why Choose This Kit
• No drilling, no cutting, no coding
• Matches factory styling and lighting
• Built tough for Australian 4x4 conditions
• Fully upgradeable to 4-camera systems
• Compatible with any RCA camera (including Safety Dave & OEM Toyota)
Compatible With: AutoChimp™ QuadCam System | Factory & Aftermarket Stereo Integration
