AutoChimp™ Pro HD Replacement Camera | Camera Only – No Power Cable | For Pro Series Camera Systems

AutoChimp™ Pro HD Replacement Camera | Camera Only – No Power Cable

SKU: AC-PRO-CAM-NOCABLE

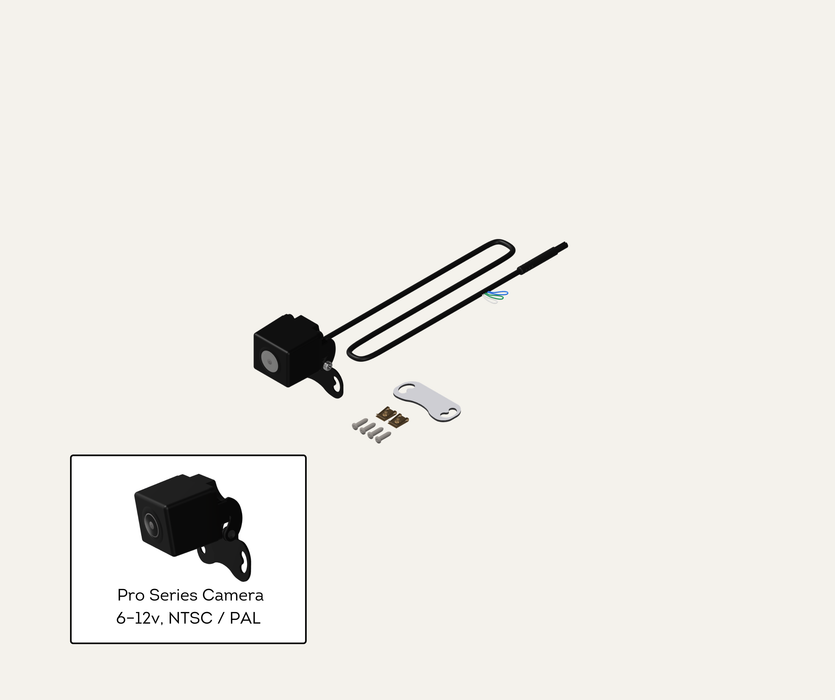

The AutoChimp™ Pro HD Replacement Camera is the camera head used across all AutoChimp™ Pro Series camera kits — supplied on its own, without a power cable, as a direct replacement for damaged, worn or out-of-warranty cameras.

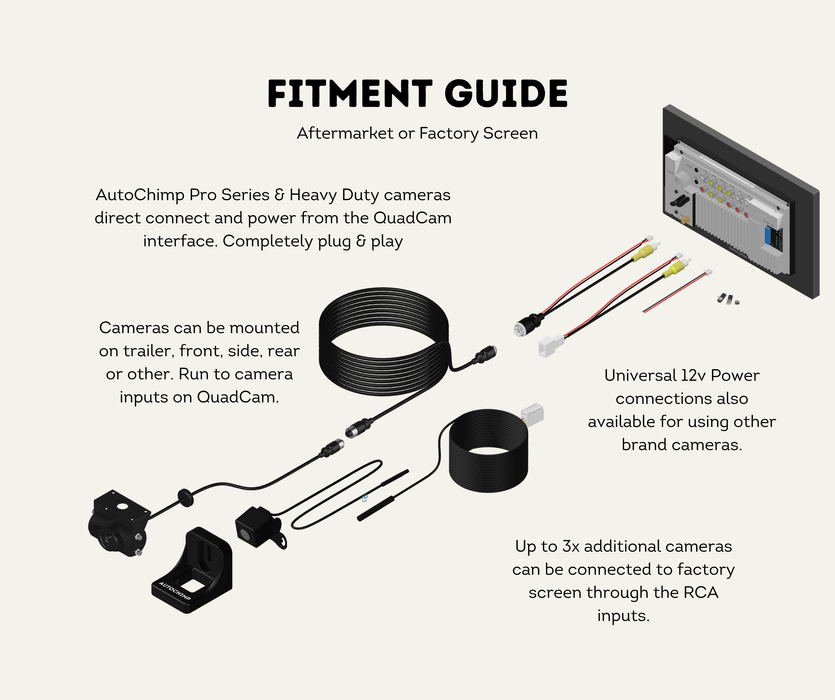

Because every Pro Series system is modular, replacement takes minutes: your existing power cable stays wired into the vehicle, and the new camera simply plugs into the same weatherproof 4-pin connector. No rewiring, no re-routing, no removing trim.

Camera-only listing: this product includes the camera with attached camera lead and adjustable mounting bracket. It does NOT include a power cable — it is designed to plug into the Pro Series power cable already installed in your vehicle. Power cables, extension cables, RCA adapters and vehicle-specific harnesses are sold separately.

Perfect For

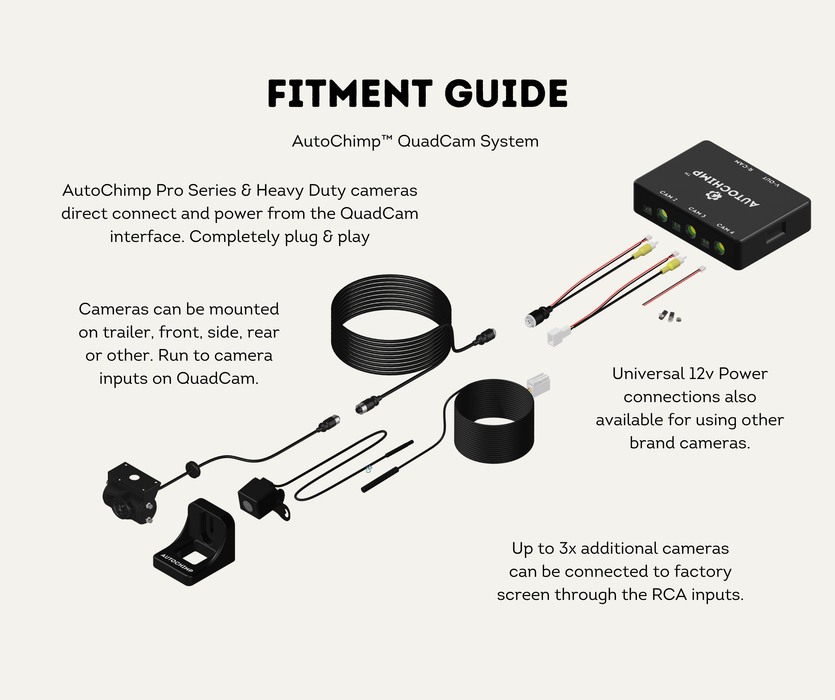

• Replacing a damaged or faulty camera on any AutoChimp™ Pro Series kit (rear, front, universal, trailer or multi-camera)
• Out-of-warranty replacements without buying a full kit
• Upgrading an older Pro Series camera head while keeping the existing cabling
• Adding a spare camera to the glovebox for commercial and touring vehicles

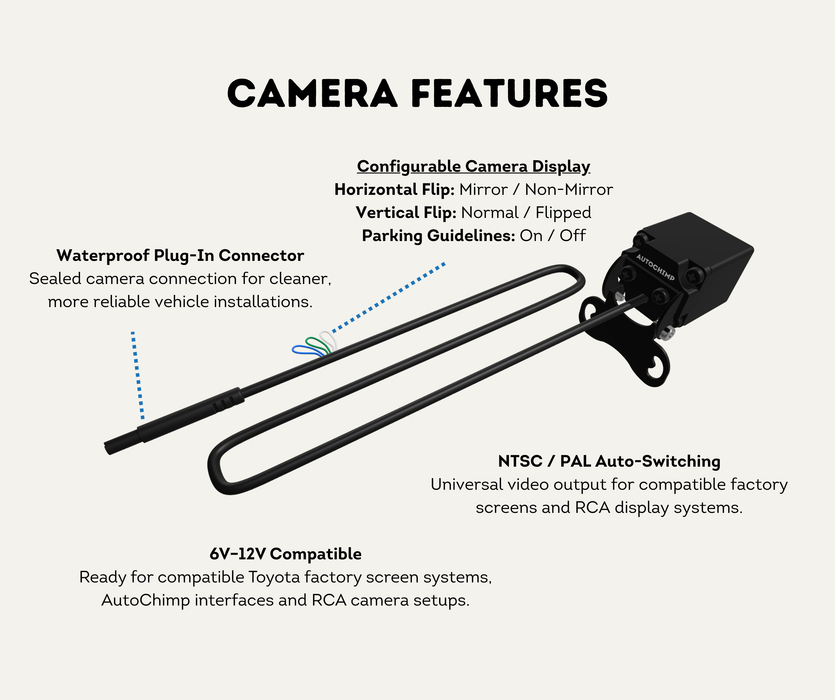

Key Features

• Direct Plug-In Replacement – Connects to the existing Pro Series 4-pin power cable in minutes.

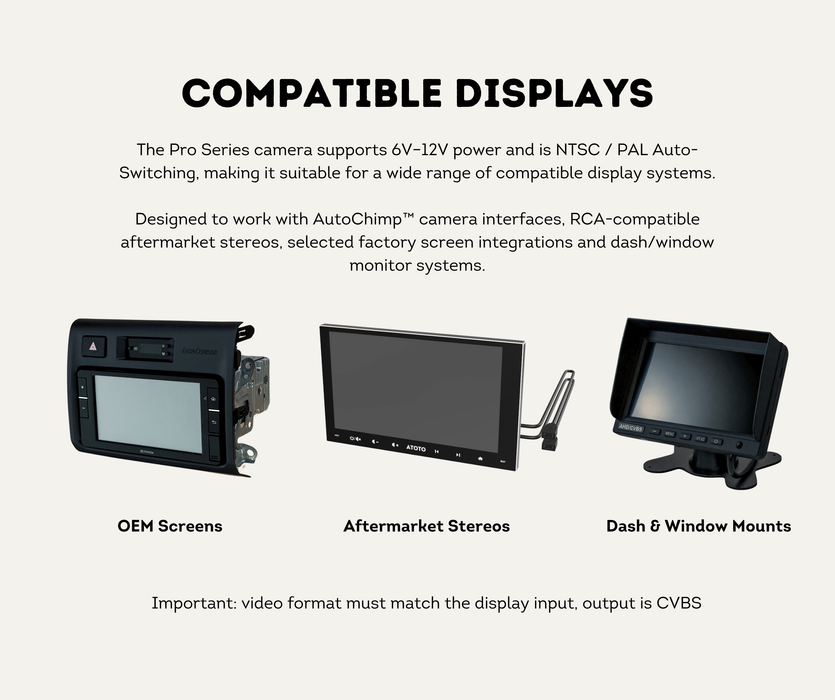

• 6V–12V Power Compatibility – Suitable for a wide range of compatible vehicle camera systems and display setups.

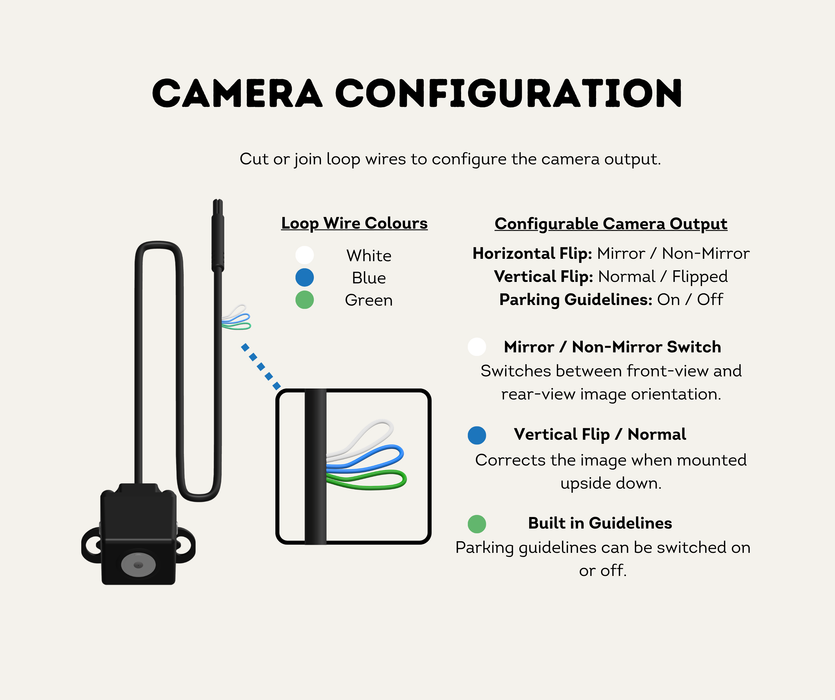

• Front or Rear Configurable – Mirror / non-mirror image, vertical flip and parking guideline control via loop wires.

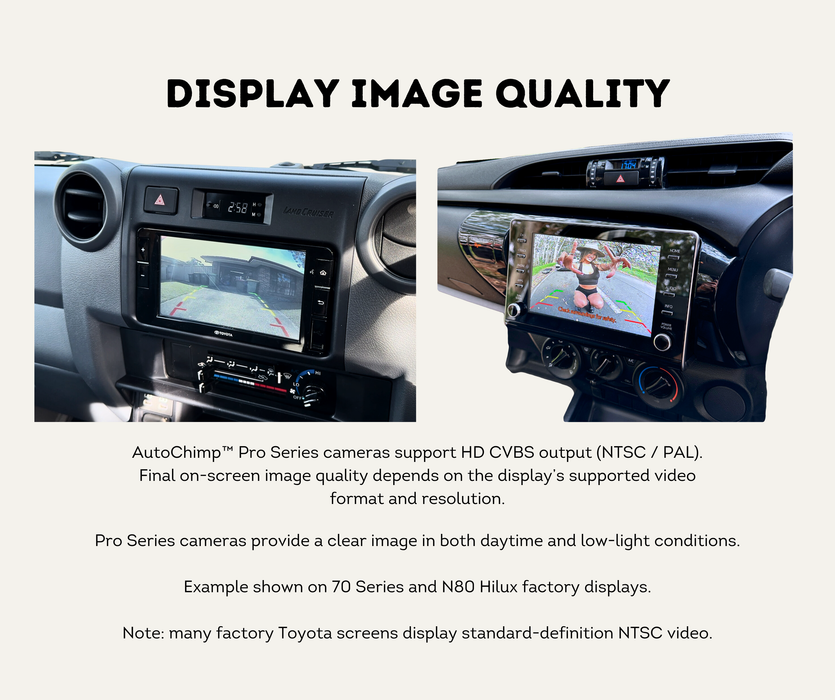

• NTSC/PAL Auto Switching – Supports compatible NTSC and PAL display systems.
• High-Definition CVBS Image – Super CMOS sensor with 976 x 592 pixel resolution for clear camera vision.
• Low-Light Optimised – Designed for clear visibility in low-light conditions without relying on IR LEDs.
• IP67 Waterproof & Dustproof – Sealed camera body suitable for automotive, outdoor and off-road use.

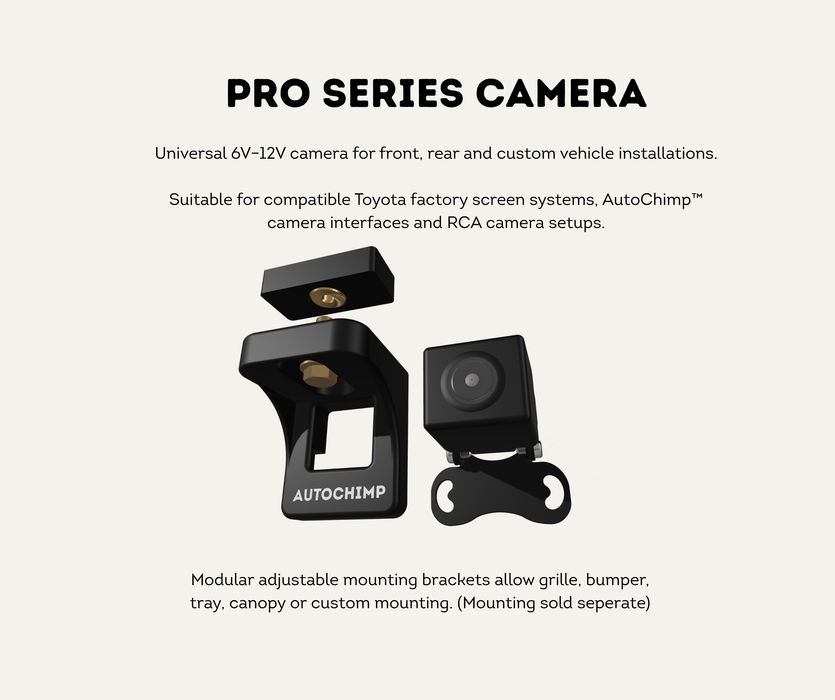

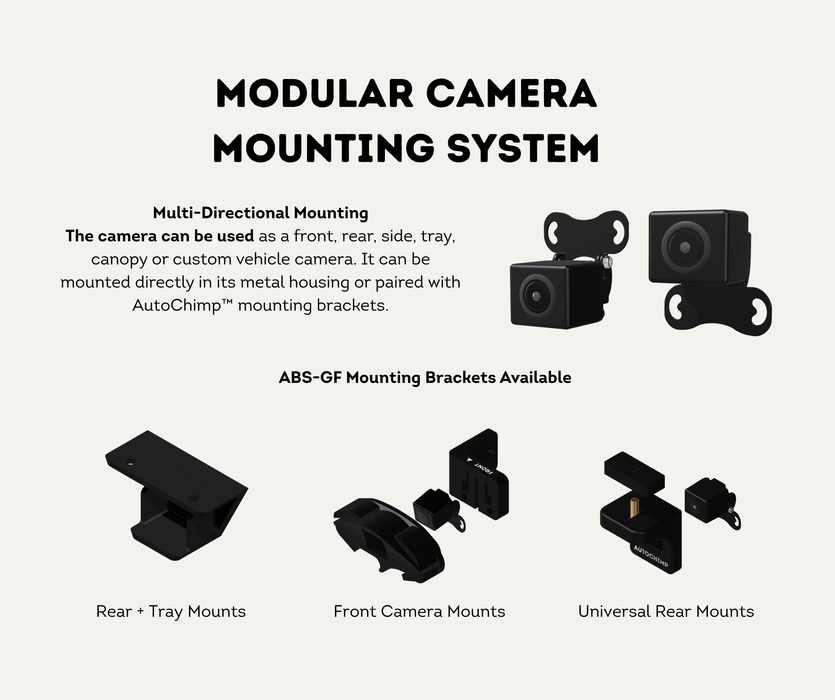

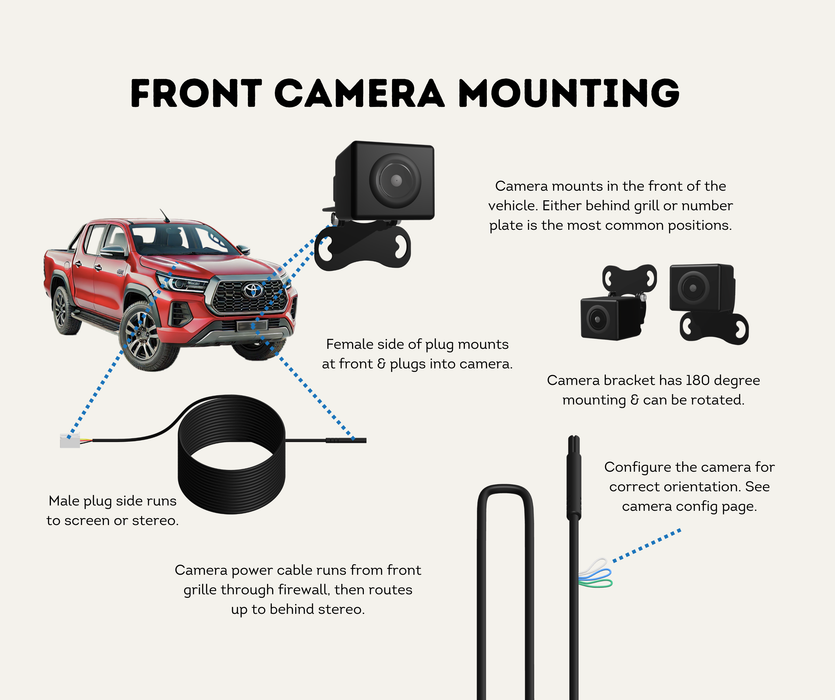

• Multi-Directional Mounting – 180° adjustable bracket suits front, rear, tray, canopy or custom mounting positions.

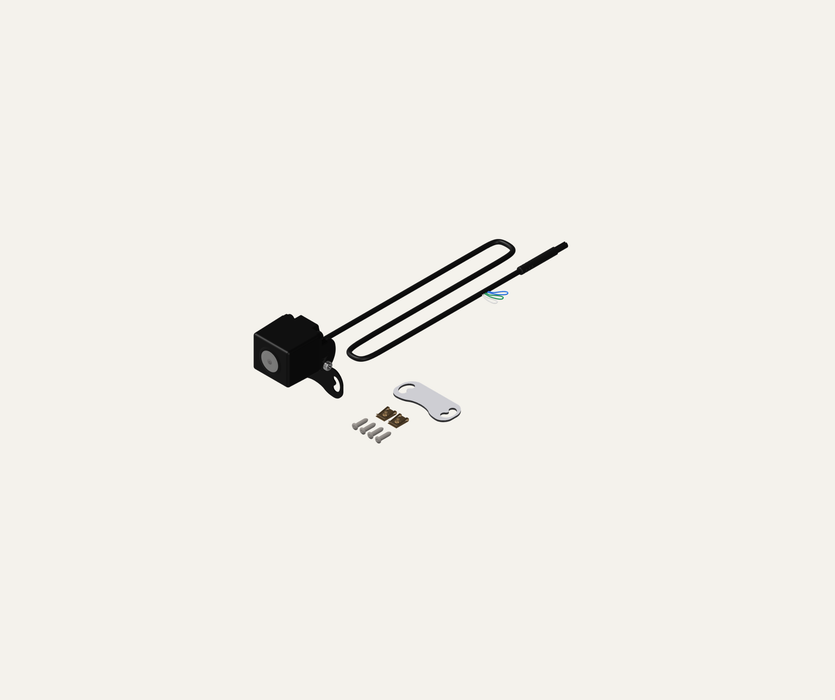

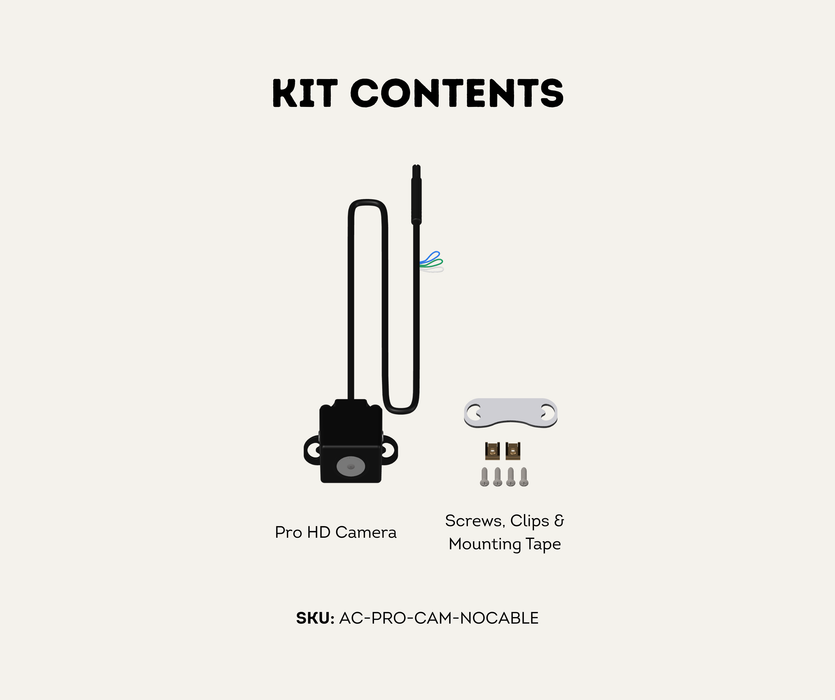

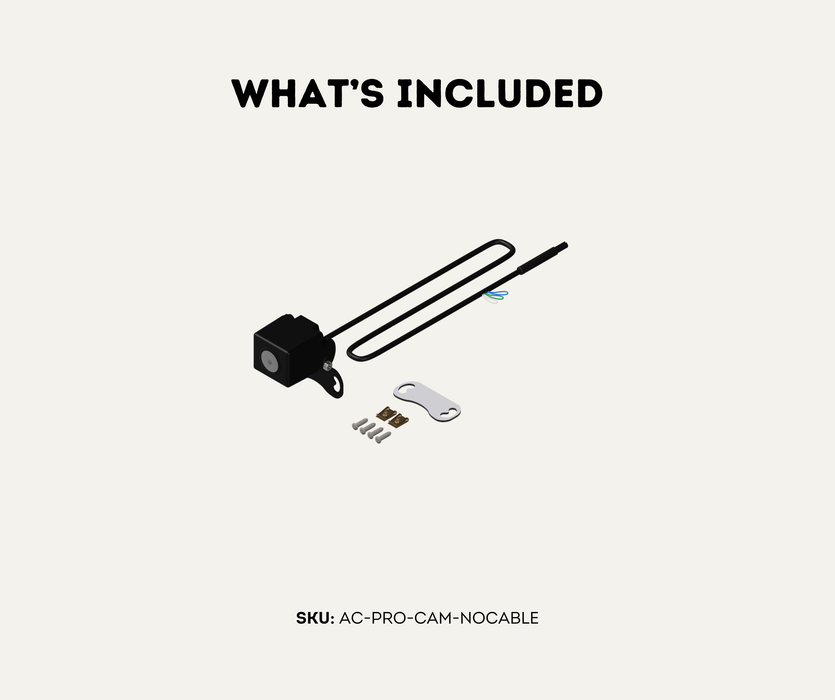

What's Included

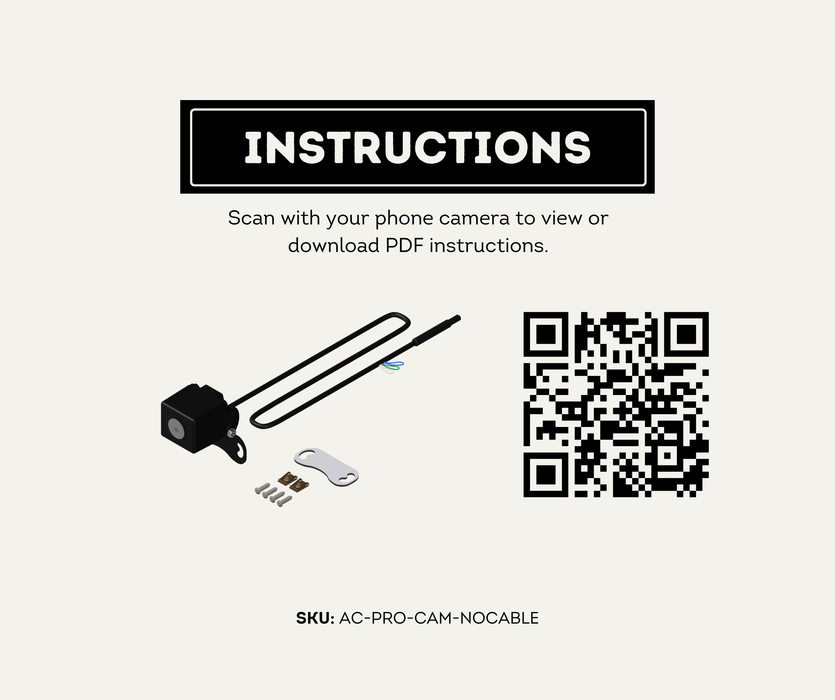

• 1x AutoChimp™ Pro HD camera with attached 1m camera lead (4-pin connector)
• 1x 180 degree adjustable mounting bracket (attached)
• Mounting screws, tape and hardware

Note: No power cable is included. This camera plugs directly into the AutoChimp™ Pro Series power cable supplied with every Pro Series kit and camera package. If you also need the power cable, choose the Pro HD Camera + Power Cable package instead.

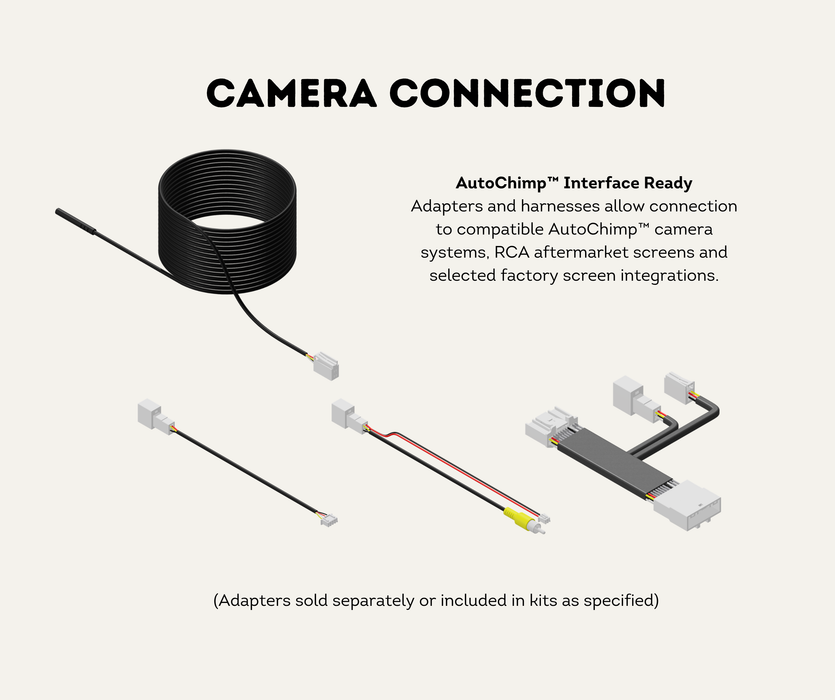

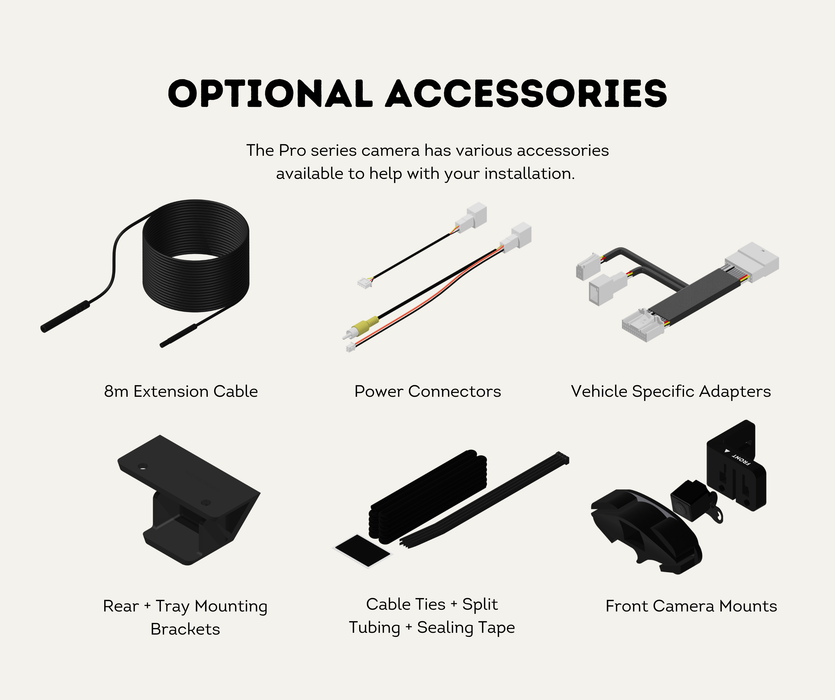

Sold Separately

• Pro Series camera power cables

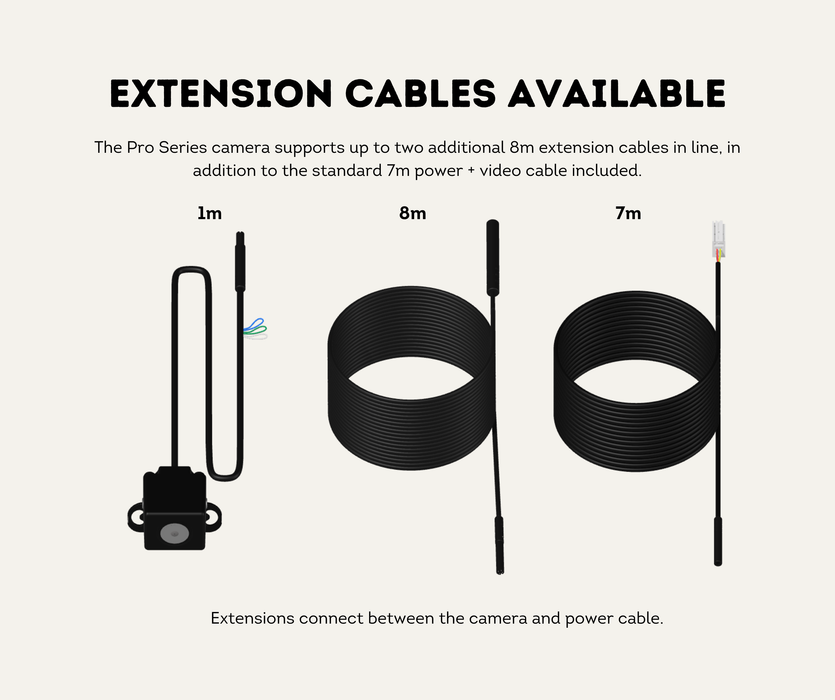

• 8m Pro Series camera extension cable

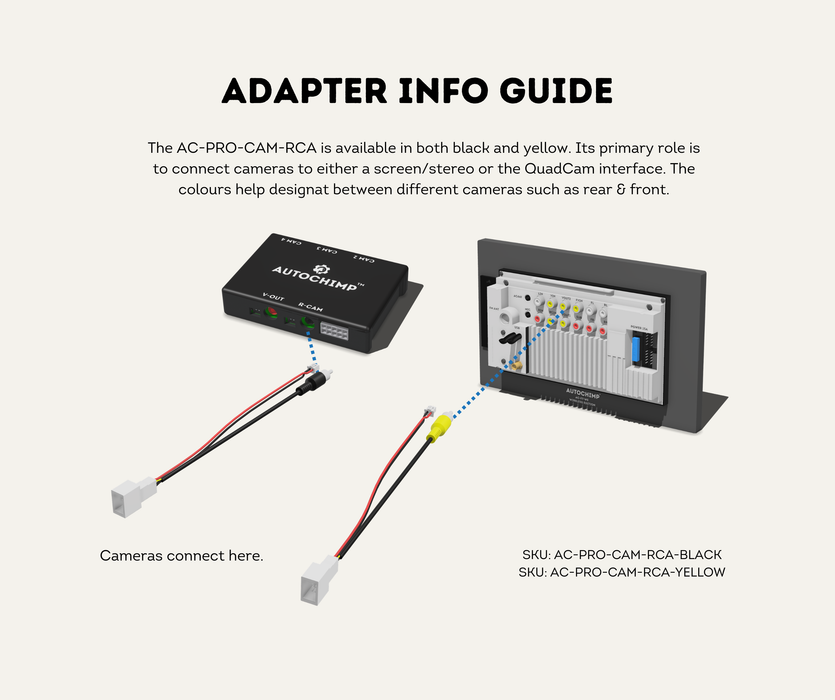

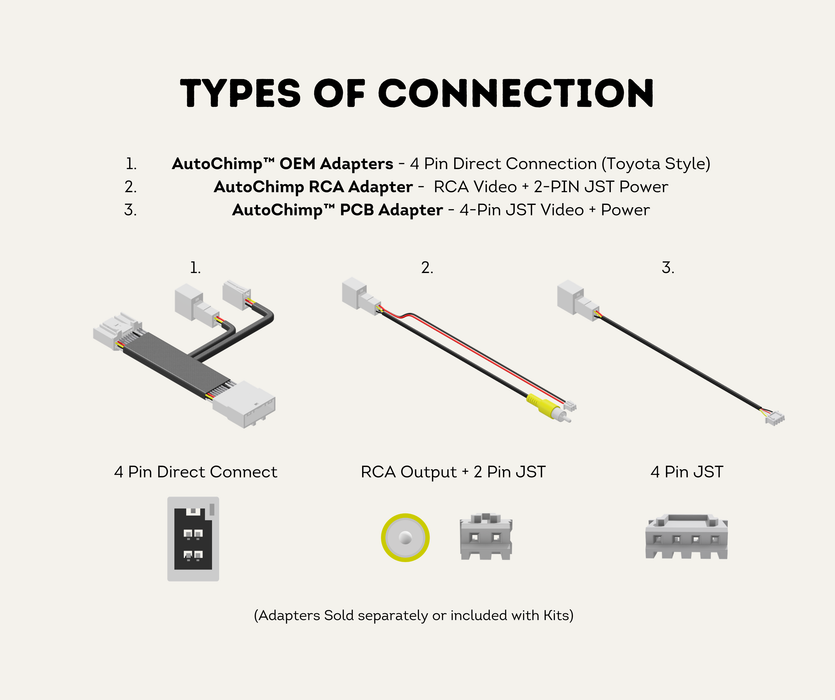

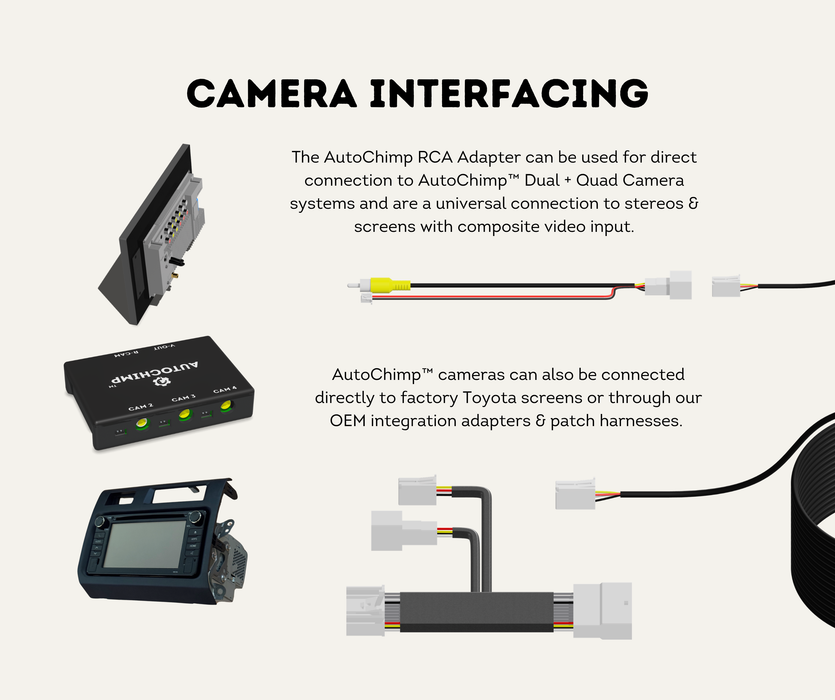

• RCA video and power adapter

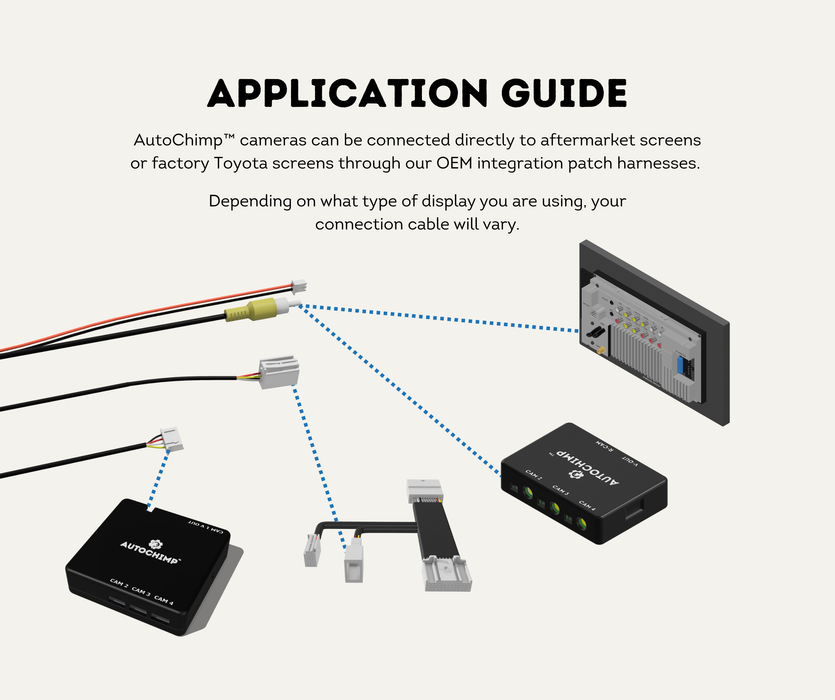

• AutoChimp™ camera interface adapters
• Vehicle-specific factory screen integration harnesses

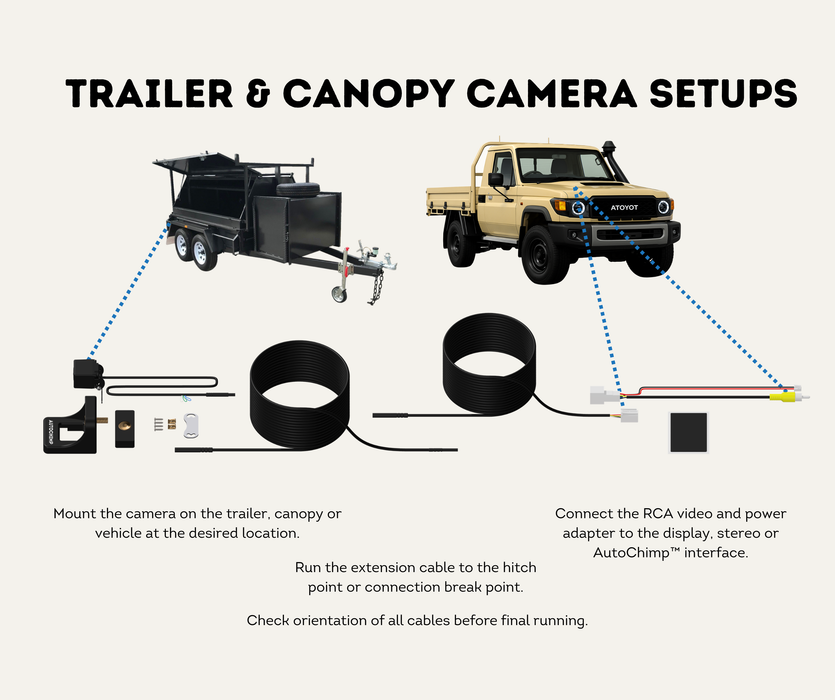

• Complete front, rear, trailer and multi-camera kits

Specifications

• Image Sensor: Super CMOS
• Resolution: 976 x 592 pixels / 800 TV lines
• Video Signal: CVBS / NTSC / PAL auto switching
• Viewing Angle: 170° diagonal, 120° horizontal, 90° vertical
• Power Input: 6V–12V DC
• Waterproof Rating: IP67
• Operating Temperature: -30°C to +70°C
• Housing: Glass-reinforced ABS housing
• Mounting: Adjustable steel bracket

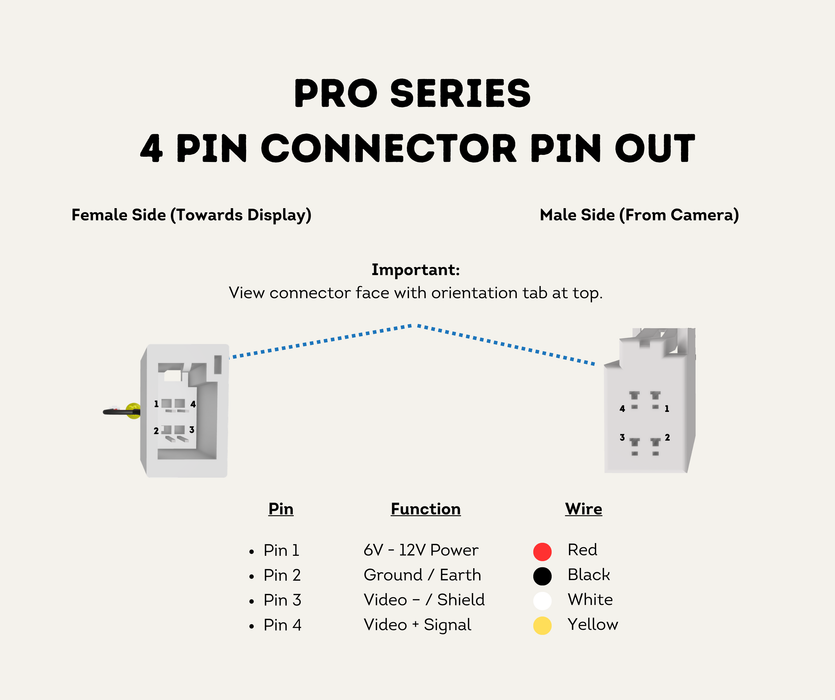

• Connector: Pro Series 4-pin (plugs into existing power cable)

Installation Notes

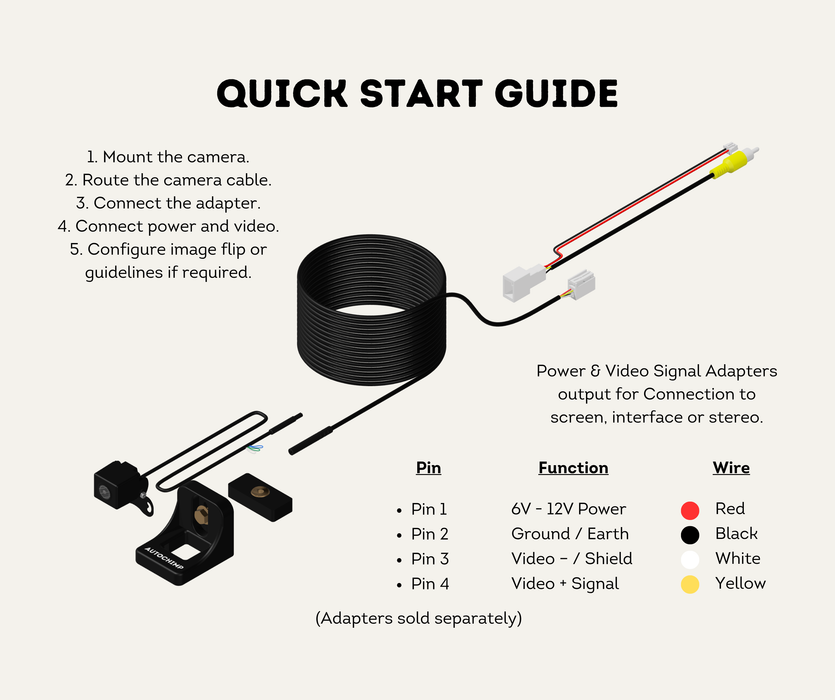

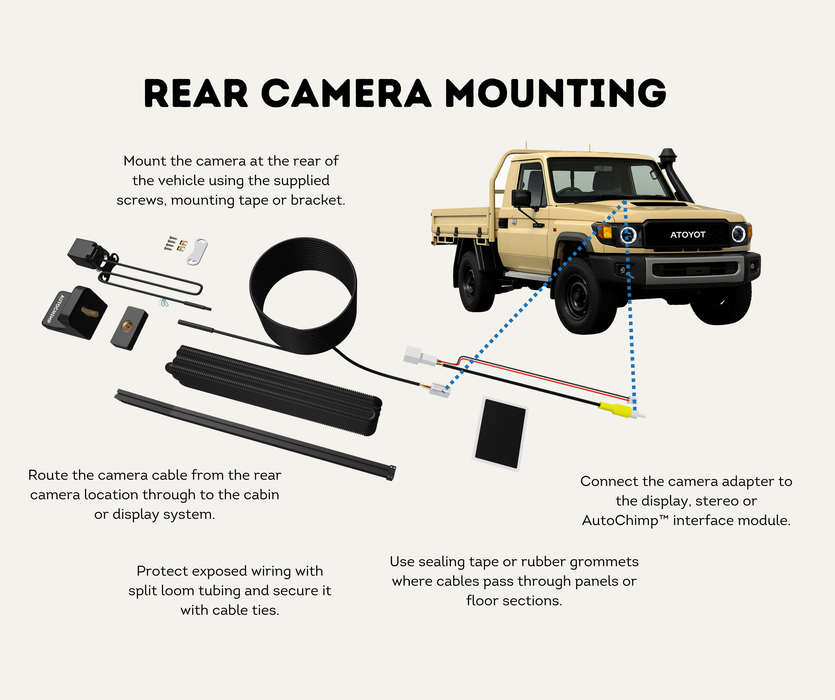

Unplug the old camera at the 4-pin connector, unbolt the bracket, mount the replacement and plug it in. Configure mirror / flip / guidelines with the loop wires and test the image on your display before final fitting.

This replacement camera suits all AutoChimp™ Pro Series camera kits and packages. If your system is older or you are unsure of your connector type, contact us before ordering.

Why Choose AutoChimp™?

AutoChimp™ Pro Series systems are designed to be modular and serviceable — when a camera cops a rock, a pressure washer or years of Aussie weather, you replace the camera, not the whole system.
