AutoChimp™ Pro HD Camera Adapter | 4-Pin to RCA Video + Power

SKU: AC-PRO-CAM-RCA-YELLOW (Standard Video)  |  AC-PRO-CAM-RCA-BLACK (Reverse / RCAM)

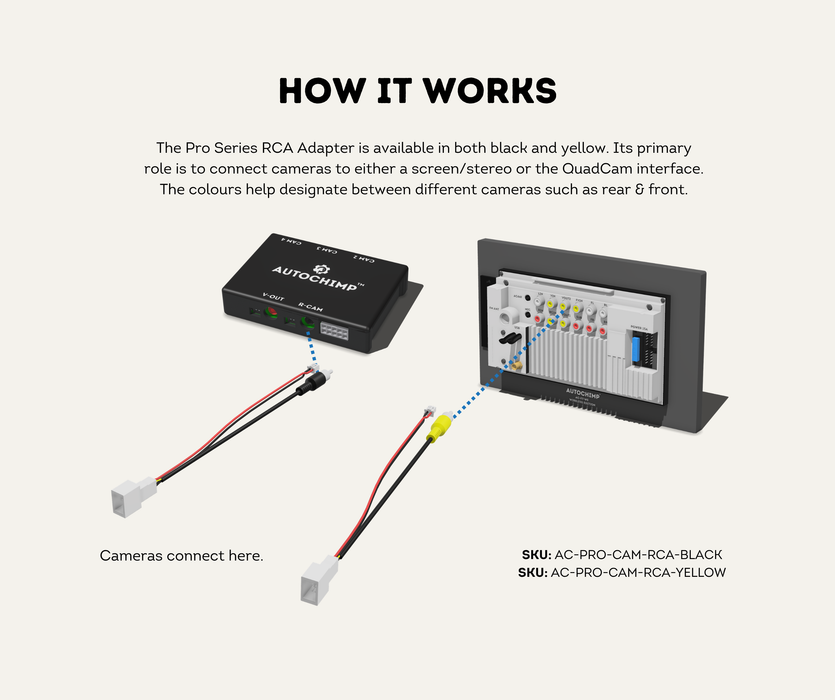

The AutoChimp™ Pro HD Camera Adapter is the link between an AutoChimp™ Pro Series camera and any RCA-input display — QuadCam PRO+, F7 stereos, or an aftermarket head unit. The 4-pin side takes 12V accessory power and ground from your existing camera cable; the RCA side hands a clean composite video signal to the screen.

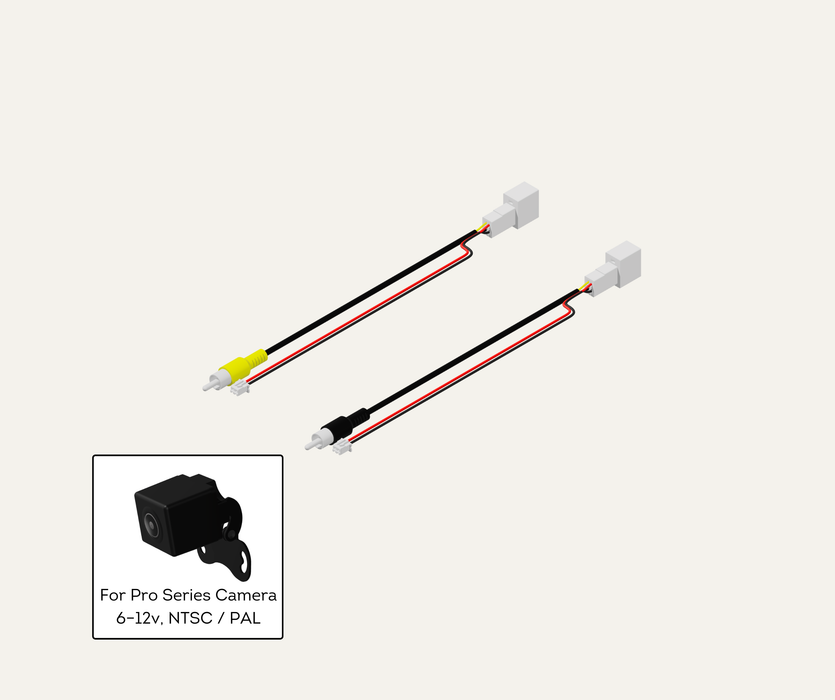

It is supplied in two RCA colours. They are the same adapter electrically — the colour exists so you can tell your channels apart at the back of the stereo when there is more than one camera in the vehicle.

Which Colour Do I Need?

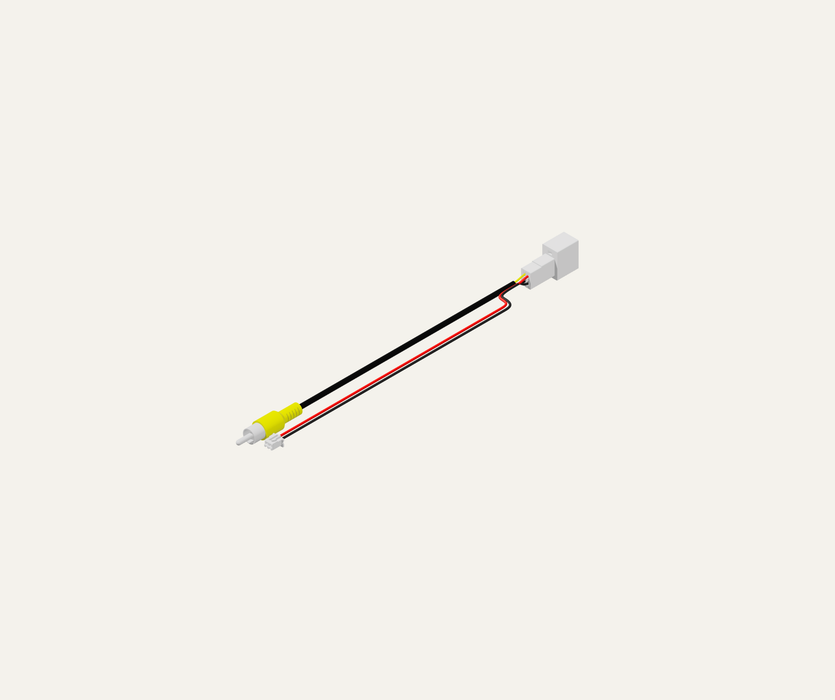

• Yellow RCA – Standard Video – The default. Front, side, cargo and trailer camera channels. Included with every Pro HD camera kit.

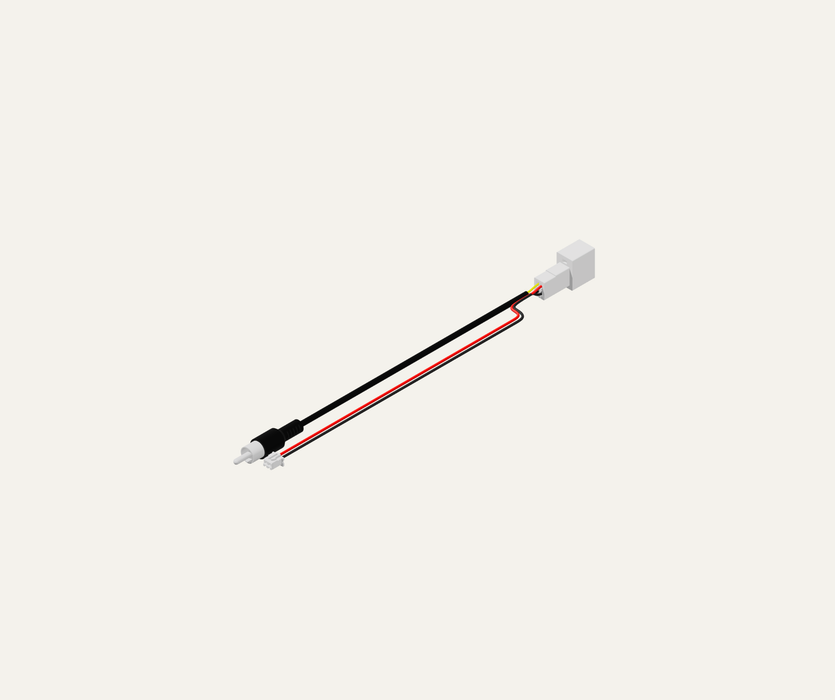

• Black RCA – Reverse (RCAM) – Marks the reverse camera input on multi-camera installs, so the RCAM channel is unmistakable at the head unit. Included with AutoChimp™ multi-camera kits.

If you are running a single camera, either colour works — pick whichever matches the input you are plugging into.

Perfect For

• Connecting a Pro Series camera to a stereo or monitor with RCA video input

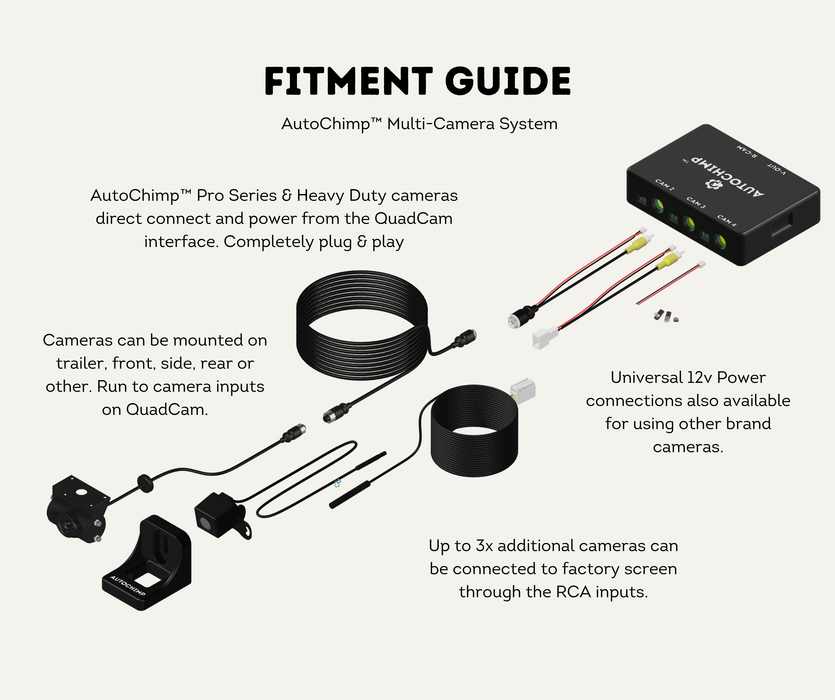

• Colour-coding channels in QuadCam PRO+ and Dual Cam installs
• Replacing a damaged or lost adapter from an existing AutoChimp™ kit

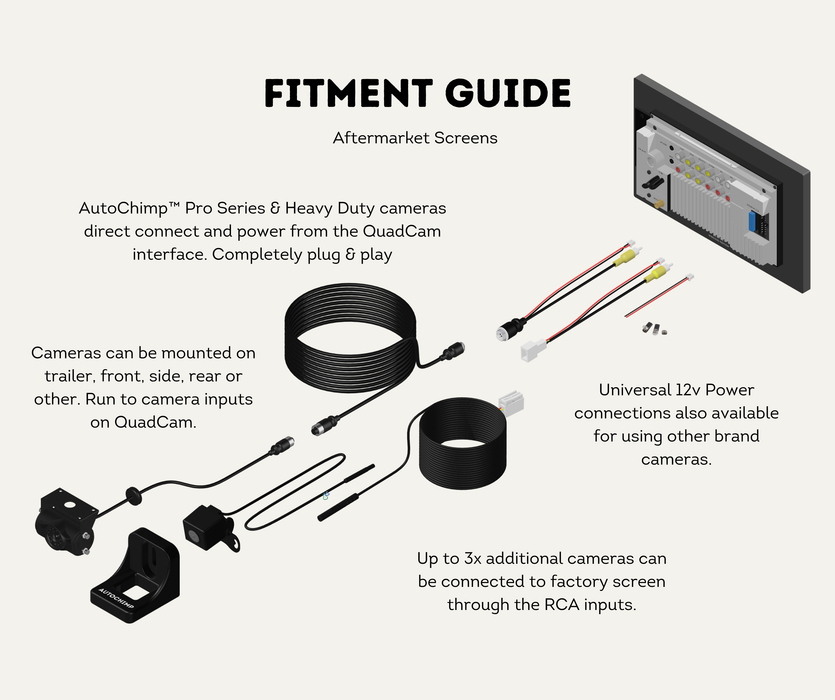

• Adding a front, side, trailer or cargo camera to an aftermarket head unit

Key Features

• Plug & Play – No cutting, splicing or soldering. Straight into the Pro Series 4-pin connector.

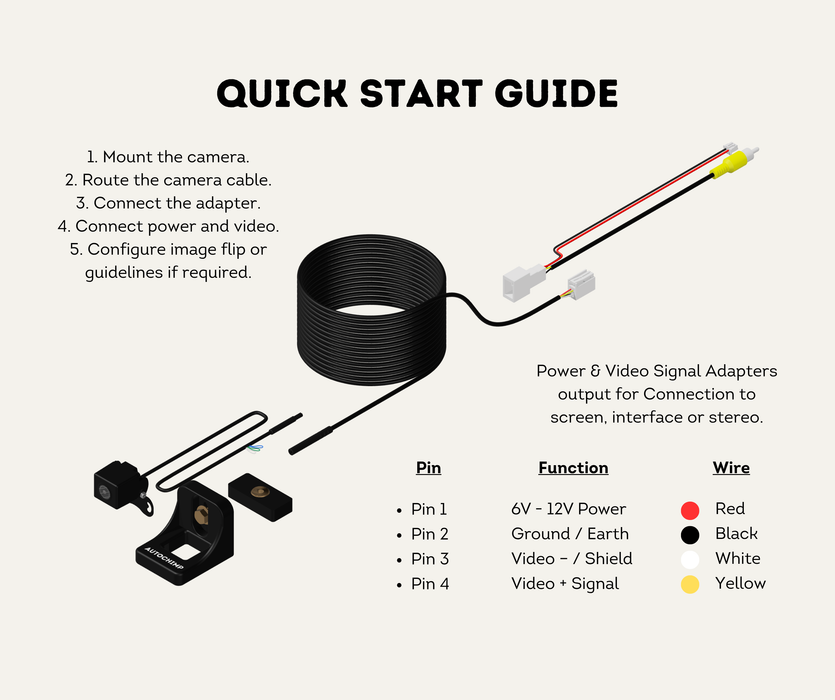

• Power and Video in One – 4-pin input carries 12V accessory power and ground; RCA output carries composite video.
• Colour-Coded Identification – Yellow for standard video, black for reverse (RCAM), so multi-camera looms stay readable.
• Broad Format Support – NTSC, PAL, AHD and CVBS.

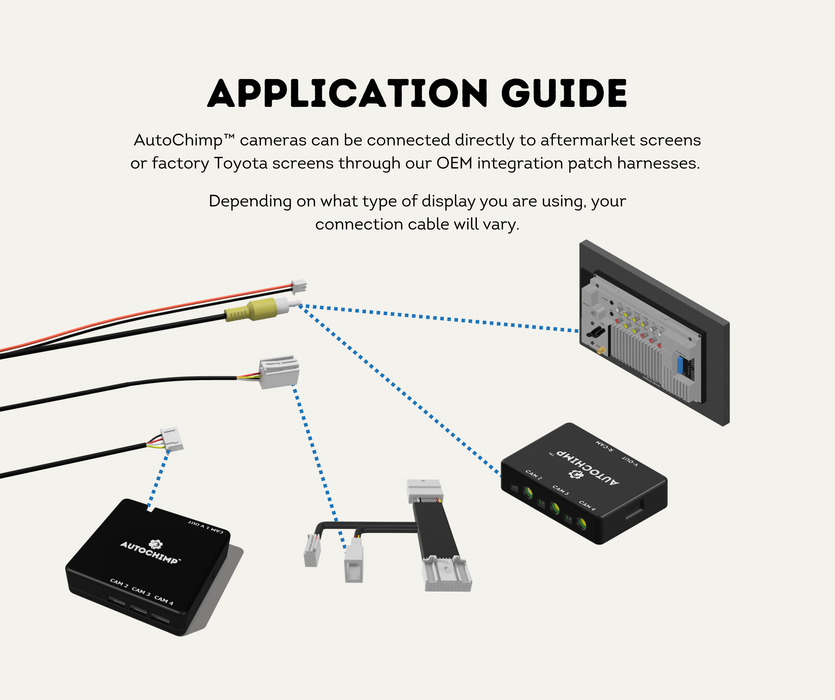

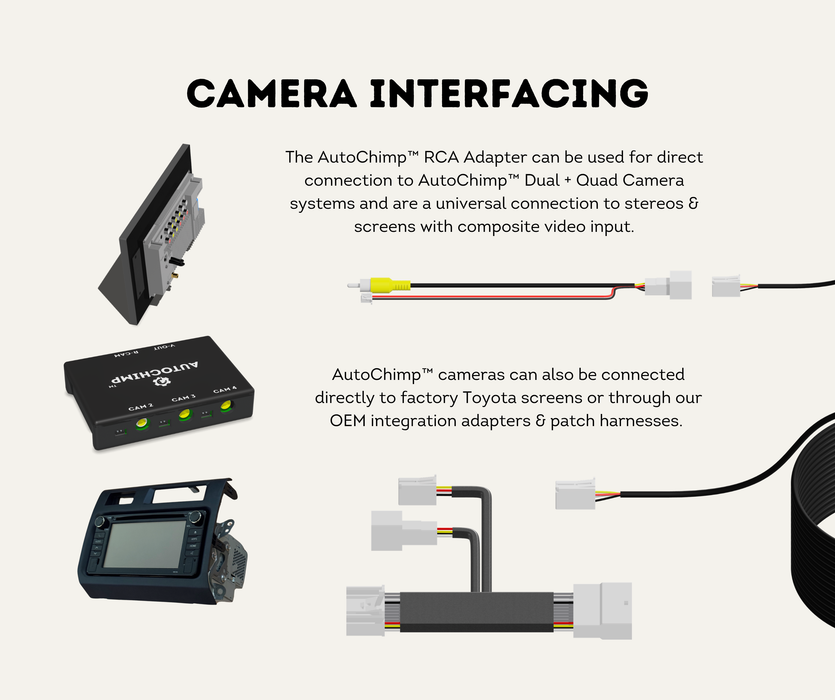

• Wide Compatibility – QuadCam PRO+, F7 stereos, and aftermarket head units with RCA video input.
• Automotive-Grade Build – Moulded connector body and copper-core cable rated for in-vehicle use.

What's Included

• 1x AutoChimp™ Pro HD Camera Adapter – 4-Pin to RCA, in your selected colour

Note: This listing is the adapter only. Cameras, power cables, extension cables and vehicle-specific harnesses are sold separately.

Specifications

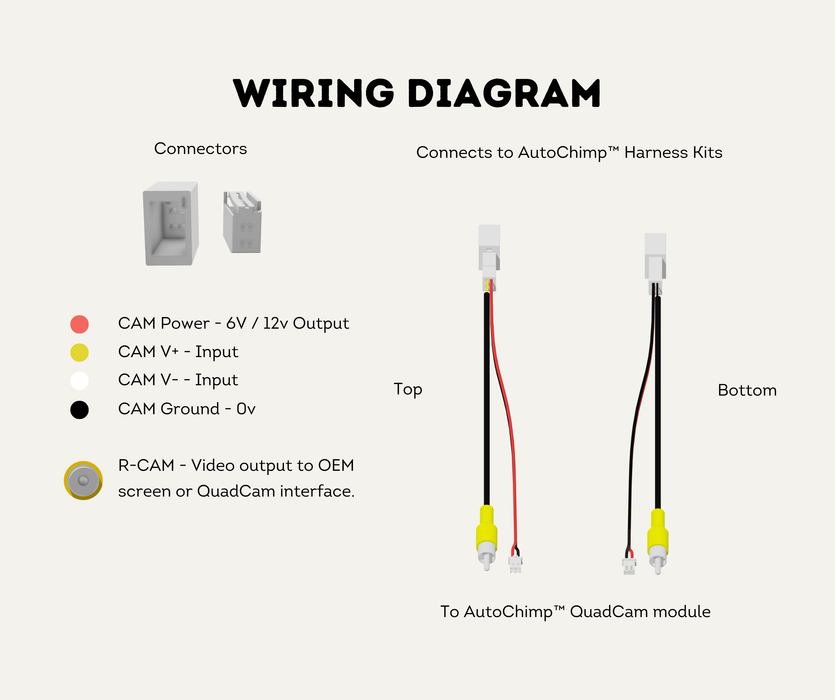

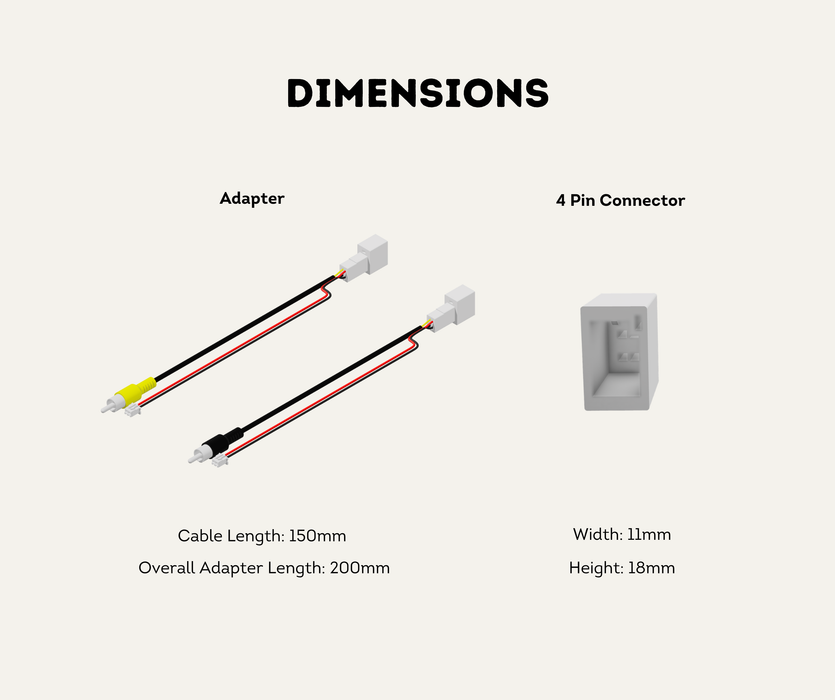

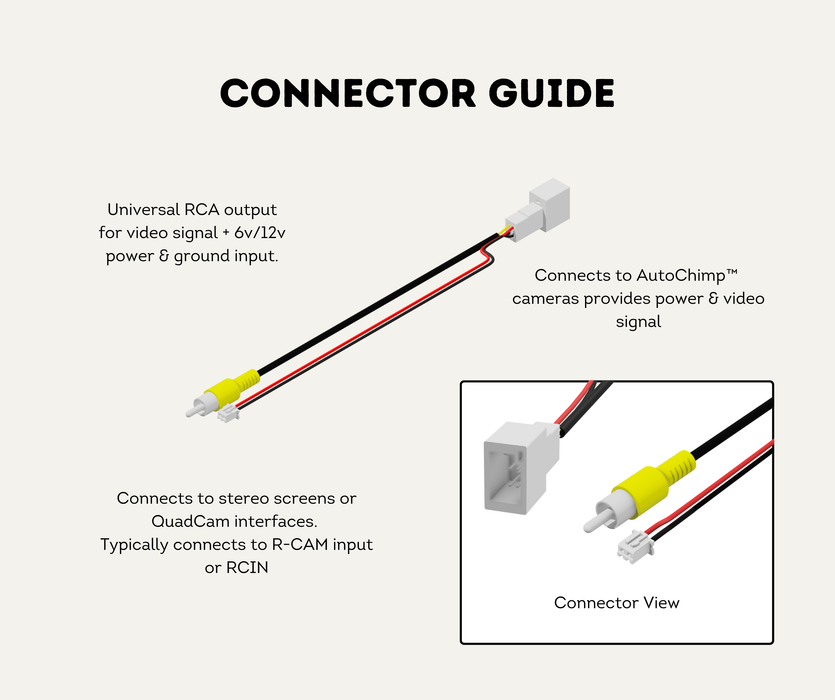

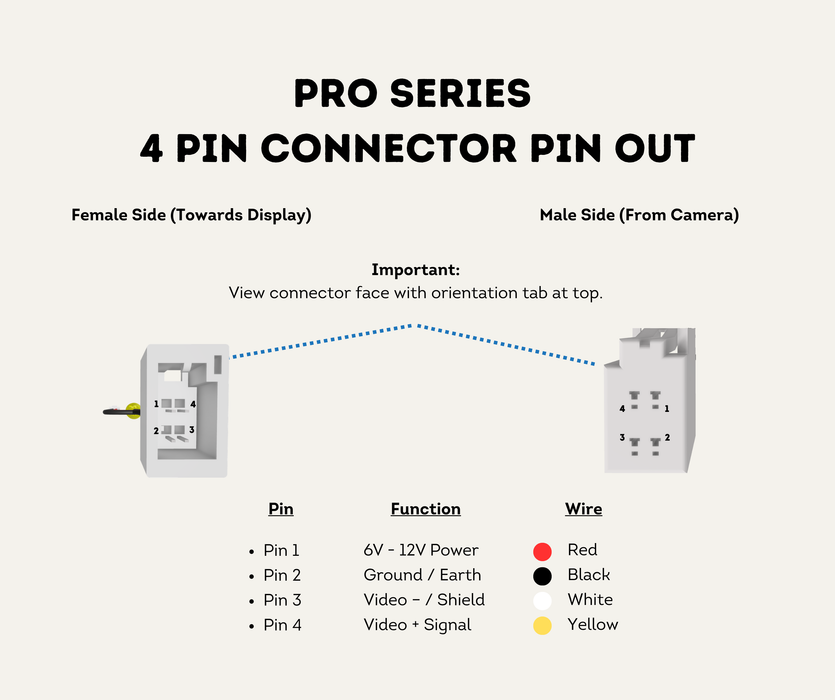

• Connector Type: 4-Pin (power / ground / video) to RCA Male (video out)
• Power Support: 12V Accessory Power (ACC) & Ground
• Video Output: Composite video via RCA
• Supported Formats: NTSC, PAL, AHD, CVBS
• RCA Colour Options: Yellow (standard video) or Black (reverse / RCAM)

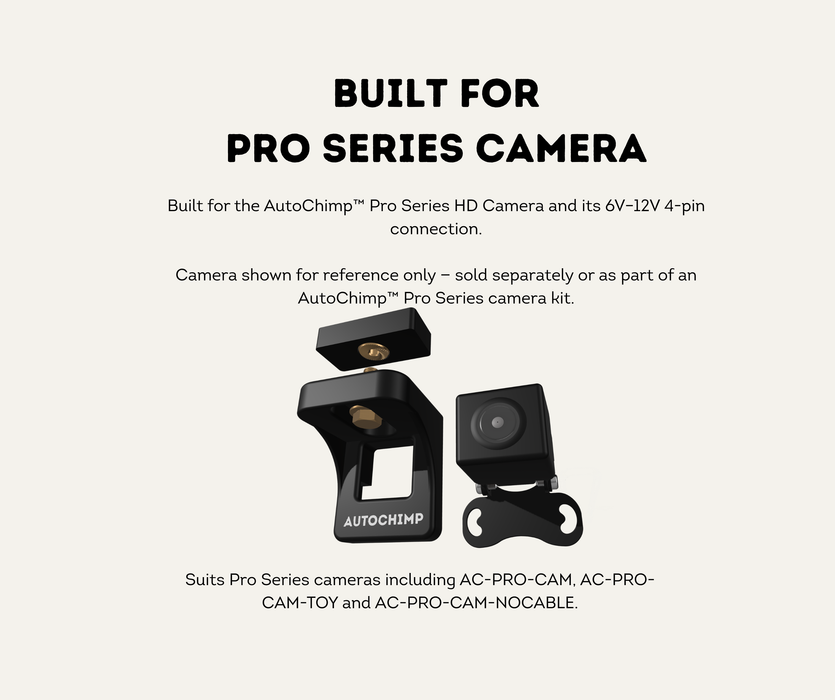

• Application: AutoChimp™ Pro Series camera to RCA-input display

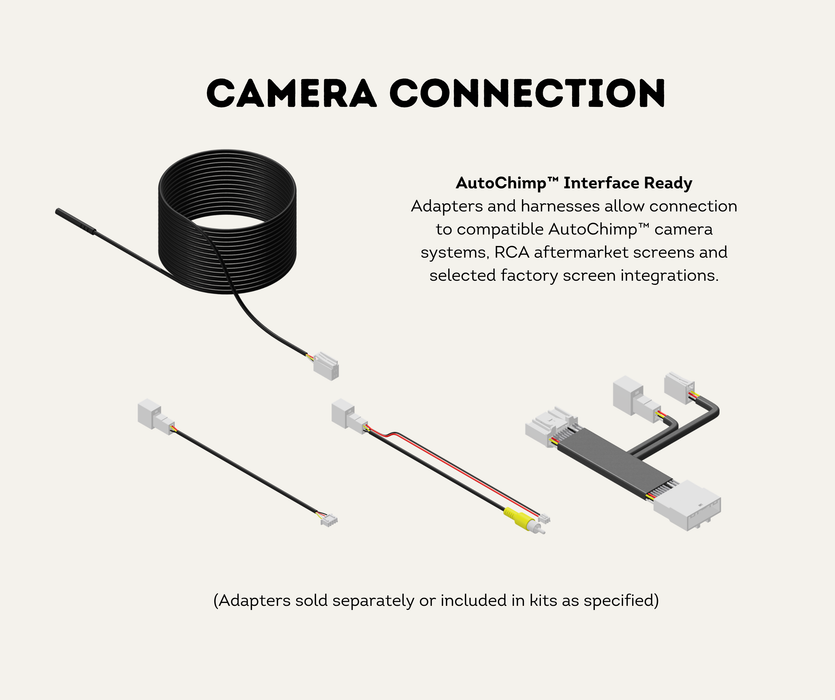

Sold Separately

• AutoChimp™ Pro HD cameras and camera kits
• Pro Series camera power cables
• 8m Pro Series camera extension cable

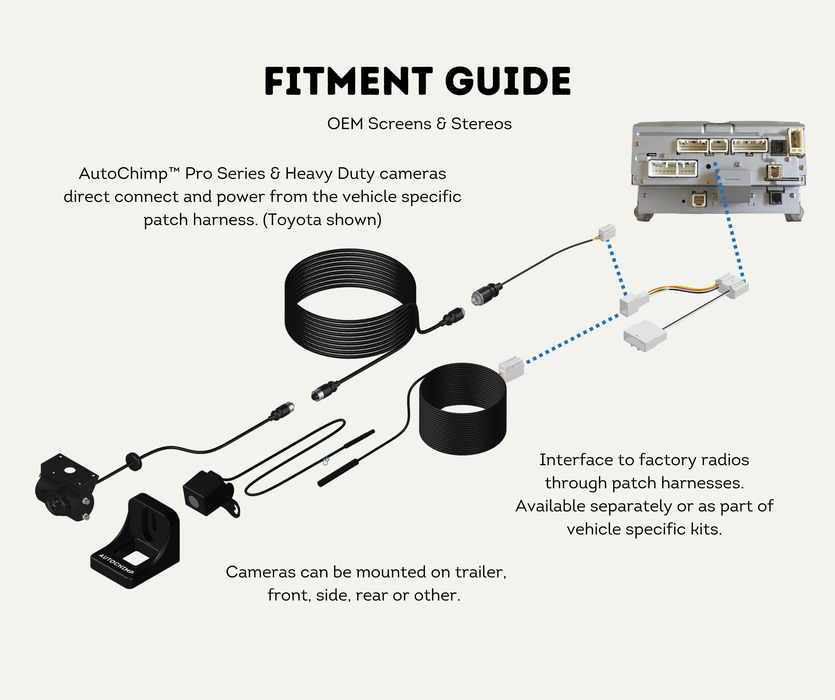

• Vehicle-specific factory screen integration harnesses
• QuadCam PRO+ and Dual Camera systems

Why Choose AutoChimp™?

Multi-camera installs go wrong at the back of the stereo, not at the camera. Colour-coding every channel at the RCA means the next person to pull the dash apart — including you, in three years — can see what plugs in where without a multimeter.
