AutoChimp™ 4-Pin Video & Power Passthrough Harness | Toyota Reverse Camera Adapter

SKU AC-TOY-4PIN-RCA

Delivery Info

Ships From: Melbourne, Australia
Dispatch Days: Mon / Wed / Fri
Carrier: Auspost
Current Handling Times: 24 Hours

Availability:
More on the way!
Sold out
Original price $11.00 - Original price $11.00
Original price
$11.00
$11.00 - $11.00
Current price $11.00

Popular Additions

  • Toyota
  • Toyota Hilux
  • Toyota Landcruiser
  • 2010
  • 2011
  • 2012
  • 2013
  • 2014
  • 2015
  • 2016
  • 2017
  • 2018
  • 2019
  • 2020
  • 2021
  • 2022
  • 2023
  • 2024
  • 2025

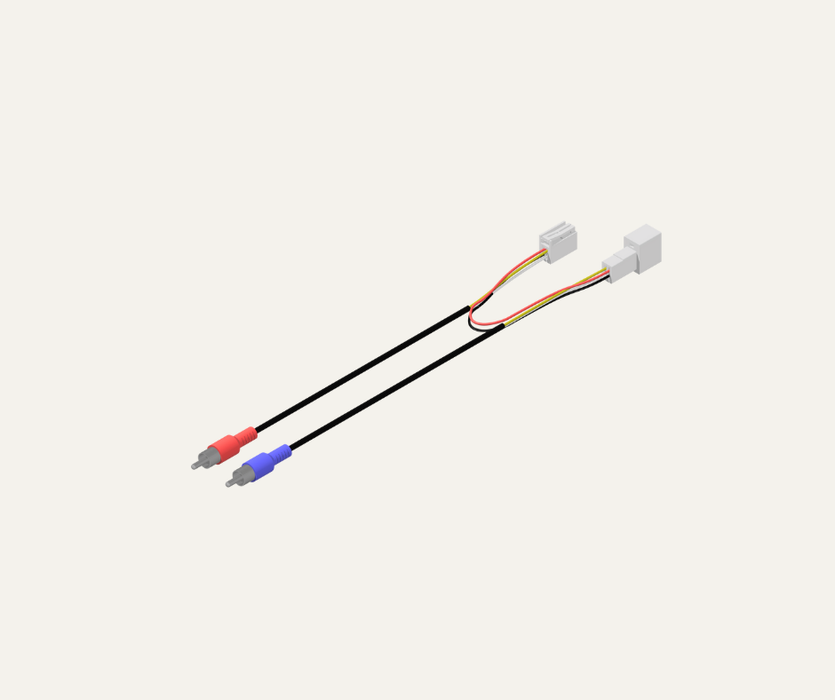

AutoChimp™ 4-Pin Video & Power Passthough Harness

Toyota Reverse Camera Adapter
SKU: AC-TOY-4PIN-RCA

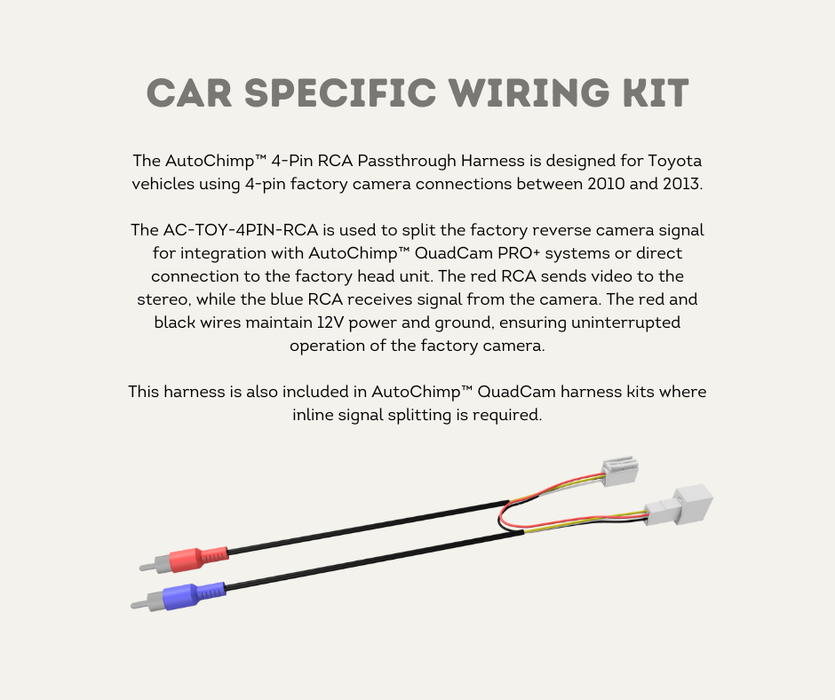

The AutoChimp™ 4-Pin Video & Power Passthrough Harness is a factory-style inline breakout designed to split the reverse camera signal from Toyota vehicles. It provides video signal outputs while maintaining continuous power and ground to the camera, allowing you to connect factory cameras to aftermarket systems or AutoChimp™ Dual and QuadCam PRO+ setups with ease.

Perfect for models from 2010–2013 and required for all AutoChimp™ QuadCam systems when splitting video feeds without cutting or splicing factory wiring.

Key Features

Plug & Play Inline Adapter
Connects directly between factory wiring and camera/screen without cutting any wires.

Dual RCA Video Outputs
Red RCA (Male): Sends the video signal to the stereo
Blue RCA (Male): Receives the video signal from the factory reverse camera

12V/6V Power & Ground Passthrough
Maintains camera power (red) and ground (black) through the harness—no interruption to signal.

Dual-Purpose Use
Used as the core signal breakout for older Toyota factory stereo reverse camera integration (2010–2013) or as the T-adapter in AutoChimp™ QuadCam PRO+ builds.

Toyota Factory Compatibility
Built to OEM pin specs, fits perfectly with all standard 4-pin Toyota camera connectors.

Compatibility

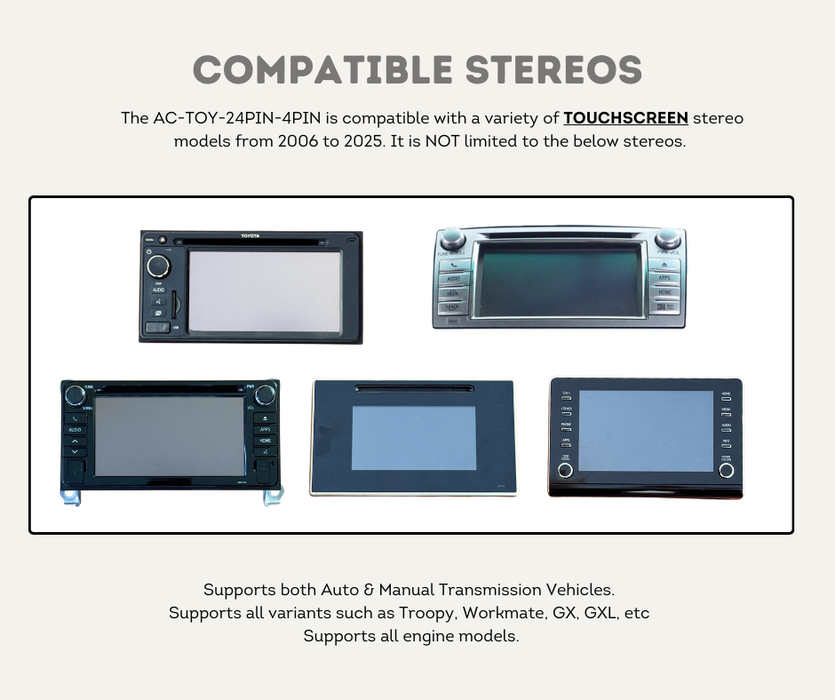

Toyota Factory Stereos (2010–2013 reverse camera-equipped)
AutoChimp™ Dual & Quad Camera Systems
Used in AC-QUAD-HRN-TOY-2010 and AC-TOY-RC2 kits

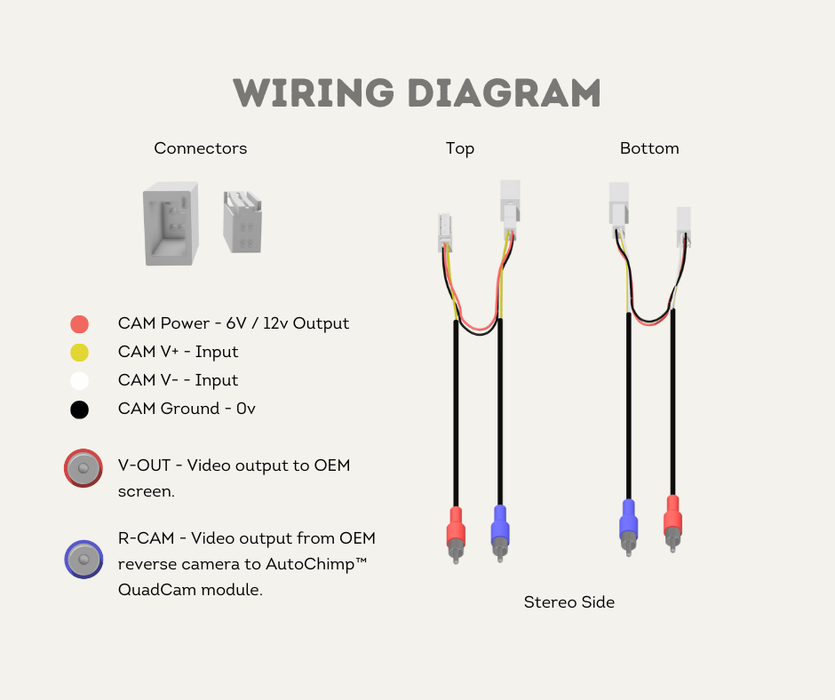

Specifications

Connector Type: 4-Pin Male & Female (Inline Passthrough)
Power Support: 6V/12V passthrough on red (positive), 0V on black (ground)
Video Signal Output:
• Red RCA (to stereo)
• Blue RCA (from factory camera)
Cable Length: 150mm RCA breakout
Construction: Automotive-grade sheathed cable, secure locking OEM-style connectors

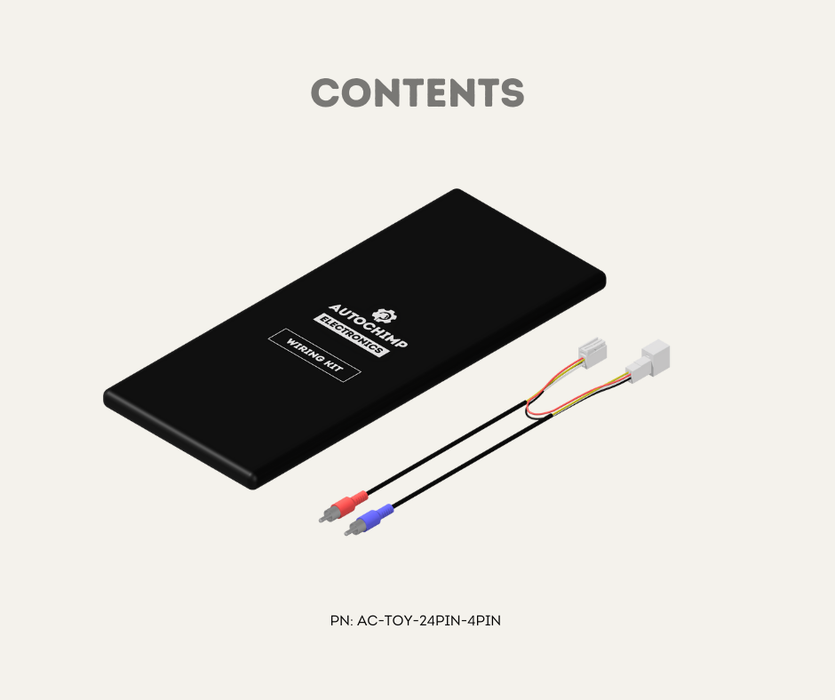

What’s Included

1x AutoChimp™ 4-Pin Passthrough Harness
Red RCA (Male) – Video Output
Blue RCA (Male) – Camera Input
Pre-terminated locking connectors with wire-to-wire passthrough

Why Choose AutoChimp™

Direct-fit Toyota reverse camera integration
Ideal for QuadCam or Dual-Cam setups
No cutting, soldering or programming required
OEM-grade durability and compatibility

Instructional Image Caption (for manuals/diagrams)

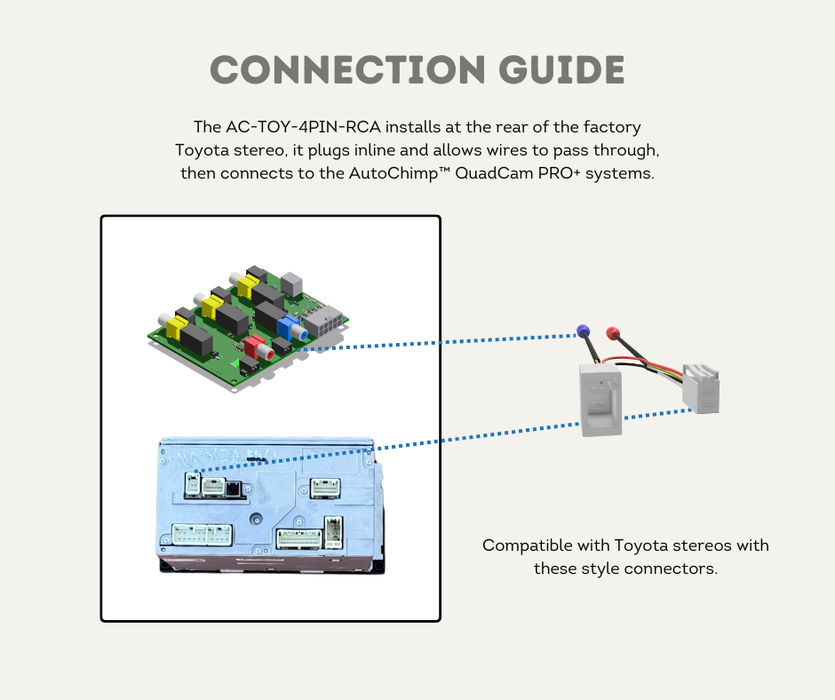

The AutoChimp™ 4-Pin RCA Passthrough Harness connects inline between the factory camera and stereo. The red RCA sends video signal to the head unit, and the blue RCA receives the video from the factory reverse camera. Red and black wires pass 12V and ground to the camera with no signal interruption. This harness is used as a splitter in QuadCam PRO+ kits and for direct integration in Toyota 2010–2013 models.
