Vehicle must have a standard reverse camera already installed for dual camera kits to work. If the vehicle does not have a reverse camera we sell kits for all the Toyota models that require them, search for AC-TOY-RC in search bar to view kits.
AutoChimp™ Dual Camera Kit for 70 Series LandCruiser 2023–2025 | Plug & Play Camera Expansion | Add Front & Trailer Cameras
SKU: AC-DUAL-70SERIES-2024
Description:

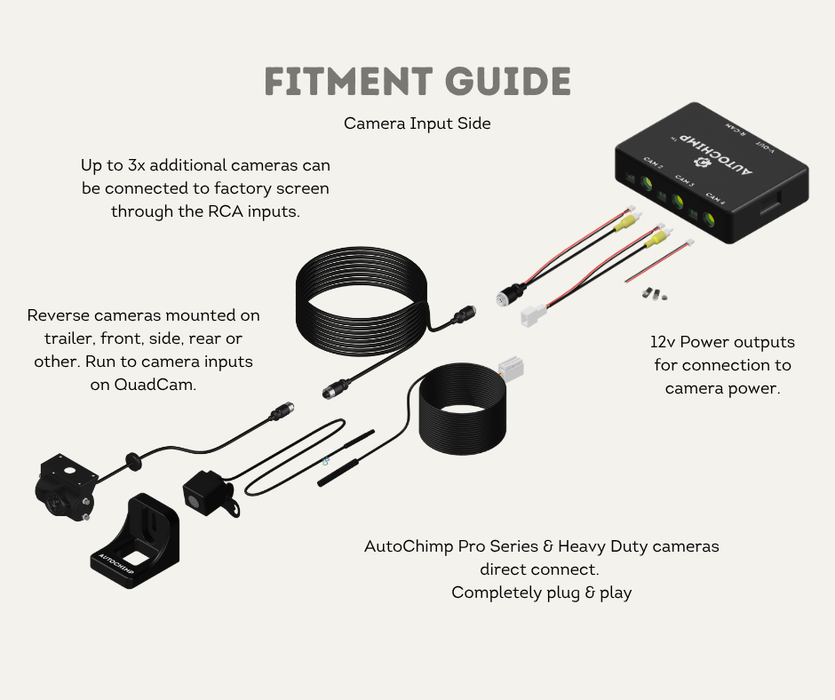

The AutoChimp™ Dual Camera Kit for Toyota LandCruiser 70 Series (2023–2025) enables seamless integration of a second camera into your factory display. Retain the factory reverse camera while expanding visibility with a front or trailer camera — no aftermarket head unit required. Built on the AutoChimp™ QuadCam PRO+ platform, this system offers intelligent switching, direct camera power, and white LED dash switches to match the updated factory interior.

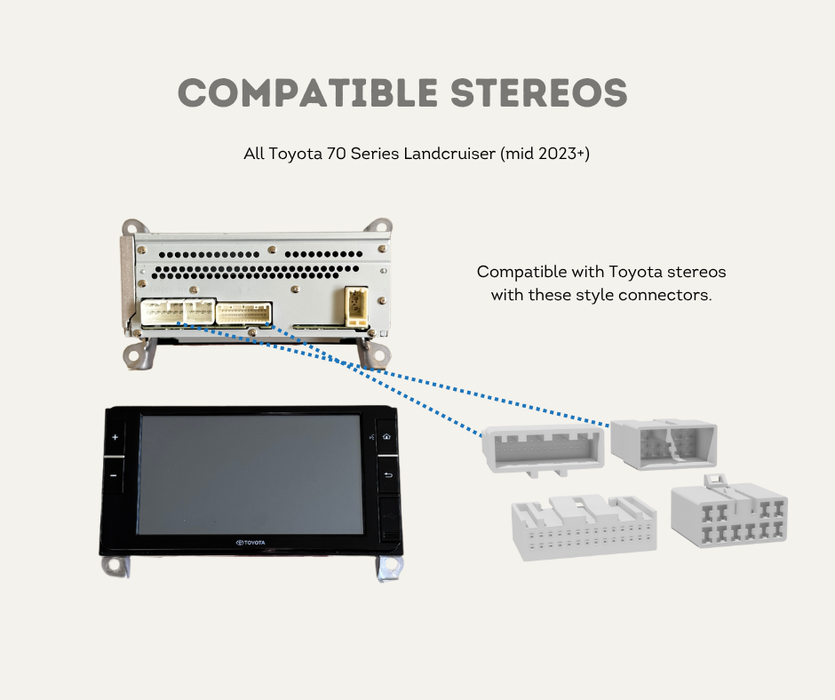

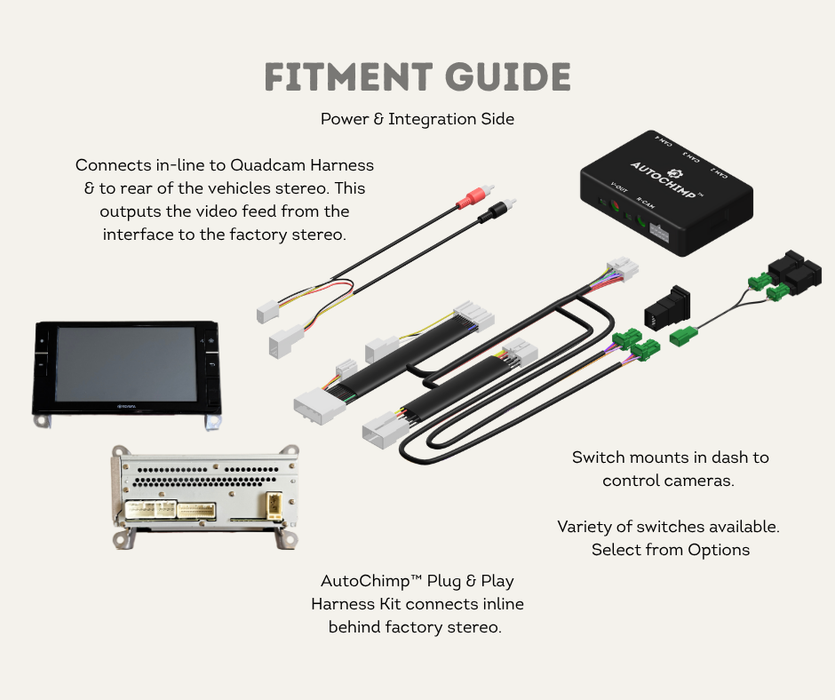

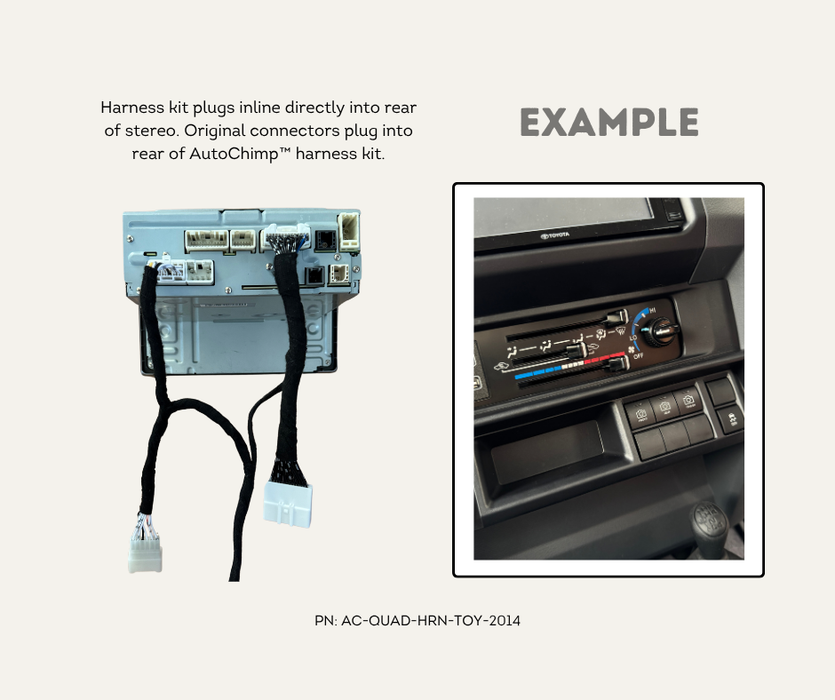

This system is purpose-built for the facelifted 70 Series, using a 28-pin Toyota plug that connects directly behind the stereo.
Key Features
• Plug & Play 2-Camera Integration – Factory reverse + 1x additional camera
• Designed for LandCruiser 70 Series (2023–2025) – Fits Toyota's 28-pin head unit interface
• Smart Power Management – 12V output for each active camera, 2A max
• Dash Switch Included – Choose dual or single button switch with white LED illumination
• Expansion Ready – Upgrade to 4-camera support by adding extra switches
• Universal Compatibility – Works with NTSC, PAL, CVBS, AHD RCA-format cameras
• Factory Integration – Maintains OEM reverse camera and display logic
• No Cutting, No Coding – Entirely plug & play, preserving your vehicle’s warranty

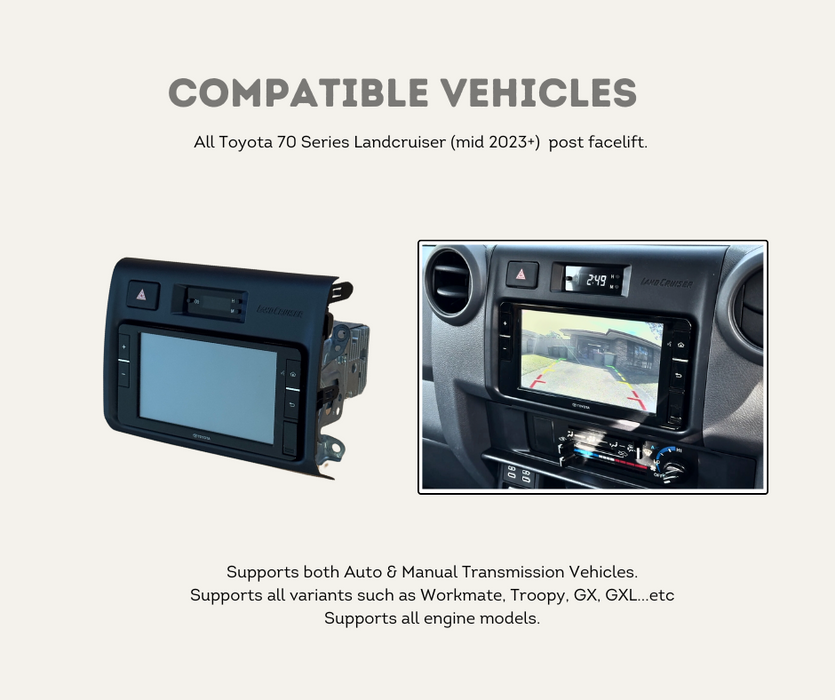

Vehicle Compatibility
• Toyota LandCruiser 70 Series (2023–2025)
• Workmate, GX, GXL, Troopcarrier
• Manual and automatic variants
• Factory reverse camera required
• Not compatible with factory 360° camera systems

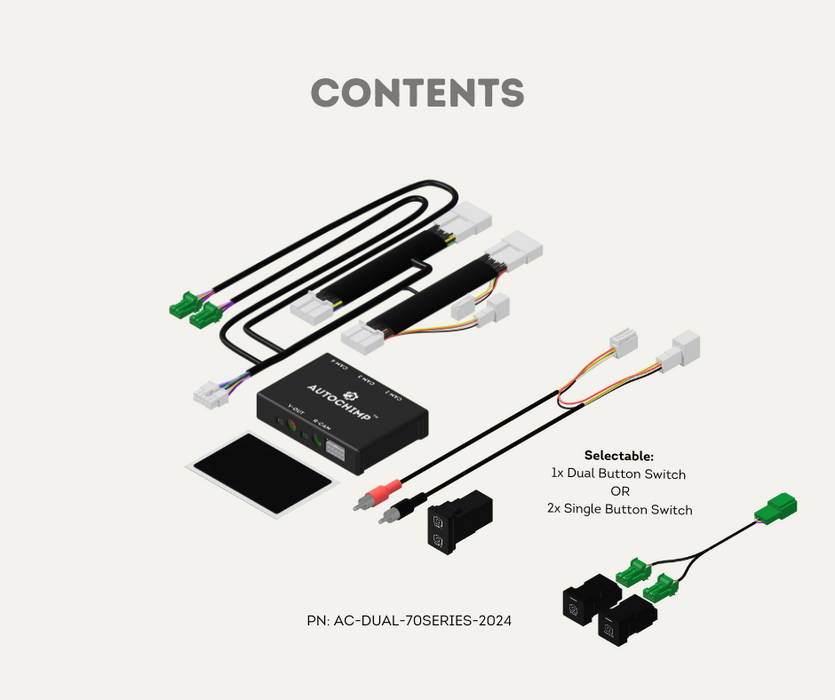

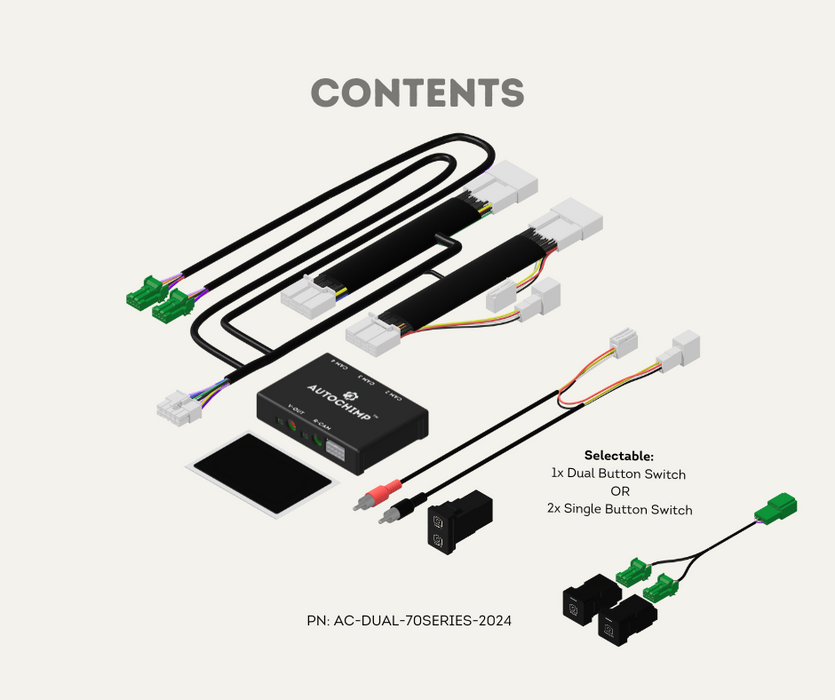

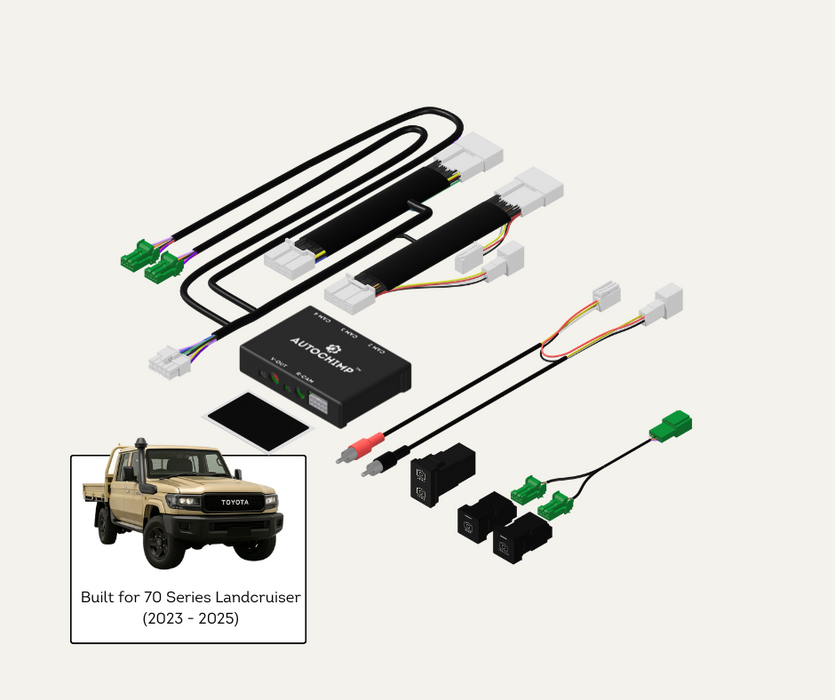

What’s Included

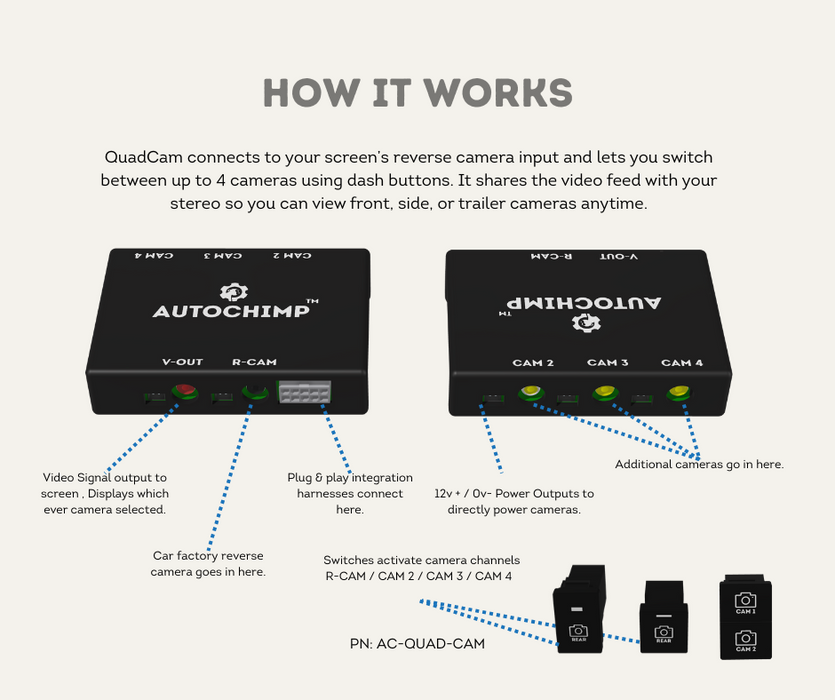

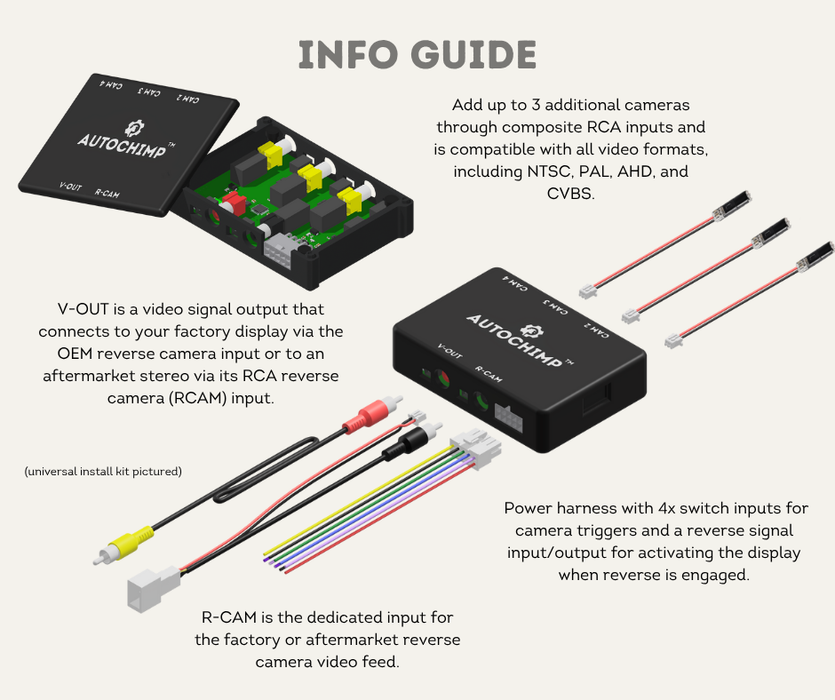

• 1x AutoChimp™ QuadCam PRO+ Switching Module

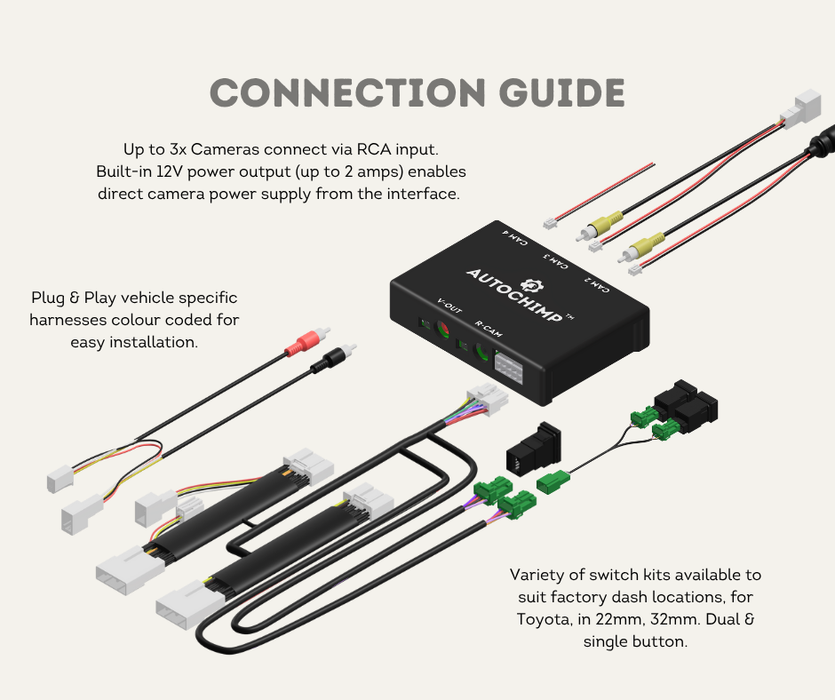

• 1x RCA Input Board with labeled ports:
• Red – V-OUT to stereo
• Black – RCAM (factory reverse camera input)
• Yellow – CAM2 / CAM3 / CAM4 (extra inputs)

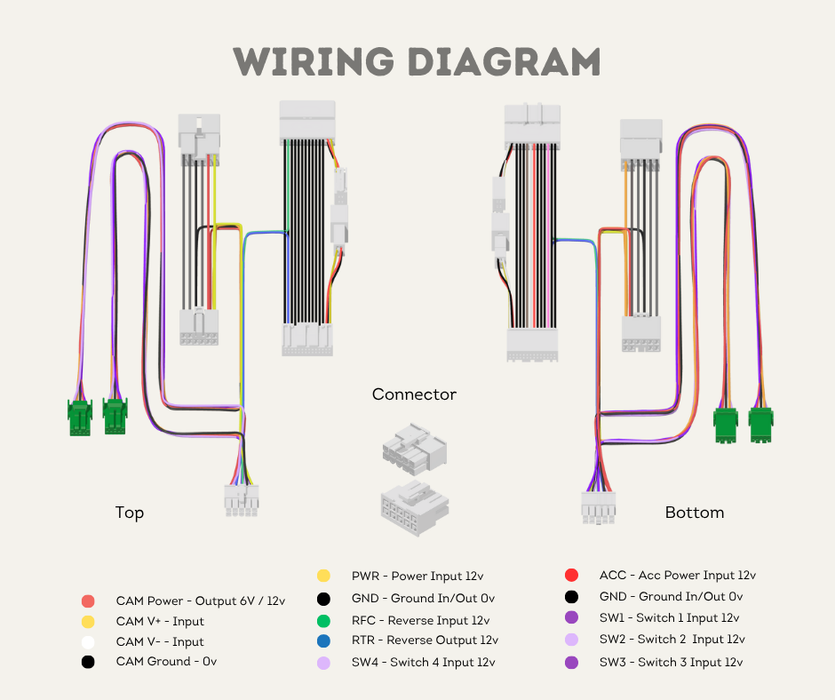

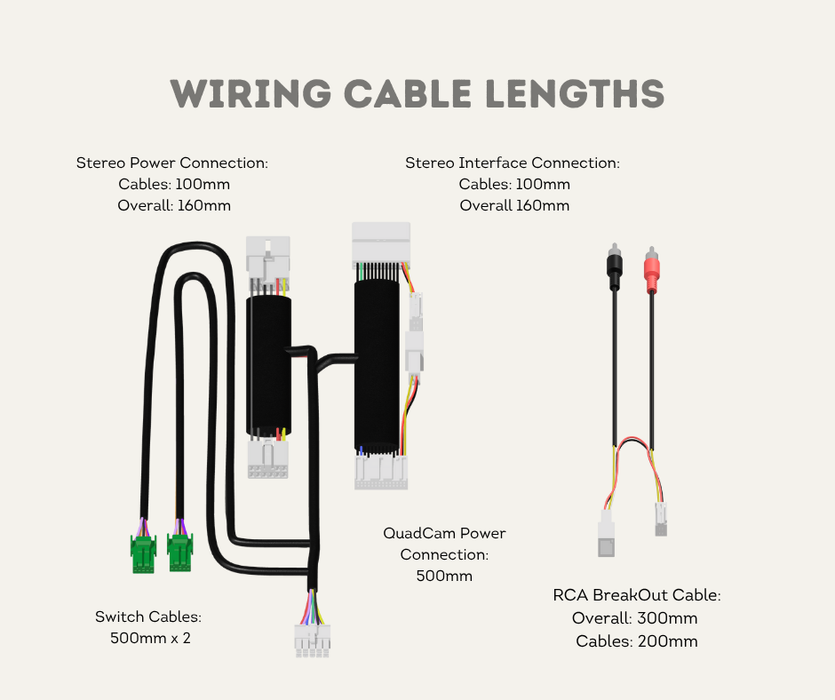

• 1x AutoChimp™ QuadCam Harness for 70 Series 2023–2025 (AC-QUAD-HRN-70SERIES-2024)
• 1x RCA Breakout Adapter (AC-QUAD-BRKOUT-RCA)

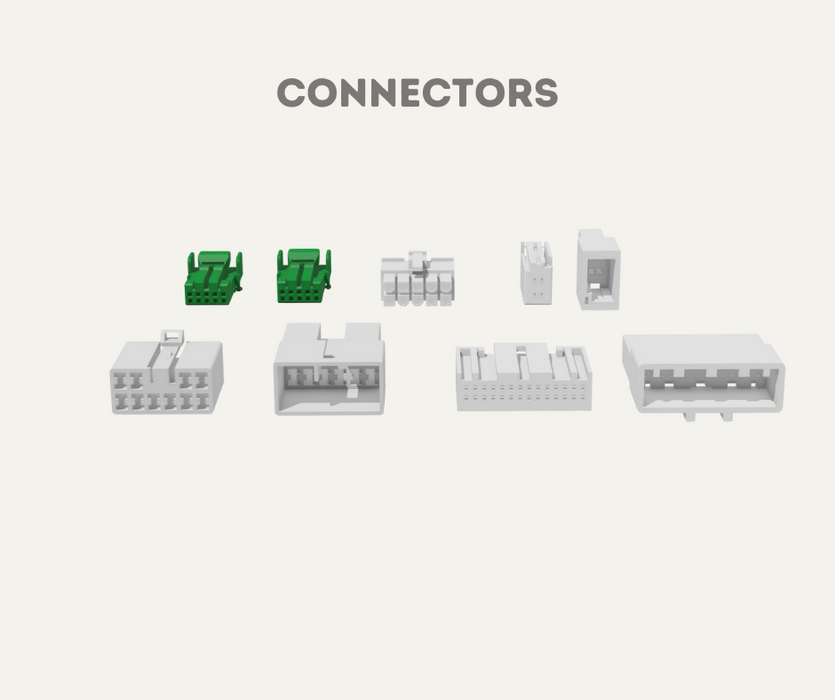

• 1x Toyota 28-Pin Camera Adapter (AC-TOY-28PIN-4PIN-70SERIES)

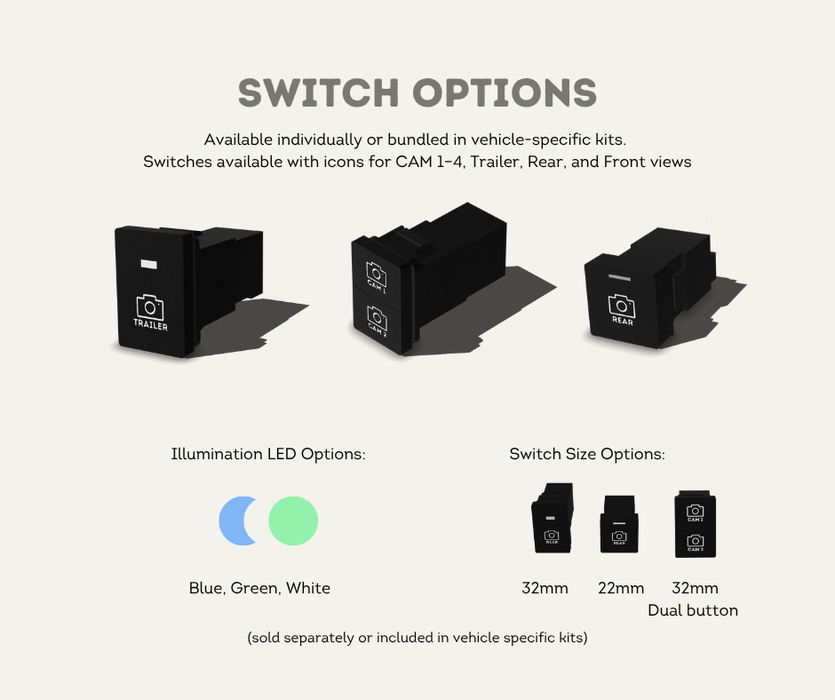

• 1x Switch Configuration – Choose:
• 1x Dual Button Switch or
• 2x Single Button Switches (White LED illumination)
• 1x Installation PDF Guide
Technical Specifications
• Video Input: RCA (NTSC, PAL, AHD, CVBS)
• Power Output: 12V (2A max per channel)
• Control Input: Dash-mounted momentary switch with white LED indicator
• Output Ports: 3x JST 2-pin camera power lines
• Mounting: Concealed under-dash install
• Operating Temp: -30°C to +70°C
Important Notes
• Reverse camera must already be present in the vehicle
• Not suitable for 360-degree camera models
• Compatible with AutoChimp™ Pro HD Cameras and universal RCA-based systems
• Additional cameras and switches sold separately
Why Choose AutoChimp™?
• OEM-style plug & play camera control
• Purpose-built for the new LandCruiser 70 Series interior and electronics
• White LED switches to match factory dash lighting
• Durable construction for Aussie off-road conditions
• Upgrade path for future camera expansion
