AutoChimp™ Heavy Duty Trailer Camera Kit | 5m + 10m Extension Cables for Hitch Break Points

AutoChimp™ Heavy Duty Trailer Camera Kit | IR + IR Cut | AHD / CVBS | 5m + 10m

SKU: AC-HEAVY-CAM-KIT-TRAILER

The AutoChimp™ Heavy Duty Trailer Camera Kit is a rugged towing and caravan camera solution built around the updated AutoChimp™ Heavy Duty Camera platform.

Designed for trailers, caravans, horse floats, canopies, work vehicles, and harsh Australian towing conditions, the kit includes the upgraded Heavy Duty camera, a 5m vehicle-side extension cable, a 10m trailer-side extension cable, and an AC-HEAVY-CAM-RCA adapter for RCA-based screens and AutoChimp™ Dual and QuadCam systems.

The system is hitch break point ready. Run the 5m cable from the vehicle to the hitch area and the 10m cable from the trailer camera to the hitch area, then add the optional AutoChimp™ Heavy Duty Suzi Coil Camera Connection Kit to create a flexible trailer disconnect point.

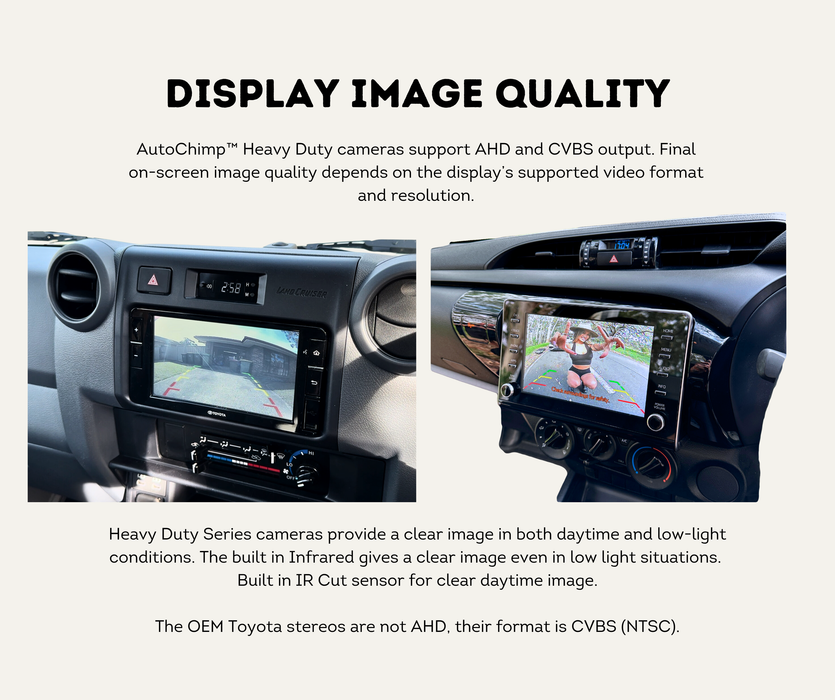

With IR + IR Cut night vision, selectable AHD or CVBS output, mirror or normal image switching, 6V–24V operation, and a 110° horizontal viewing angle, this kit is built for demanding towing applications.

Key Features

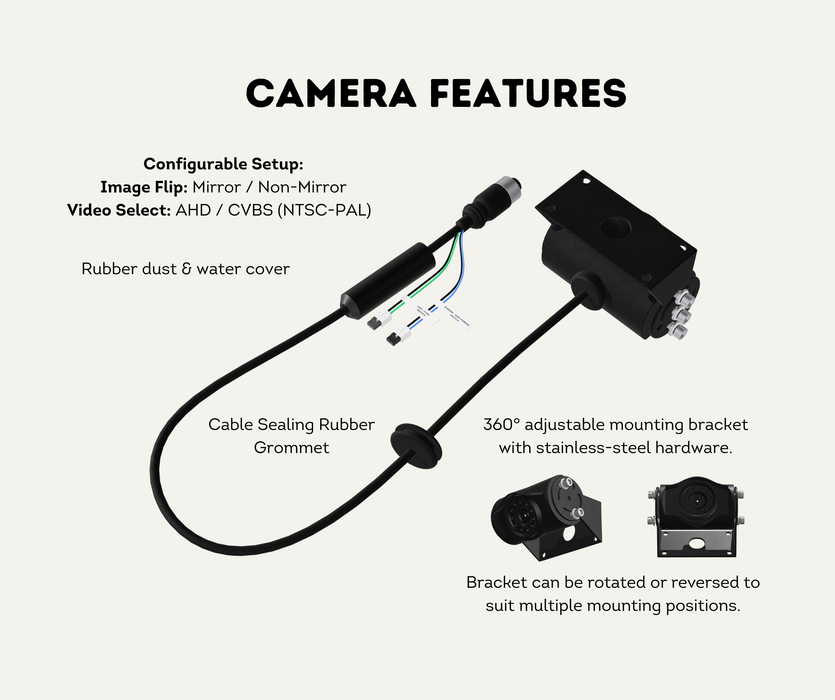

• Updated Heavy Duty trailer camera kit using the AC-HEAVY-CAM platform
• IR + IR Cut night vision for improved day and night image performance
• AHD / CVBS selectable output to suit more display types
• Clear-View Design (No Camera-Generated Guidelines) – parking lines will only appear if supplied by the connected stereo or display.

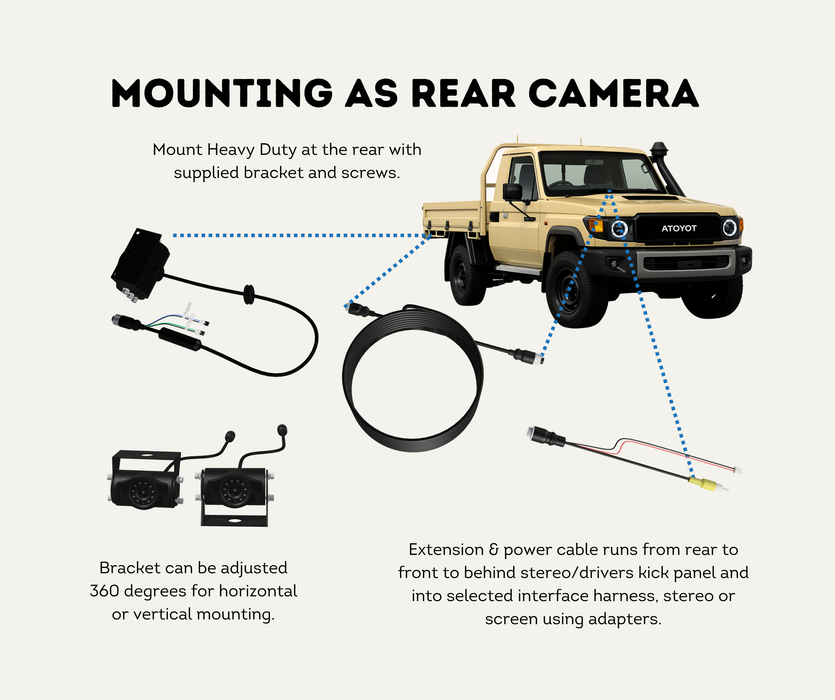

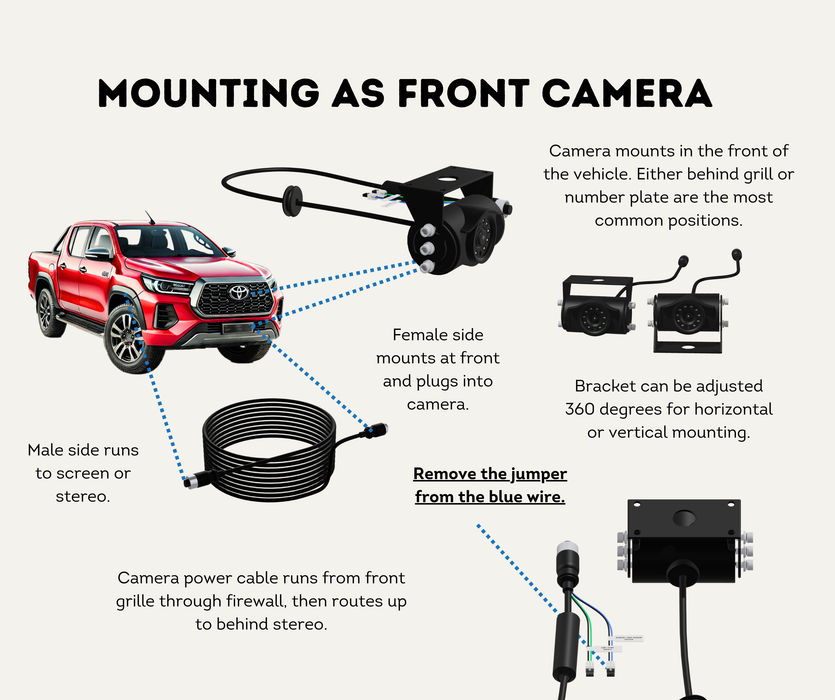

• Mirror / normal image switching for rear or front camera use
• 110° horizontal viewing angle
• 6V–24V DC operating range

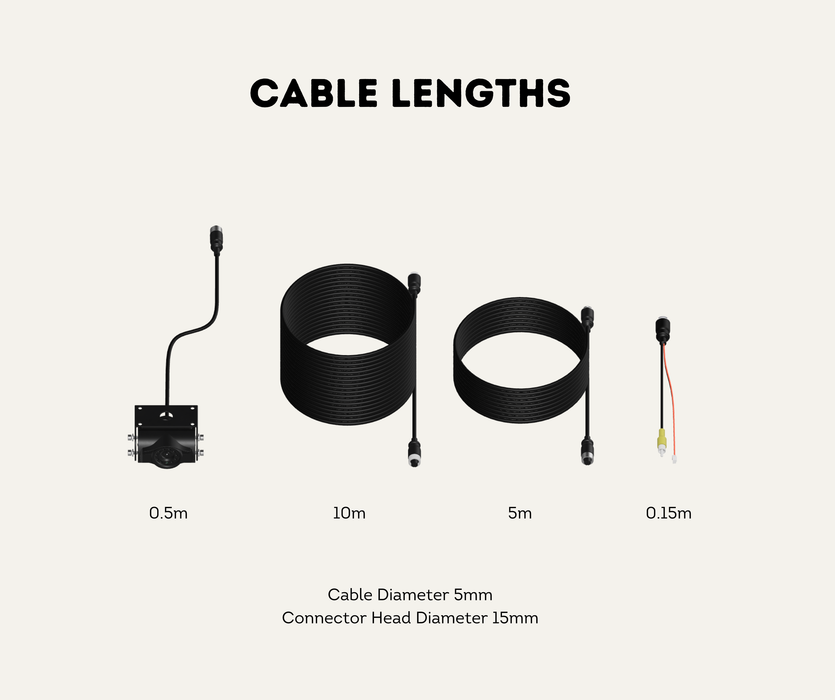

• 5m + 10m extension cable set for vehicle-side and trailer-side runs
• Hitch break point ready with the optional Suzi Coil connection kit
• 4-pin aviation connector system for rugged, waterproof camera connections
• Included AC-HEAVY-CAM-RCA adapter for RCA-based screens and AutoChimp™ camera systems
• Built for towing, caravans, trailers, fleet vehicles, off-road use, and rural applications

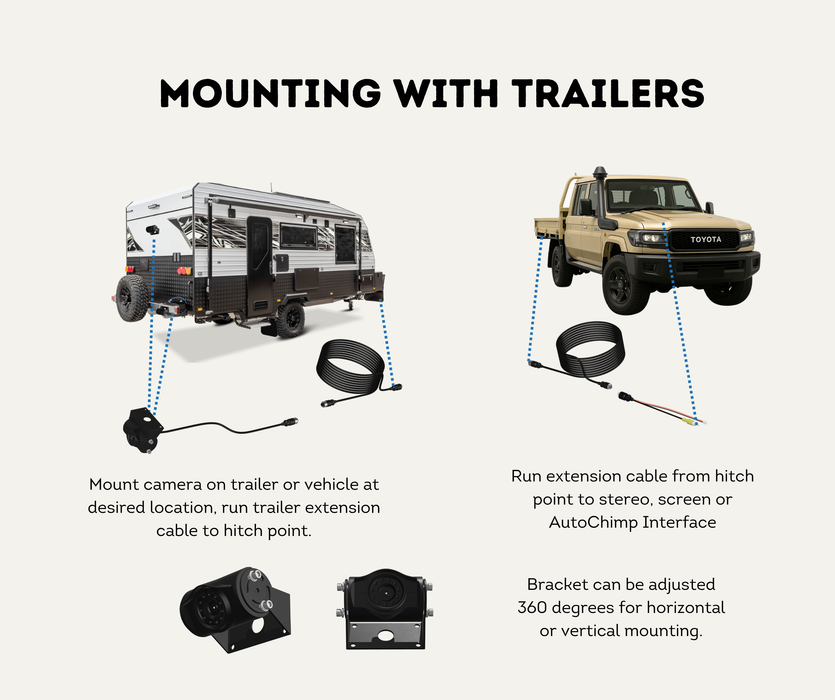

Hitch Break Point Setup

• 5m cable: runs from the vehicle display or interface side to the hitch area
• 10m cable: runs from the trailer camera to the hitch area
• Optional Suzi Coil kit: creates a flexible disconnect point between the vehicle and trailer

This layout is ideal for caravans, trailers, horse floats, and other towing applications where the camera system needs a clean, serviceable break point at the hitch.

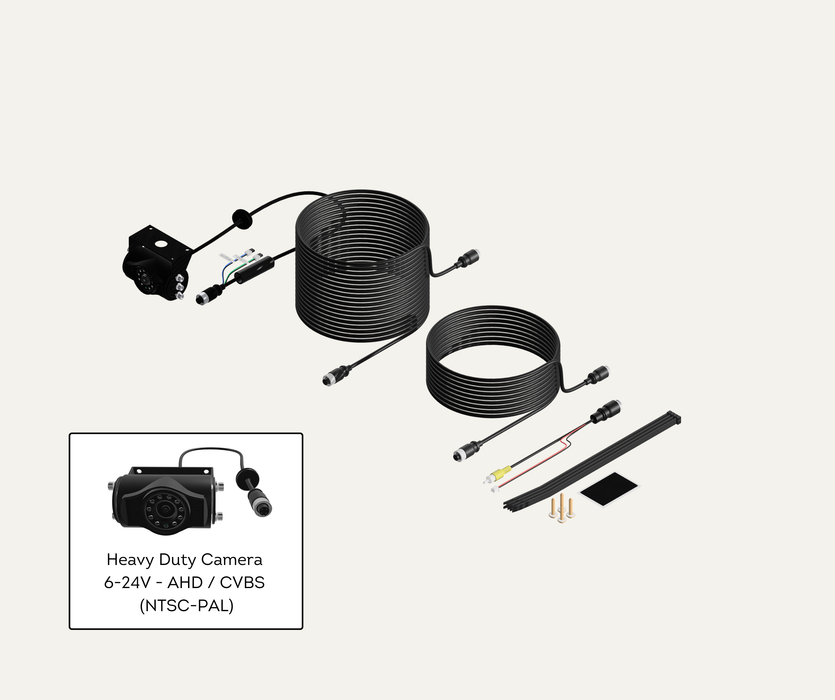

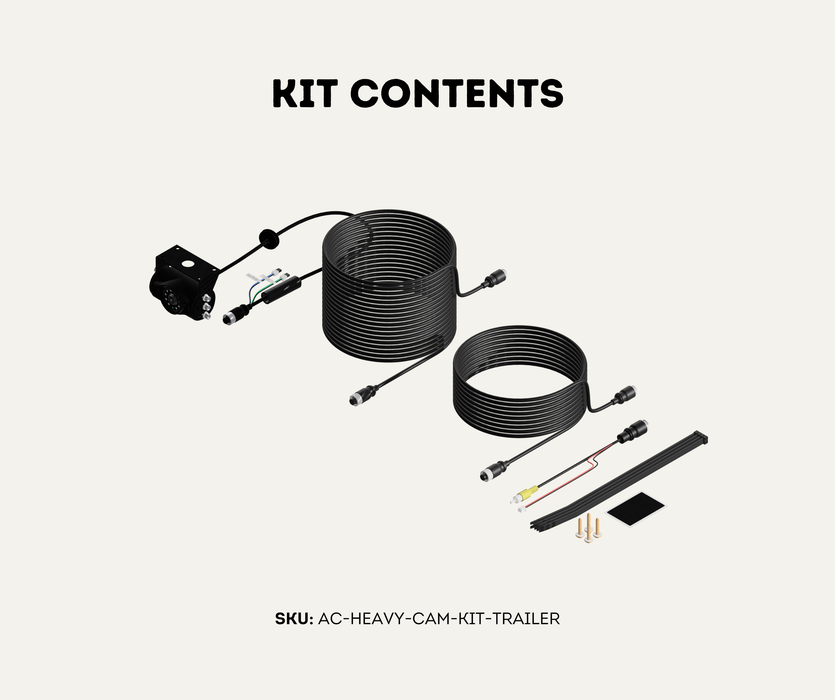

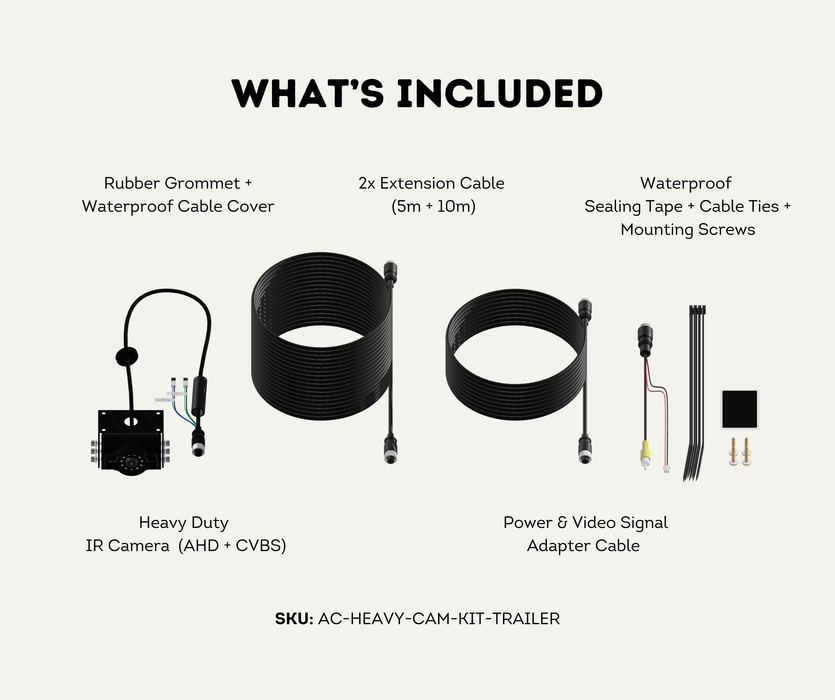

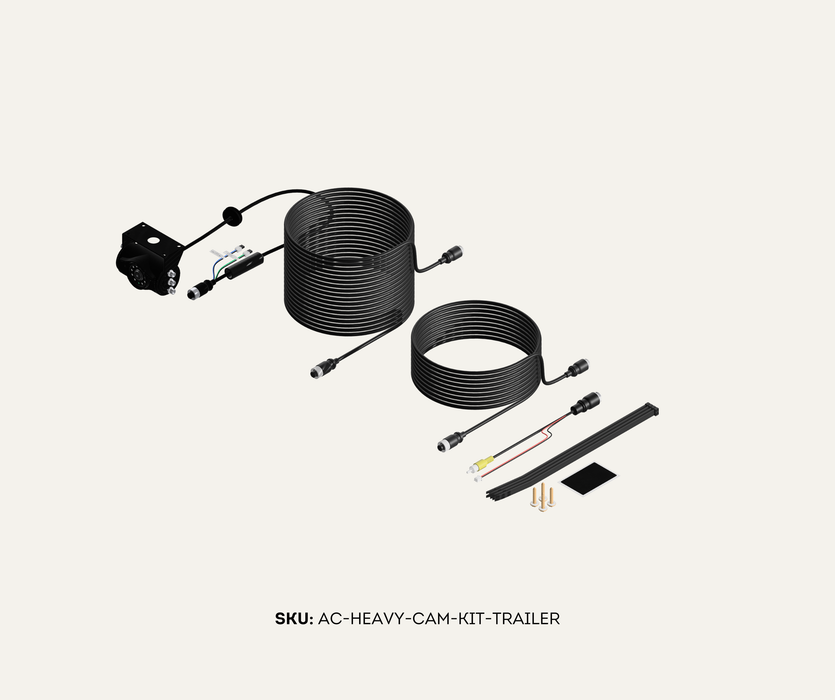

What’s Included

• 1x AutoChimp™ Heavy Duty Camera (AC-HEAVY-CAM) with fixed 0.5m lead
• 1x 5m Heavy Duty extension cable (vehicle side)
• 1x 10m Heavy Duty extension cable (trailer side)
• 1x AutoChimp™ Heavy Duty RCA Adapter (AC-HEAVY-CAM-RCA)
• 1x Heavy Duty adjustable mounting bracket
• 1x Rubber grommet
• 1x Waterproof cable cover
• Waterproof sealing tape
• Cable ties
• Mounting hardware

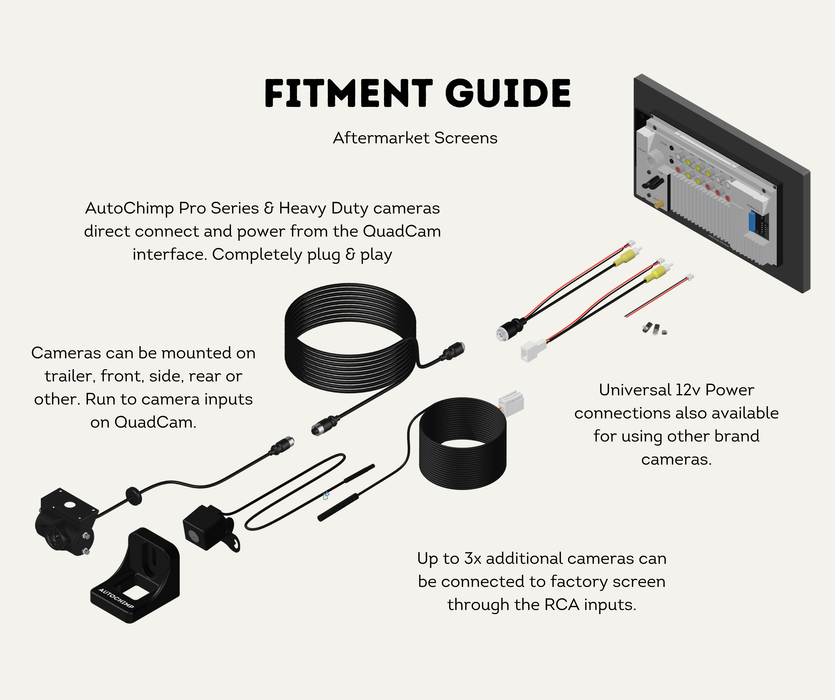

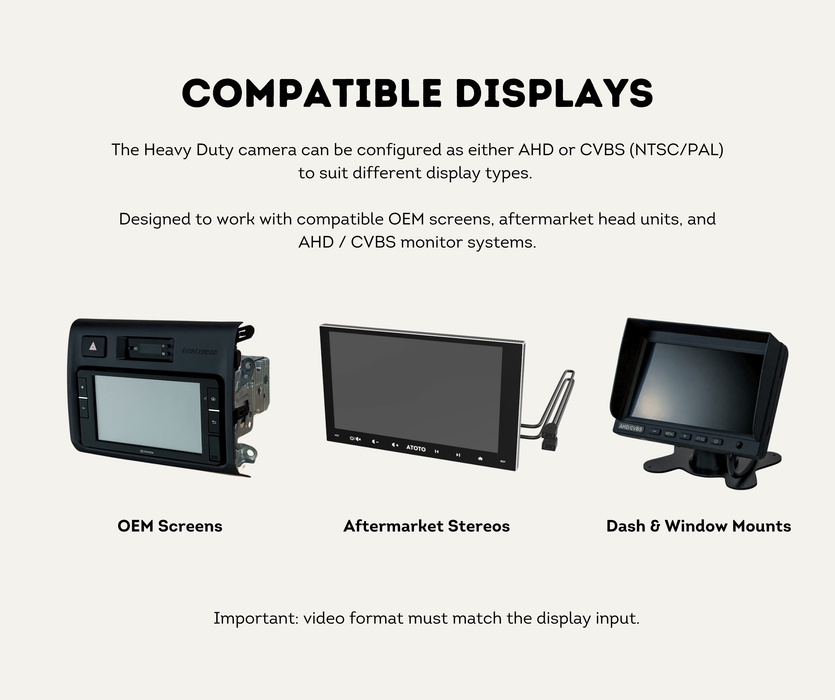

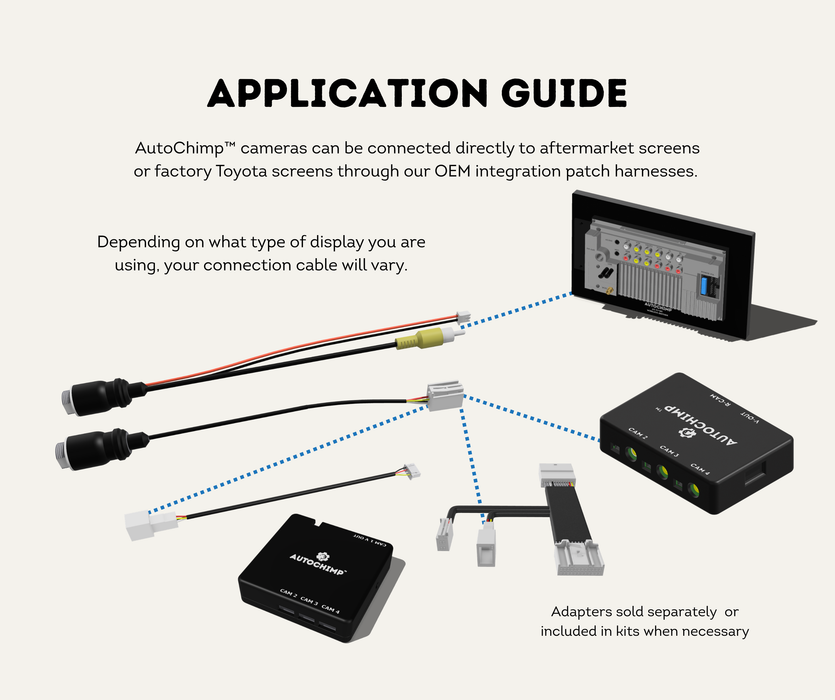

Compatibility

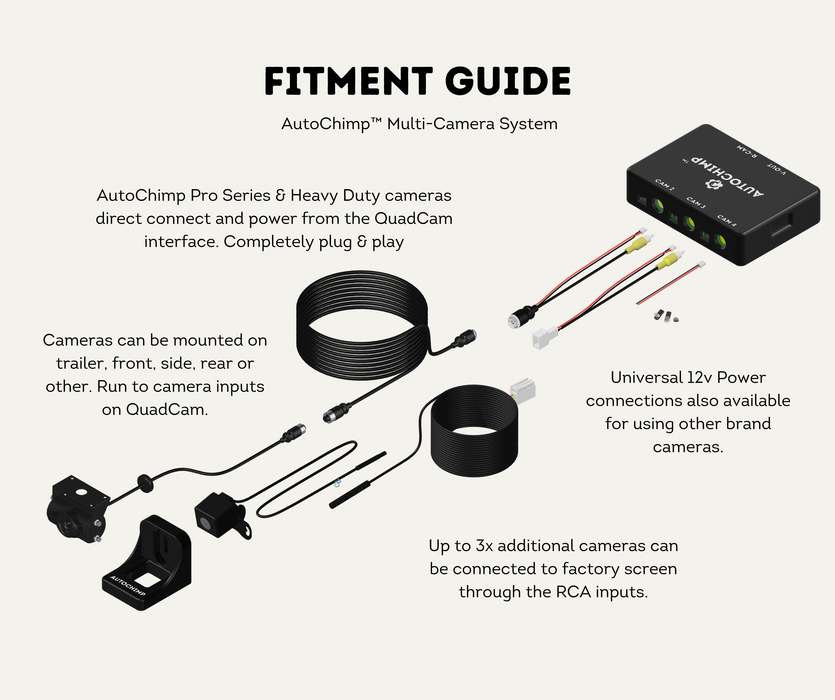

• AutoChimp™ Dual Camera systems
• AutoChimp™ QuadCam systems
• Aftermarket screens and stereos with RCA video input

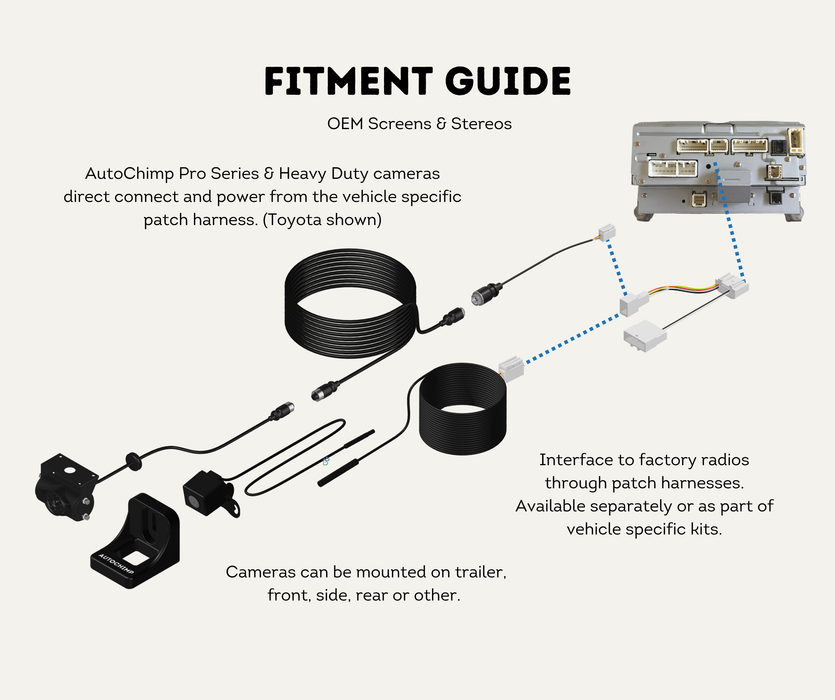

• Compatible OEM screen integrations where the selected video format is supported
• Caravans, trailers, horse floats, canopies, and towing setups

Optional accessories sold separately

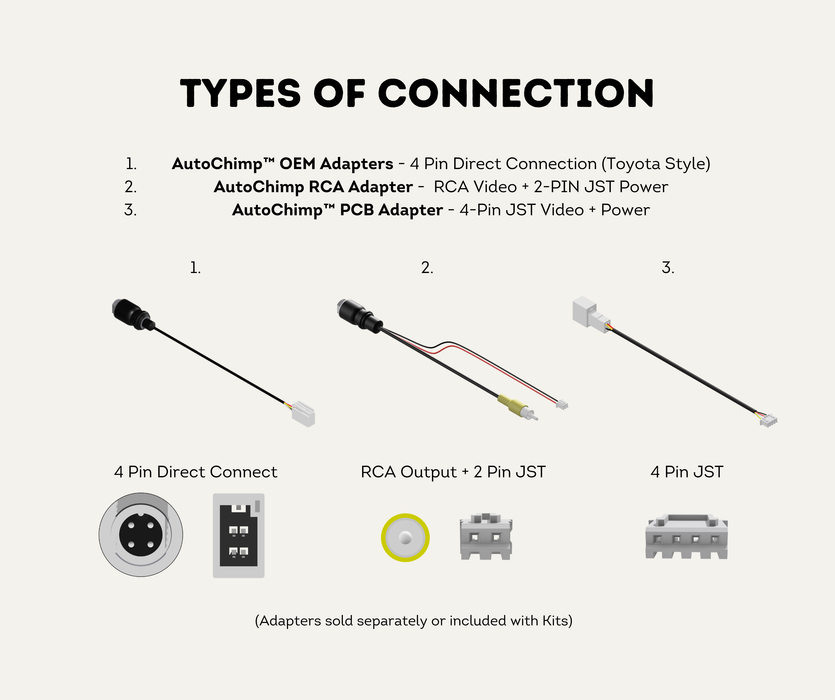

• AC-HEAVY-CAM-4PIN – for compatible 4-pin Toyota-style and Pro Series integrations

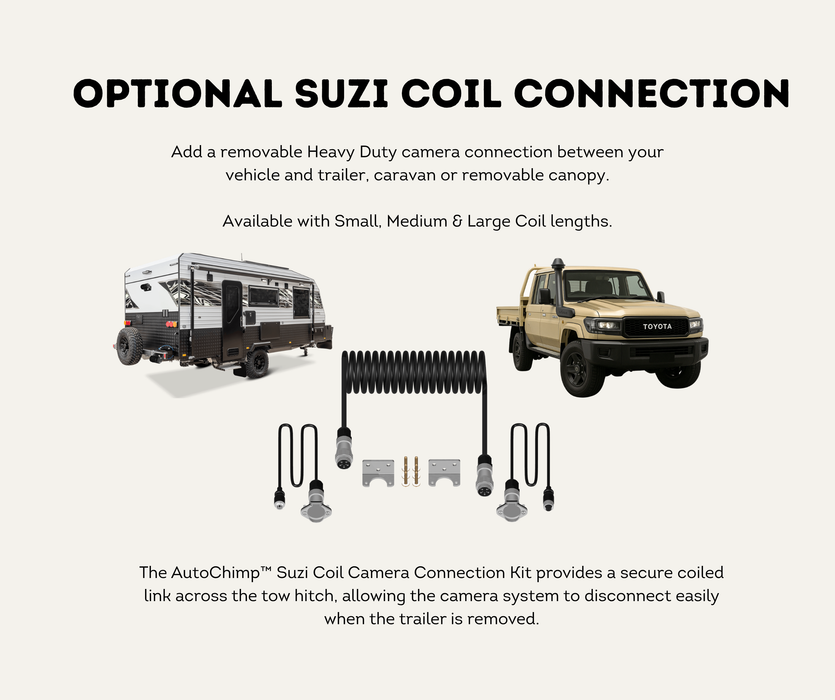

• AutoChimp™ Heavy Duty Suzi Coil Camera Connection Kit – for a flexible hitch break point connection

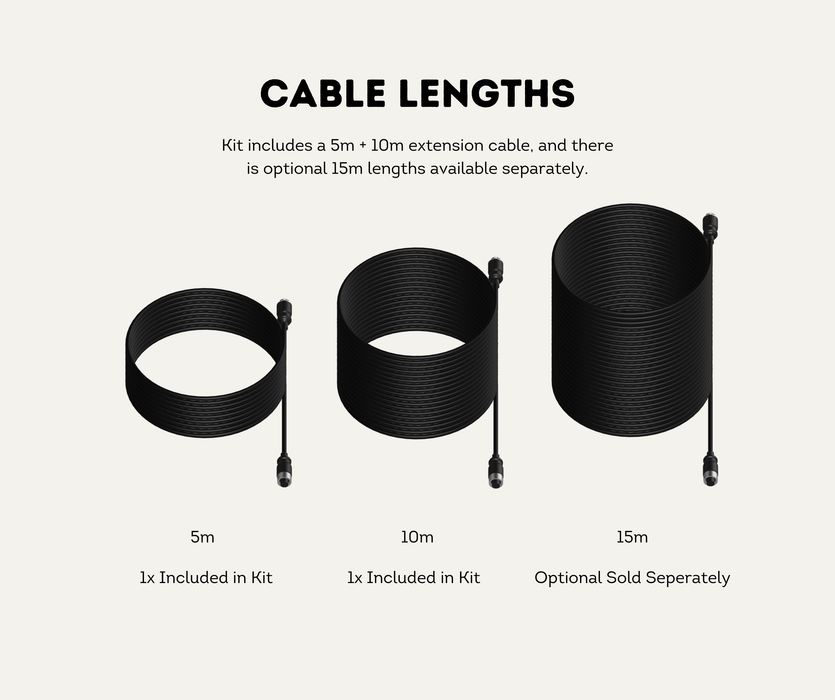

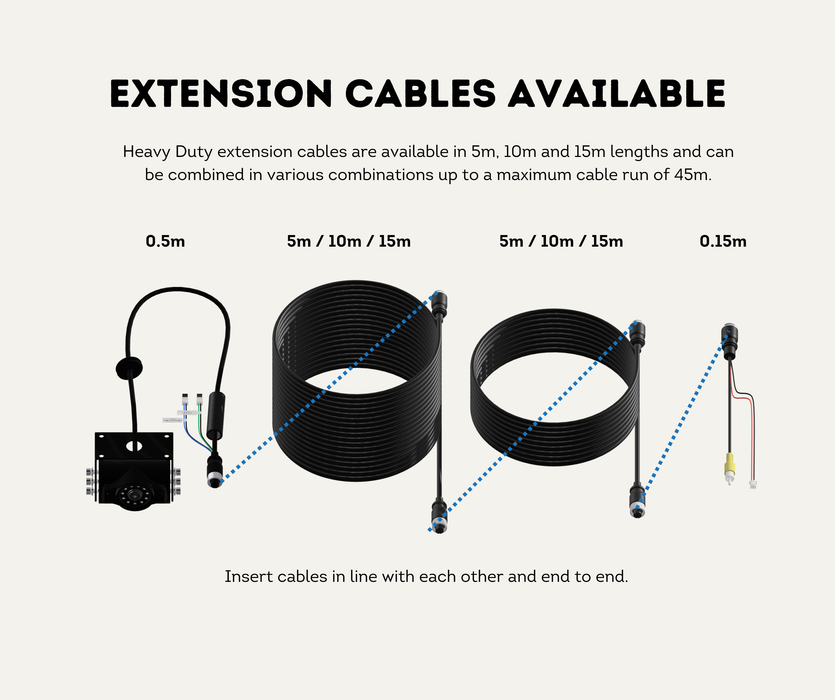

• Additional Heavy Duty extension cables – available separately in 5m, 10m, and 15m lengths

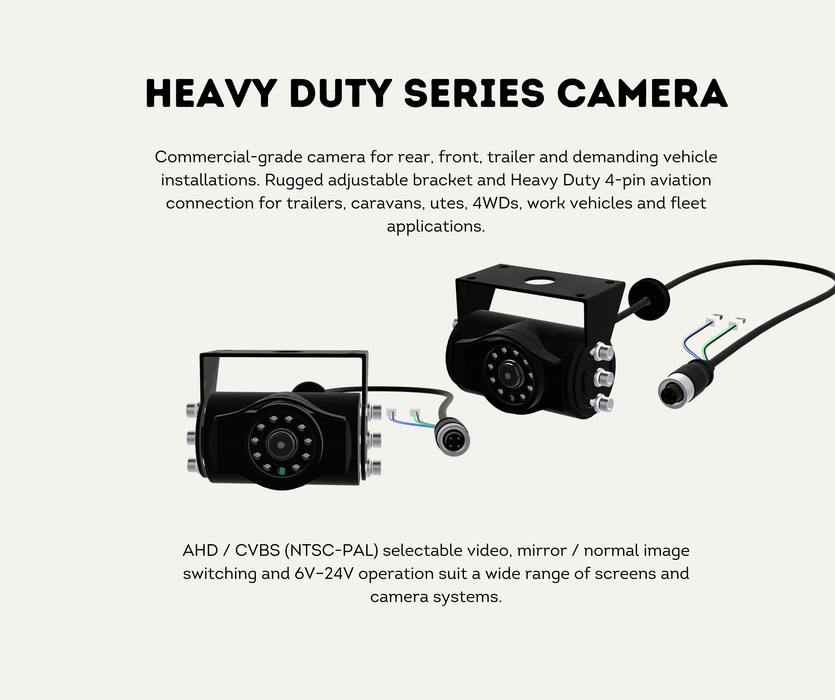

Camera Specifications

• Sensor: 1/2.9" CMOS
• Resolution: 2000 TVL / 1920 × 1080p
• Frame Rate: 30 fps
• Viewing Angle: 110° horizontal
• Night Vision: IR LEDs + IR Cut
• Operating Voltage: 6V–24V DC
• Video Output: AHD / CVBS selectable
• Default Output: AHD
• CVBS Standard: PAL / NTSC auto switching

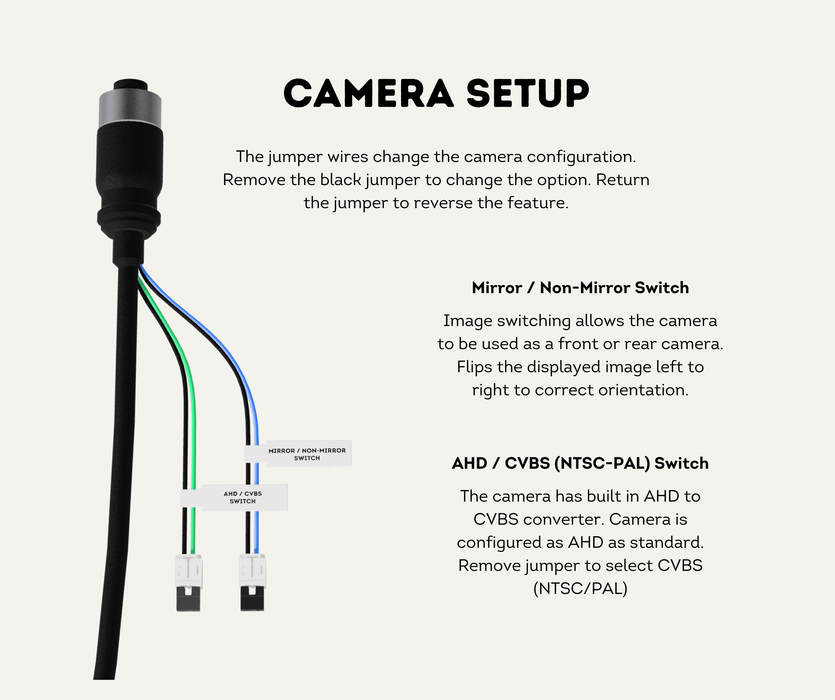

• Image Orientation: Mirror / normal selectable

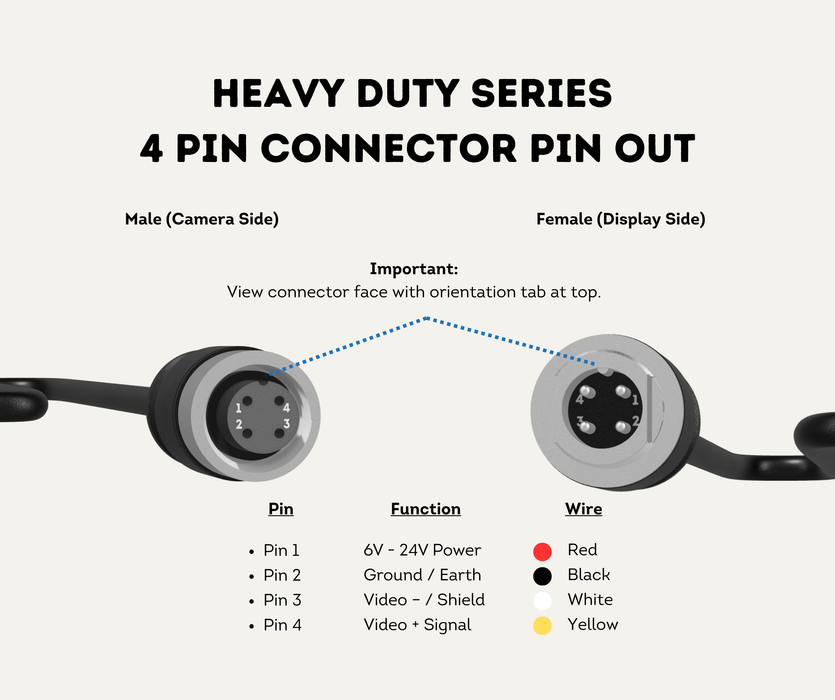

• Connector: Heavy Duty 4-pin aviation
• Camera Lead: Fixed 500mm

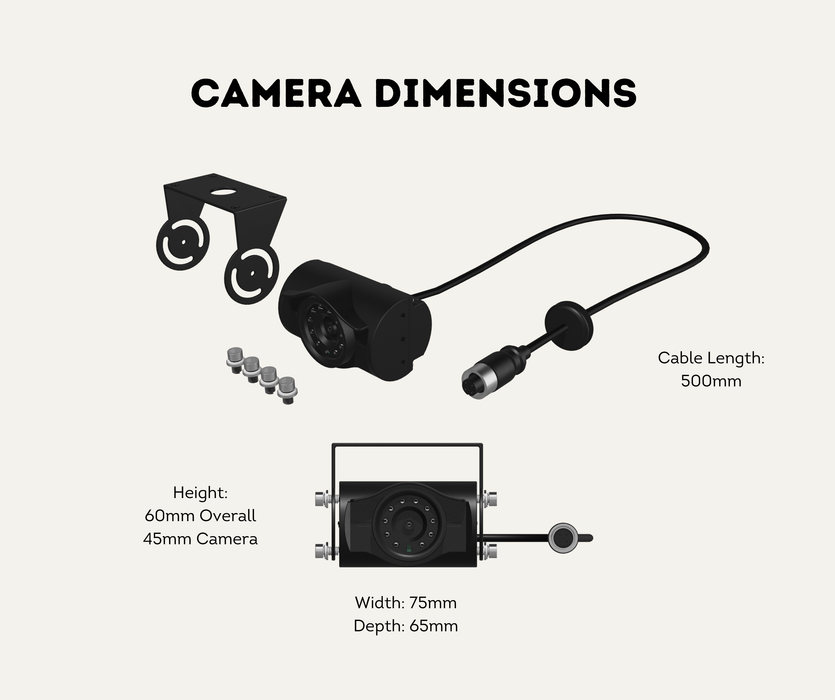

• Dimensions: 75mm wide × 65mm deep × 60mm overall height
• IP Rating: IP67 waterproof and dustproof
• Operating Temperature: -30°C to +70°C
• Bracket: Heavy Duty adjustable bracket
• Housing Finish: Matte black electro-coated

Important Notes

• This kit is hitch break point ready but does not include the Suzi Coil link cable
• The optional Suzi Coil kit is required for a flexible disconnect point between the vehicle and trailer

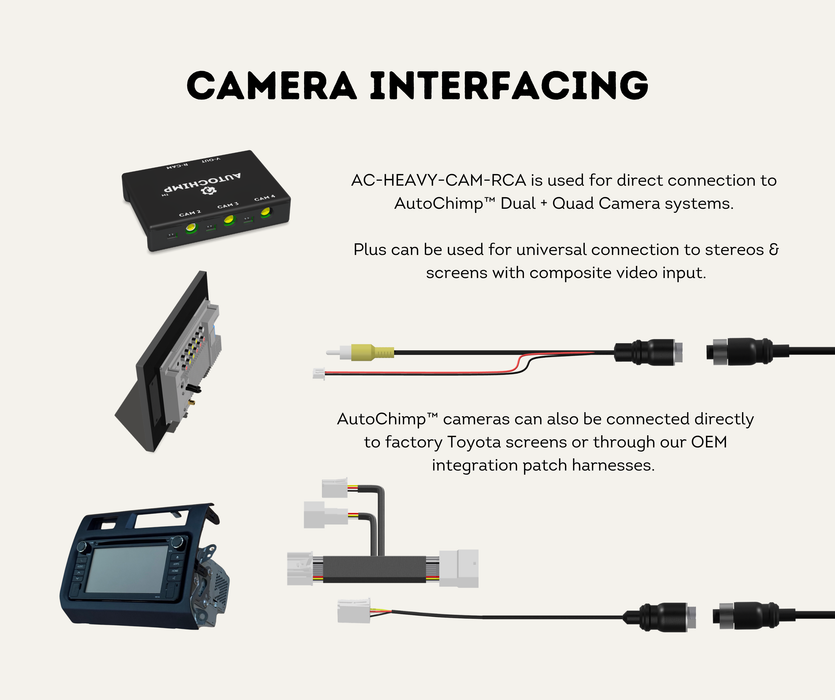

• The included AC-HEAVY-CAM-RCA adapter suits RCA-based screens and AutoChimp™ camera systems
• The AC-HEAVY-CAM-4PIN adapter is sold separately for compatible 4-pin integrations
• The selected video format must match the connected display

Why Choose the AutoChimp™ Heavy Duty Trailer Camera Kit?

This updated kit combines a stronger camera platform, flexible display compatibility, improved day and night imaging, and a clean towing-specific cable layout.

It is designed for real-world trailer and caravan installations where durability, serviceability, and reliable image performance matter.
