AutoChimp™ Dual Camera Kit for Toyota Hilux 2020–2024 | Plug & Play Camera Expansion | Add Front & Trailer Cameras
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Mon / Wed / Fri
Carrier: Auspost
Current Handling Times: 24 Hours
Popular Additions
Vehicle must have a standard reverse camera already installed for dual camera kits to work. If the vehicle does not have a reverse camera we sell kits for all the Toyota models that require them, search for AC-TOY-RC in search bar to view kits.
AutoChimp™ Dual Camera Kit for Toyota Hilux 2020–2024 | Plug & Play Camera Expansion | Add Front & Trailer Cameras
SKU: AC-DUAL-HILUX-2020

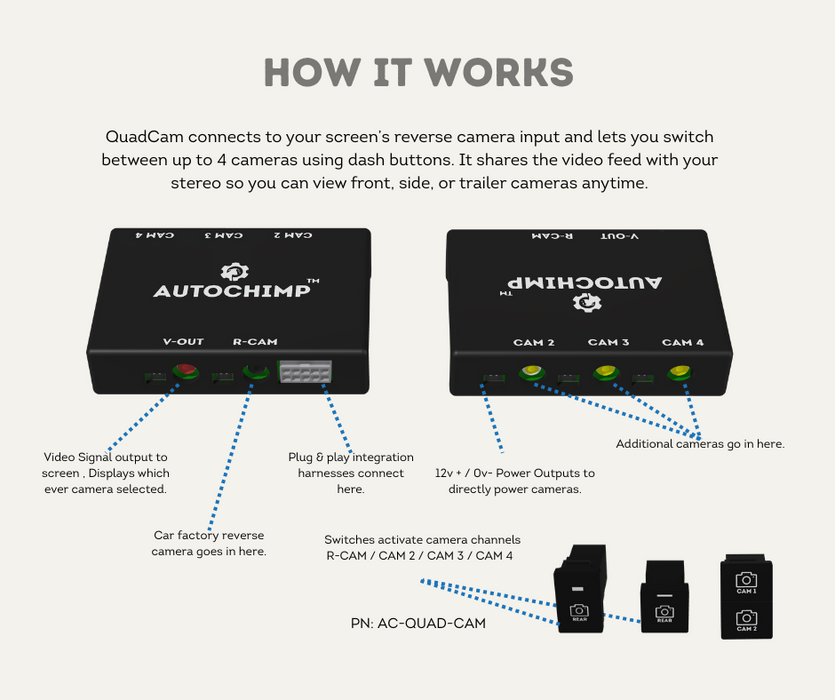

The AutoChimp™ Dual Camera Kit for Toyota Hilux (2020–2024) enables a plug & play upgrade to your factory screen, allowing you to control both your existing reverse camera and a second external camera using dash-mounted switches. Powered by the AutoChimp™ QuadCam System, this setup delivers a clean, professional multi-camera interface — with built-in power outputs, on/off switch lighting, and upgrade flexibility to add more views.

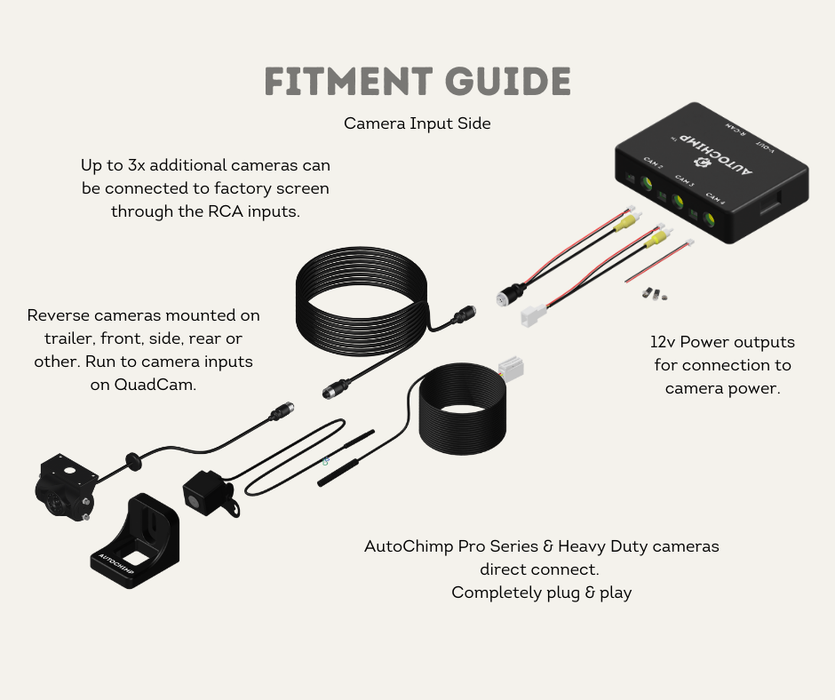

This kit is ideal for users who want to monitor trailer, side, or front camera feeds with the option to expand to a full 4-camera system by simply adding more switches
Video Input Support: RCA (NTSC, PAL, AHD, CVBS)
Key Features
• 2-Camera Plug & Play Integration – Factory reverse camera + 1 extra camera input
• Powered by QuadCam System – Built-in camera power output (12V, up to 2A per channel)

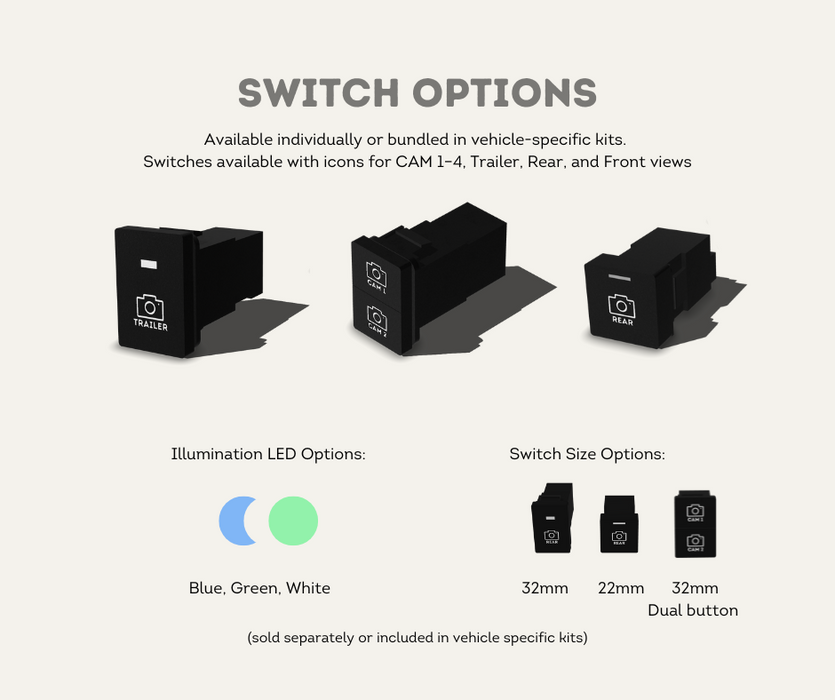

• Switch-Controlled Views – Momentary LED-lit switches show which camera is active
• Expandable to 4 Cameras – Add two switches later to upgrade to full QuadCam
• Factory Screen Retention – Uses your existing Toyota head unit

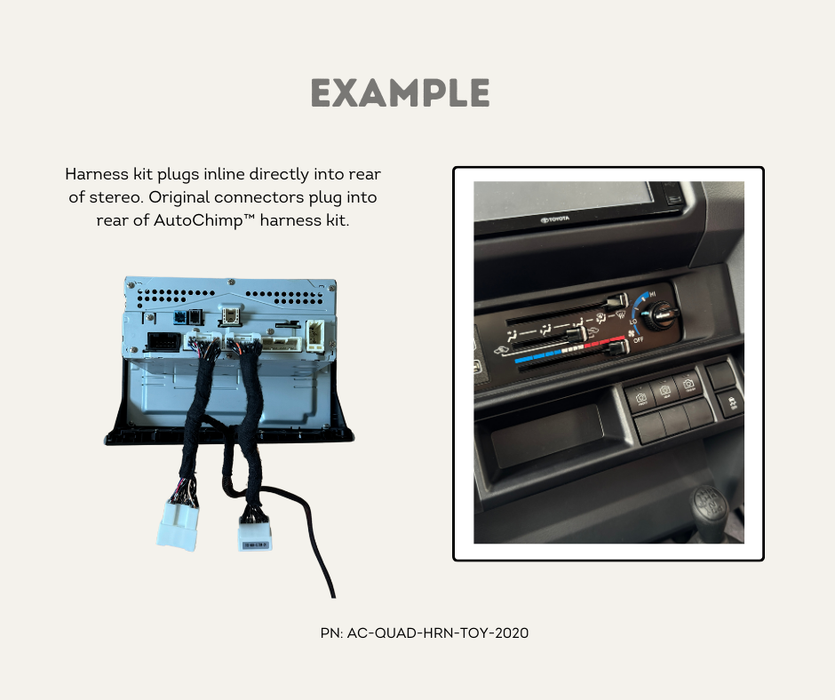

• Clean Install – No cutting, no coding, no dealer programming
• Built for Australian Conditions – Automotive-grade components, rugged durability

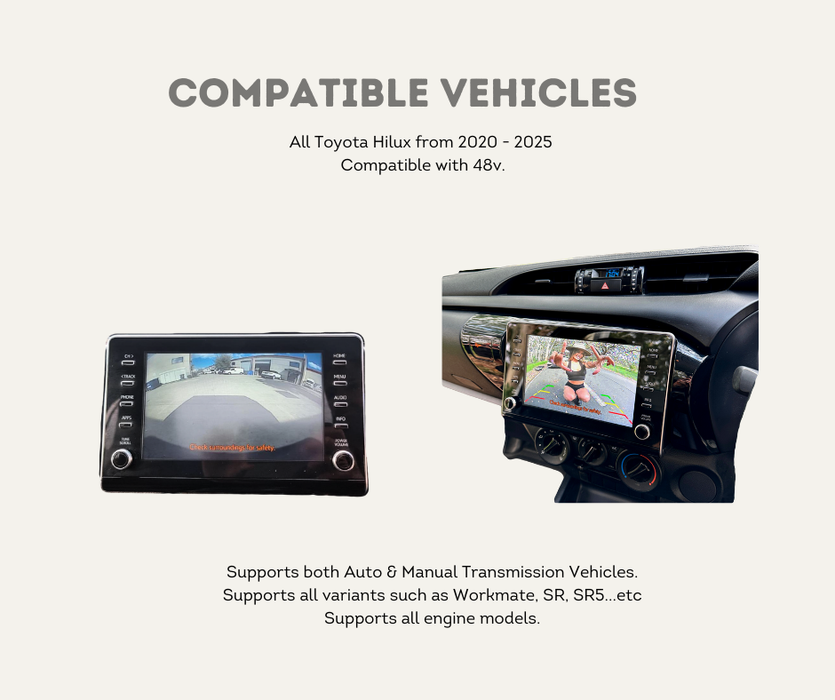

Vehicle Compatibility
• Toyota Hilux (2020–2024) with factory-installed reverse camera

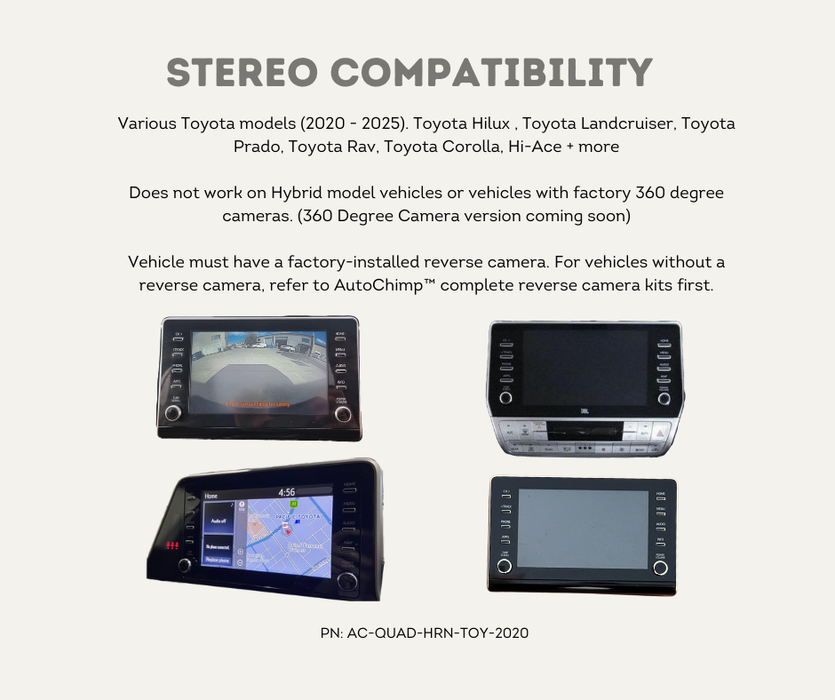

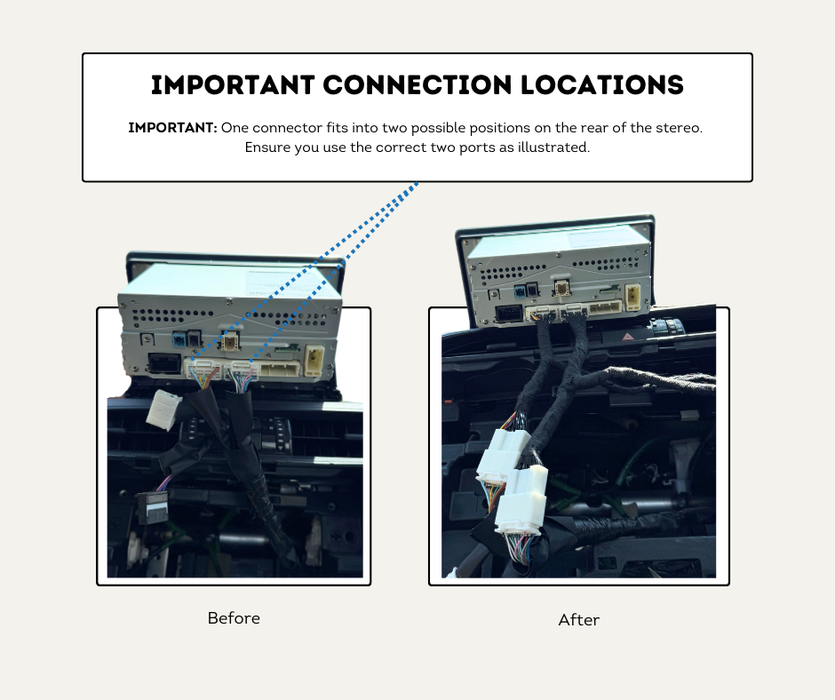

• Suitable for models with 28-pin or 30-pin stereo connectors
• Not compatible with factory 360-degree camera models (support expected May 30, 2024)

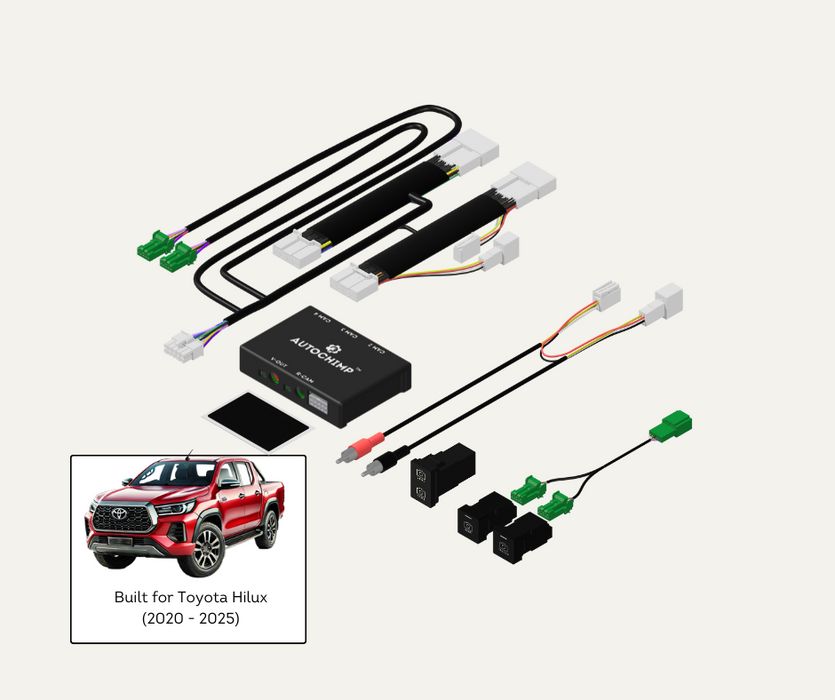

What’s Included

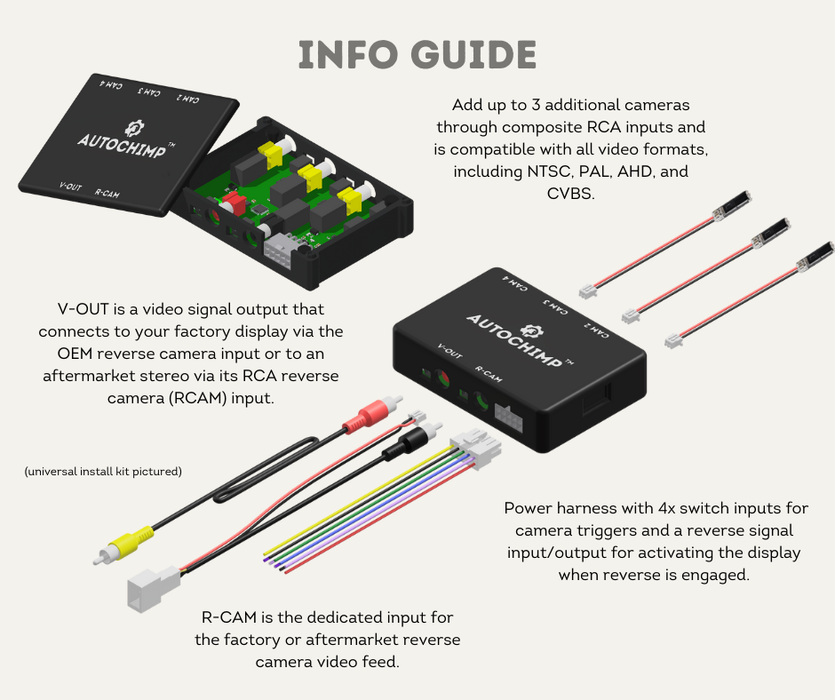

• 1x AutoChimp™ QuadCam System (Control Module + RCA Board)

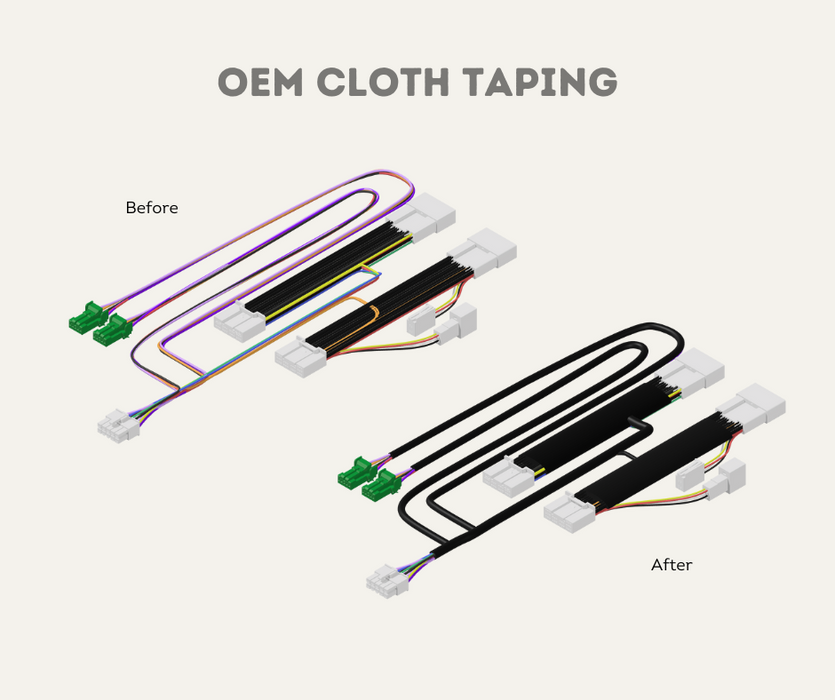

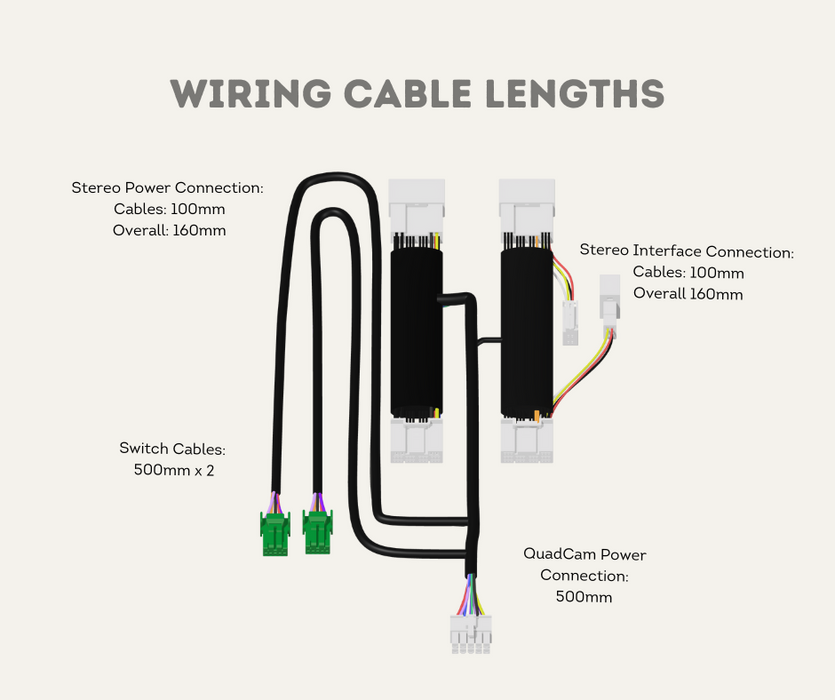

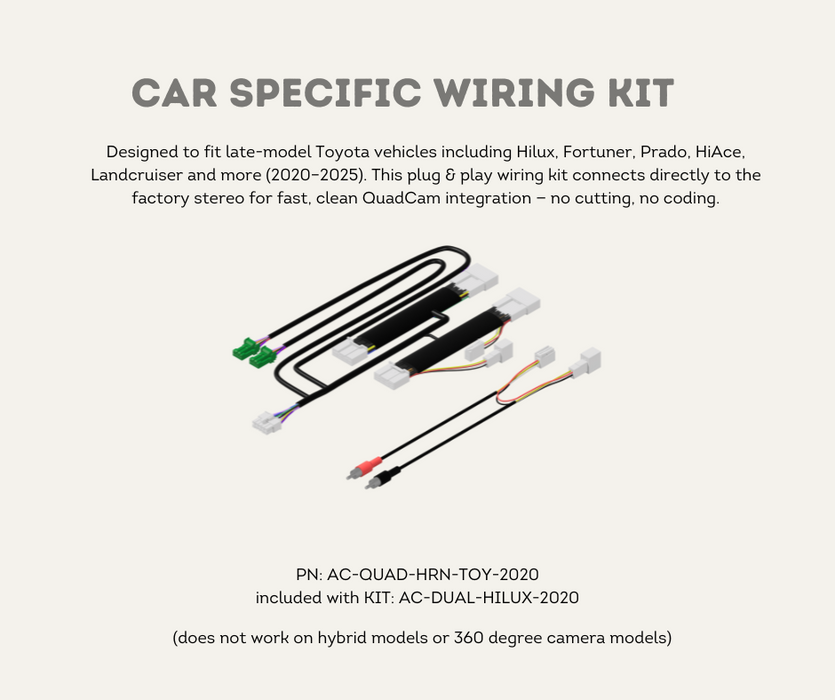

• 1x AutoChimp™ QuadCam Harness for Toyota 2020–2024 (AC-QUAD-HRN-TOY-2020)
• 1x AutoChimp™ QuadCam RCA Breakout Adapter (AC-QUAD-BRKOUT-RCA)
• 1x Dash-mounted Switch (choice of CAM 1 / CAM 2 / Front / Rear / Trailer icon)
• 1x Spare switch port pre-wired for future expansion to four cameras.
• 1x Digital PDF Installation Guide
Technical Specifications
Video Input Support: RCA (NTSC, PAL, AHD, CVBS)
• Power Output: 12V (2A max per active channel)
• Control: Momentary switches with LED indicators
• Mounting: Concealed behind dash
• Operating Temperature: -30°C to +70°C
• Camera Power Ports: 3x JST 2-pin
Important Notes
• Reverse camera must already be installed
(if you dont have simply add on extra camera)
• Not compatible with hybrid or 360-degree camera models
• 360-degree harness coming May 30, 2024
• Additional switches and cameras sold separately
• Suitable for DIY or professional installation
Why Choose This Kit
• Seamless factory integration
• Add second camera for trailers, toolboxes, rear view, or cargo area
• Upgrade-ready to full 4-camera control
• Designed, tested, and supported in Australia
• Trusted by installers and 4x4 owners nationwide
