AutoChimp™ QuadCam Harness for Toyota (2020–2025) | AC-QUAD-HRN-TOY-2020

SKU: AC-QUAD-HRN-TOY-2020
Compatible With: AutoChimp™ QuadCam System | 4-Camera Integration

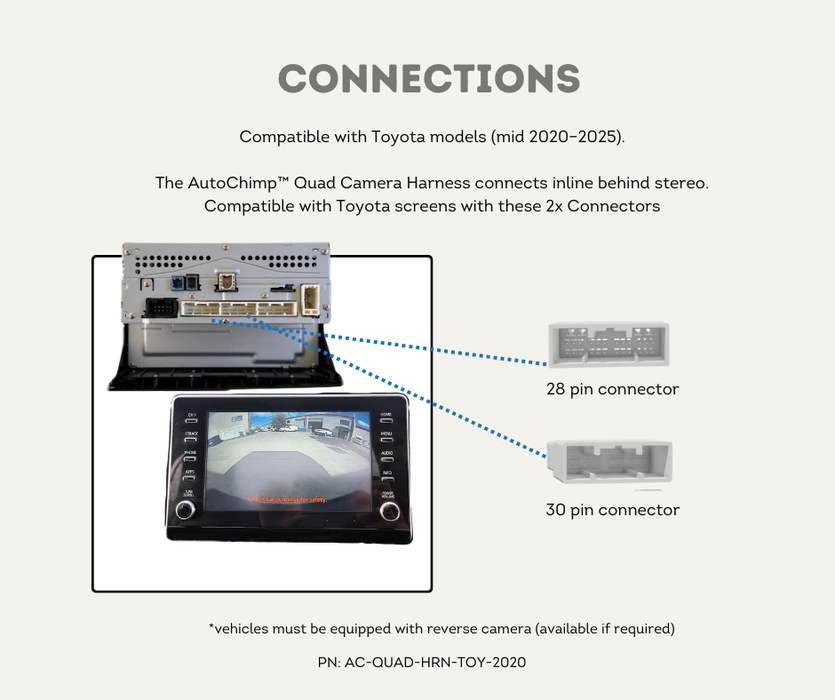

The AutoChimp™ QuadCam Harness for Toyota (2020–2025) enables seamless plug-and-play integration with your factory stereo to support multi-camera switching using the AutoChimp™ QuadCam System. Designed for Toyota vehicles equipped with a factory reverse camera, this harness connects directly to the 28-pin or 30-pin stereo connector, providing clean access to power, ground, and trigger signals without cutting or modifying factory wiring.

This harness is used in both standalone and bundled installations and is compatible with the AutoChimp™ QuadCam RCA Breakout Adapter (sold separately), which enables RCA video signal routing to your screen.

Key Features

• Plug & Play Installation – Connects directly to Toyota’s 28-pin or 30-pin stereo connector
• QuadCam Compatible – Enables switching between front, side, trailer, and reverse cameras
• Retains Factory Reverse Camera – Maintains OEM camera function without loss
• Multi-Camera Expansion Ready – Pre-wired for up to 4 camera triggers
• Clean Power Routing – Includes 12V accessory and ground passthrough
• No Cutting or Coding – No splicing, dealer tools, or programming required

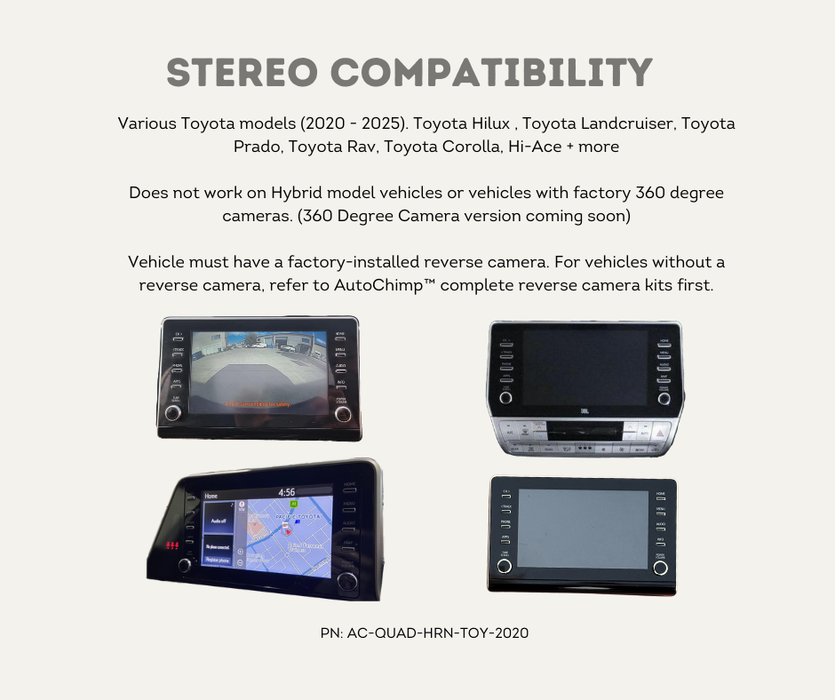

Vehicle Compatibility

• Toyota vehicles with 28-pin or 30-pin stereo connectors (2020–2025)
• Common platforms include Hilux, Fortuner, Prado 150 Series, HiAce, and others

Important Notes

• Requires a factory-installed reverse camera
• Not compatible with Toyota hybrid models
• Not suitable for vehicles with factory 360-degree camera systems
• RCA breakout not included – sold separately (AC-QUAD-BRKOUT-RCA)
• For vehicles without a reverse camera, see full AutoChimp™ reverse camera kits

What’s Included

• 1x AutoChimp™ QuadCam Harness (Toyota 28/30-pin)
• Pre-wired 12V power (Red) and ground (Black)
• Reverse trigger and 4x camera trigger inputs (bare wire ends)

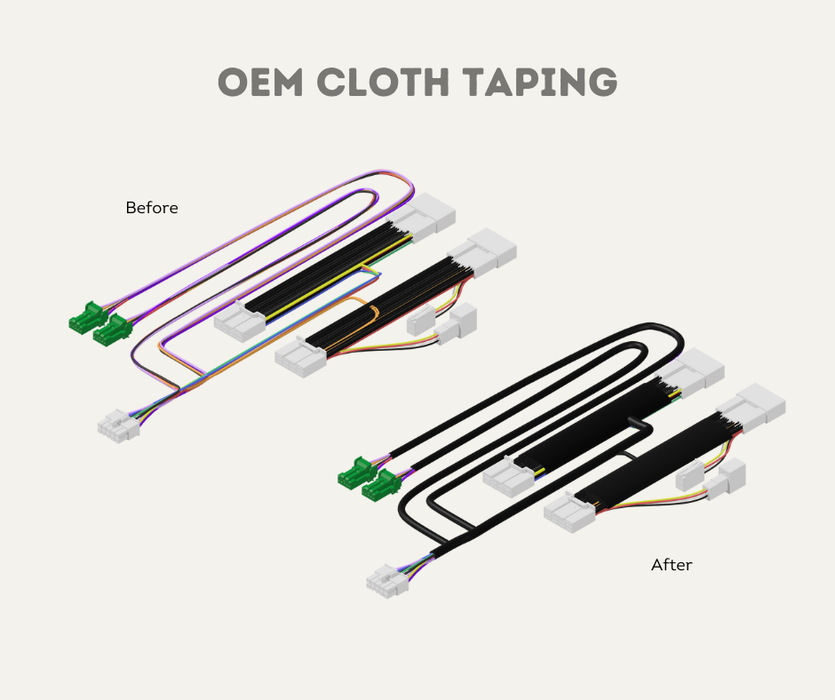

• Automotive-grade loom with labeled connectors

Technical Specifications

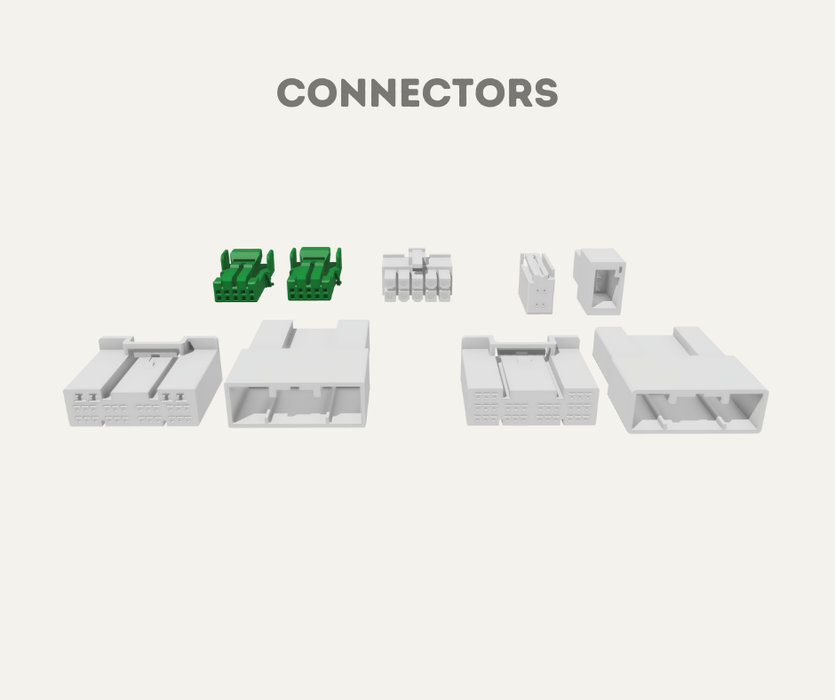

• Connector Type: Toyota 28-pin / 30-pin factory stereo
• Video Output: Requires separate 4-Pin RCA Breakout (not included)
• Power Passthrough: 12V ACC (Red), Ground (Black)
• Trigger Inputs: Reverse, CAM 1–4

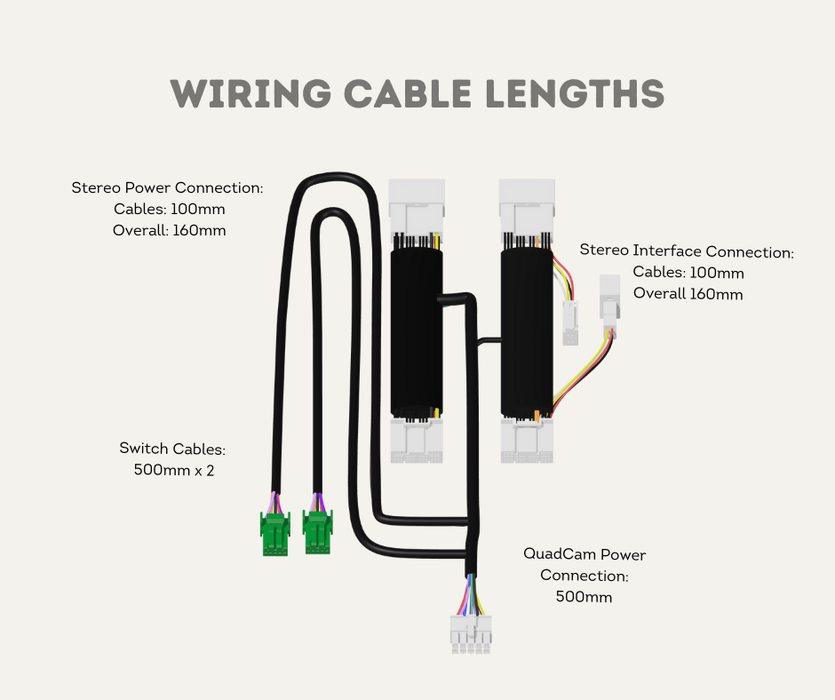

• Harness Length: 300mm
• Materials: Automotive-grade copper wire, ABS connectors, heat shrink protection

Why Choose This Harness

• Built specifically for late-model Toyota platforms (2020–2025)
• 100% plug & play – no wiring modification or dealer programming required
• Designed to work seamlessly with the AutoChimp™ QuadCam System
• Maintains all factory camera functionality
• Developed and tested in Australia for harsh conditions
