AutoChimp™ Dual Camera Kit for Toyota Hilux (2014–2015)

SKU: AC-DUAL-HILUX-2014

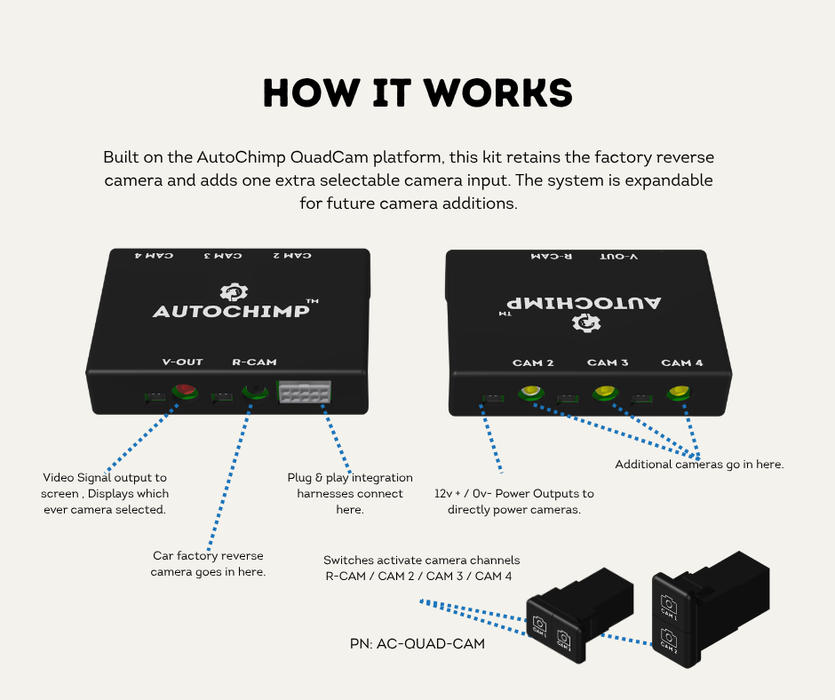

The AutoChimp™ Dual Camera Kit for Toyota Hilux (2014–2015) allows you to add a second selectable camera — front, trailer, side, or cargo — directly to your factory stereo while retaining full reverse camera functionality.

Built on the latest AutoChimp™ Quad Camera System, this kit delivers seamless plug & play integration with regulated 12V camera power and OEM-style switch control.

Designed specifically for the N70 Hilux platform, this is the ideal upgrade for improving visibility, safety, and towing confidence — without replacing your factory screen.

Key Features

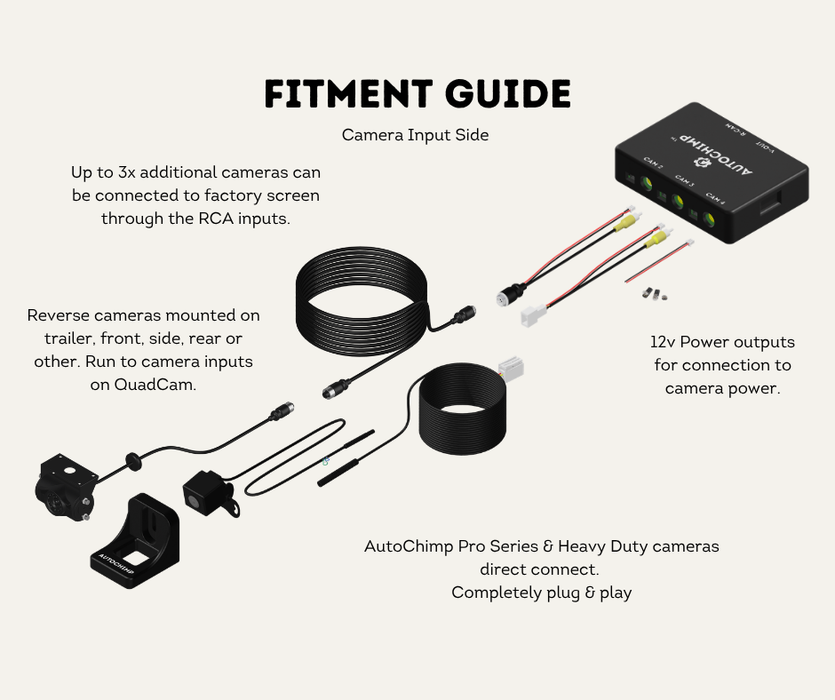

• Add 1x Extra Camera
  View front, trailer, or side cameras directly on your factory display.

• Factory Stereo Integration

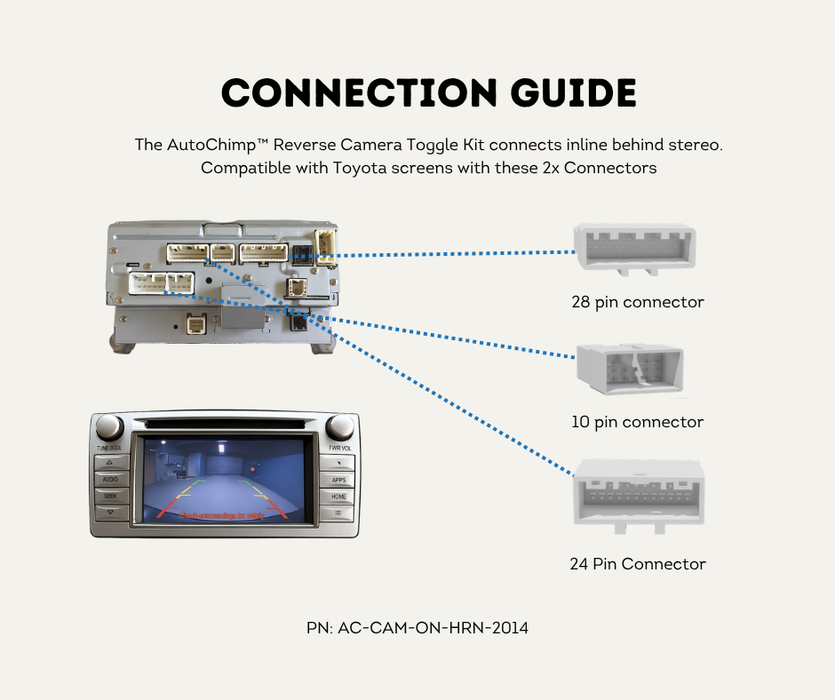

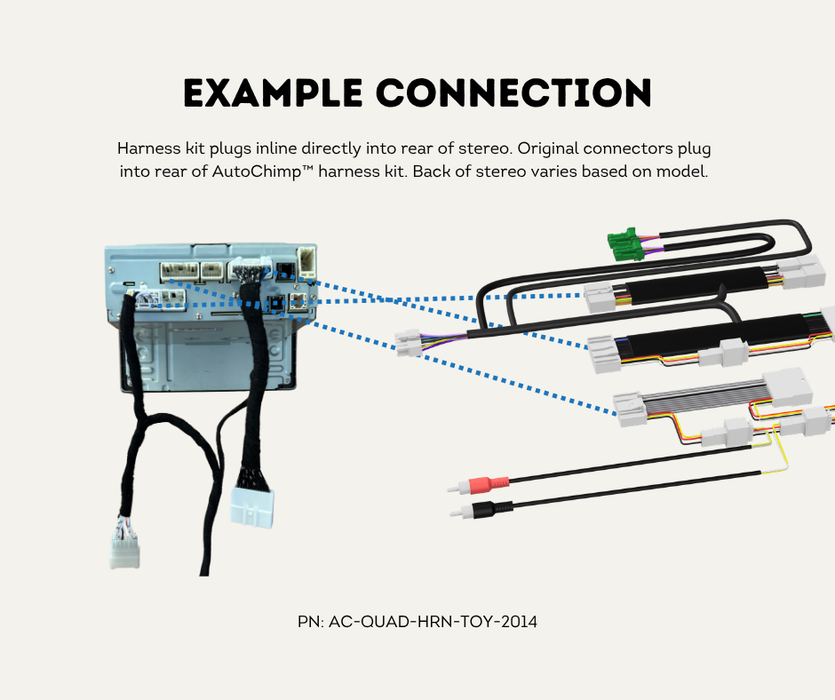

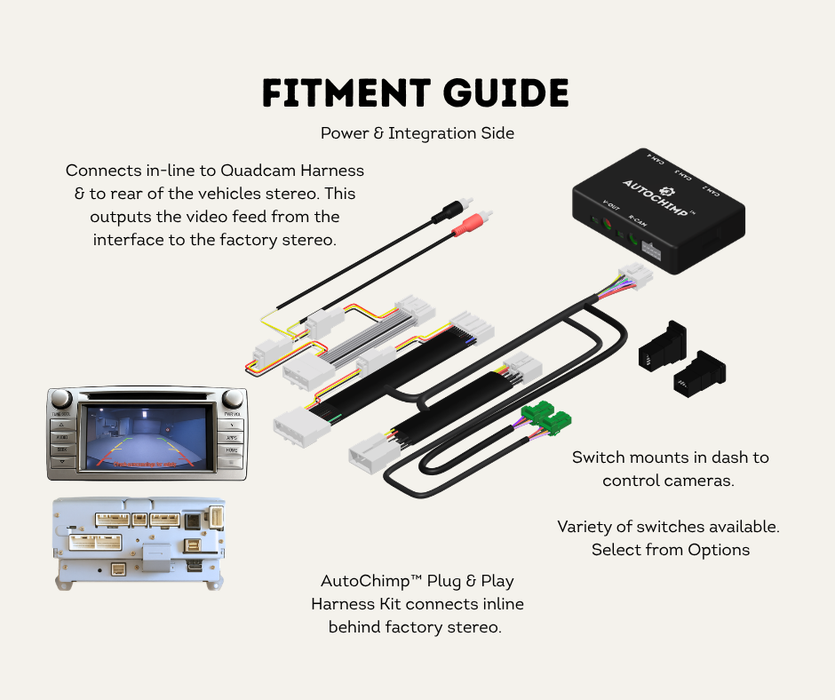

  Plug & play Toyota-compatible harness connects to the rear of your head unit.

• Reverse Camera Override
  Activate your factory reverse camera manually while driving.

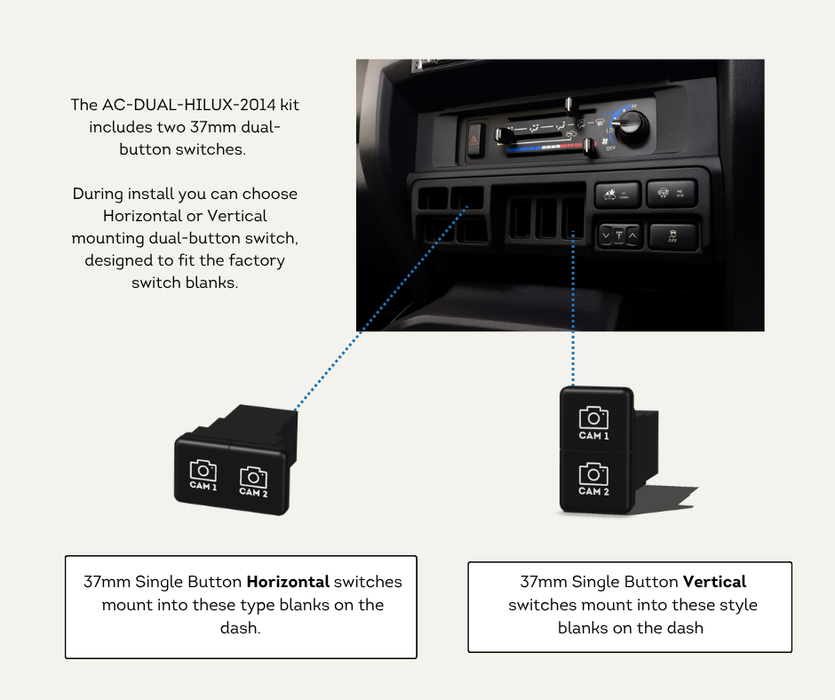

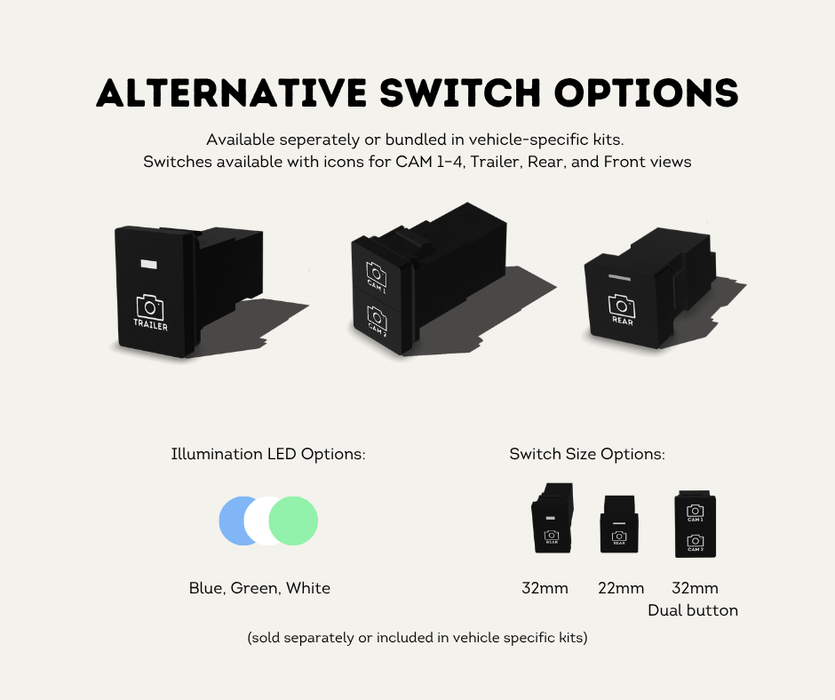

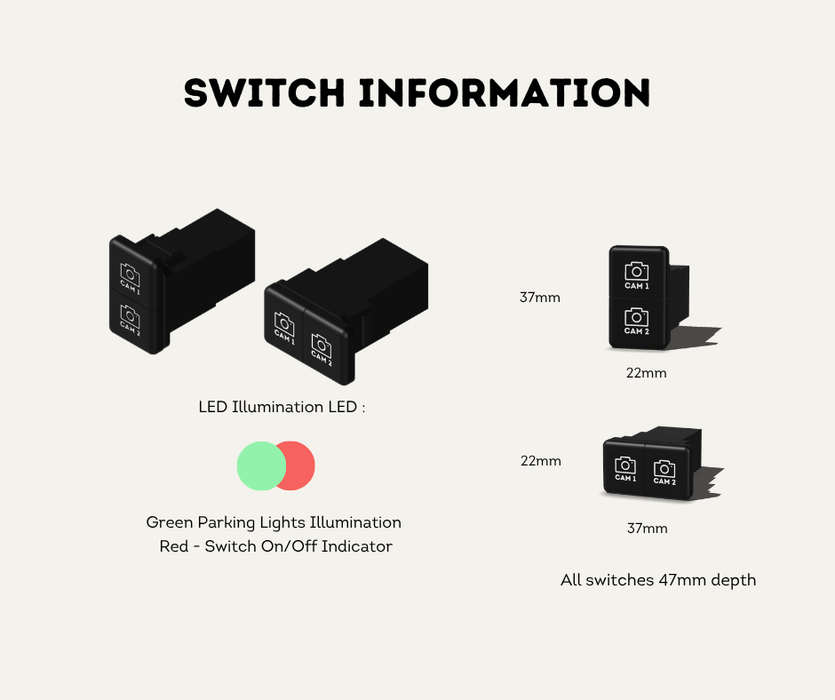

• OEM-Style 37mm Switch (Pre-Installed)
  Factory-fit switch with green backlighting to match Toyota interior illumination.

• Built-In Camera Power
  12V regulated output via JST connector (2A max).

• Plug & Play Installation
  No cutting, soldering, or coding required.

• Expandable System
  Upgrade to 3–4 cameras later (QuadCam-ready).

• Clean Factory Finish
  Designed to integrate seamlessly into the OEM dashboard.

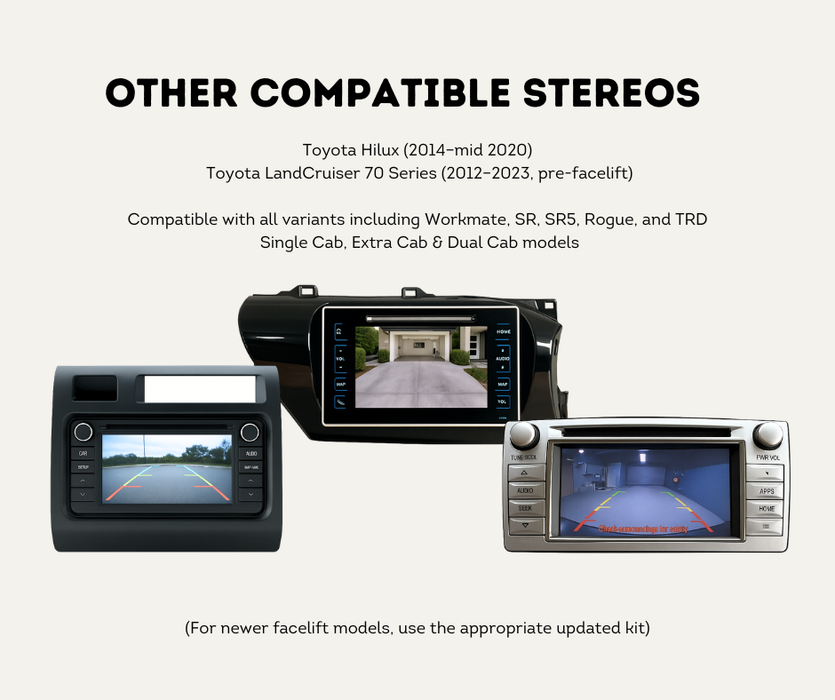

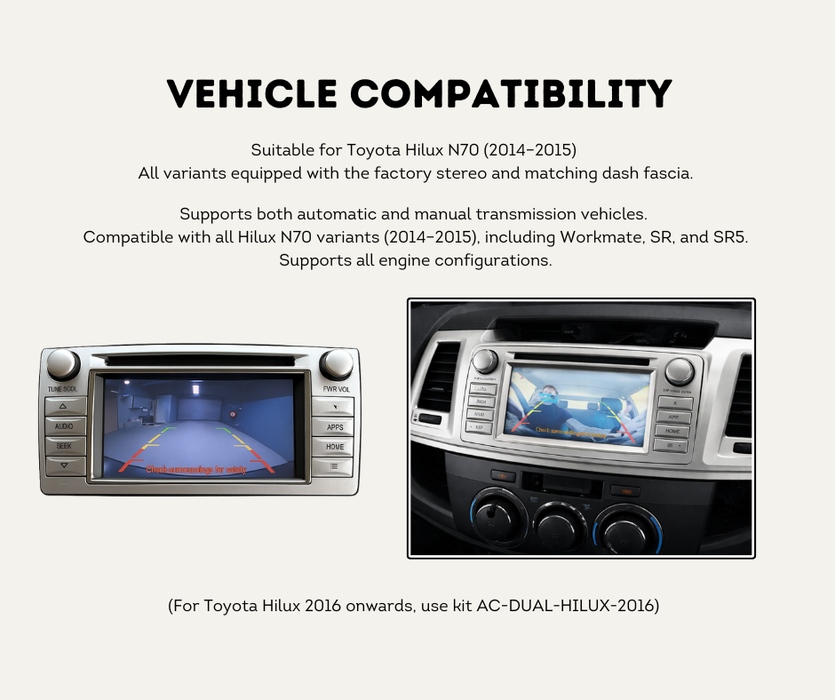

Vehicle Compatibility

• Toyota Hilux N70 (2014–2015)

• Supports SR, SR5 and similar trims

• Compatible with factory stereos using Toyota integration harness

• Factory reverse camera required

Note: Not compatible with vehicles equipped with factory 360° camera systems.

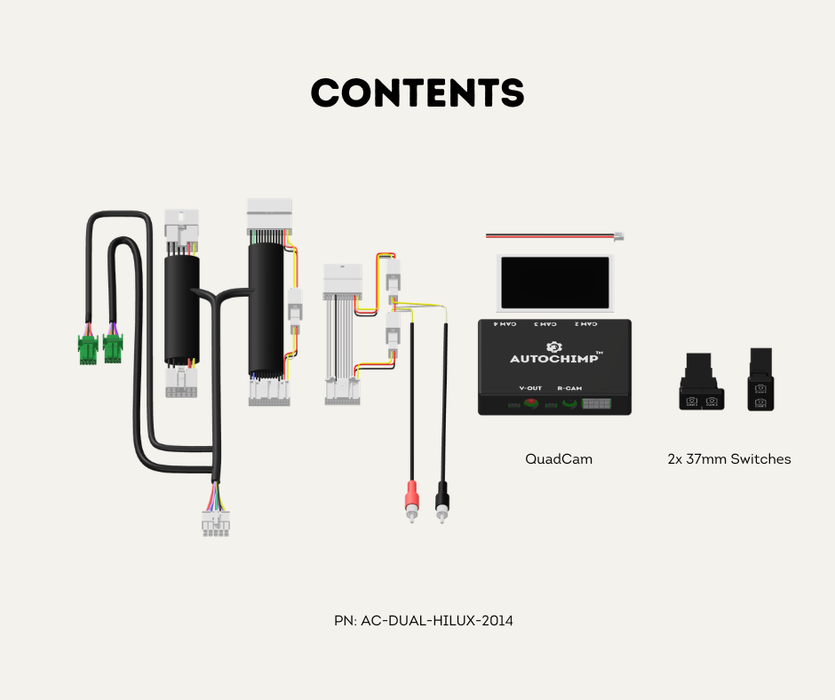

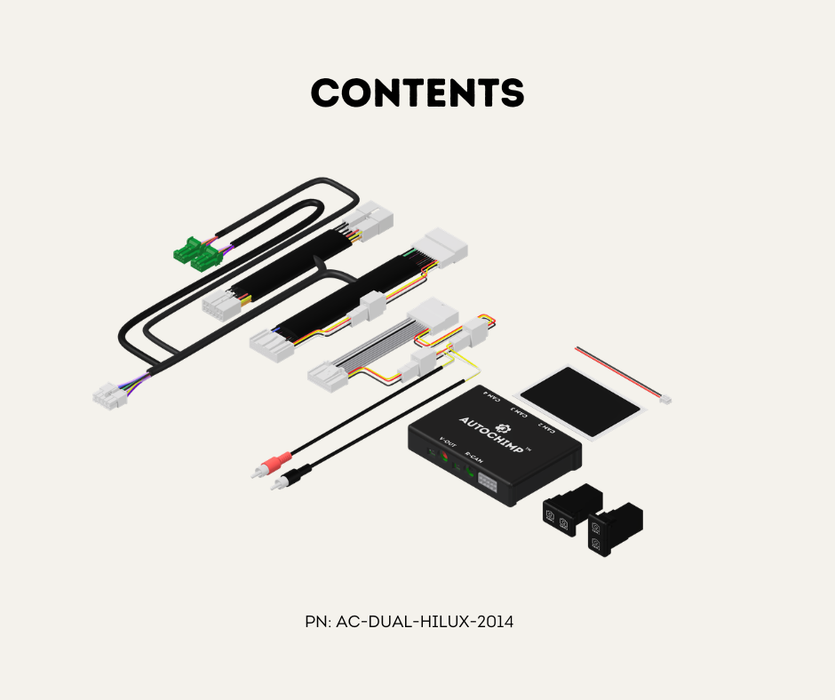

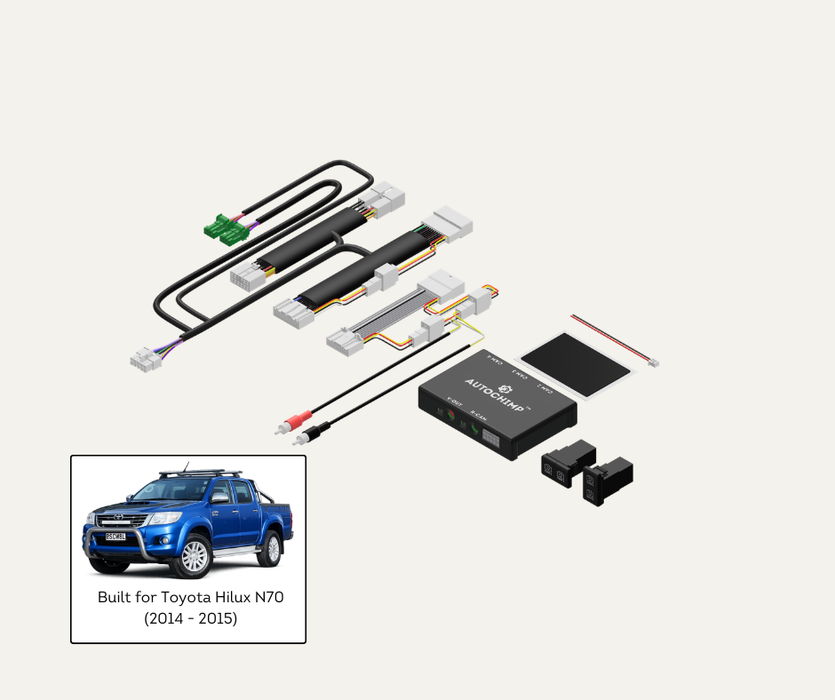

What’s Included

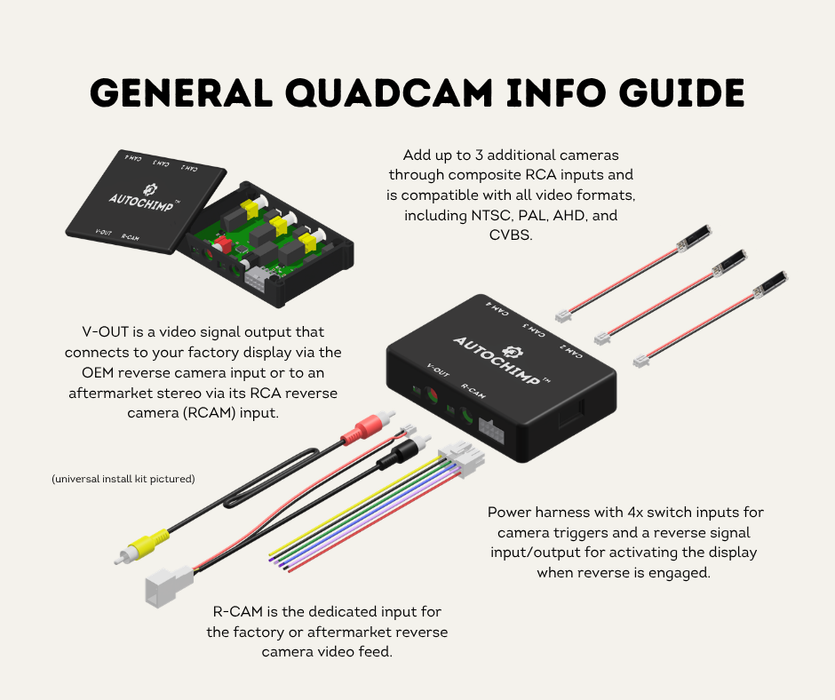

• 1x AutoChimp™ Quad Camera Switching Module

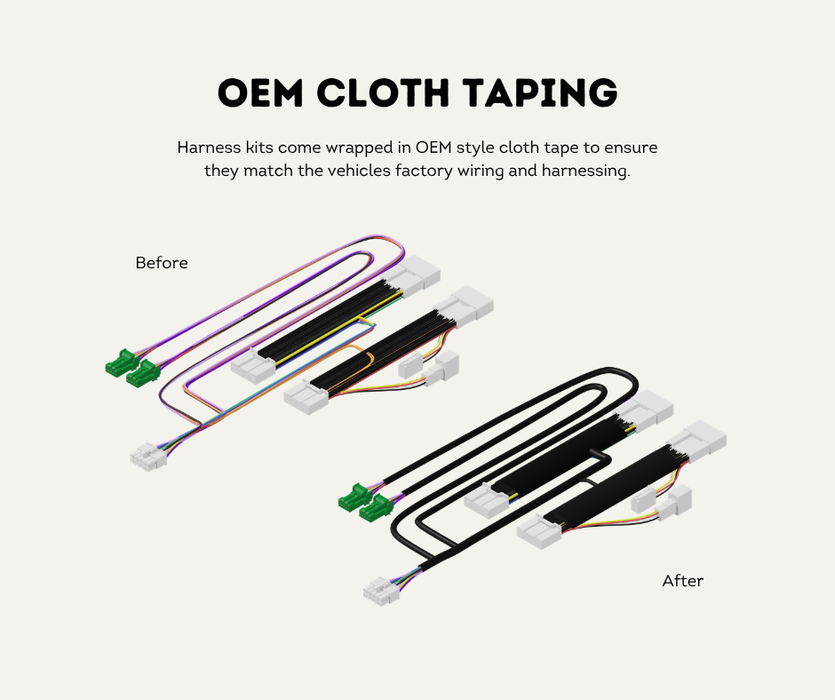

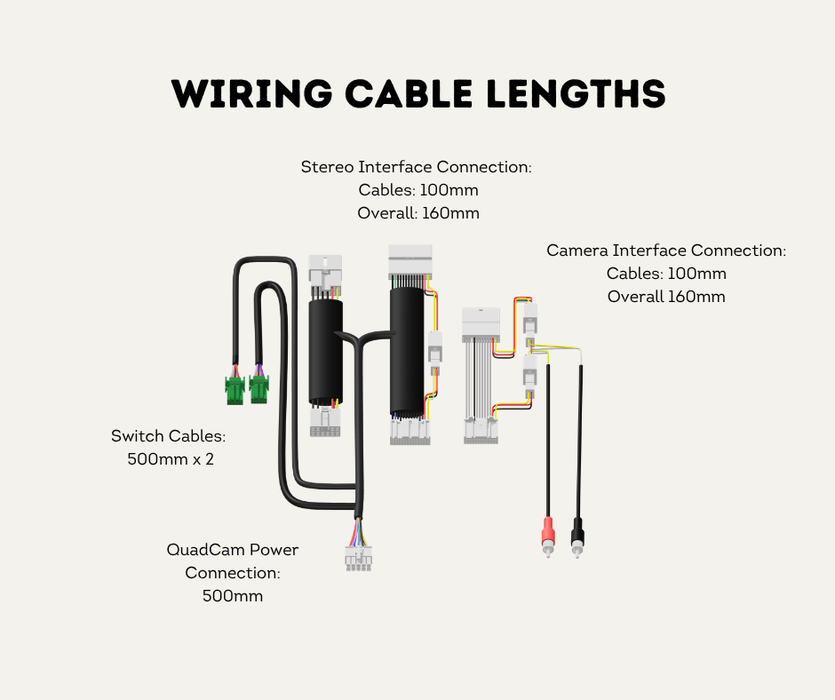

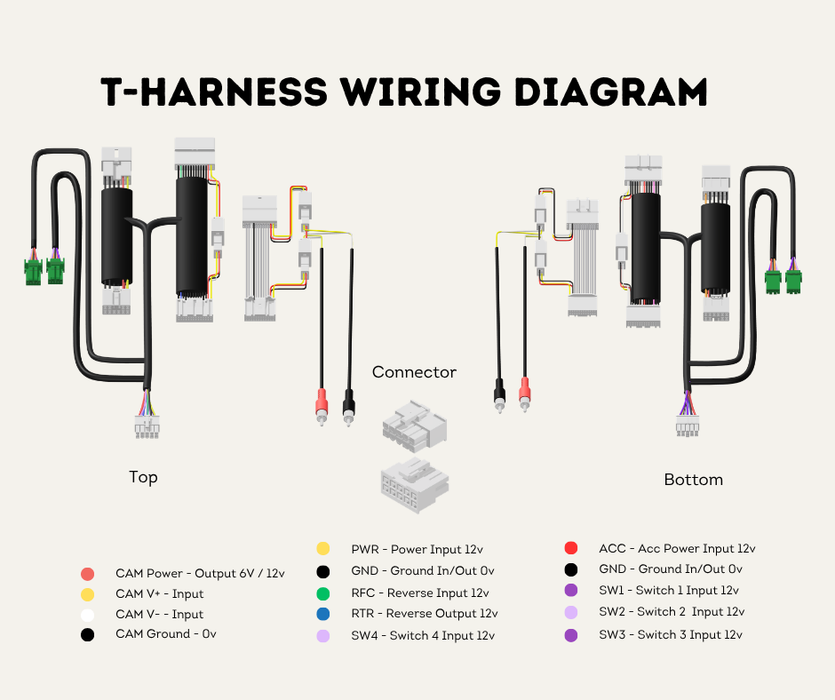

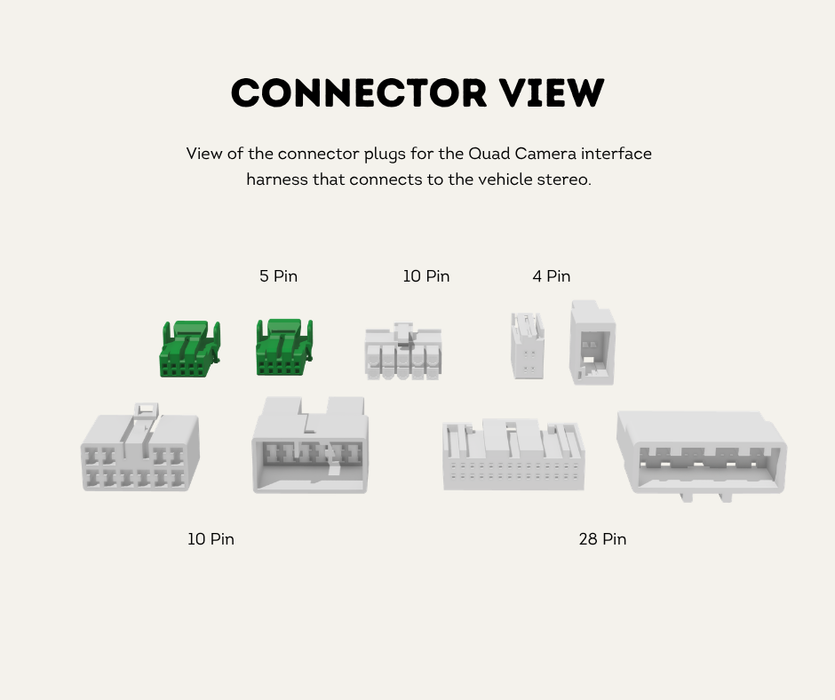

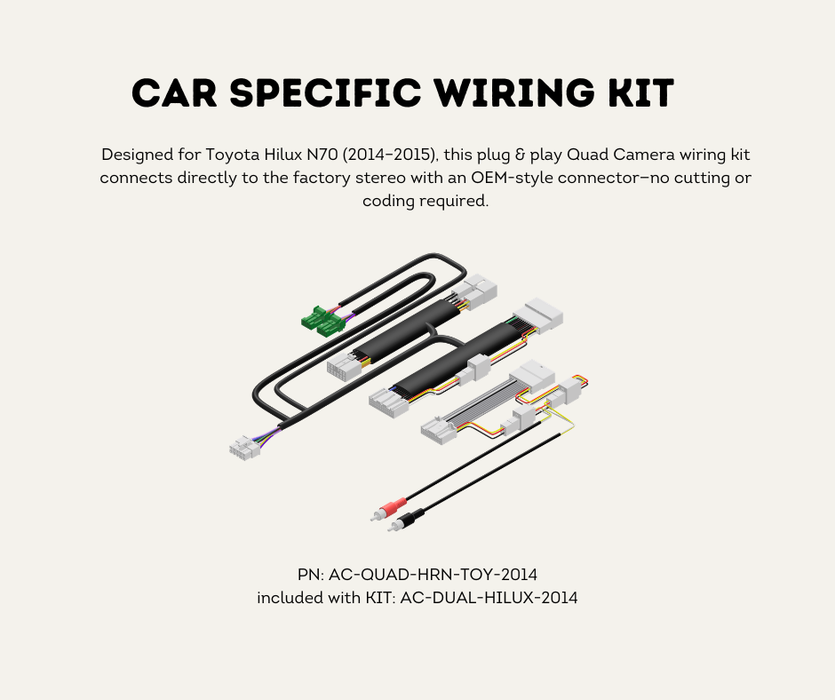

• 1x Vehicle-Specific Plug & Play Harness (AC-QUAD-HRN-TOY-2014)

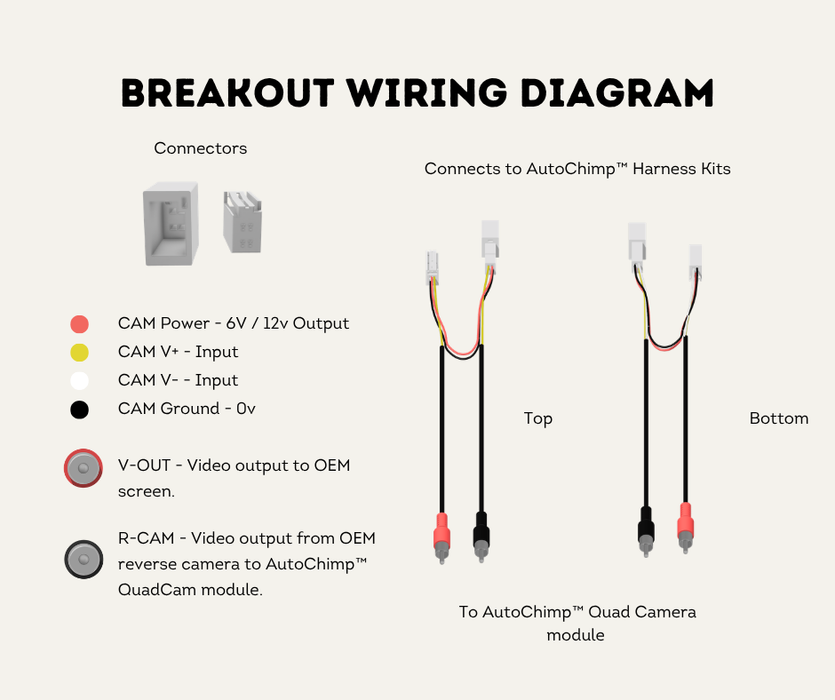

• 1x RCA Breakout Adapter (AC-QUAD-BRKOUT-RCA)

• 1x Reverse Camera Adapter (AC-TOY-24PIN-4PIN)

• 1x Dual Button Switch – 32mm (OEM Style, Green Backlight)
  Switch Icons: CAM 1 / CAM 2

• 1x 2-Pin JST Power Cable – 100mm (AC-JST-2PIN-M)

• 2x SnapLocks

• 1x Pre-Wired Spare Input for Future Cameras

• 1x Digital Installation Guide (PDF)

Technical Specifications

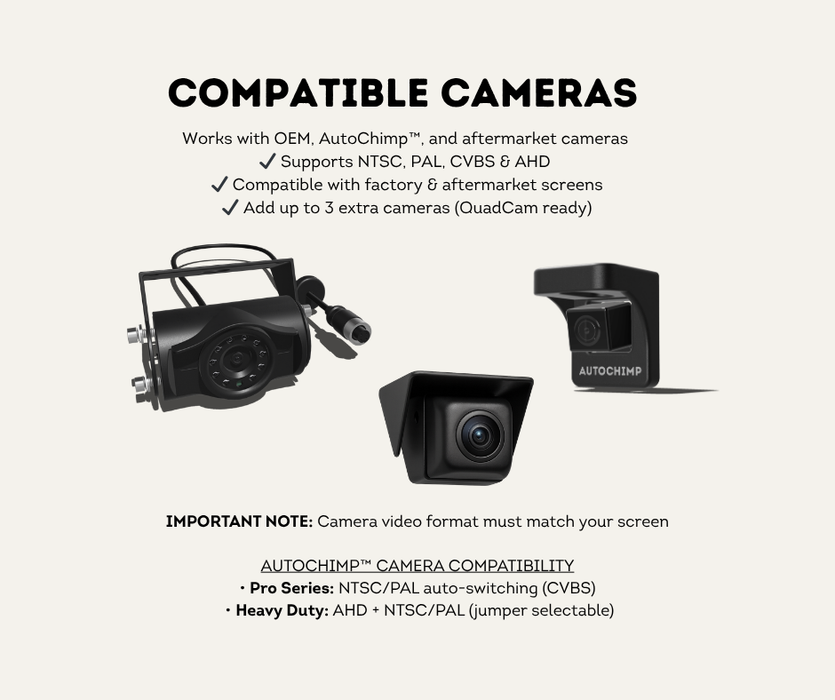

• Video Inputs: RCA (NTSC, PAL, AHD, CVBS)

• Video Output: 1x RCA (to factory screen)

• Power Output: 12V regulated via JST (2A max)

• Camera Ports: Up to 3 JST 2-pin (1 pre-wired included)

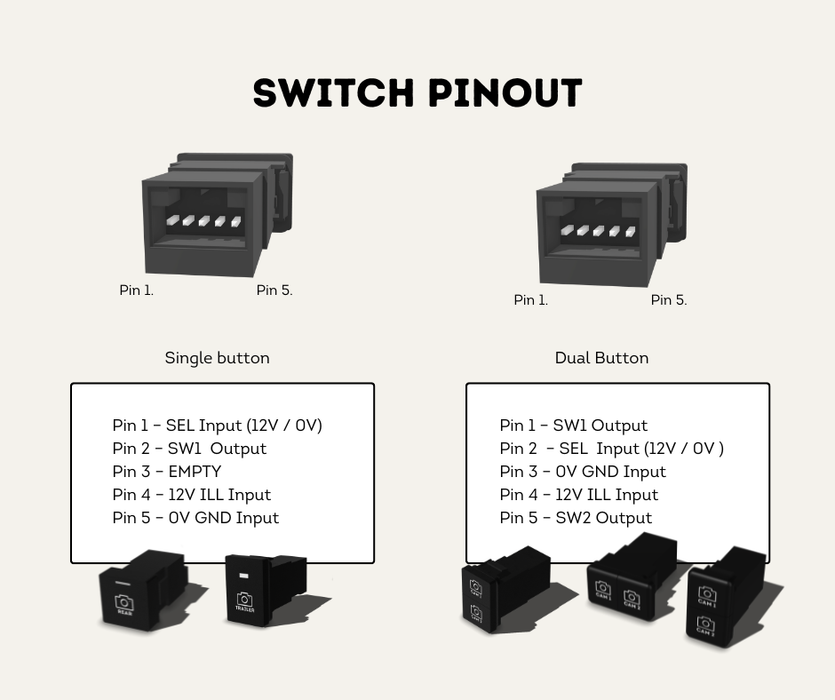

• Switch Type: 37mm OEM-style, momentary

• Backlighting: Green (factory-matched)

• Operating Voltage: 6V–24V DC

• Temperature Range: -30°C to +70°C

• Mounting Location: Behind dashboard

Why Choose AutoChimp™

• Designed specifically for Hilux N70 (2014–2015)

• Retains full factory stereo and camera functionality

• OEM-style integration with factory-matching switch illumination

• Expandable Quad Camera system platform

• Built for Australian conditions

• Trusted by professional installers nationwide
