AutoChimp™ Reverse Camera Interface Harness for Toyota (2014–2023) | Hilux, 70 Series, Prado, Fortuner & HiAce | 24-Pin Full Pass-Through Camera Input Harness

SKU: AC-TOY-24PIN

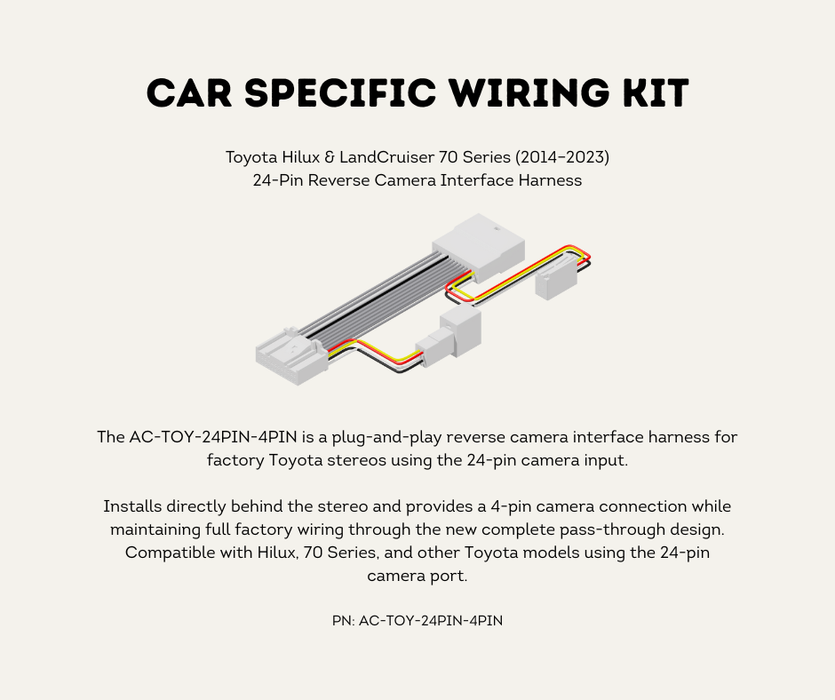

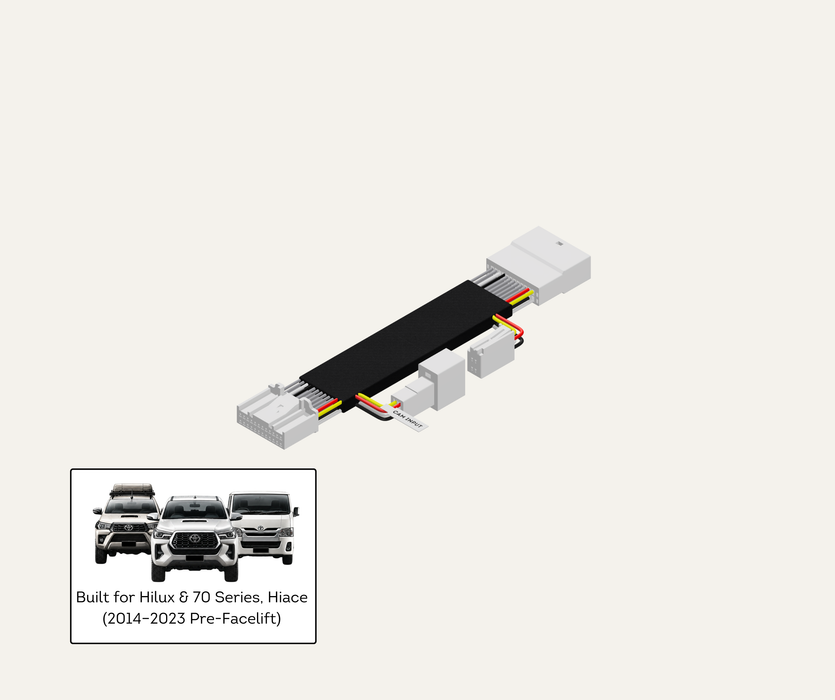

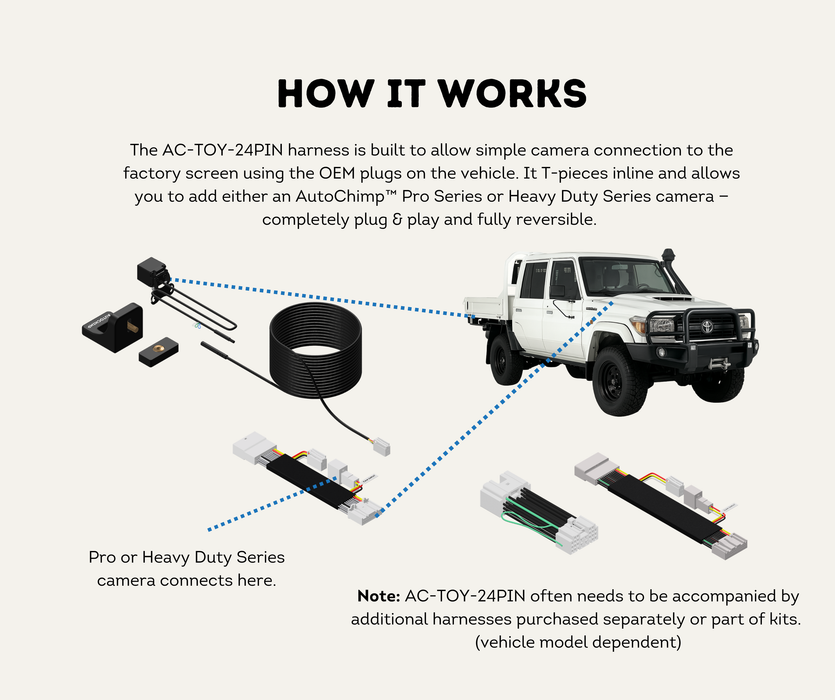

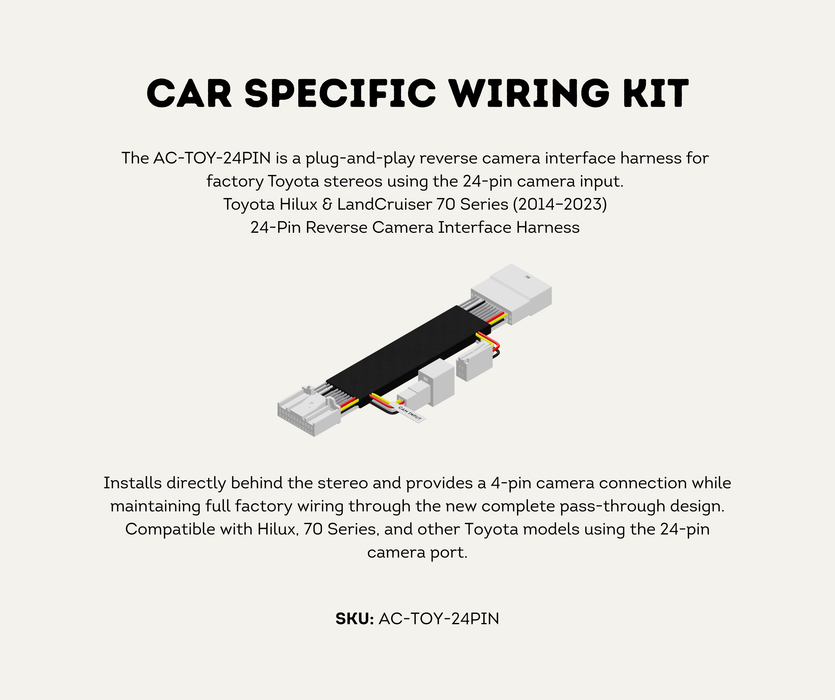

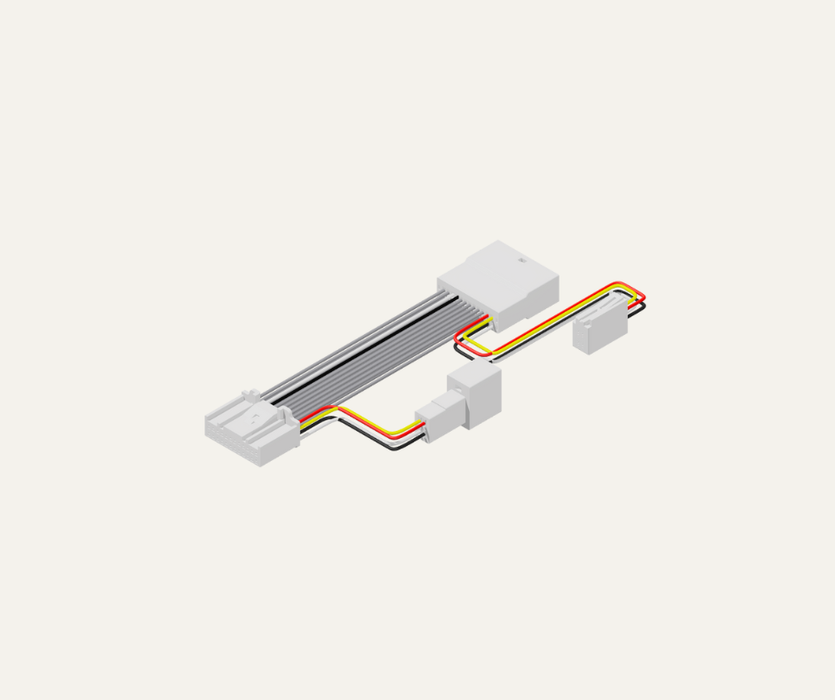

The AutoChimp™ 24-Pin Reverse Camera Interface Harness is a plug-and-play way to feed a reverse camera into a factory Toyota stereo that uses the 24-pin camera port.

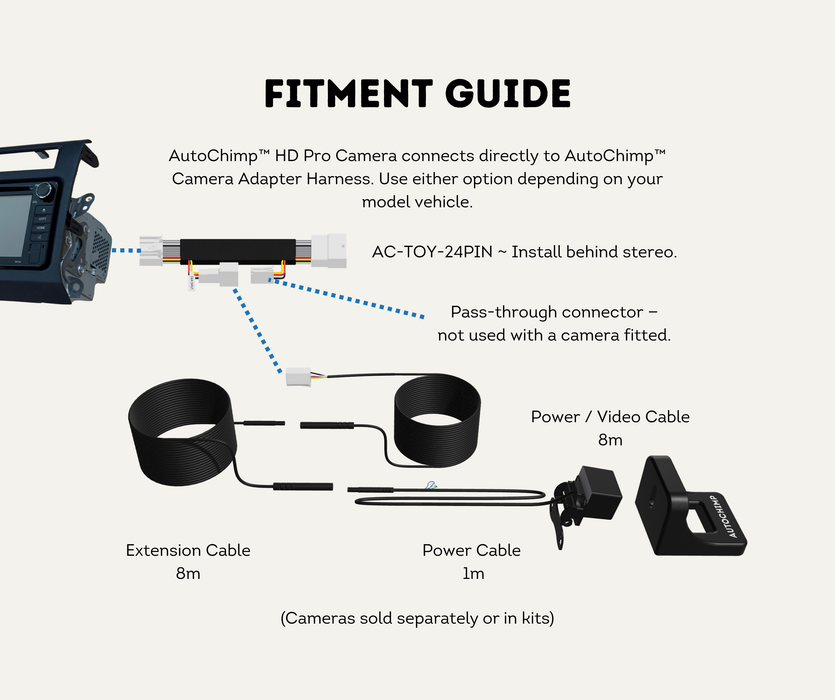

It installs inline behind the head unit and carries every factory circuit straight through — CAN, speed, illumination, data and audio lines all remain intact — while breaking out only the wires needed to deliver video to the camera input.

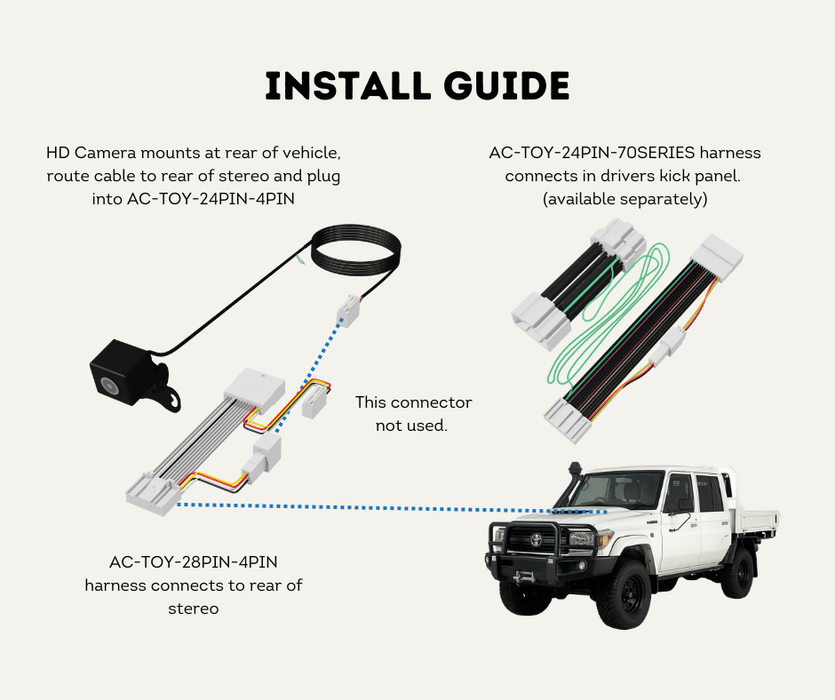

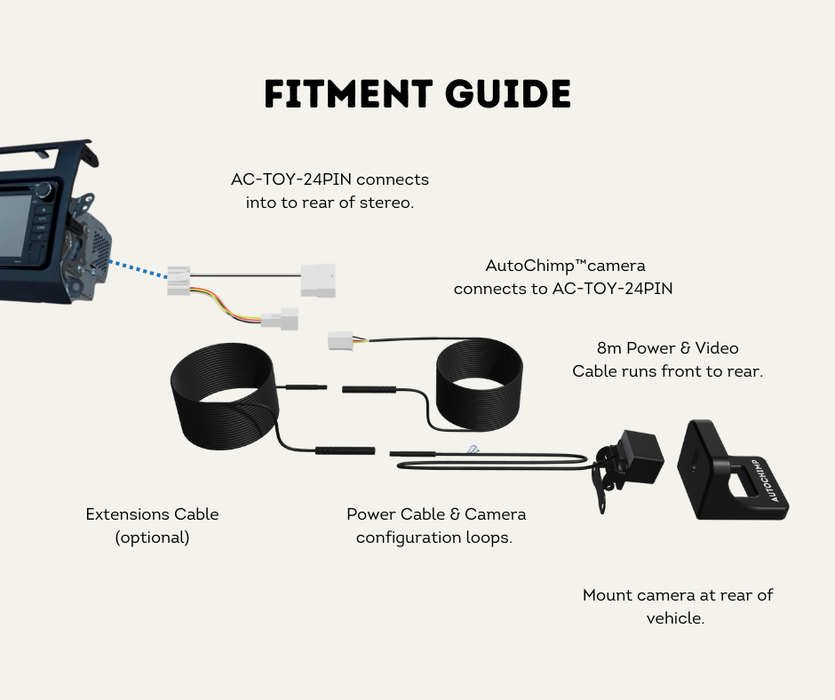

No cutting, no splicing, no modification to factory wiring. Unplug the factory 24-pin connector, plug the harness inline, and connect your camera.

Which Harness Do I Need?

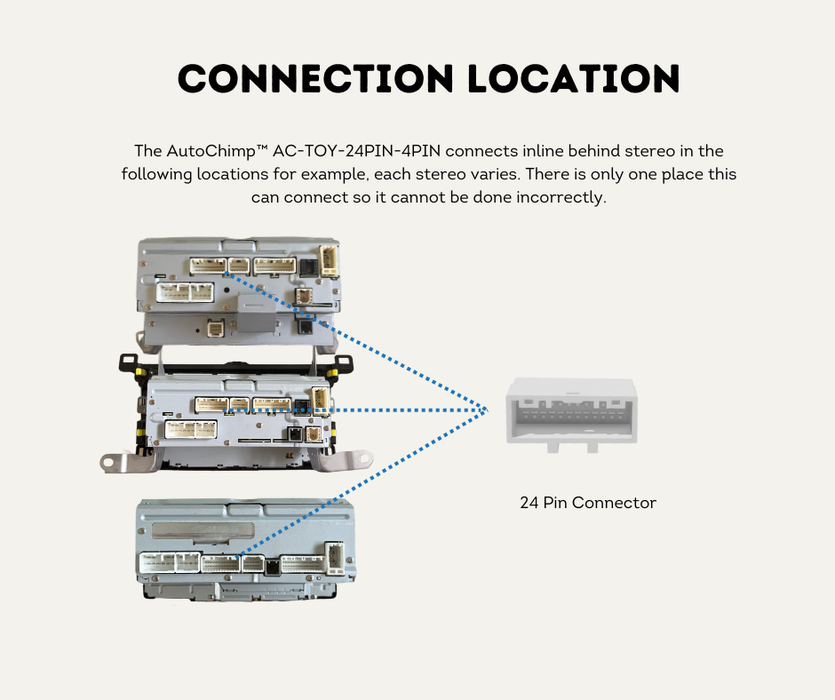

Fitment is decided by the plug on the back of your stereo, not by the trim level or badge. Pull the head unit out and look at the camera connector:

• 24-pin plug — this harness (AC-TOY-24PIN)

• 12-pin plug — AC-TOY-12PIN (70 Series 2024+ facelift)

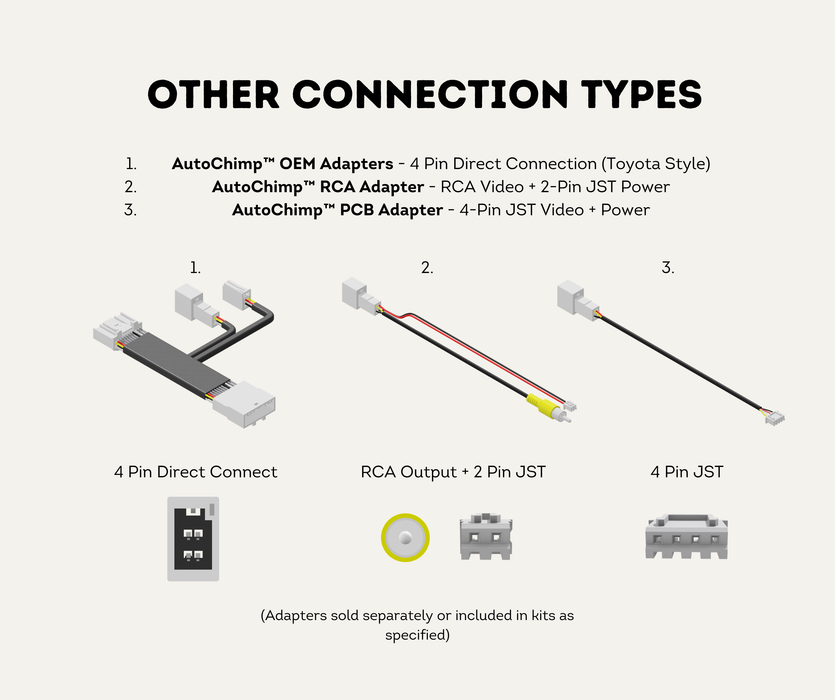

• 26-pin, 28-pin or 30-pin plug — see the matching AutoChimp™ adapter for that connector

Important — Reverse Trigger Signal

This harness carries the video signal. It does not generate the reverse trigger that tells the stereo to switch to the camera.

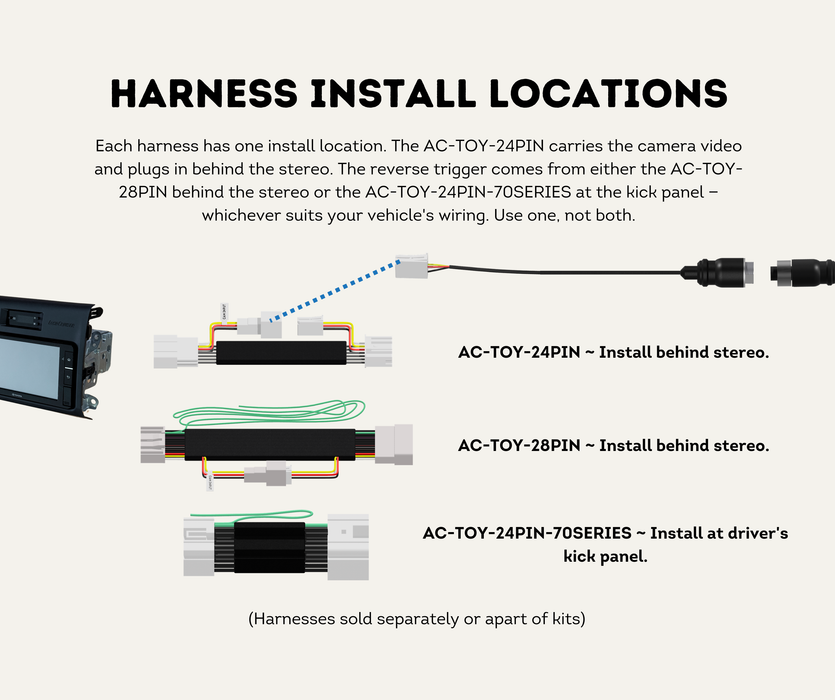

On most of these vehicles that trigger comes from the AutoChimp™ 28-Pin Reverse Trigger Signal Harness (AC-TOY-28PIN). If a factory camera was already fitted, that circuit is usually present and nothing further is required. If it is not, the 28-pin harness is sold separately and is required for the camera to display.

Key Features

Full 24-Pin Pass-Through Design

All 24 pins are carried through the harness, preserving every OEM function behind the stereo.

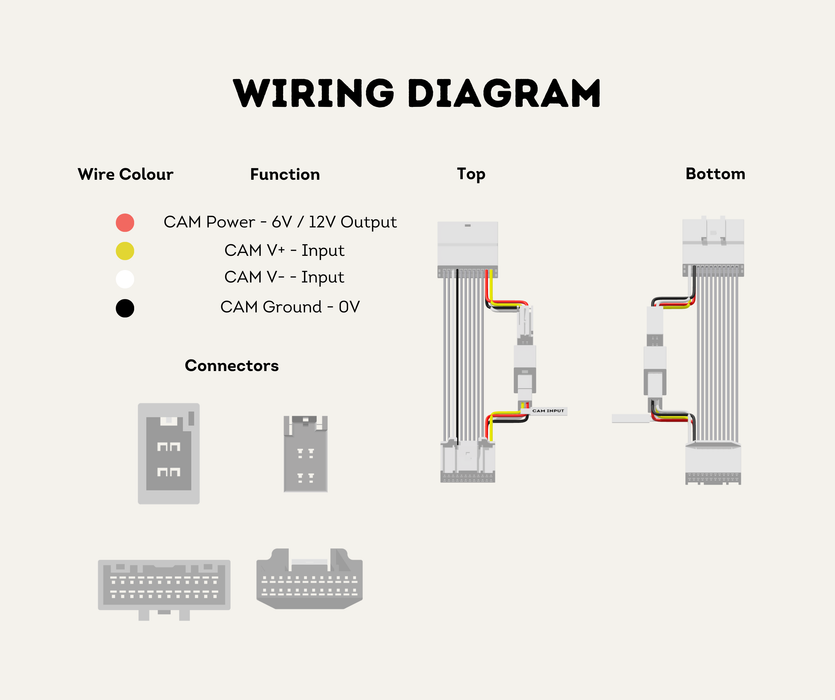

Male & Female 4-Pin Plug Pair

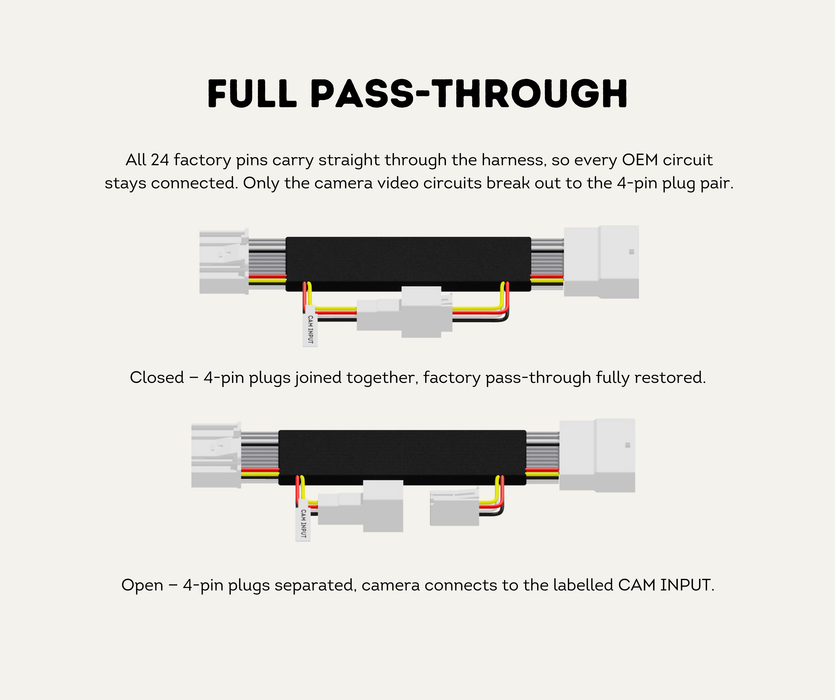

The camera branch terminates in a matched 4-pin male and female pair. Separate them to connect a camera; rejoin them to restore the original factory pass-through at any time.

True Plug & Play

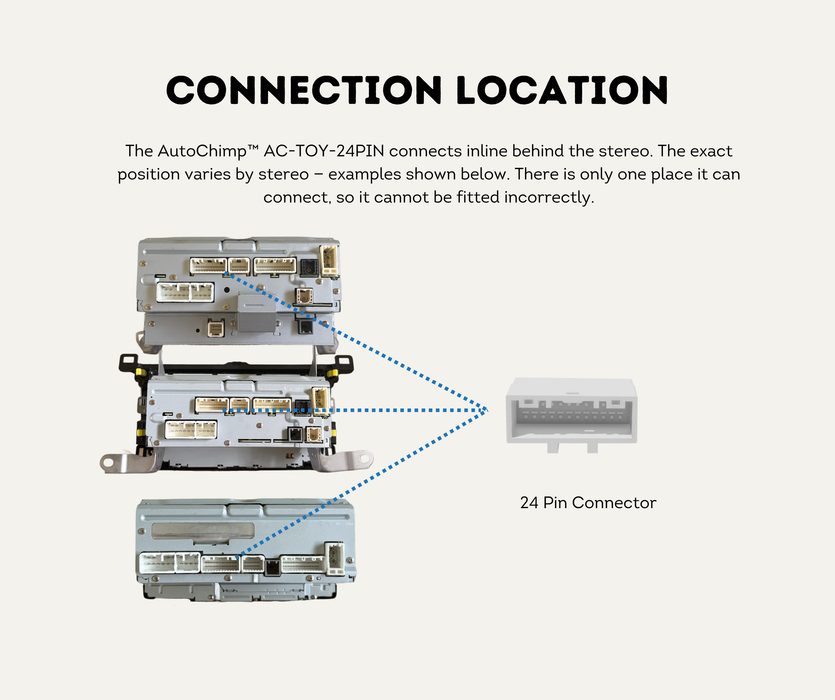

Installs directly between the factory stereo and the vehicle's 24-pin connector. There is only one place it can go, so it cannot be fitted incorrectly.

Works With 12V and 48V Vehicles

Suits Toyota models running either a 12V or 48V electrical system. The camera itself runs on the 6V supply provided by the harness.

OEM-Quality Construction

High-tolerance connectors and a reinforced loom, built for Australian heat, dust and vibration.

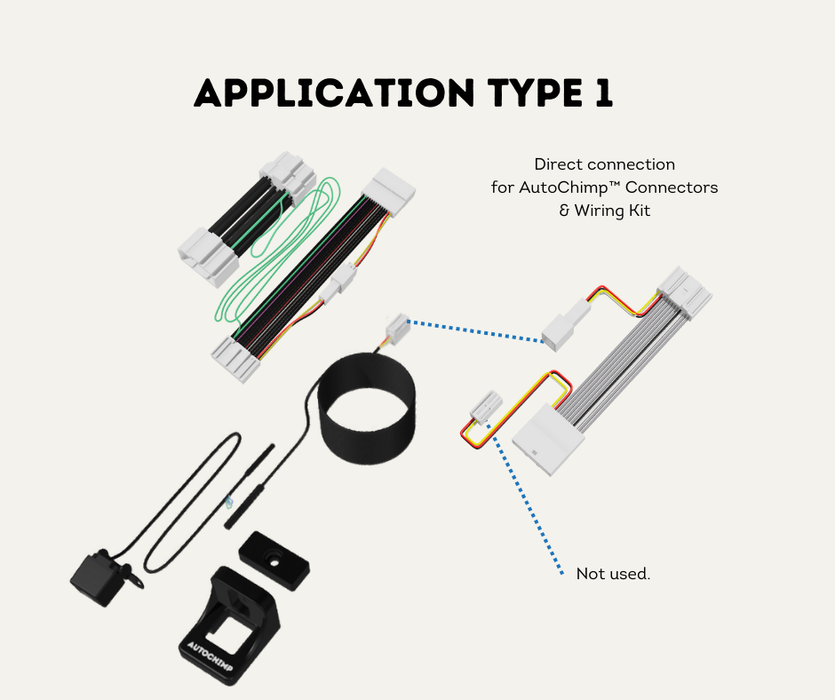

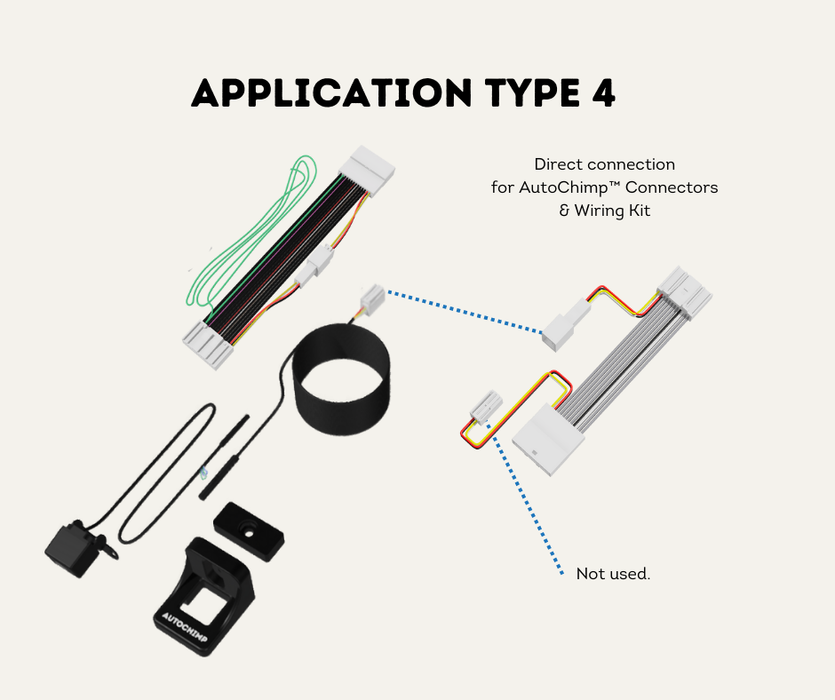

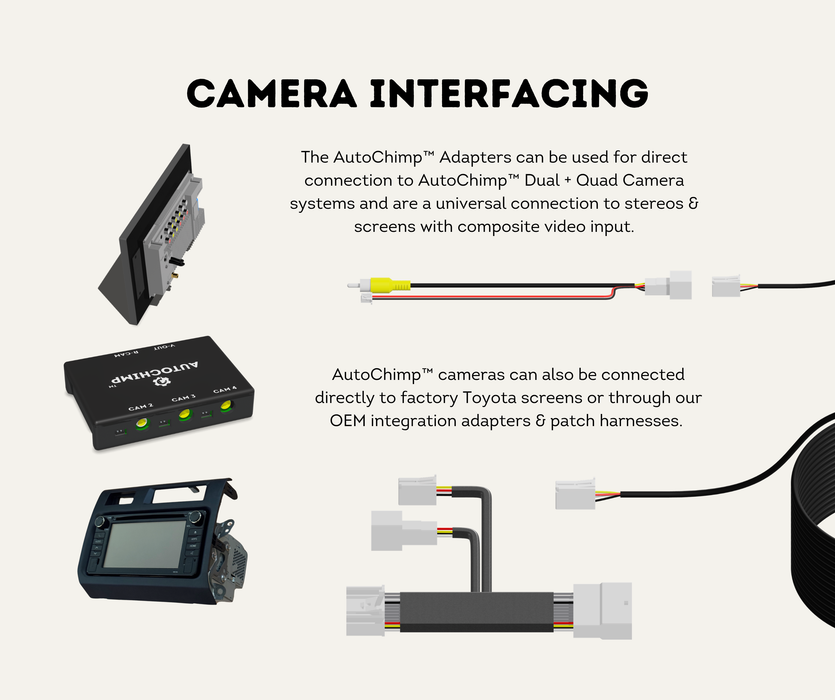

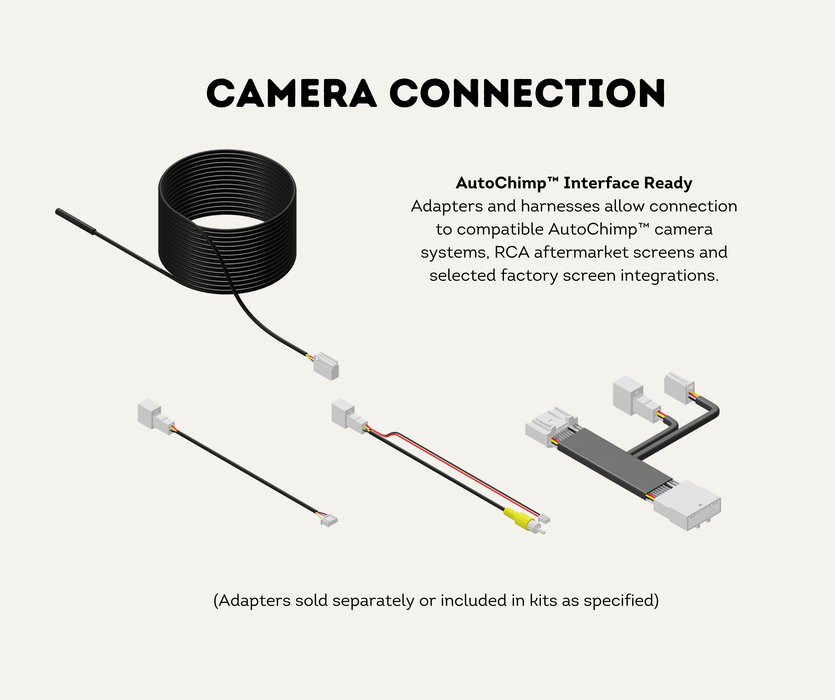

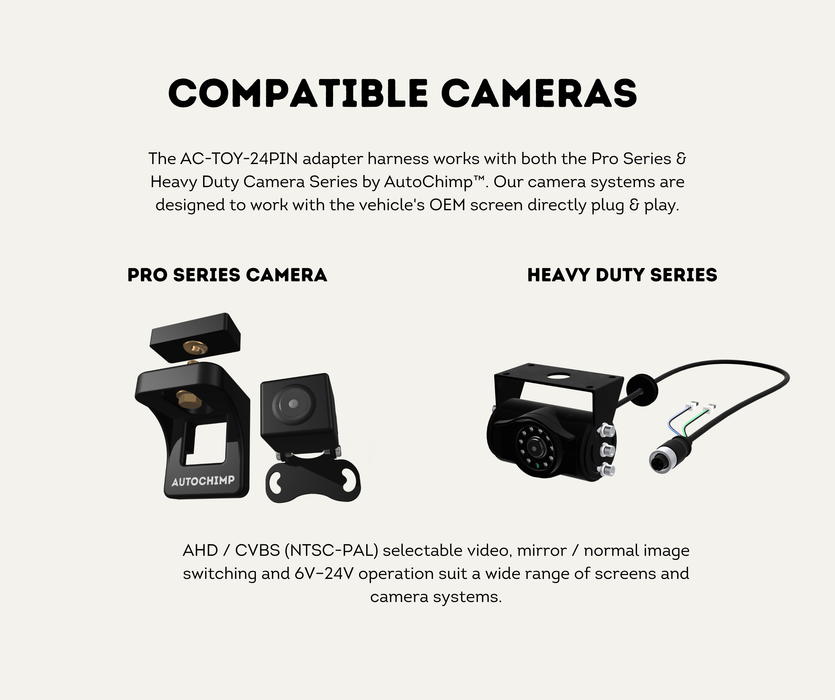

Compatible With AutoChimp™ Systems

Integrates with:

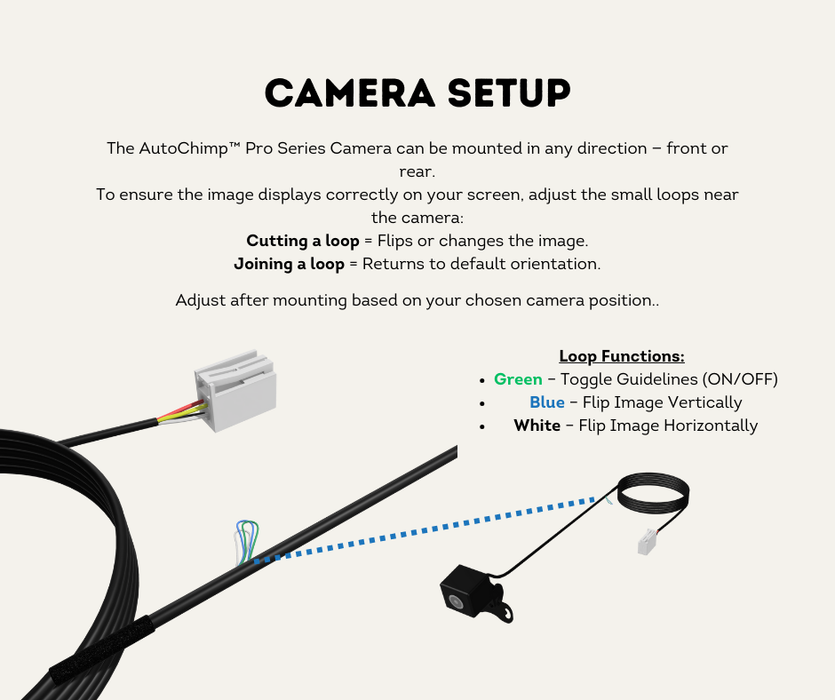

• Reverse Cameras

• Dual Camera Kits

• Quad Camera Kits

• Multi-Camera Kits

• Reverse Camera Activation Kits (when required)

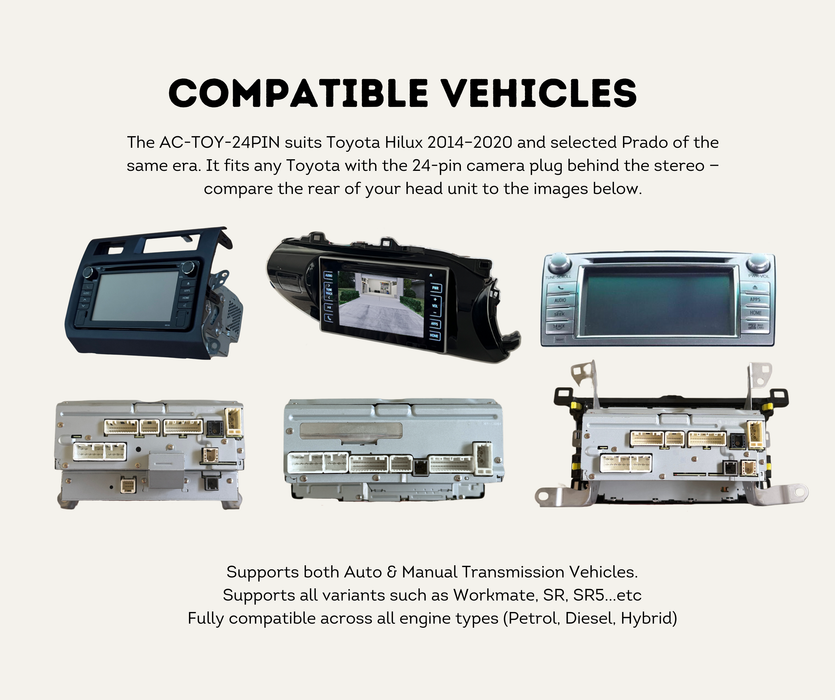

Compatibility

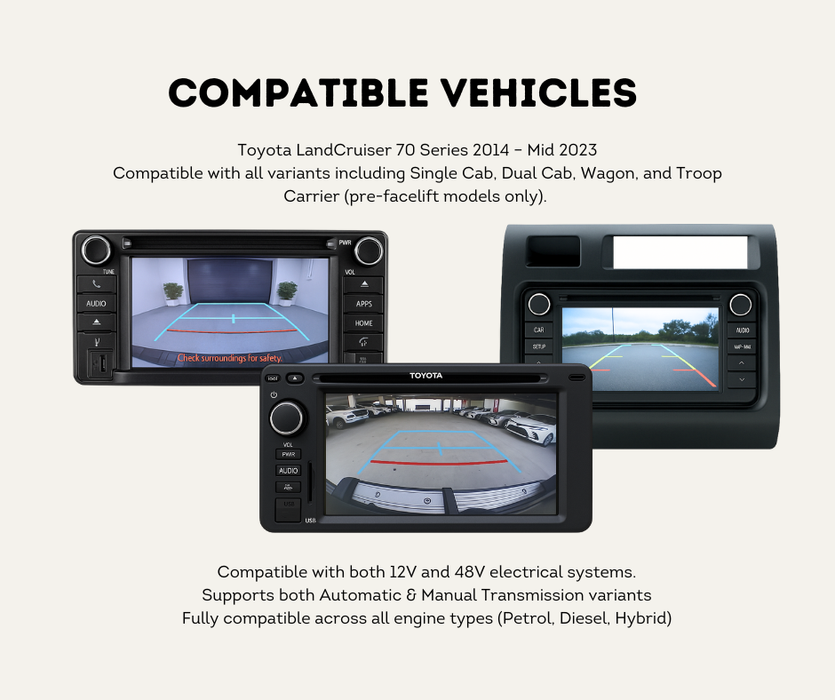

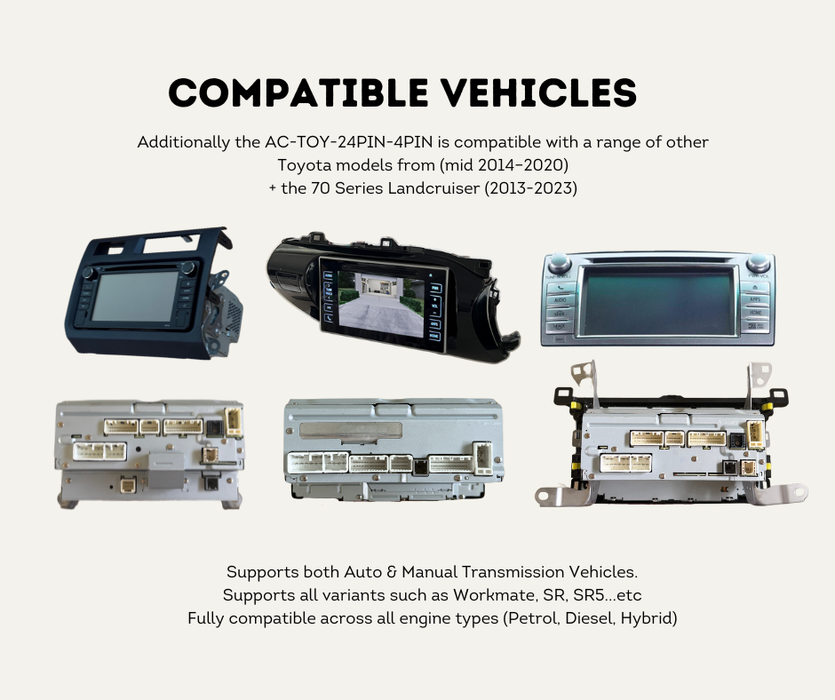

Fits Toyota models using the 24-pin camera input port, including:

• Toyota Hilux (2014–2020)

• Toyota LandCruiser 70 Series (2014–2023, pre-facelift)

• Toyota Prado (selected variants)

• Toyota Fortuner (selected variants)

• Toyota HiAce (selected variants)

• Any Toyota using the 24-pin camera connector format

Notes:

• ✔ Suits both automatic and manual transmission variants

• ✔ Suits all engine types — petrol, diesel and hybrid

• ✔ Works with factory or aftermarket cameras

• ✔ Required for QuadCam / DualCam on 24-pin models

• ✔ 70 Series 2024+ facelift models use the 12-pin plug — see AC-TOY-12PIN

What's Included

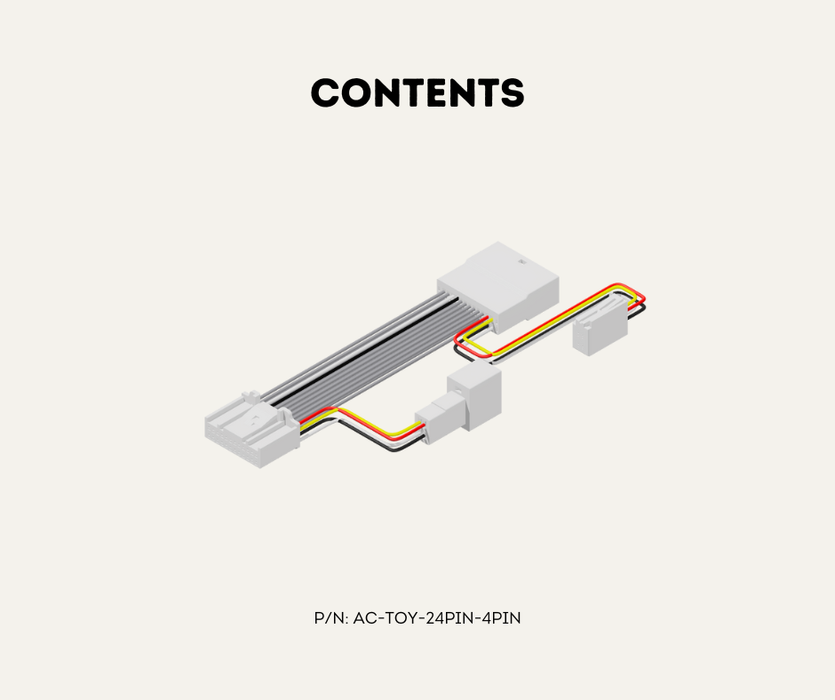

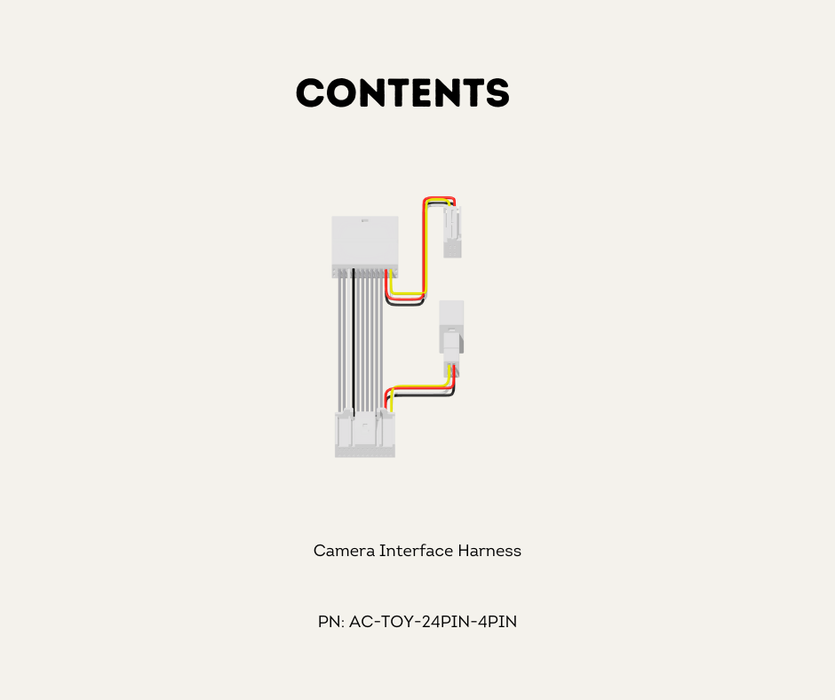

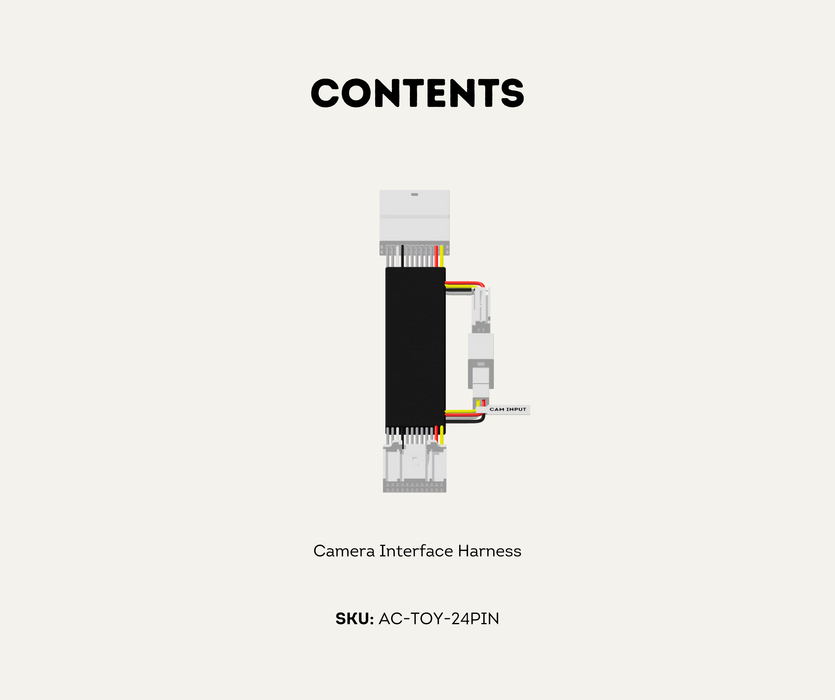

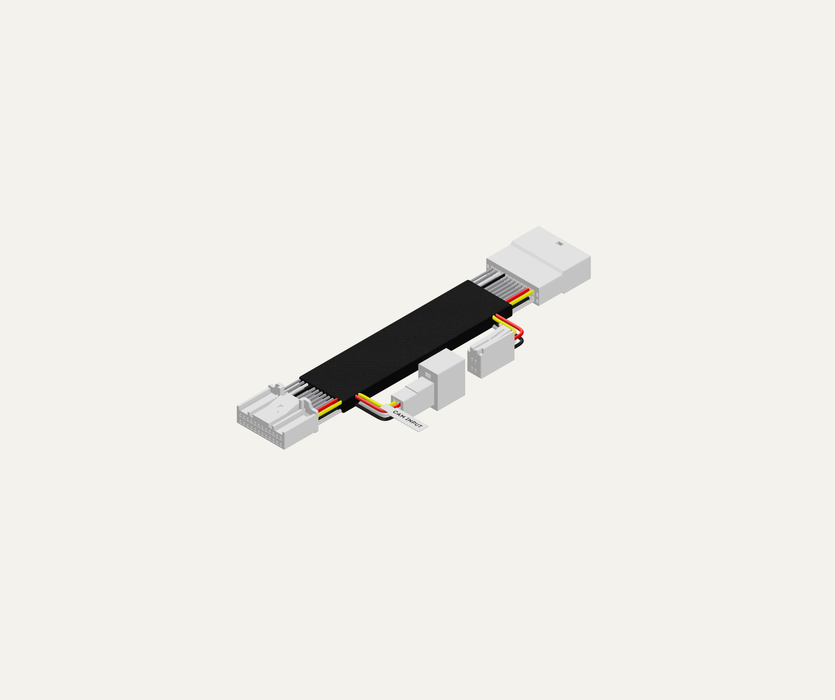

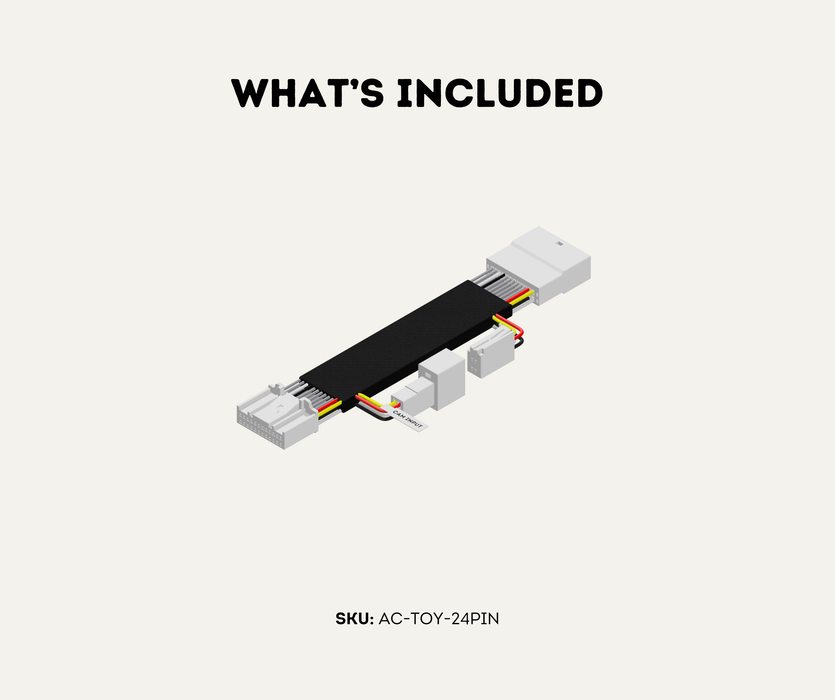

• 1x AutoChimp™ 24-Pin Full Pass-Through Camera Interface Harness
  (AC-TOY-24PIN)

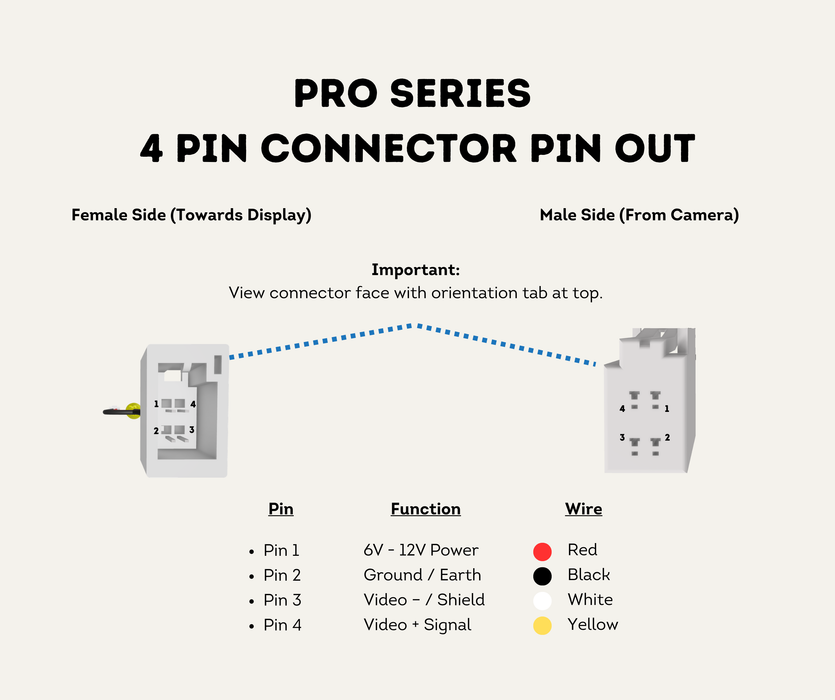

• Integrated 4-pin camera feed connector (male & female pair)

• OEM-style male & female Toyota 24-pin connectors

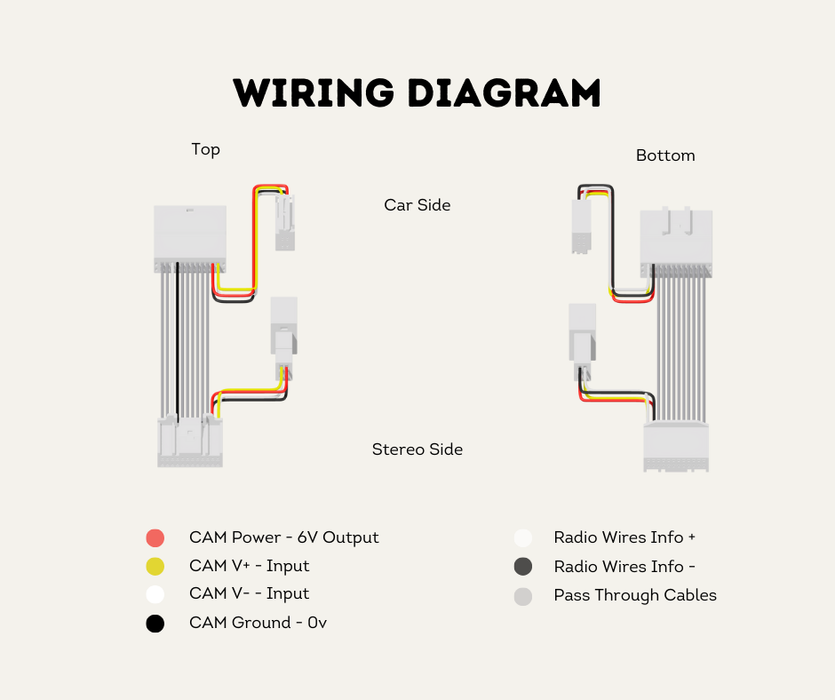

Technical Specifications

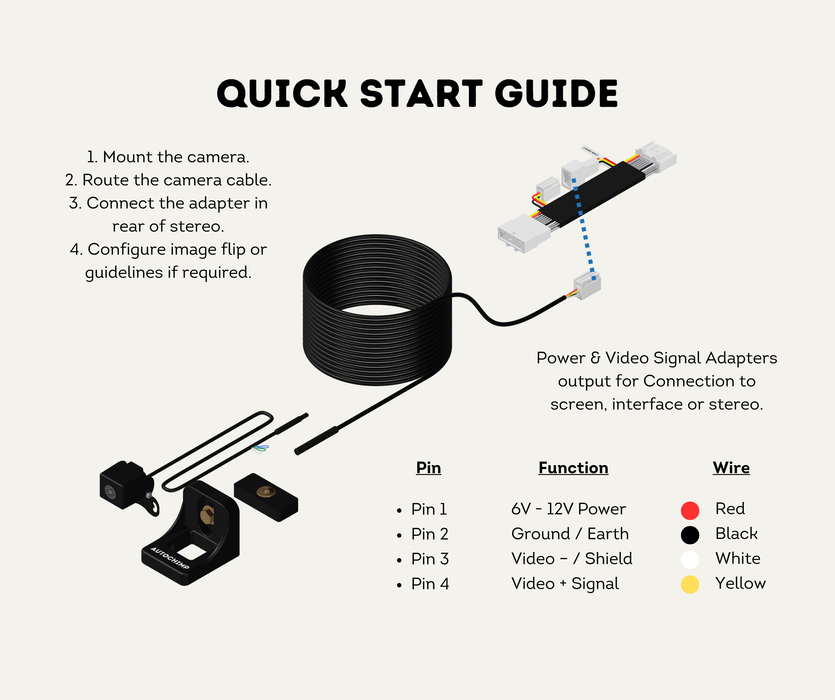

• Connector Type: Toyota 24-Pin

• Pass-Through Wiring: All 24 pins carried through (full continuity)

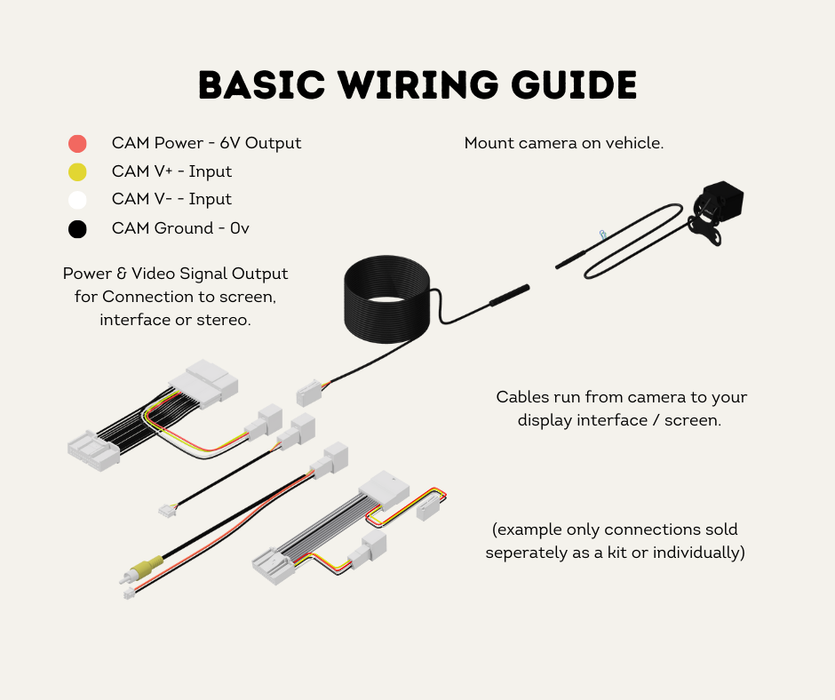

• Camera Output: 4-pin video feed

• Camera Supply: 6V from harness

• Vehicle System: 12V or 48V

• Reverse Trigger Wire: Not included — see AC-TOY-28PIN

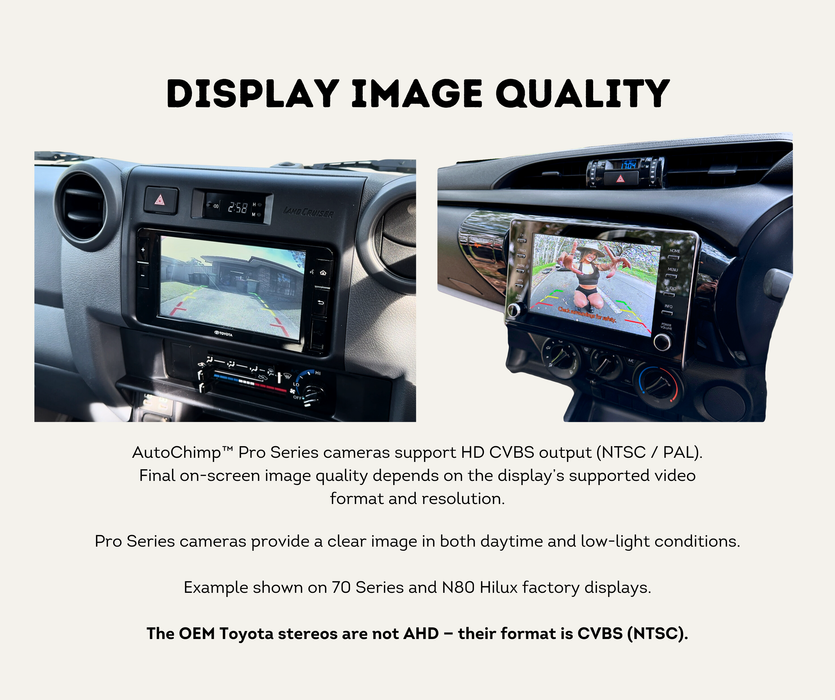

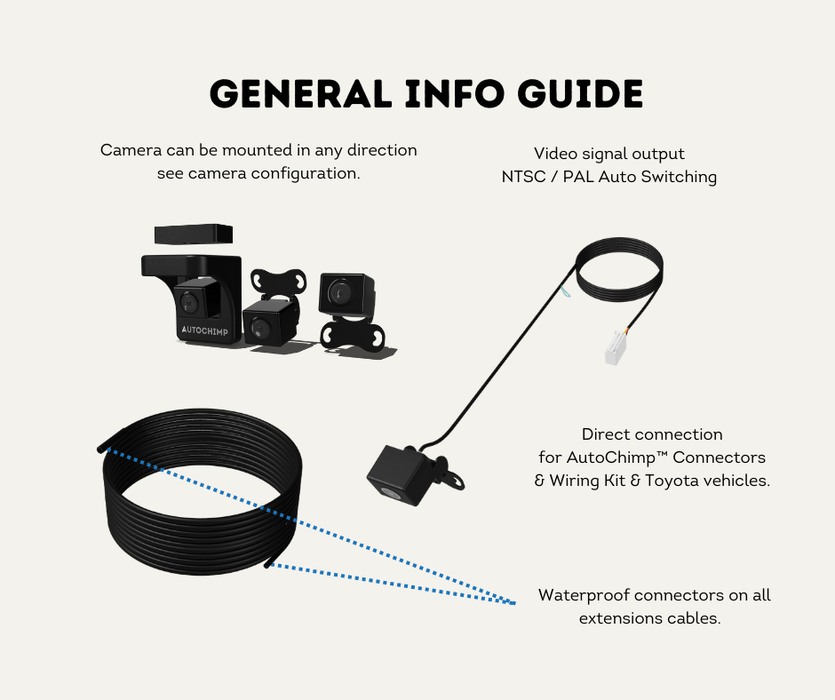

• Supported Formats: NTSC / PAL / AHD / CVBS (via module)

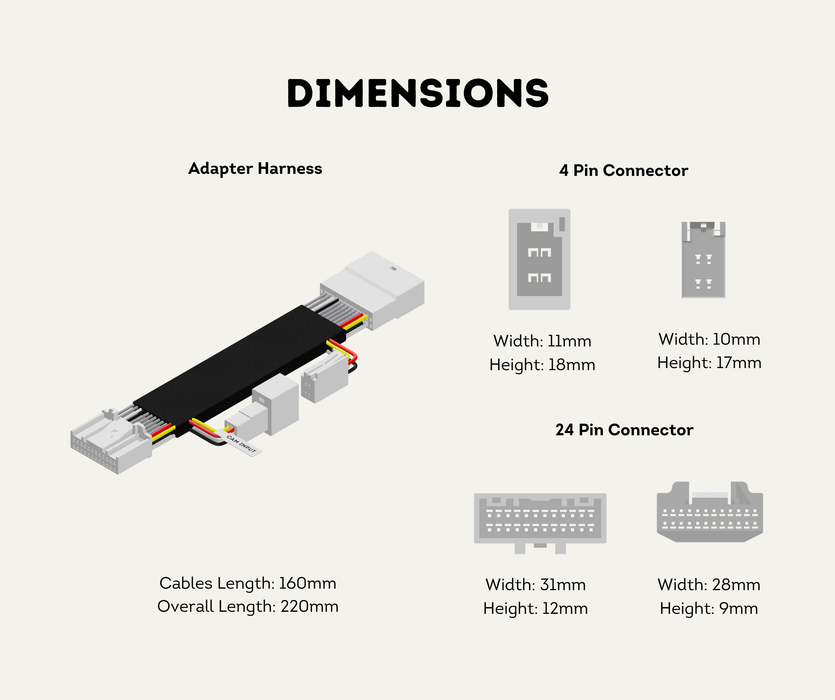

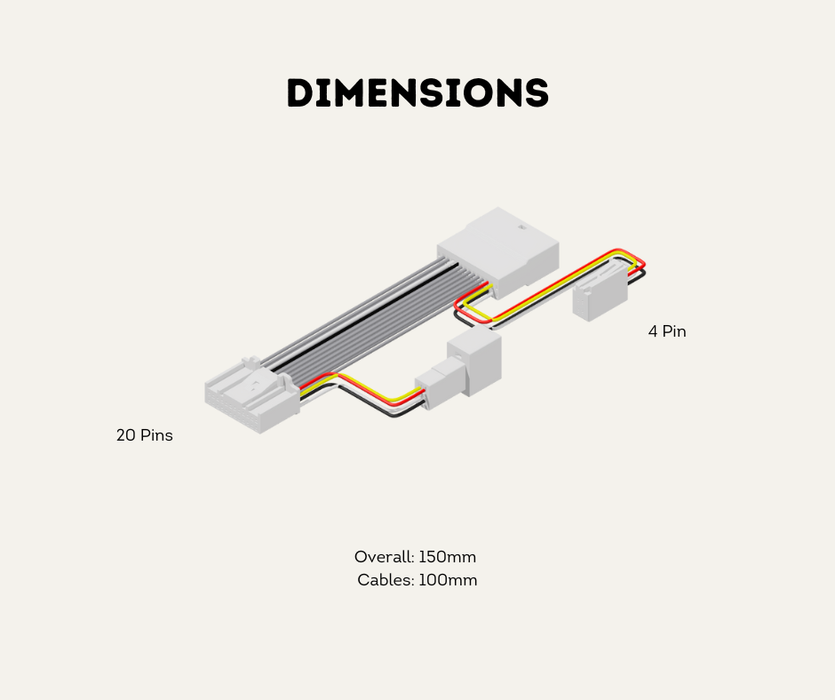

• Overall Length: 220mm

• Camera Branch Cables: 160mm

• Build: Reinforced outer loom + high-quality terminal crimping

Why Choose AutoChimp™?

• 100% plug-and-play — no cutting factory wiring

• Works seamlessly with all AutoChimp™ camera platforms

• Ensures full OEM functionality stays intact

• Reversible — rejoin the 4-pin pair to restore the factory loom

• Built for durability, vibration and heat in Australian conditions

• Designed, tested and supported locally
