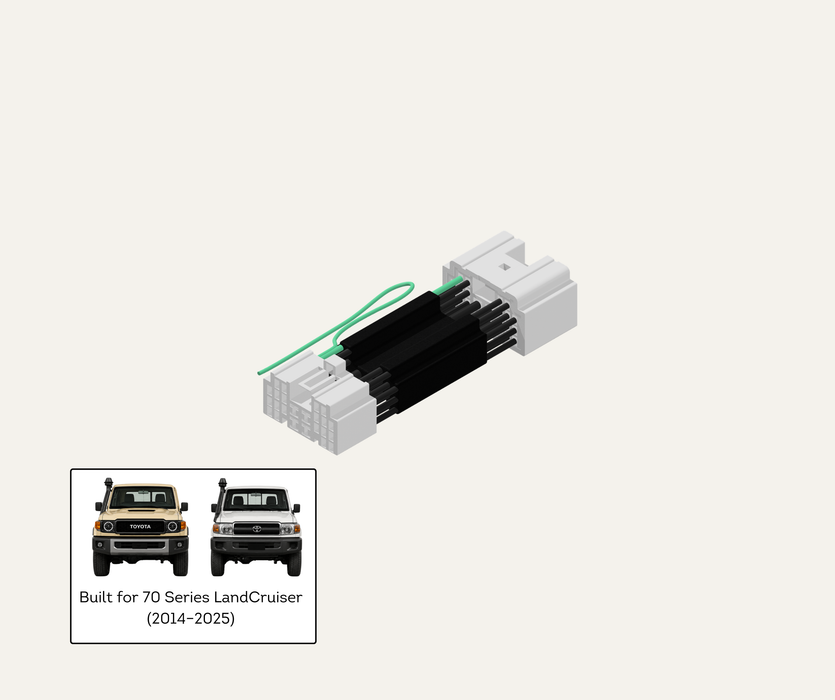

AutoChimp™ Reverse Light Trigger Harness for Toyota LandCruiser 70 Series (2014–2025) | 24-Pin Reverse Signal Patch Harness

SKU: AC-TOY-24PIN-70SERIES

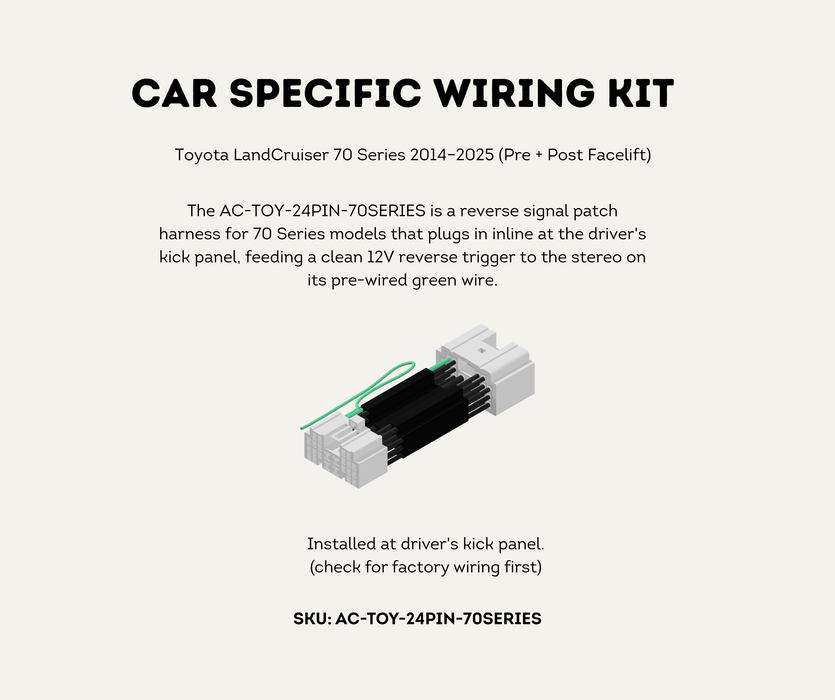

The AutoChimp™ AC-TOY-24PIN-70SERIES is a plug-and-play patch harness that takes a clean 12V+ reverse signal from the vehicle and brings it out on a single pre-wired green wire. It connects inline at the driver's kick panel, where the factory reverse signal wiring already runs, so the feed is easy to reach without cutting or splicing.

Important: this is a reverse trigger patch harness only — it carries no camera video. Additional parts are required to add a camera.

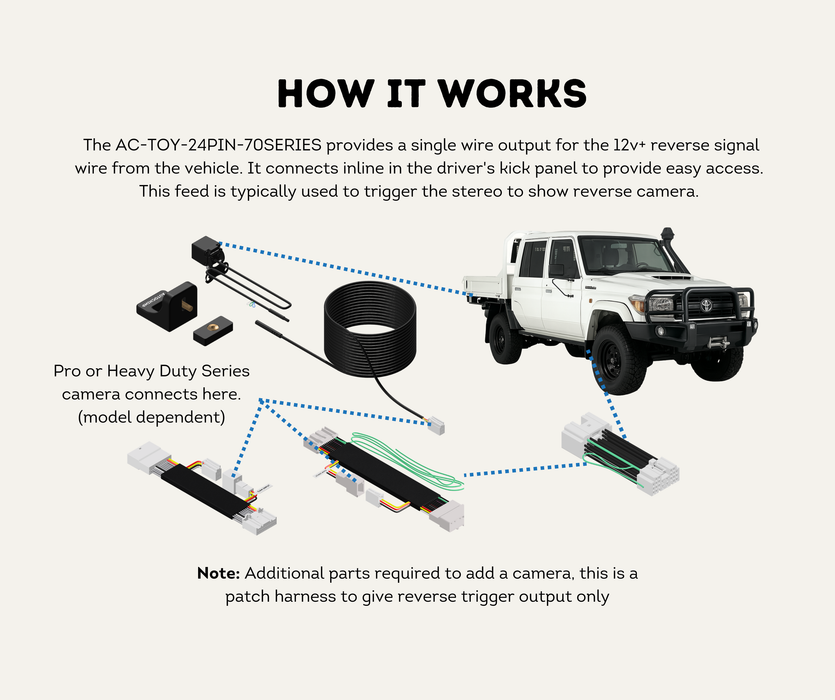

How It Works

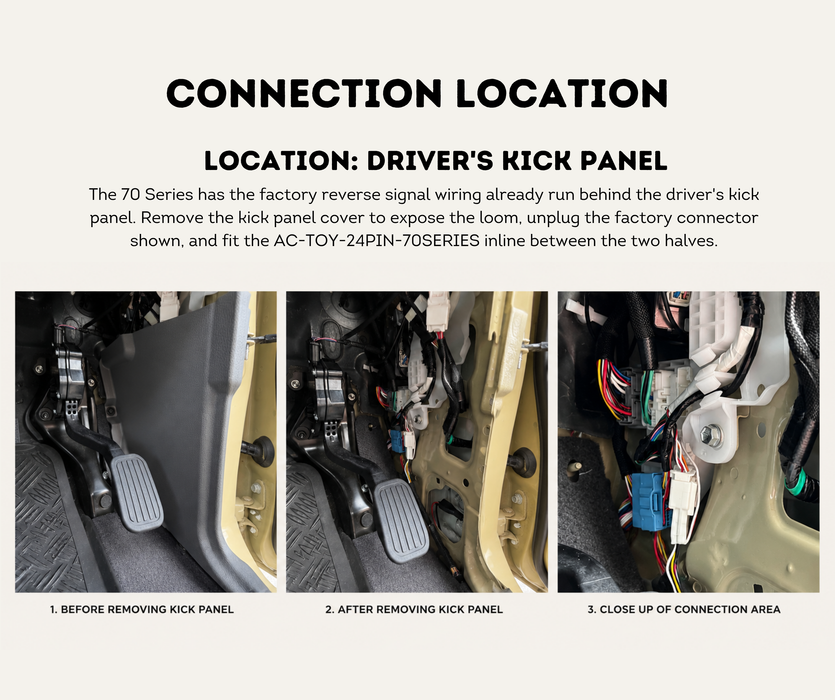

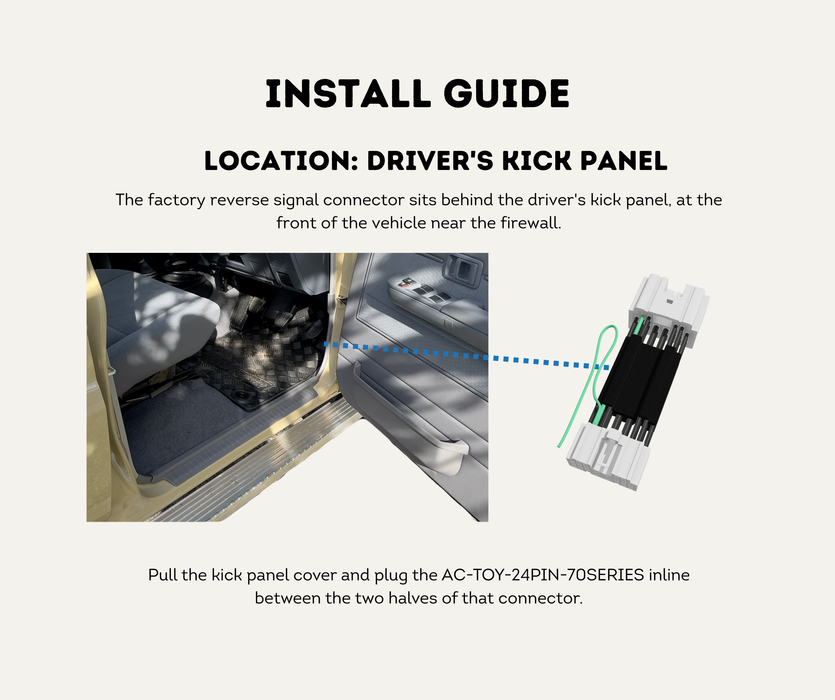

1. Remove the driver's kick panel cover to expose the factory loom
2. Unplug the factory 24-pin connector
3. Fit the AC-TOY-24PIN-70SERIES inline between the two halves

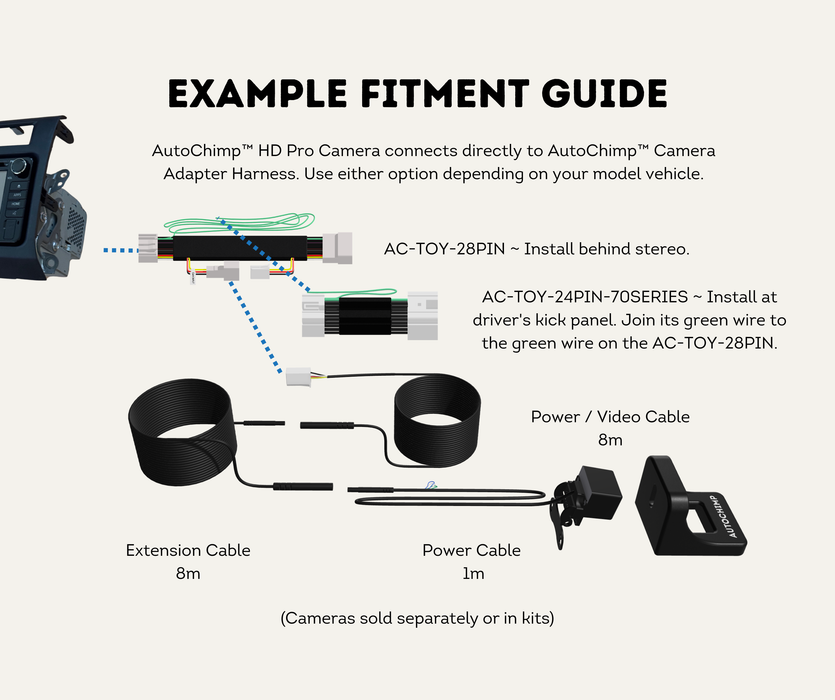

4. Join its green wire to the green wire on the AC-TOY-28PIN behind the stereo
5. Select reverse — the stereo receives the trigger and switches to the camera view

Key Features

• 12V Reverse Trigger Output – clean signal to the stereo for automatic camera activation
• Plug & Play – installs inline with the factory wiring, no cutting or splicing
• Pre-Wired Green Wire – single-wire output, ready to join to the AC-TOY-28PIN
• Factory-Style 24-Pin Connector – seamless integration with the 70 Series loom
• Easy Access Point – driver's kick panel, at the front of the vehicle near the firewall
• Fully Reversible – unplug to return the vehicle to standard

Compatibility

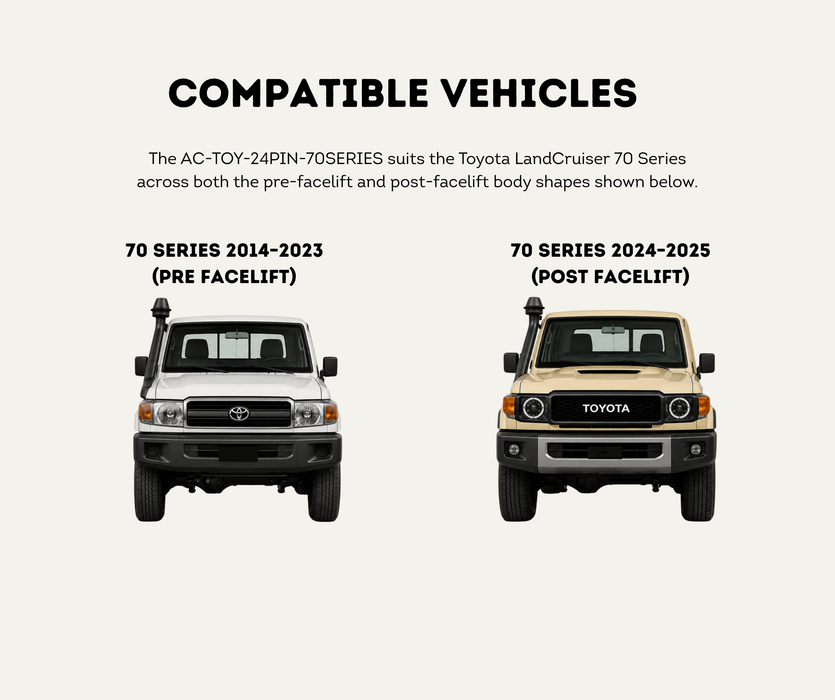

• Toyota LandCruiser 70 Series 2014–2025
• 70 Series 2014–2023 (Pre Facelift)
• 70 Series 2024–2025 (Post Facelift)
• All variants including Workmate, GX, GXL and Troop Carrier

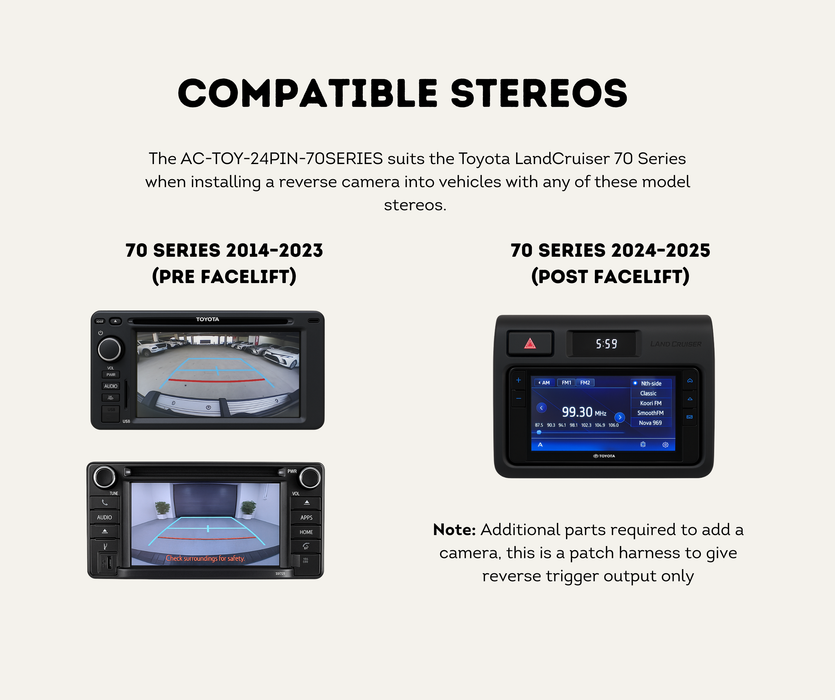

• Compatible with factory Toyota touch-screen stereos
• Works with aftermarket stereos when used with an additional patch harness (sold separately)

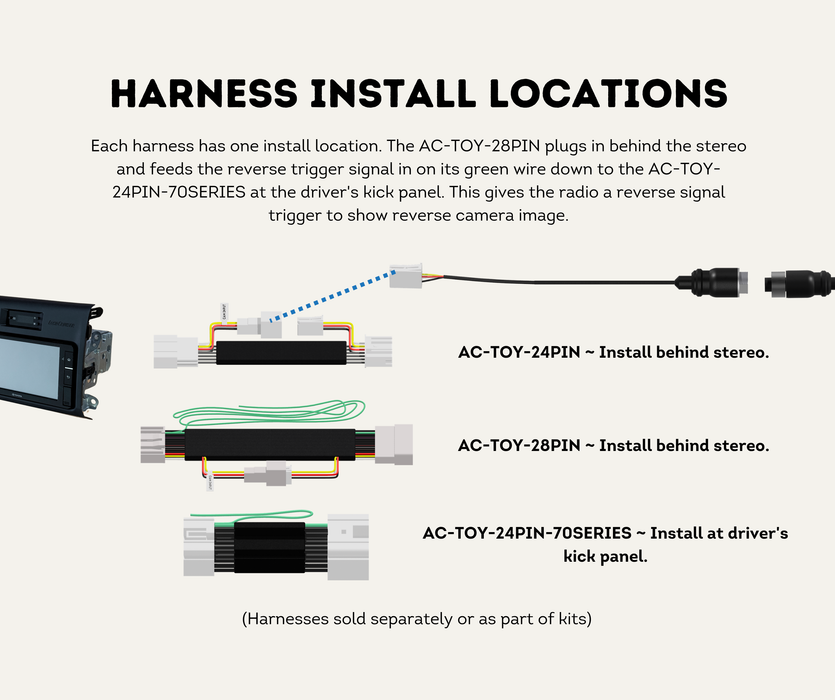

Which Harness Do I Need?

Each harness has one install location:
• AC-TOY-24PIN-70SERIES – driver's kick panel, supplies the reverse trigger
• AC-TOY-28PIN – behind the stereo, receives the trigger on its green wire
• AC-TOY-24PIN – behind the stereo, the separate camera input harness

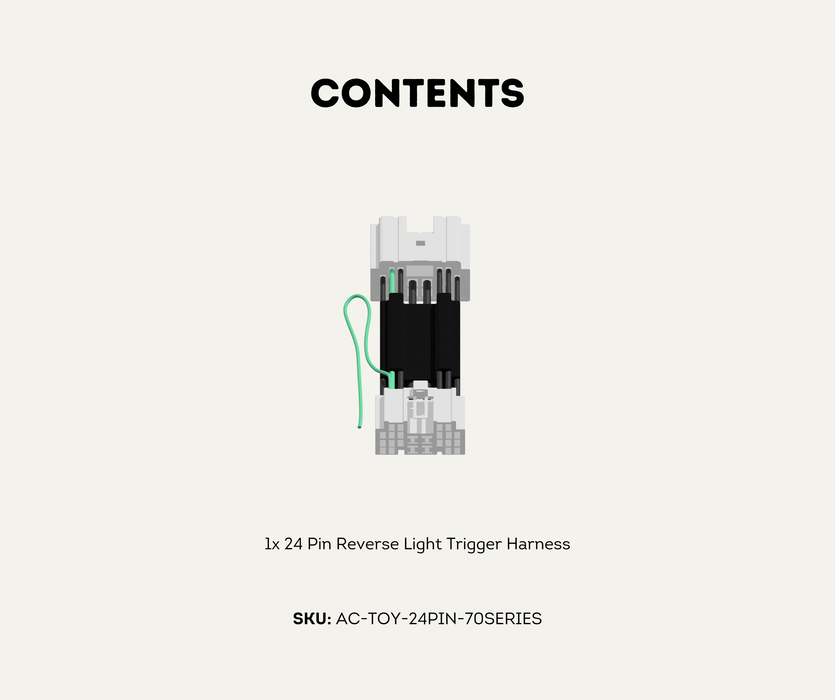

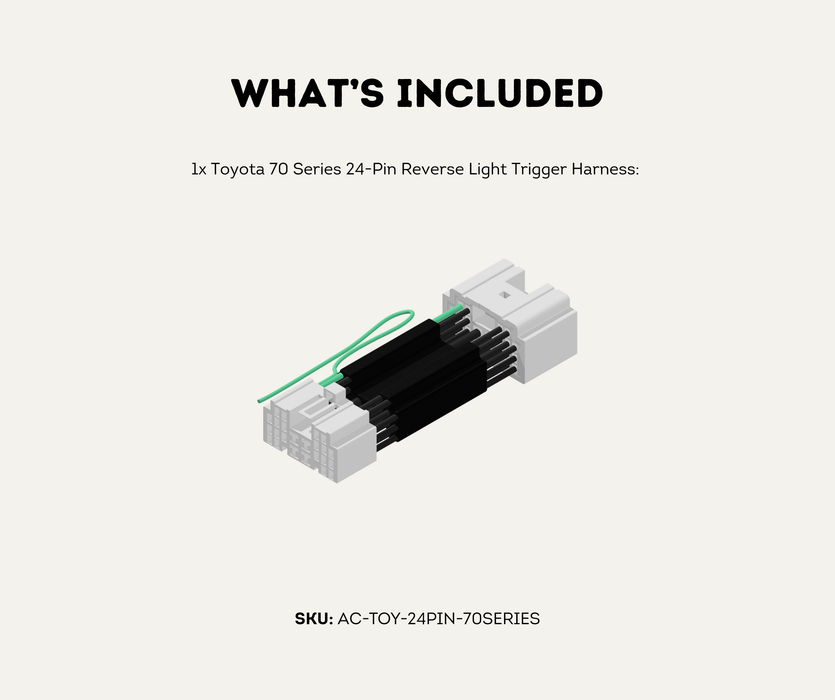

What's Included

• 1x AutoChimp™ 24-Pin Reverse Light Trigger Harness (AC-TOY-24PIN-70SERIES)

Technical Specifications

• Connector Type: inline 24-pin patch harness

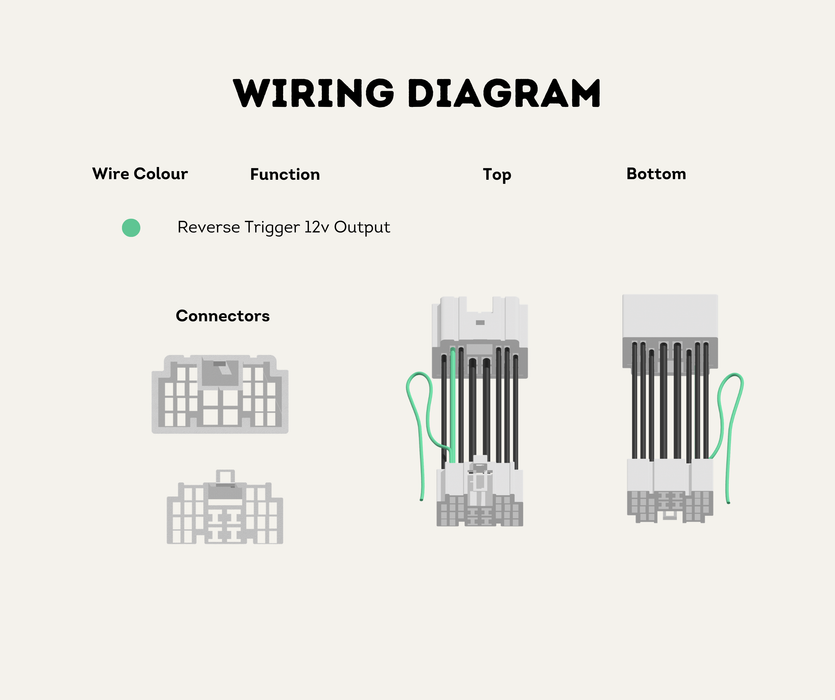

• Output: 12V reverse trigger on a single green wire
• Install Location: driver's kick panel

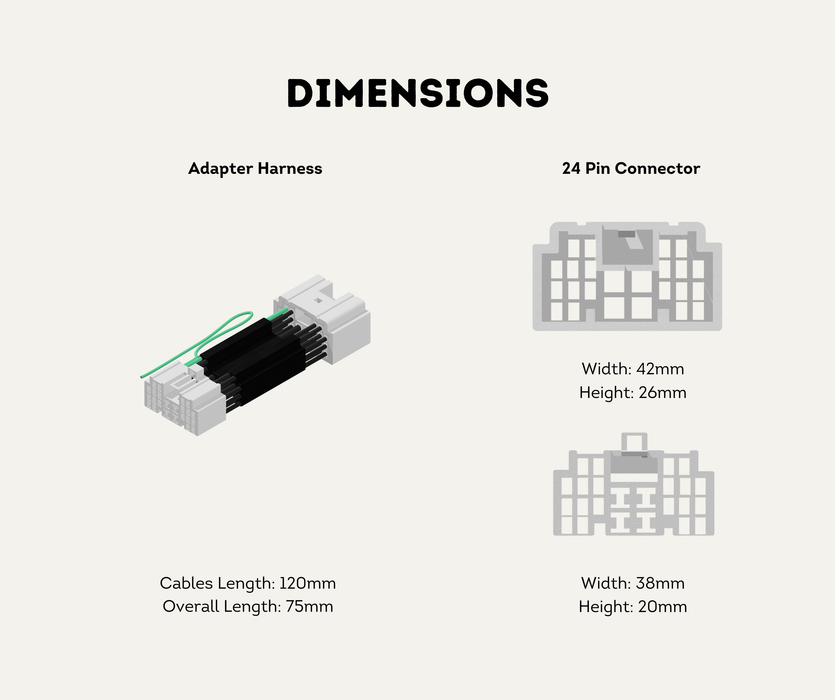

• Cable Length: 120mm • Overall Length: 75mm
• 24-Pin Connector: 42mm x 26mm and 38mm x 20mm

Why Choose AutoChimp™

• Purpose-built for Australian-spec Toyota LandCruiser 70 Series
• Factory-style integration with no coding or programming required
• Trusted by installers and 4x4 owners across Australia
• Backed by local support and fast shipping from AutoChimp™
