AutoChimp™ Reverse Camera Kit for Toyota LandCruiser 70 Series (2024–2026)

SKU: AC-TOY-RC8-RC9

Fits: The facelift Toyota LandCruiser 70 Series with a factory stereo — mid-2023 release onwards through 2026. Single Cab, Double Cab, Wagon and Troop Carrier, in Workmate, GX and GXL variants. Automatic and manual.

Purpose-built for all Toyota LandCruiser 70 Series, mid-2023 through 2026. Two interface harnesses are included — you will use one, not both. If the wires are not in the driver's kick panel, use the 28-pin at the stereo.

Which 70 Series Kit Do I Need?

Go by the build date, not the plate — Toyota's 70 Series facelift reached Australia mid-2023 and sells as a 2024 model year onwards.

Every kit comes in two camera grades. Pro Series is the standard camera. Heavy Duty is the commercial-grade upgrade for trays, canopies and hard-worked vehicles — same harnesses, same installation.

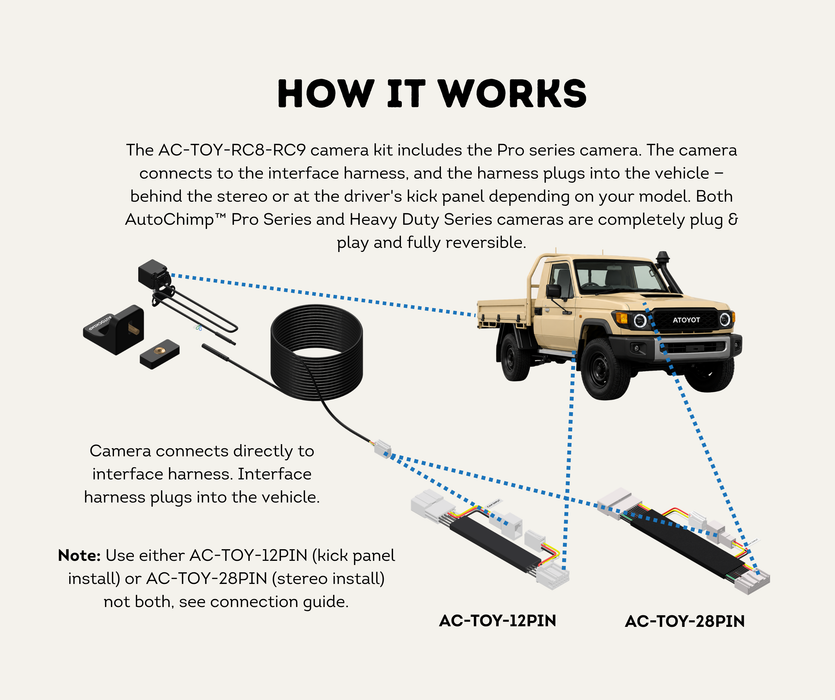

How It Works

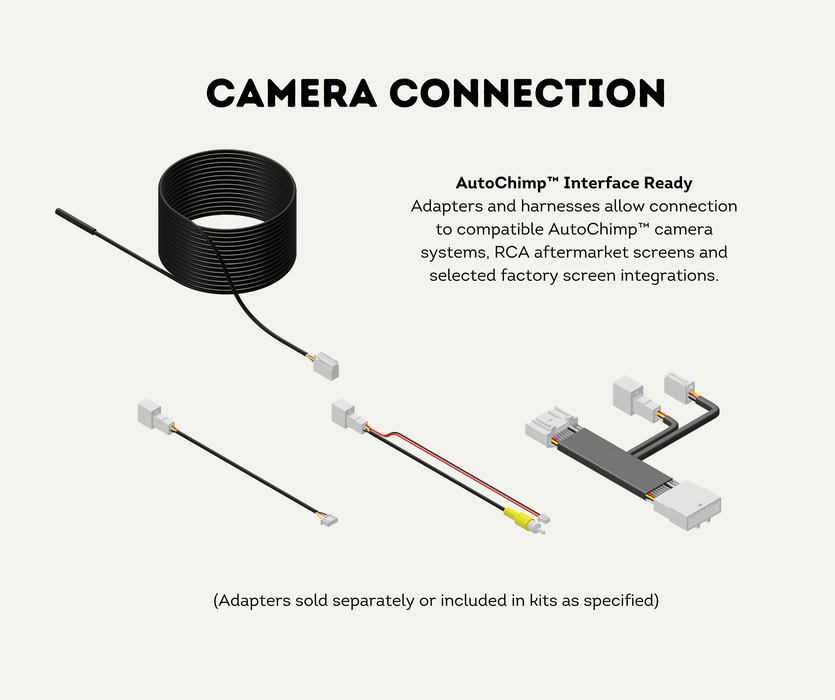

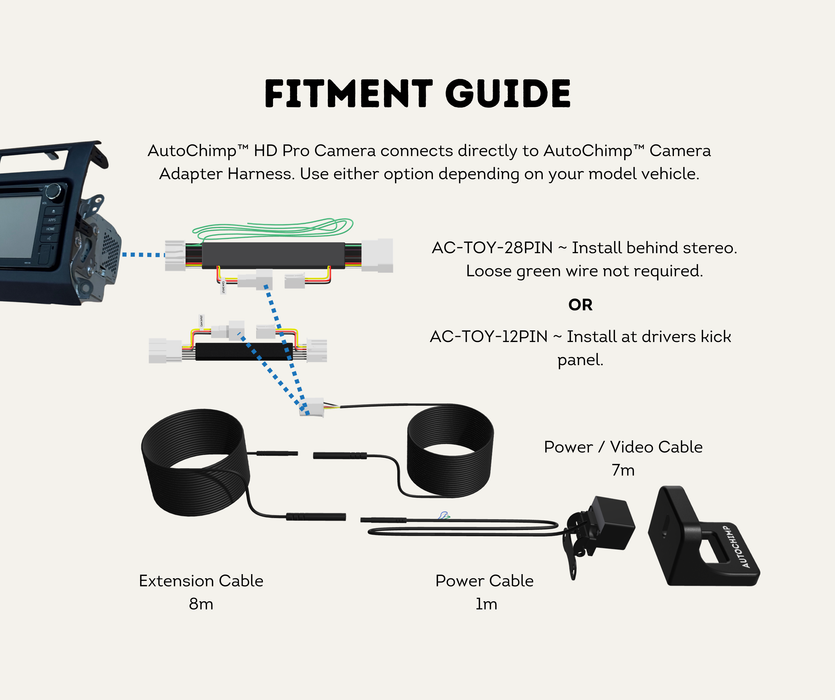

The AC-TOY-RC8-RC9 camera kit includes the Pro series camera. The camera connects to the interface harness, and the harness plugs into the vehicle — behind the stereo or at the driver's kick panel depending on your model. Both AutoChimp™ Pro Series and Heavy Duty Series cameras are completely plug & play and fully reversible.

Note: Use either AC-TOY-12PIN (kick panel install) or AC-TOY-28PIN (stereo install) — not both. See the Connection Guide.

Car Specific Wiring Kit

Two interface harnesses are included. Choose the one that suits your vehicle.

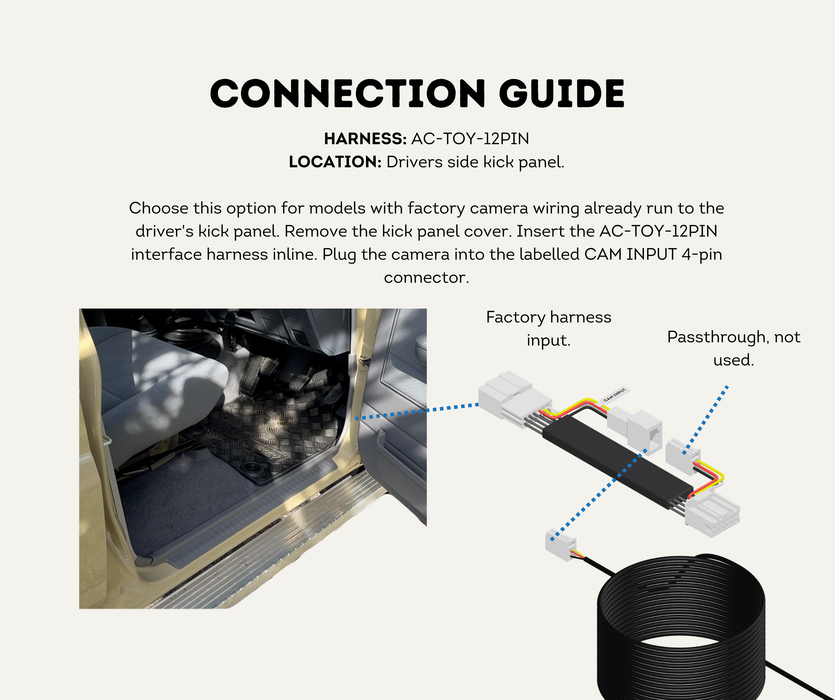

The kick panel connector is present on every vehicle — on some models the wires simply are not run into it. Pull the kick panel cover and look. If the wires are there, use the 12-pin. If they are not, use the 28-pin at the stereo.

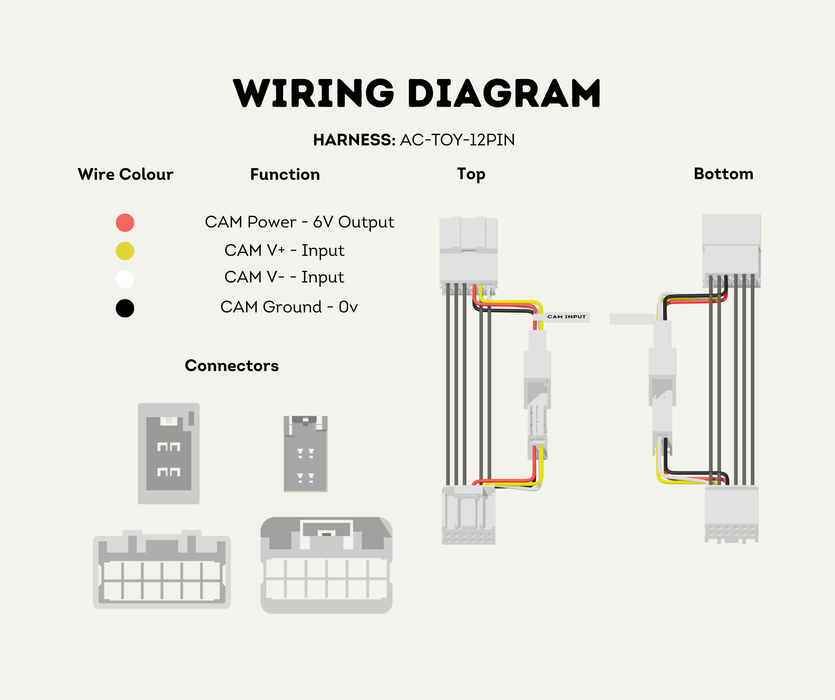

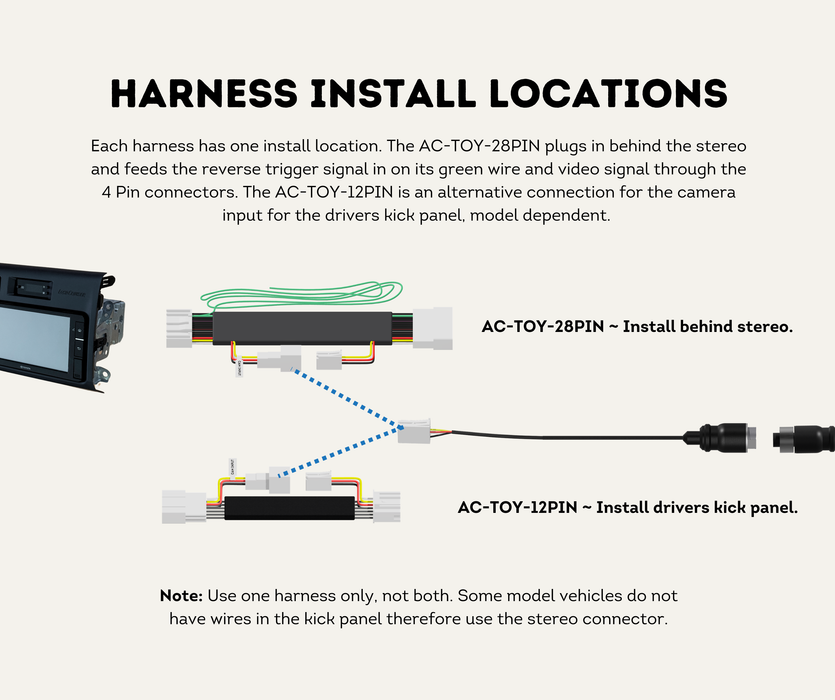

Harness Install Locations

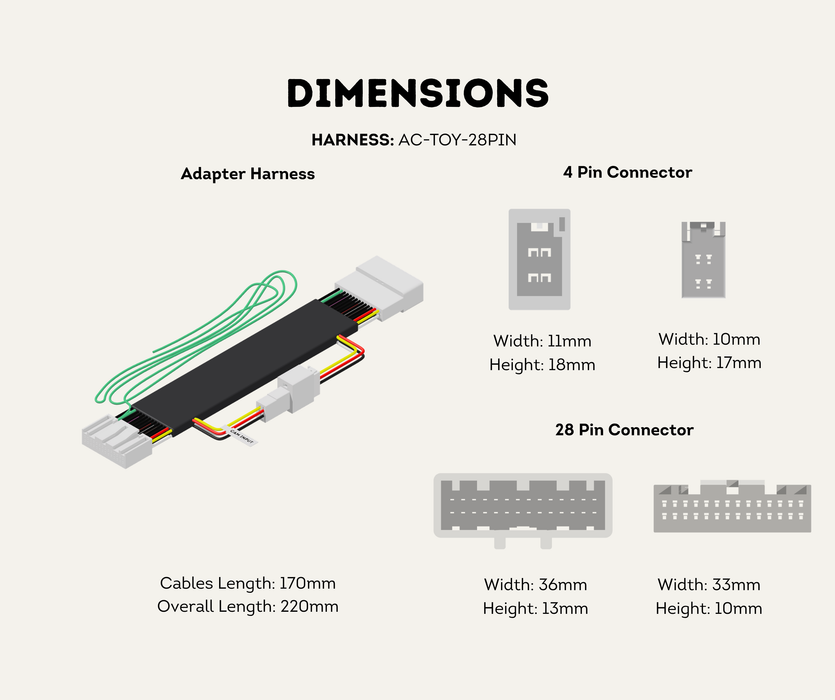

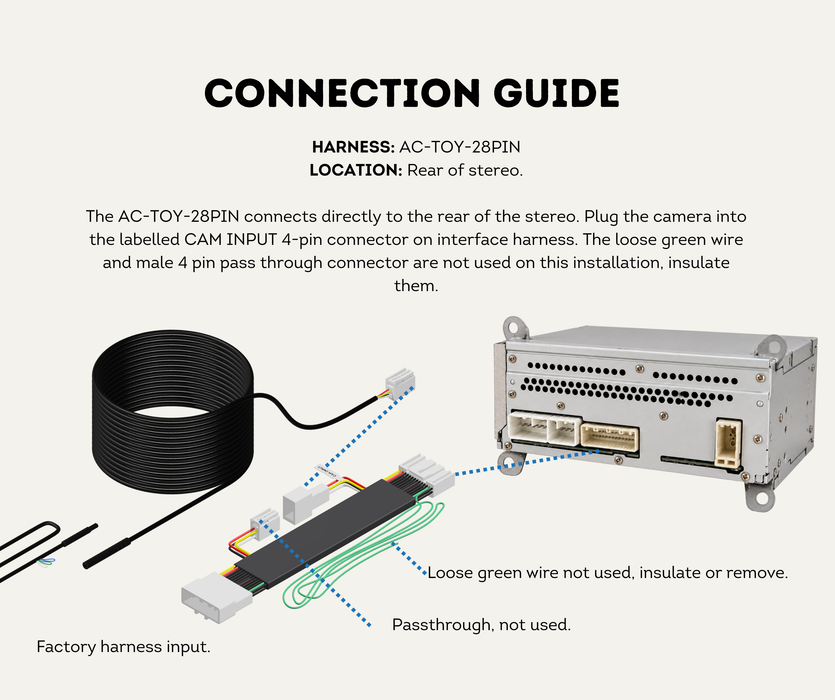

Each harness has one install location. The AC-TOY-28PIN plugs in behind the stereo and feeds the reverse trigger signal in on its green wire and video signal through the 4 Pin connectors. The AC-TOY-12PIN is an alternative connection for the camera input for the drivers kick panel, model dependent.

Note: Use one harness only, not both. Some model vehicles do not have wires in the kick panel therefore use the stereo connector.

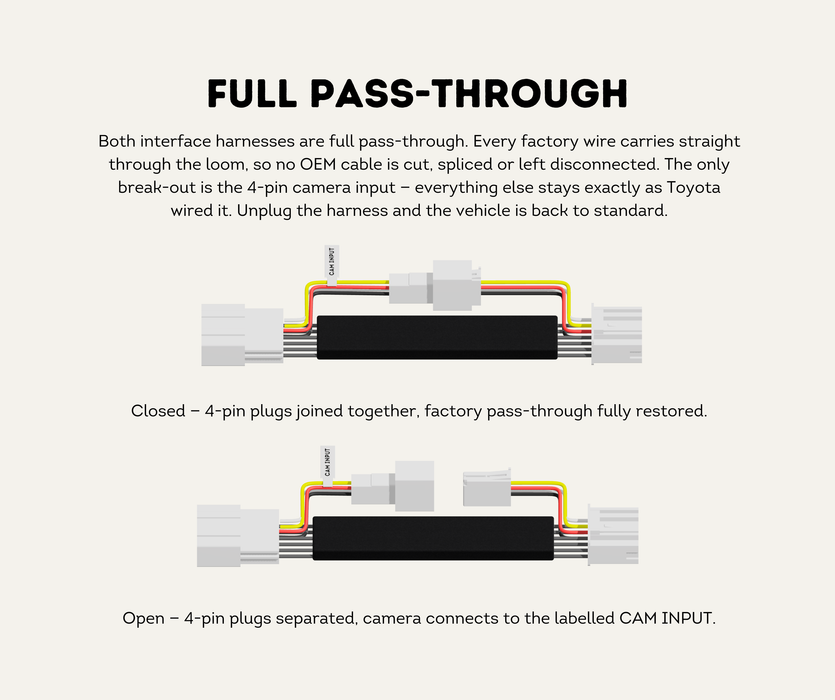

Full Pass-Through

Both interface harnesses are full pass-through. Every factory wire carries straight through the loom, so no OEM cable is cut, spliced or left disconnected. The only break-out is the 4-pin camera input — everything else stays exactly as Toyota wired it. Unplug the harness and the vehicle is back to standard.

Key Features

• Both Adapters Included – AC-TOY-28PIN and AC-TOY-12PIN supplied together, so you are never caught out on installation day.
• Plug & Play Factory Integration – No cutting, no splicing, no dealer programming. The camera switches on automatically when you select reverse.
• Full Pass-Through Design – Every OEM circuit carries straight through the harness, so the vehicle behaves exactly as it did before.

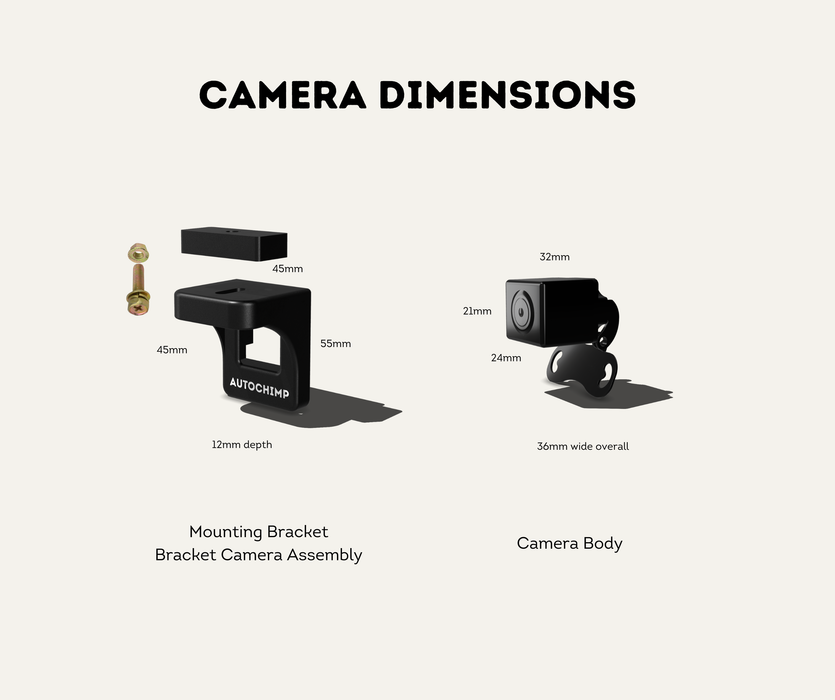

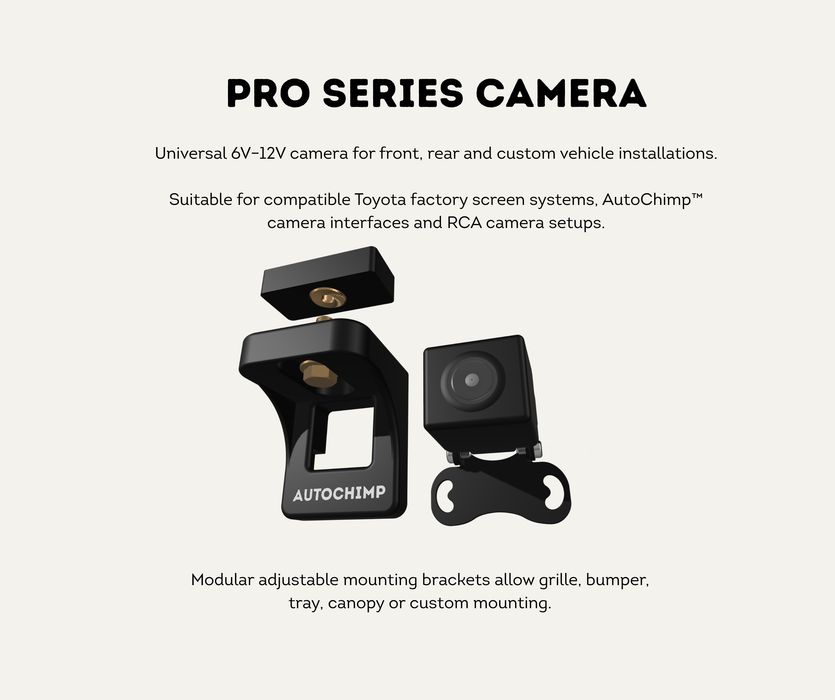

• Pro HD Camera – Compact metal-housed camera with a sealed waterproof plug-in connector for a cleaner, more reliable install.

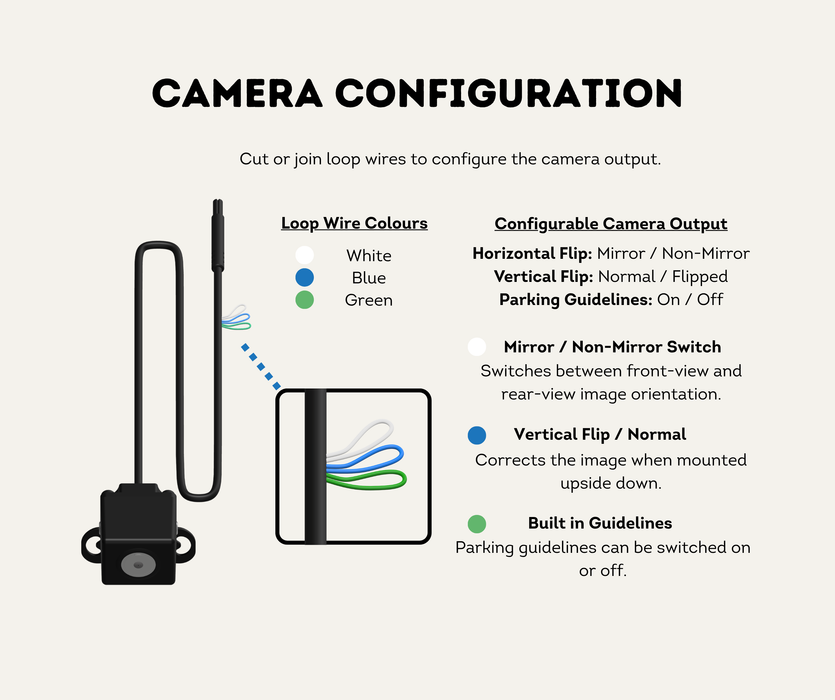

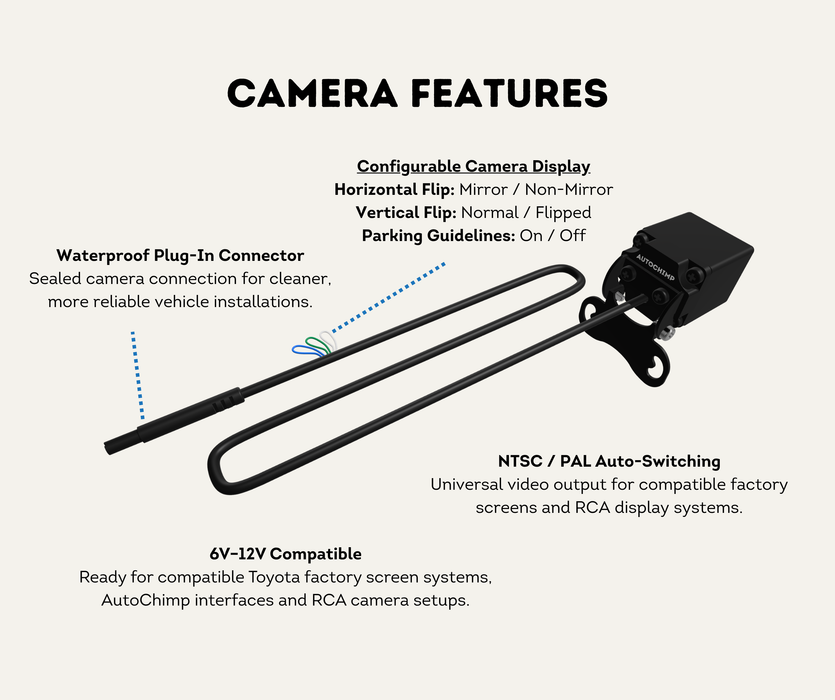

• Configurable Camera Output – Horizontal flip (mirror / non-mirror), vertical flip (normal / flipped) and parking guidelines on or off, set with the camera's loop wires.

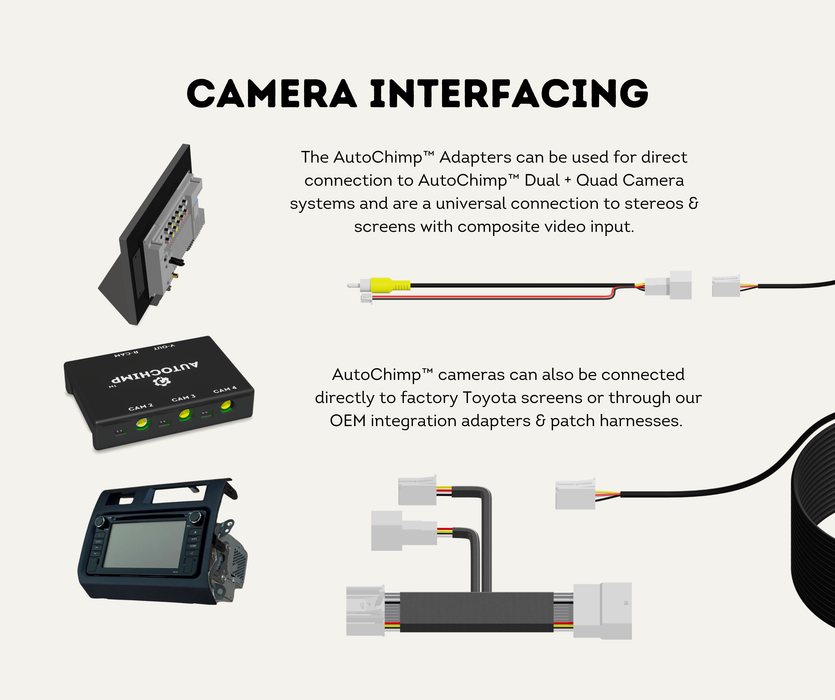

• NTSC / PAL Auto-Switching – Universal video output for compatible factory screens and RCA display systems.

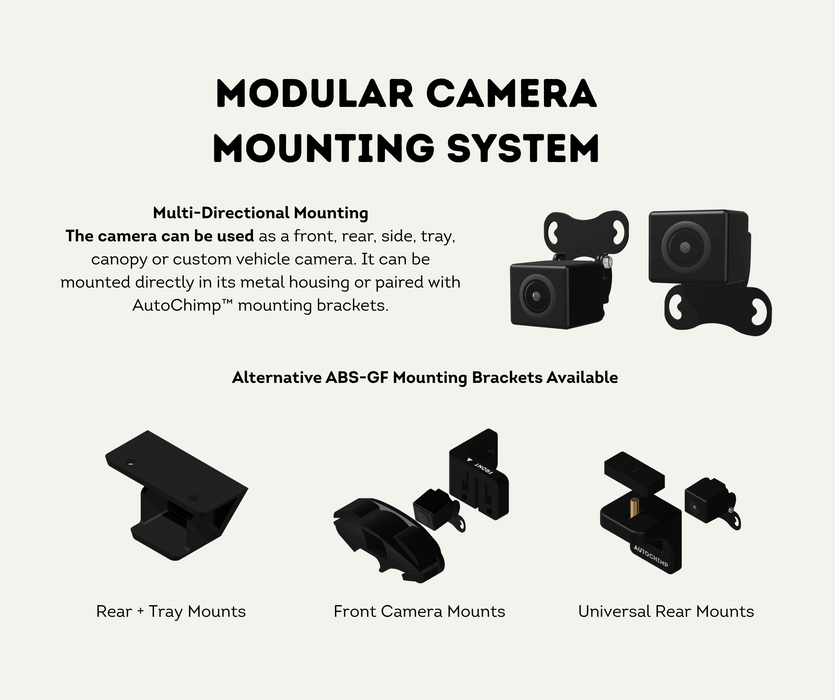

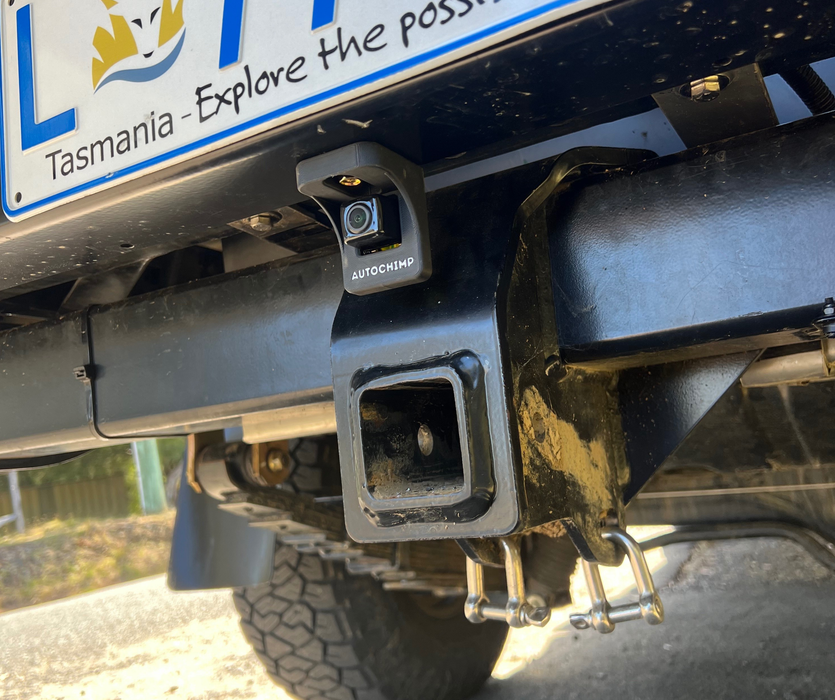

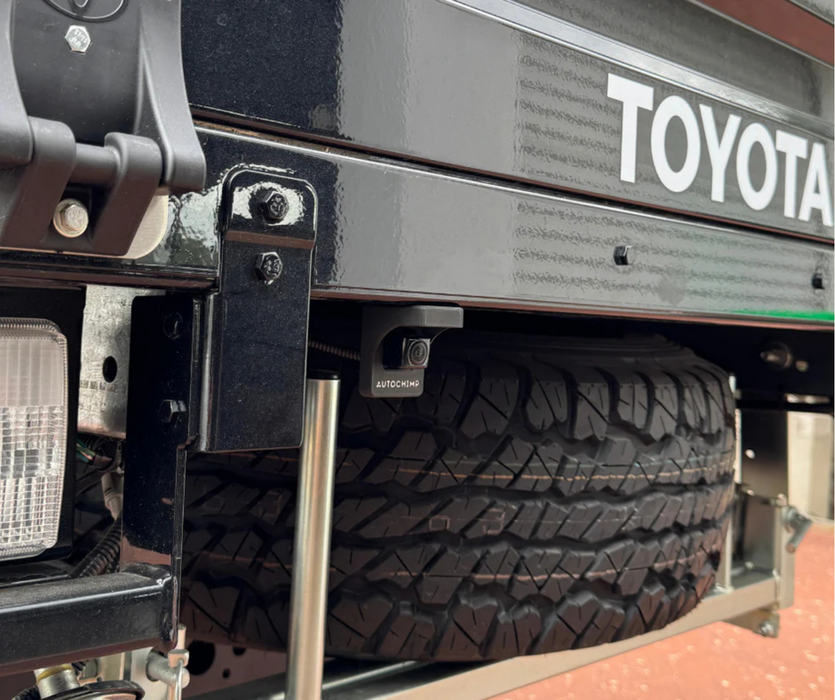

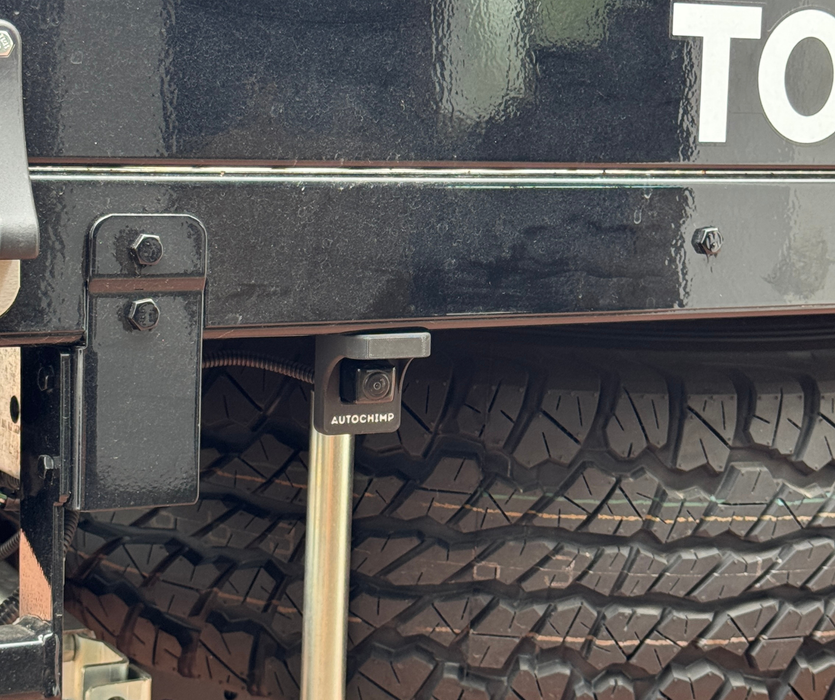

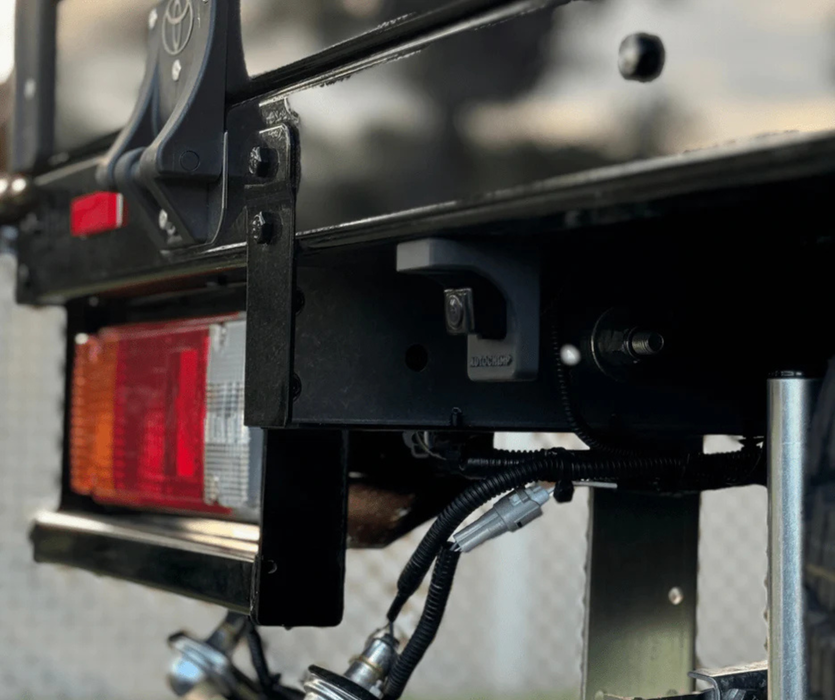

• Modular Camera Mounting System – Mount the camera in its metal housing directly, or pair it with AutoChimp™ rear, tray, front or universal brackets.
• DIY Friendly – Step-by-step PDF instructions via the QR code on the pack.
• Built for Australian Conditions – IP67 waterproof and dustproof, rated -30°C to +80°C.
• Fully Reversible – Unplug the harness and the vehicle is back to standard.

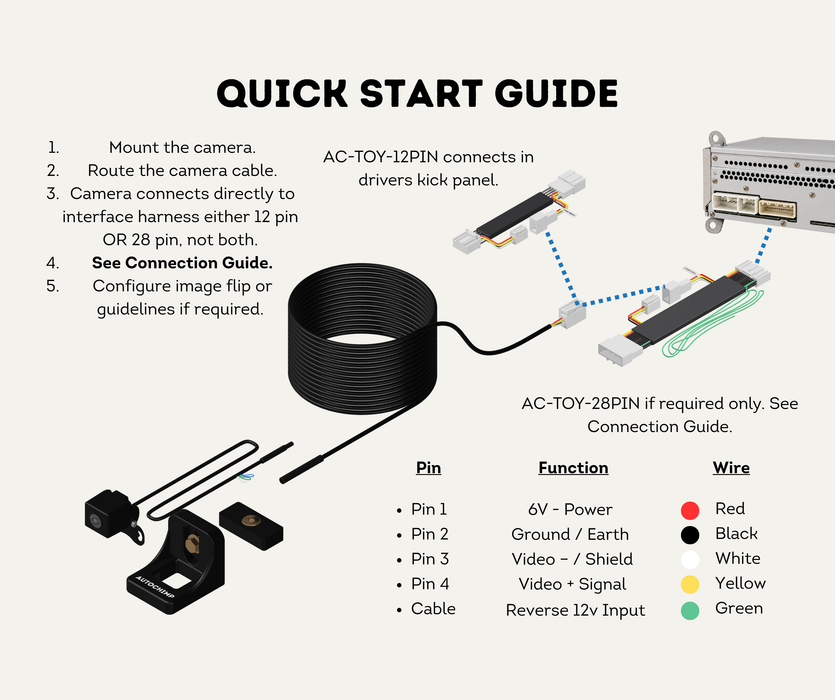

Quick Start Guide

• Mount the camera.
• Route the camera cable.
• Camera connects directly to interface harness — either 12 pin OR 28 pin, not both.
• See Connection Guide.
• Configure image flip or guidelines if required.

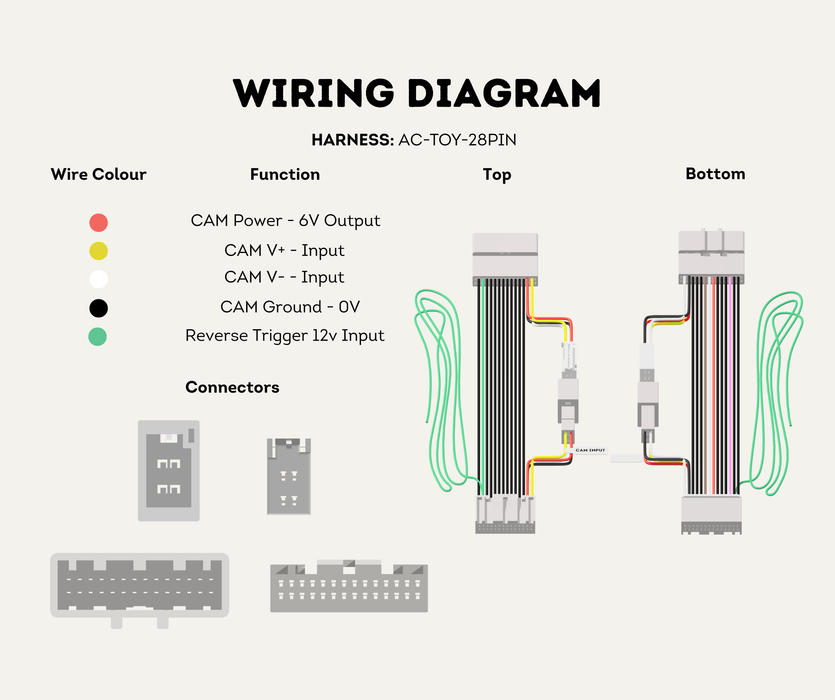

A Note on the Green Wire

The AC-TOY-28PIN carries a loose green wire. It is not used on this vehicle — insulate or remove it. The reverse trigger is already fed through the factory harness. The loose wire is there because the same harness also serves the earlier pre-2023 70 Series, which does need it.

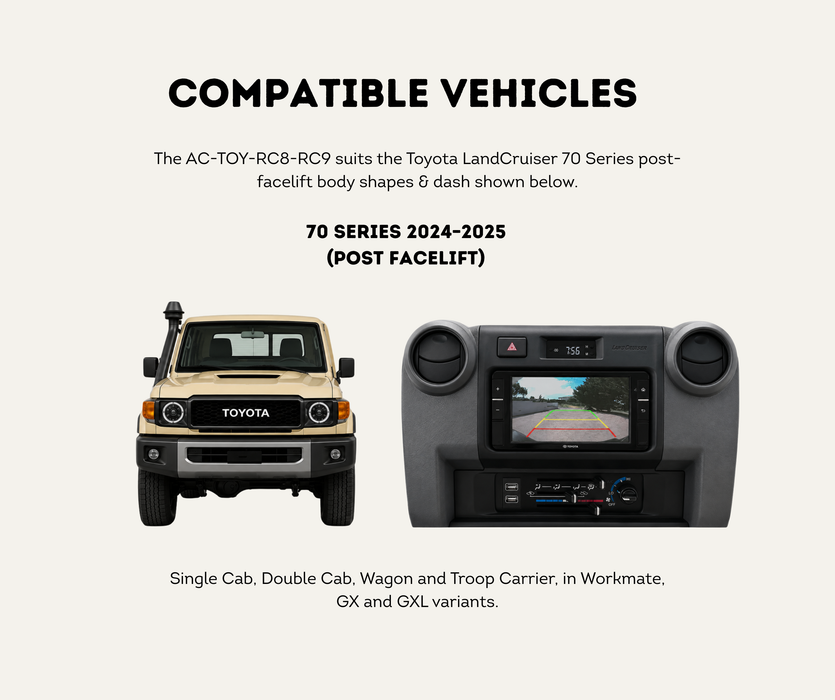

Compatibility

• Toyota LandCruiser 70 Series facelift — mid-2023 release onwards through 2026
• Single Cab, Double Cab, Wagon and Troop Carrier
• Workmate, GX and GXL variants
• Supports both automatic and manual transmission vehicles
• Suits vehicles with 12V electrical systems

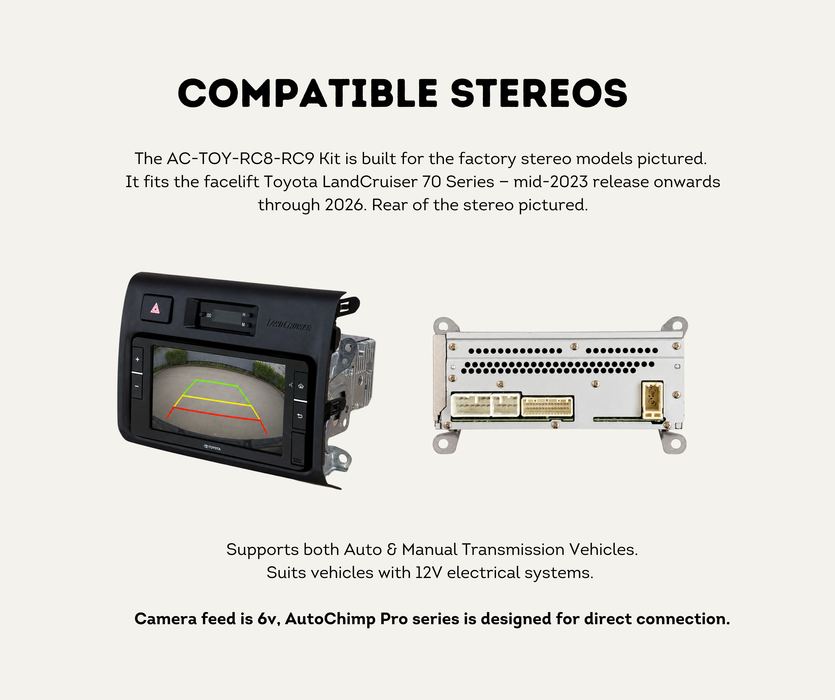

• Factory stereo required

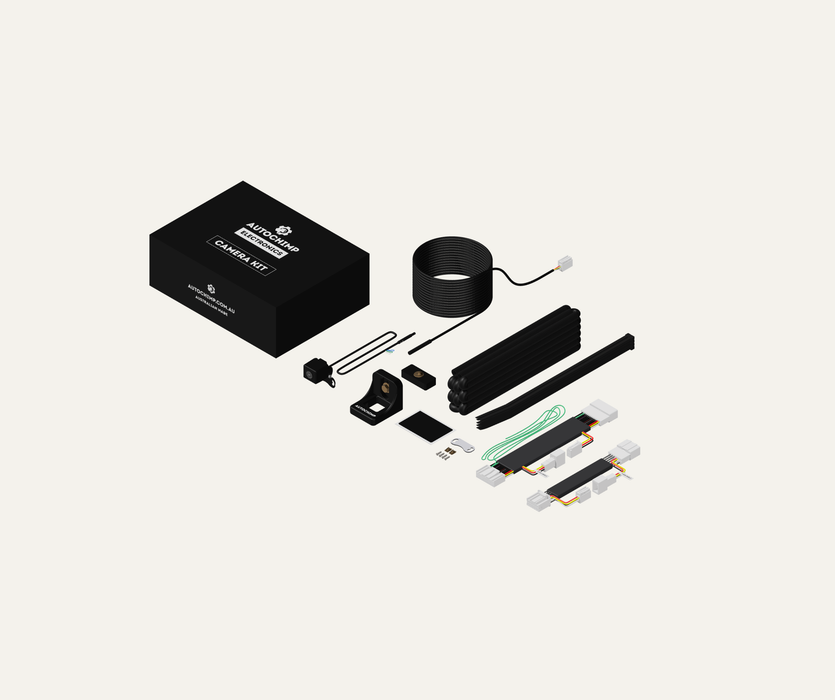

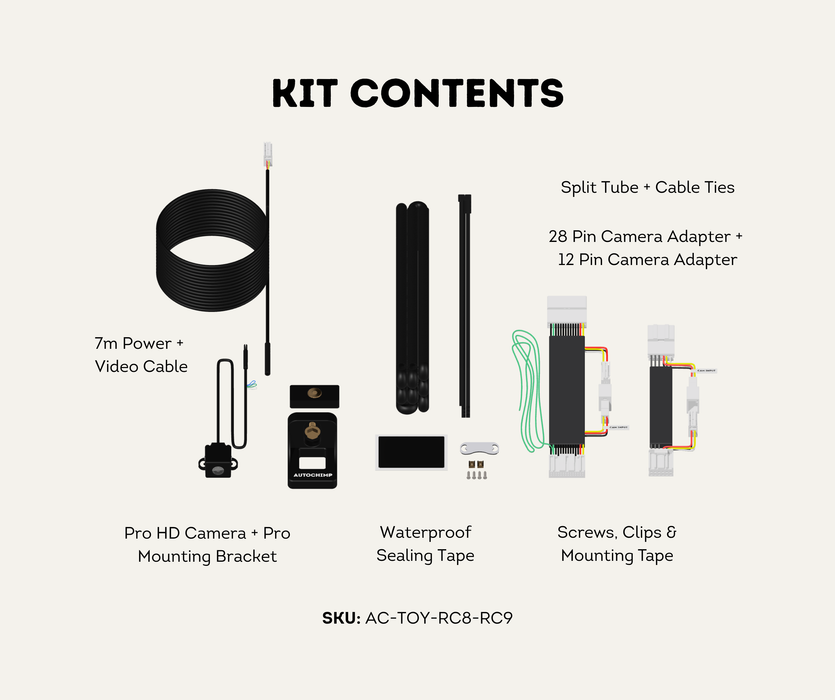

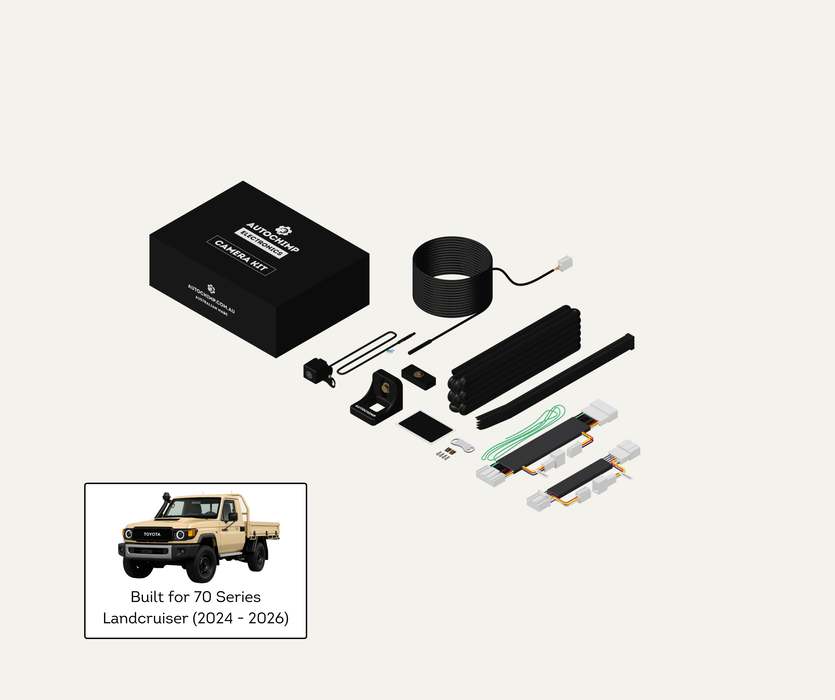

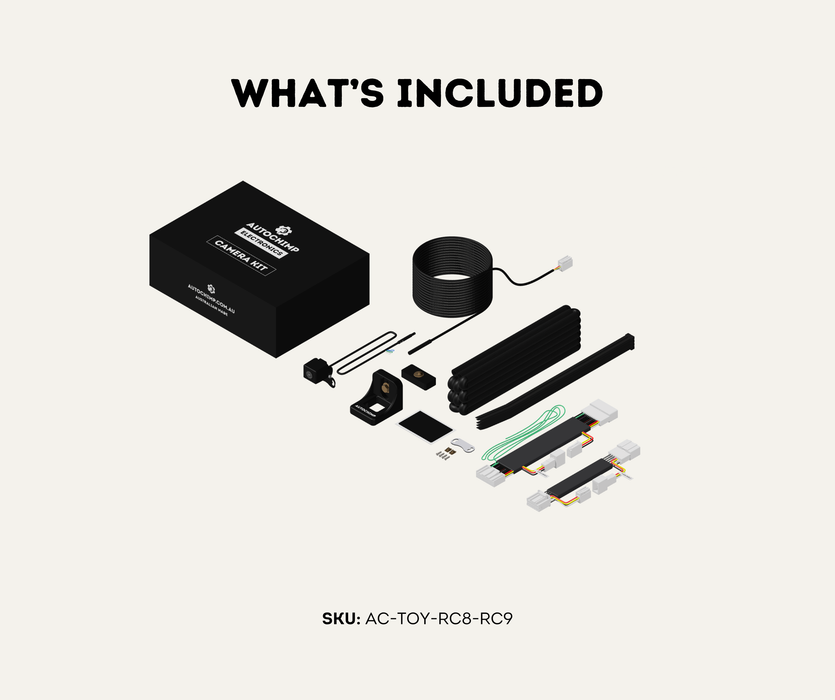

Kit Contents

• Pro HD Camera + Pro Mounting Bracket
• 7m Power + Video Cable
• 28 Pin Camera Adapter + 12 Pin Camera Adapter
• Waterproof Sealing Tape
• Split Tube + Cable Ties
• Screws, Clips & Mounting Tape

Technical Specifications

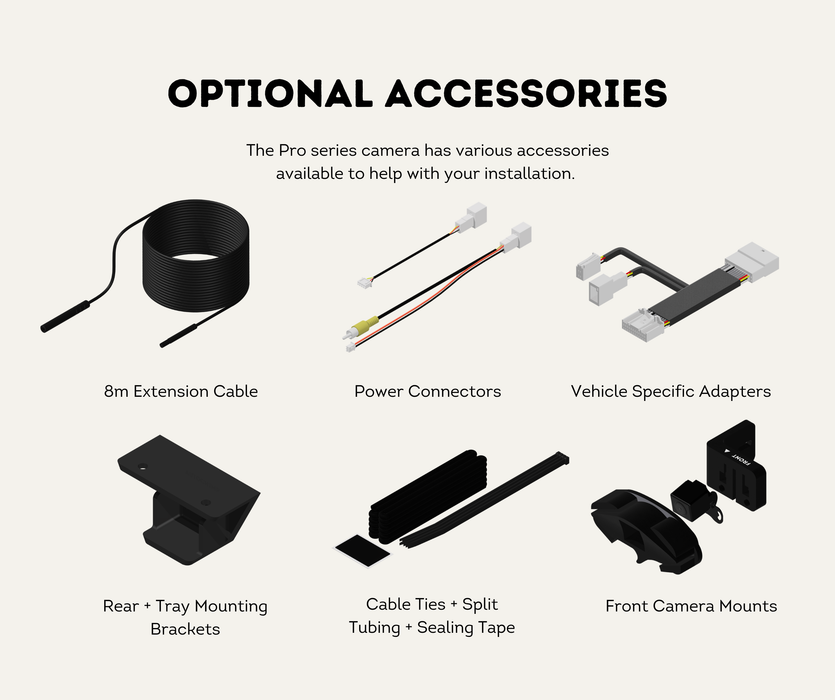

Optional Accessories

• 8m Extension Cable
• Power Connectors

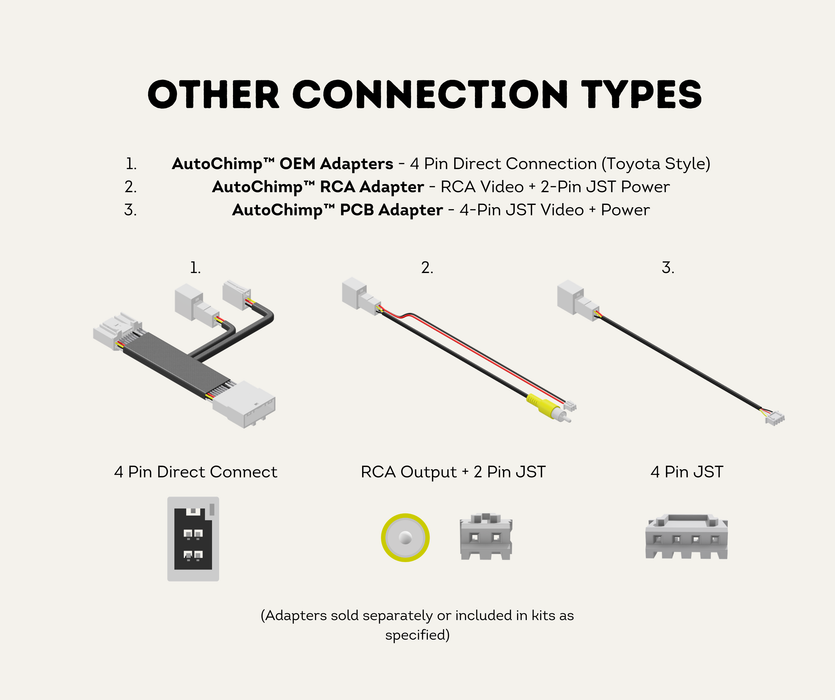

• Vehicle Specific Adapters
• Rear + Tray Mounting Brackets
• Front Camera Mounts
• Cable Ties + Split Tubing + Sealing Tape
• AutoChimp™ Tool Kit — recommended for DIY installation
• AutoChimp™ Cloth Tape — for a professional wiring finish
