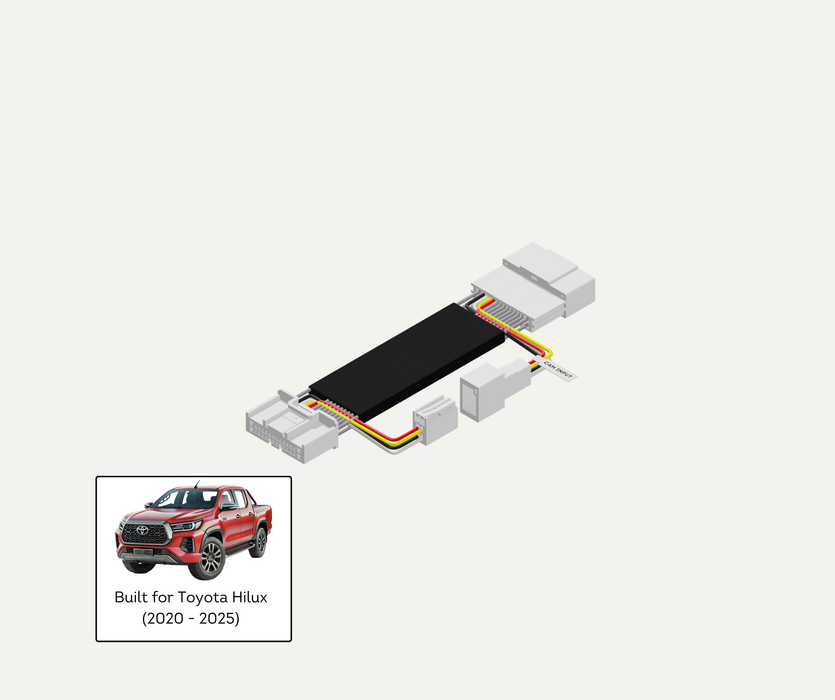

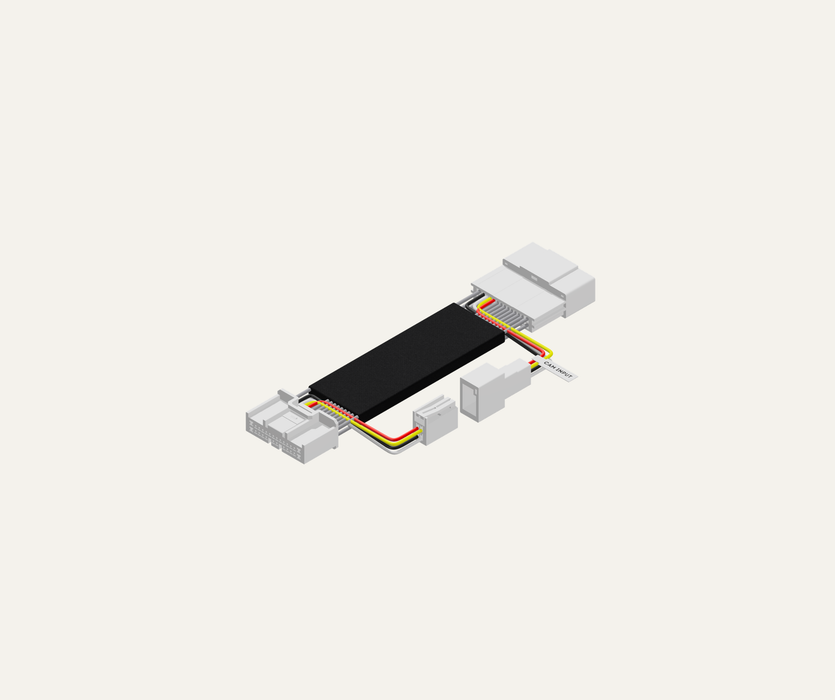

AutoChimp™ Reverse Camera Interface Plug for Toyota Hilux (2020–2025) | 26-Pin Plug & Play Harness

SKU: AC-TOY-26PIN

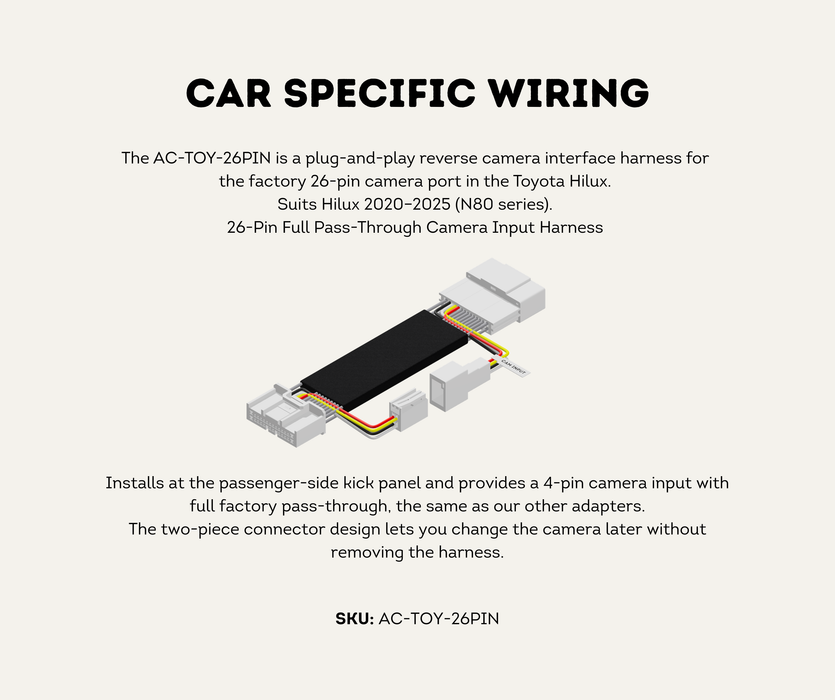

The AutoChimp™ AC-TOY-26PIN adds a reverse camera to the factory screen of a 2020–2025 Toyota Hilux without touching the head unit. The 2020–2025 Hilux already has the factory camera wiring run to the passenger-side kick panel — this harness T-pieces inline at that point and breaks out a labelled 4-pin CAM INPUT for the camera.

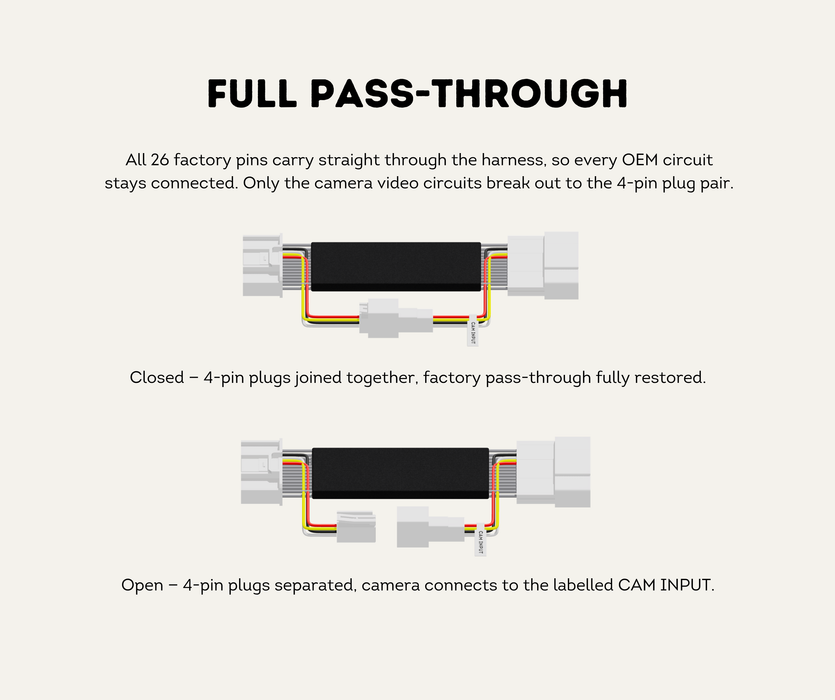

All 26 factory pins carry straight through the harness, so every OEM circuit stays connected. Only the camera video circuits break out. The install is completely plug & play and fully reversible — no splicing, no coding, no programming.

Key Features

• Full Pass-Through Design – all 26 factory pins carry straight through; every OEM circuit stays connected
• Plug & Play – connects at the passenger-side kick panel, no splicing required
• Two-Piece Connector – change or upgrade the camera later without removing the main harness

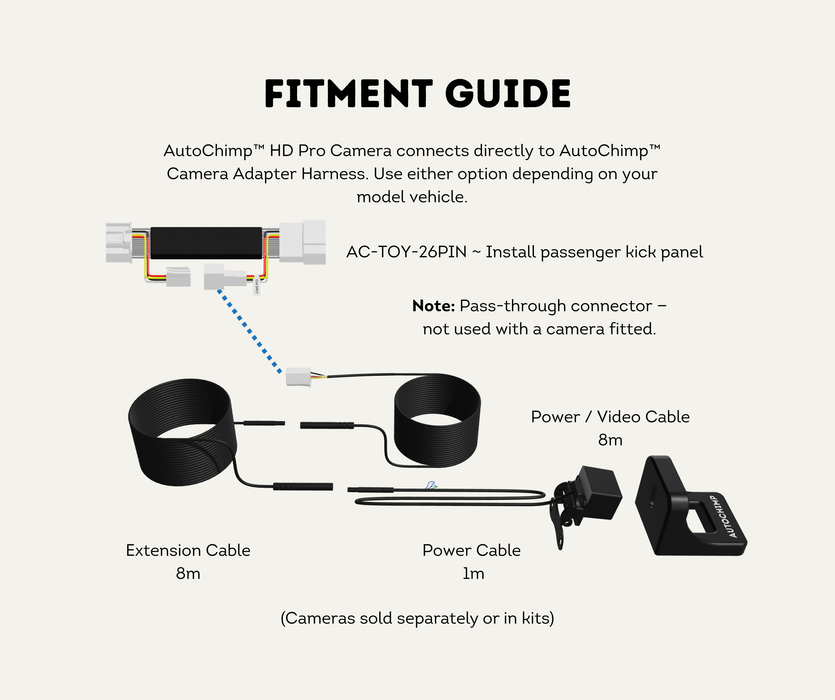

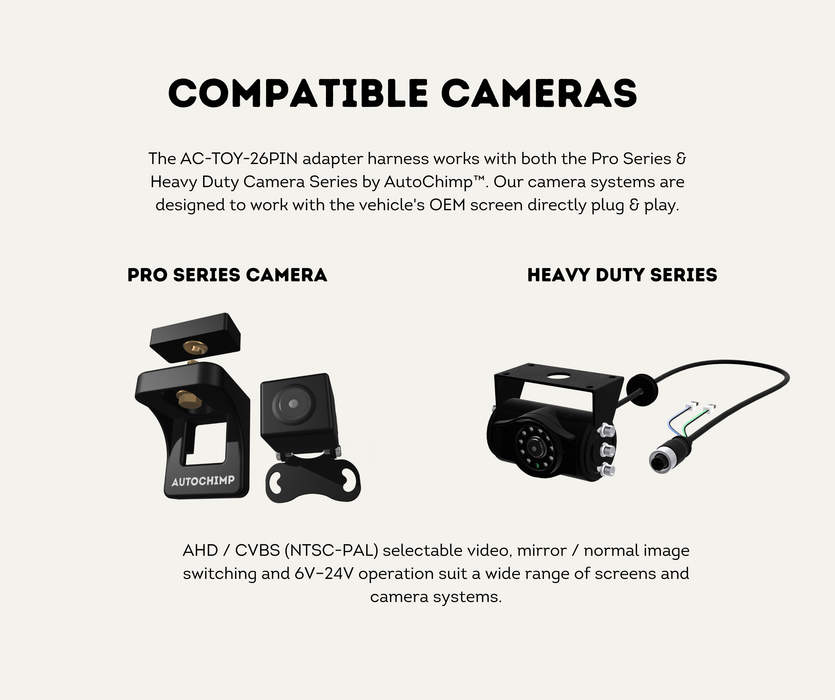

• 4-Pin CAM INPUT – accepts AutoChimp™ Pro Series and Heavy Duty Series cameras
• Fully Reversible – join the 4-pin pair back together to restore factory pass-through

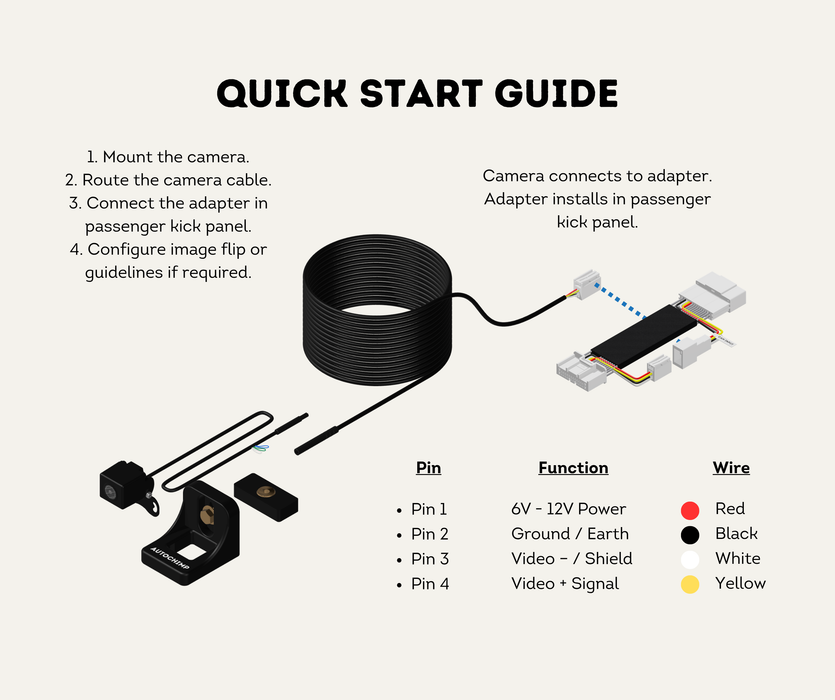

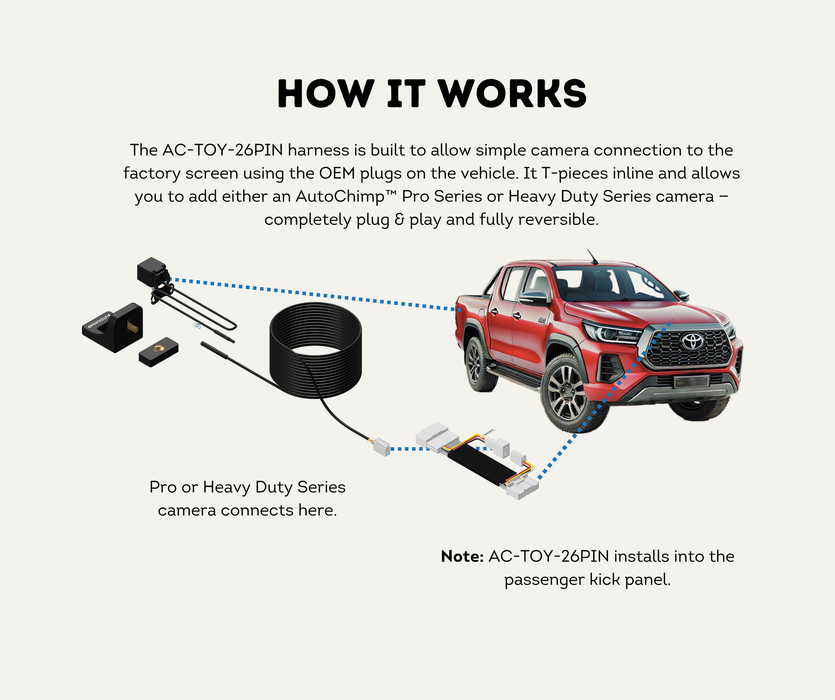

How It Works

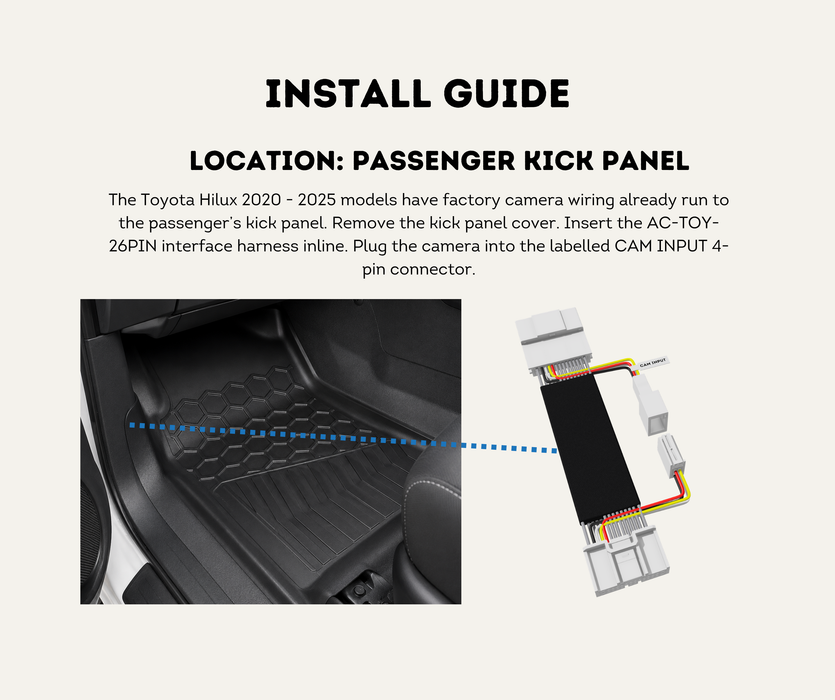

1. Remove the passenger-side kick panel cover
2. Unplug the factory 26-pin camera connector and insert the AC-TOY-26PIN inline
3. Plug your AutoChimp™ camera into the labelled 4-pin CAM INPUT

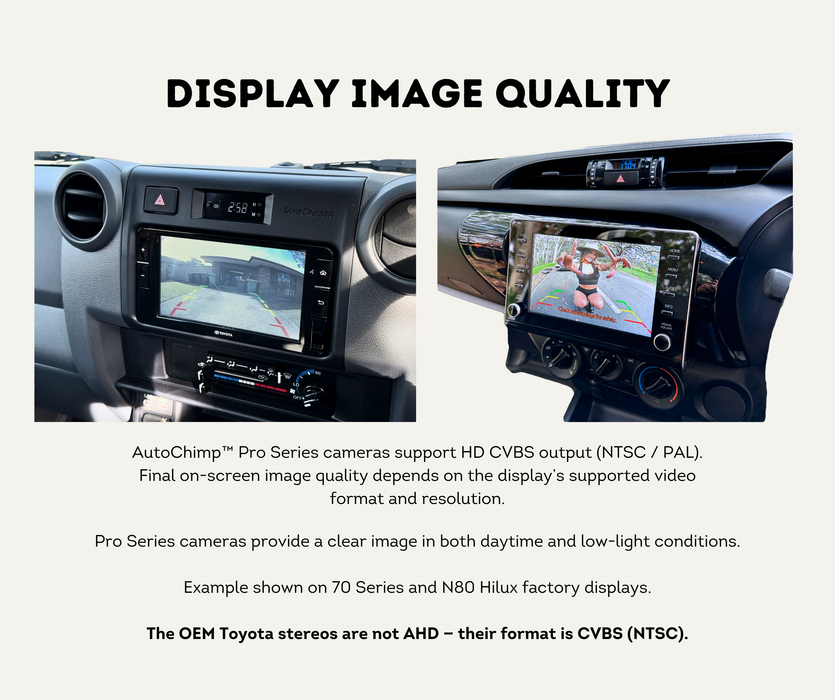

4. Select reverse — the factory screen shows the camera feed automatically

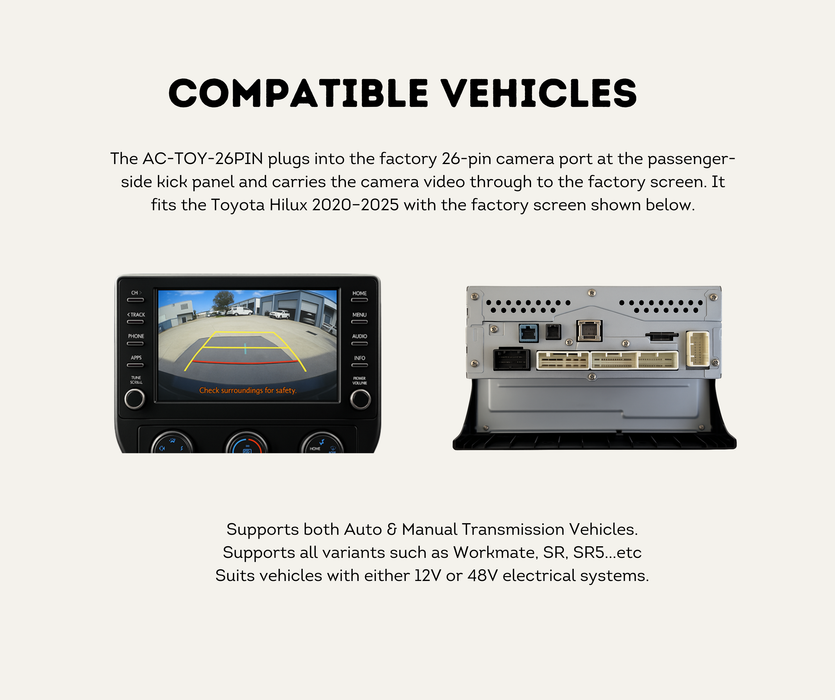

Compatibility

• Toyota Hilux 2020–2025 (N80 series)
• Fits models with the factory screen shown in the product images
• Supports both Automatic & Manual Transmission variants
• Supports all variants such as Workmate, SR, SR5 and above
• Suits vehicles with either 12V or 48V electrical systems
• Not suitable for 360° camera systems

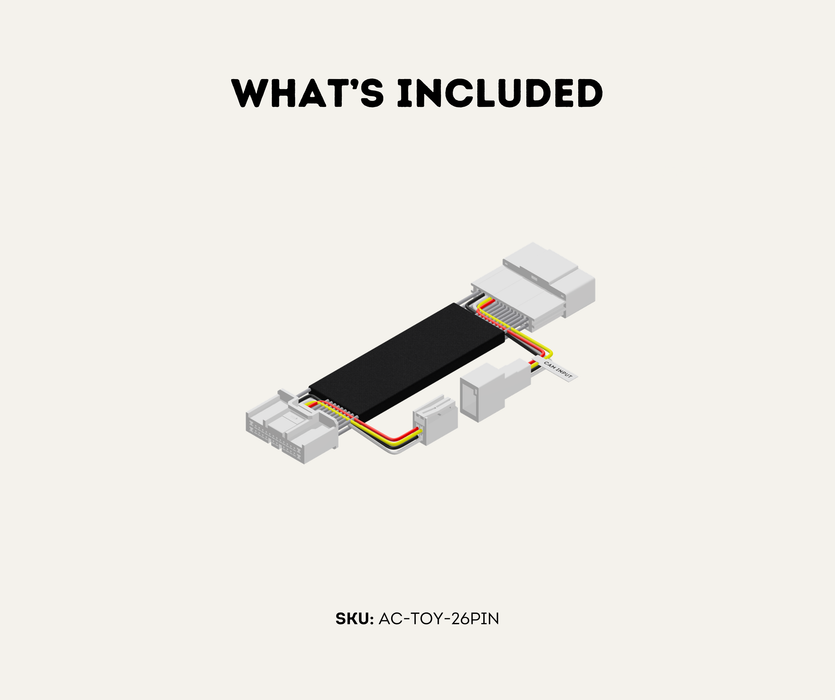

What's Included

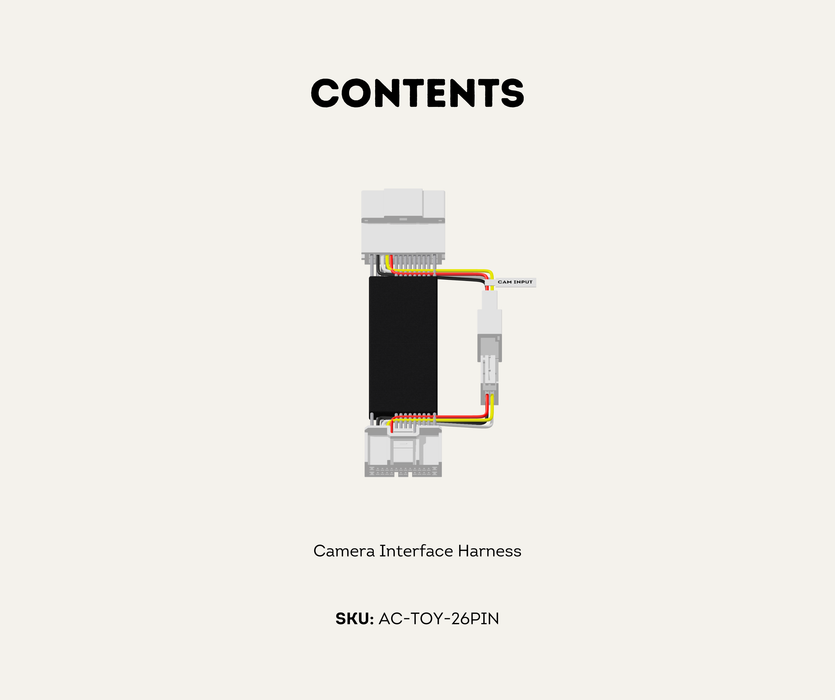

• 1x AutoChimp™ 26-Pin Reverse Camera Interface Harness (AC-TOY-26PIN)

Technical Specifications

• Connector Type: 26-pin full pass-through with 4-pin camera breakout

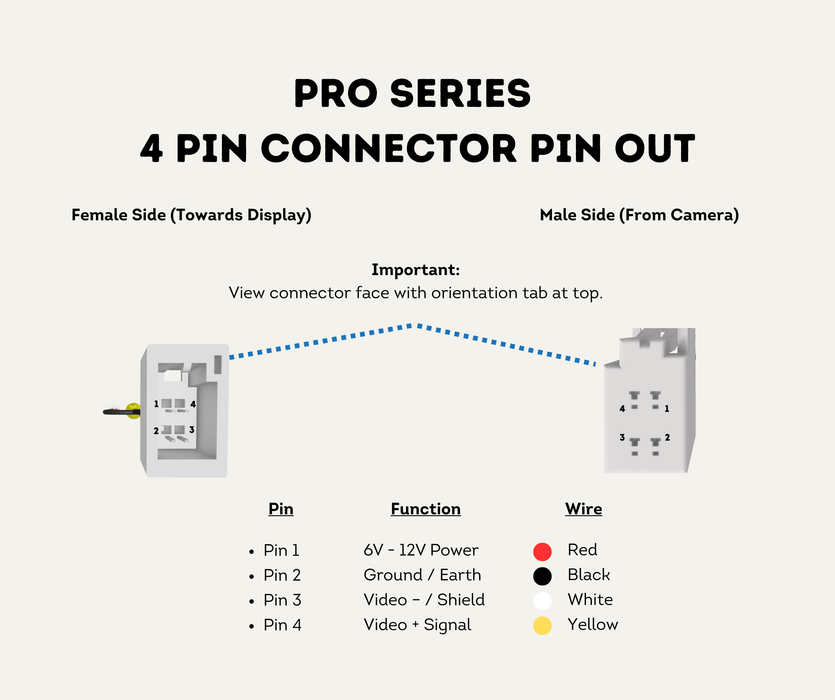

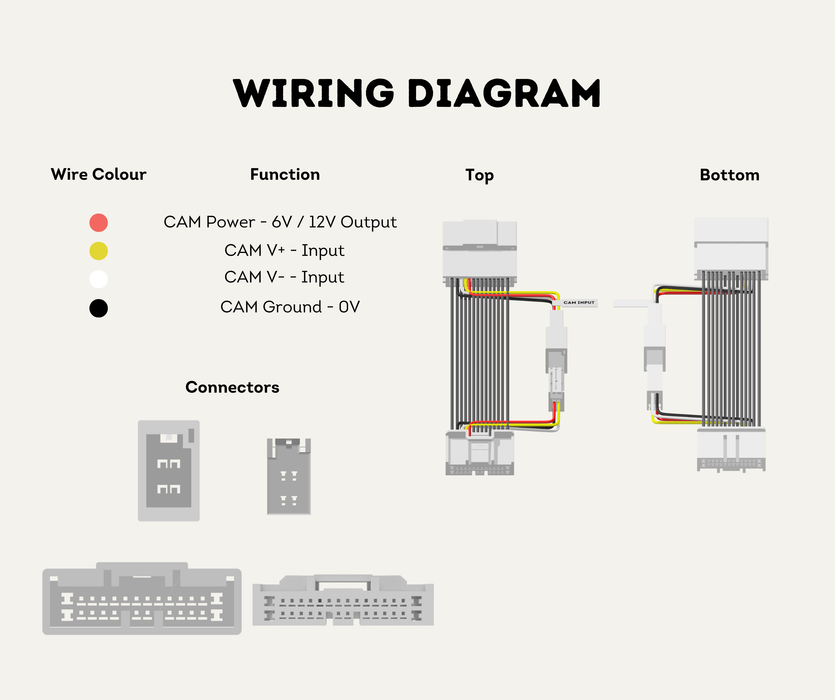

• Camera Input: 4-pin CAM INPUT (Pin 1 Power 6V–12V, Pin 2 Ground, Pin 3 Video – / Shield, Pin 4 Video + Signal)
• Install Location: Passenger-side kick panel
• Video Format: CVBS (NTSC / PAL)

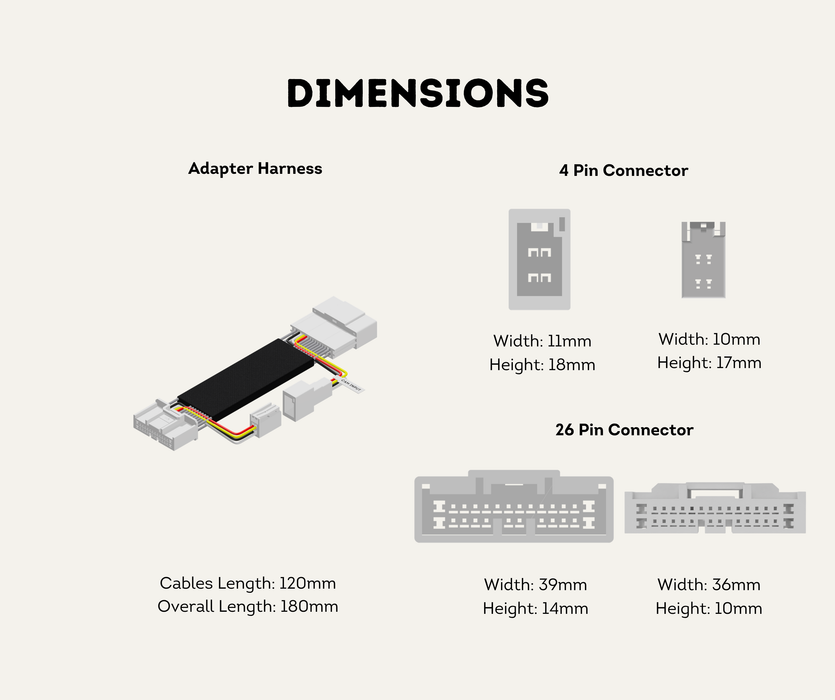

• Cable Length: 120mm • Overall Length: 180mm
• 26-Pin Connector: 39mm x 14mm and 36mm x 10mm
• 4-Pin Connector: 11mm x 18mm and 10mm x 17mm

Why Choose AutoChimp™

• Purpose-built for Australian-spec Toyota Hilux models
• Factory-style integration with no coding or programming required
• Trusted by installers and 4x4 owners across Australia
• Backed by local support and fast shipping from AutoChimp™
