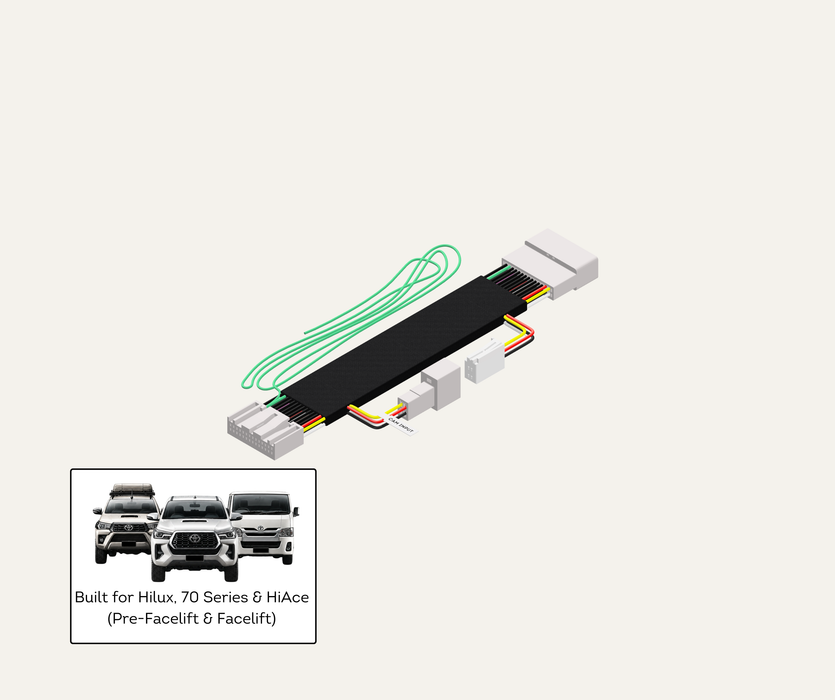

AutoChimp™ Reverse Camera Interface Harness for Toyota Hilux & 70 Series | 28-Pin Camera Integration & Reverse Trigger Signal Harness

SKU: AC-TOY-28PIN

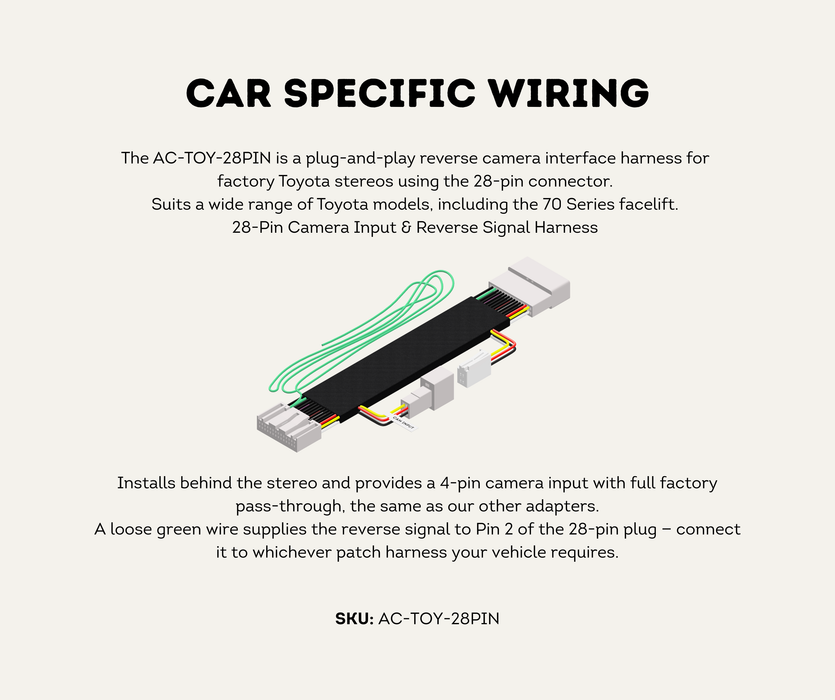

The AutoChimp™ AC-TOY-28PIN installs inline behind the factory stereo and does two jobs at once: it feeds the reverse trigger signal into the head unit, and it provides a 4-pin camera input with full factory pass-through. On the facelift 70 Series it also carries the camera video itself.

A loose green wire supplies the reverse signal to Pin 2 of the 28-pin plug — connect it to whichever patch harness your vehicle requires. All 28 factory pins carry straight through the harness, so every OEM circuit stays connected. Only the camera video circuits break out to the 4-pin plug pair. Completely plug & play and fully reversible — no splicing, no coding, no programming.

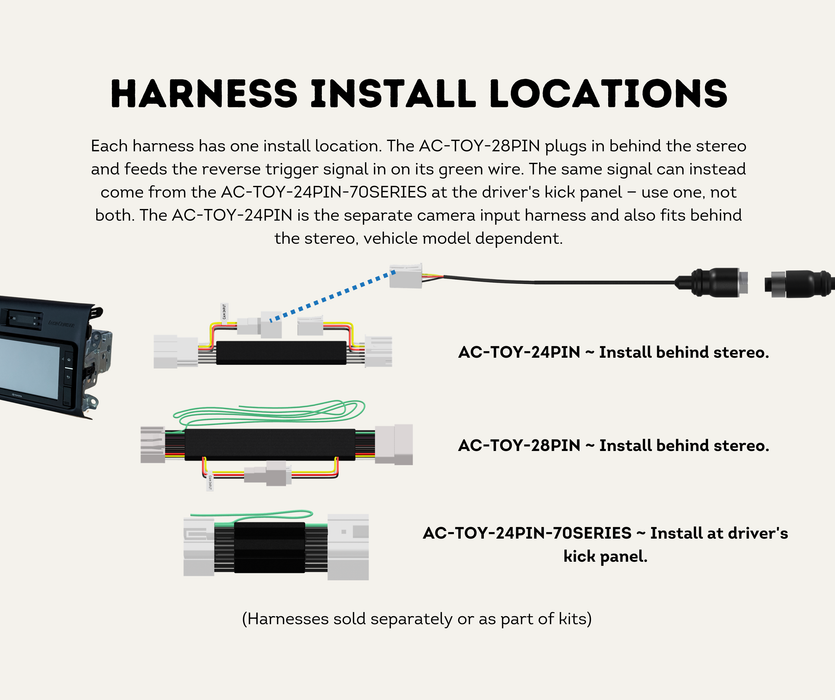

Which Harness Do I Need?

The AC-TOY-28PIN is the constant across the range — it supplies the reverse trigger signal on every fitment.
• 70 Series pre-facelift – AC-TOY-28PIN for the reverse signal, plus the AC-TOY-24PIN behind the stereo for the camera input
• 70 Series facelift – AC-TOY-28PIN behind the stereo carries both, or the AC-TOY-12PIN at the kick panel handles the camera input
• The reverse signal can instead come from the AC-TOY-24PIN-70SERIES at the driver’s kick panel — use one, not both

Key Features

• Reverse Trigger Signal – loose green wire feeds a 12V+ signal to Pin 2 of the 28-pin plug

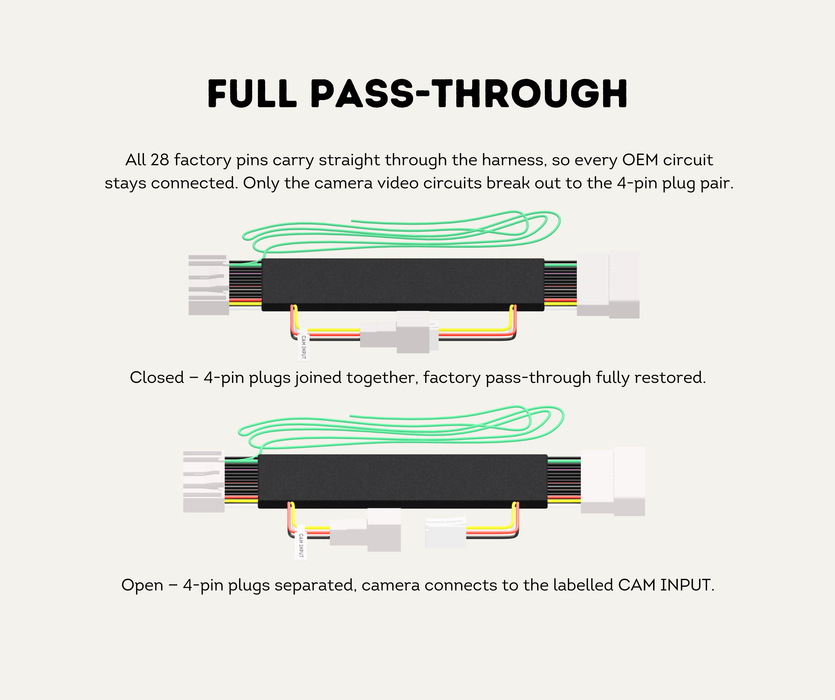

• Full Pass-Through Design – all 28 factory pins carry straight through; every OEM circuit stays connected

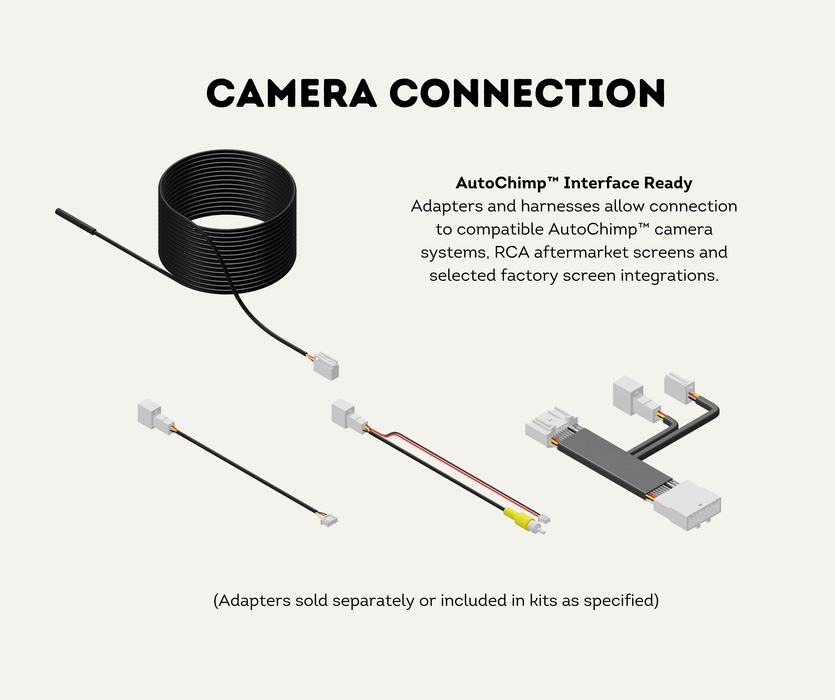

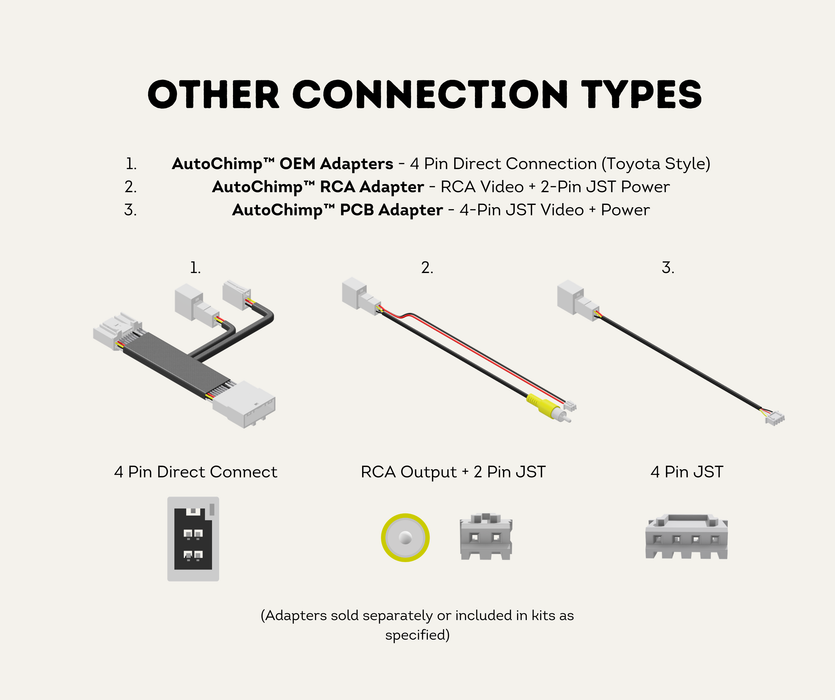

• 4-Pin CAM INPUT – male & female 4-pin pair for direct camera connection
• Facelift 70 Series Camera Input – carries the camera video as well as the reverse signal on facelift models
• Fully Reversible – join the 4-pin pair back together to restore factory pass-through
• Plug & Play – installs behind the stereo, no splicing or programming required

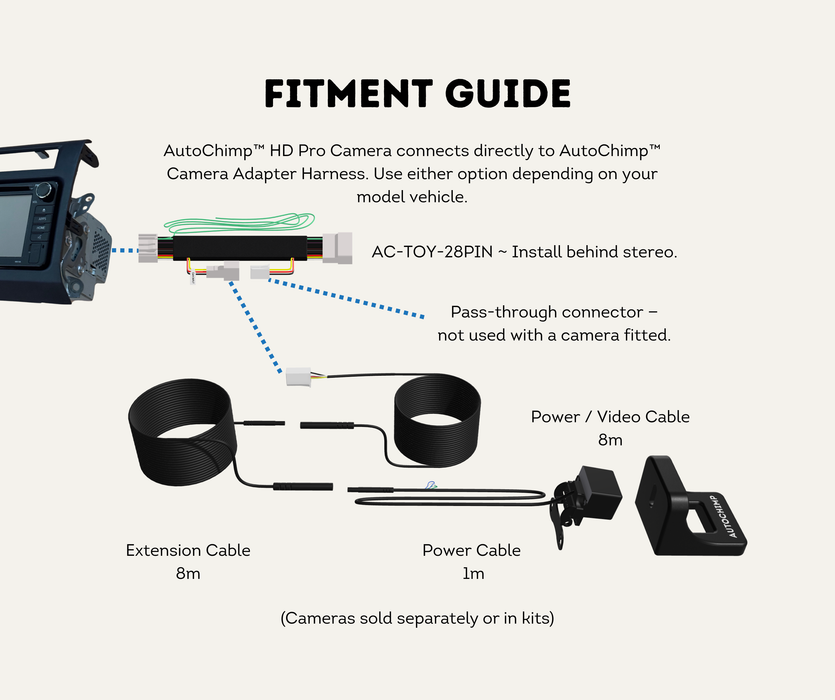

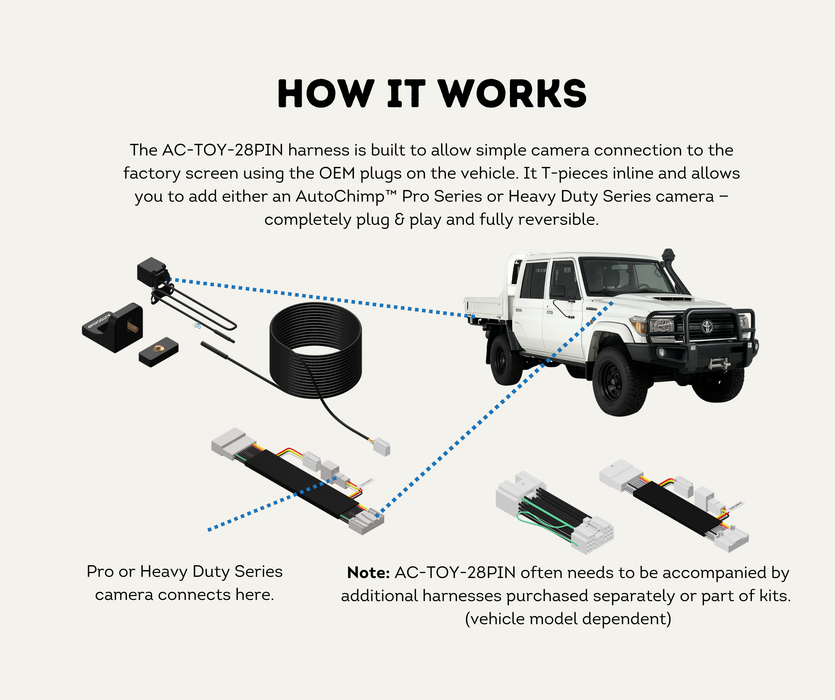

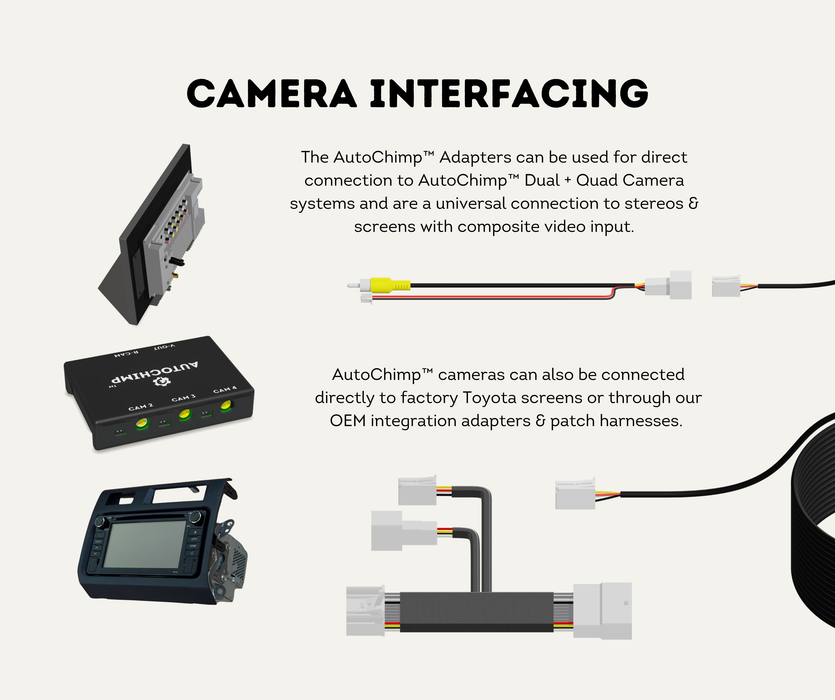

How It Works

1. Remove the factory stereo and unplug the 28-pin connector
2. Insert the AC-TOY-28PIN inline behind the stereo
3. Connect the green wire to the reverse signal source your vehicle requires

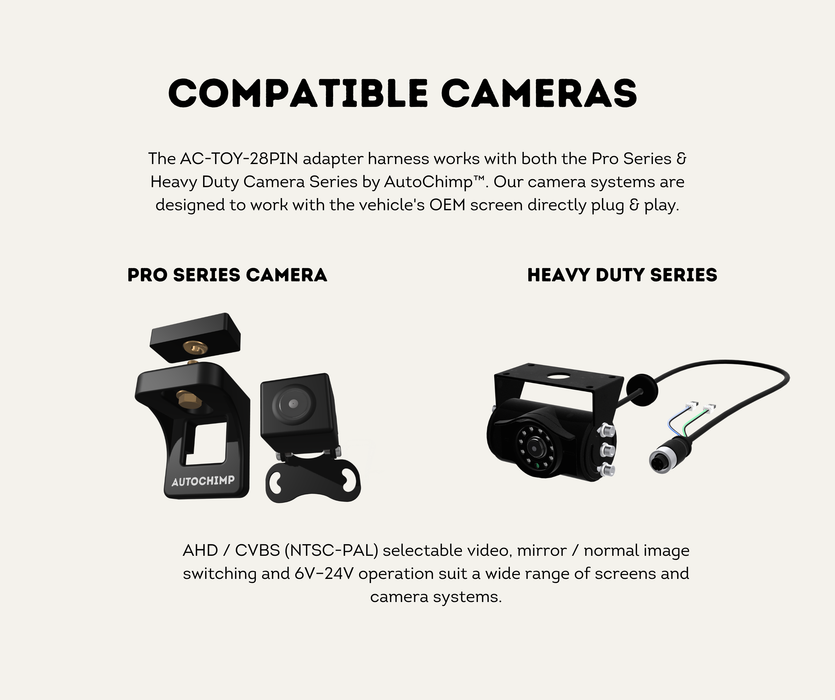

4. Plug your AutoChimp™ camera into the labelled 4-pin CAM INPUT

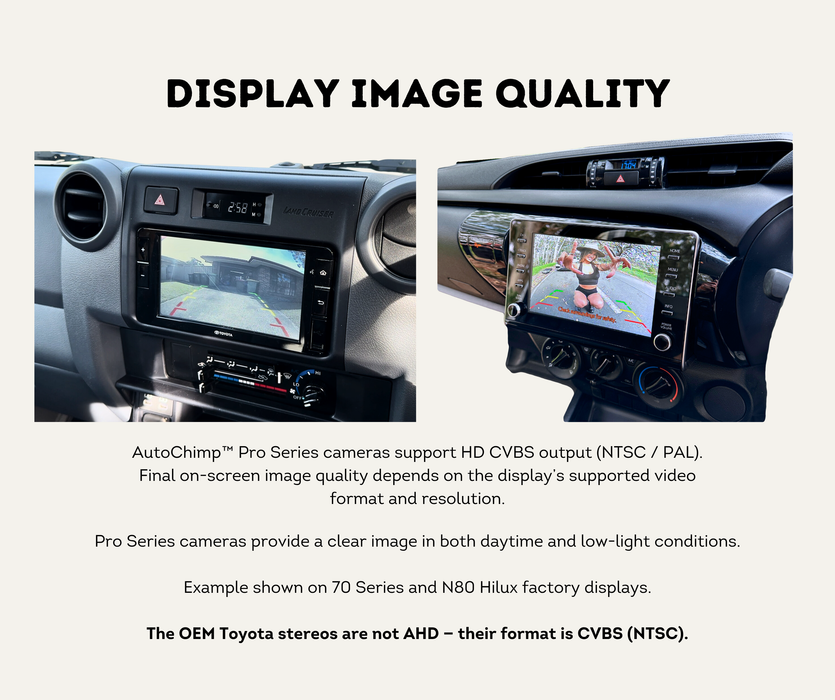

5. Select reverse — the factory screen shows the camera feed automatically

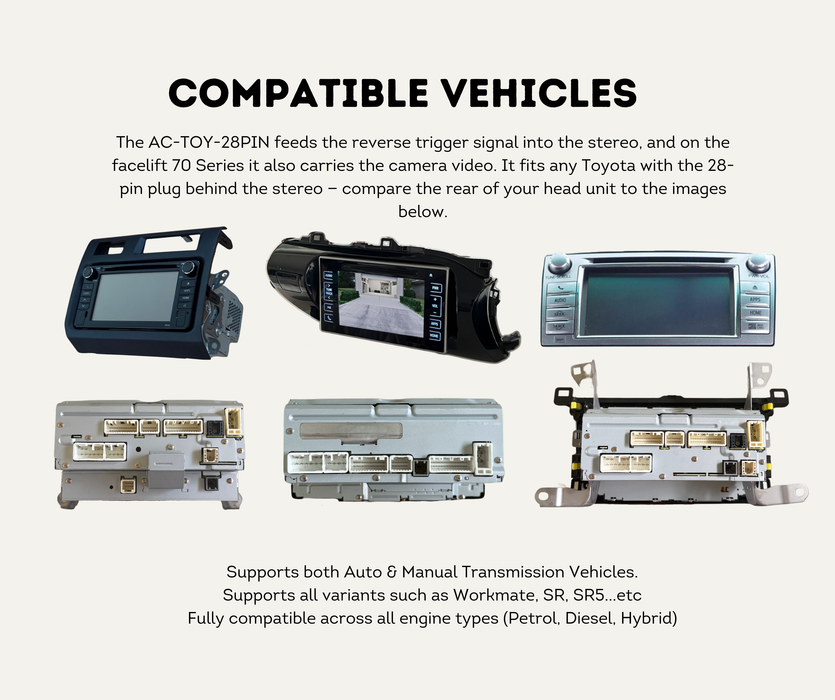

Compatibility

Fits any Toyota with the 28-pin camera connector behind the factory stereo, across model years 2006–2026, including:
• Toyota Hilux (2006–2026)

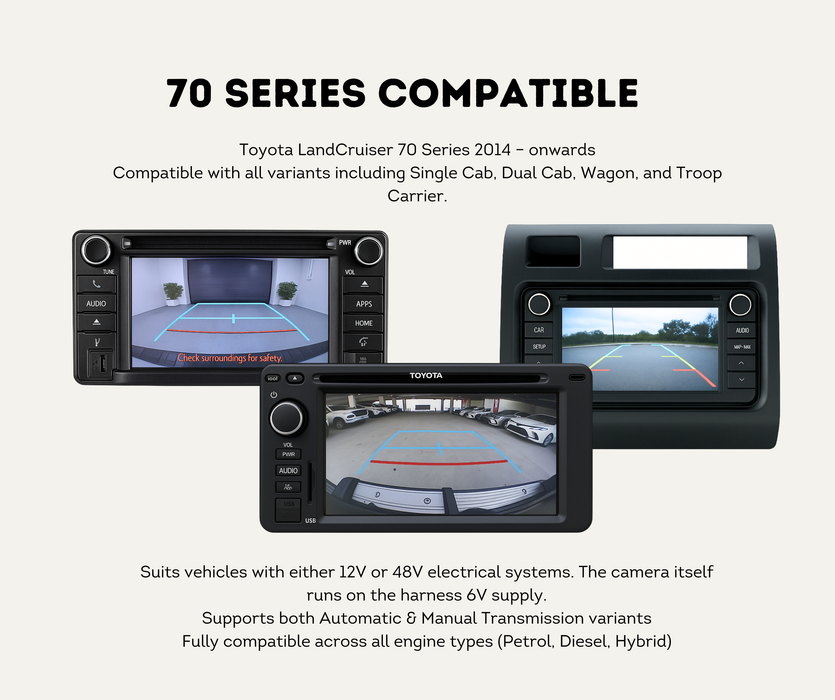

• Toyota LandCruiser 70 Series (2006–2026) — pre-facelift and facelift
• Toyota LandCruiser (2006–2026)
• Toyota LandCruiser 200 Series (2006–2026)
• Toyota Prado (2006–2026)
• Toyota Prado 120 Series (2006–2026)
• Toyota HiAce (2006–2026)
• Toyota Fortuner (2006–2026)
• Toyota Kluger (2006–2026)
• Toyota RAV4 (2006–2026)
• Toyota 86 (2006–2026)
• Supports both Automatic & Manual Transmission variants
• Suits vehicles with either 12V or 48V electrical systems
• Compare the rear of your head unit to the product images to confirm the connector

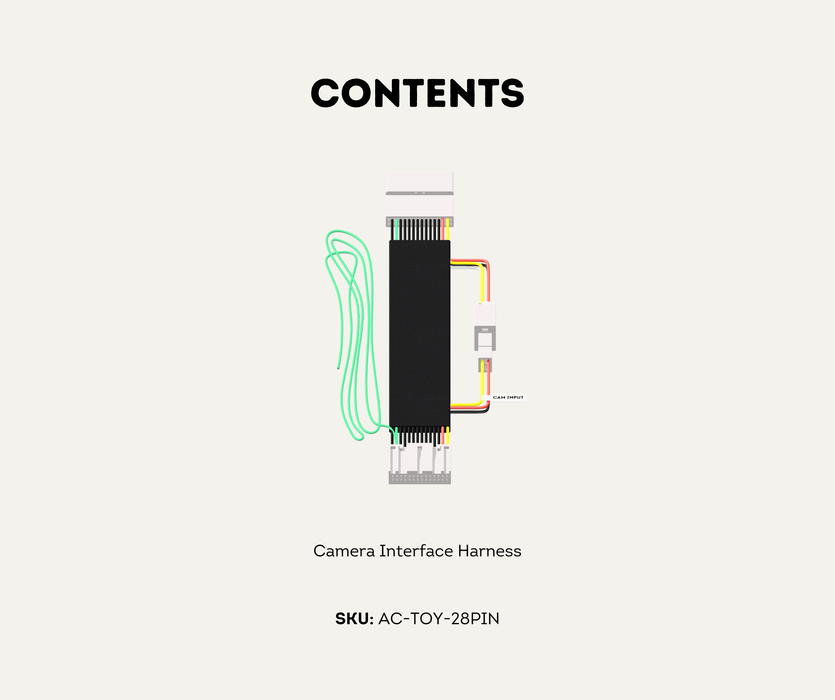

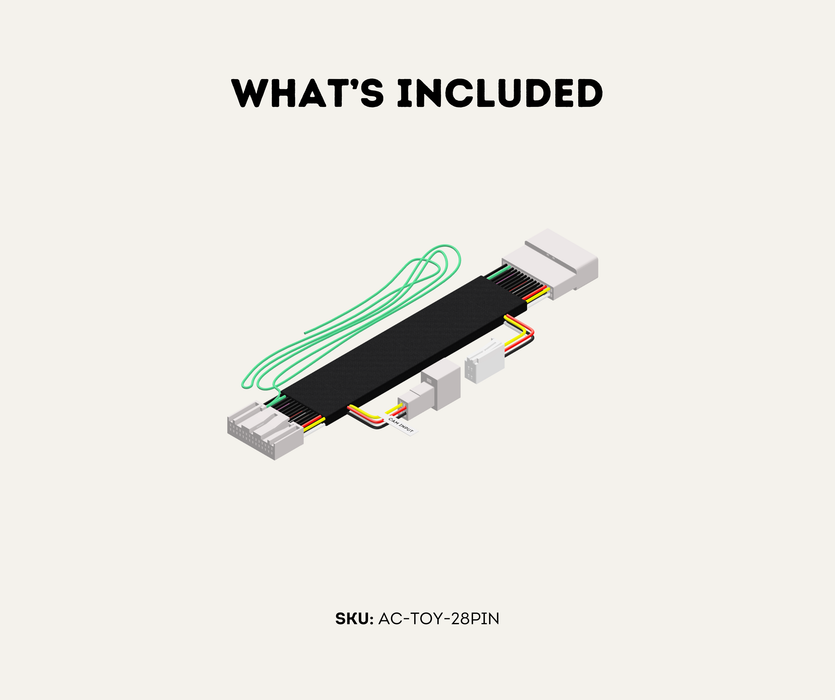

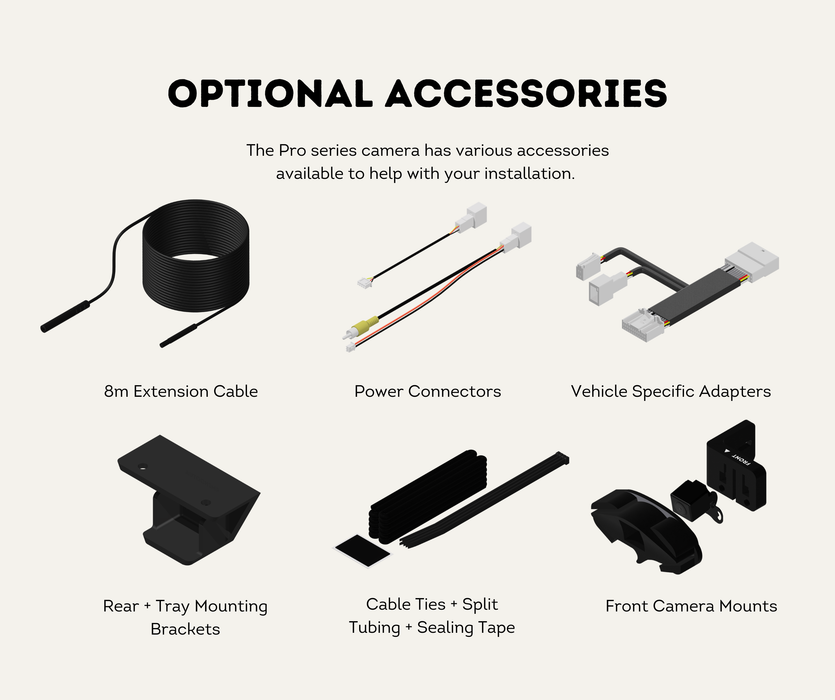

What's Included

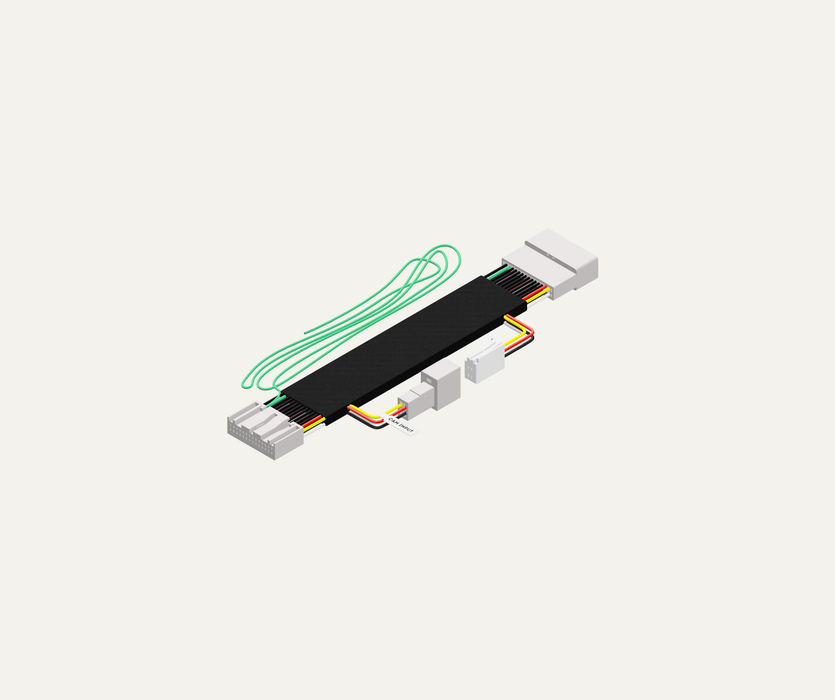

• 1x AutoChimp™ 28-Pin Camera Integration & Reverse Trigger Signal Harness (AC-TOY-28PIN)
• Built-in 4-pin male & female connectors
• Pre-wired green reverse signal wire (Pin 2)

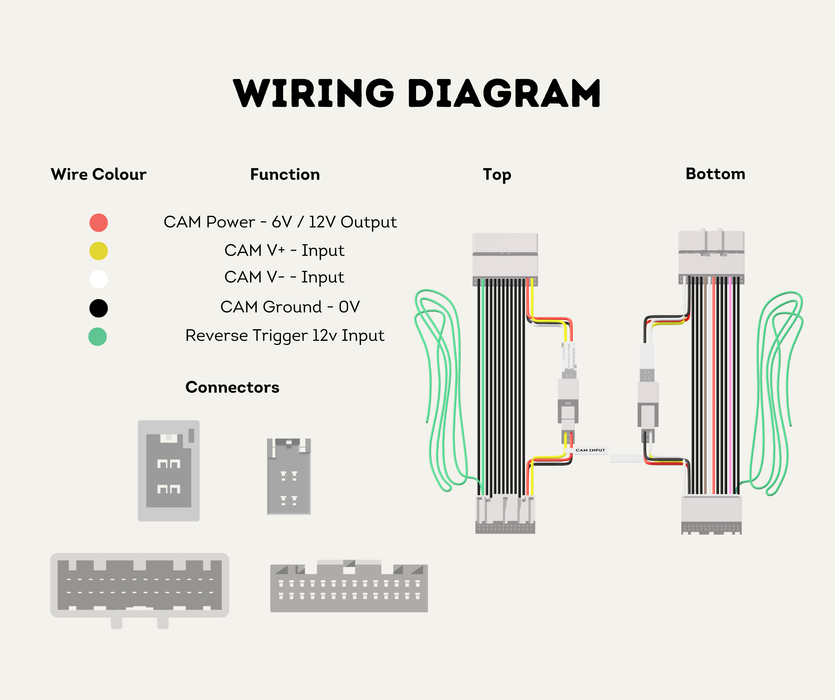

Technical Specifications

• Connector Type: 28-pin full pass-through with 4-pin camera breakout
• Reverse Trigger: green wire to Pin 2, 12V+ input

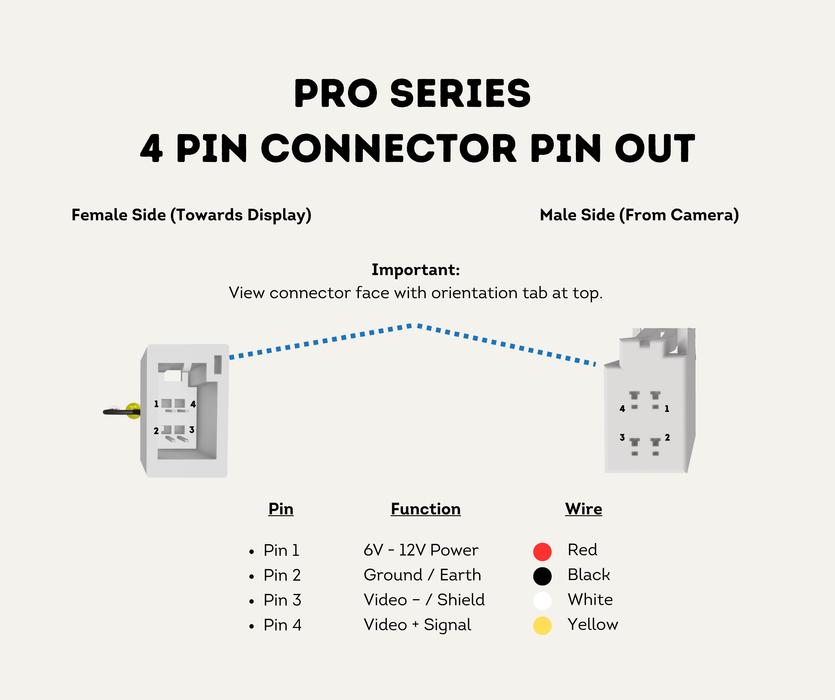

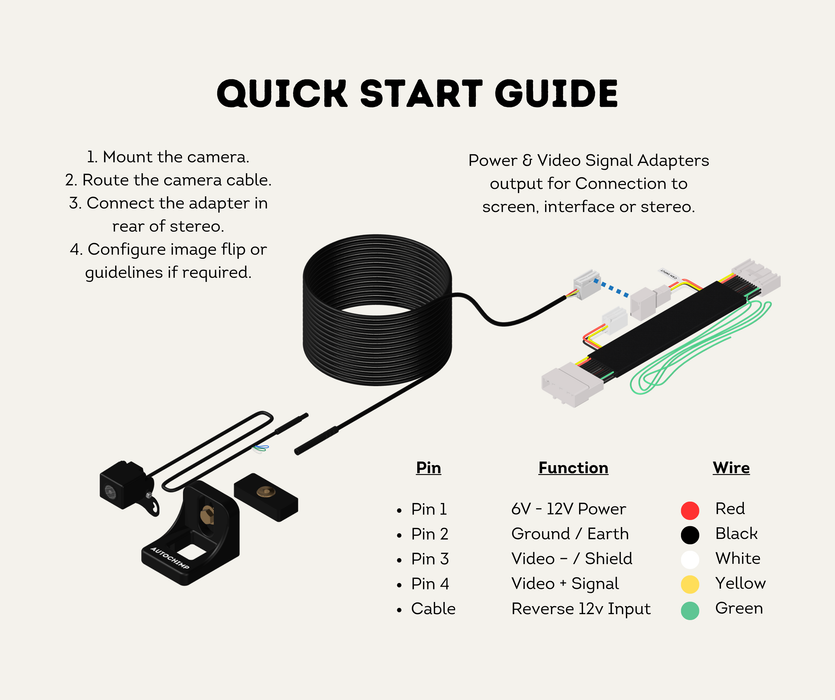

• Camera Input: 4-pin CAM INPUT (Pin 1 Power 6V–12V, Pin 2 Ground, Pin 3 Video – / Shield, Pin 4 Video + Signal)

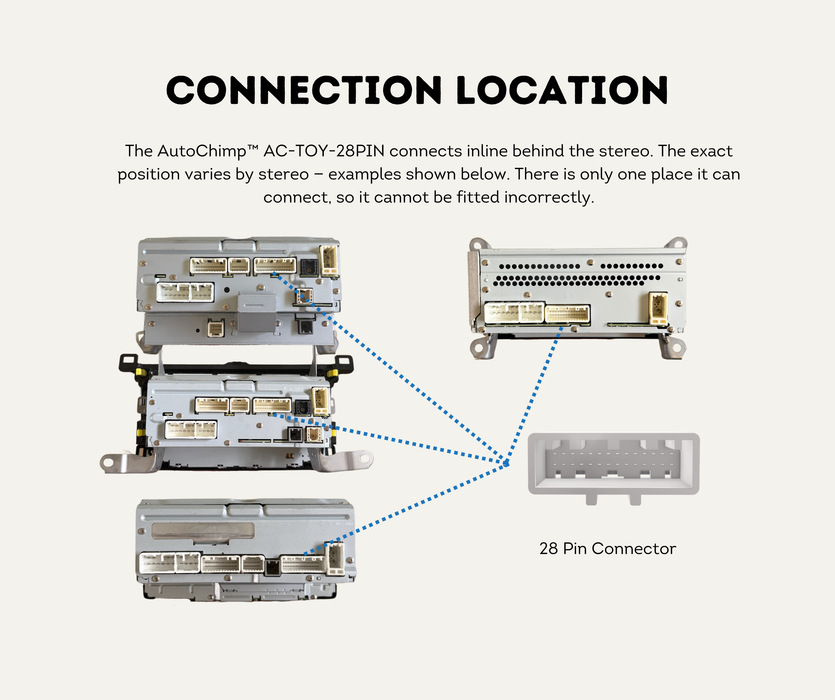

• Install Location: behind the factory stereo
• Video Format: CVBS (NTSC / PAL)

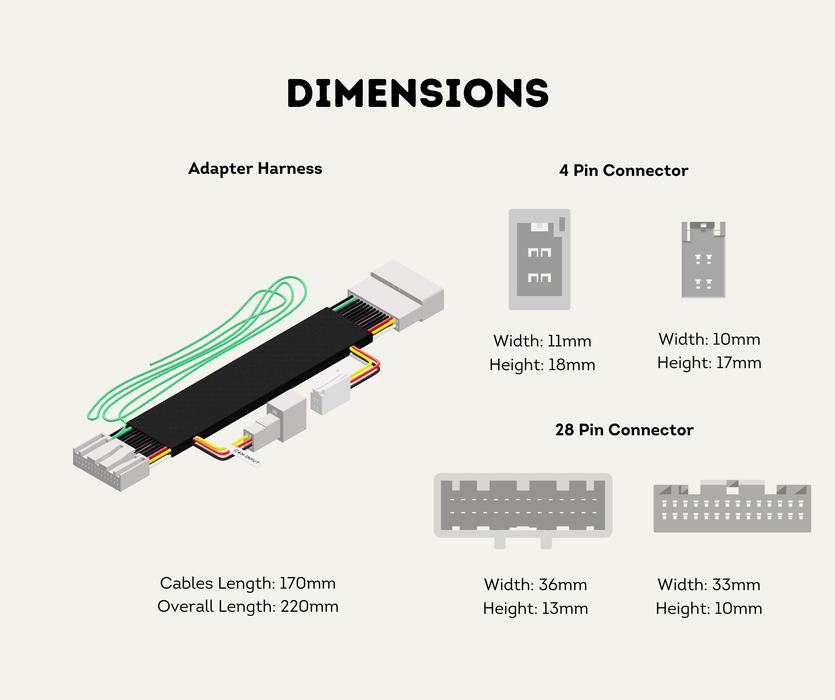

• Cable Length: 170mm • Overall Length: 220mm
• 28-Pin Connector: 36mm x 13mm and 33mm x 10mm
• 4-Pin Connector: 11mm x 18mm and 10mm x 17mm
