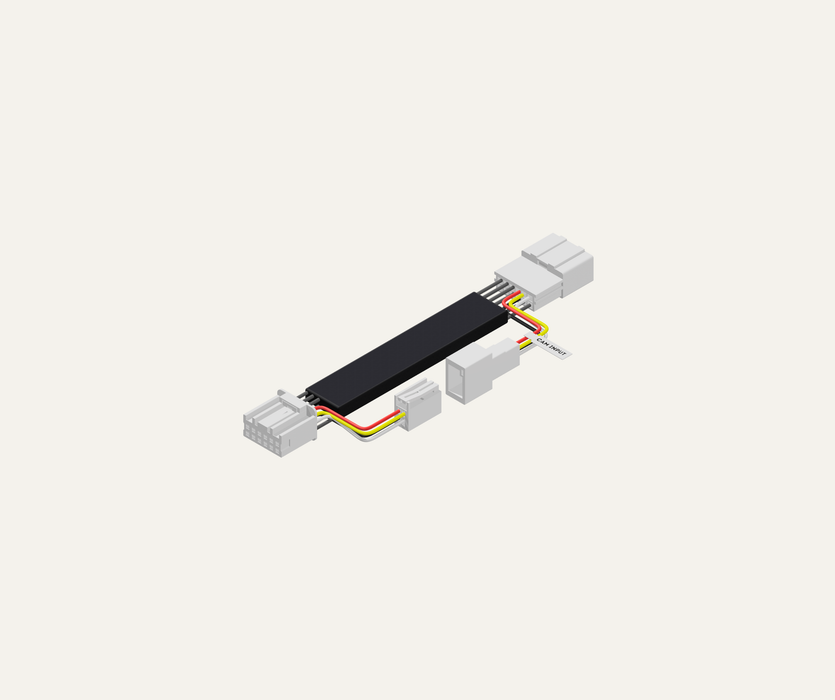

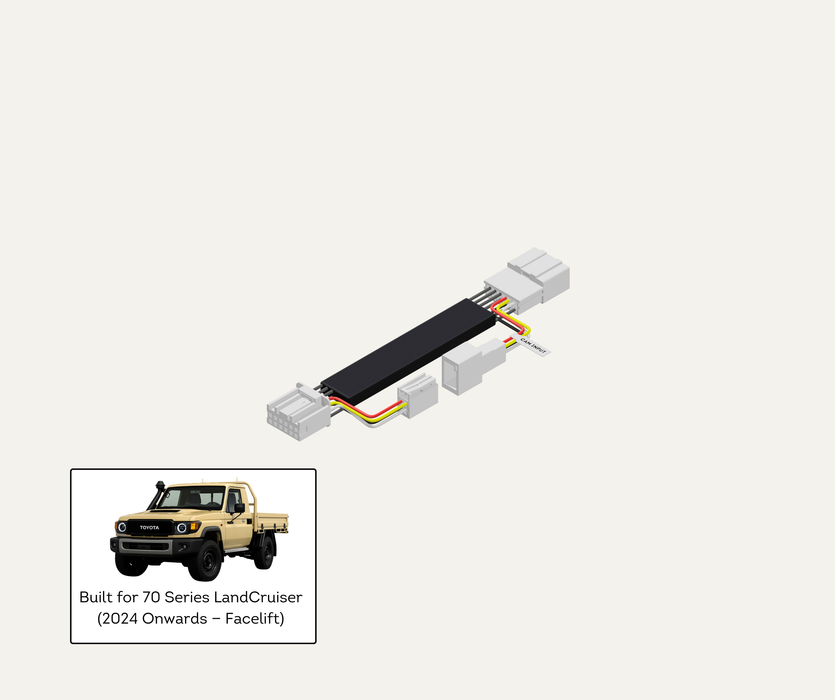

AutoChimp™ Reverse Camera Interface Harness for Toyota LandCruiser 70 Series (2024+ Facelift) | 12-Pin Full Pass-Through Camera Input Harness

SKU: AC-TOY-12PIN

The AutoChimp™ 12-Pin Reverse Camera Interface Harness provides a clean, plug-and-play way to feed a reverse camera into the factory touchscreen of the Toyota LandCruiser 70 Series facelift models, 2024 onwards.

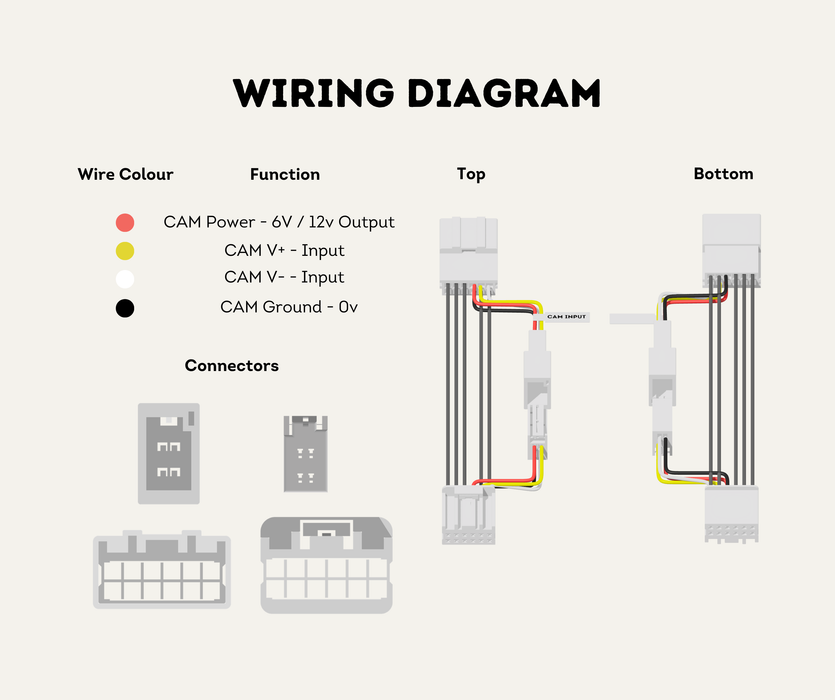

This updated version features complete 12-pin pass-through wiring, ensuring every factory circuit is retained — including CAN, speed, illumination, data and audio lines — while breaking out only the wires required to feed video to the camera input.

A male and female 4-pin plug pair is fitted inline. Join them together to return the harness to a straight factory pass-through, or separate them to connect an AutoChimp™ Pro Series or Heavy Duty Series camera. The camera lead is labelled CAM INPUT so there is no guesswork during install.

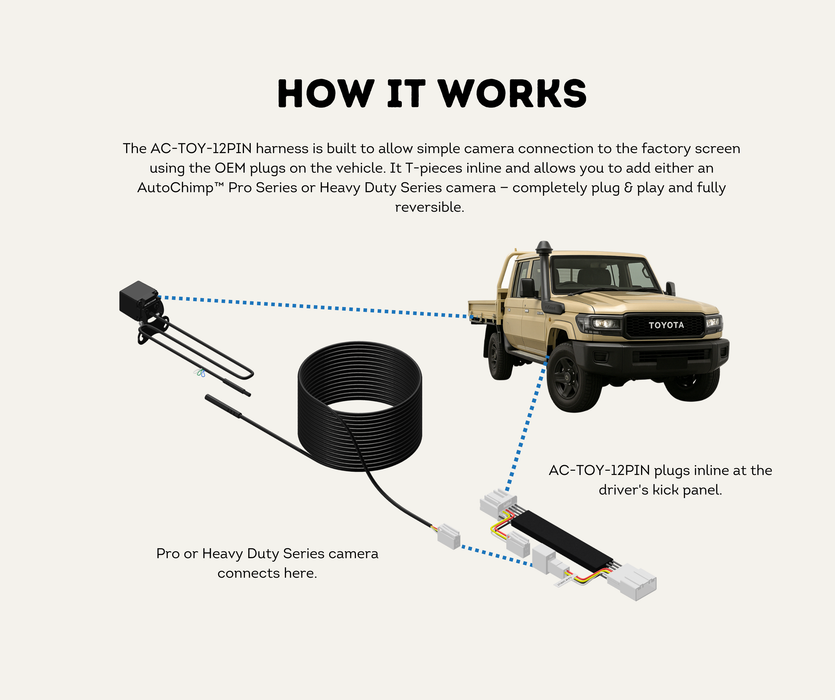

No cutting, splicing or modification is required. The harness T-pieces inline at the driver's kick panel and is fully reversible at any time.

Key Features

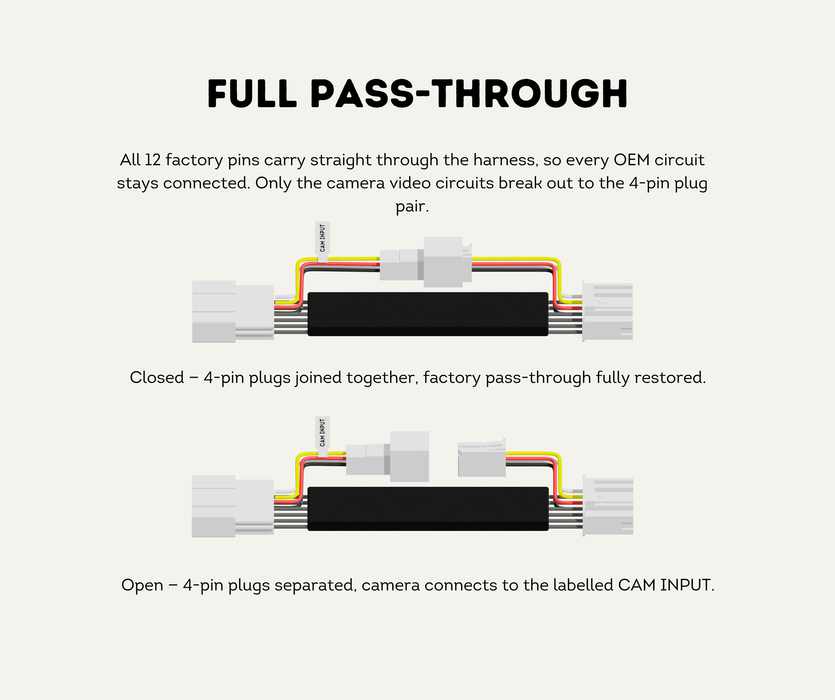

Full 12-Pin Pass-Through Design

All 12 factory pins carry straight through the harness, preserving every OEM function.

Male & Female 4-Pin Plug Pair

Join the plugs to restore the original factory pass-through, or separate them to connect a camera. Reversible at any time with no trace left behind.

Labelled CAM INPUT Lead

The camera feed is clearly marked, making installation and later servicing straightforward.

True Plug & Play

Installs inline at the driver's kick panel between the factory connectors.

OEM-Quality Construction

High-tolerance connectors and reinforced wiring looms for long-term durability.

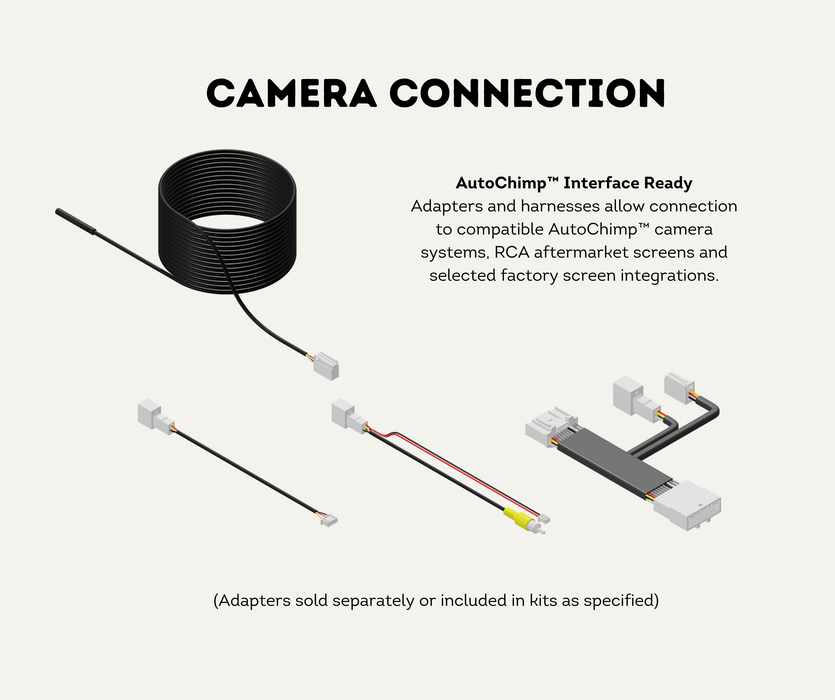

Compatible With AutoChimp™ Systems

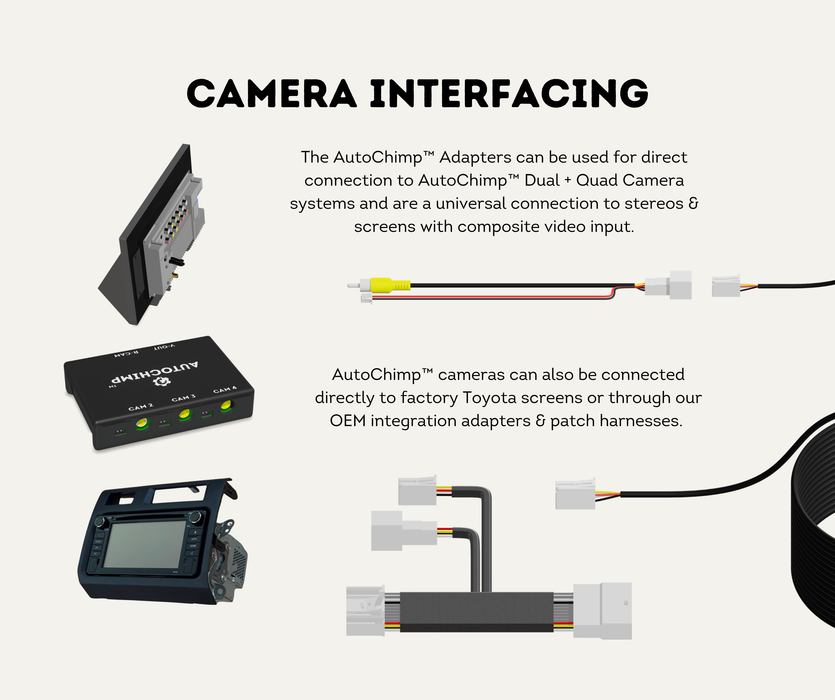

Integrates with:

• Pro Series Reverse Cameras

• Heavy Duty Series Cameras

• Dual Camera Kits

• Quad Camera Kits

• Multi-Camera Kits

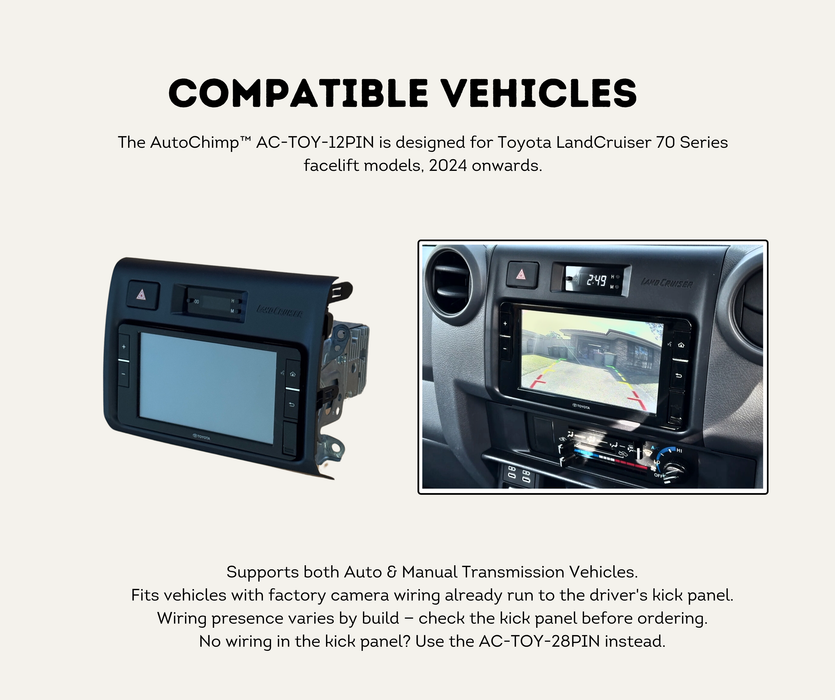

Compatibility

• Vehicle Models: Toyota LandCruiser 70 Series, 2024 onwards (facelift)

• Required: Factory camera wiring already run to the driver's kick panel

• Transmission: Compatible with both manual and automatic

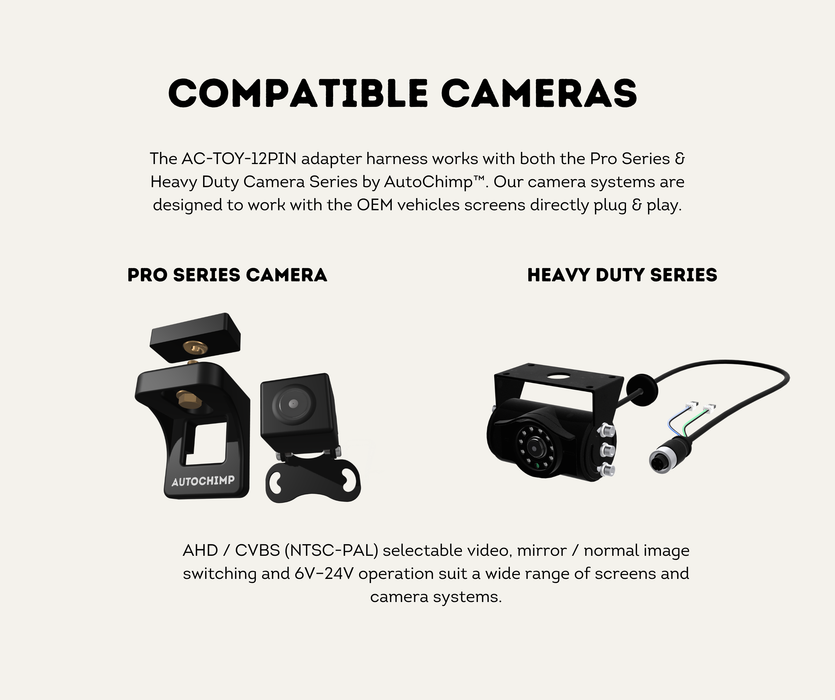

• Camera Compatibility: AutoChimp™ Pro Series and Heavy Duty Series Cameras (sold separately)

Notes:

• ✔ Retains all factory functions through full pass-through wiring

• ✔ Reversible to standard factory pass-through at any time

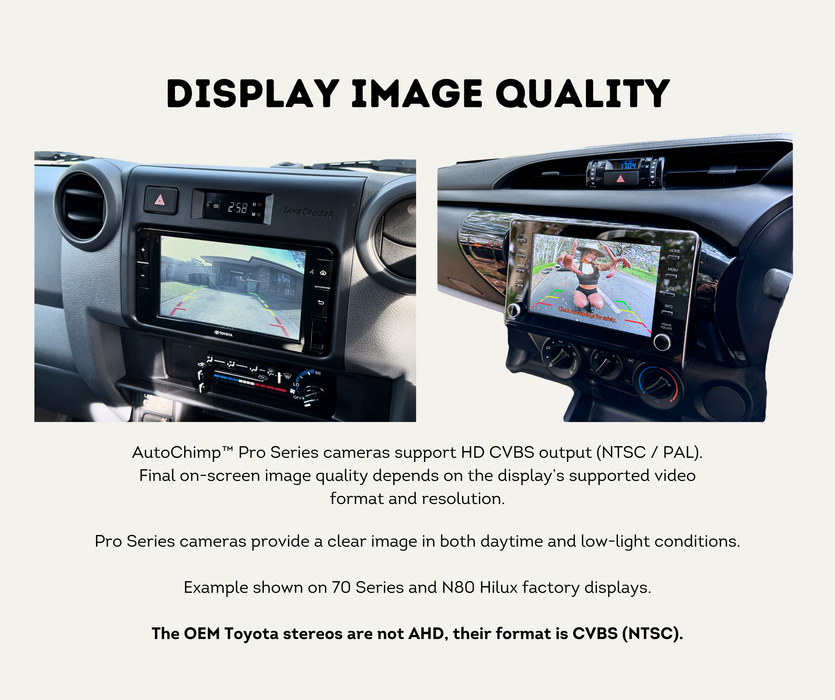

• ✔ Supports NTSC / PAL / CVBS video formats

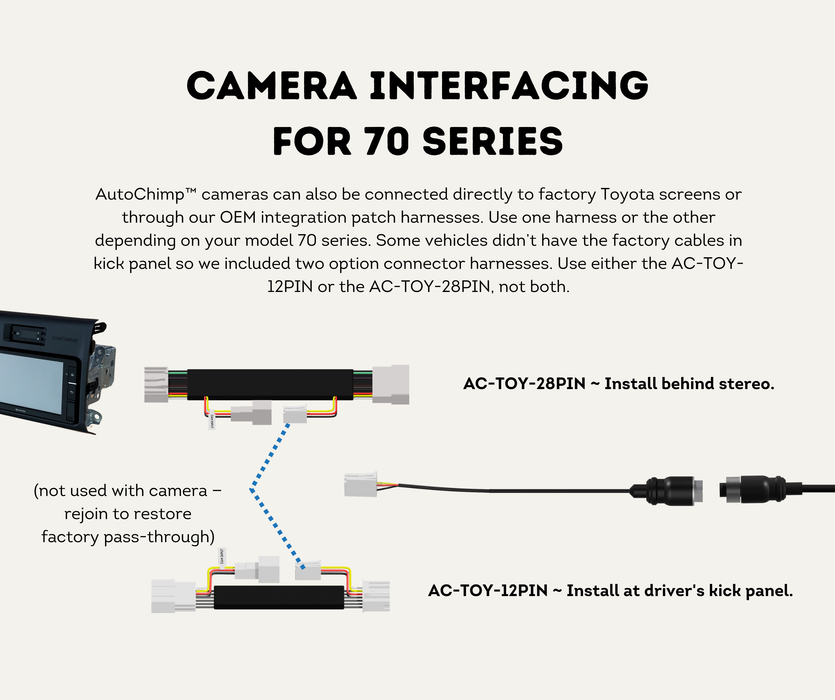

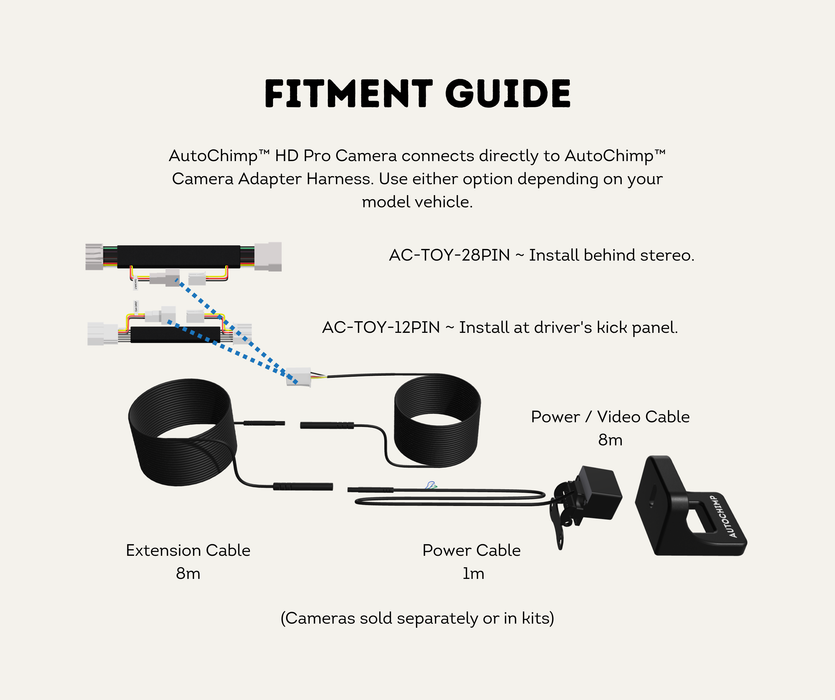

Which Harness Do I Need?

Whether your 70 Series has factory camera wiring in the driver's kick panel depends on how the vehicle was built, not on the trim level. Check the kick panel before ordering.

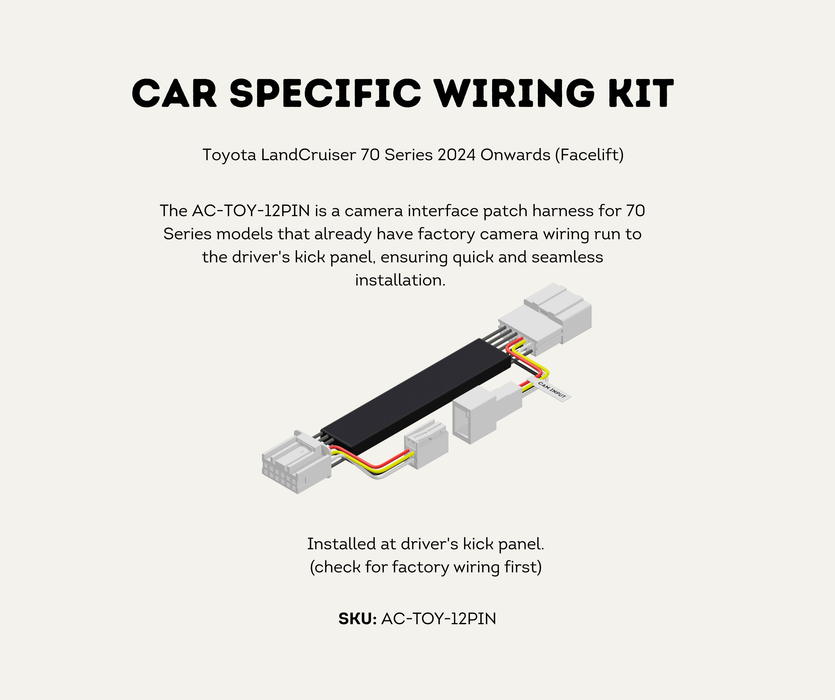

• Wiring present in the kick panel — use this harness, AC-TOY-12PIN, installed at the driver's kick panel.

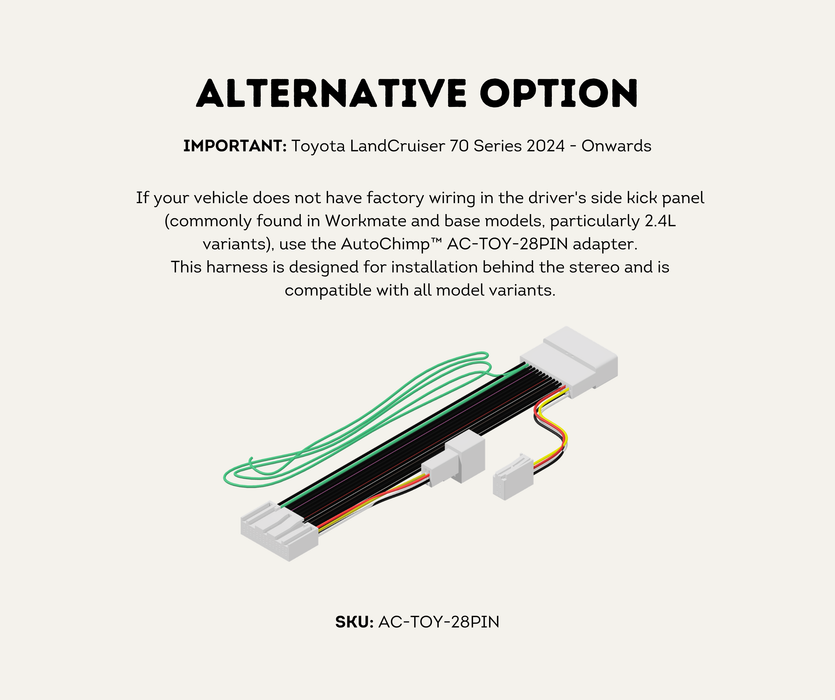

• No wiring in the kick panel — use the AutoChimp™ AC-TOY-28PIN instead, installed behind the stereo.

Use one harness or the other — never both. Full vehicle kits are supplied with both harnesses so the correct one is always on hand.

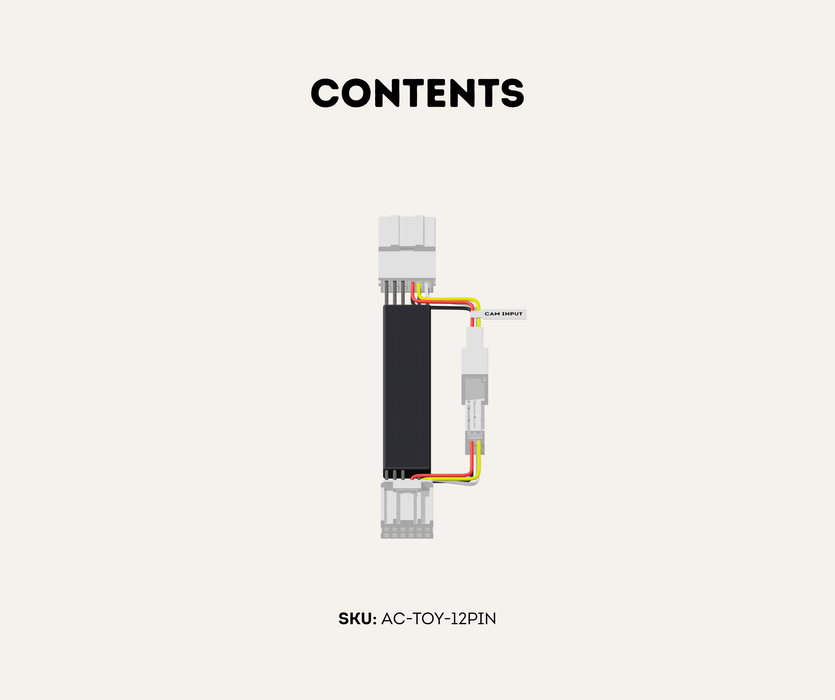

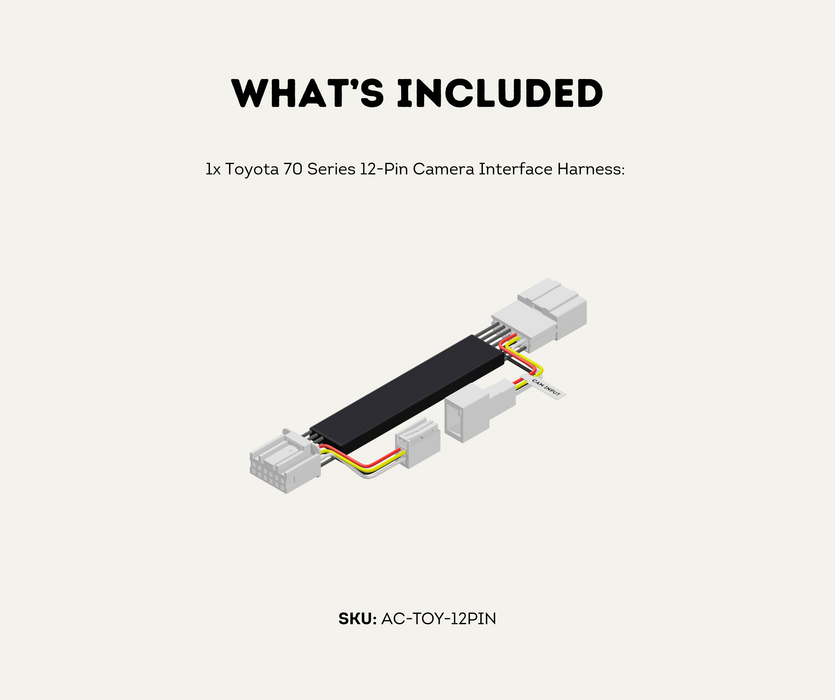

What's Included

• 1x AutoChimp™ 12-Pin Full Pass-Through Camera Interface Harness
  (AC-TOY-12PIN)

• Integrated male & female 4-pin camera plug pair

• Labelled CAM INPUT camera lead

• OEM-style male & female Toyota 12-pin connectors

• 3-Year Warranty

Technical Specifications

• Connector Type: Toyota 12-Pin

• Pass-Through Wiring: All 12 pins carried through (full continuity)

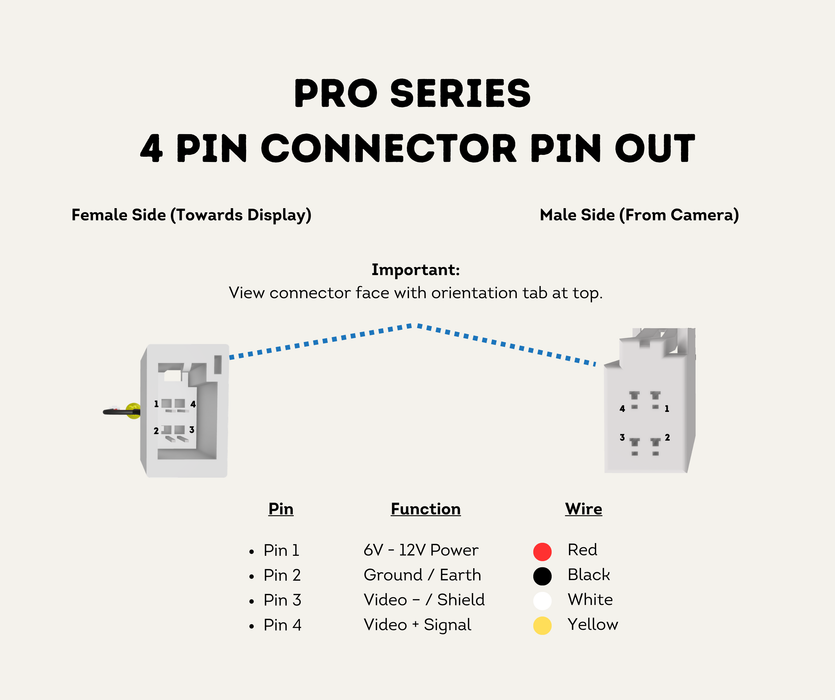

• Camera Output: 4-pin video feed, male & female pair

• Camera Lead: Labelled CAM INPUT

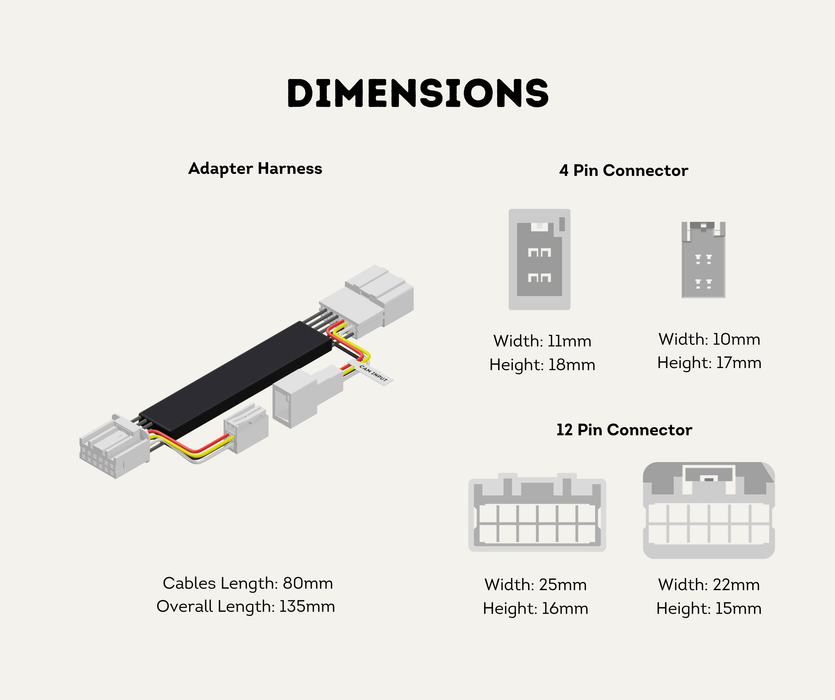

• Cable Length: 80mm

• Overall Length: 135mm

• Supported Formats: NTSC / PAL / CVBS

• Operating Voltage: 12V automotive

• Build: Reinforced outer loom + high-quality terminal crimping

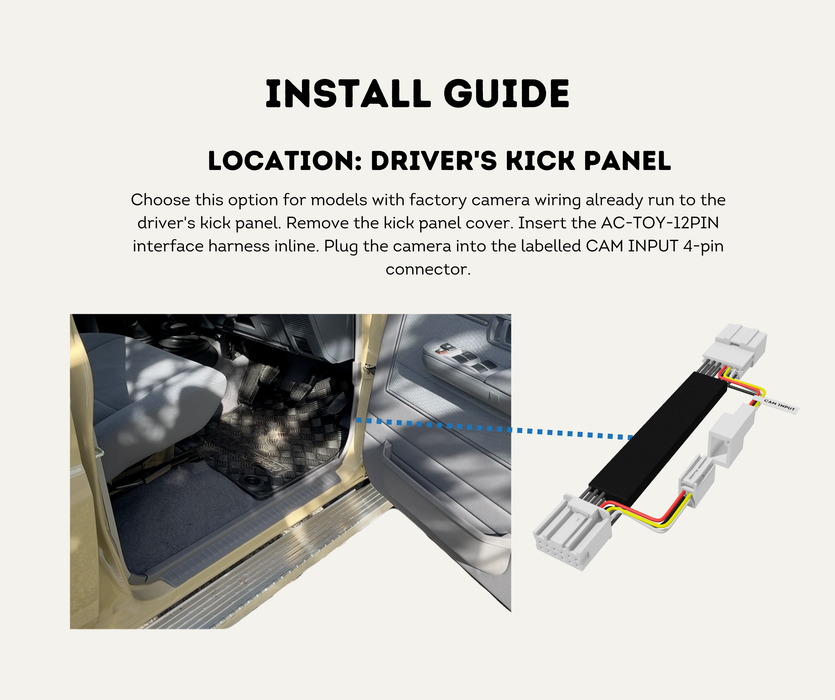

Installation Notes

• Remove the driver's kick panel cover.

• Unplug the factory 12-pin connector and insert the AC-TOY-12PIN inline.

• Plug the camera into the labelled CAM INPUT 4-pin connector.

• To return the vehicle to standard, simply rejoin the 4-pin plug pair.

Why Choose AutoChimp™?

• 100% plug-and-play — no cutting factory wiring

• Works seamlessly with all AutoChimp™ camera platforms

• Ensures full OEM functionality stays intact

• Built for durability, vibration and heat in Australian conditions

• Designed, tested and supported locally
