AutoChimp™ Pro HD Camera Only + Power Cable | 6V–12V Front or Rear Configurable

AutoChimp™ Pro HD Camera Only + Power Cable | 6V–12V Front or Rear Configurable

SKU: AC-PRO-CAM

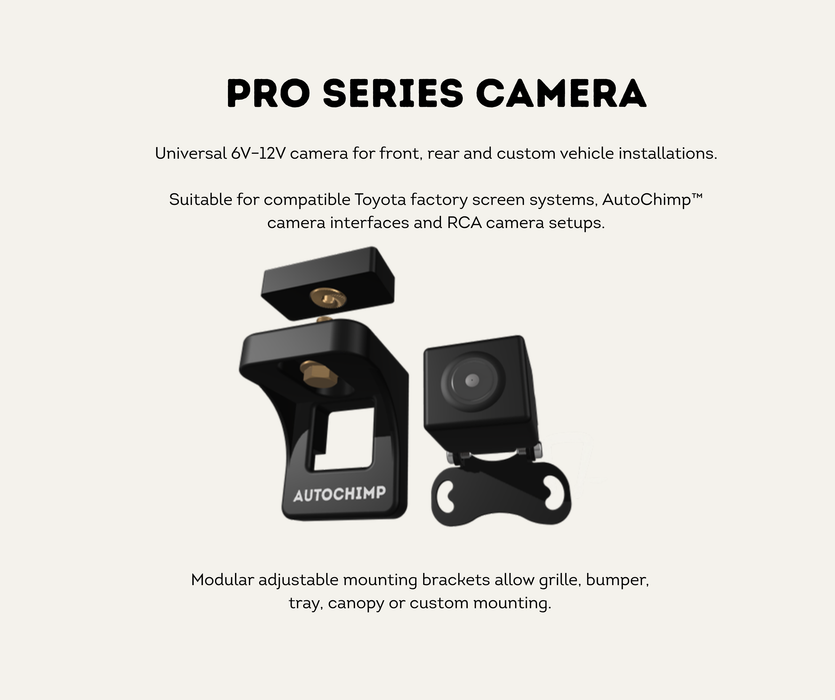

The AutoChimp™ Pro HD Camera is a universal 6V–12V vehicle camera designed for front, rear, side, tray, canopy and custom camera installations.

Built with a Super CMOS image sensor, IP67 waterproof housing, NTSC/PAL auto switching and configurable image output, this camera is suitable for compatible AutoChimp™ camera systems, RCA display setups and selected factory screen integrations when used with the correct adapter or harness.

Camera only listing: this product includes the camera, attached camera lead and basic mounting hardware. Extension cables, RCA adapters, vehicle-specific harnesses and mounting brackets are sold separately unless included in a complete AutoChimp™ camera kit.

Key Features

• 6V–12V Power Compatibility – Suitable for a wide range of compatible vehicle camera systems and display setups.

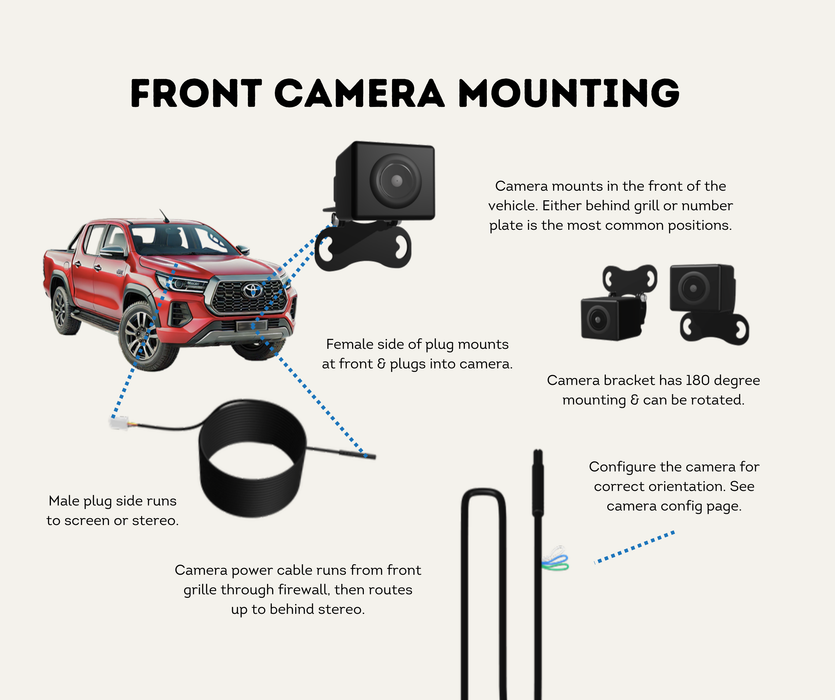

• Front or Rear Configurable – Can be configured for front, rear, side, tray, canopy or custom camera use.
• NTSC/PAL Auto Switching – Supports compatible NTSC and PAL display systems.
• Configurable Camera Output – Supports mirror / non-mirror image, vertical flip and parking guideline control.

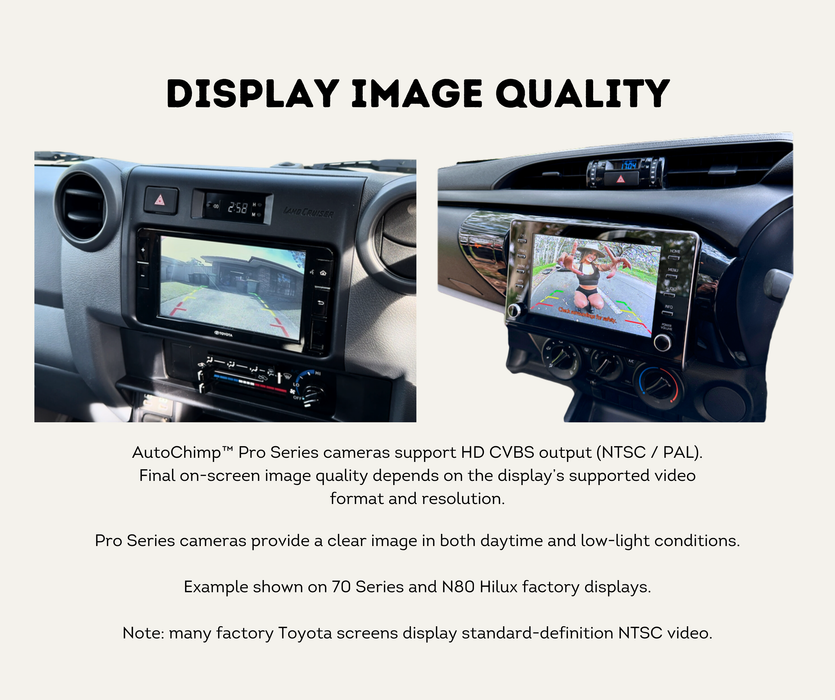

• High-Definition CVBS Image – Super CMOS sensor with 976 x 592 pixel resolution for clear camera vision.
• Low-Light Optimised – Designed for clear visibility in low-light conditions without relying on IR LEDs.
• IP67 Waterproof & Dustproof – Sealed camera body suitable for automotive, outdoor and off-road use.

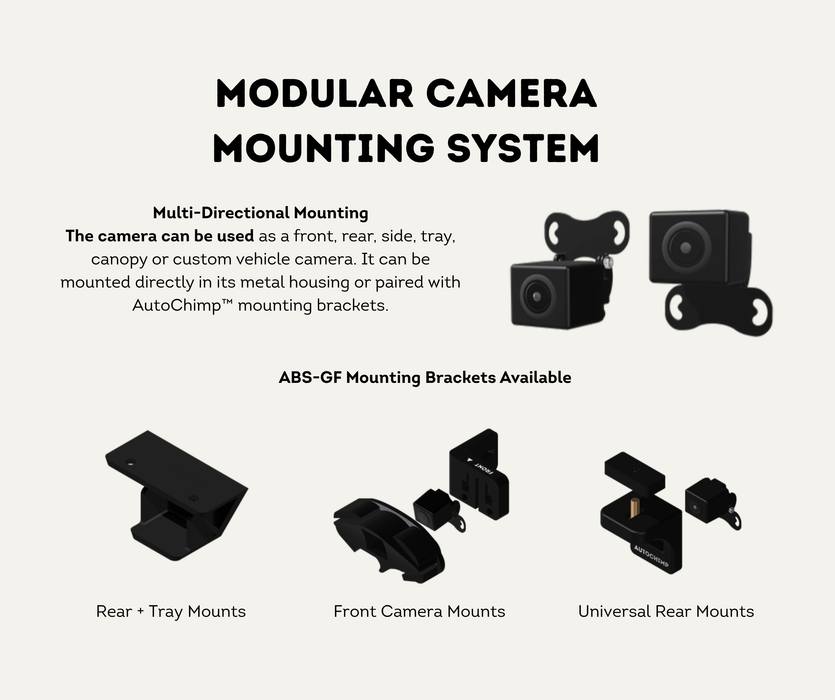

• Multi-Directional Mounting – Can be used with compatible AutoChimp™ brackets for front, rear, tray, canopy or custom mounting positions.
• AutoChimp™ Interface Ready – Compatible with selected AutoChimp™ QuadCam, dual camera and multi-camera systems when the correct adapter or harness is used.

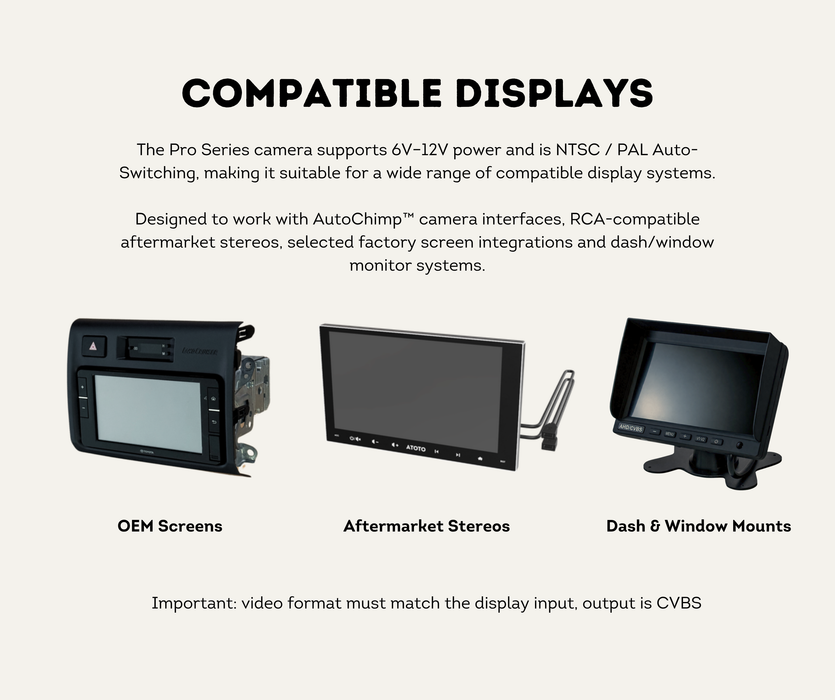

Compatible Applications

• Front camera installations
• Rear and reverse camera installations
• Side camera installations
• Tray, canopy and toolbox camera installations

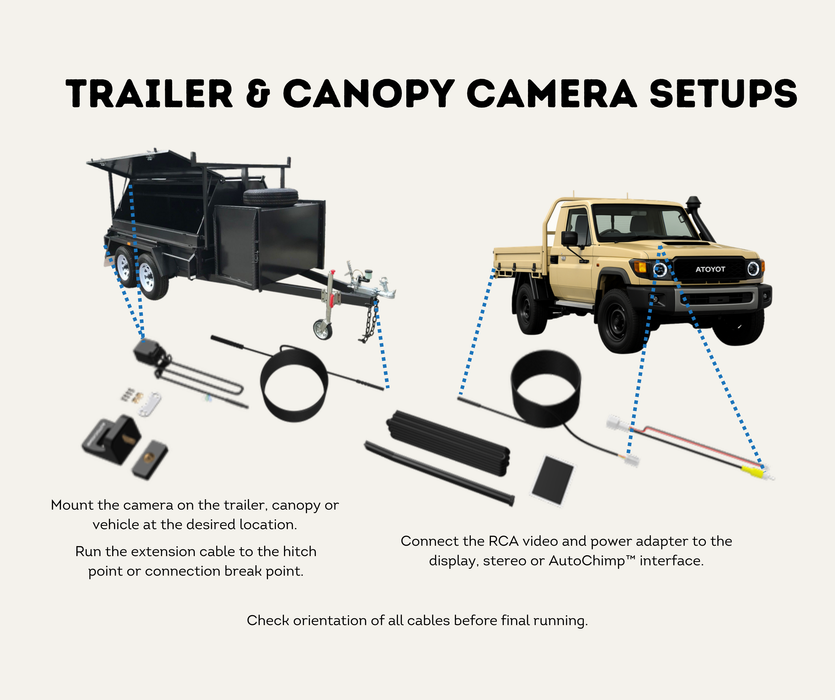

• Trailer and caravan camera setups where suitable cable length and connection type are used
• AutoChimp™ camera interface systems
• Aftermarket displays with RCA input when used with the correct adapter
• Selected factory screen integrations when used with compatible AutoChimp™ harnessing

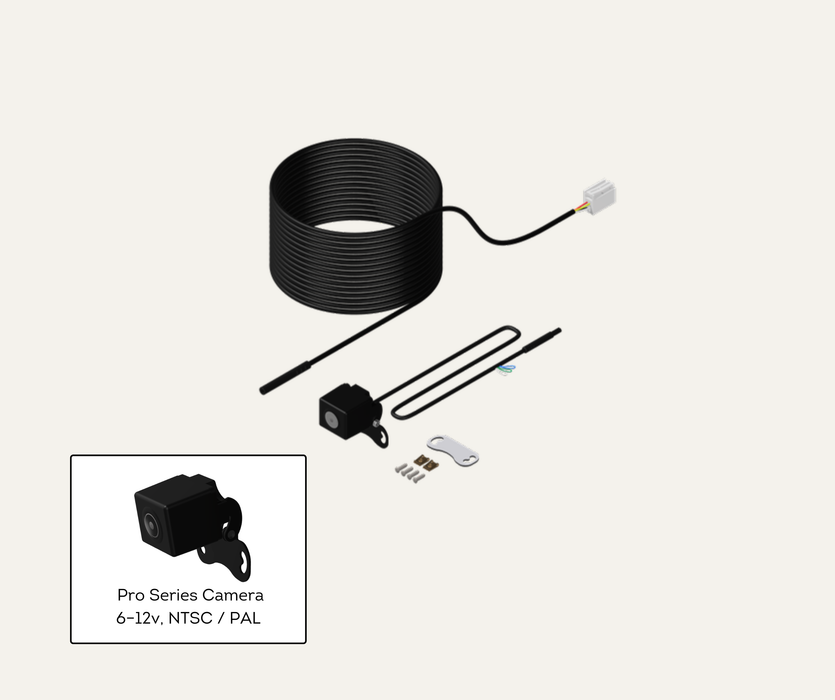

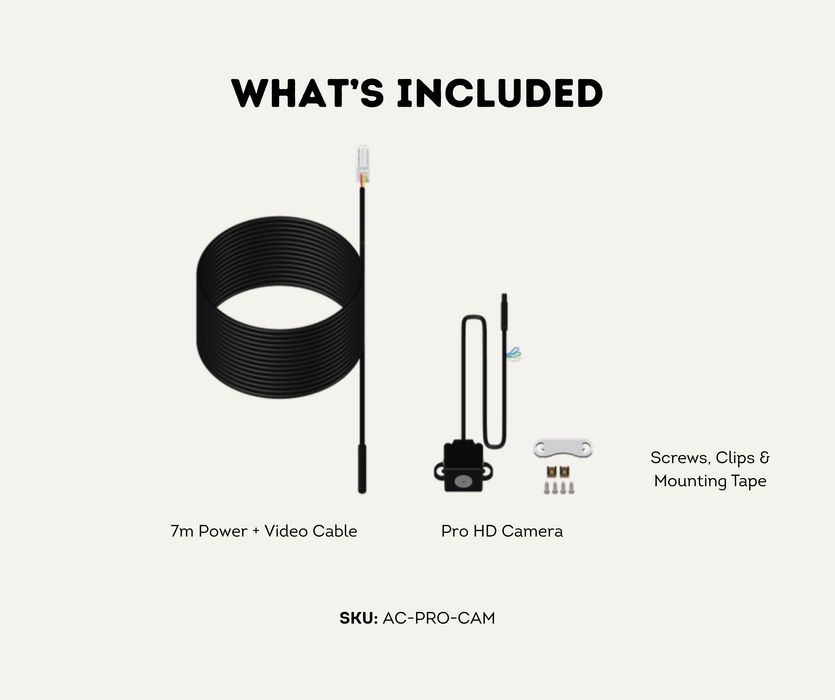

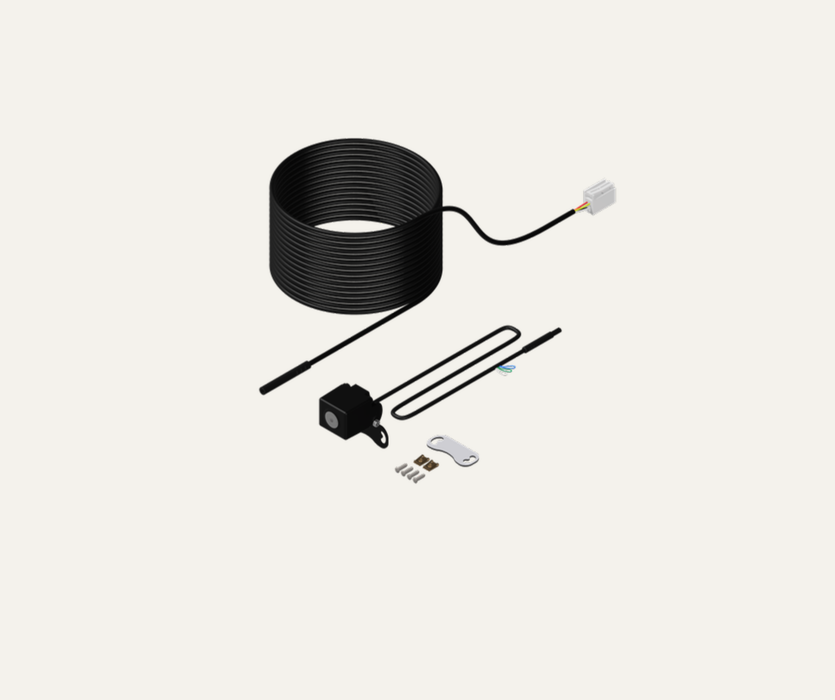

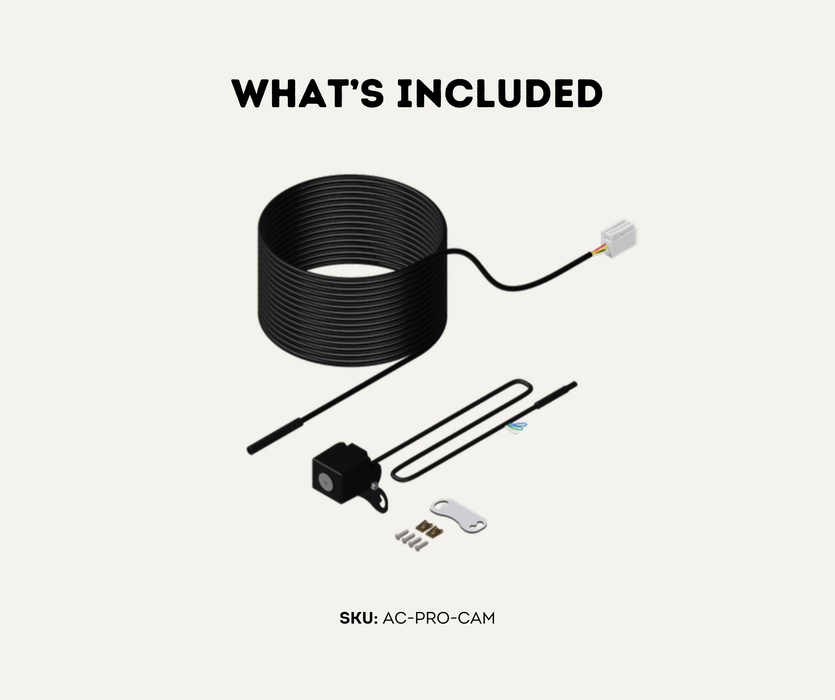

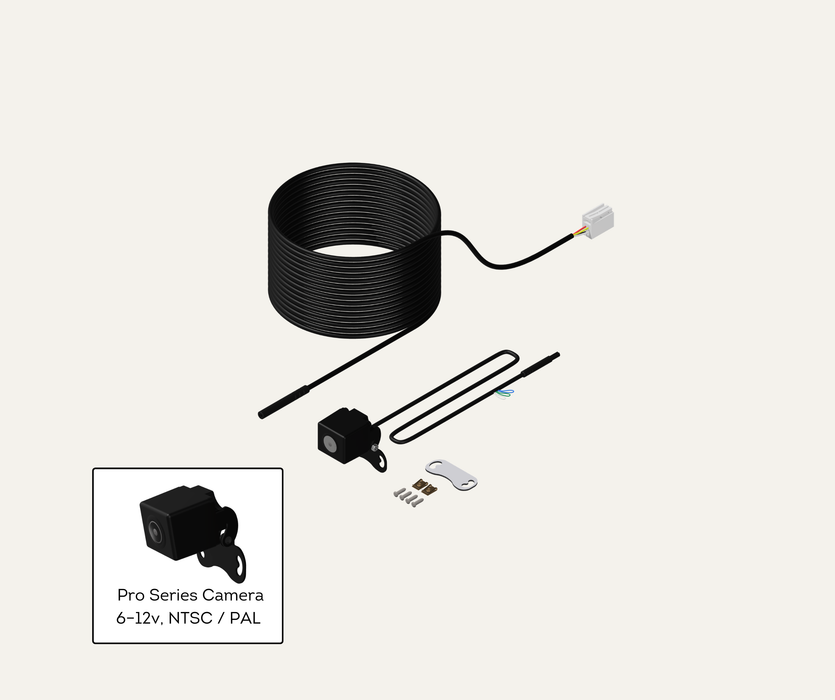

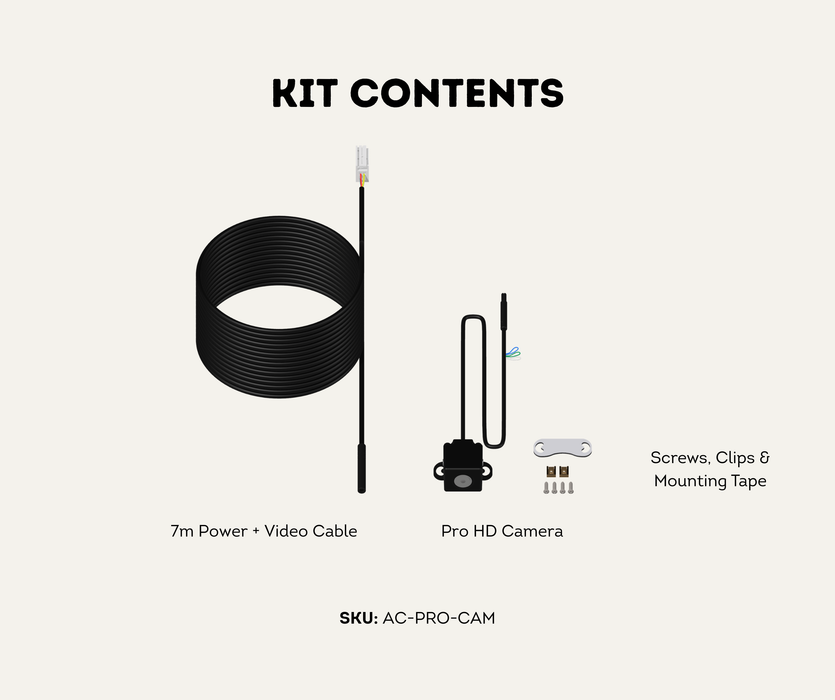

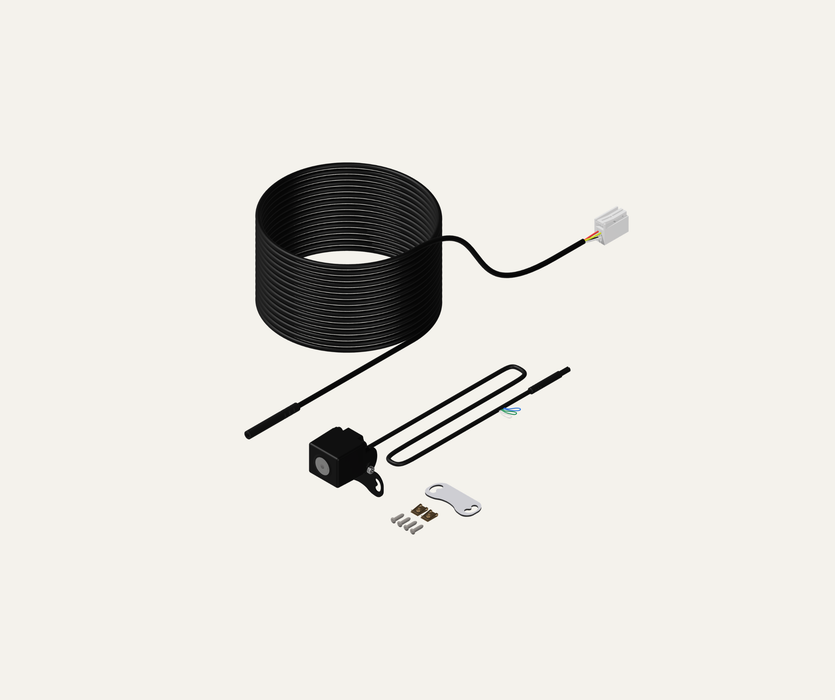

What’s Included

• 1x AutoChimp™ Pro HD camera with attached 1m camera lead

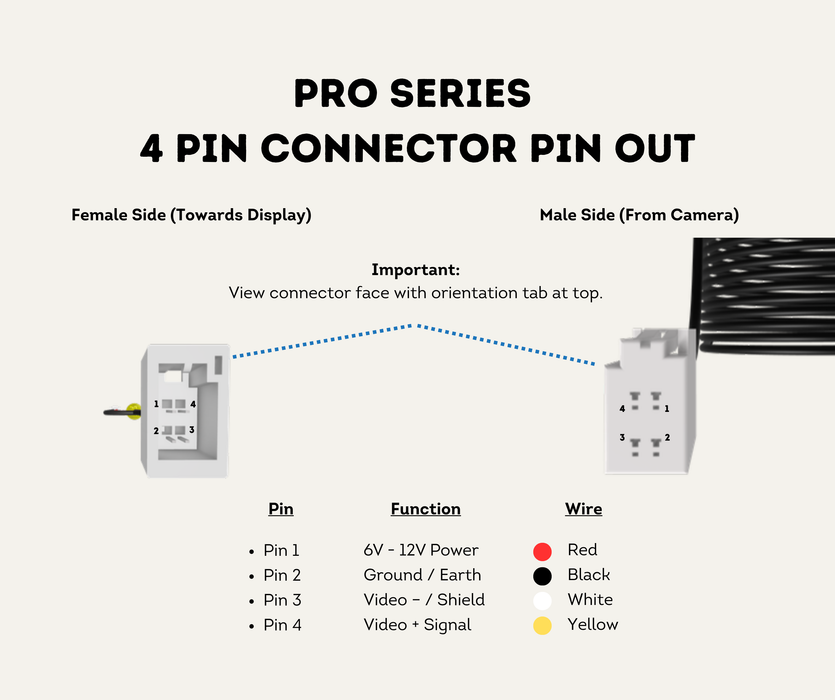

• 1x AutoChimp™ Pro HD 7m power cable with 4-pin connector
• 1x 180 degree adjustable mounting bracket. (attached)
• Mounting screws, tape and hardware

Note: This is the Pro HD camera and power cable package. RCA adapters, extension cables, vehicle-specific harnesses and additional mounting brackets are sold separately unless included in a complete AutoChimp™ camera kit.

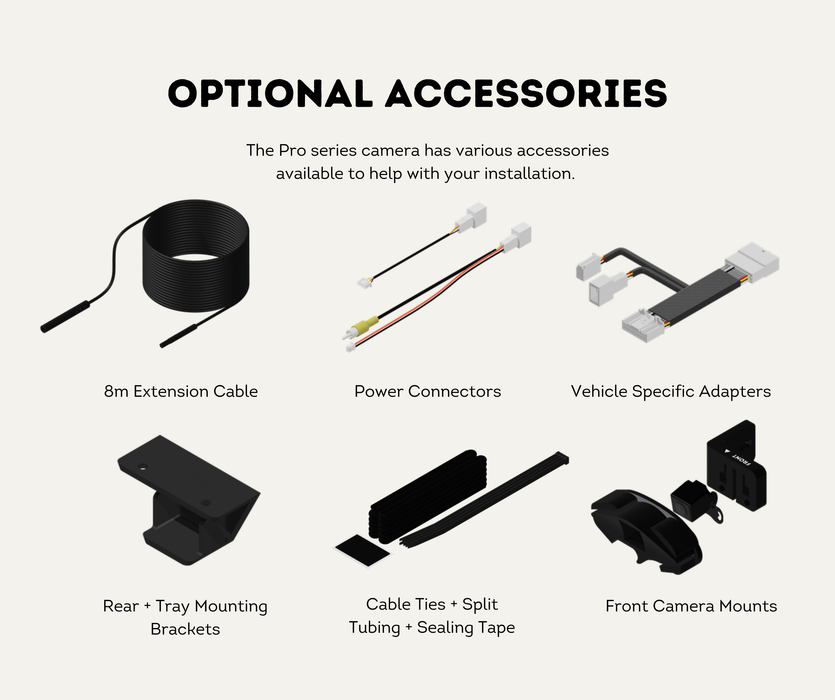

Sold Separately

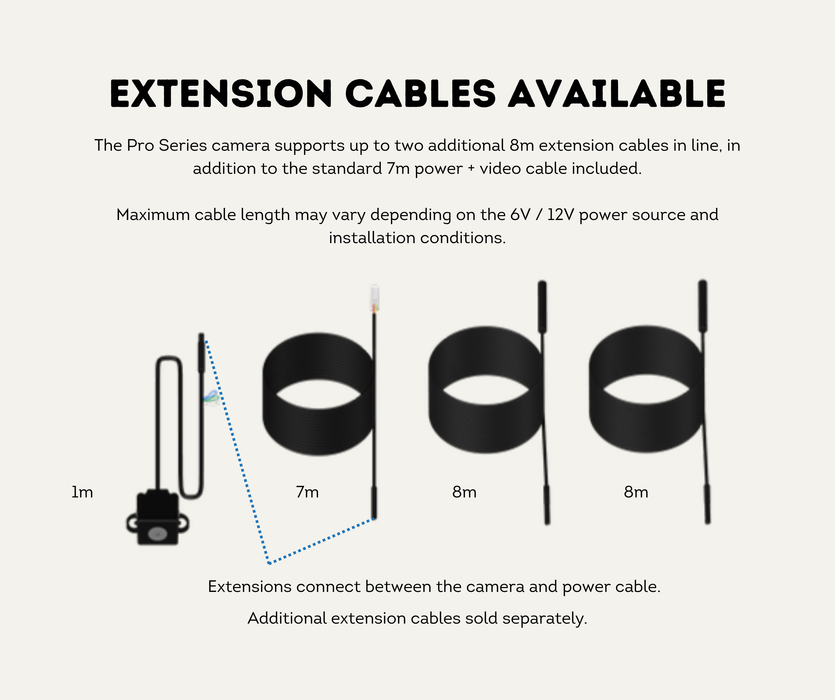

• 8m Pro Series camera extension cable
• RCA video and power adapter
• AutoChimp™ camera interface adapters
• Vehicle-specific factory screen integration harnesses
• ABS-GF mounting brackets and vehicle-specific camera mounts
• Complete front, rear, trailer and multi-camera kits

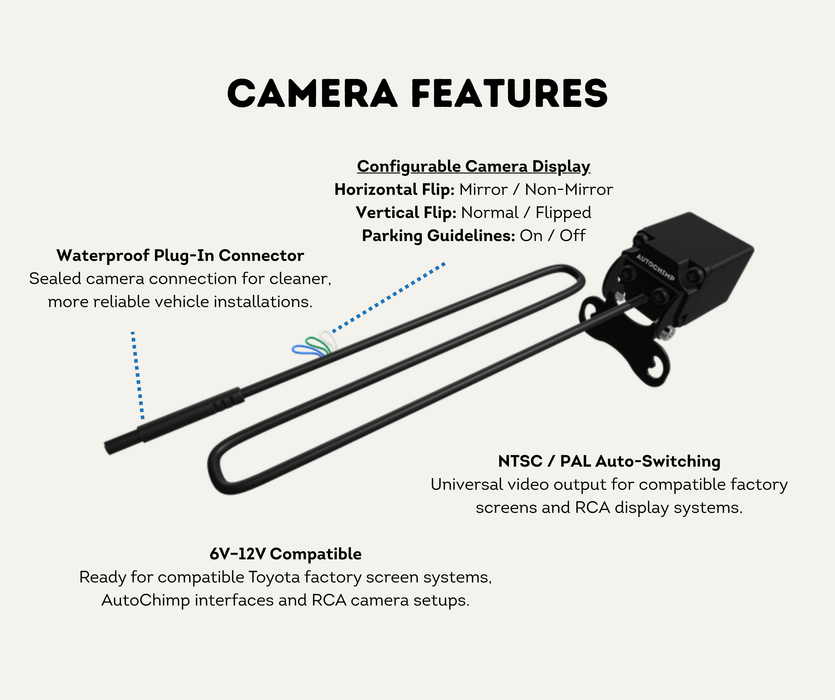

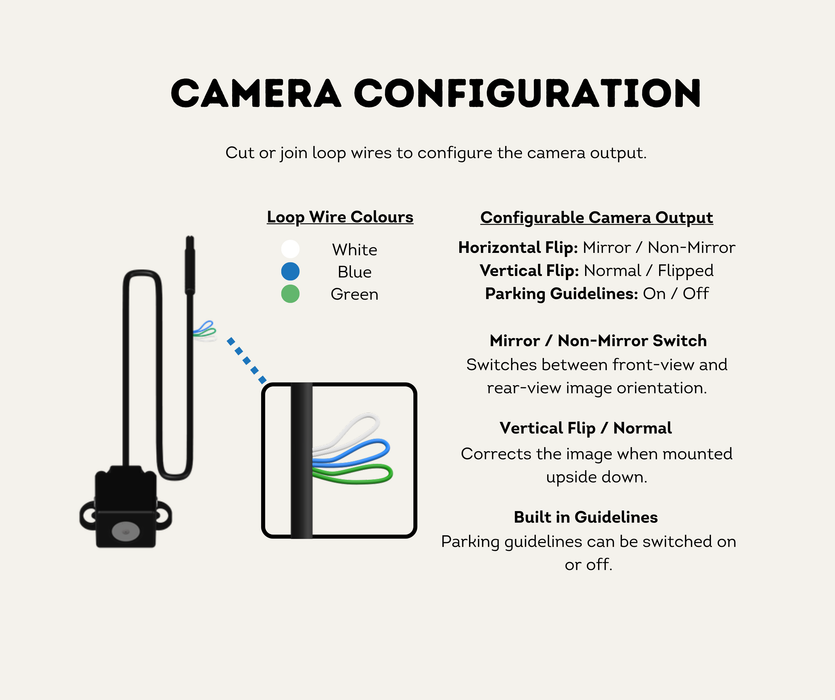

Camera Configuration

• Horizontal Flip: Mirror / Non-Mirror
• Vertical Flip: Normal / Flipped
• Parking Guidelines: On / Off

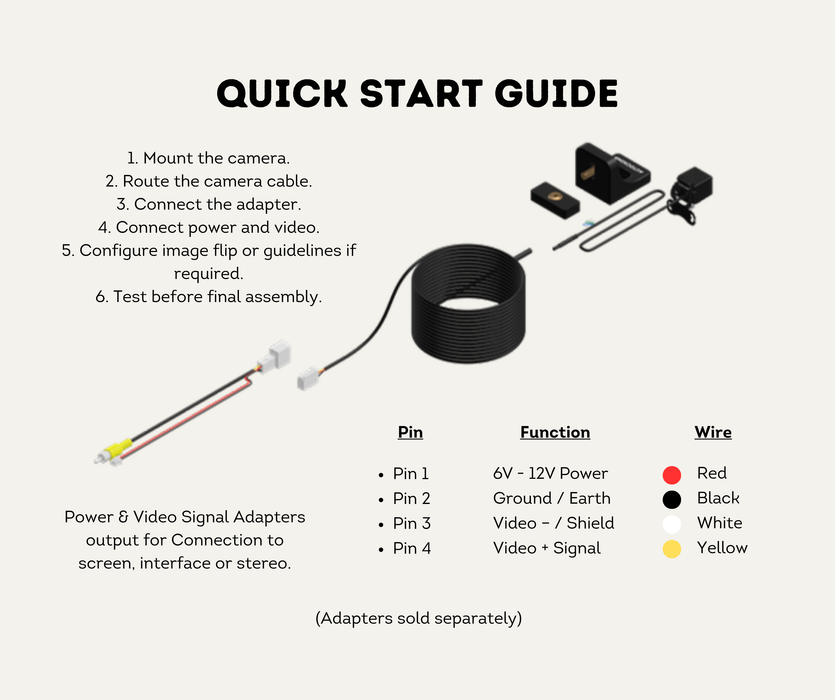

Camera output is configured using the camera loop wires. Configure the camera before final installation and test the image on the display before securing the camera permanently.

Specifications

• Image Sensor: Super CMOS
• Resolution: 976 x 592 pixels / 800 TV lines
• Video Signal: CVBS / NTSC / PAL auto switching
• Viewing Angle: 170° diagonal, 120° horizontal, 90° vertical
• Power Input: 6V–12V DC
• Waterproof Rating: IP67
• Operating Temperature: -30°C to +70°C
• Housing: Glass-reinforced ABS housing
• Mounting: Adjustable steel bracket

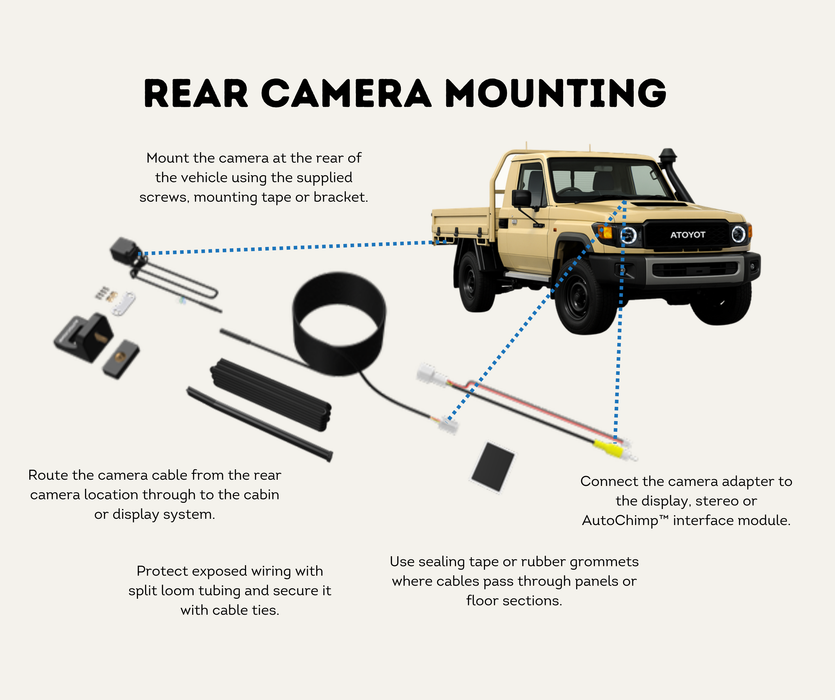

Installation Notes

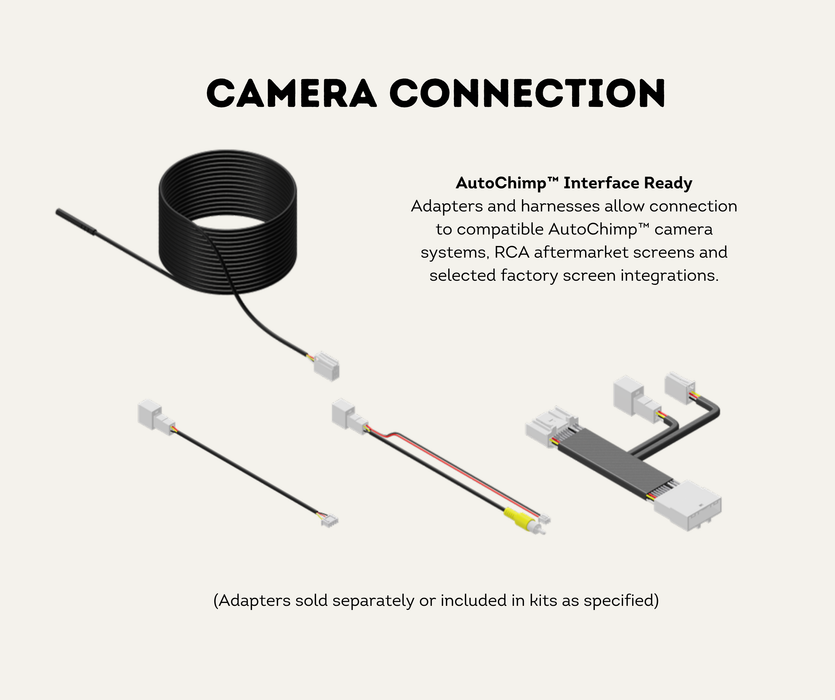

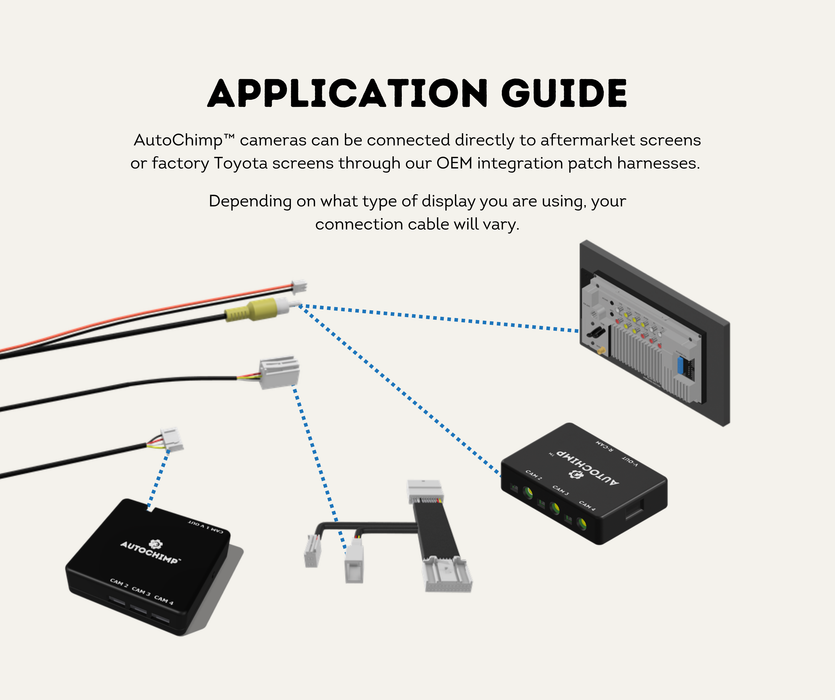

This is a camera-only product. The required adapter, extension cable or vehicle-specific harness depends on your display, stereo, camera interface or factory screen setup.

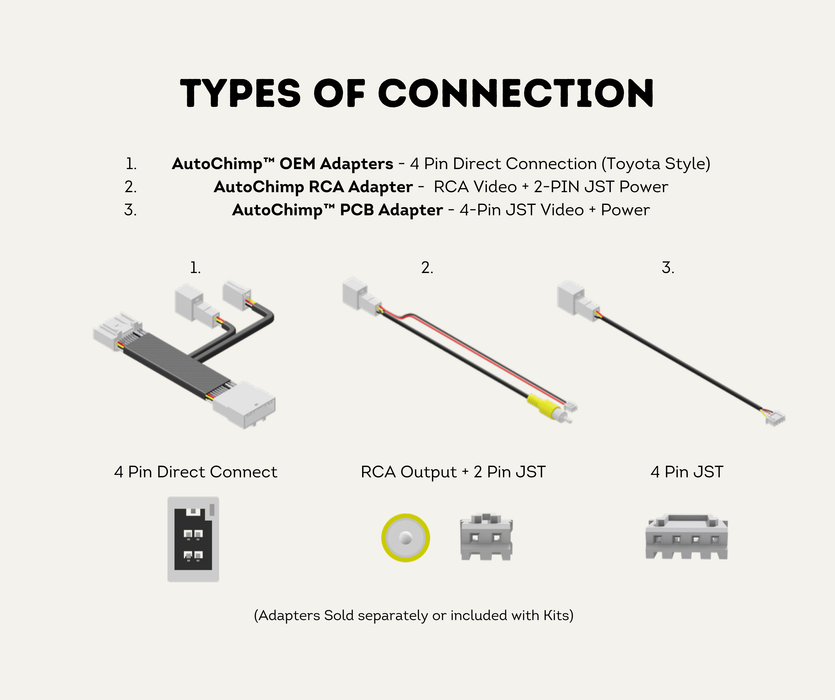

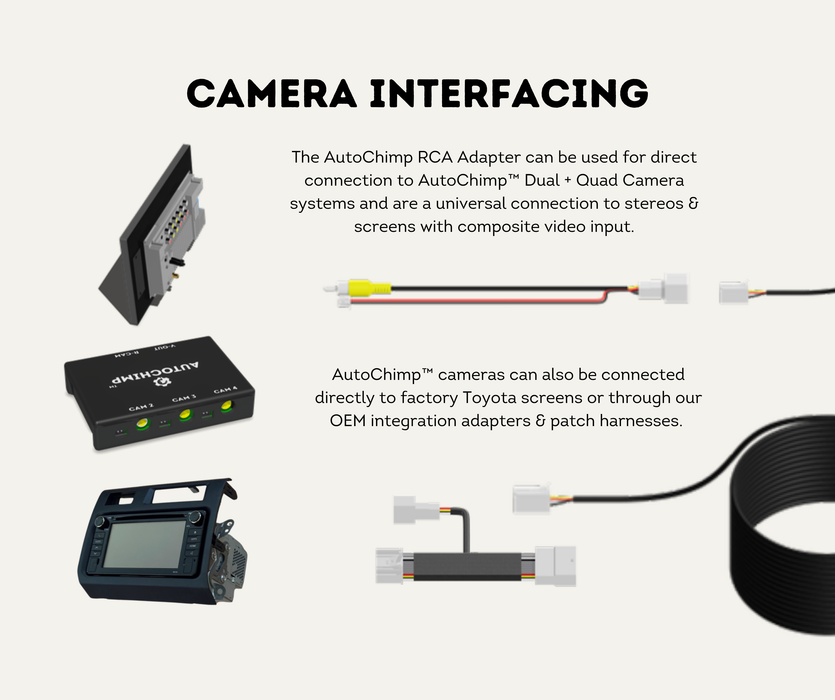

For aftermarket RCA displays, use the compatible AutoChimp™ RCA video and power adapter. For AutoChimp™ camera interface systems or factory screen integrations, use the correct AutoChimp™ adapter or vehicle-specific harness.

Please confirm connection type, power source and display compatibility before ordering if you are unsure which camera or adapter is required.

Why Choose AutoChimp™?

AutoChimp™ Pro HD cameras are designed for flexible vehicle camera integration across front, rear, side, tray, canopy and custom applications. They are built for clean installation, reliable image output and compatibility with AutoChimp™ camera systems and selected display integrations.
