AutoChimp™ Pro HD Rear Camera Kit | 6V–12V Universal RCA System

AutoChimp™ Pro HD Rear Camera Kit | NTSC/PAL Auto Switching | 6v-12v Universal RCA System

SKU: AC-PRO-CAM-KIT-REAR

The AutoChimp™ Pro HD Rear Camera Kit is a universal 6V–12V rear camera system designed for compatible factory screens, aftermarket head units and AutoChimp™ camera interface systems.

Built with a Super CMOS image sensor, IP67-rated waterproof housing, NTSC/PAL auto switching and improved low-light performance, this kit provides a clean rear camera solution for reverse camera upgrades, rear-view camera installs and custom vehicle camera systems.

Complete kit includes: Pro HD rear camera, 8m extension cable, adjustable steel mounting bracket, RCA connection adapter, power connection leads, loom tubing, cable ties and mounting hardware.

Key Features

• 6V–12V Power Compatibility – Suitable for a wide range of compatible factory screen, aftermarket stereo and camera interface installations.
• High-Definition Imaging – Super CMOS sensor with 976 x 592 pixel resolution for clear rear camera vision.
• Universal RCA Output – Includes RCA connection support for compatible aftermarket screens, head units and camera systems.
• NTSC/PAL Auto Switching – Camera output automatically supports NTSC and PAL video signal formats.
• Low-Light Performance – Optimised image processing helps improve visibility in darker driving and reversing conditions.
• IP67 Waterproof & Dustproof – Sealed camera housing built for automotive, outdoor and off-road use.
• Selectable Image Flip & Guidelines – Supports image orientation adjustment and guideline control where required.
• Adjustable Steel Mounting Bracket – Multi-directional bracket allows flexible rear camera positioning.
• Installer-Friendly Kit – Includes fitting accessories for a cleaner, more professional installation.

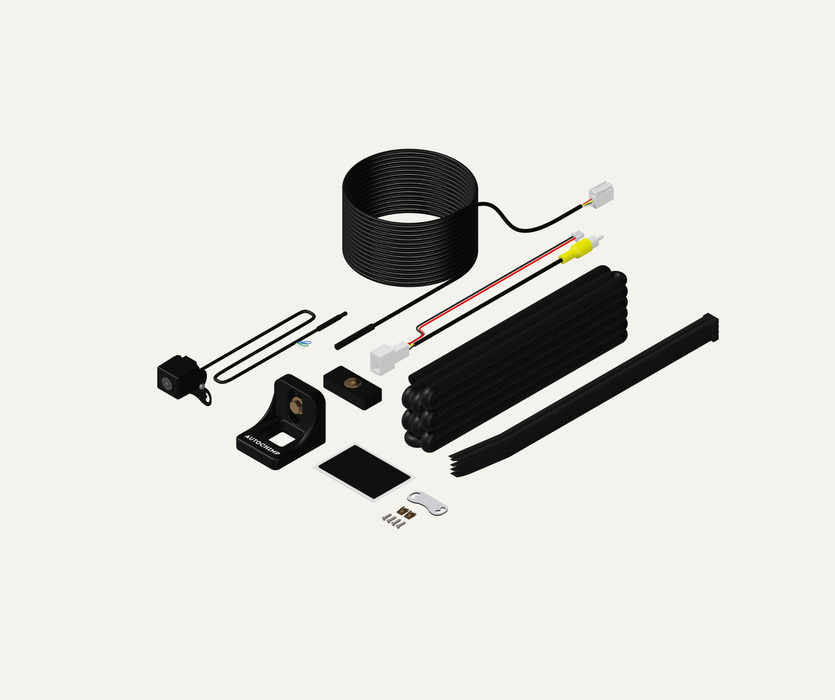

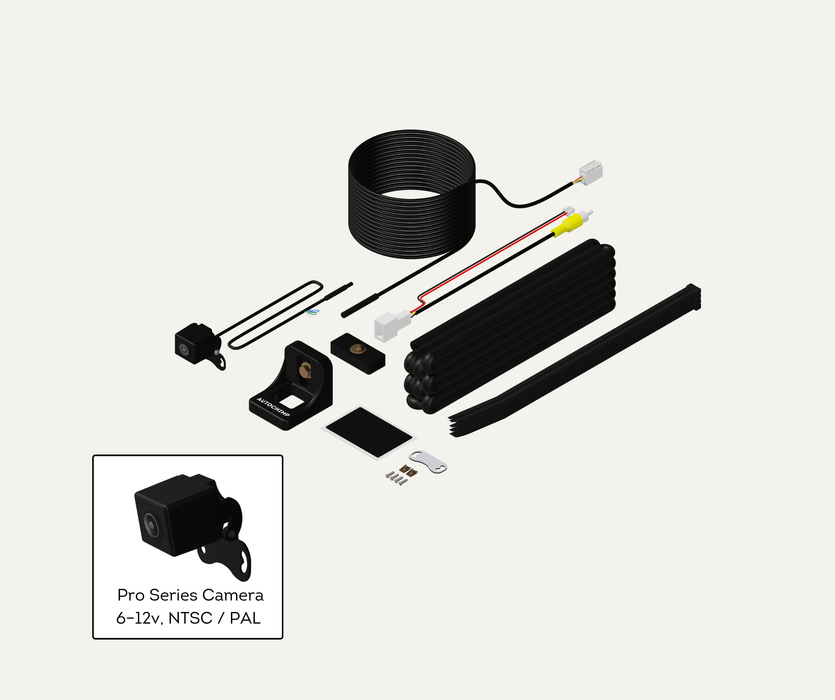

What’s Included

• 1x AutoChimp™ Pro HD rear camera with 1m attached cable
• 1x 4-pin to RCA camera adapter
• 1x 8m camera extension cable
• 1x Adjustable steel mounting bracket
• Power and video connection leads
• Waterproof sealing tape
• Loom tubing / split conduit
• Cable ties
• Mounting screws and installation hardware

Compatible Applications

• Rear camera installations
• Reverse camera upgrades
• AutoChimp™ QuadCam and multi-camera systems
• Aftermarket stereos with RCA camera input
• Compatible factory screen integrations using suitable AutoChimp™ harnessing
• Ute tray, canopy, caravan and custom rear-view camera setups

Specifications

• Resolution: 976 x 592 pixels / 800 TV lines
• Viewing Angle: 170° diagonal, 120° horizontal, 90° vertical
• Power Supply: 6V–12V DC
• Video Signal: PAL / NTSC auto switching
• Waterproof Rating: IP67
• Operating Temperature: -30°C to +70°C
• Bracket Material: Adjustable steel mounting bracket

Connection Options

This kit includes connection options for compatible AutoChimp™ camera systems and RCA-based aftermarket screens. Use only the connection adapter required for your installation.

• RCA Output: For compatible aftermarket stereos, monitors and camera interfaces.
• AutoChimp™ Camera System Connection: For compatible AutoChimp™ QuadCam and multi-camera platforms.

Installation Notes

This is a universal rear camera kit. Fitment depends on the vehicle, screen, head unit, camera interface and wiring configuration.

For factory screen integration, additional vehicle-specific AutoChimp™ harnessing may be required. Please contact AutoChimp™ before ordering if you are unsure which camera kit or harness is suitable for your vehicle.

Why Choose AutoChimp™?

AutoChimp™ Pro HD camera kits are designed for clean, reliable camera integration across aftermarket stereos, compatible factory screens and AutoChimp™ camera control systems. Each kit is built for practical installer-friendly fitment and durable vehicle use.
