AutoChimp™ Pro HD Front Camera Kit | 6V–12V Universal RCA System
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
Universal Output, includes two connectors use only one during install, 1x AutoChimp Multi-Cam Plug (Direct plug & play connection), and 1x RCA Output with Power & Earth (Universal hardwire connection)
AutoChimp™ Pro HD Front Camera Kit | 6V–12V Universal RCA System
SKU: AC-PRO-CAM-KIT-FRONT
The AutoChimp™ Pro HD Front Camera Kit is a universal 6V–12V front camera system designed for Toyota factory screens, AutoChimp™ multi-camera interfaces and RCA-compatible aftermarket stereos.
Built with a Super CMOS sensor, low-light optimisation and an IP67 waterproof housing, this kit is ideal for improving forward visibility when parking, off-roading, towing or navigating tight spaces.
Complete kit includes: Pro HD front camera, 8m extension cable, split conduit, cloth loom tape, adjustable mounting bracket, RCA power adapter and installation accessories.
Key Features
- 6V–12V Power Compatibility – Designed for flexible integration with factory screens, AutoChimp™ systems and aftermarket installations.
- High-Definition Imaging – Super CMOS sensor with 976 x 592 resolution for a clear front camera image.
- Universal RCA Output – Includes RCA connection support for compatible aftermarket stereos and displays.
- AutoChimp™ System Compatible – Suitable for compatible AutoChimp™ multi-camera and camera interface systems.
- Front Camera Optimised – Wide-angle view for parking, off-road use and obstacle detection.
- IP67 Waterproof & Dustproof – Built for harsh vehicle environments and Australian conditions.
- Low-Light Performance – Optimised for improved visibility in low-light driving conditions.
- Adjustable Mounting Bracket – Steel bracket allows flexible front-facing camera positioning.

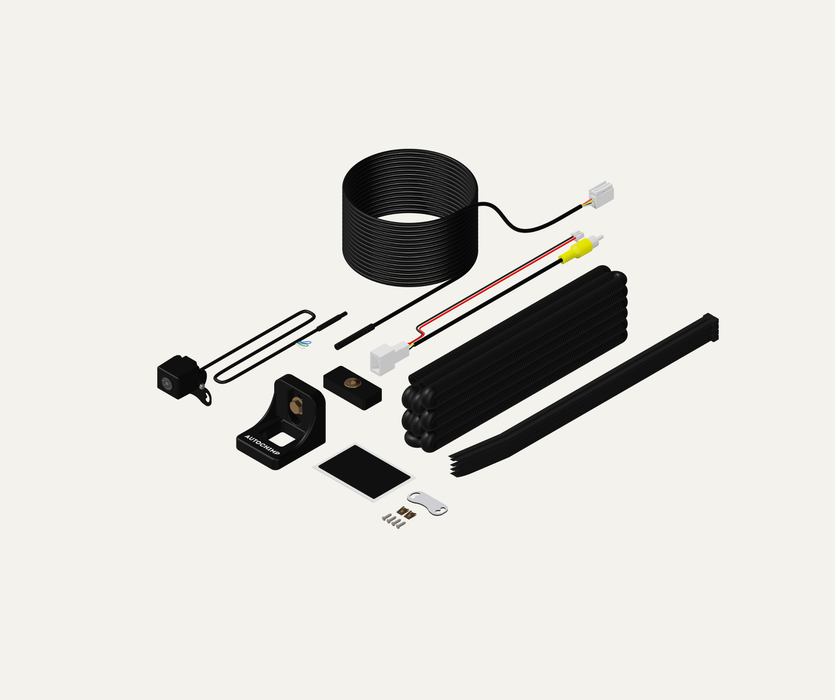

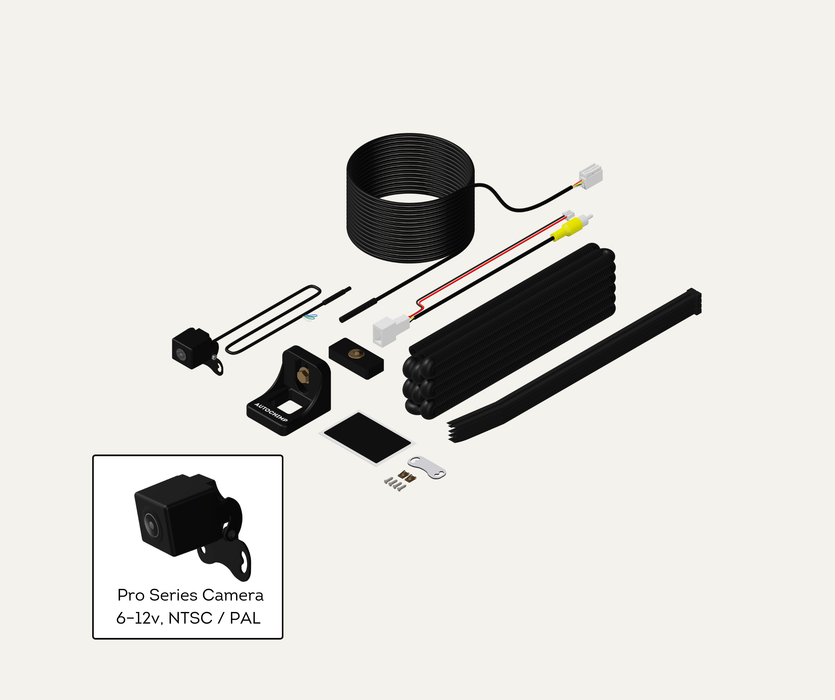

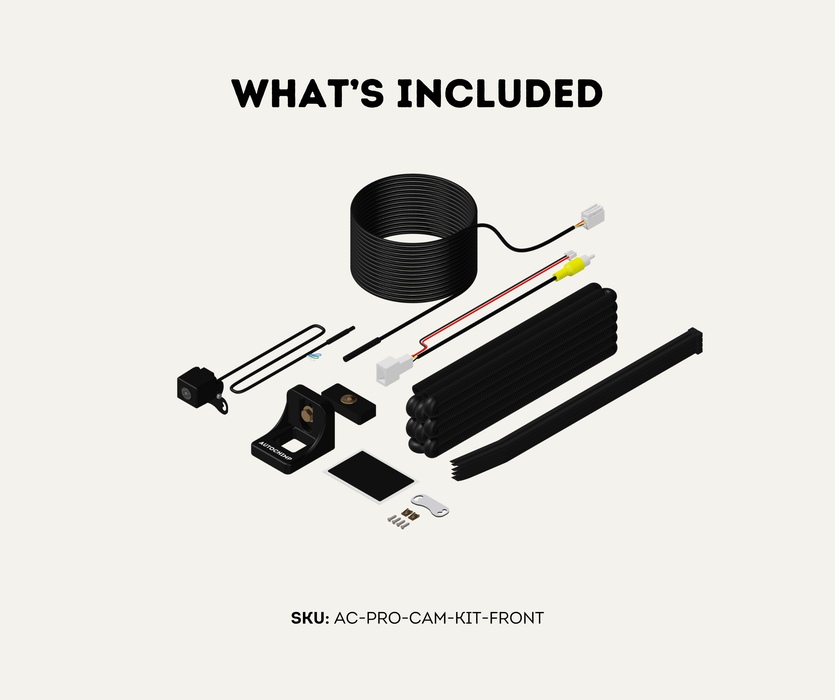

What’s Included
- 1x AutoChimp™ Pro HD Front Camera with 1m attached cable
- 1x AutoChimp™ Pro Series direct connect adapter
- 1x Universal RCA adapter for aftermarket screens
- 1x 8m extension cable
- 1x Adjustable steel mounting bracket
- 1x Rubber grommet / sealing plug
- Split conduit, cloth loom tape, stainless steel screws and cable ties
Compatible Applications
- Front camera installations
- Off-road and parking visibility upgrades
- AutoChimp™ multi-camera systems
- Toyota factory screen integrations where compatible
- Aftermarket stereos with RCA camera input
Specifications
- Resolution: 976 x 592 pixels / 800 TV lines
- Viewing Angle: 170° diagonal, 120° horizontal, 90° vertical
- Power Supply: 6V–12V DC
- Video Signal: PAL / NTSC auto switching
- Waterproof Rating: IP67
- Operating Temperature: -30°C to +70°C
- Bracket Material: Steel adjustable mounting bracket
Installation Notes
This kit includes connection options for AutoChimp™ camera systems and RCA-compatible aftermarket screens. Use only the connection adapter required for your installation.
Compatibility depends on the vehicle, screen, camera interface and wiring configuration. Please contact AutoChimp™ before ordering if you are unsure which camera kit is suitable for your setup.
Why Choose AutoChimp™?
AutoChimp™ Pro HD camera kits are designed for clean, reliable camera integration across factory screens, aftermarket stereos and AutoChimp™ camera control systems. Each kit is built for practical installer-friendly fitment and durable vehicle use.
