AutoChimp™ Heavy Duty Camera Adapter Cable | 4-Pin Aviation to 4-Pin Pro Series
SKU AC-HEAVY-CAM-4PIN
Delivery Info
Ships From: Melbourne, Australia
Dispatch Days: Daily (Monday - Friday)
Carrier: Auspost
Current Handling Times: 24 Hours
Availability:
In stock
Original price
$15.00
-
Original price
$15.00
Original price
$15.00
$15.00
-
$15.00
Current price
$15.00

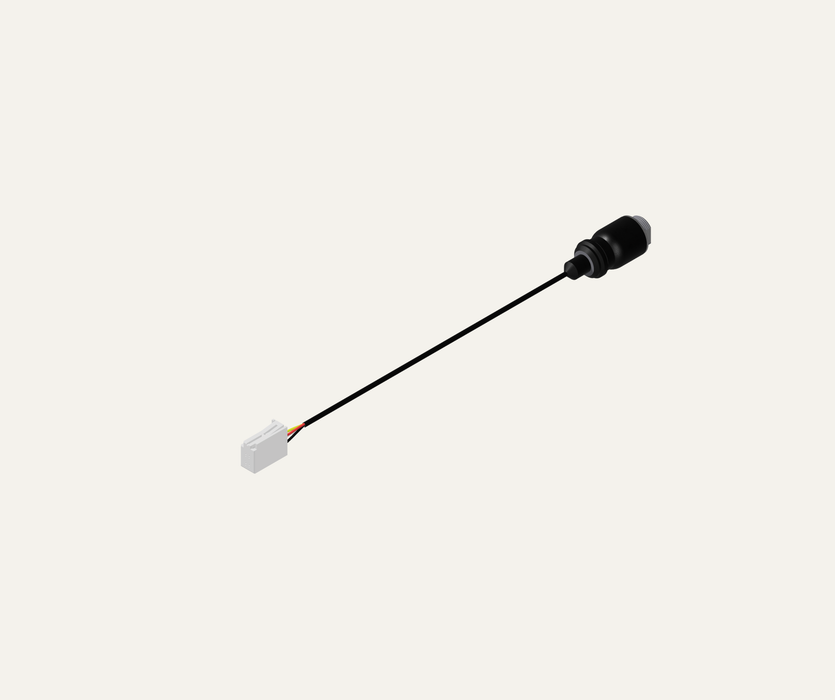

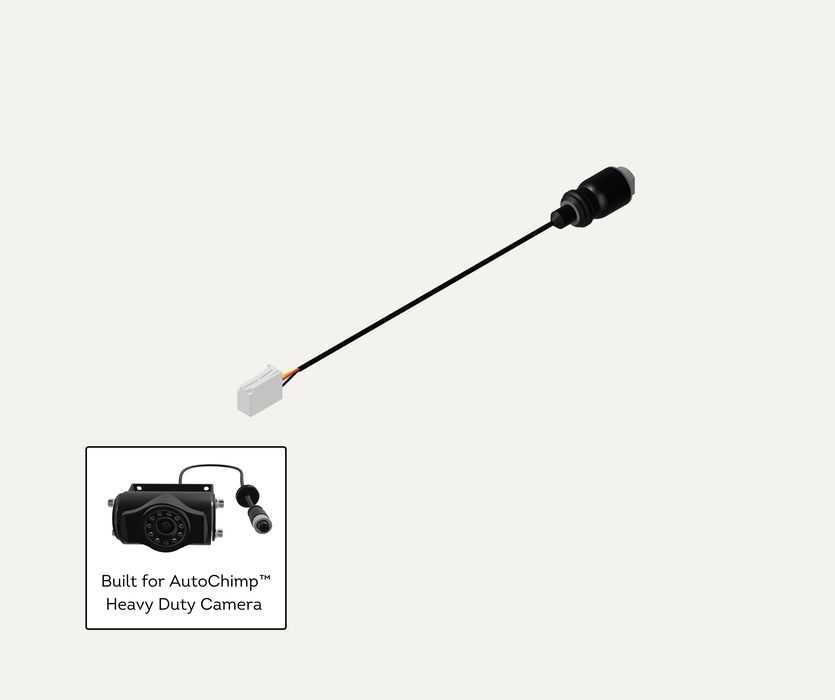

AutoChimp™ Heavy Duty Camera Adapter Cable | 4-Pin Aviation to 4-Pin Pro Series
SKU: AC-HEAVY-CAM-4PIN
Compatible with: AutoChimp™ Heavy Duty Cameras, SafetyDave® cameras, and any camera with a 4-pin aviation connector.
The AutoChimp™ Heavy Duty Camera Adapter Cable connects a 4-pin aviation camera to the 4-pin Pro Series connector used on AutoChimp™ Pro Series camera cables, interface harnesses and QuadCam modules.
It lets a rugged, IR and ICR-equipped aviation camera run into a Pro Series or Toyota-style dashboard system with no cutting, splicing or coding. Built for off-road, commercial and caravan installations where the camera and the harness use different connectors.
Key Features
- 4-Pin Aviation to 4-Pin Pro Series – Bridges an aviation-connector camera to the AutoChimp™ Pro Series cable system.
- Toyota-Ready Integration – Works with AutoChimp™ patch harnesses through to factory Toyota screens.
- IR / IR-CUT Camera Support – Suits IR-vision and ICR filter imaging systems.
- Low-Light Performance – Passes the camera's night-vision image through unchanged for clear low-light vision.
- QuadCam Compatible – Feeds any camera input on an AutoChimp™ QuadCam multi-camera module.
- Built for Tough Conditions – Aviation-grade connector, weather-resistant, designed for vibration and off-road use.
- Fully Reversible – Unplug it and the system returns to standard. No permanent modification.

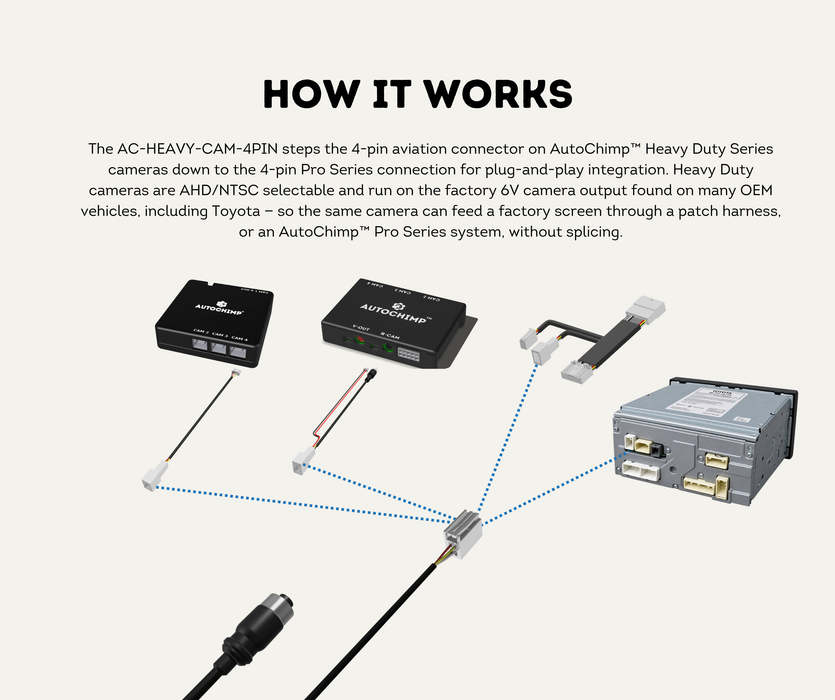

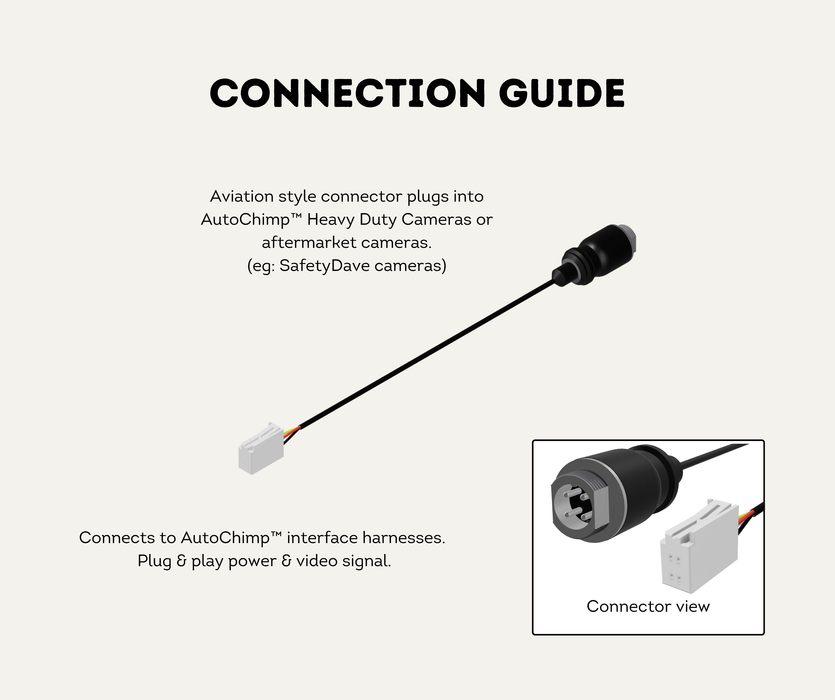

How It Works

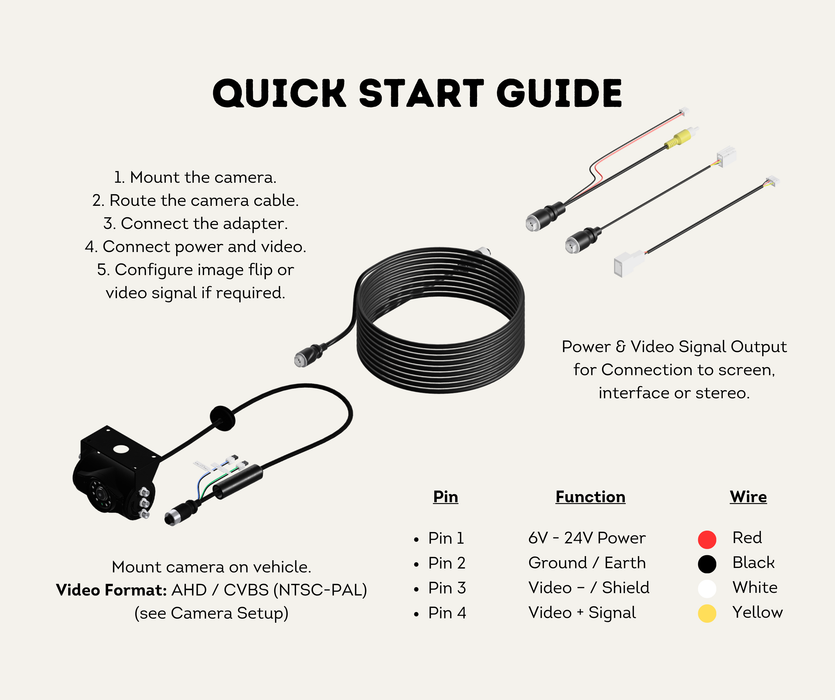

- The aviation end plugs into an AutoChimp™ Heavy Duty Series camera, or any other camera fitted with a standard 4-pin aviation connector.
- The Pro Series end plugs into an AutoChimp™ Pro Series camera cable, vehicle-specific interface harness, or QuadCam camera input.
- Both connectors carry the same four circuits — power, ground, video signal and video shield — so the adapter passes camera power and video straight through with no conversion.

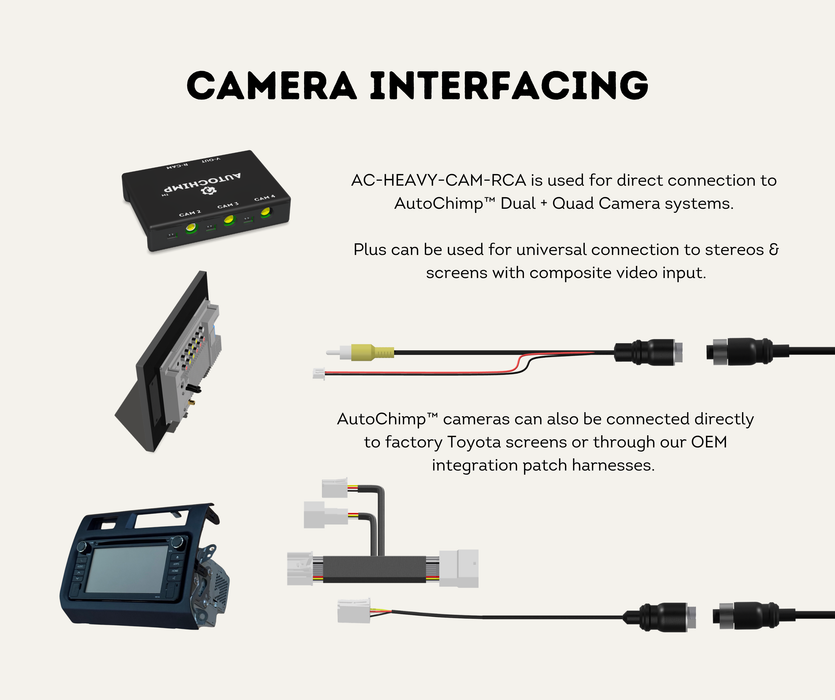

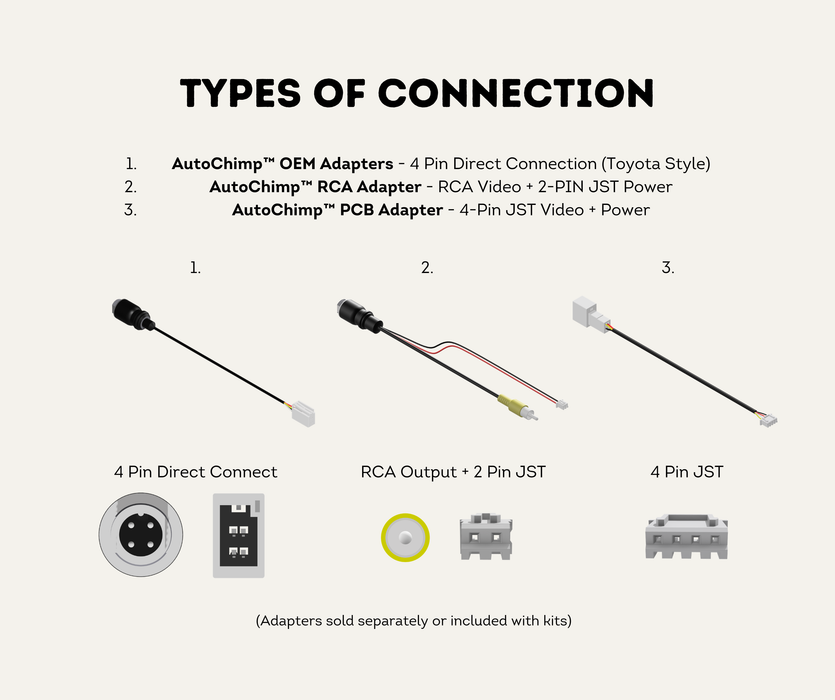

- Where the display needs an RCA input instead, the separate AutoChimp™ Heavy Duty Camera RCA Adapter (AC-HEAVY-CAM-RCA) is the correct part.

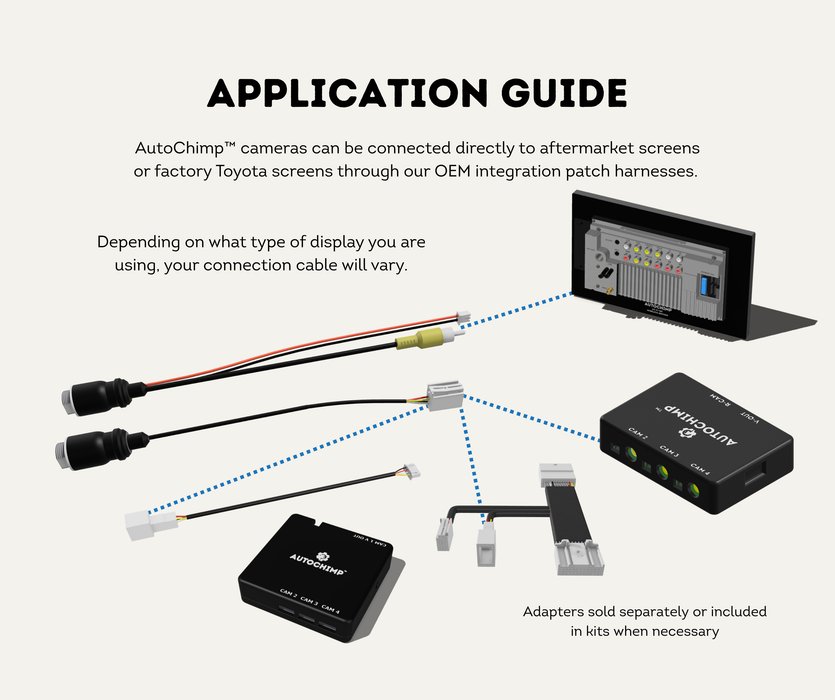

Compatibility
- AutoChimp™ Heavy Duty Series cameras
- SafetyDave® cameras and any other camera with a 4-pin aviation connector
- AutoChimp™ Pro Series camera cables
- AutoChimp™ vehicle-specific interface and patch harnesses
- AutoChimp™ QuadCam multi-camera systems

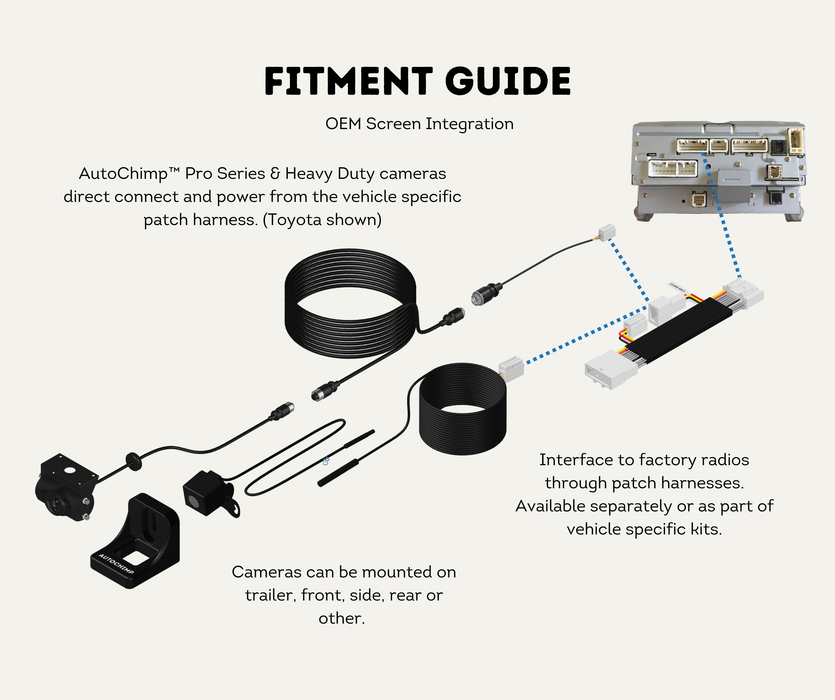

- Factory Toyota screens via AutoChimp™ OEM integration patch harnesses

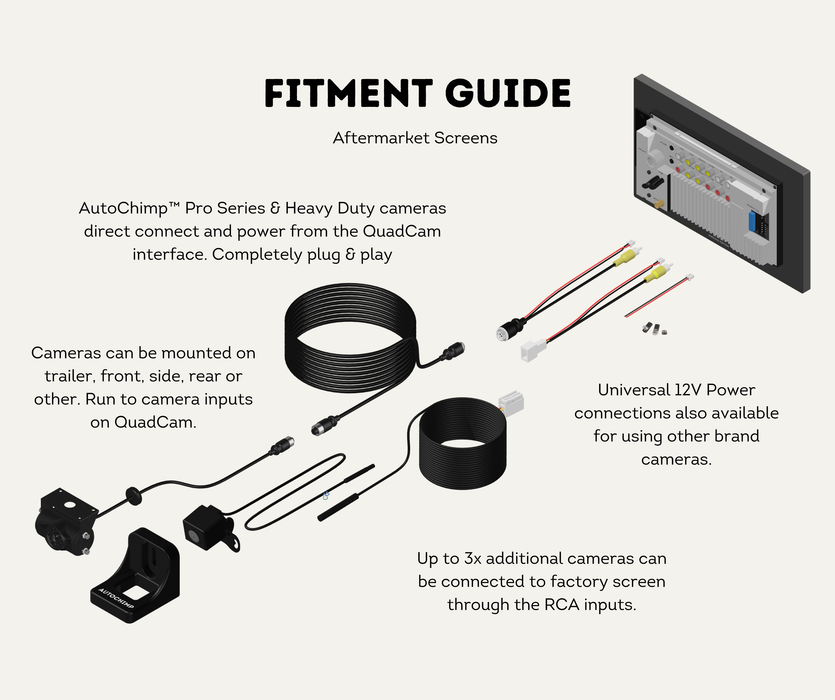

- Aftermarket screens and stereos fed through an AutoChimp™ harness or module
Typical Applications
- Toyota Hilux, LandCruiser, Prado, Fortuner – Add a rugged night-vision camera to the factory screen
- Trailers & Caravans – Plug & play rear-view connections
- Work & Commercial Vehicles – Trucks, excavators and utes

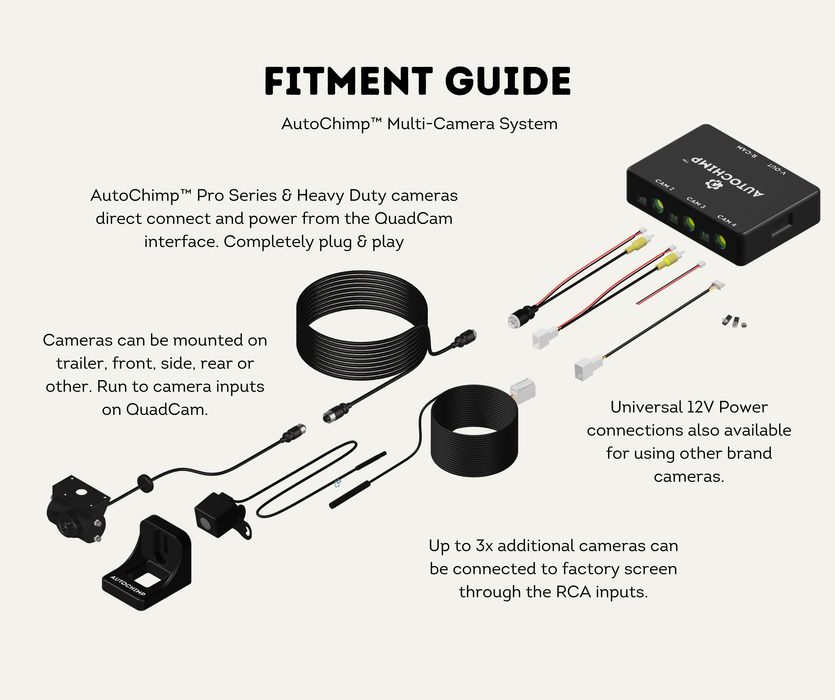

- Multi-Camera Systems – Integration with AutoChimp™ QuadCam switching interfaces

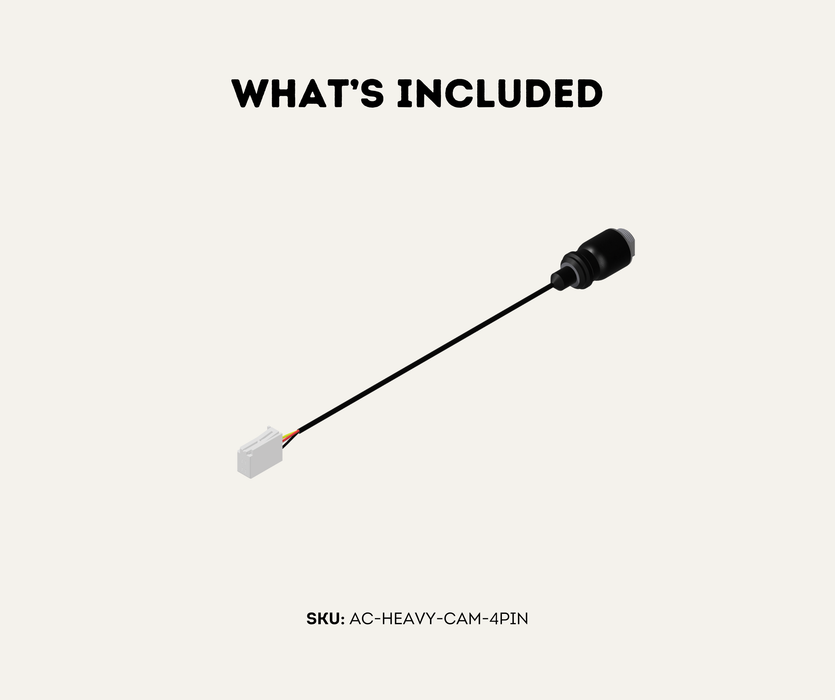

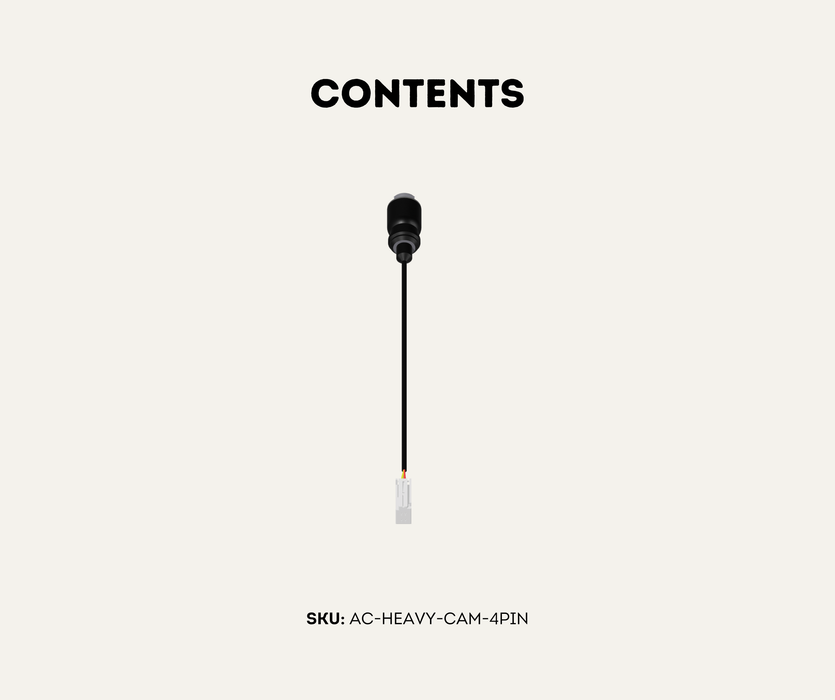

What's Included
- 1x AutoChimp™ Heavy Duty Camera Adapter Cable — 4-Pin Aviation to 4-Pin Pro Series (AC-HEAVY-CAM-4PIN)
Technical Specifications
| Connector A | 4-Pin aviation (Heavy Duty Series) |
| Connector B | 4-Pin Pro Series |

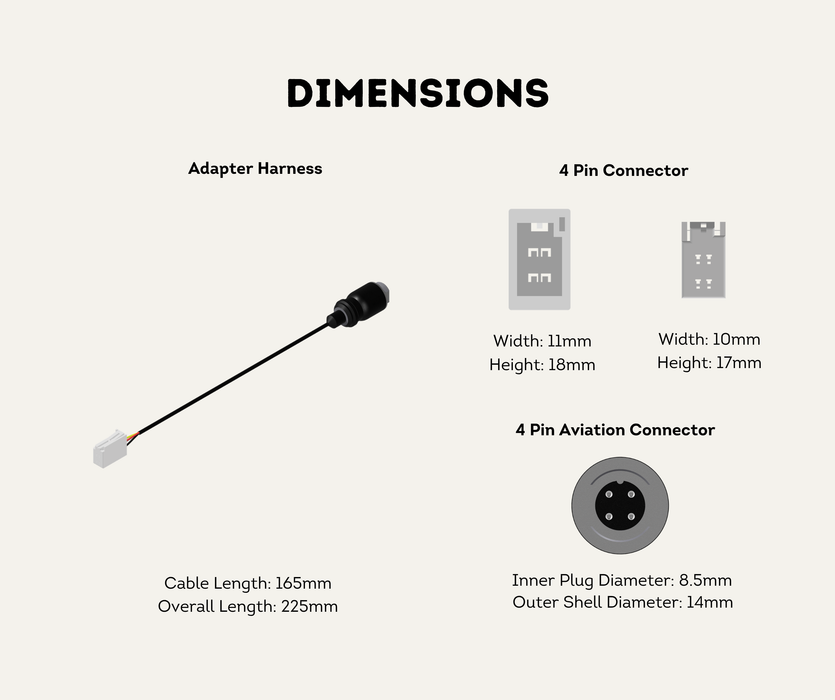

| Cable Length | 165mm |
| Overall Length | 225mm |
| Aviation Connector Diameter | Outer shell 14mm · Inner plug 8.5mm |
| Pro Series Connector Size | 11mm W × 18mm H · 10mm W × 17mm H |

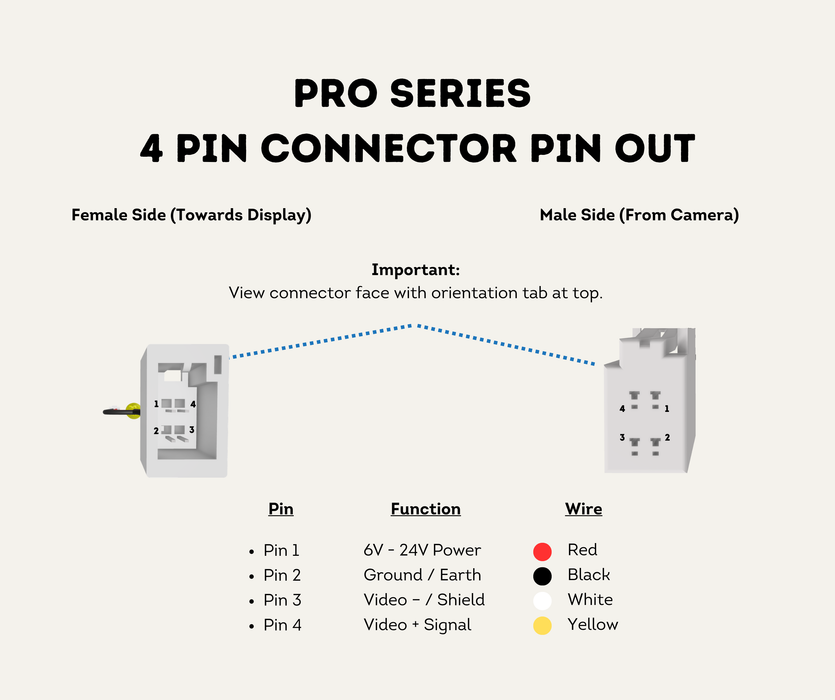

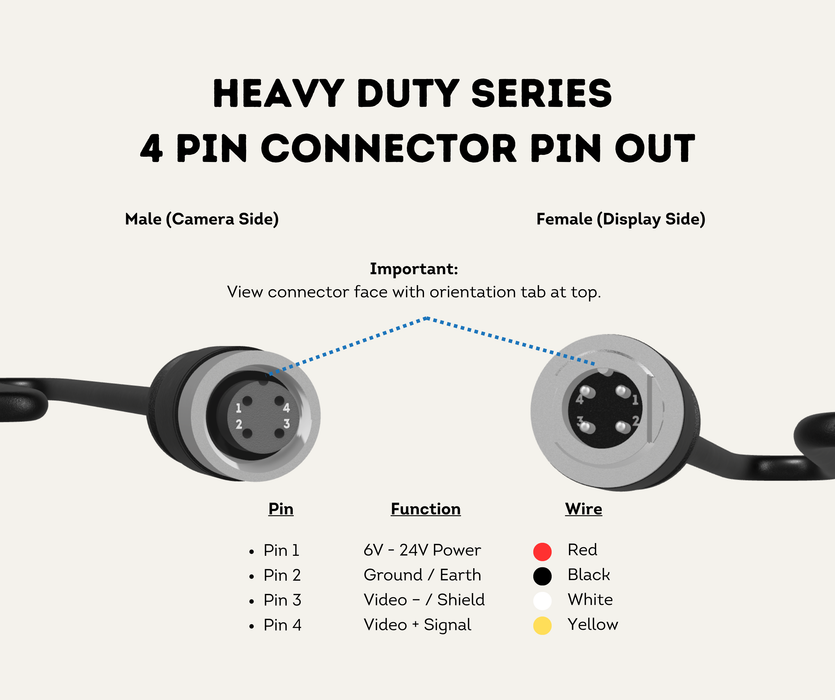

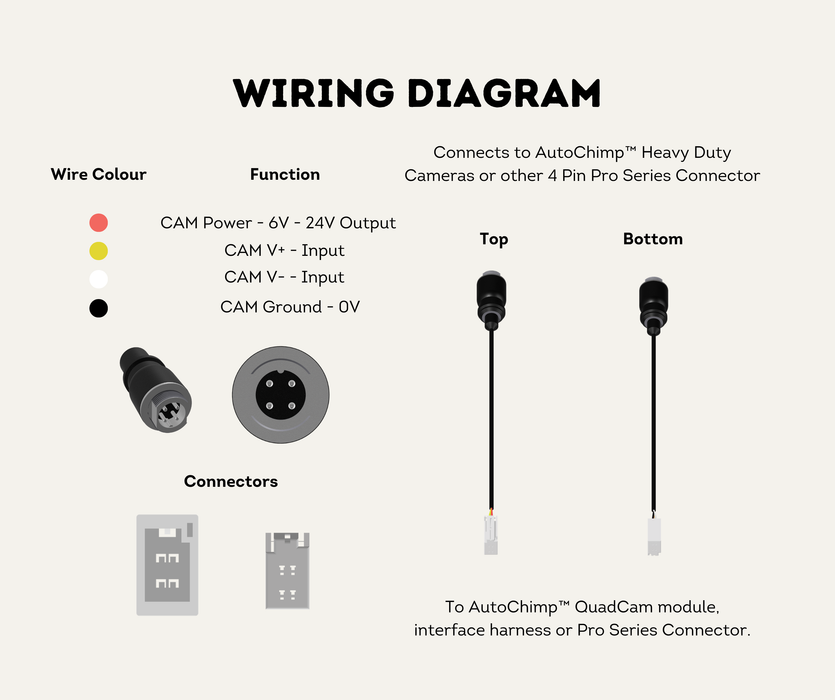

| Pin 1 | Camera Power — Red |
| Pin 2 | Ground / Earth — Black |
| Pin 3 | Video – / Shield — White |
| Pin 4 | Video + Signal — Yellow |
| Power Support | 6V–24V capable — the actual voltage is set by the connected system, not by the cable. 4-pin OEM screen inputs typically supply 6V. |
| Signal | Passive pass-through — no conversion; the camera's own video format is carried unchanged |
| Camera Compatibility | IR / IR-CUT enabled cameras supported |
| Durability | Weather-resistant, aviation-grade construction |
| Orientation Note | View the connector face with the orientation tab at the top when identifying pins |
Why Choose AutoChimp™
- Purpose-built adapter — no splicing, cutting or coding
- Professional-grade power and signal handling
- Industrial build quality for extreme environments
- Native compatibility with Toyota-style and Pro Series harnesses
- Designed and supported in Australia
- Fitment help before you buy — send us a photo of your camera connector
