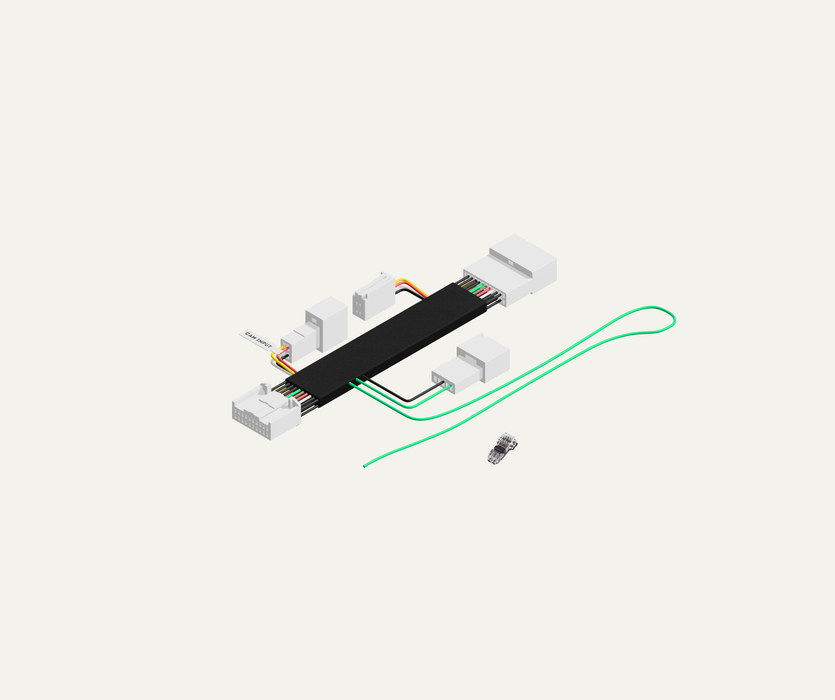

AutoChimp™ Reverse Camera Interface Harness for Toyota | 20-Pin Camera Integration & Reverse Trigger Signal Harness

SKU: AC-TOY-20PIN

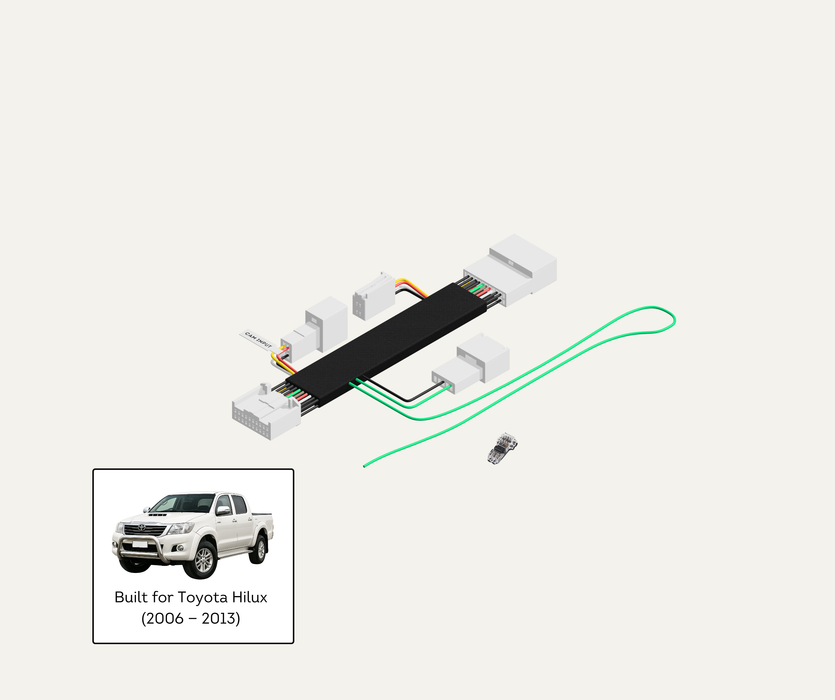

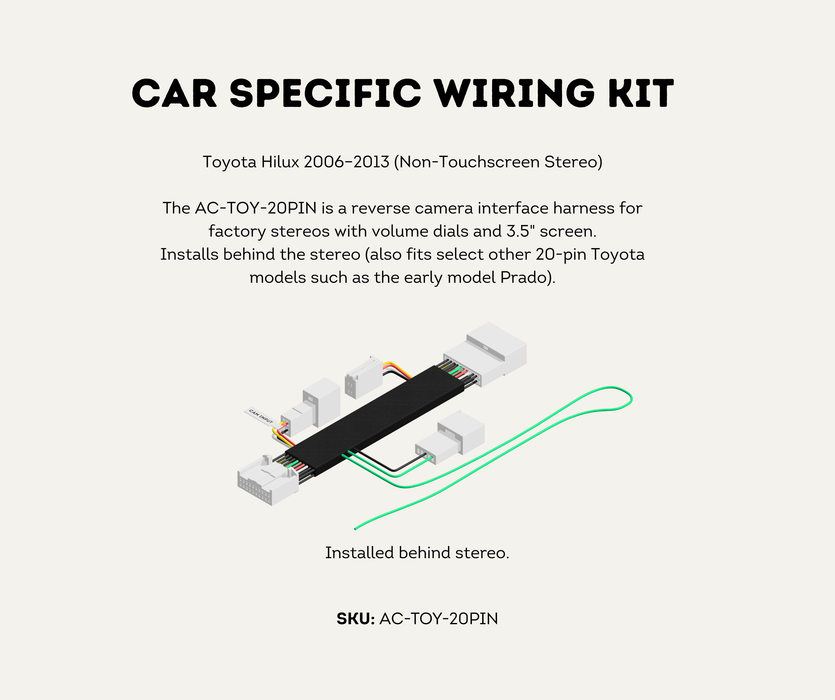

The AutoChimp™ AC-TOY-20PIN is a reverse camera interface harness for Toyota vehicles fitted with a non-touchscreen factory stereo — the 3.5" screen head units with TUNE/FILE and PWR/VOL dials. It installs inline behind the stereo using the OEM plugs on the vehicle, so a reverse camera can be added to the factory screen with no splicing, coding or dash cutting.

The harness T-pieces into the factory loom and breaks out a 4-pin camera plug pair carrying 6V camera power and composite video. A green trigger wire with an AutoChimp™ SnapTap connector picks up the reverse signal at the driver's side fuse box for vehicles without a reverse pin at the head unit. Completely plug & play and fully reversible.

Key Features

• Plug & Play 20-Pin Stereo Connection – Installs inline behind the factory stereo on the Toyota 20-pin connector.

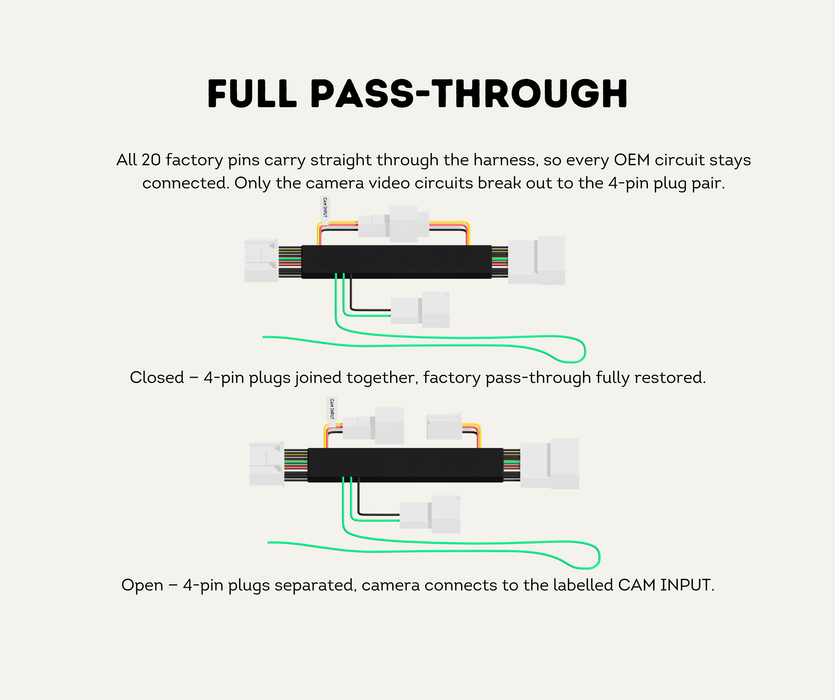

• Full Pass-Through Design – All 20 factory pins carry straight through the harness, so every OEM circuit stays connected. Only the camera video circuits break out to the 4-pin plug pair.
• Integrated 6V Camera Power – Powers AutoChimp™ Pro Series and Heavy Duty Series cameras directly, no separate supply needed.
• Reverse Trigger Included – 500mm green wire with AutoChimp™ SnapTap connector taps the reverse signal at the driver's side fuse box.
• Two Ways to Take the Reverse Signal – On vehicles that already have a factory reverse plug available at the stereo, the reverse signal plugs straight into the 5-pin connector, so no fuse box tap is needed.
• Fully Reversible – Join the 4-pin plugs back together and factory pass-through is fully restored, returning the vehicle to standard.
• Matched to Factory Video Format – Built for CVBS (NTSC/PAL) output, which is the format the OEM Toyota stereos use.

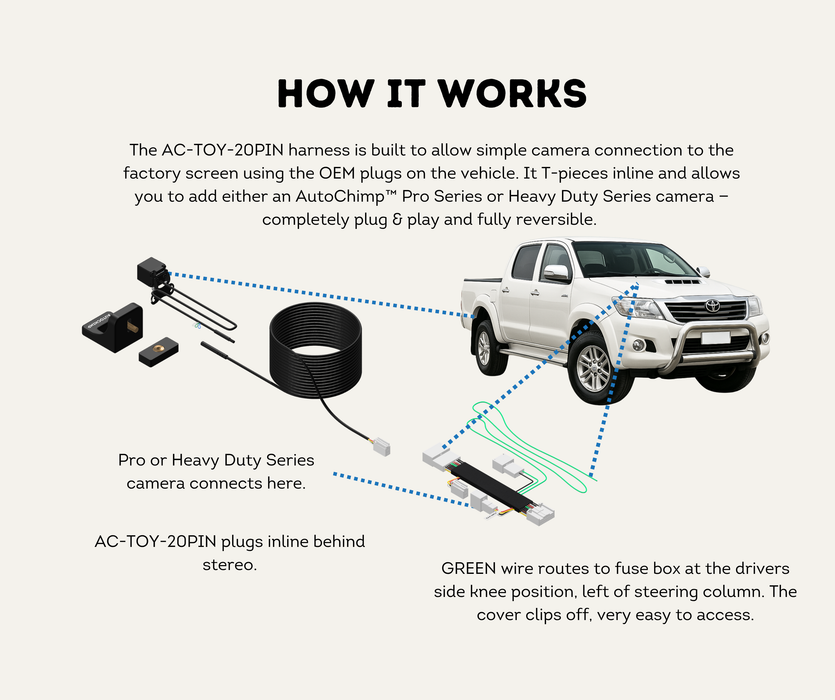

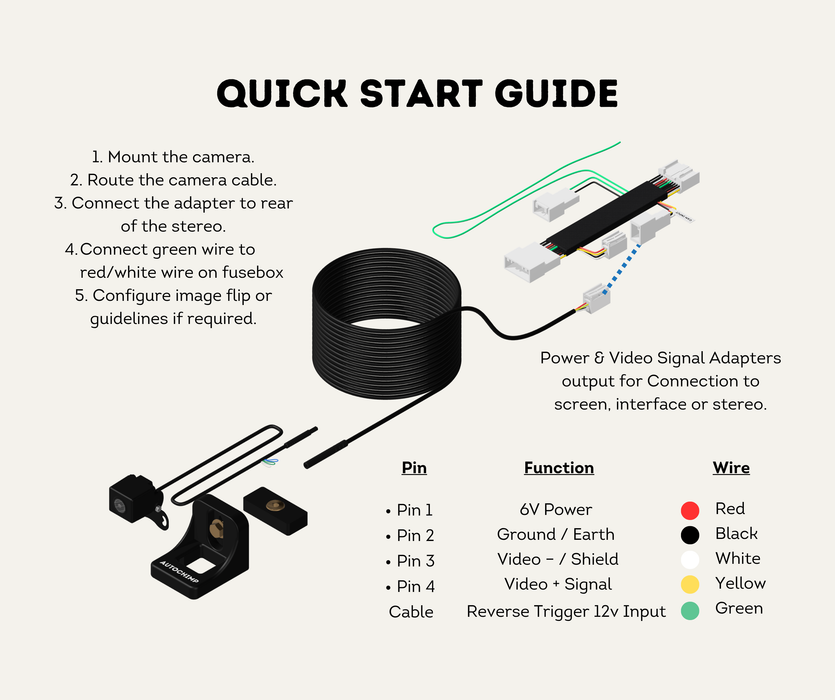

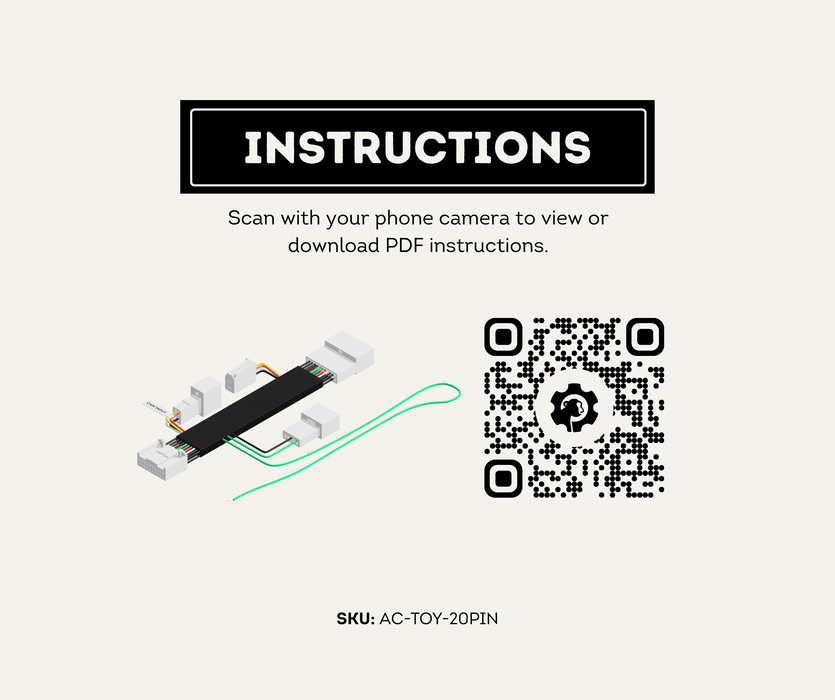

How It Works

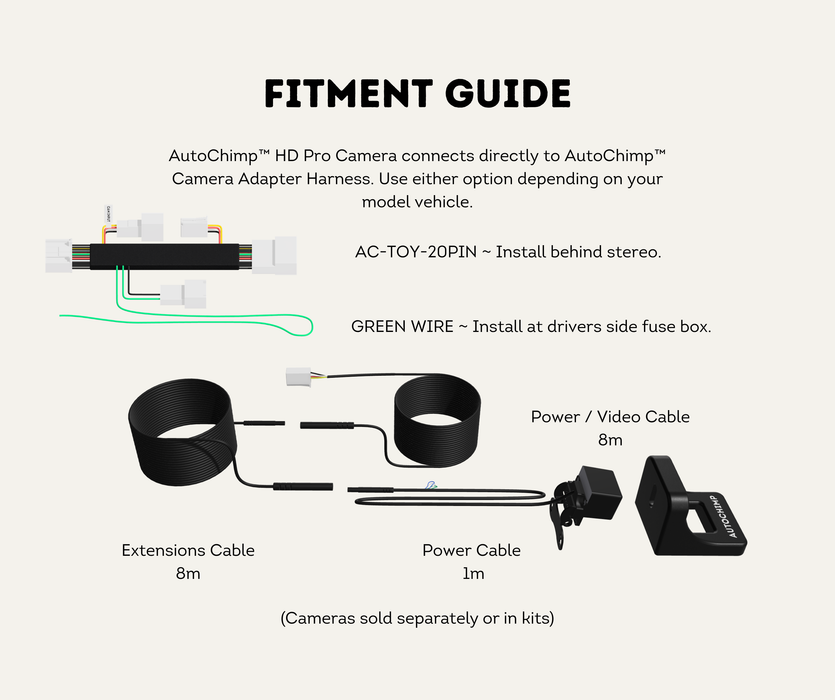

• The AC-TOY-20PIN plugs inline behind the stereo, between the factory loom and the head unit.
• An AutoChimp™ Pro Series or Heavy Duty Series camera connects to the labelled CAM INPUT on the 4-pin plug pair.

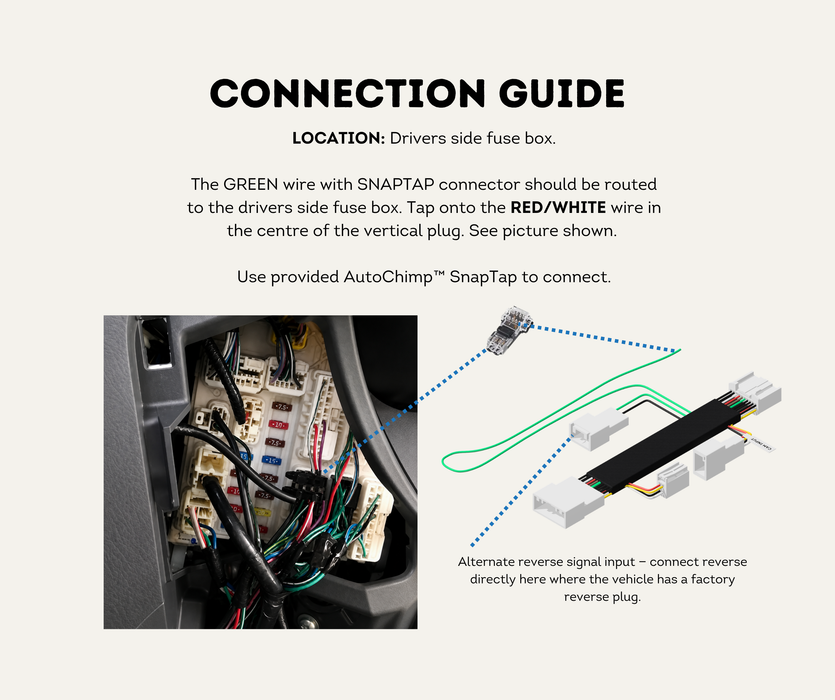

• The green wire routes to the fuse box at the driver's side knee position, left of the steering column. The cover clips off for easy access.
• Using the supplied SnapTap, tap the green wire onto the RED/WHITE wire in the centre of the vertical plug. The camera view then appears on the factory screen when reverse is selected.
• If the vehicle already has a factory reverse plug available at the stereo, the reverse signal can instead be plugged directly into the harness 5-pin connector — the green wire and fuse box tap are then not needed.

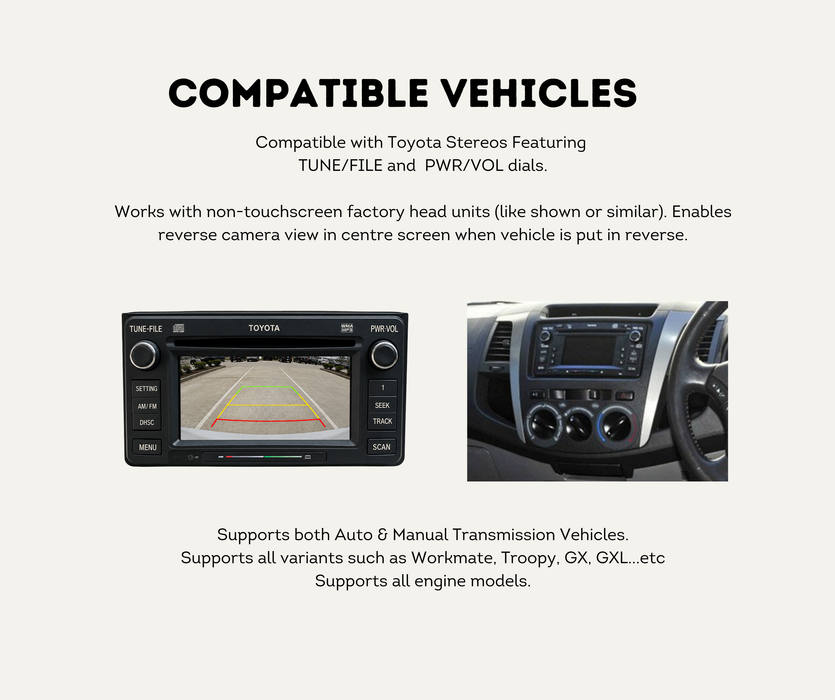

Vehicle Compatibility

• Toyota Hilux (2006–2013) – with the factory non-touchscreen 3.5" stereo
• Also fits other Toyota models of the same era running the same 20-pin stereo chassis, including the Camry and RAV4, and the early model Prado
• Supports both automatic and manual transmission vehicles
• Supports all variants — Workmate, GX, GXL and similar — and all engine models

If you are unsure, send us a photo of your stereo and we will confirm fitment.

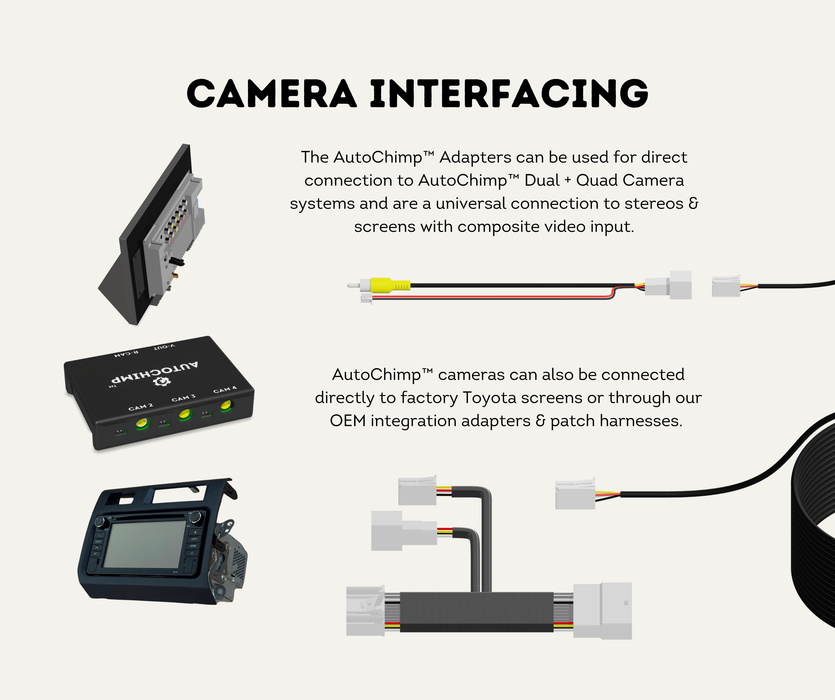

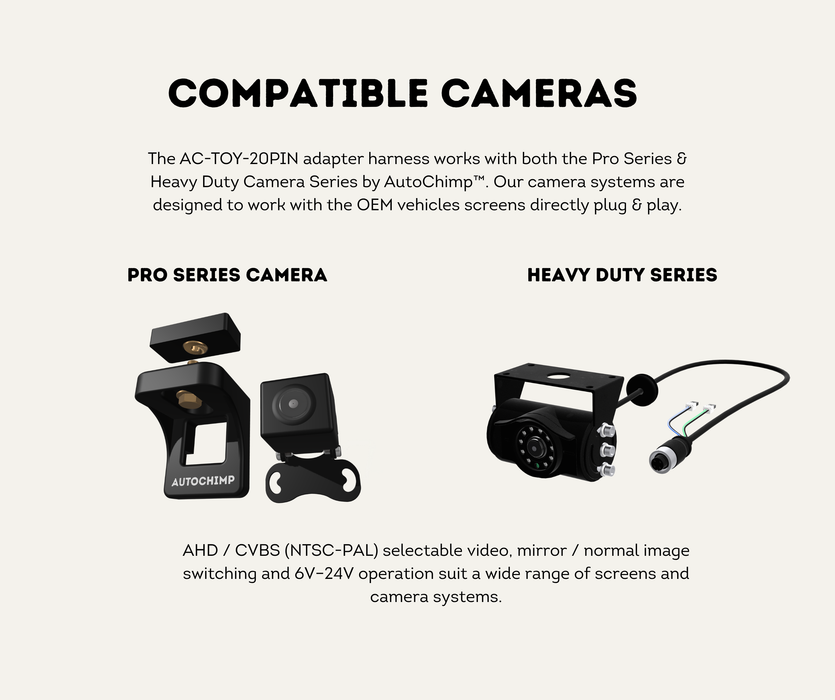

Compatible Cameras

• AutoChimp™ Pro Series Camera – HD CVBS output (NTSC/PAL), clear image in daytime and low light
• AutoChimp™ Heavy Duty Series Camera – AHD / CVBS (NTSC-PAL) selectable video, mirror / normal image switching, 6V–24V operation
• Also available as a complete kit: AC-TOY-RC1 Reverse Camera Kit for Toyota Hilux (2006–2013)

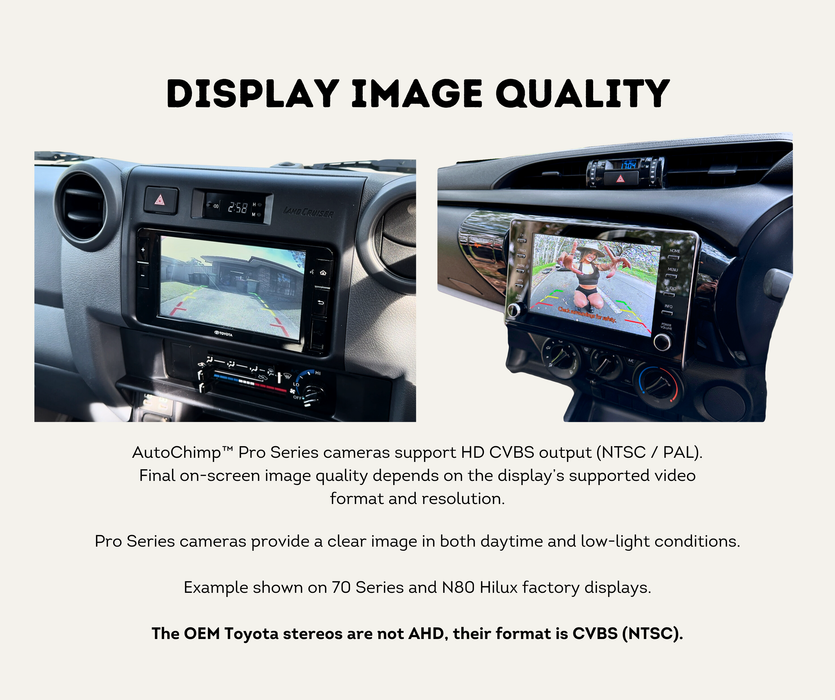

Final on-screen image quality depends on the display's supported video format and resolution. Cameras are sold separately or as part of a kit.

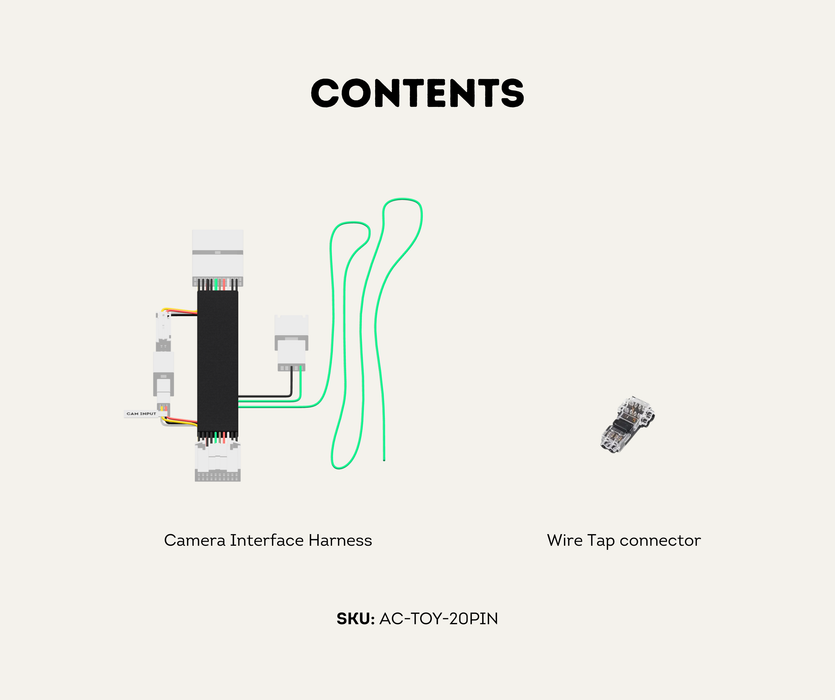

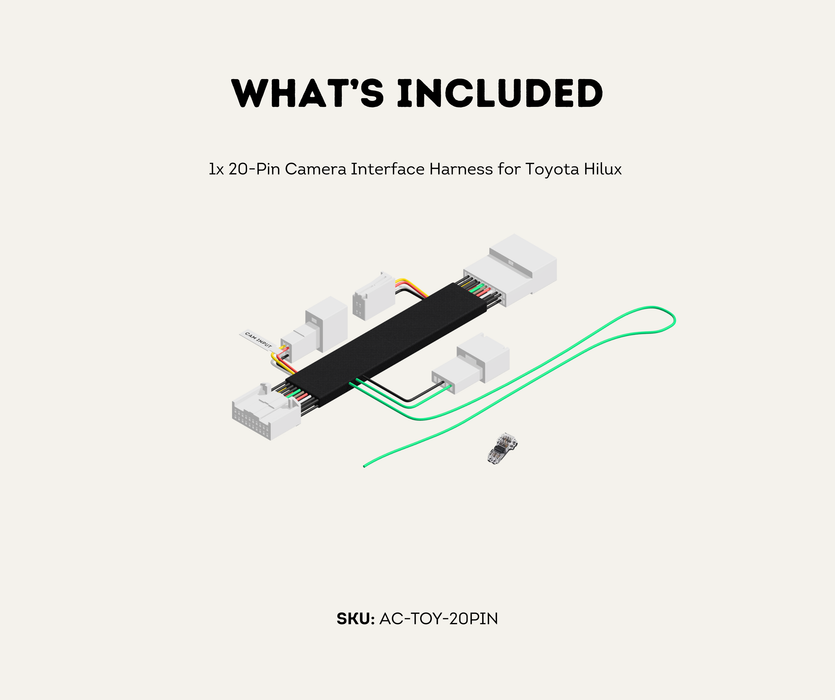

What's Included

• 1x AutoChimp™ 20-Pin Camera Interface Harness (AC-TOY-20PIN)
• 1x AutoChimp™ SnapTap wire tap connector

Technical Specifications

• Connector Type: 20-Pin Toyota stereo harness (full pass-through)

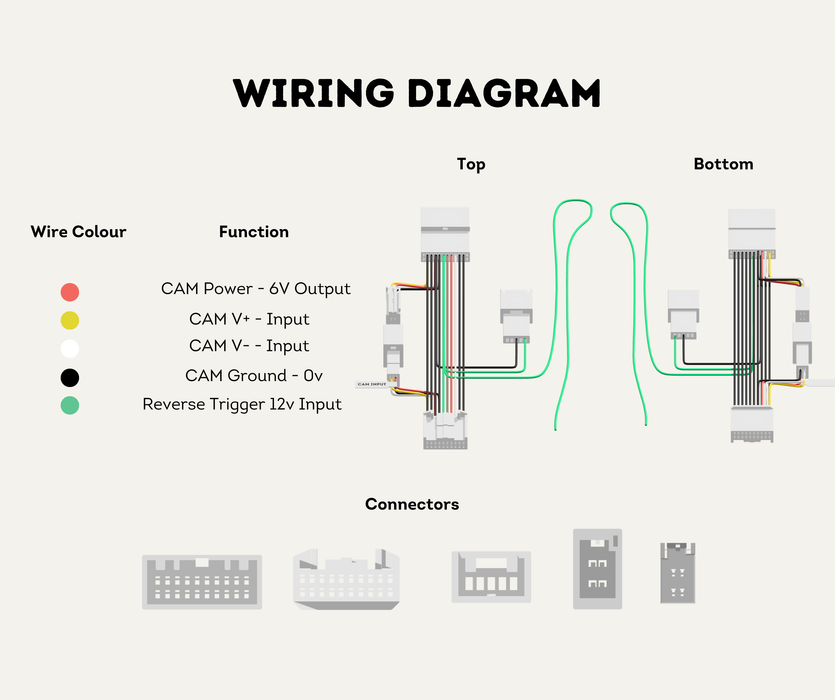

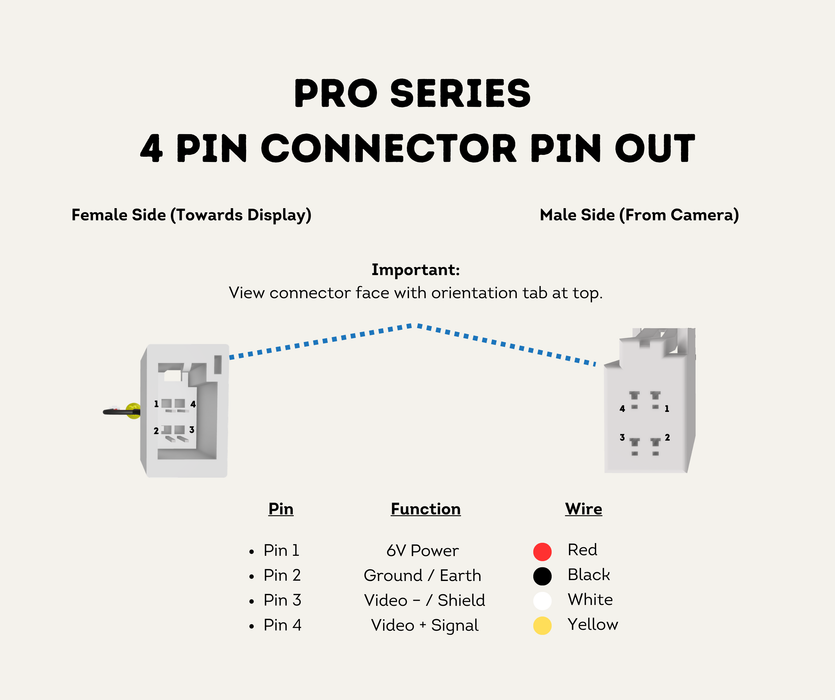

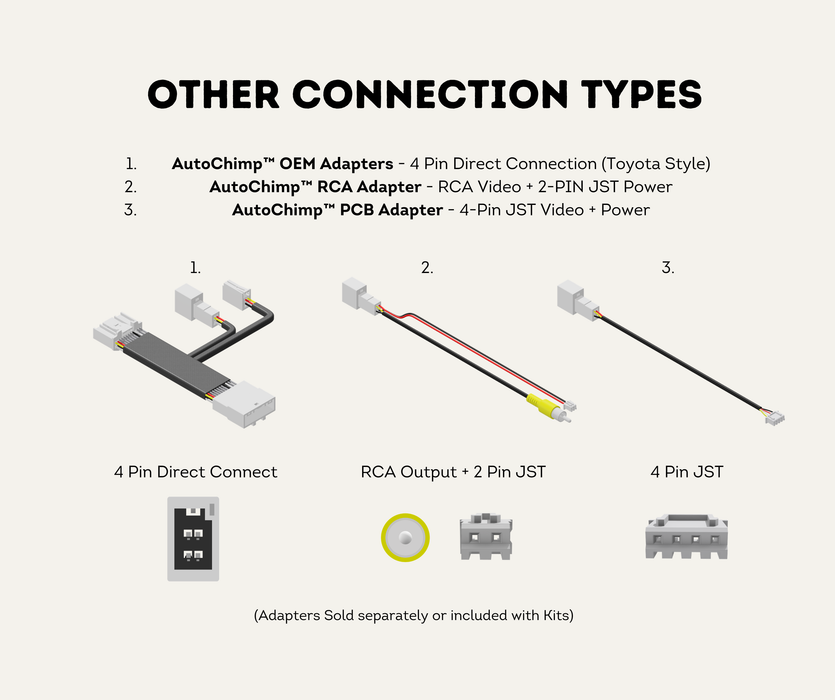

• Camera Connector: 4-Pin — Pin 1 6V Power (Red), Pin 2 Ground (Black), Pin 3 Video – / Shield (White), Pin 4 Video + Signal (Yellow)
• Camera Power: 6V output
• Video Format: CVBS (NTSC / PAL)
• Reverse Trigger: 12V input via green wire to driver's side fuse box (Red/White wire)
• Alternate Reverse Input: 5-Pin connector — accepts the reverse signal directly where the vehicle has a factory reverse plug at the stereo

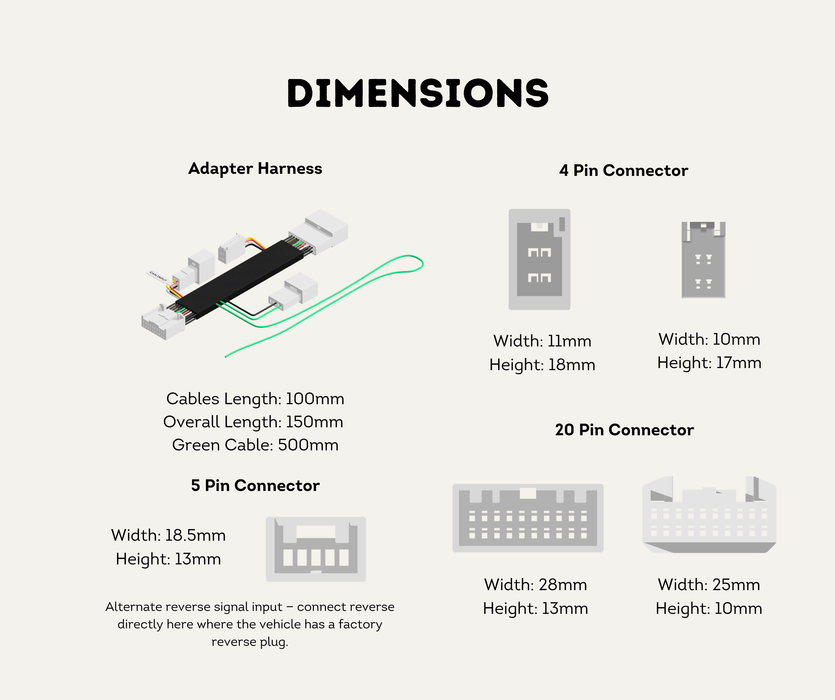

• Cable Lengths: Cables 100mm · Overall 150mm · Green trigger cable 500mm

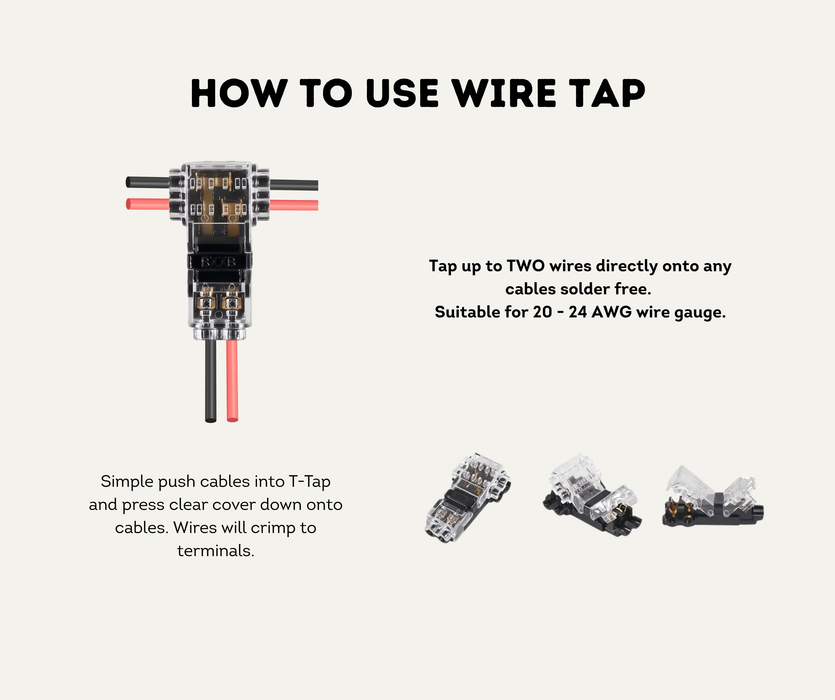

• Wire Tap: Suits 20–24 AWG wire, solder free, taps up to two wires

Why Choose AutoChimp™

• Vehicle-specific harness — no splicing, cutting or guesswork
• Fully reversible, returns the vehicle to factory condition
• Designed and supported in Australia
• Fitment help before you buy — send us a photo of your stereo
