AutoChimp™ QuadCam Harness for Suzuki Jimny / Jimny XL (2025-Onwards)

SKU: AC-QUAD-HRN-SUZUKI-2025
Compatible With: AutoChimp™ QuadCam System | 4-Camera Integration

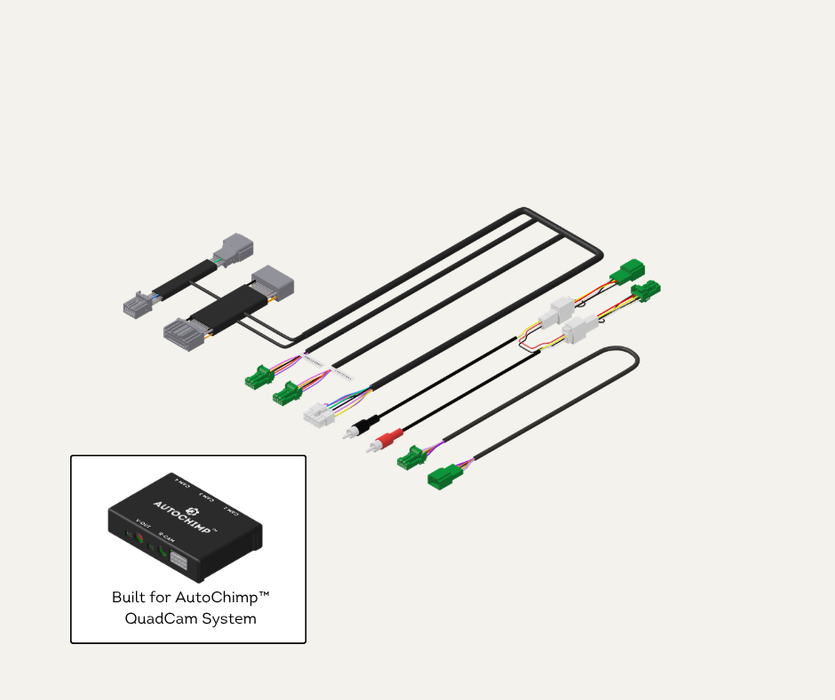

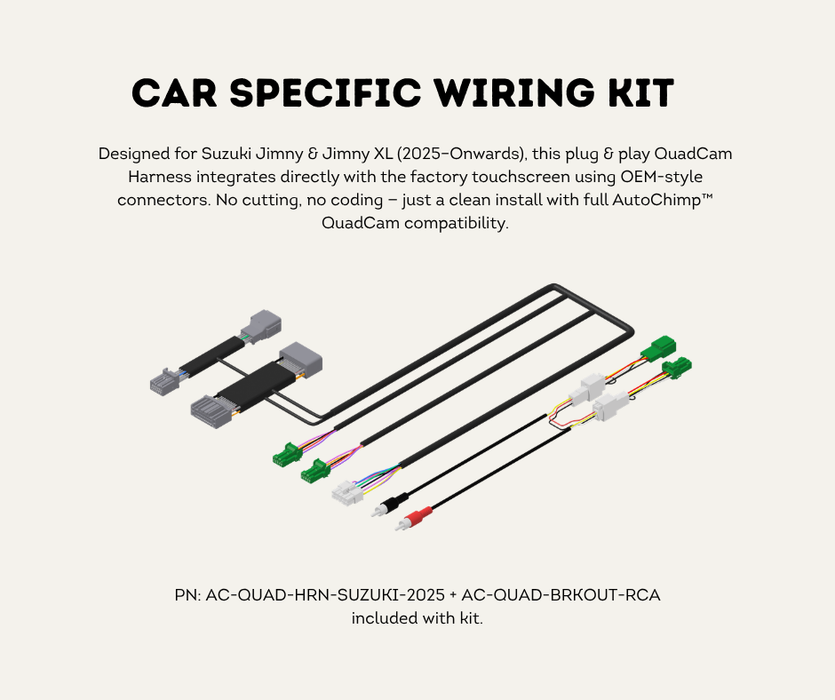

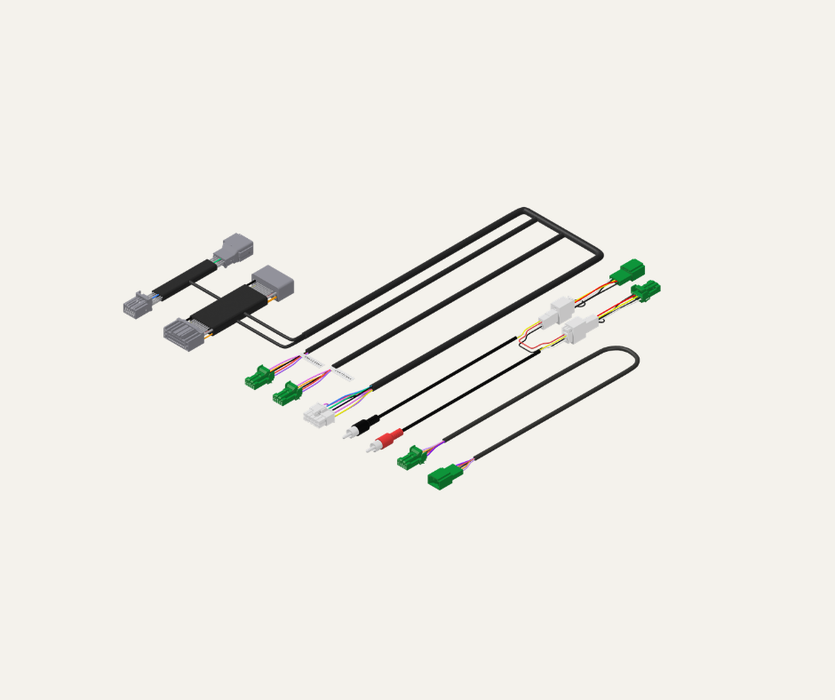

The AutoChimp™ QuadCam Harness for Suzuki Jimny / Jimny XL (2025-Onwards) is a vehicle-specific plug & play T-Harness designed for the newer OEM touchscreen platform used in 2025-onwards Suzuki Jimny and Jimny XL models.

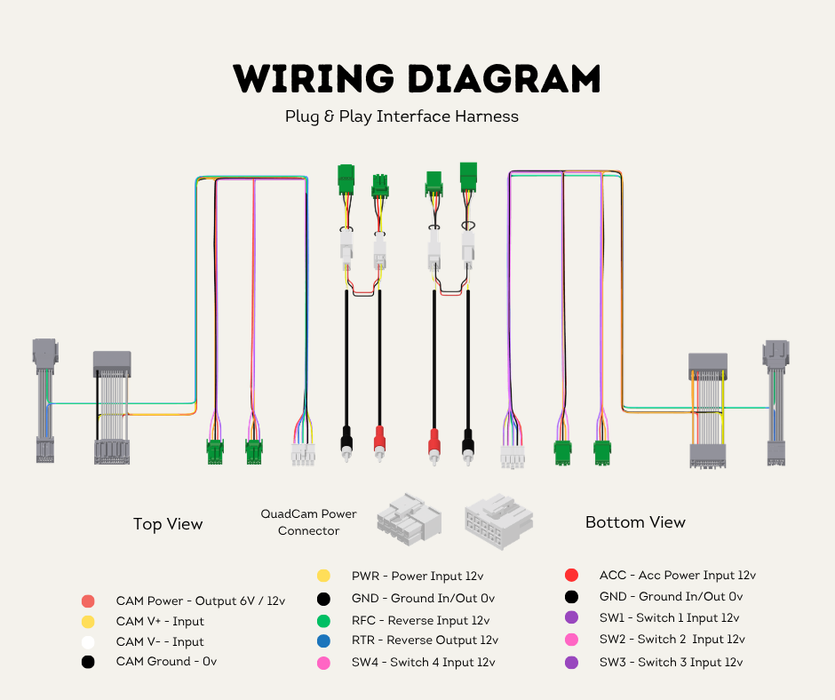

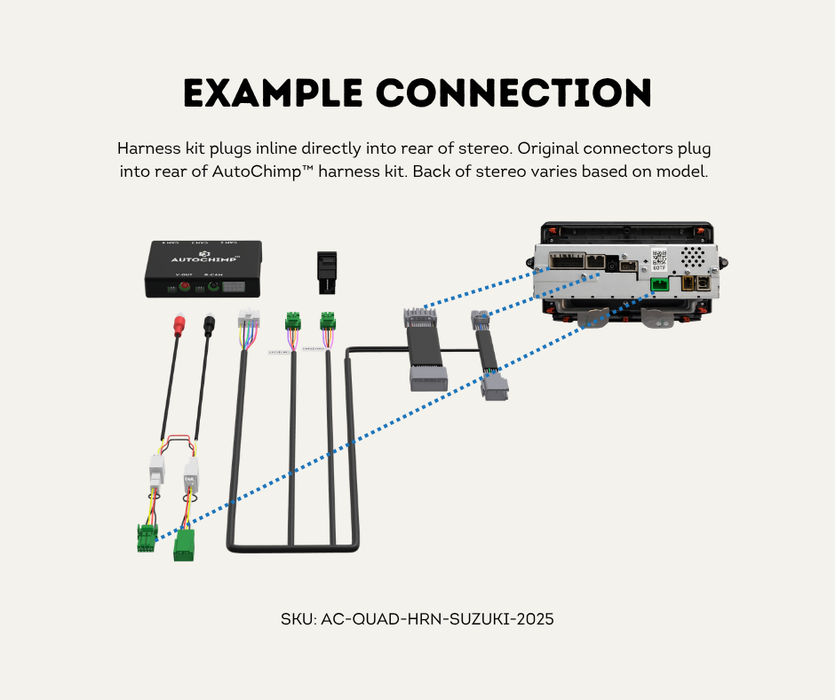

Developed around the factory stereo and reverse camera system, this harness provides clean integration for the AutoChimp™ QuadCam System without cutting or modifying OEM wiring. It is built around a 24-pin main T-Harness for power, accessory, illumination, and earth, plus a 12-pin reverse trigger T-Harness. Camera video integration follows the same 4-pin to 5-pin connector format used in the AutoChimp Isuzu QuadCam harness family, then interfaces to the AutoChimp™ BreakOut Harness for RCA video routing.

This harness is specifically written for the 2025-onwards Jimny / Jimny XL factory touchscreen shown in the product images — the floating OEM touchscreen with touch icons along the lower edge and factory reverse camera.

Key Features

• Vehicle-specific plug & play T-Harness
• Designed for 2025-onwards Suzuki Jimny and Jimny XL
• Retains the factory reverse camera path

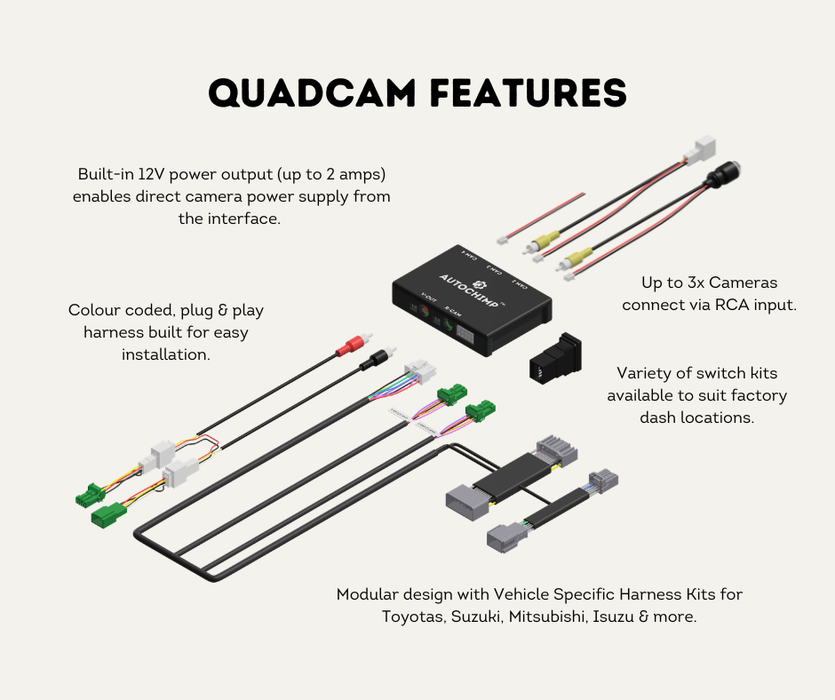

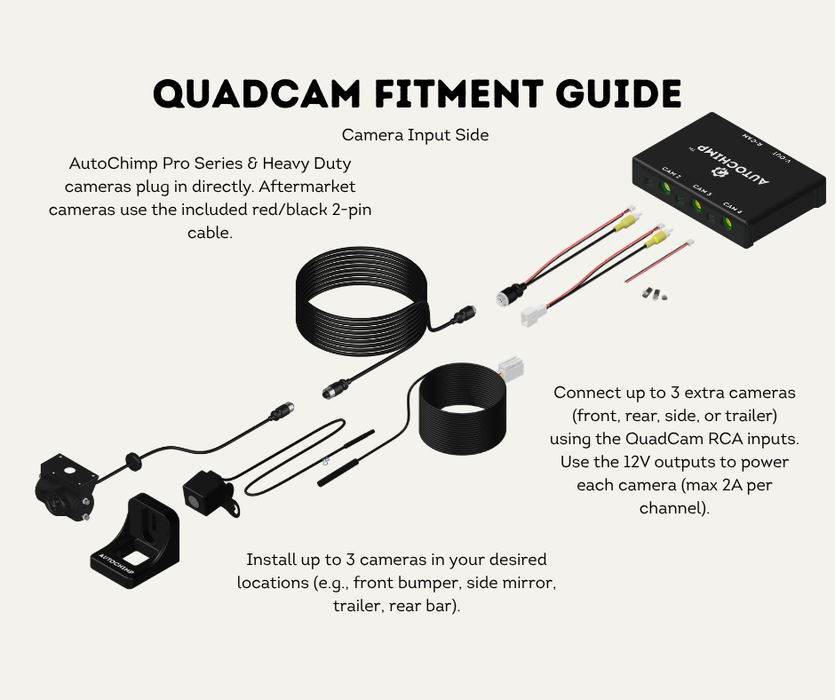

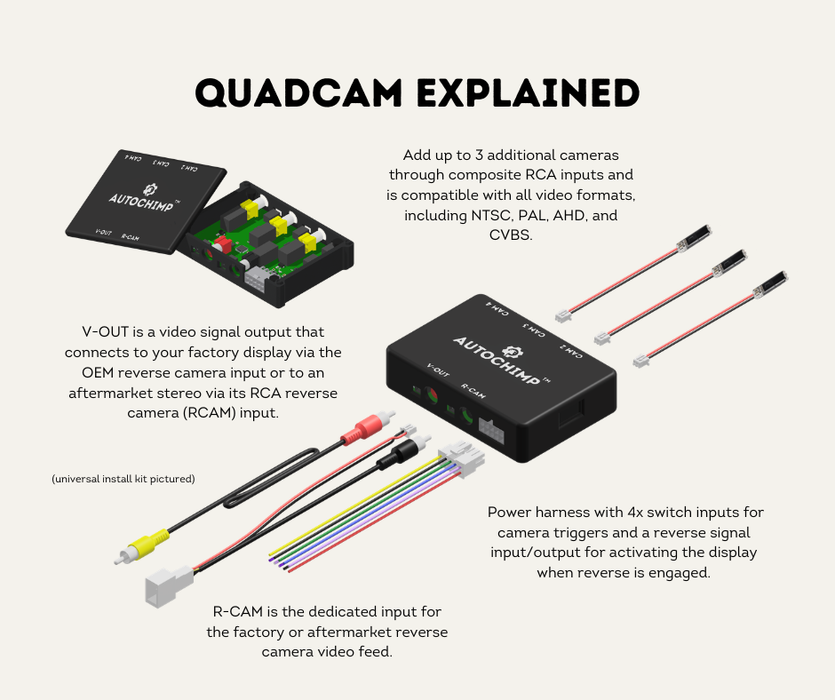

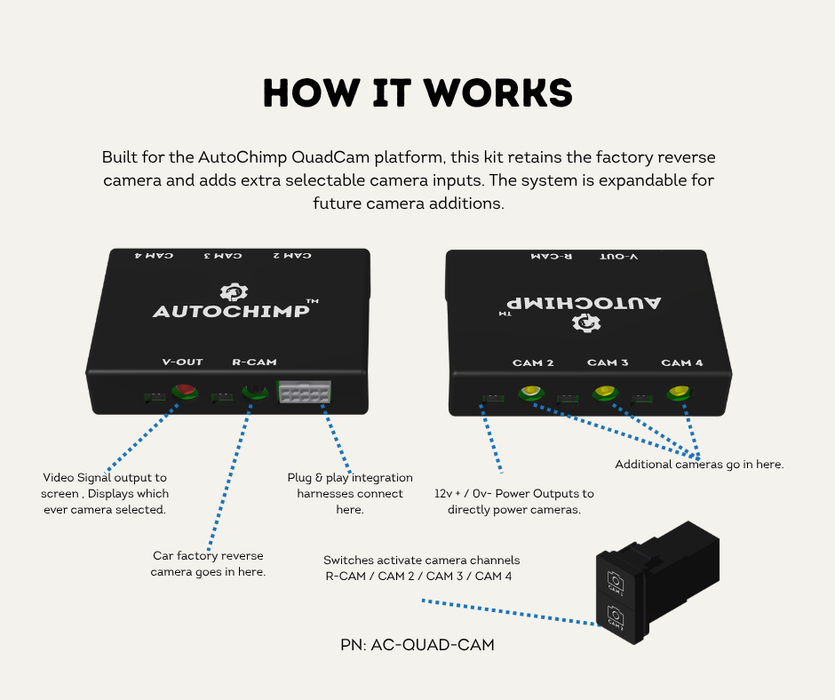

• Integrates with the AutoChimp™ QuadCam System
• 24-pin main T-Harness for power, ACC, illumination, and earth
• 12-pin reverse trigger T-Harness for OEM reverse signal integration
• Same 4-pin to 5-pin camera signal connector strategy used in the AutoChimp Isuzu QuadCam harness family
• No factory wire cutting, coding, or permanent modification required
• Correct base harness for future Jimny front, dual, and quad camera product expansion

Vehicle Compatibility

• Suzuki Jimny
• Suzuki Jimny XL
• 2025-onwards

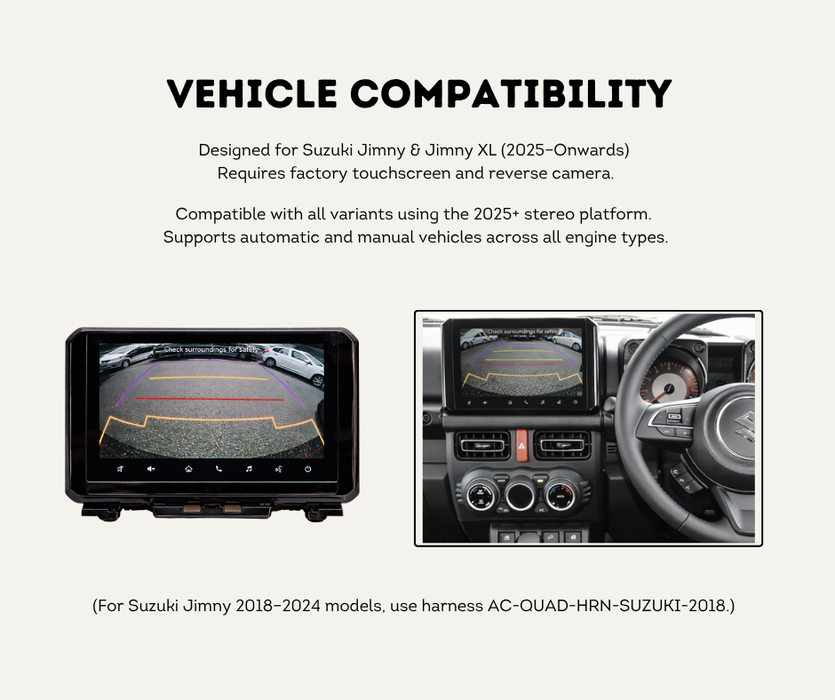

• Must have the factory touchscreen shown in the listing images
• Factory reverse camera required
• Australian-delivered vehicles validated against this stereo type

Important Notes

• Not compatible with 2018–2024 Suzuki Jimny / Jimny XL
• 2018–2024 models use a different stereo connection and require a separate harness family
• This listing is for the harness only

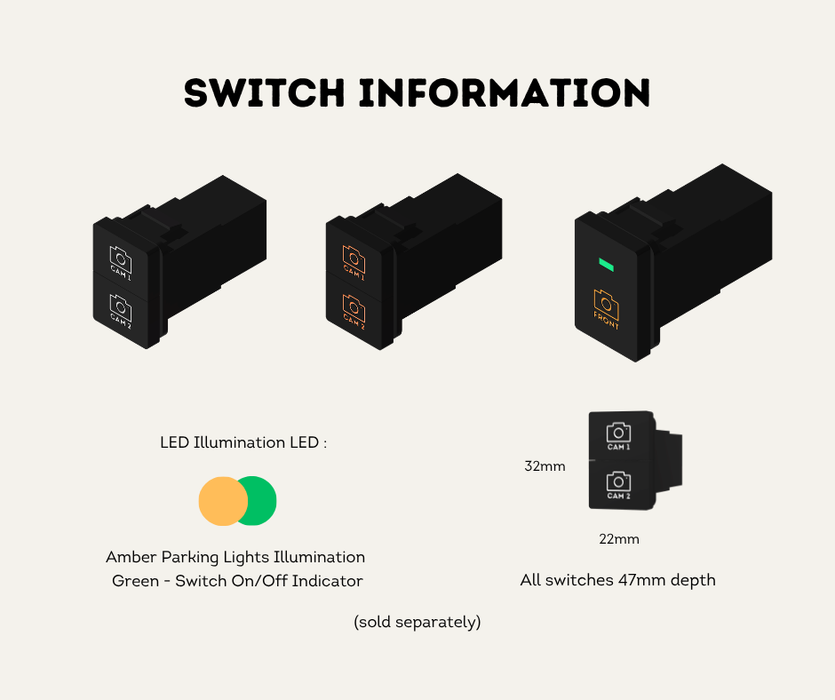

• QuadCam module, BreakOut Harness / RCA adapter, switches, and cameras are not included
• If the vehicle has a different OEM screen or plug layout from the product images, this harness should not be listed as compatible

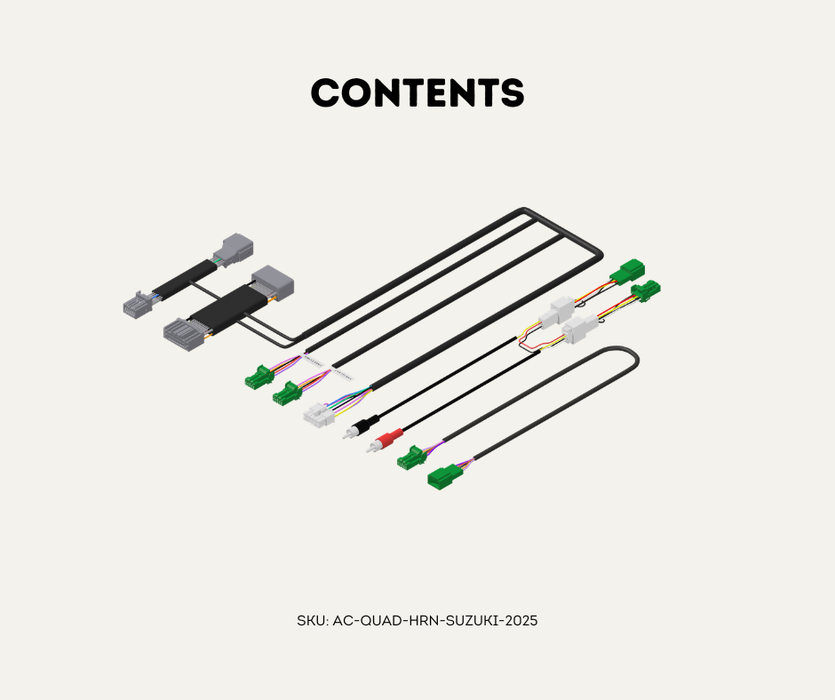

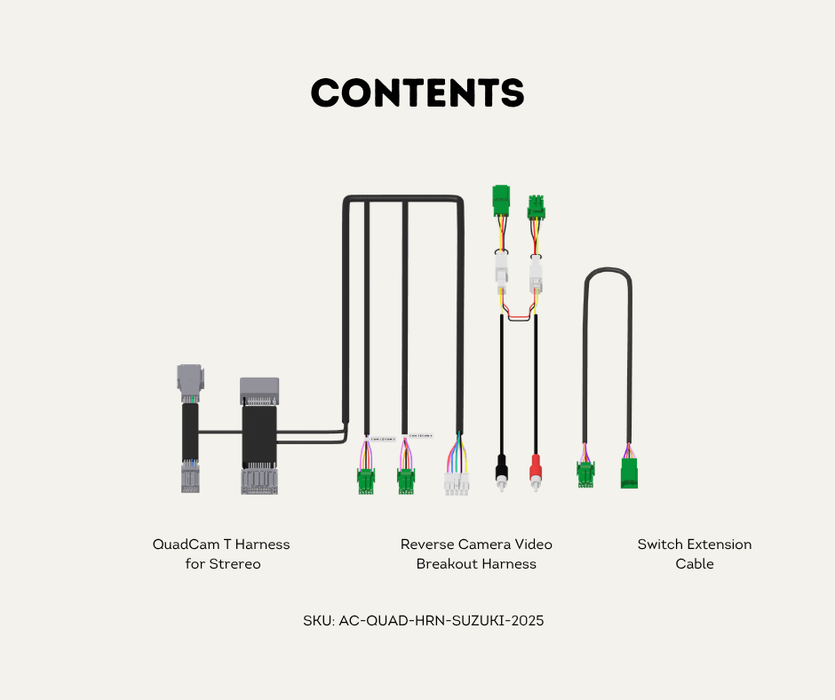

What’s Included

• 1x AutoChimp™ QuadCam Harness for Suzuki Jimny / Jimny XL (2025-Onwards)
• 1x 24-pin main T-Harness section
• 1x 12-pin reverse trigger T-Harness section
• Integrated camera signal loom for AutoChimp BreakOut Harness connection
• 1x digital installation guide


Technical Specifications

• Vehicle platform: Suzuki Jimny / Jimny XL (2025-onwards)
• Screen requirement: newer OEM factory touchscreen as pictured
• Factory reverse camera: required

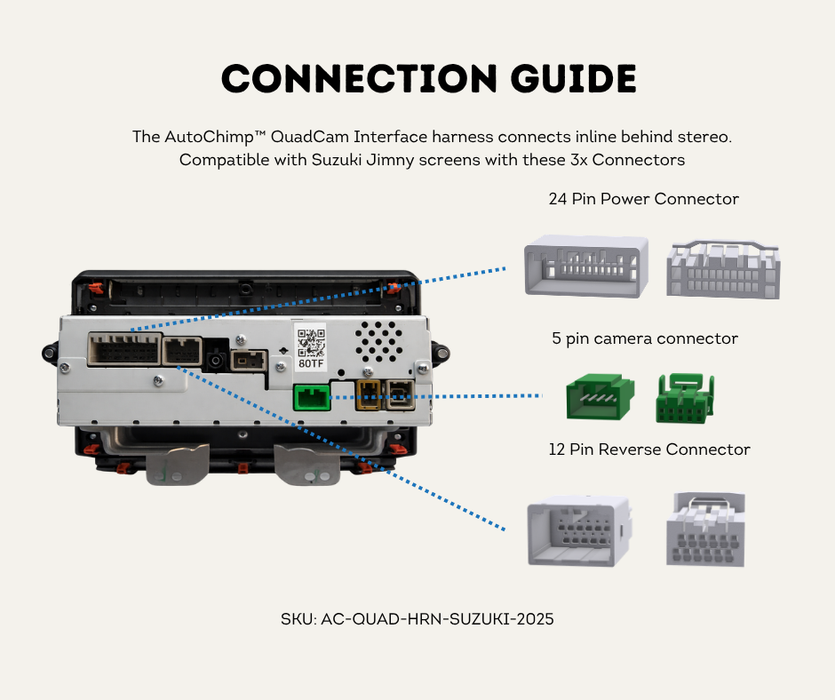

• Main connection: 24-pin main T-Harness
• Reverse signal connection: 12-pin reverse trigger T-Harness

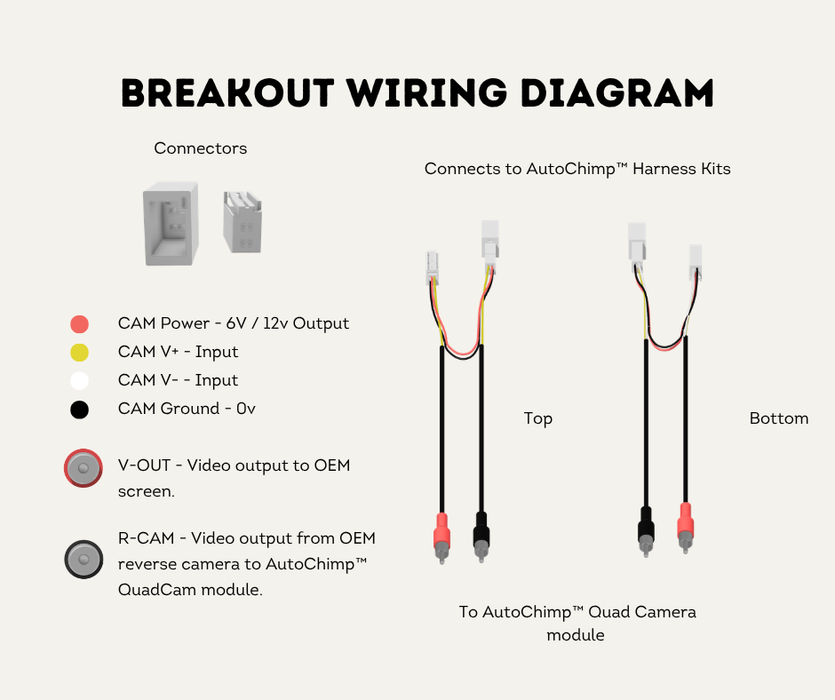

• Camera signal path: 4-pin to 5-pin camera connector interface
• Video routing: interfaces with AutoChimp™ BreakOut Harness / RCA input path

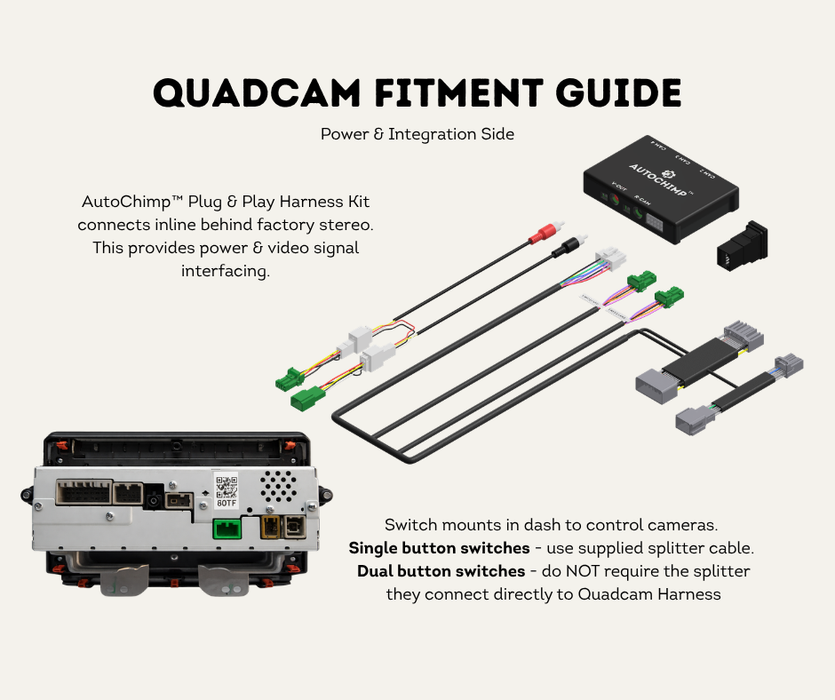

• Installation location: behind factory stereo / dash cavity
• Harness type: plug & play automotive-grade loom

Why Choose This Harness

• Built specifically around the 2025-onwards Jimny / Jimny XL stereo platform
• Correct foundation for AutoChimp™ multi-camera expansion
• Clean OEM integration without modifying factory wiring
• Separates the newer platform correctly from the older 2018–2024 stereo family
• Keeps Jimny and Jimny XL under one validated harness SKU where the tested stereo platform is shared
